Specialized Piece of Equipment Designed for Handling Glass Sheets in a Production Line

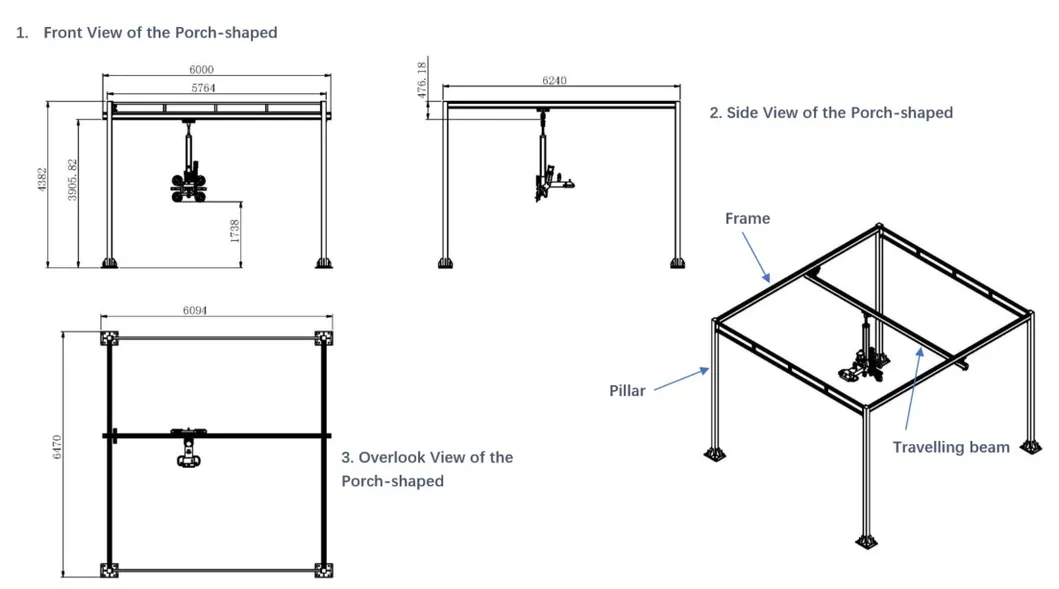

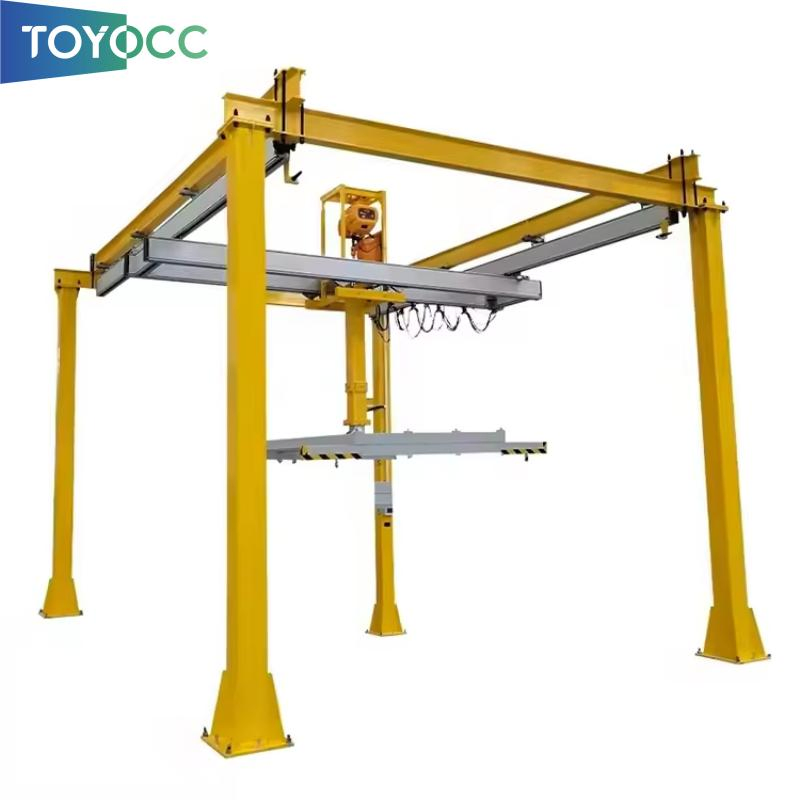

The design features an outlook resembling a porch. The vacuum lifter runs along the traveling beam of the porch, which in turn moves along the main beam of the frame.

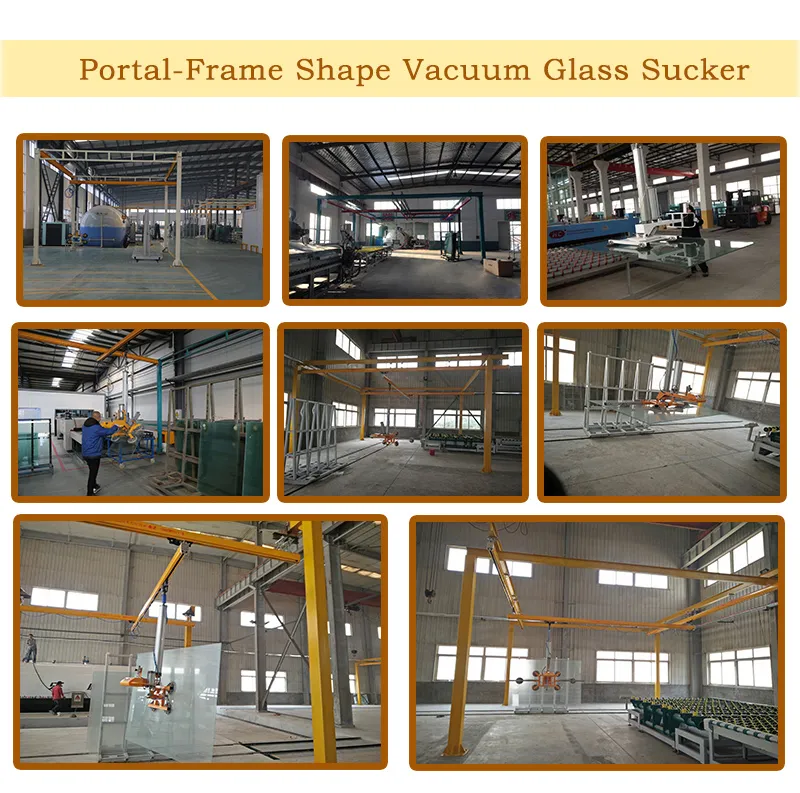

This system is widely used in insulating glass lines, lamination lines, vertical CNC stations, tempering lines, and cutting lines. It offers significant advantages such as space-saving, stable operation, manpower reduction, and large area coverage.

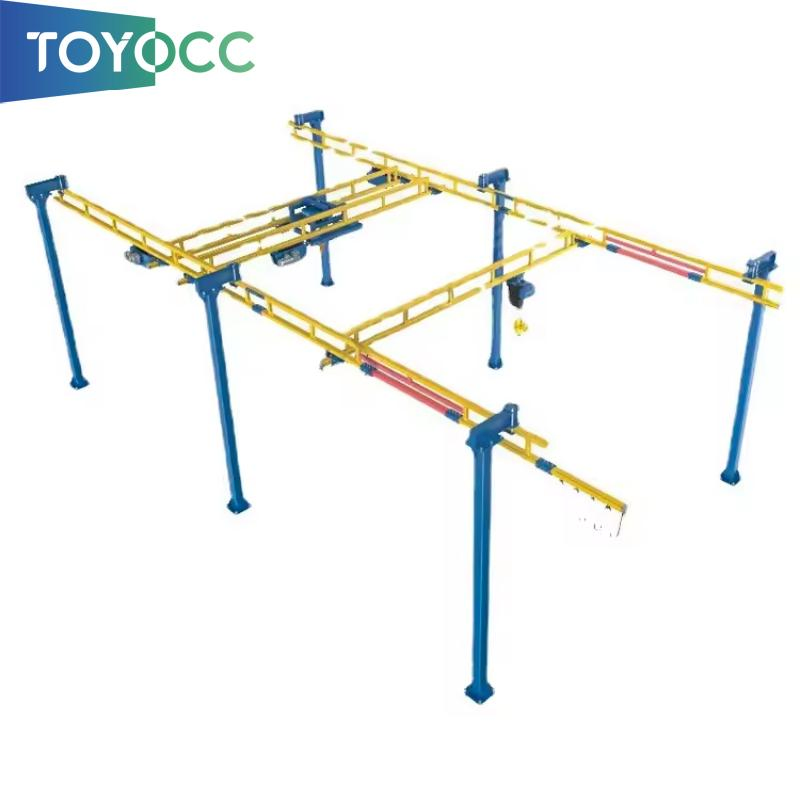

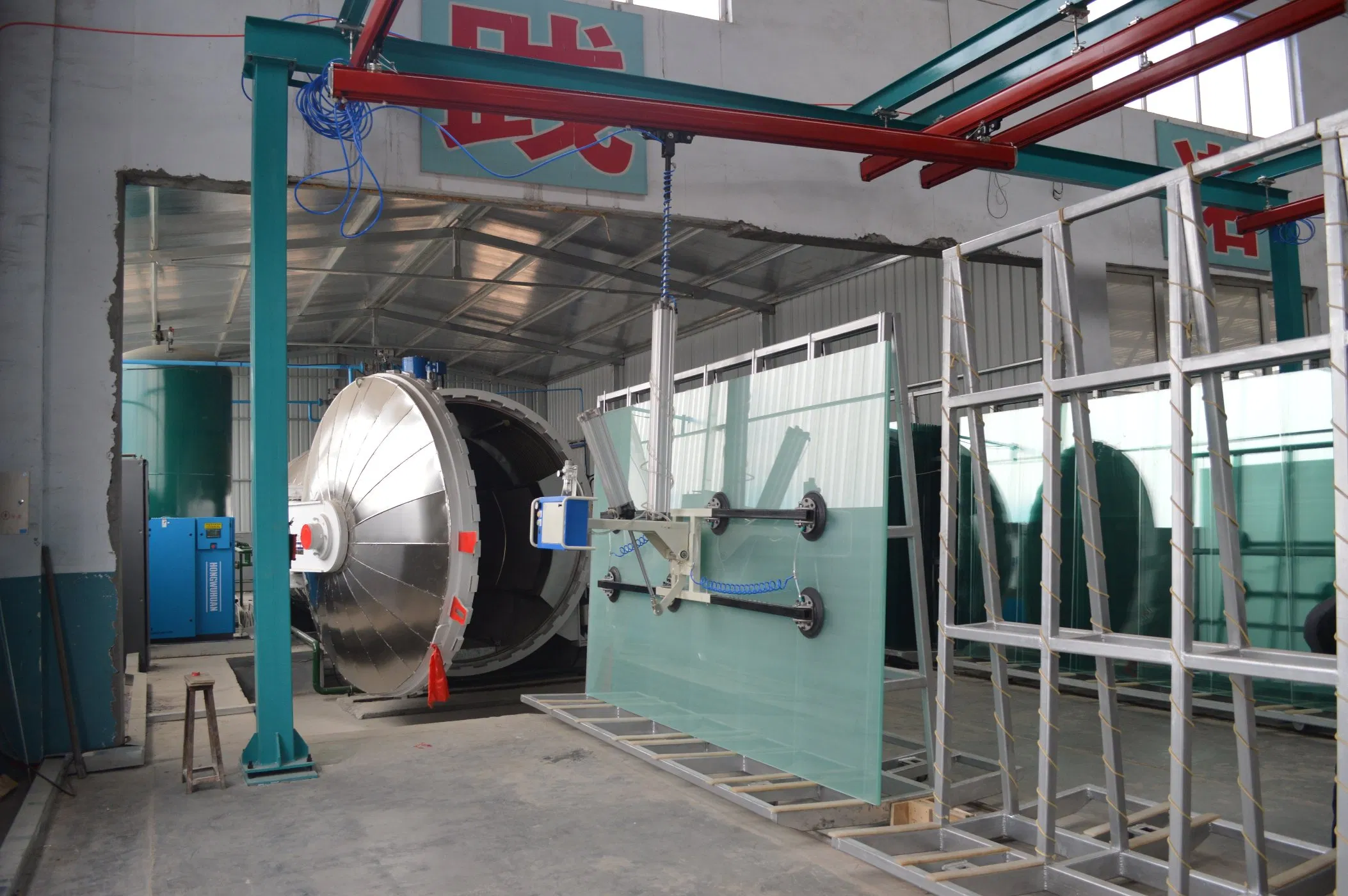

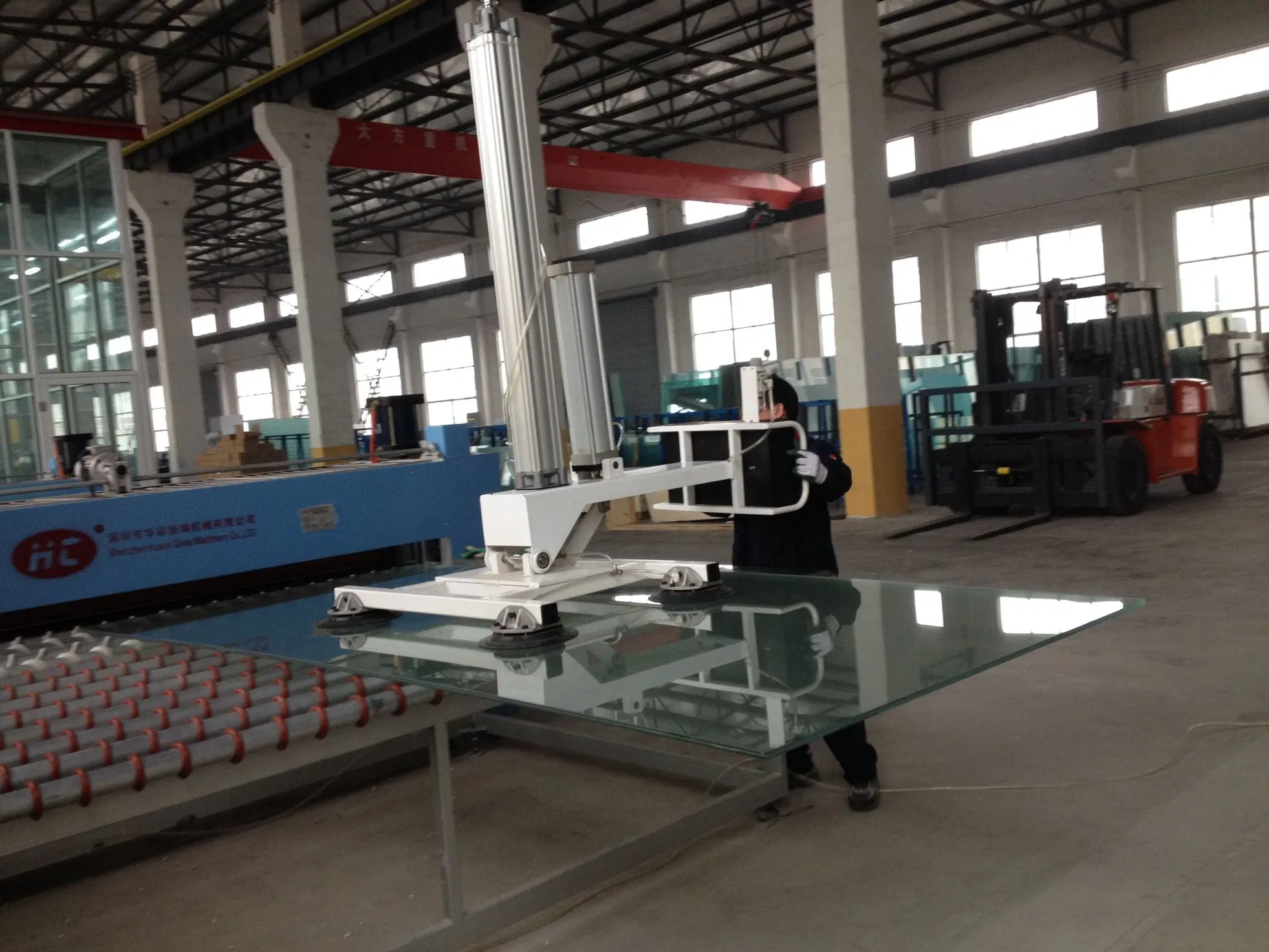

The Porch-Shaped Overhead Crane efficiently positions your glass sheet on the production line. Equipped with a vacuum lifter, it allows a single worker to lift, rotate, and turn over glass sheets with ease.

Vacuum glass lifters are essential for safety and efficiency in factory glass handling and outdoor installation. This equipment reduces the personnel required and minimizes the risk of injury. Glass is moved safely and stacked without extra personnel in the unloading area.

Our systems utilize high-quality components, including Thomas brand vacuum pumps and SMC control systems. The specialized silicone vacuum pads are designed to remain crack-free at -20 degrees and resist high temperatures up to 90 degrees.

For enhanced safety, if power is cut or an air pipe bursts, the control system automatically locks the vacuum, ensuring the glass remains held for 10-15 minutes.

• Customized pillar height, frame length, and traveling beam width.
• Customized safe working load capacity.

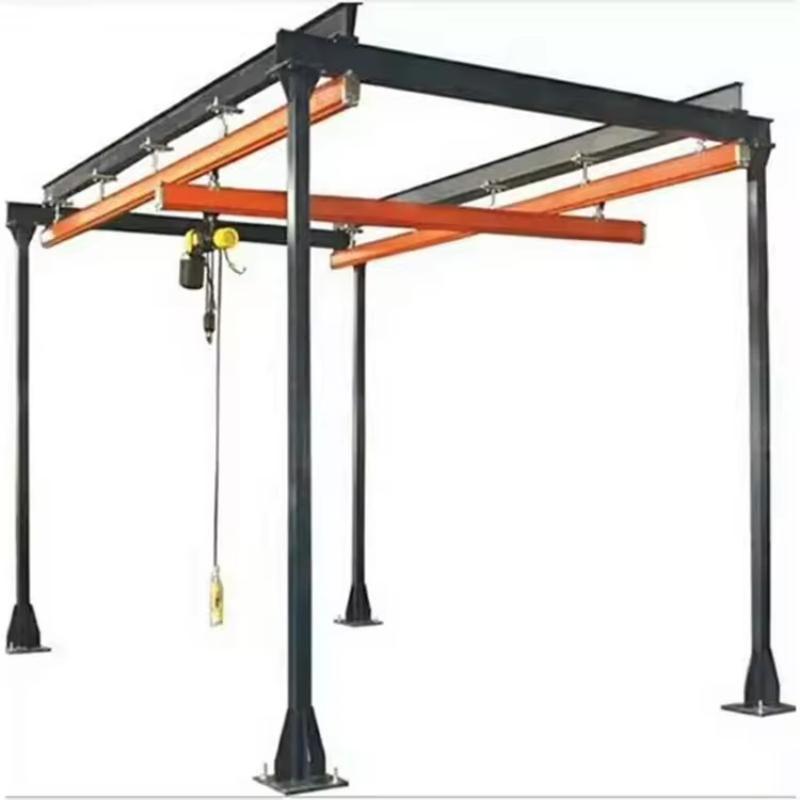

• Compatible with both vacuum lifters and traditional hoists.
• Extension vacuum lifter arms available for various configurations.
• Imported vacuum pads with temperature resistance from -20°C to 90°C.
