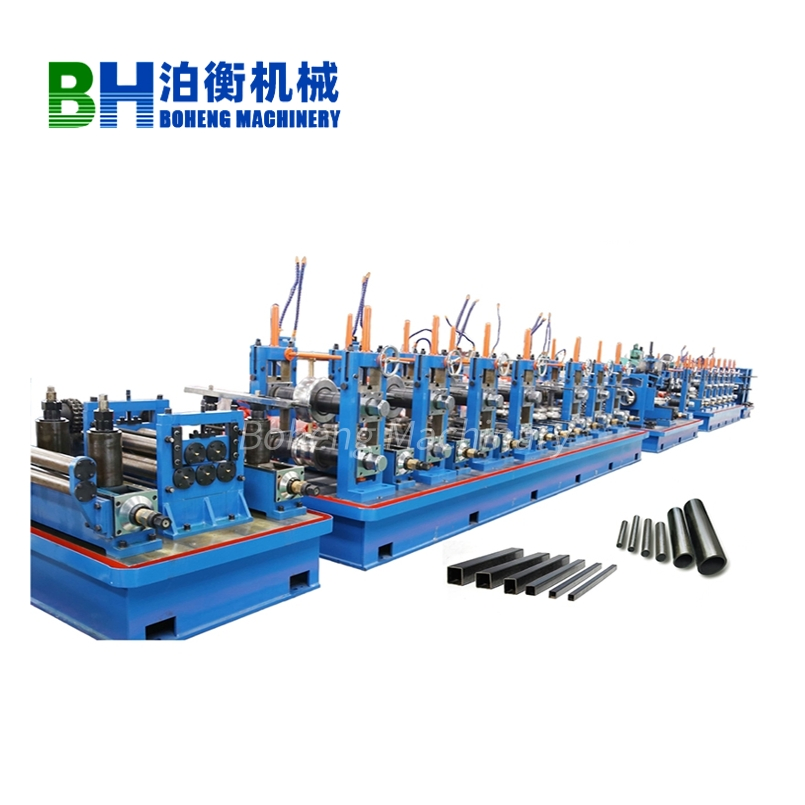

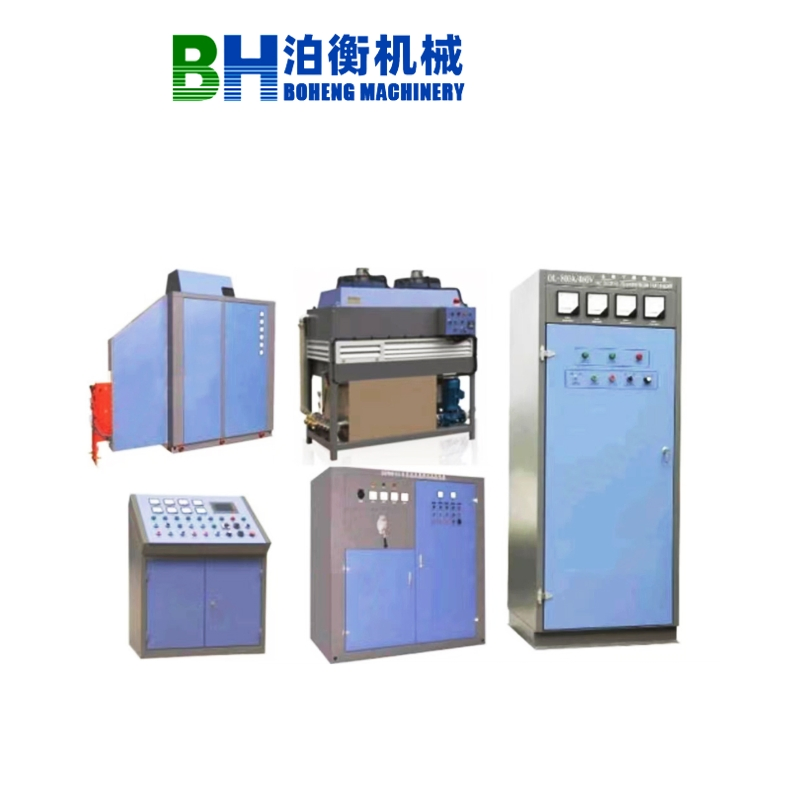

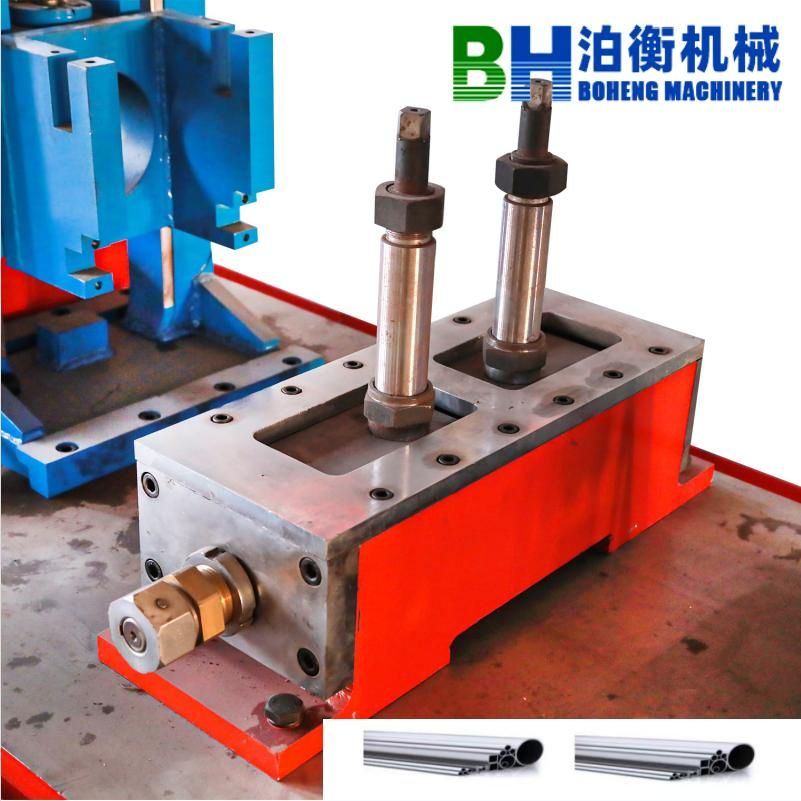

ERW Pipe Making Machine/Welded Pipe Production Auxiliary Equipment

Customization:	Available
After-sales Service:	Lifelong Technical Support
Warranty:	1year

ℹ️ Basic Info.

Model NO.

HG 114

Pipe Material

Carbon Steel

Condition

New

Application

Industry

Type

High Frequency Weld Pipe Mill Line

Pipe Shape

Round Square Rectangle Oval Pipe

Voltage

380/415/420/440V

Thickness

1.5-5.0mm

📦 Packaging & Delivery

Package Size

6000.00cm * 150.00cm * 150.00cm

Gross Weight

25000.000kg

📊 Product Parameters

Model	Tube O.D (mm)	Thickness (mm)	Square & Rectangle (mm)	Thickness (mm)	Speed (m/min)
HG16	φ6~16	0.2~0.8	-	-	30~120
HG20	φ7~20	0.2~1.0	-	-	30~120
HG25	φ9~25.4	0.25~1.2	-	-	30~120
HG32	φ10~32	0.25~1.5	8X8~25X25	0.25~1.2	30~120
HG40	φ12.7~40	0.3~1.8	10X10~30X30	0.3~1.5	30~110
HG50	φ16~50.8	0.4~1.5	12.7X12.7~40X40	0.4~1.2	30~110
HG63	φ19.05~63.5	0.6~2.0	15X15~50X50	0.6~1.5	30~90
HG76	φ25.4~76.2	0.8~2.5	20X20~60X60	0.8~2.0	30~90
HG95	φ30~90	0.8~3.0	25X25~70X70	0.8~2.5	30~90
HG102	φ31.8~101.6	1.0~3.0	25X25~80X80	1.0~2.5	30~90
HG114	φ35~114.3	1.0~3.0	30X30~90X90	1.0~2.5	30~80
HG127	φ40~127	1.2~3.5	30X30~100X100	1.2~3.0	20~70
HG140	φ50~141.3	1.2~4.0	40X40~110X100	1.2~3.5	15~60
HG168	φ60~168.3	1.5~5.0	50X50~130X130	1.5~4.5	15~50
HG219	φ89~219.1	2.0~6.0	70X70~160X160	2.0~5.5	10~40
HG273	φ114.3~273	4.0~10.0	90X90~200X200	4.0~9.0	10~40

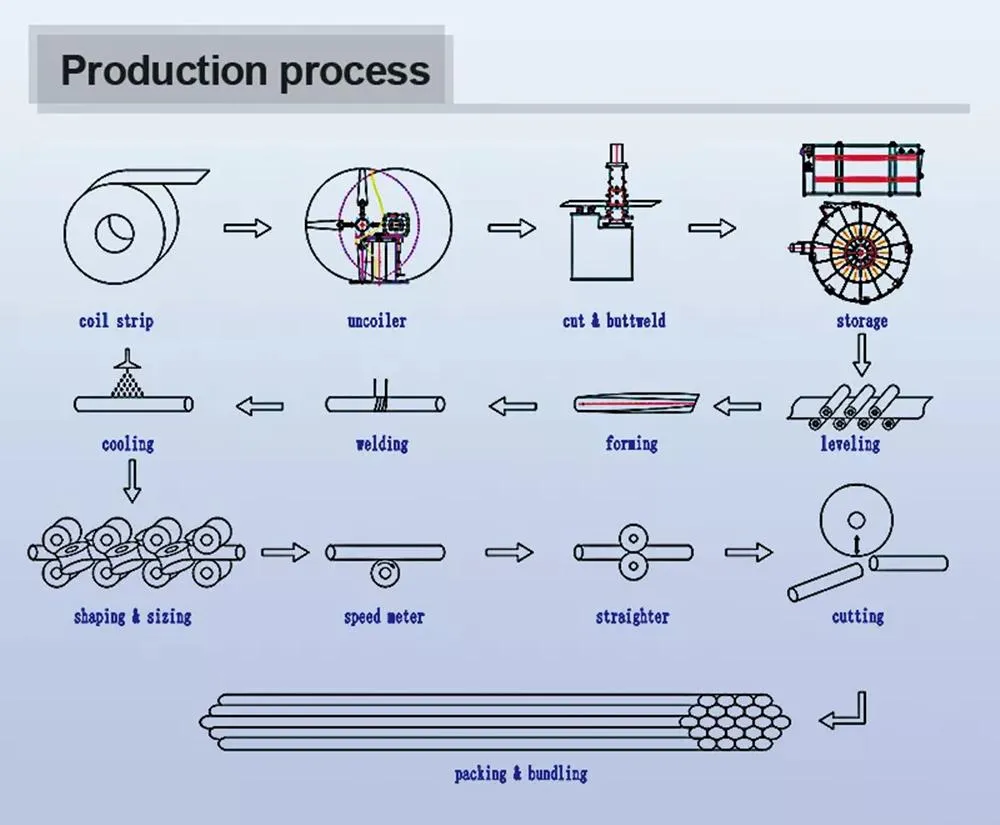

⚙️ Production Process Flow

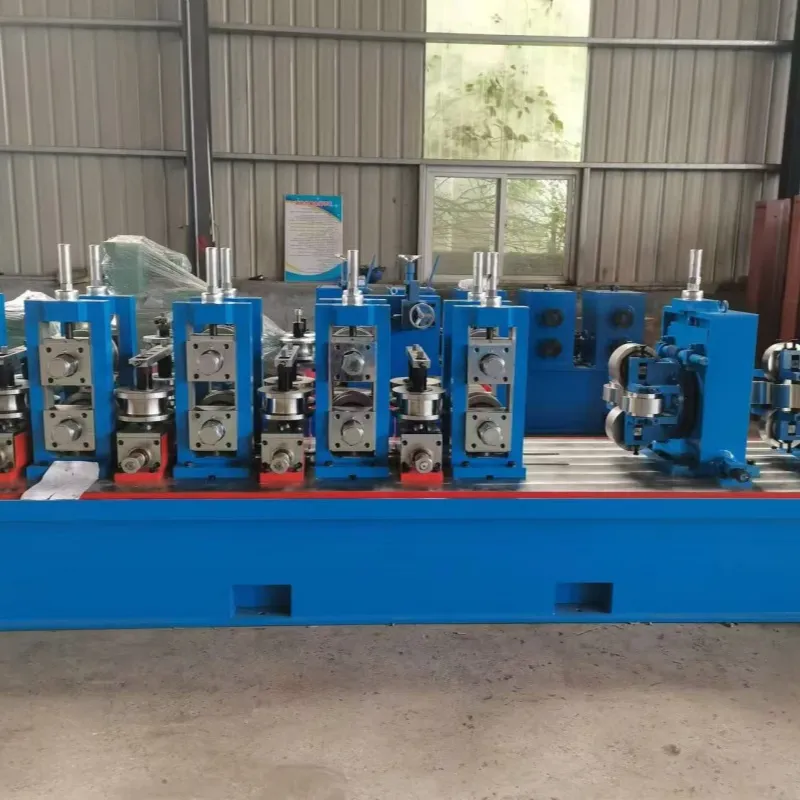

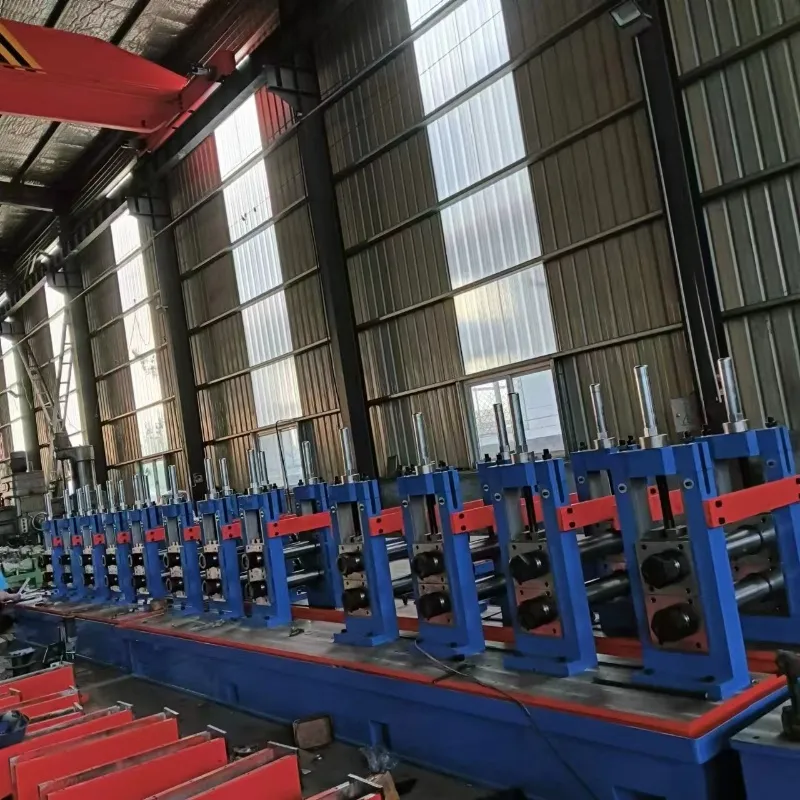

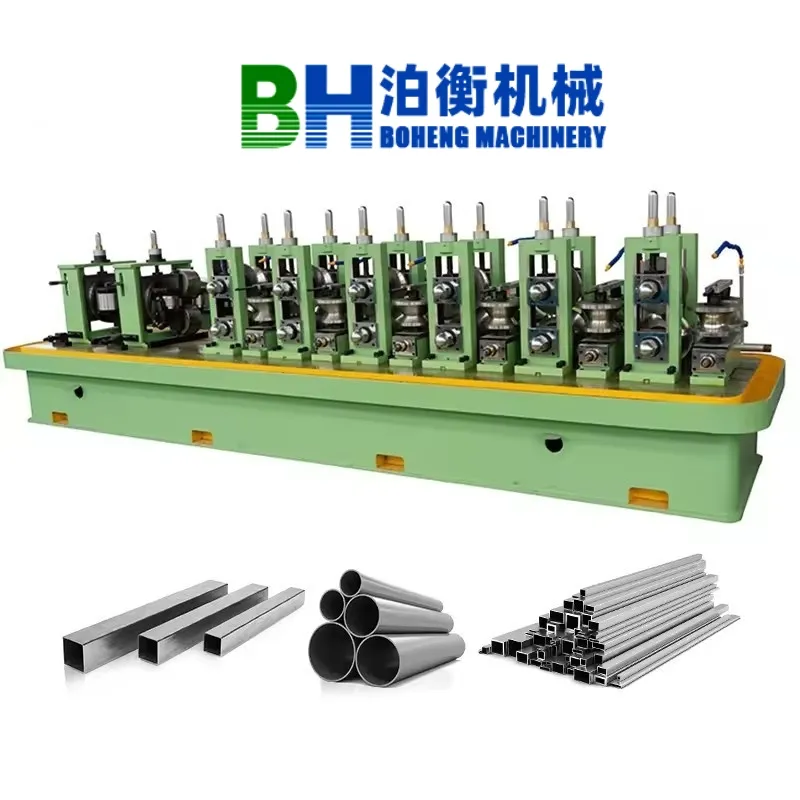

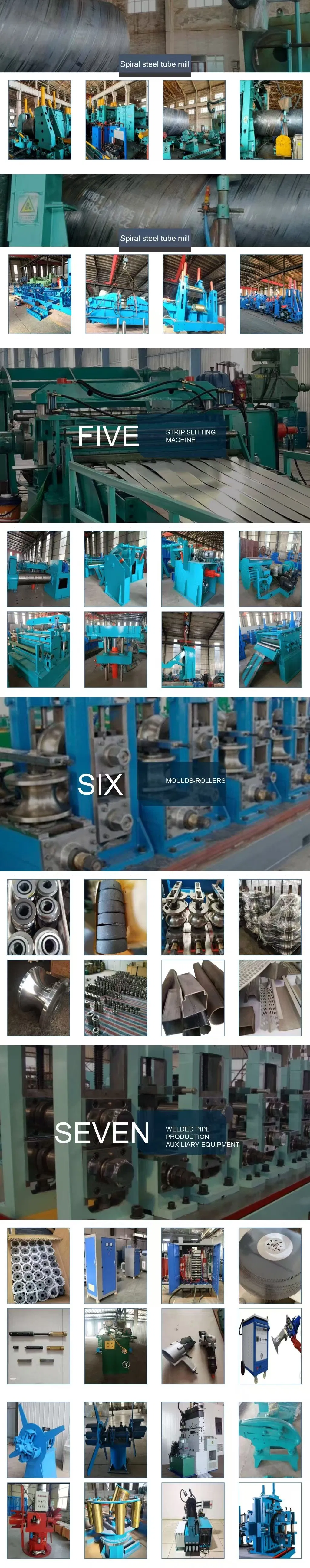

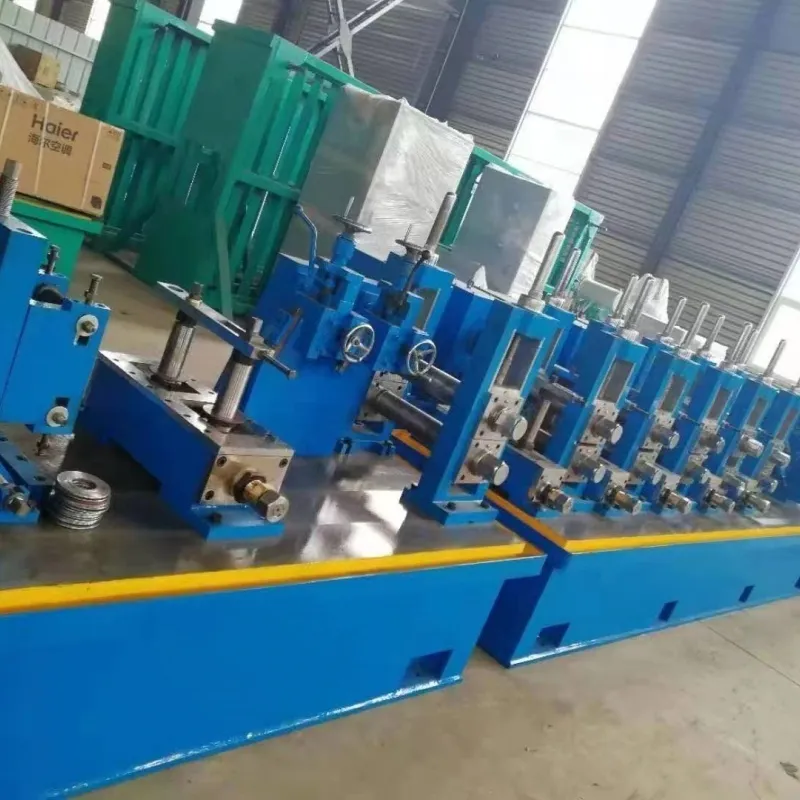

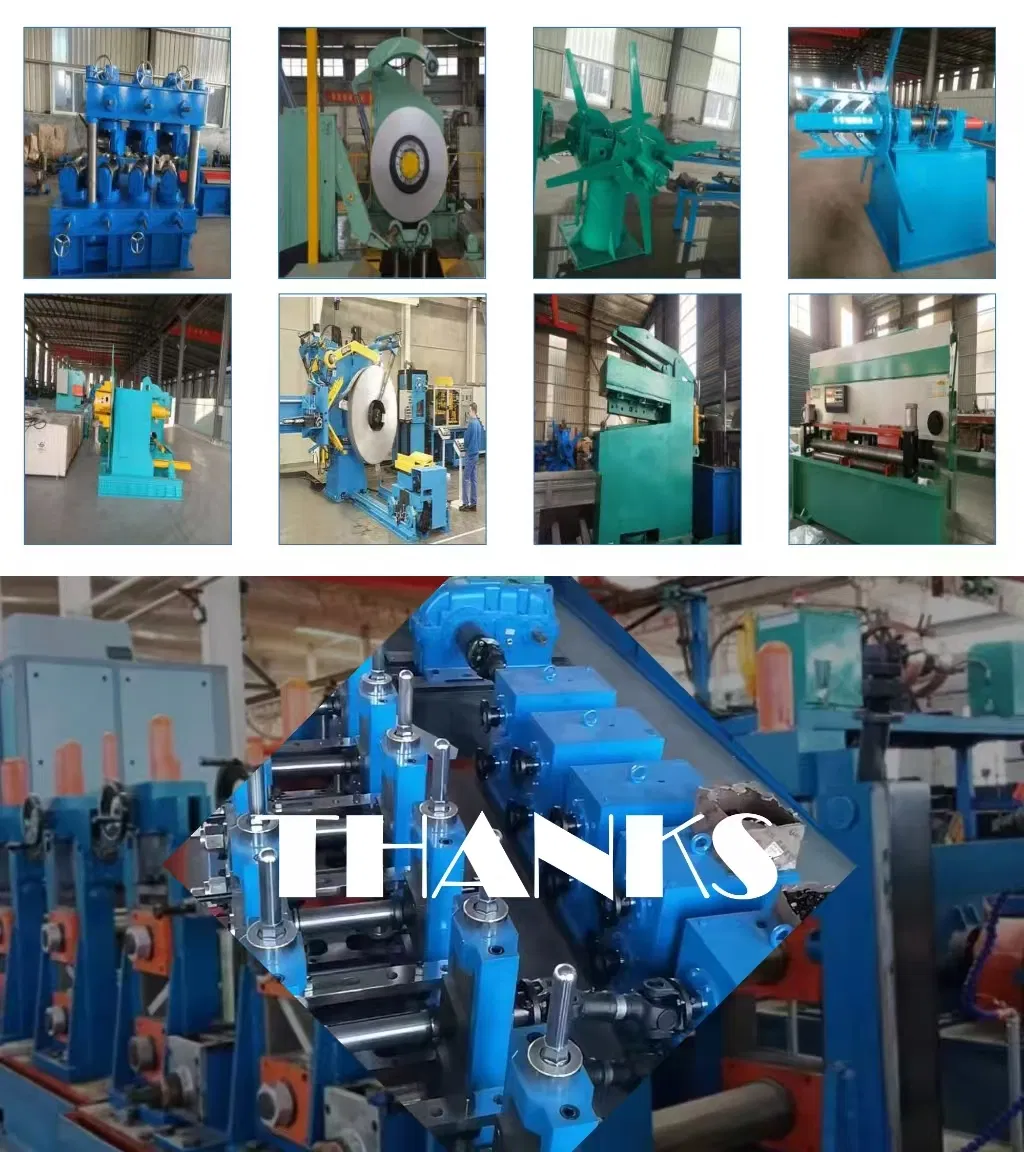

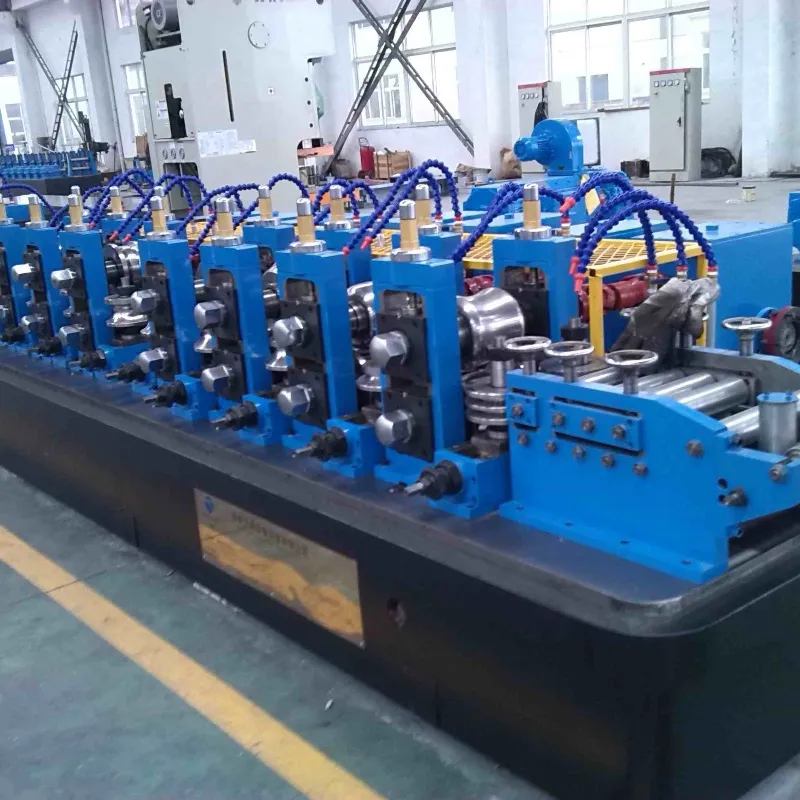

📸 Detailed Photos

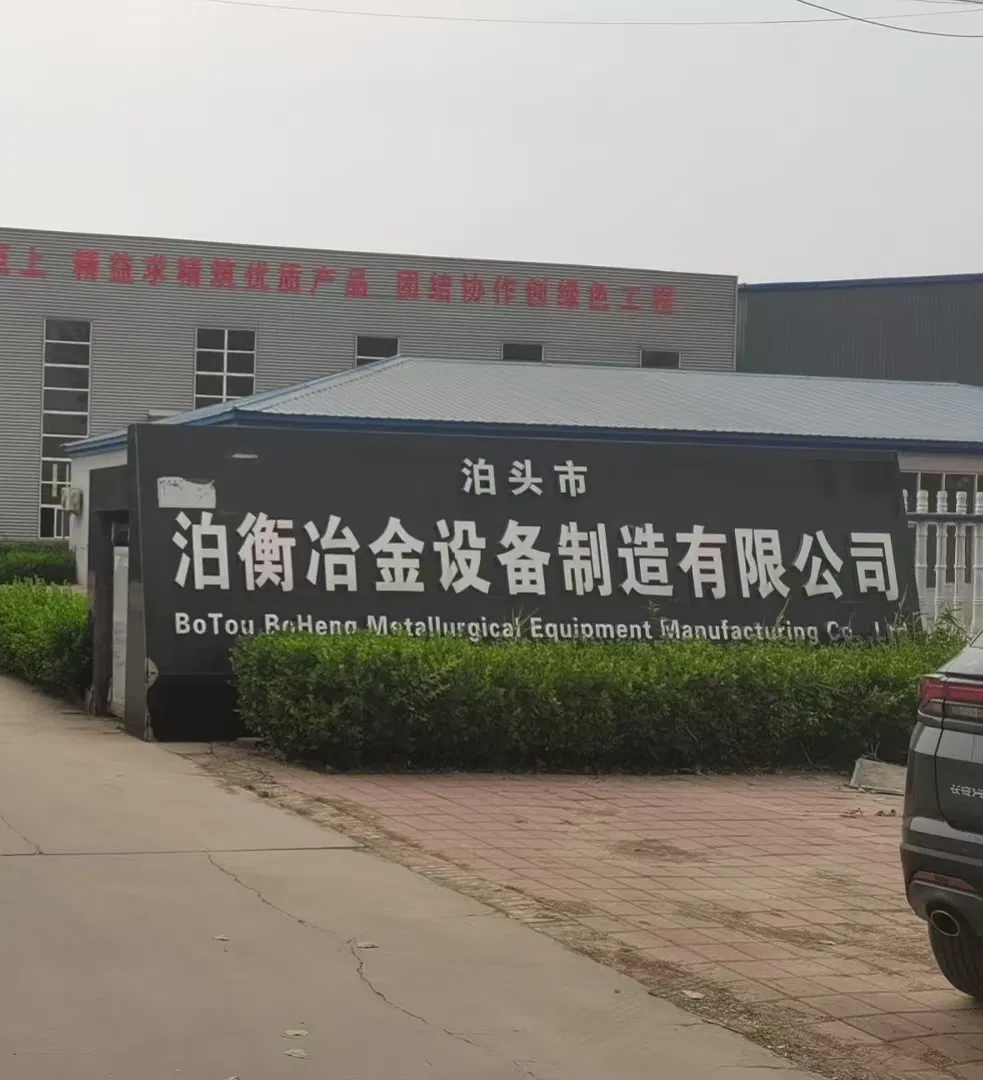

🏭 Factory & Certifications

🏢 Company Profile

We are a leading provider of high-frequency welded pipe equipment and cold-formed steel machinery, combining advanced technology with top-tier production and service.

High-Quality Equipment: Known for superior performance, durability, and global standards.
Global Reach: Trusted in markets across Thailand, Myanmar, Kazakhstan, and Uzbekistan.
Customer-Focused: Offering end-to-end support from installation to after-sales service.

Choose us for reliable, innovative solutions that drive your business success. Let's build a successful partnership together.

🛠️ After Sales Service

Warranty: One year from installation.

Any parts damaged during warranty will be replaced for free.
Life-time supply of spare parts at cost price.
Electrical parts such as boards and servo drives available life-time at cost price.
Engineers available to service overseas.

❓ FAQ

Q: Are you a manufacturer? A: Yes, we are a manufacturer with our own technical team. You are welcome to visit our facility.

Q: What information is needed before making a proposal? A: We need the pipe diameter and thickness range, material information, special requirements, and required machine speed.

Q: How do you handle Quality Assurance (QA)? A: We conduct strict testing: Every gearbox is tested for 8 hours for leaks, every shaft is inspected for centering, and every roller is checked against tolerance standards.

Q: What payment terms do you accept? A: We are flexible on payment terms. Please contact our team for specific details.

Q: What support do you offer for new businesses? A: We provide free pre-sales consultation services to help you design the right production line for your specific needs.

Q: Why choose your equipment over other suppliers? A: We provide higher quality products and professional service at competitive market prices, backed by years of industry expertise.
