EVA Glass Machine Smart Glass EVA Glass Laminating Oven

Customization:	Available
Warranty:	One Year
Type:	Insulating Glass Production Line

Basic Information

Certification

CE, ISO

Structure

Horizontal

Control System

PLC

Condition

New

After-sales Service

One Year

Transport Package

1PC 40' Container

Origin

China

Product Description

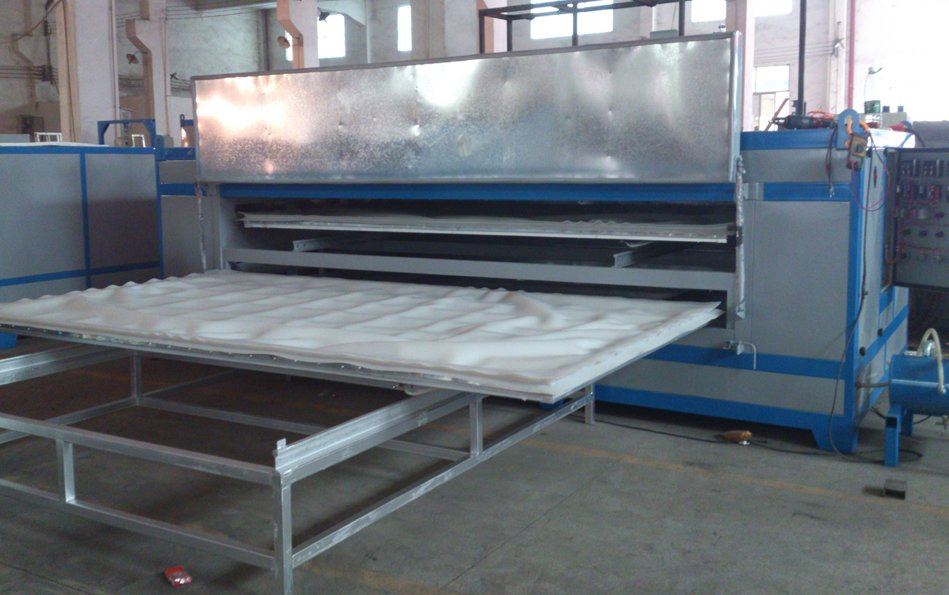

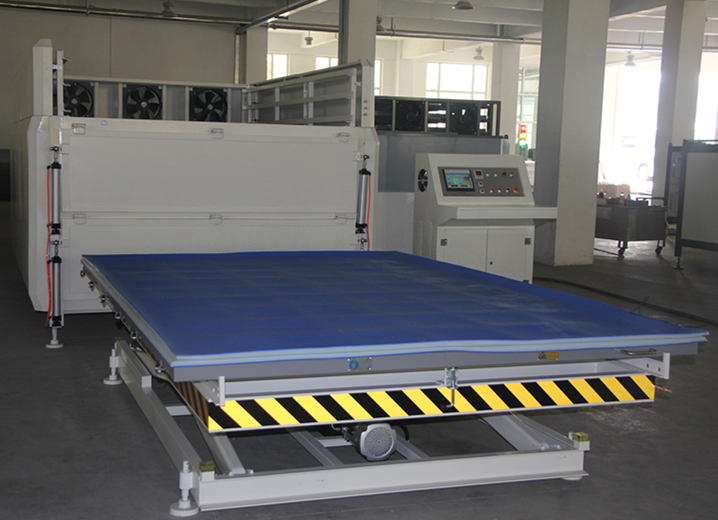

HG-J12236-L3 EVA Glass Laminating Machine

This is a professional machine designed for processing EVA laminated glass. It provides reliable performance for various architectural and decorative glass applications.

Equipment Applications:

Architectural laminated glass (tempered / float / bend / bulletproof laminated glass)
Top grade decorative laminated glass (sandwiched silk / dry flower / pet film / marble paper / marble stone etc.)
Smart (PDLC) / LED laminated glass

Technical Parameters:

Rated Voltage: 380V; 415 or 440V	Frequency: 50Hz; 60Hz
Installation Power: <=42KW	Glass Size: 2200mm(L) * 3600mm(W)
Vacuuming Power: 1.5KW	Machine Size: 8500mm(L)2630(W)2550mm(H)
Heating Power: 30KW	Other Power: 3KW

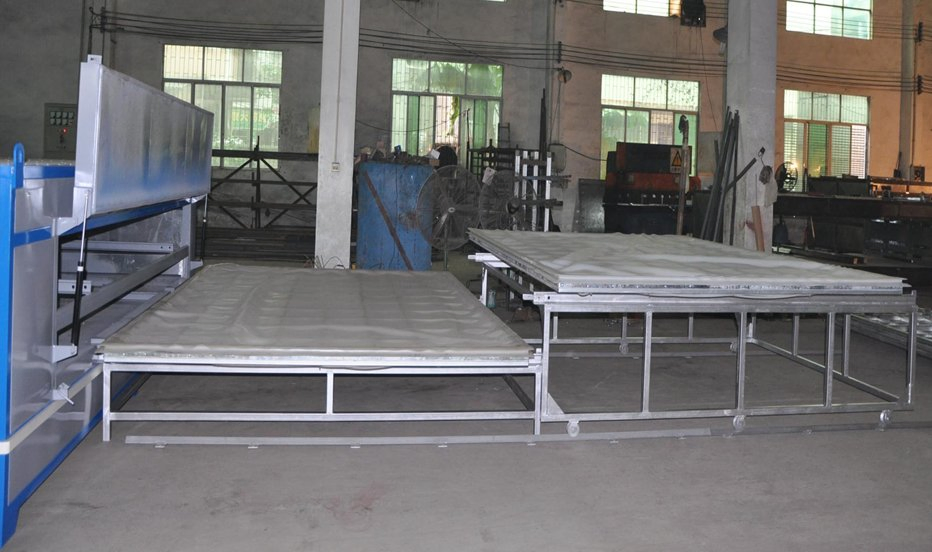

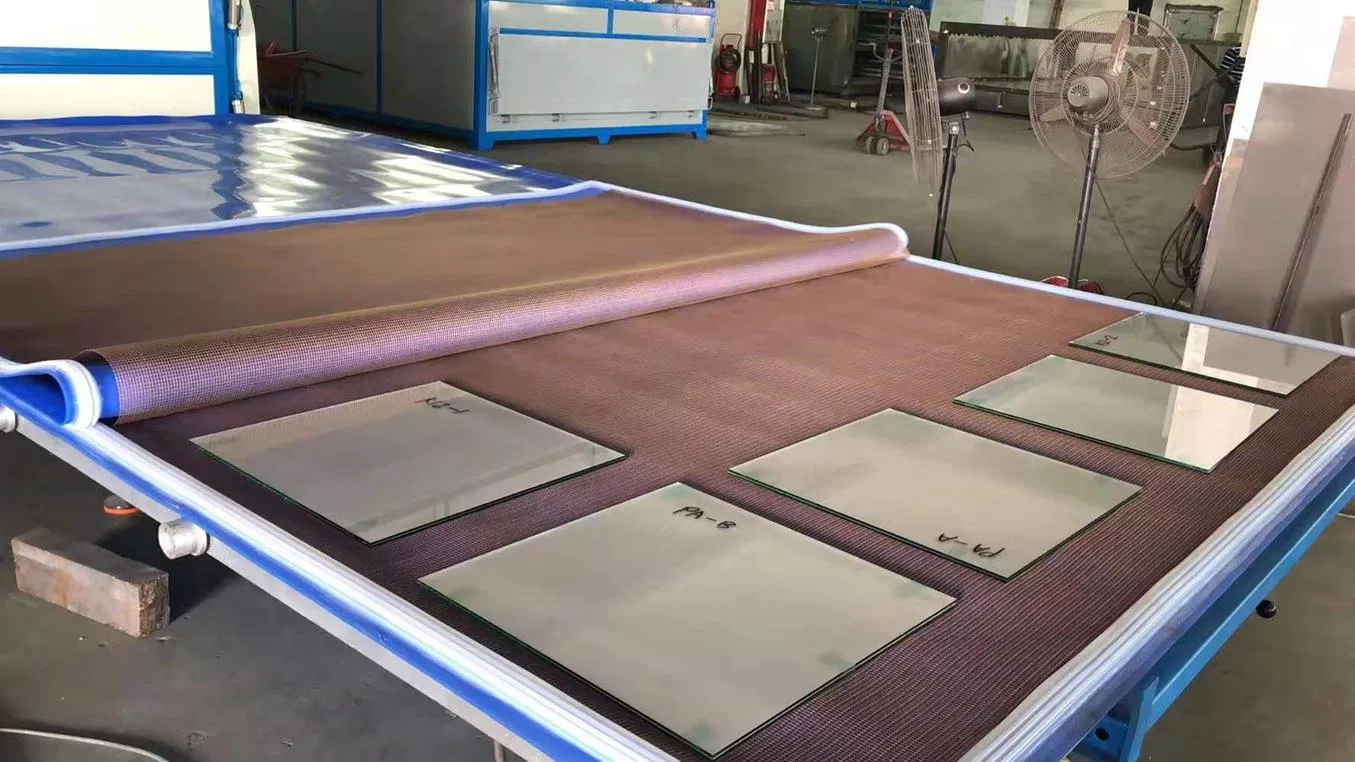

One unit of vacuum heating laminating machine including: 1. Machine body: 1 set 2. Manual loading and unloading lifter: 1 set 3. Shelf with silicone bag: 2 sets 4. Italy vacuum pump: 2 sets 5. Delta PLC control cabinet: 1 set 6. Layers of heater: 3 layers
Machine plate: High-temperature Baking Coating

Product Samples

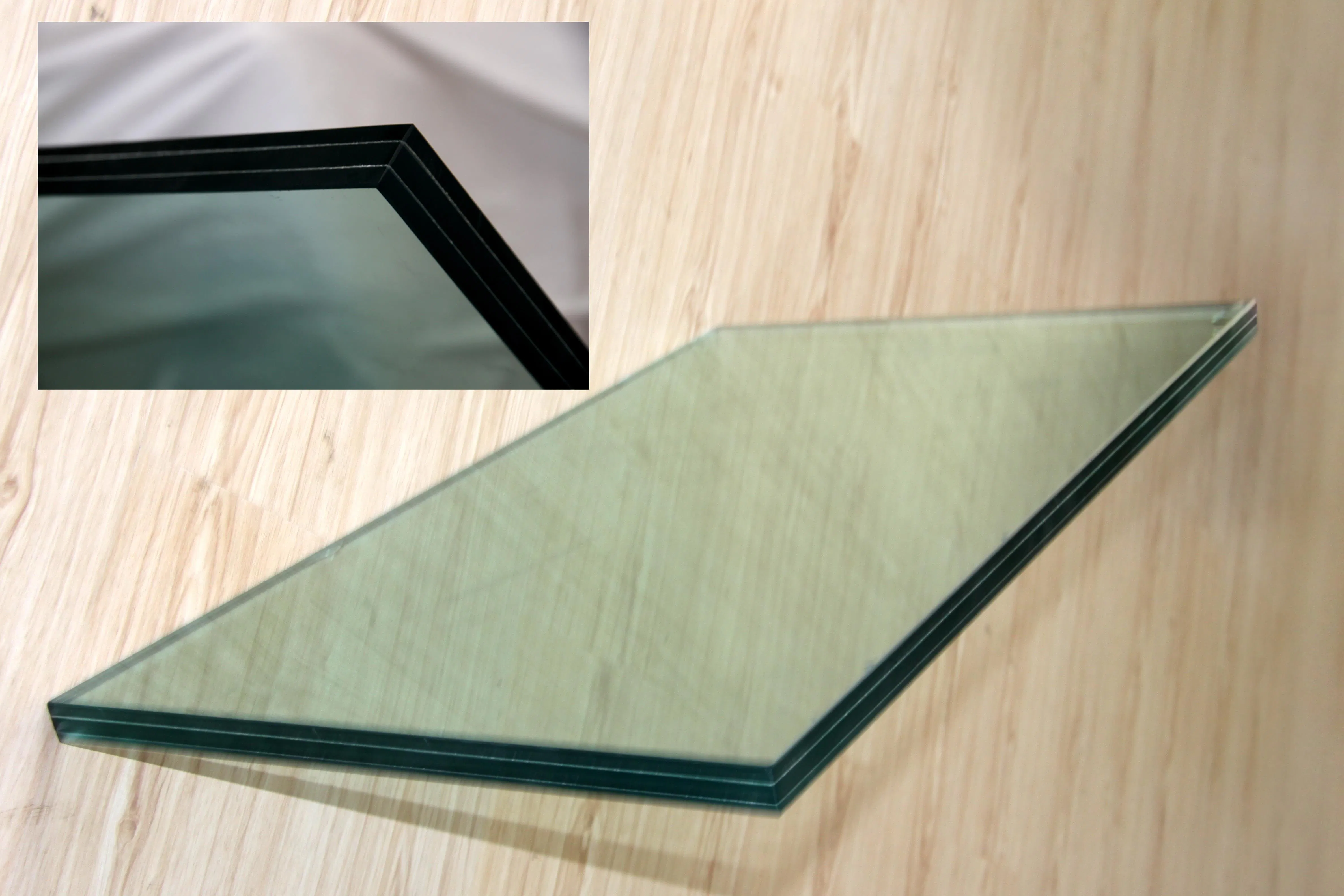

Tempered laminated glass

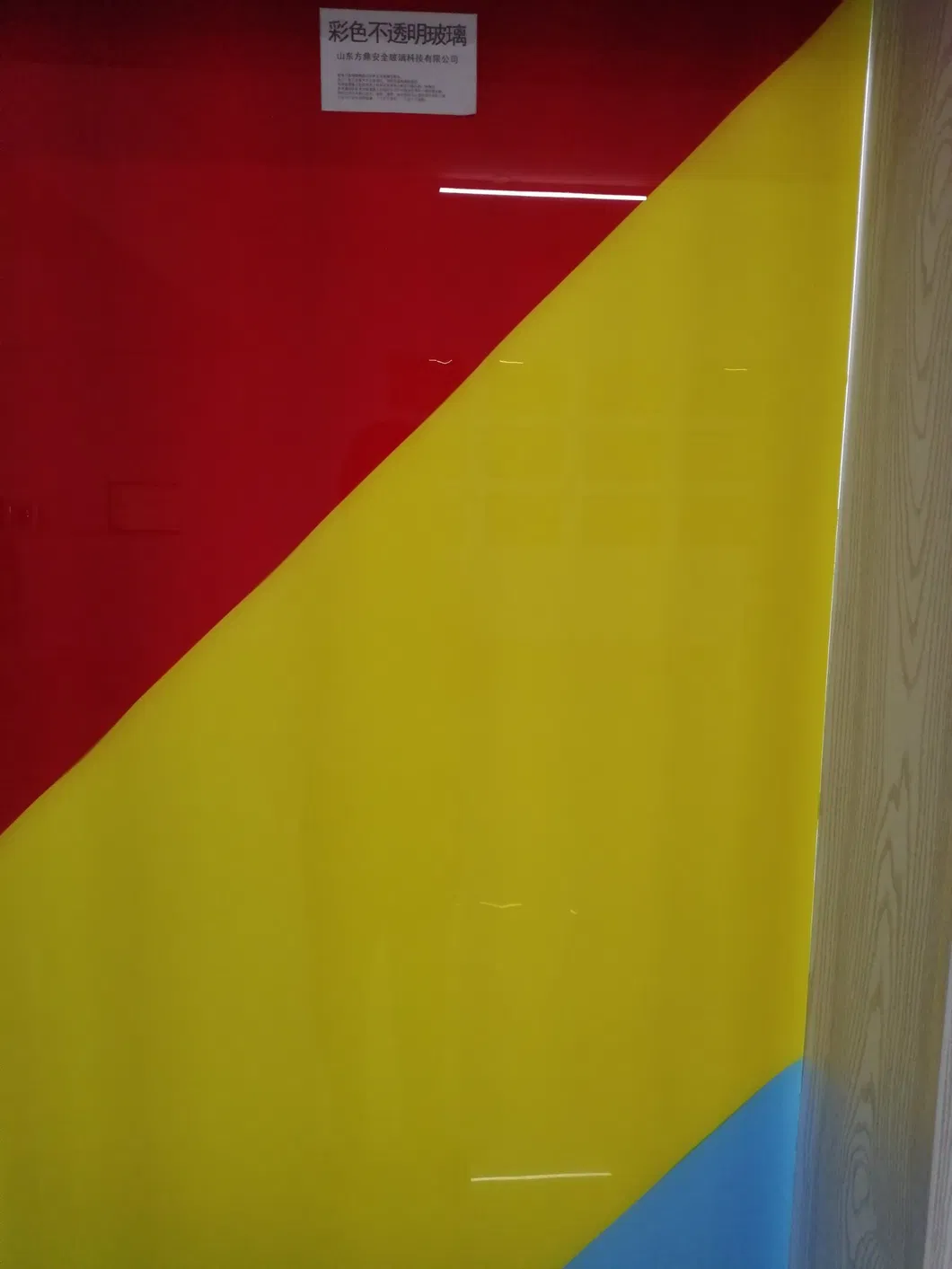

Colored laminated glass

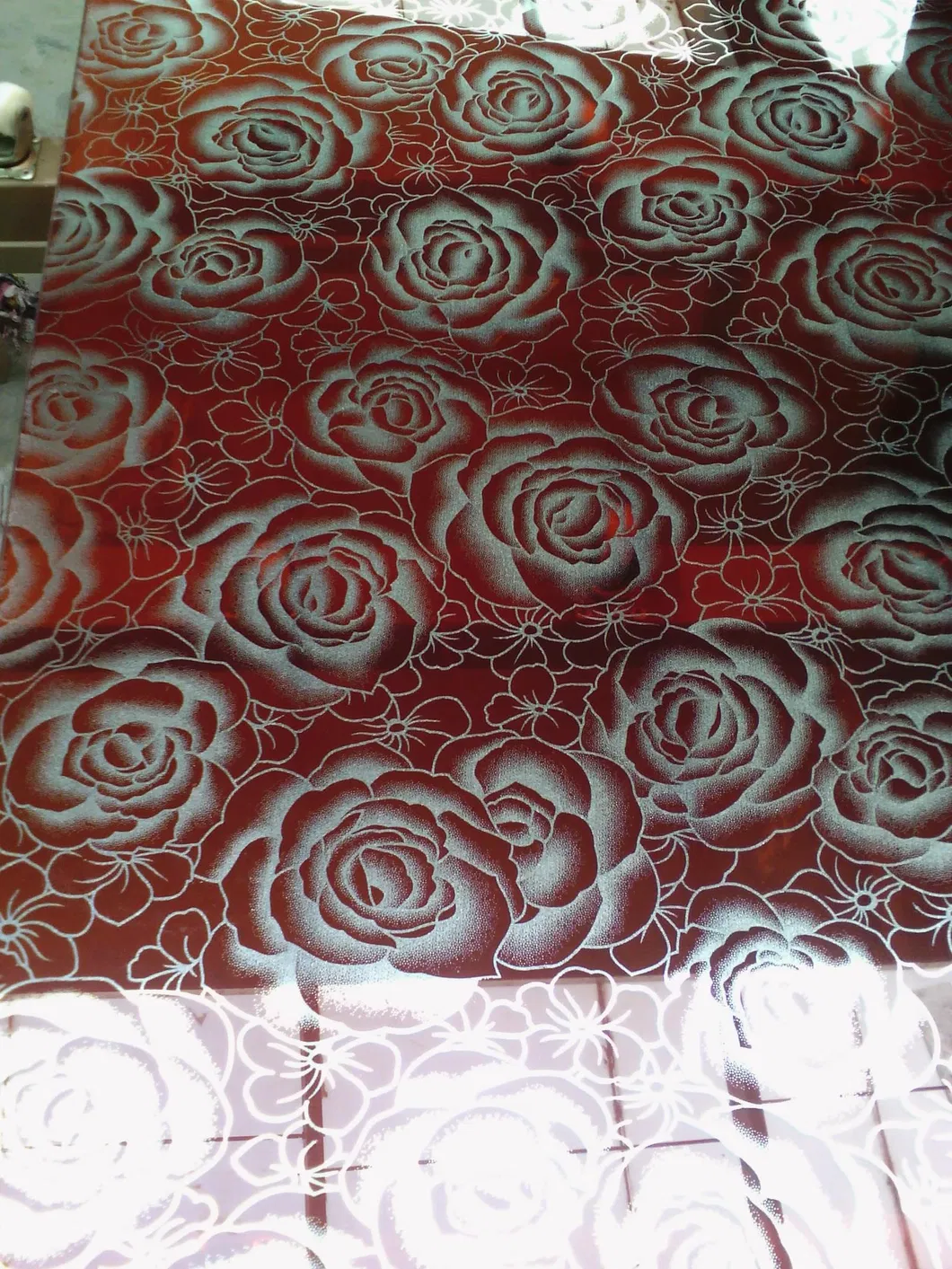

Silk laminated glass

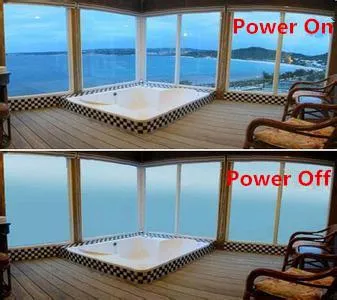

Smart laminated glass

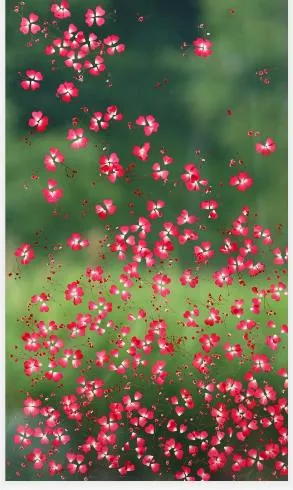

Laminated Glass with real flower

Frequently Asked Questions

What types of glass can the HG-J12236-L3 machine process?

It is designed for architectural laminated glass (tempered/float/bend), decorative glass with materials like silk and dried flowers, and high-tech PDLC smart or LED glass.

What is the maximum glass size supported by this laminating oven?

The machine can handle a maximum glass size of 2200mm in length and 3600mm in width.

What kind of control system is integrated into the machine?

The equipment utilizes a professional Delta PLC control cabinet for precise operation and management of the laminating process.

What are the power requirements for installation?

The installation power is less than or equal to 42KW, with a heating power of 30KW. It supports rated voltages of 380V, 415V, or 440V at 50Hz/60Hz.

Does the machine include a vacuum system?

Yes, the unit comes standard with two sets of Italian vacuum pumps and two sets of shelves with silicone bags for the vacuum heating process.

What is the warranty and after-sales service period?

The machine comes with a one-year after-sales service period to ensure smooth operation and maintenance support.
