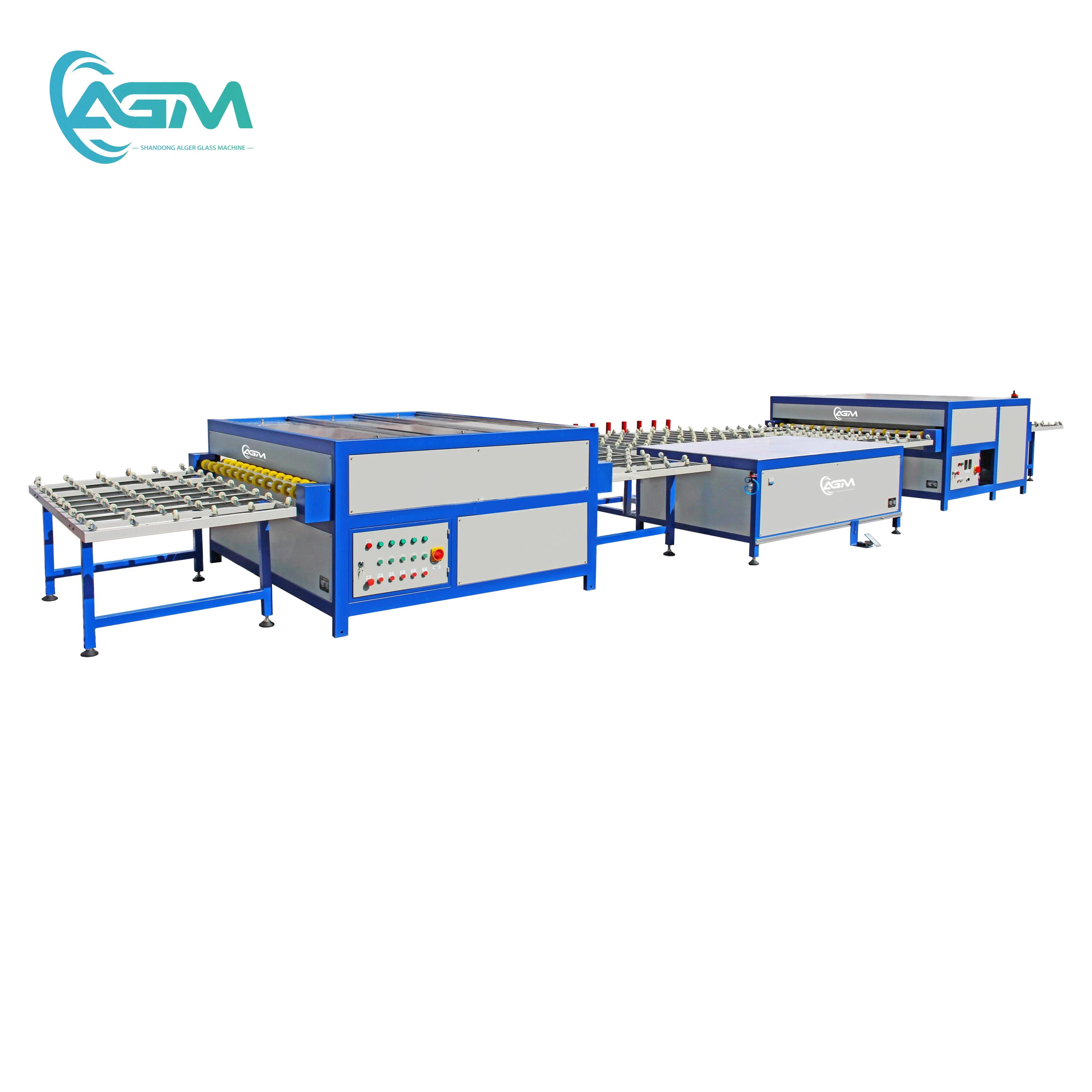

Factory Sale Special for Horizontal Insulating Glass Production Line Machine

Customization:	Available
Certification:	CE, ISO, SGS
Total Power:	36.66kw

Basic Overview

Model

AGM

Pressure

0.6MPa

Max Glass Width

1800mm

Min Glass Width

400mm

Package

Plastic Stretch Film Coating

Specification

1800MM

Origin

China

Capacity

5 Units Per Month

Product Introduction

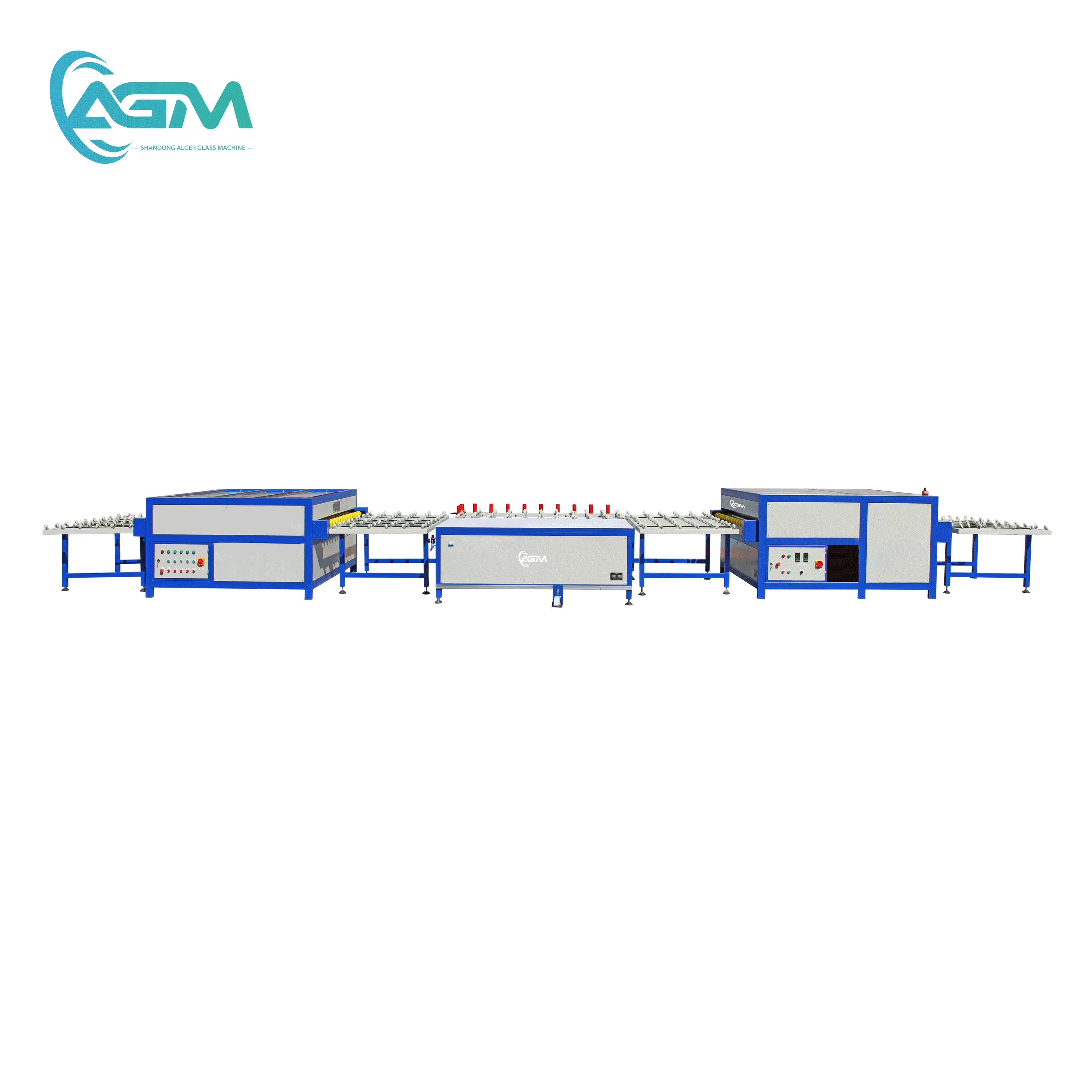

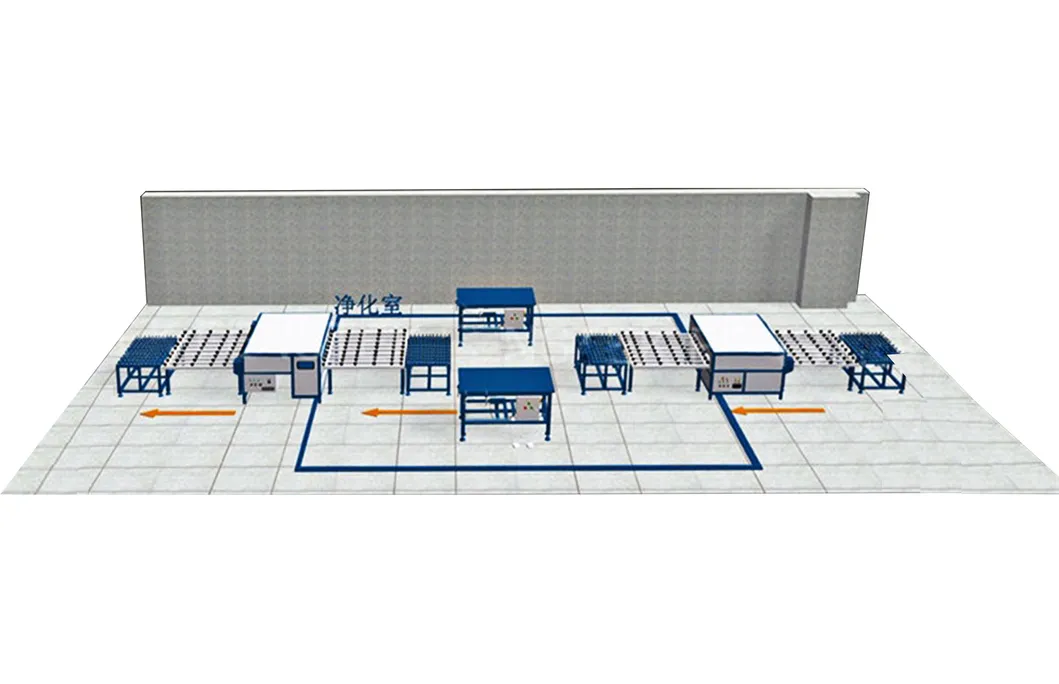

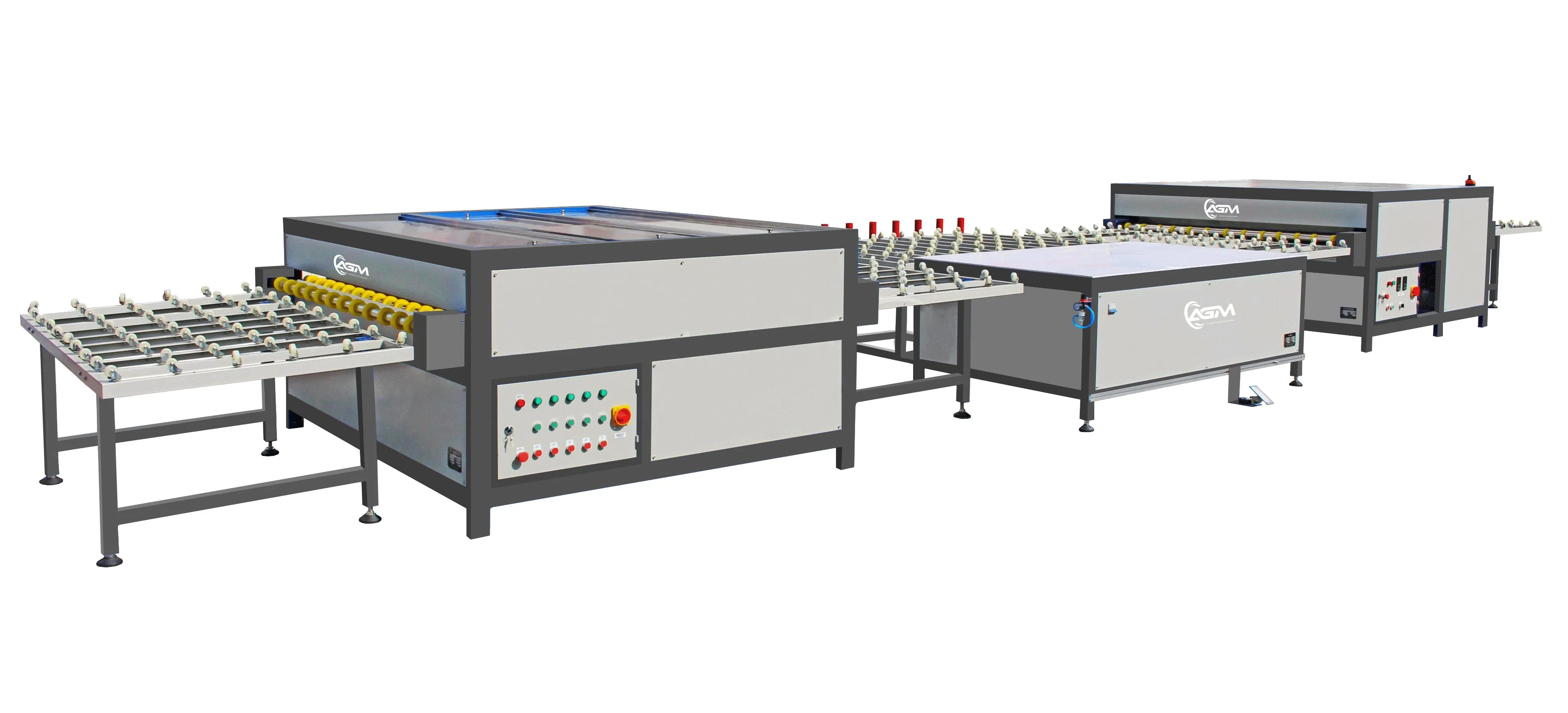

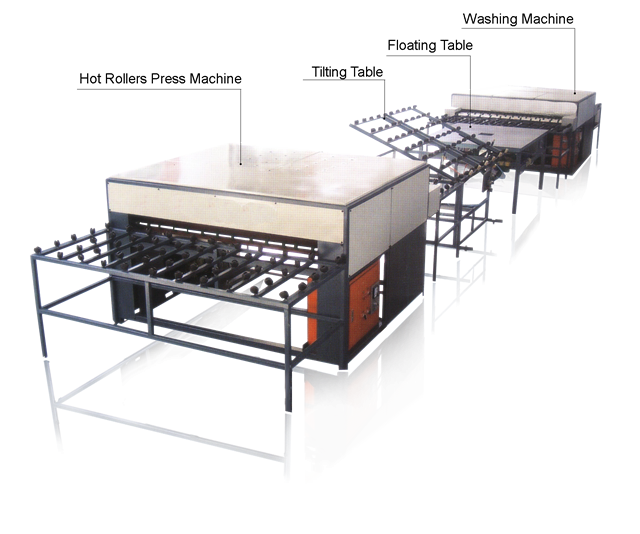

Horizontal Insulating Glass Production Line Machine

Product Features

International up-to-date Control System with America PMAC Motion controller card for precise data handling.
Intelligent cutting path optimization: recognizes the nearest line to reduce process time and improve efficiency.
Full compatibility with DXF format, allowing easy import from Auto CAD, CAXA, and more.
Advanced spline running function via PMAC card for template scanning and CAD accuracy.
High precision levels of ±0.15mm, suitable for PV products, windshields, and mirror glass.

Product Name	Horizontal glass production line
Max Glass Size (mm)	3300 * 14000
Min Glass Size (mm)	300 * 450
Glass Thickness (mm)	4 - 80
Operating Speed (m/min)	0 - 5

Related Machinery

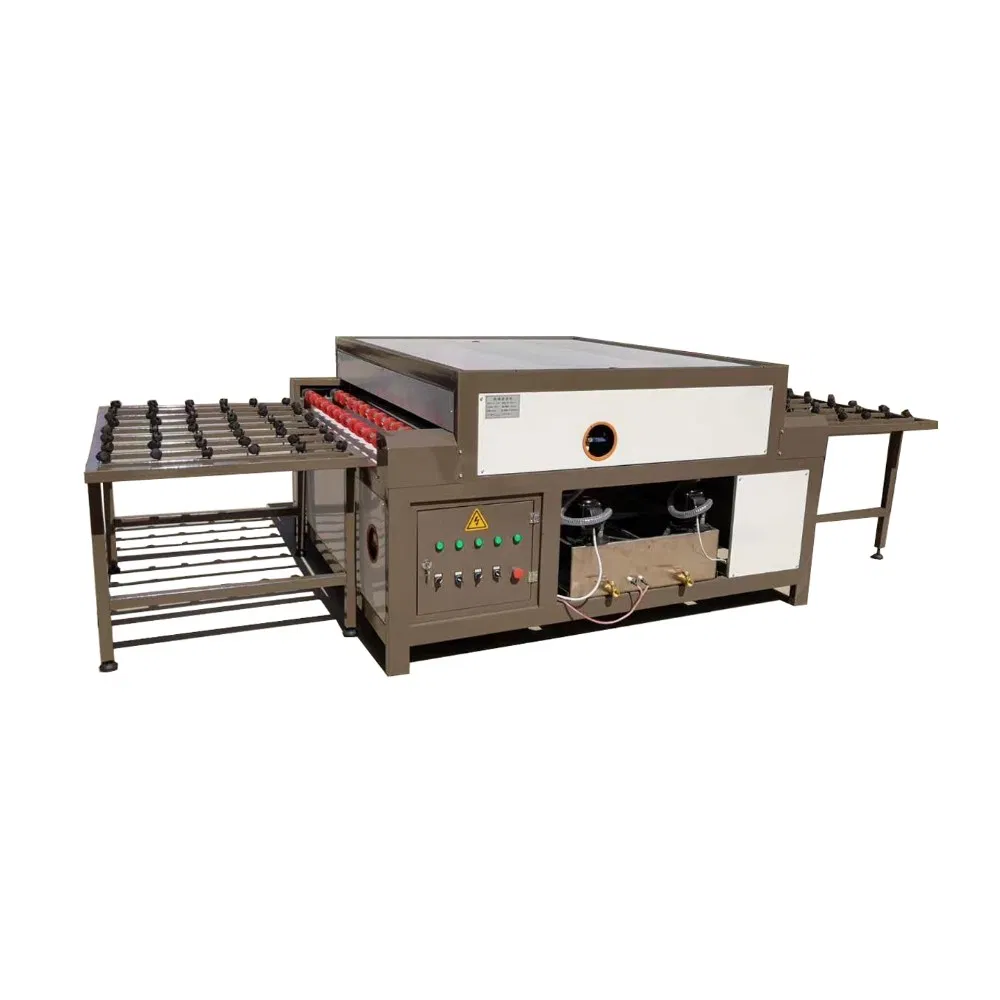

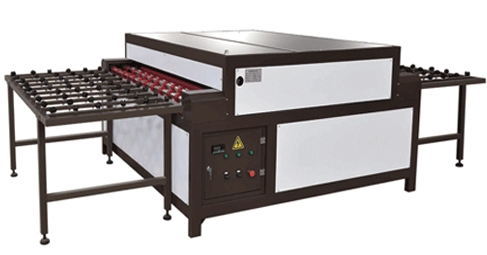

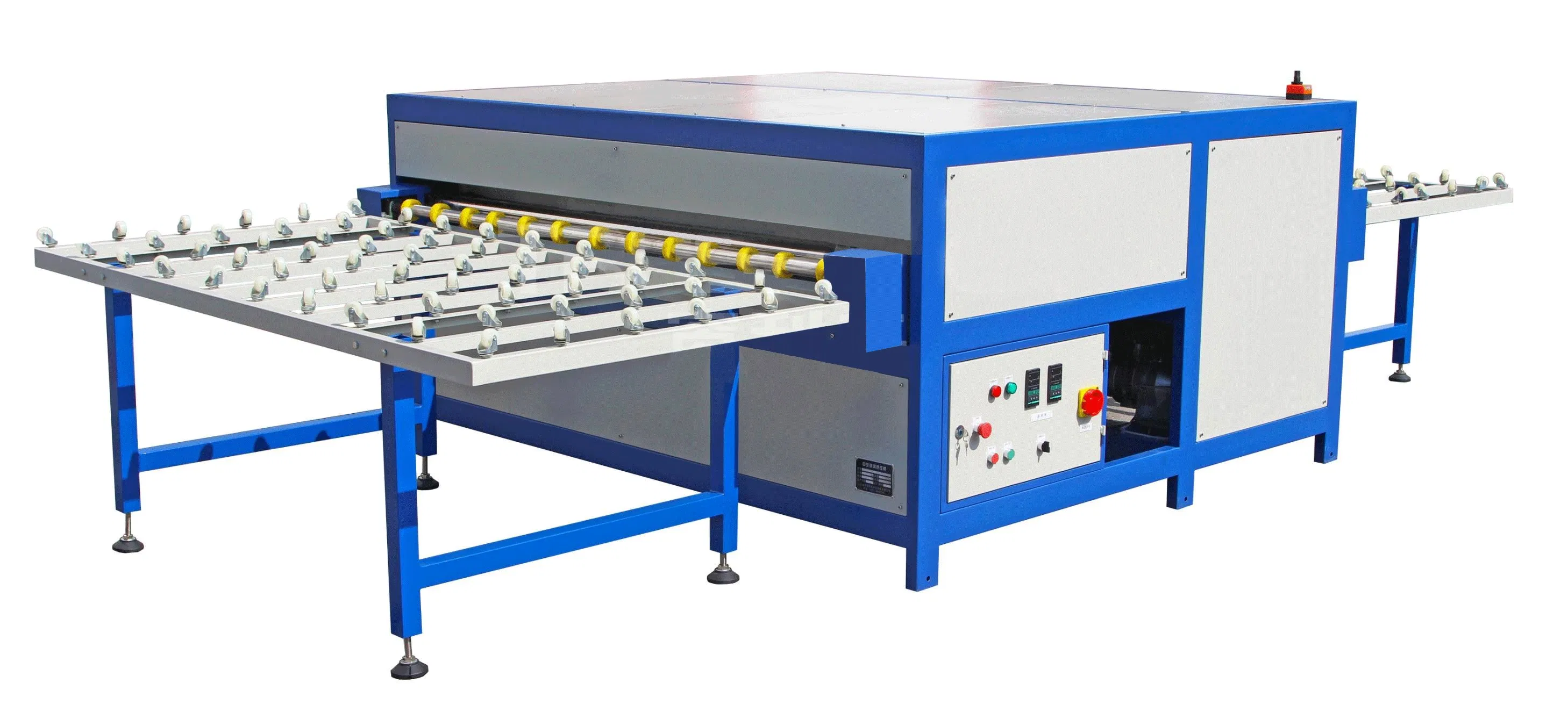

Glass Washing Machine

Consists of three primary sections: feeding, washing, and unloading for a seamless workflow.

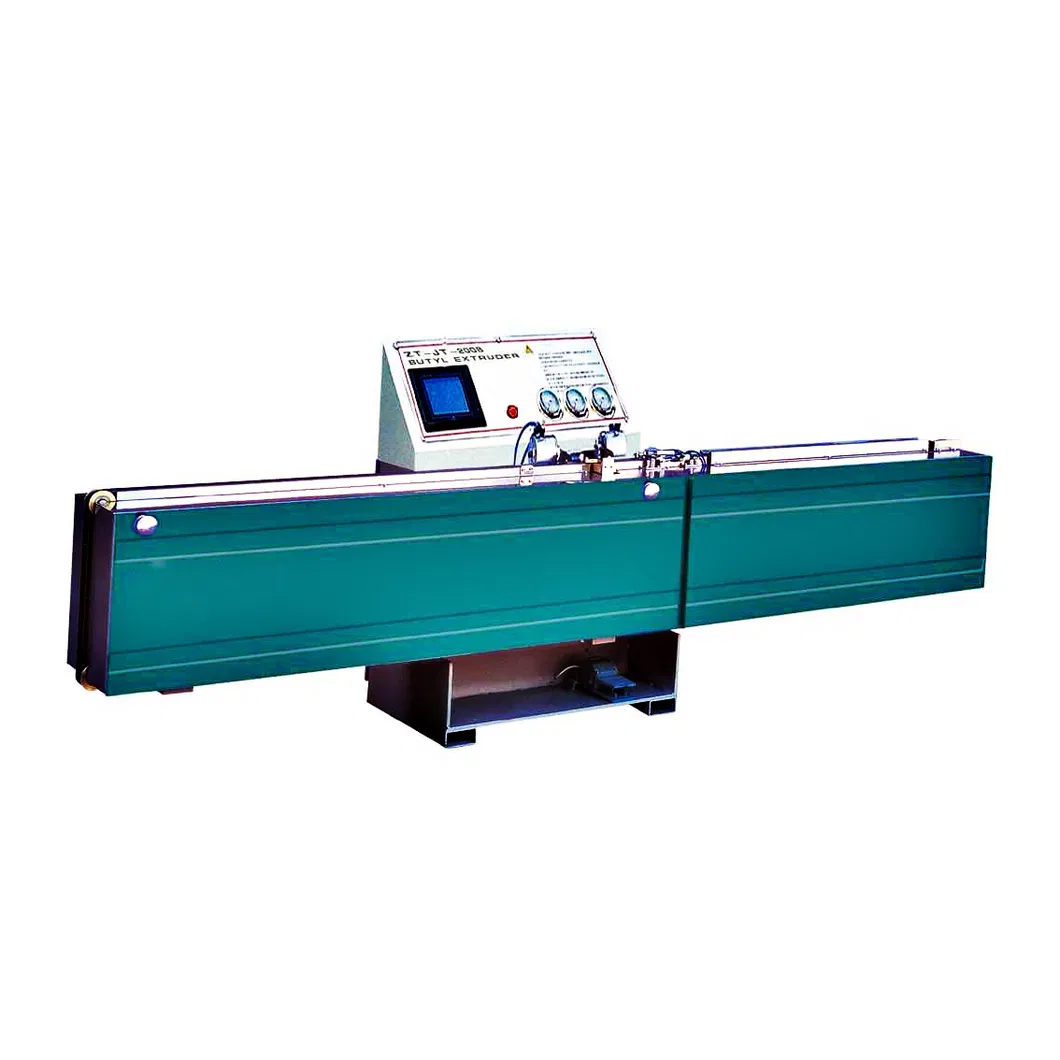

Butyl Extruder Machine

Features PLC control, CNC servo motor feeding, and automatic speed adjustment for various spacer sizes.

Packing & Shipping

The insulating glass production line is professionally secured using plastic stretch film coating, steel pallets, and plywood case packaging to ensure safety during transit.

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

The MOQ for our insulating glass production line machines is 1 set.

What is the typical lead time for an order?

Sample components usually take 5-7 days, while mass production for full lines typically requires 15-30 days.

How are the machines shipped internationally?

We offer shipping via sea for large machinery. Smaller components can be shipped via DHL, UPS, or FedEx, taking approximately 3-5 days.

What is the processing accuracy of the machine?

The system achieves a high accuracy of ±0.15mm, meeting strict requirements for PV and automotive glass.

Can the machine handle abnormal shapes?

Yes, the PLC controlling system and CNC servo motors allow the processing of square, rectangular, and various abnormal shaped glass.

What formats are supported for design imports?

The system supports standard DXF formats, making it easy to integrate with Auto CAD and CAXA software.
