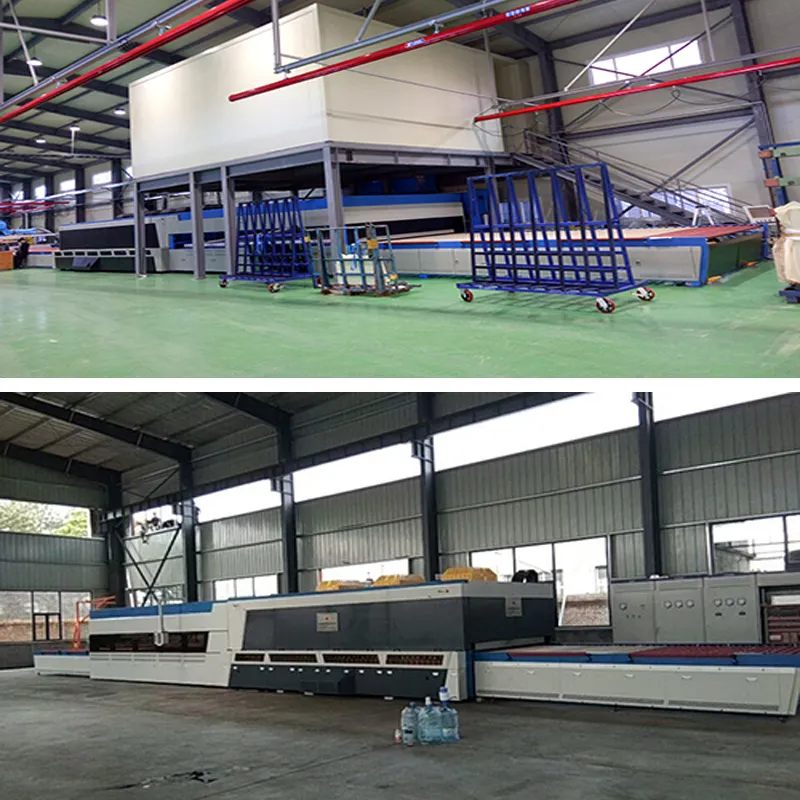

This machine is consisted of Loading section, Heating section, Flat Tempering section, Unloading section, Blower System and Control System. The glass sheet enters into heating oven from loading table, and tempered & cooled in flat quench & cooling section after heating. It goes to unloading table to finish process.
Loading section is consisted of compound steel structure frame, transmission system, photo-electric switch and universal ball elevating table etc. Drive motor of loading section is drove by inverter, transporting the fixed glass sheet to the photoelectric sensor of front door of the heating section and ready for enter the furnace.
The heating section includes the roof lifting mechanism, heating system, fast cooling system, thermal balance system, ceramic rollers, the length measuring and temperature measuring devices. The heating furnace is divided into upper and lower parts. The upper part can freely move up and down by the roof lifting mechanism for easy maintenance.
| Item | Data | Remark |
|---|---|---|
| Glass thickness | 4-19mm | |
| Max. size | 2440x1800 (4mm) 2400x3600 (5-19mm) | |
| Min. size | 100x300mm | |
| Finished product rate | ≥98% | |
| Glass quality | International standard | Flatness ≤0.2% |
| Power consumption | ≤4ºC/--5mm | |
| Output | 18-20L/H (4mm) to 3-4L/H (19mm) | Depends on size and color |
| Raw glass sheet request | High quality float glass; chamfered, edged, washed and dried | |
| Item | Data | Remark |
|---|---|---|
| Heating power | 535KW | |
| Blower power | 250KW | Converter included |
| Heating blower | 3*4KW | |
| Other | 23KW | |
| Transformer | 630kVA | Not included |
| Air compressor | 7kg/cm², 1m³/min | Not included |
