Insulating Glass/Double Glass Processing Machines
01 Section: Glass Identification
- Automatic recognition of LOW-E glass and coated glass.
- Automatic warning system if the glass is reversed.

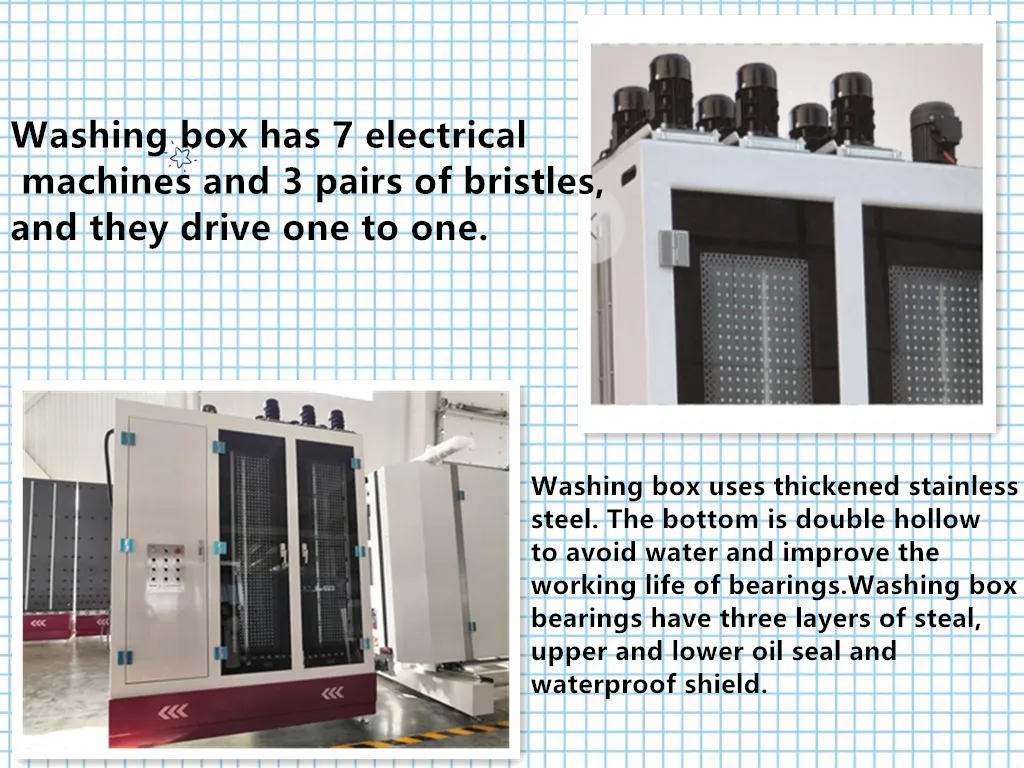

02 Section: Advanced Washing System
- Each brush is driven by an independent electric motor with high-density brushes.
- Bearings equipped with three seals (two oil seals and one waterproof) to prevent water and dust ingress.
- Universal water spray nozzles for complete glass cleaning.
- Special octopus air knife with three parallel blowing sections for superior drying.
- Mechanical identification of glass thickness for optimal air knife distance.
- Large fan power with sound-absorbing cotton to reduce noise pollution.
- Automatic tuyere closure when no glass is present to avoid waterlogging.
- Gradient water tank with bottom outfall for complete sediment removal.
03 Section: Transport & Efficiency

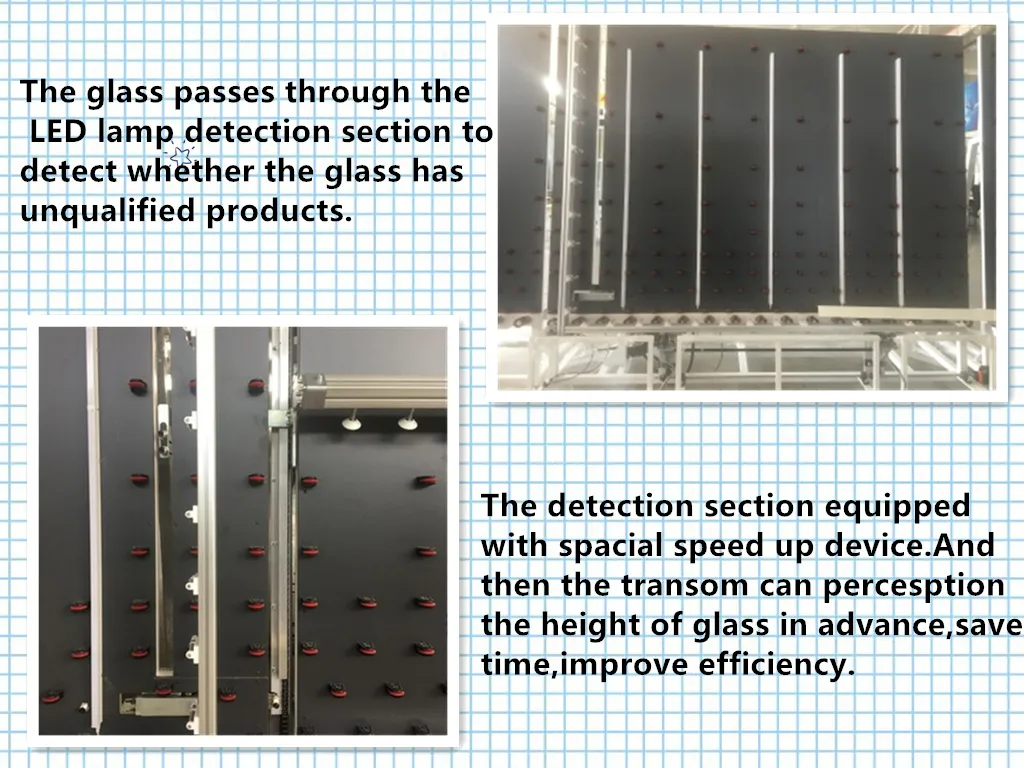

- Equipped with speed-up sensors for quick transport and improved production efficiency.
04 Section: Precision Positioning
- Hand-operated positioning for easy adjustment and accuracy.
- Sensors perceive glass height in advance to optimize beam movement.
05 Section: Glass Stability
- Adopted lengthen block bearings and trepanning to prevent small glass from dropping.
- Accurate positioning for triple glass units.
06 Section: Pressing & Control

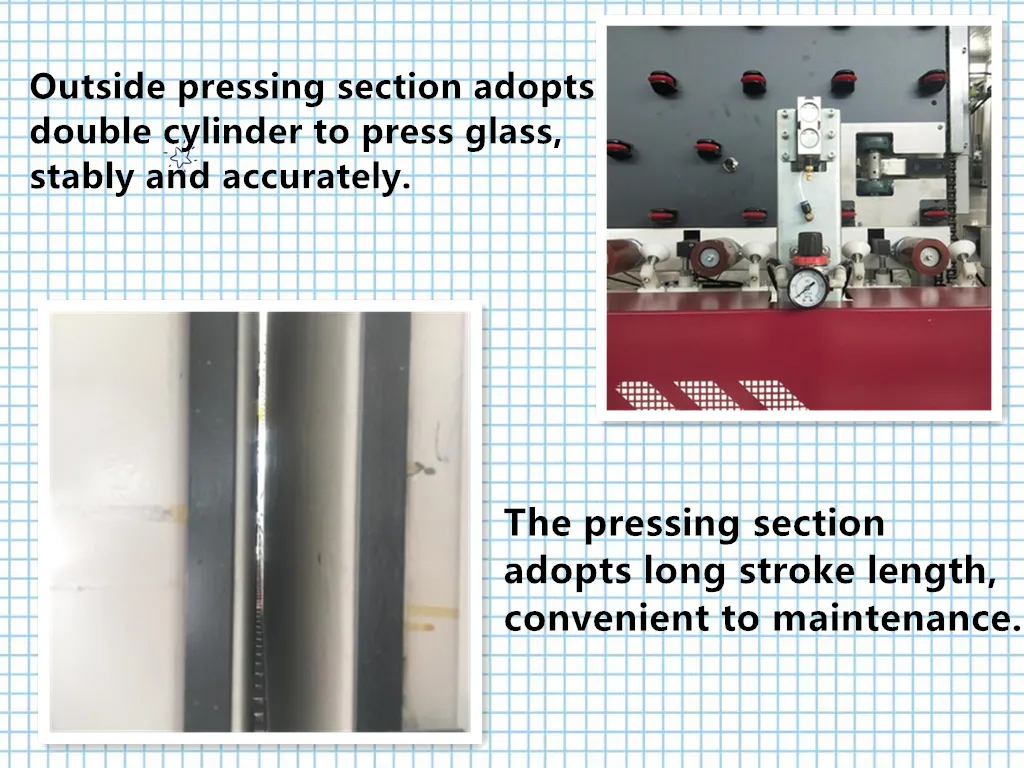

- Long stroke length in the pressing section for convenient maintenance.
- Hydraulic transmission for stable and efficient operation.
- Equipped with Germany Siemens PLC and 7 sets of frequency converters.
- Germany Siemens low voltage apparatus and France Schneider relays.
- Ethernet transmission for high speed and precision.
