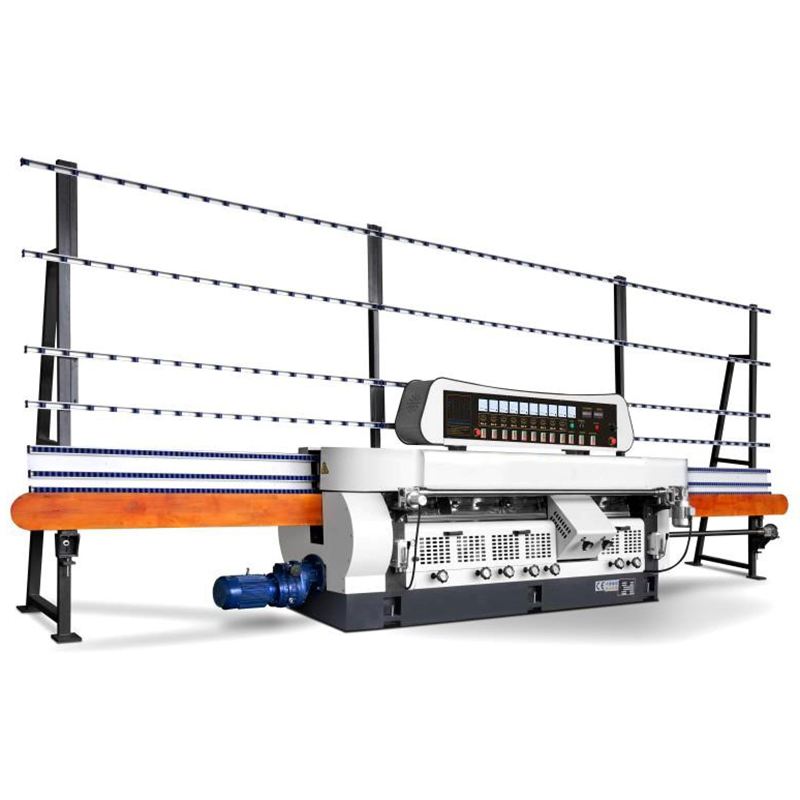

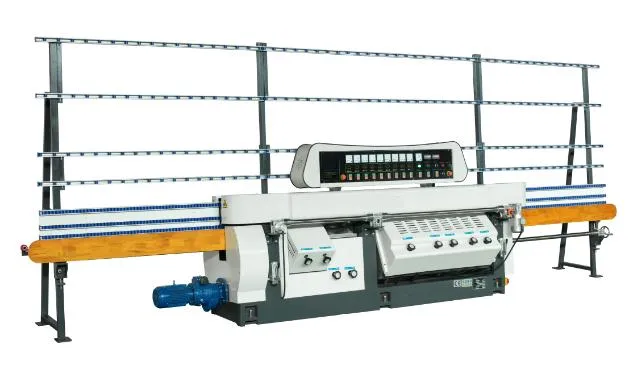

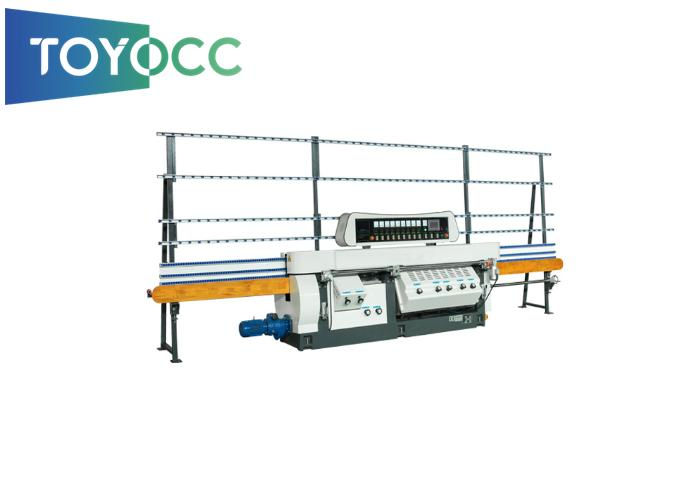

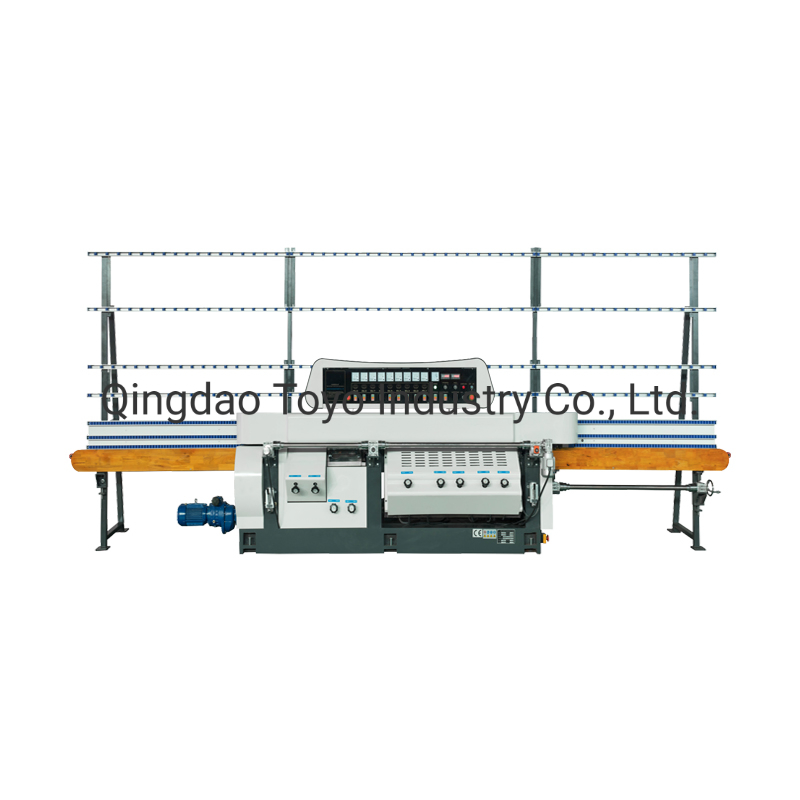

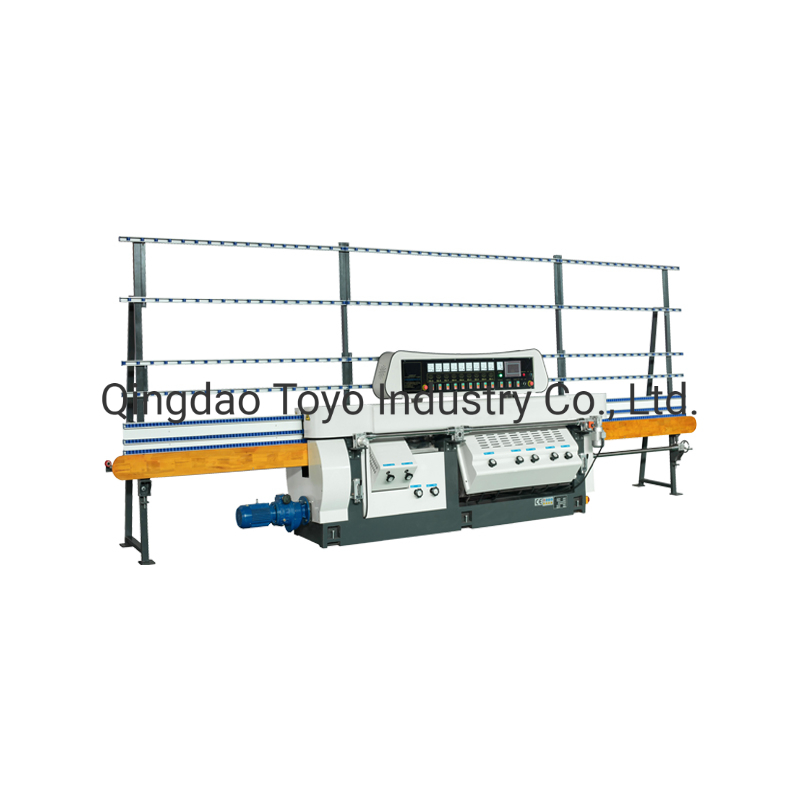

TCGZ9325-45° Glass Mitering edging machine with digital display (9 motors)

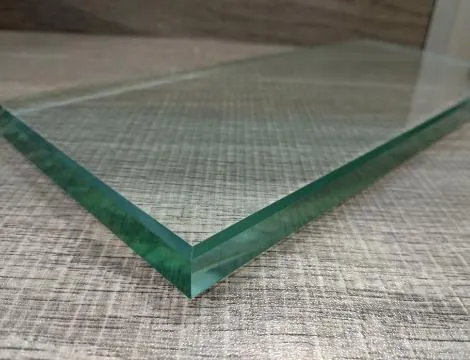

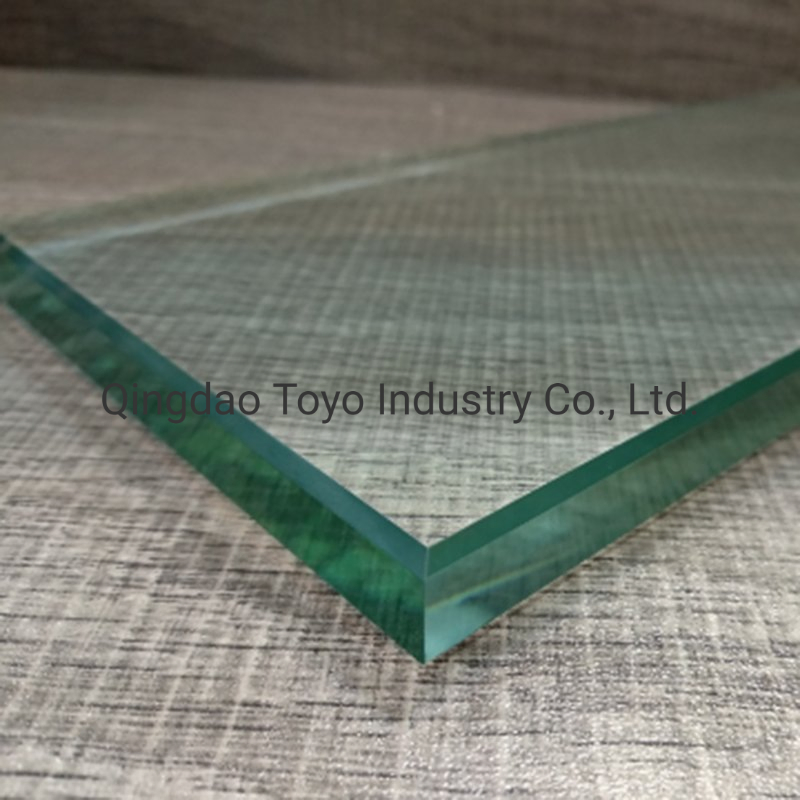

The TCGZ9325-45° is designed for grinding flat glass with arris, variable angle, and 45° edging. Five motors located on the front beam are adjustable from 0° to 45° as a single unit to achieve precise angle adjustments. This machine performs coarse grinding, fine grinding, polishing, and chamfering in a single pass. The base, beams, beds, and grinding heads are constructed from casting materials (annealed to prevent deformation), ensuring stability under large loads.
With its high-precision processing and reasonable design, it is an ideal choice for mass production of craft glass, home appliance glass, decoration, furniture, and architectural glass.

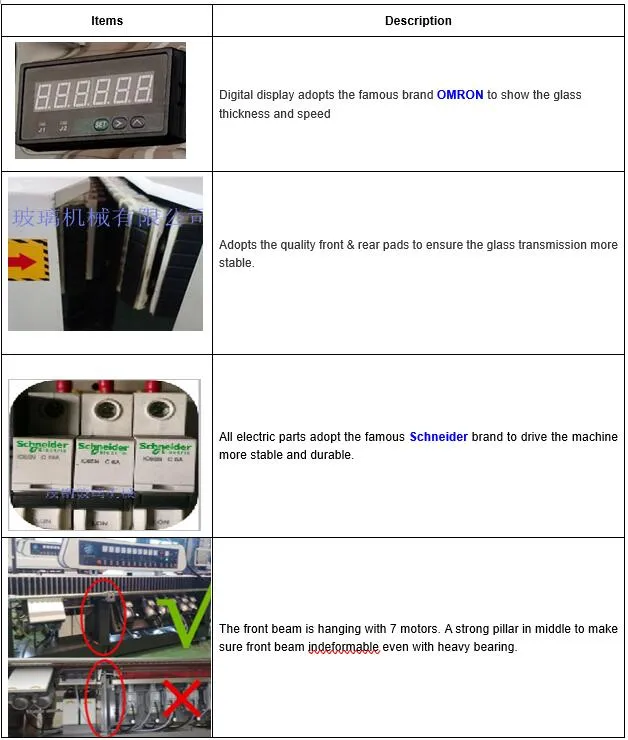

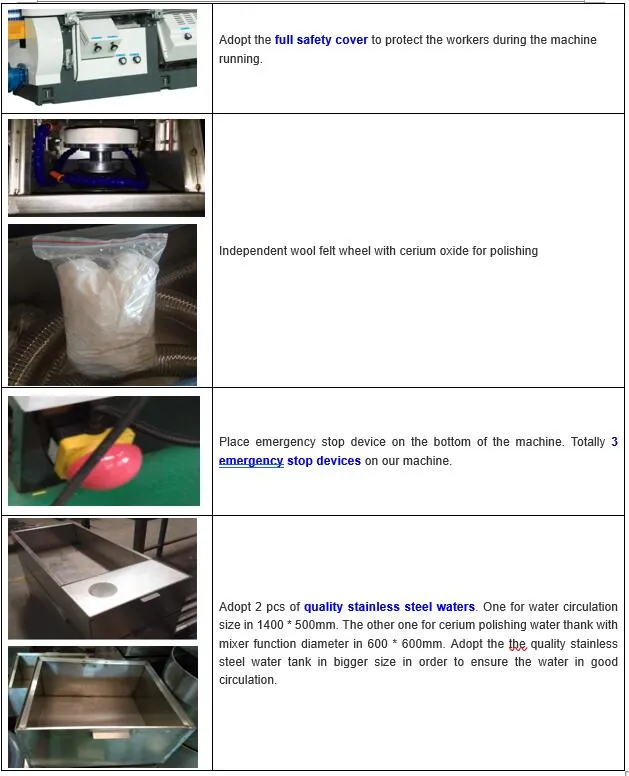

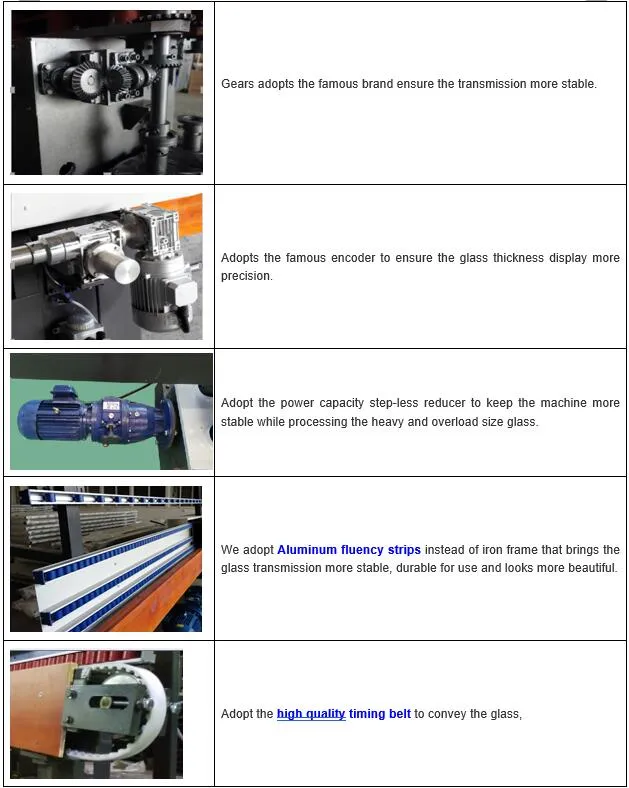

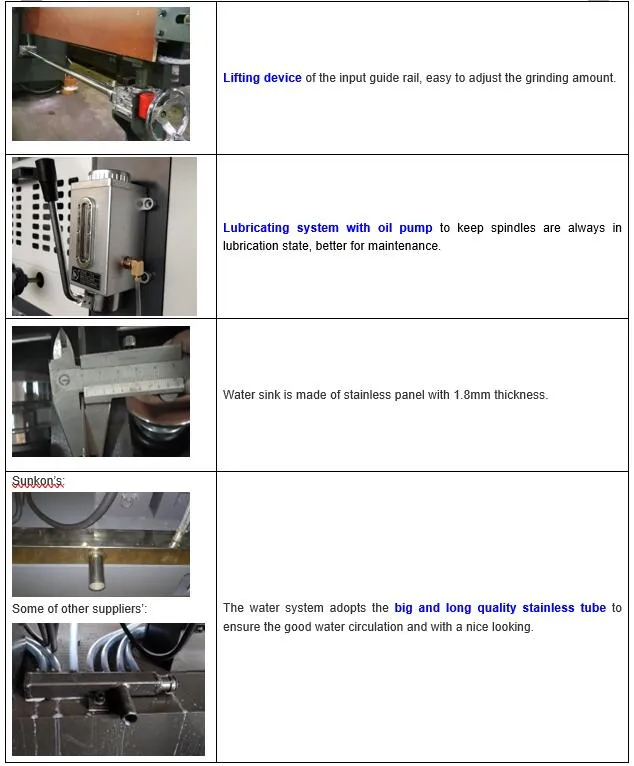

| Model NO. | TCGX9325 | Application | Construction |
| Object | Milling Cutter | Material | Metal |
| Max. Glass Size | 2500×2500mm | Min. Glass Size | 80×80mm |
| Glass Thickness | 3-25mm | Transmission Speed | 0.5-5m/Min |
| Working Height | 750mm | Total Power | 21 Kw |
| Diagonal Error | ≤0.5mm/M | Parallelism Error | ≤0.3mm/M |
| Technical Parameter | Data |
|---|---|
| Max. hemline grinding | 3mm |
| Max. arris grinding | 2.5mm |
| Land occupation | 7800×1000×2500mm |
| Power Supply | 380V/50HZ or Customized |
| Certification | CE |
| Part Name | Specification/Supplier |
|---|---|
| Machine Frame Material | Cast Iron HT250 (Pedestal 25mm, Beam 30mm) |
| Grinding Motors | JINGLONG motor (2.2kw/1.5kw) |
| Step-less Reducer | XG-TRANSMISSION JWB-X2.2-80FS |
| Worm Reducer | ZHUJIANG REDUCTION WPR0010-110 |
| Transmission Pads | Longxia brand (004#/008# series) |
| Bearings | Harbin Bearing Group (P204/F204/6203 etc.) |
| Electric Components | Schneider Electric (Contactor, Relay, Breaker) |
| Instruments | CHINT electric (Ammeter/Voltmeter) |
| Head No. | Type | Specification | Power |
|---|---|---|---|
| 1# & 2# | Diamond Wheel (Rough) | Ф150x12 (100/240 mesh) | 2.2KW |
| 3# | Resin Wheel (Fine) | Ф150×12 (320 mesh) | 2.2KW |
| 4# & 5# | Polishing/Wool Felt | Ф150 | 2.2KW |
| 6# & 8# | Resin Wheel (Angle) | Ф130x60 (240 mesh) | 1.5KW |
| 7# & 9# | 10S40 Polishing | Ф130x60 | 1.5KW |
| No | Parts Name | Quantity |
|---|---|---|
| 1 | Waterproof Rubber 130mm | 1 pc |
| 2 | Waterproof Rubber 100mm | 1 pc |
| 3 | Flexible water pipe | 3 pcs |
| 4 | Quality polishing powder | 2.5 kgs |
| 5 | Tool box | 1 set |
Leading position in China with a strong market reputation.
Serving over 864 global clients and top 20 factory brands.
28 years of production and 9 years of export experience.
15 rigorous inspections adhering to 6S production standards.
Stock shipped same day; custom units ready in 2-3 weeks.
Four-step method ensures stability and humidity protection.
Prices generally 5%-10% lower than market average.
Complimentary design schemes and tailored machine drawings.
A: The machine is designed for flat glass grinding with arris, variable angles, and specialized 45° mitering edging.
A: It can process glass thicknesses ranging from 3mm up to 25mm.
A: The machine features a 9-motor configuration, including 5 adjustable motors on the front beam for angle precision.
A: Core components like the base, beams, and grinding heads are made of high-quality cast iron (HT250), annealed to prevent deformation over time.
A: Yes, while the standard power is 380V/50Hz, it can be customized to meet specific regional voltage requirements.
A: The machine supports a maximum glass size of 2500×2500mm.
