Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
1 / 5
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine
Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine

Fruit Juice Making Small Factory Productions Machine, Glass Bottle Juicer Filling Line, Sugarcane Juice Packing Machine

Customization: Available
After-sales Service: Overseas Installing Service
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
BRCGN24-24-8
Type
Hot Filling
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Rotor
Filling Principle
Hot Filling
Packaging
Bottle
Packaging Material
Glass
Control System
PLC+ Remote Operation System
Capacity
2000bph-12000bph
Suitable Product
Juice / Tea / Dairy Drink
Bottle Size
200ml to 2000ml
Specification
Stainless Steel 304/316
⚙️ Product Description

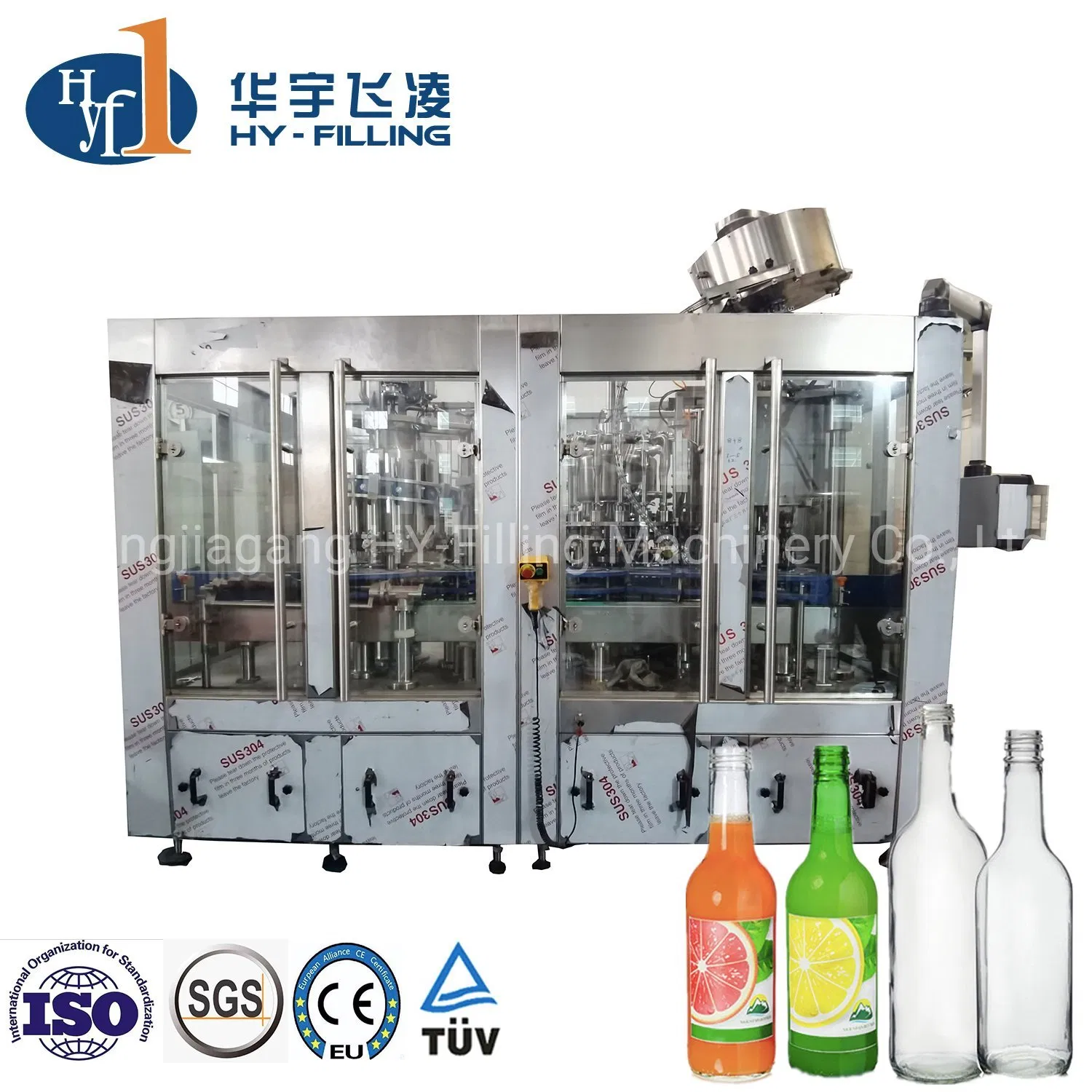

The machine is combined with rinsing, filling and capping, which special designed for glass bottled juice or energy drink. It features stable characteristics, advanced technology, a professional appearance, and complete functionality.
🔍 Detailed Components

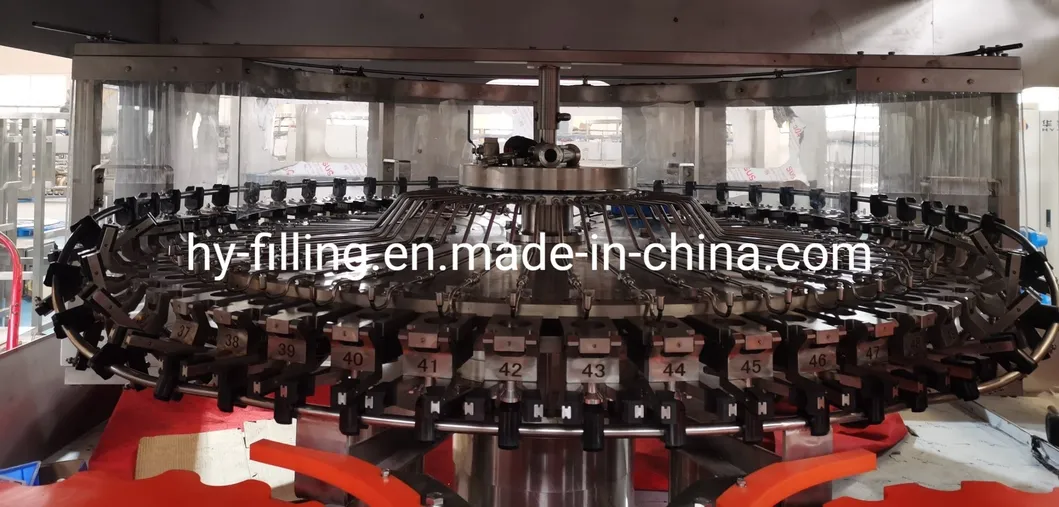

Rinsing Part: Rotary type, used for rinsing glass bottles before sending them to the filling machine. Applied for alcohol, beverage, and water. Bottles are turned mouth down by a clip mechanism, rinsed with aseptic water, dried, and automatically turned mouth up.
Rinsing Part

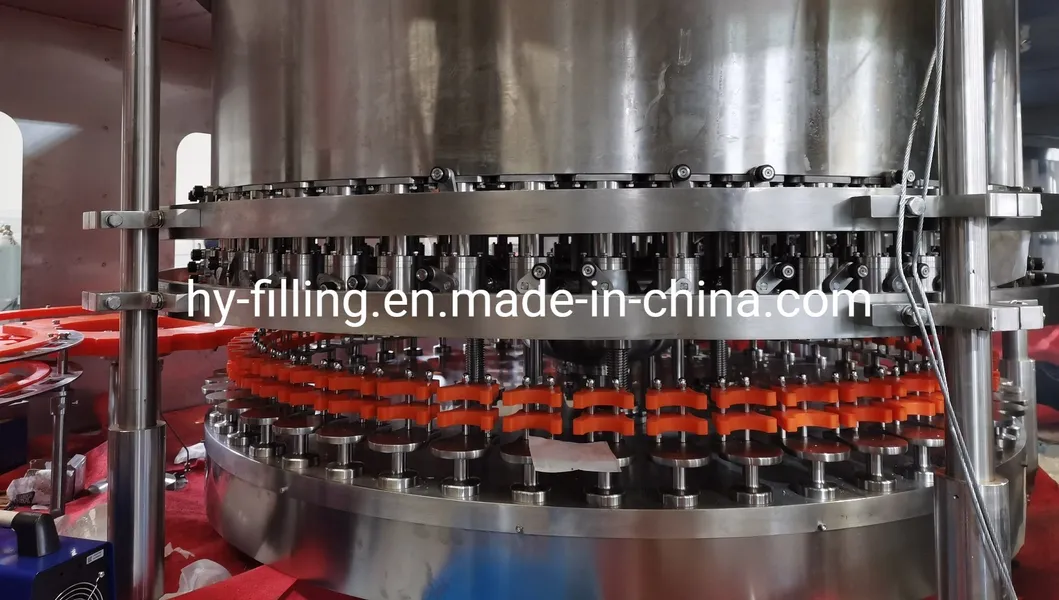

Filling Part: Designed with hot filling principles. Adopts a constant pressure mechanism valve for high accuracy and fast filling. Includes a double guide rod structure and complete CIP cleaning function.
Filling Part

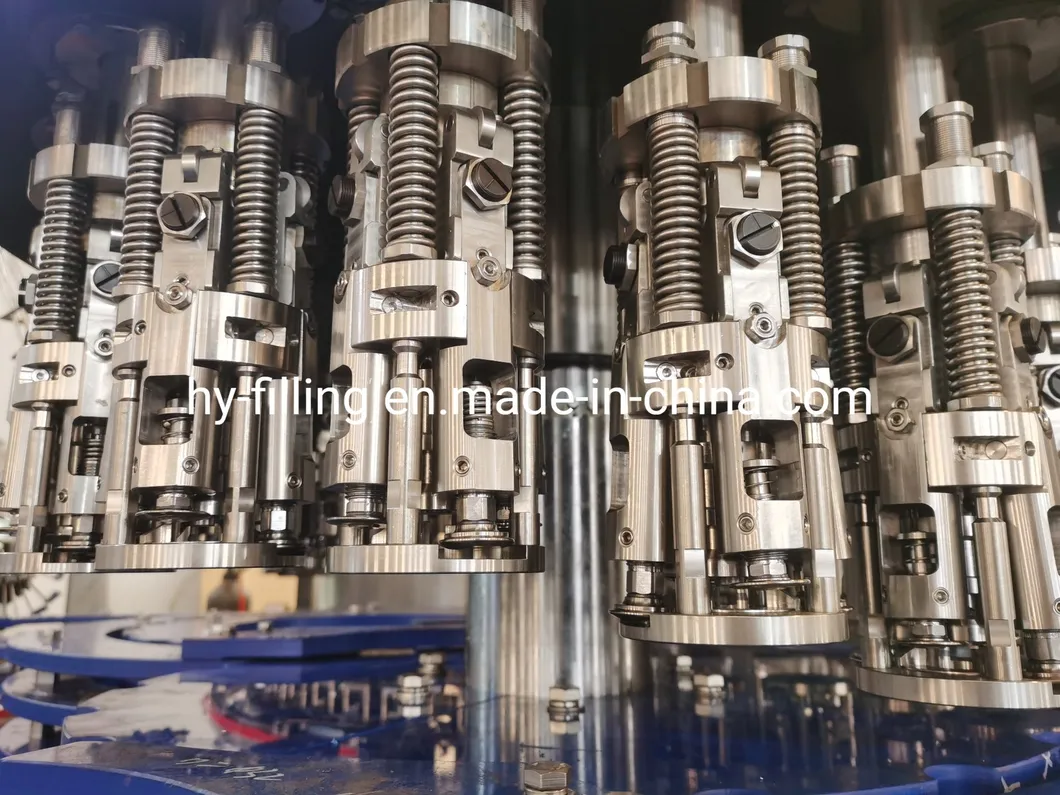

Capping Part: Utilizes a reduction box drive and centrifugal force for cap sorting. Includes a separation device to ensure correct cap orientation; reverse caps are automatically returned to the hopper via wind power.
Capping Part
📐 Technical Parameters
Rating output3000~4000BPH (500ml)
Rinsing time2-2.5s
Filling valve speed>115ml/s
Suitable for bottlesGlass bottle
Suitable for capsTwist-off cap, ROPP cap, Easy-open cap, crown cap etc.
🛠️ Complete Turnkey Project Solution
  • Water Treatment System (Filtration)
  • Preparation/Processing System (Mixing for Juice/CSD)
  • Injection Molding & Bottle Blowing Machines
  • Air Conveyor & Filling Machine
  • Cap Elevator & Blow Dryer
  • Code Printing & Labeling Systems
  • Bottle Packing & Palletizing Machines
🔧 Auxiliary Machines
Water Treatment

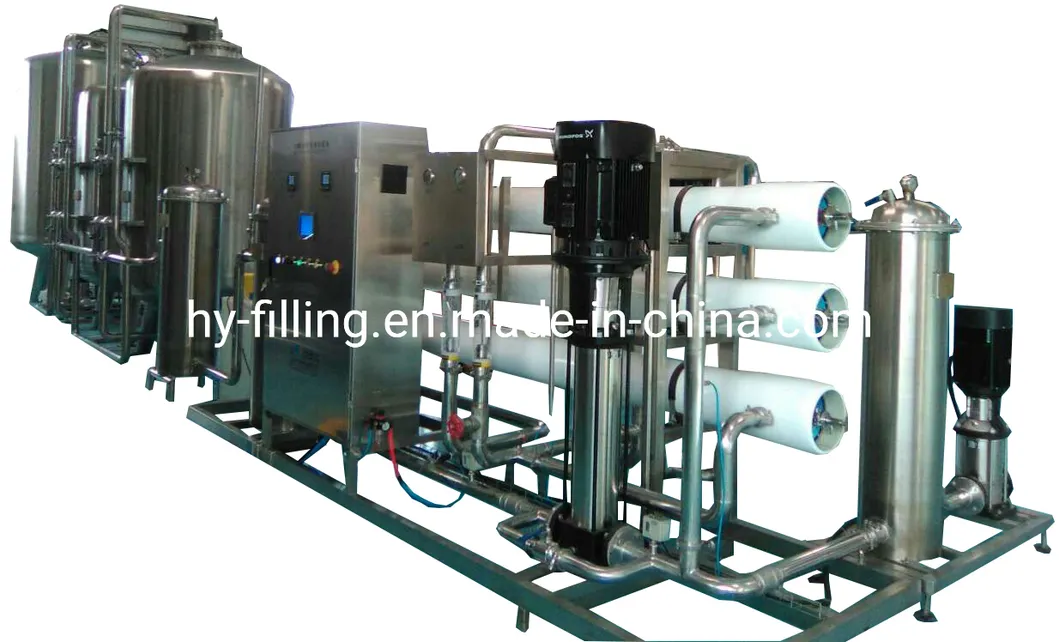

1. Water Treatment: Equipped for pure/mineral water with RO, ultra filtration, and ozone processing.

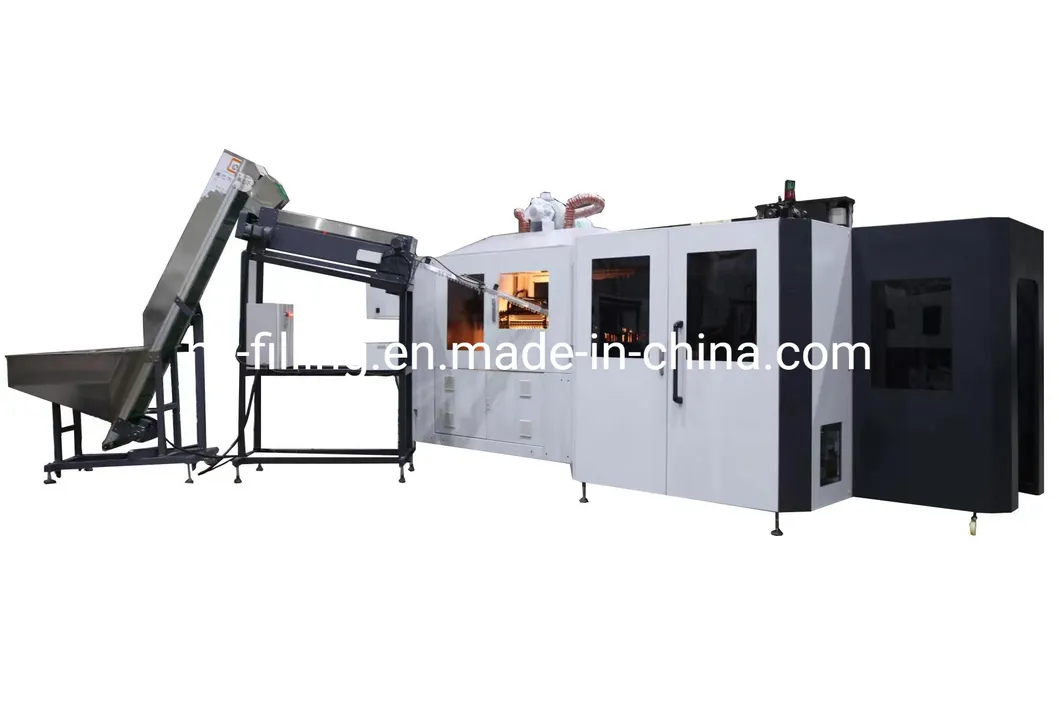

Bottle Blowing

2. Bottle Blowing: Automatic and semi-automatic options for PET bottles (500ml-2L).

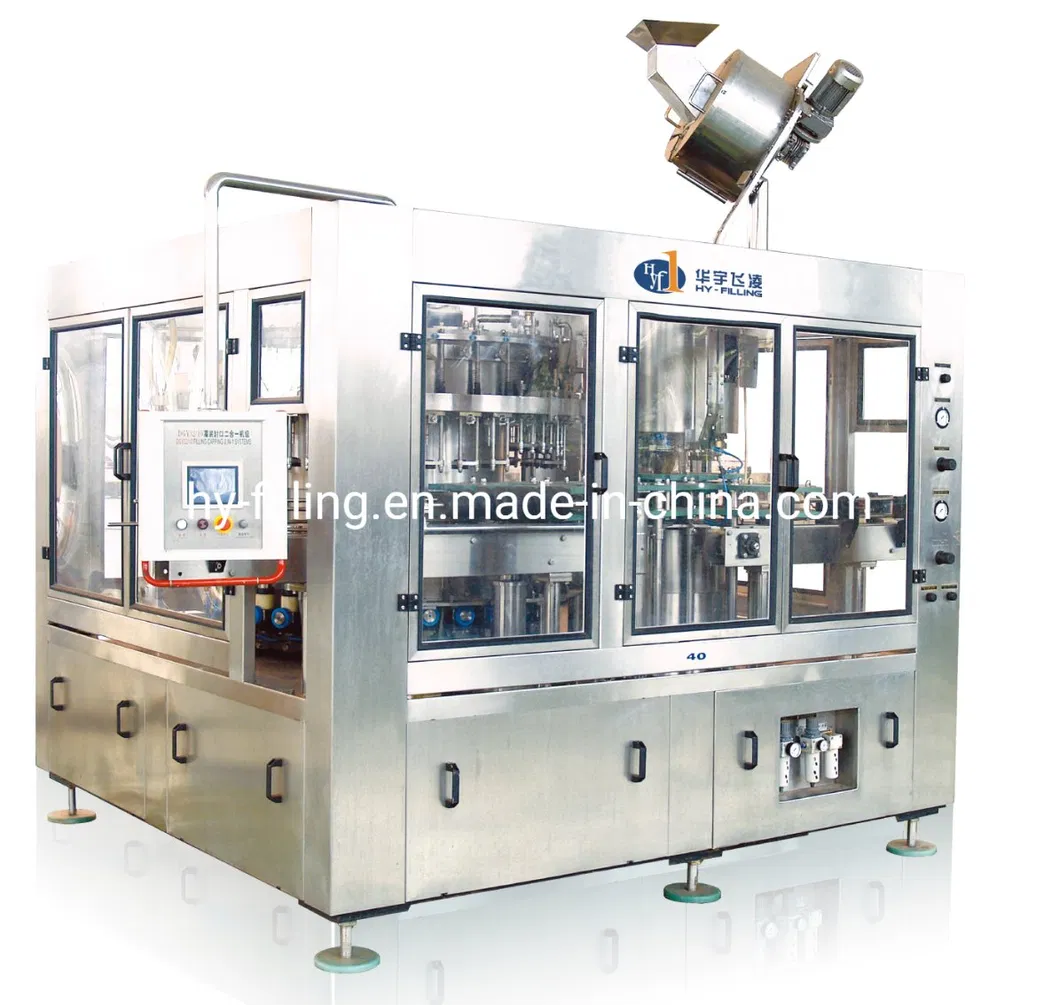

Filling System

3. Integrated Filling: 3-in-1 system for rinsing, filling, and capping.

Conveyor

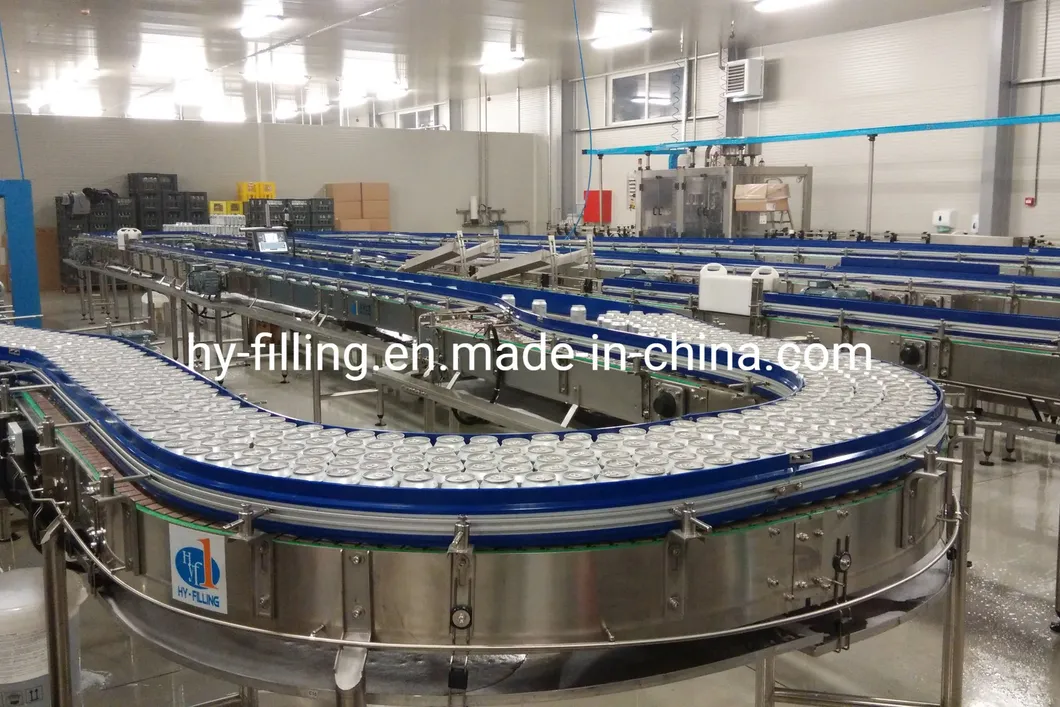

4. Conveyor System: Modular design with low noise and easy maintenance.

Packaging

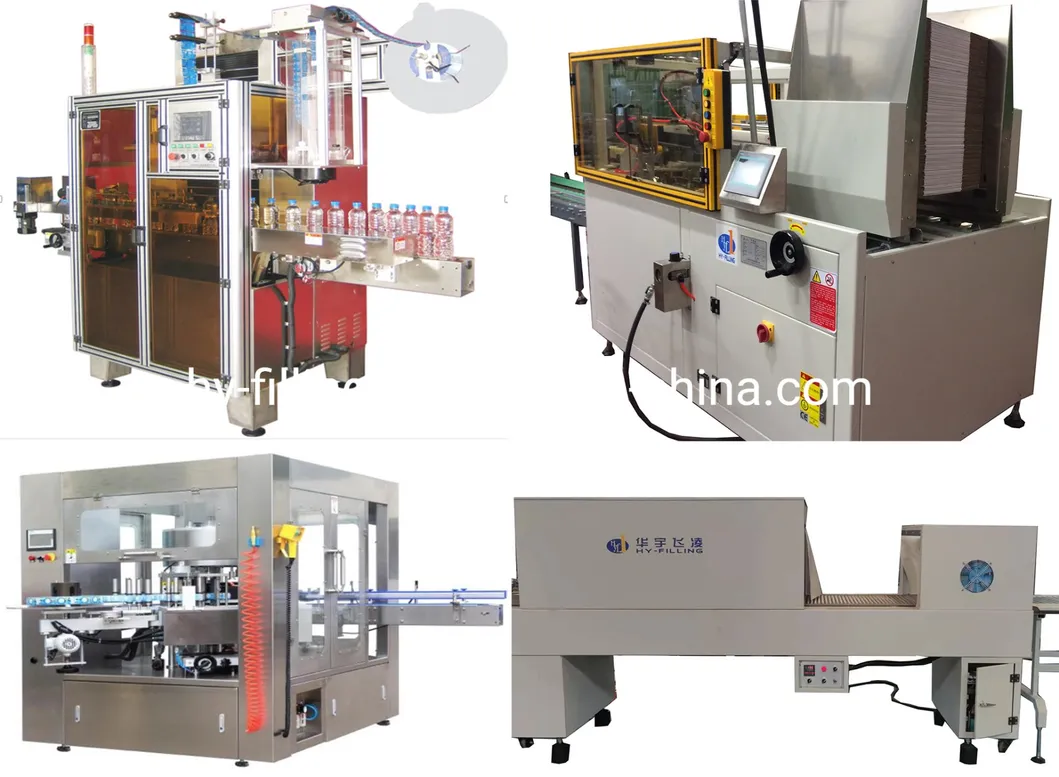

5. Packaging System: Includes sleeving, shrink-wrapping, and palletizing.

🏭 Production Line Overview
Line Overview
❓ Frequently Asked Questions
Q1: What types of drinks is this machine suitable for? A: It is specifically designed for liquid products like fruit juice, tea, energy drinks, and dairy beverages.
Q2: Can it handle different bottle sizes? A: Yes, the system supports glass bottles ranging from 200ml to 2000ml.
Q3: What is the production capacity? A: Depending on the configuration, the capacity ranges from 2,000 to 12,000 bottles per hour (BPH).
Q4: What kind of control system does the machine use? A: It uses high-quality PLC systems from Siemens (Germany) or Mitsubishi (Japan) with remote operation capabilities.
Q5: What types of caps can be used? A: The machine is compatible with Ropp caps, crown caps, screw caps, and twist-off caps.
Q6: Does the filling machine include cleaning functions? A: Yes, it is equipped with a complete CIP (Clean-in-Place) cleaning function to ensure hygiene.
