Fullay Automatic Laminating Glass Production Line Laminated Glass Making

Customization:	Available
Certification:	CE, ISO, FDA
Structure:	Horizontal

📊

Basic Specifications

Model NO.

GSLM2550

Control System

PLC

Machine Type

Horizontal Glass Washing

Condition

New

Category

Laminated Glass Machine

Package

Sea Worthy Package

Specification

2500*5000mm

HS Code

84649011

Capacity

10 Set/Sets Per Month

🏗️

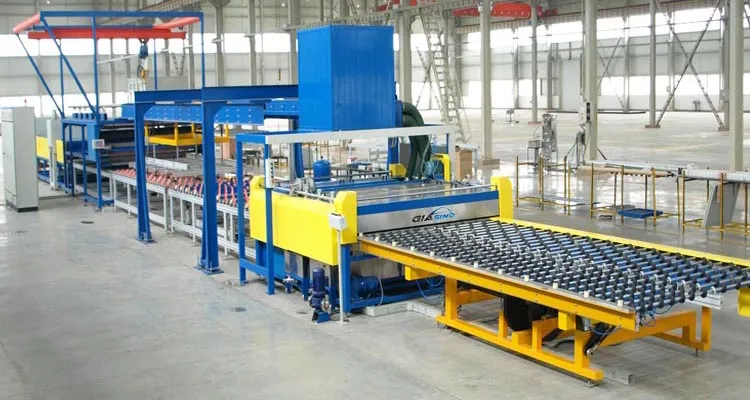

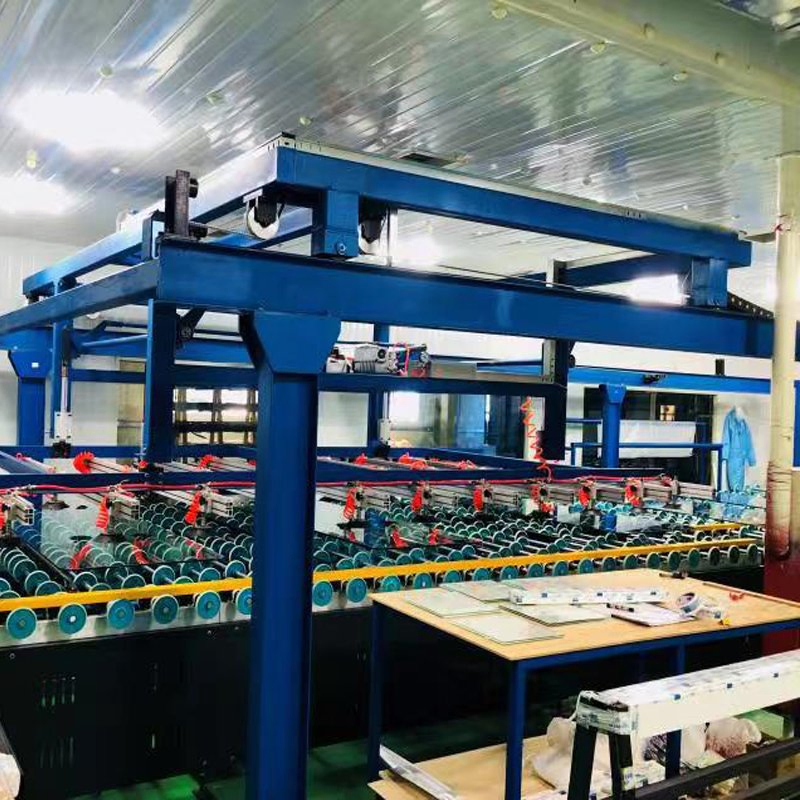

Automatic Laminated Glass Production Line

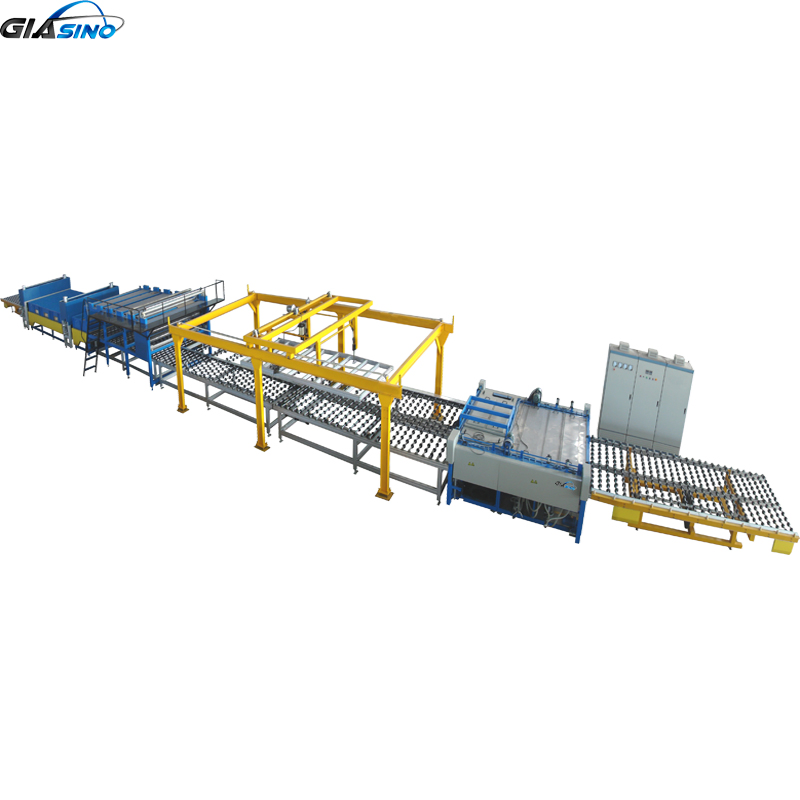

Automatic Laminating Glass Production Line

Production Process

This automatic line is designed for mass production of flat laminated glass with consistent specifications.

1. Manual Loading

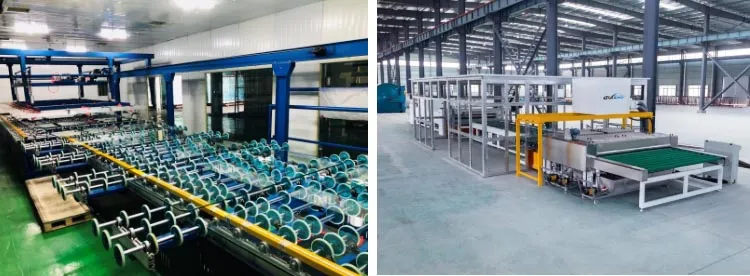

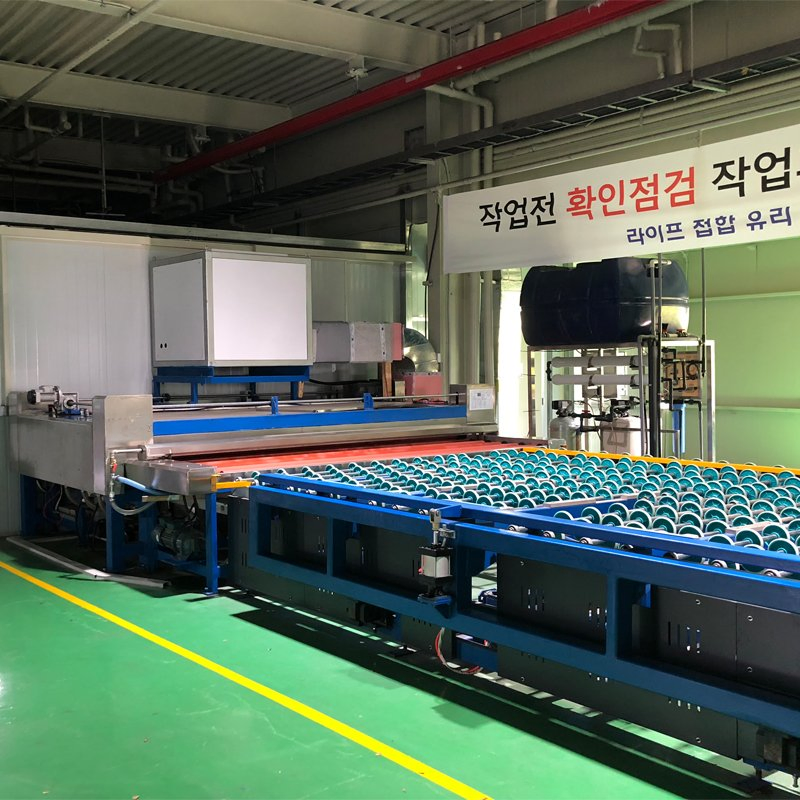

2. Washing & Drying

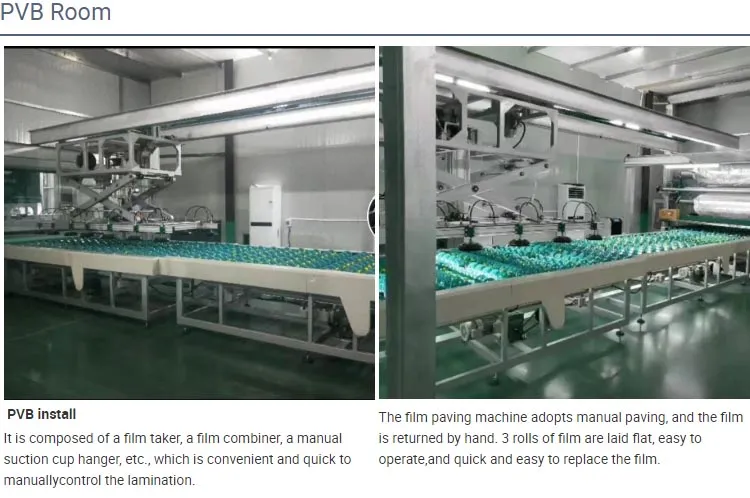

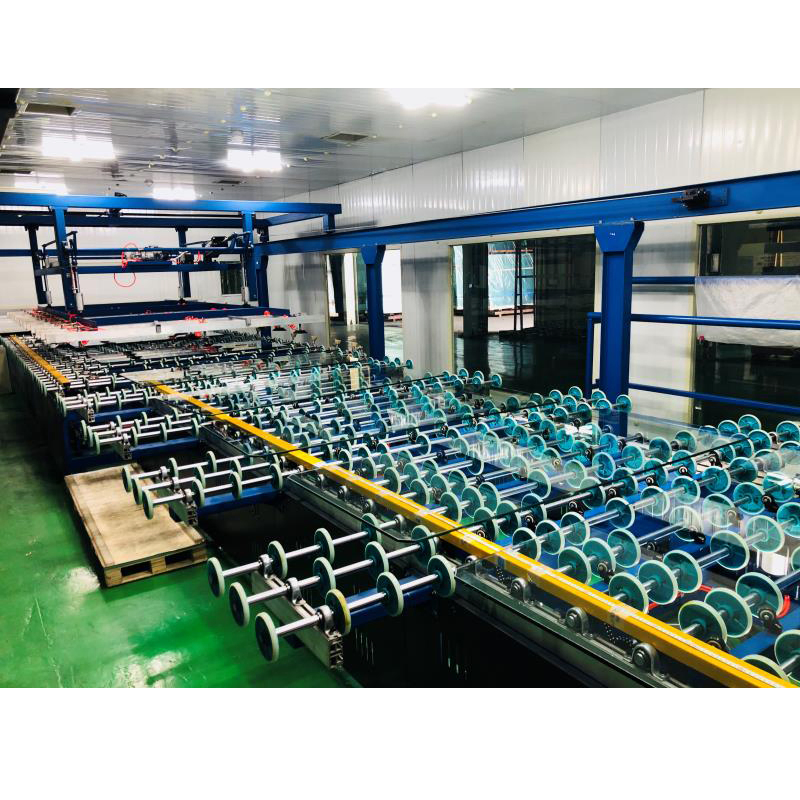

3. Manual Assembly

4. Preheating & Pre-pressing

5. Manual Unloading

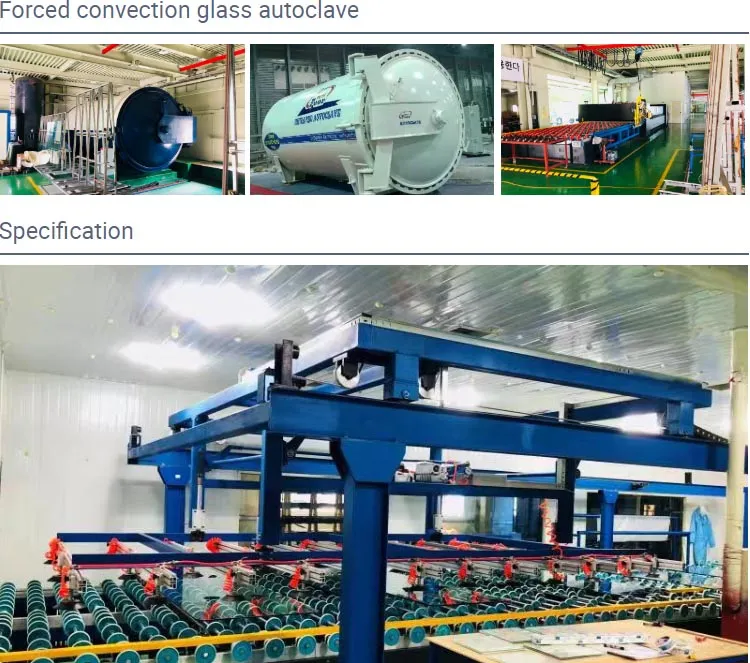

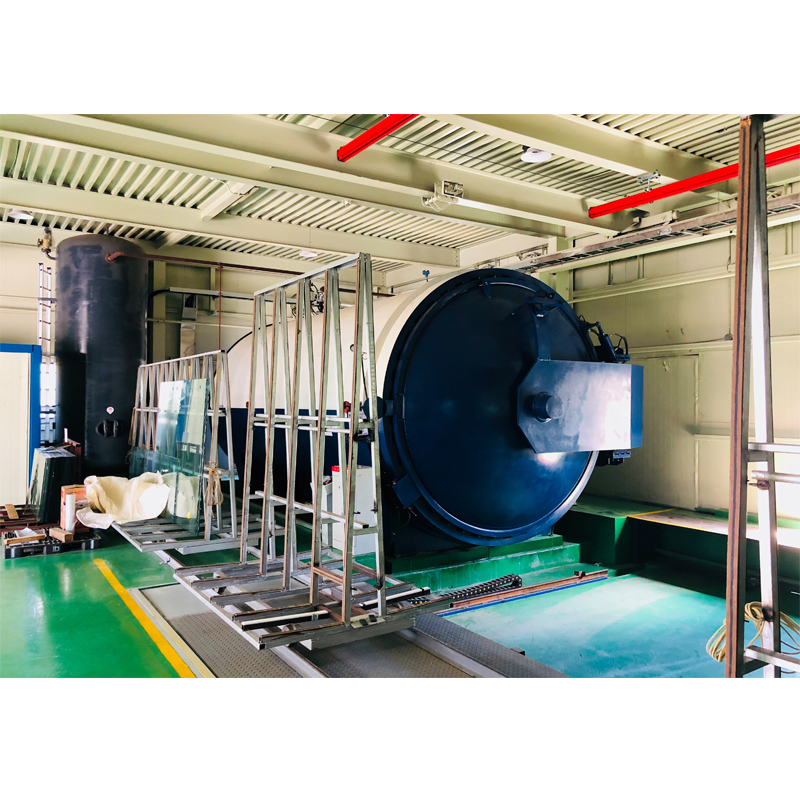

6. Autoclave Process

7. Finished Product

⚙️

General Characteristics

Whole Line Electrical Control: Adopts PLC and button control with touch screen display. Features multi-level safety protection and closed-loop feedback for automatic speed adjustment across each section.
Stable Conveying: Frequency converters control all conveying motors, ensuring smooth speed transitions and error-free operation at process-set speeds.
Washing and Drying System: Equipped with high-quality cleaning brushes capable of handling coated and hard LOW-E glass (2.8mm to 25mm thickness) without leaving stains.
Easy Maintenance: The upper cleaning part can be raised to 400mm for convenient maintenance and cleaning access.

💎

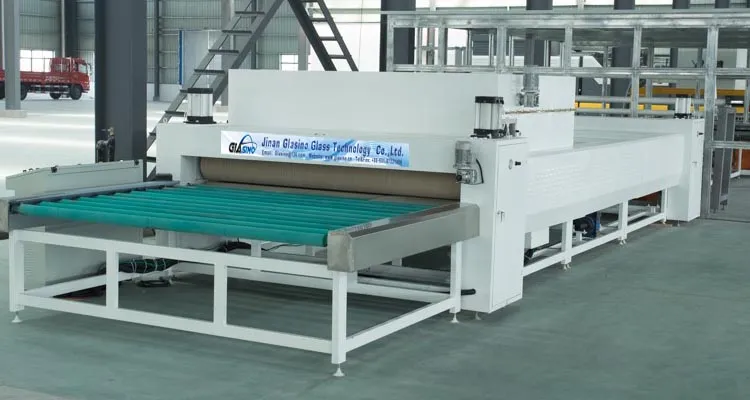

Glass Pre-press Machine

The glass roller press features a reasonable structure and simple operation. The main drive utilizes frequency conversion speed regulation, gear transmission, and quartz tube heating. Each section is independently controlled by zones.

The front and rear pairs of large pressure rollers are synchronously driven. Gap adjustment is managed via cylinder lifting buttons, ensuring consistent pressure across the glass surface through accurate digital display and operation.

❓

Frequently Asked Questions

What is the maximum glass processing size for this line?

The standard specification for this laminated glass production line is 2500*5000mm.

Does the washing machine support LOW-E glass?

Yes, it is equipped with high-quality brushes specifically designed to clean coated glass and hard LOW-E glass without damaging the surface.

What range of glass thickness can the machine handle?

The cleaning and processing system is compatible with glass thicknesses ranging from 2.8mm to 25mm.

How is the machine controlled for different production speeds?

The whole line uses a PLC system combined with frequency converters for all conveying motors, allowing for automatic and accurate speed synchronization between sections.

Is the machine easy to maintain?

Yes, the upper part of the washing and drying section can be raised as a whole to 400mm, providing easy access for routine cleaning and maintenance.

What type of heating system is used in the pre-press section?

The pre-press machine utilizes quartz tube heating, with different sections controlled by zones for precise temperature management.
