Customization:	Available
Certification:	CE, ISO, SGS
Condition:	New

Send Inquiry

Product Description

⚙️

Insulating Glass CNC Sealing Machine Overview

Suitable for super large and overweight glass, can be flexibly connected to ERP MES systems for streamlined production.

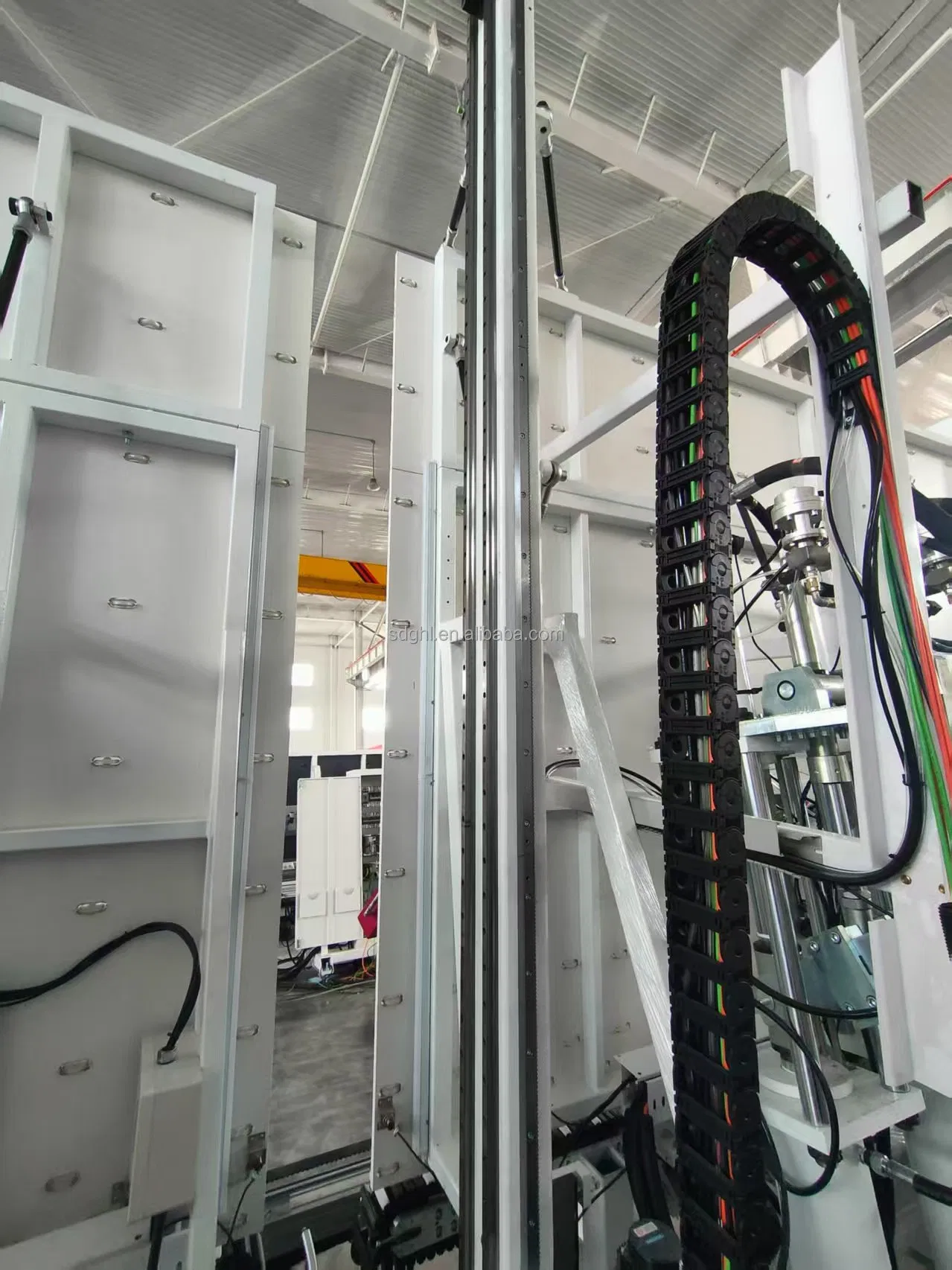

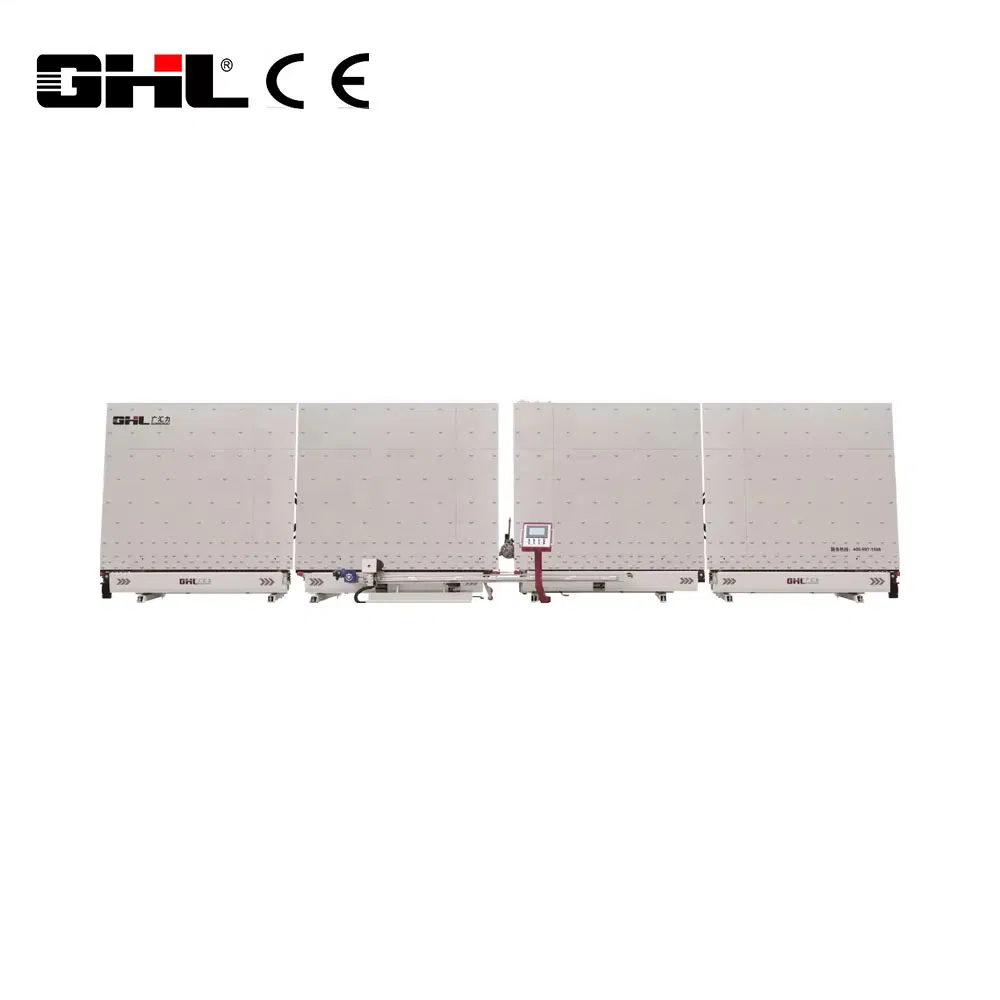

Automatic Insulating Glass Sealing Robot

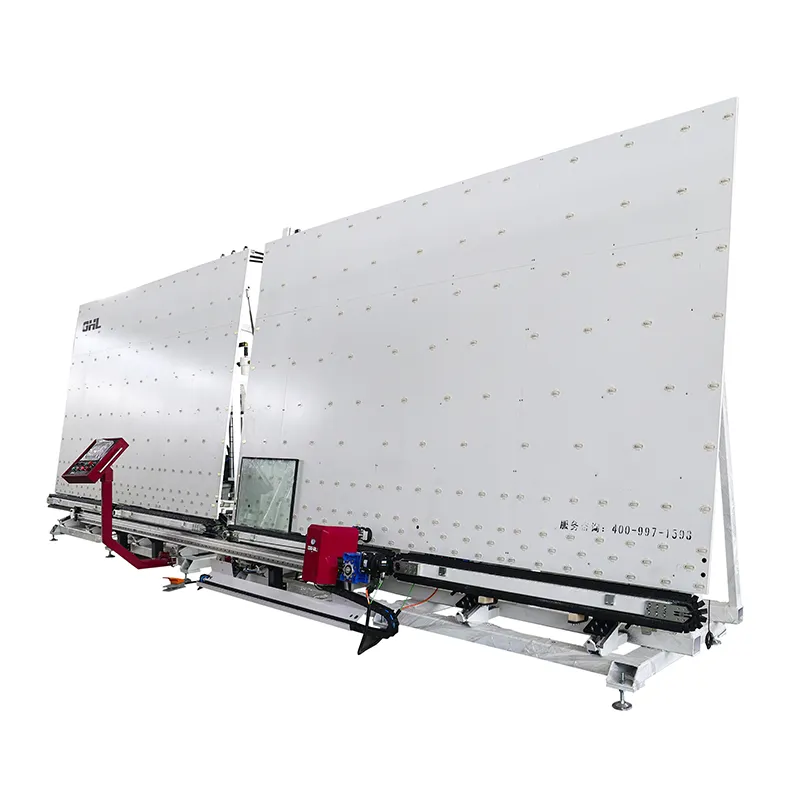

Glass Sealing Machine Detail

Model NO.

ZNJ2840

Control System

Automatic, CNC, PLC, Touch Screen

Glass Thickness

12-56mm

Warranty

2 Years

Working Speed

5-40m/Min

Max Glass Size

2500*4000mm

Min Glass Size

300*300mm

Air Pressure

0.6-0.8MPa

🚀

Machine Performance Features

✓High automation reduces labor intensity and improves production efficiency.

✓Man-machine touch screen interface with integrated memory function.

✓Smooth sealant coating on edges and corners without air bubbles.

✓Dual sealant supply systems with fast one-button switching.

✓Space-saving design with a machine width of only 1.5m.

✓Intelligent transport sections handle both small and large glass efficiently.

✓Equipped with anti-blocking mixer device for easy cleaning.

✓World-class servo control system for stable and high-precision output.

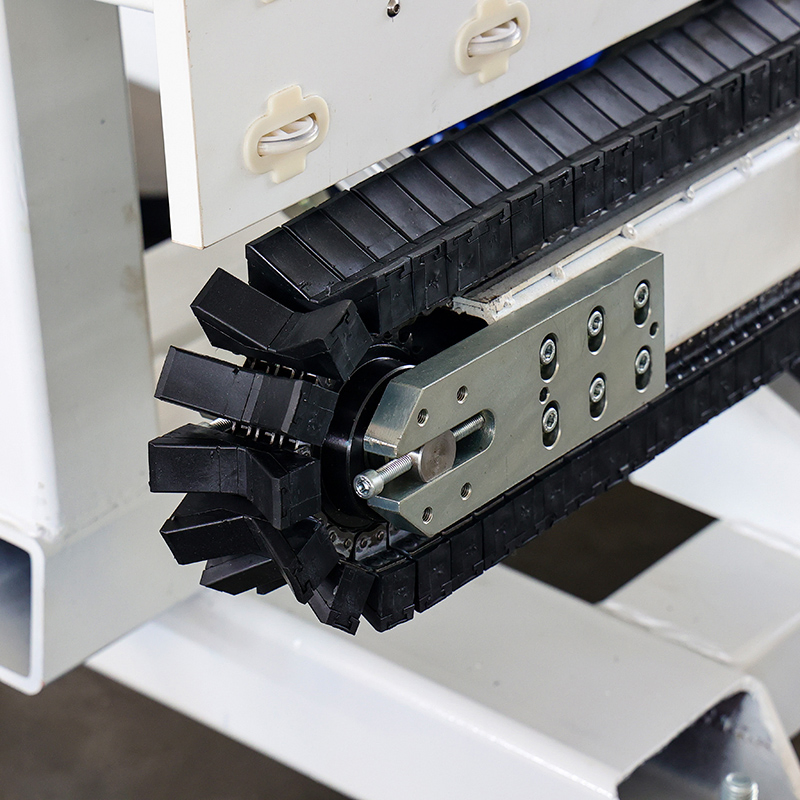

✓Chain transmission belt ensures smooth and reliable glass transfer.

✓Suitable for triple glazing, sealing two cavities in a single pass.

✓Embedded backboard wheels prevent transport friction.

✓High-speed positioning function for accurate glass location.

✓Real-time sealant pressure display on the touch screen.

✓Timing sealant discharge function to prevent mixer blockage.

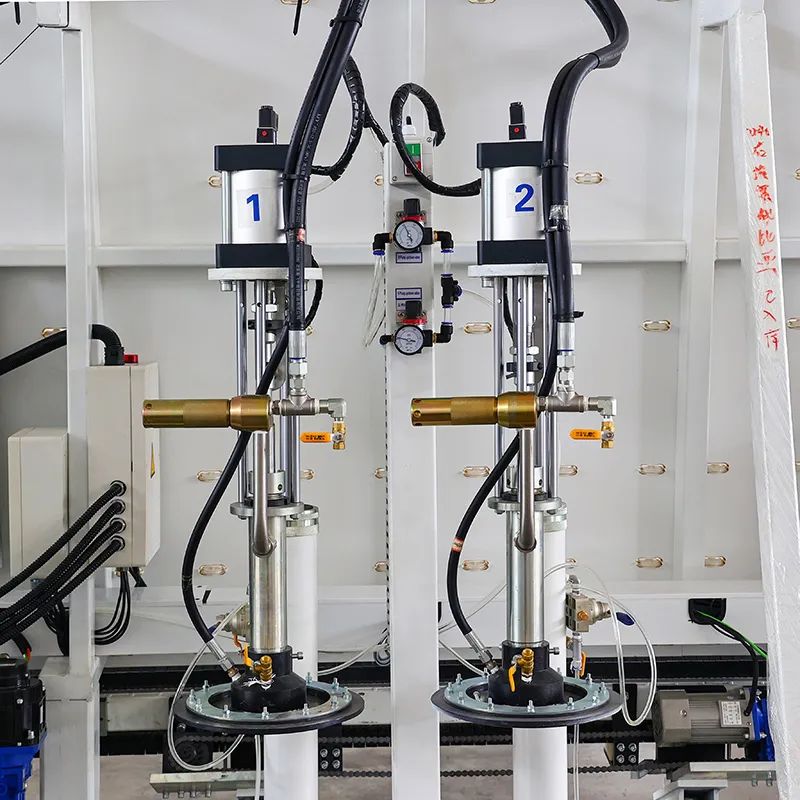

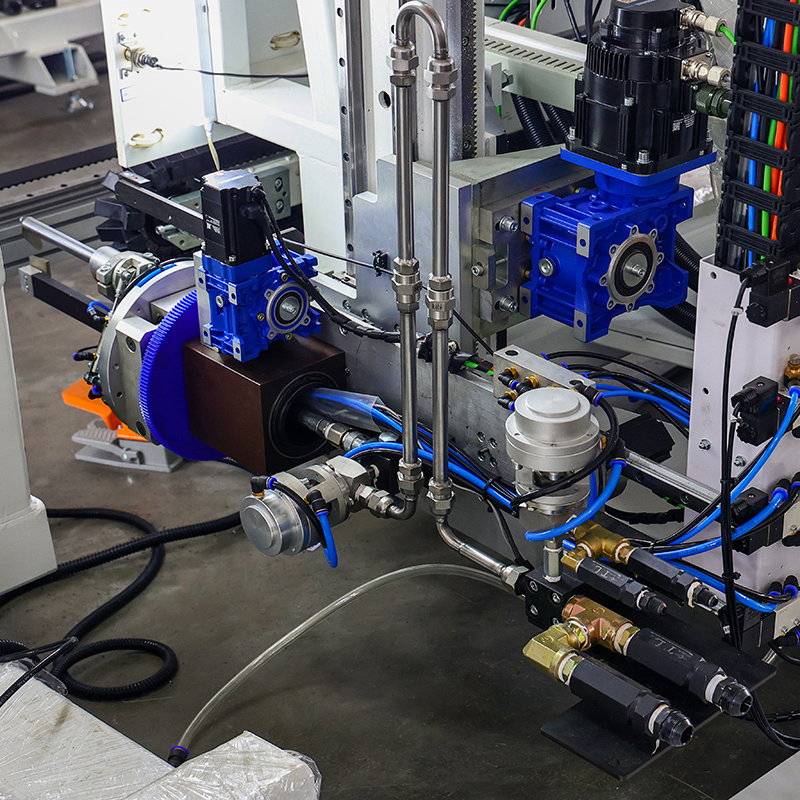

Sealant Nozzle Detail

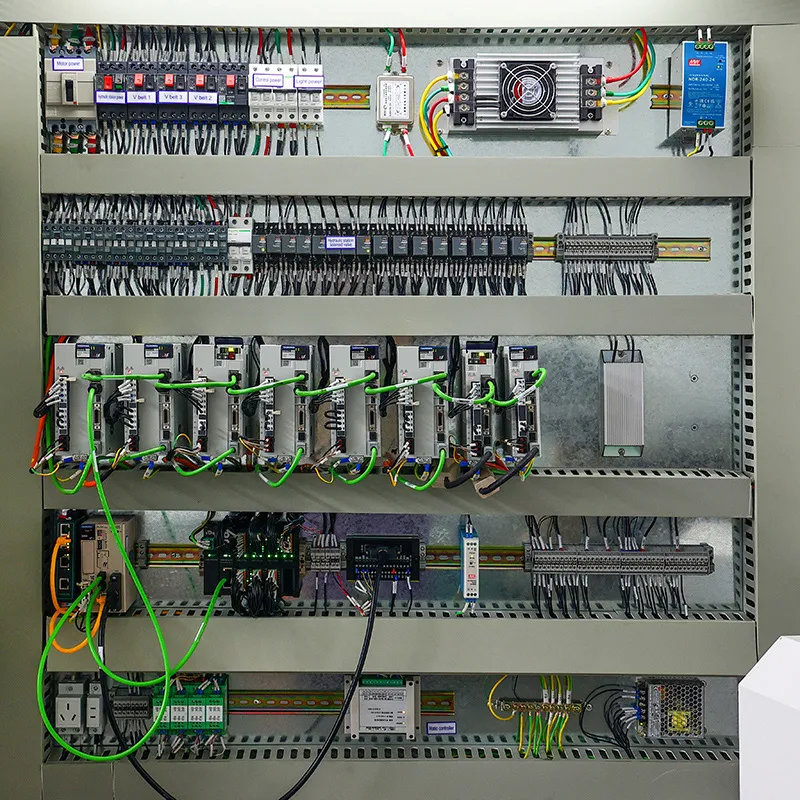

Control Panel

📊

Technical Parameters

Model Parameter	ZNJ2540-I Specification	ZNJ2540-II Specification
Voltage Power	380V 50Hz 9KW	380V 50Hz 9KW
Air Pressure	0.6-0.8Mpa	0.6-0.8Mpa
Squeeze Pressure	32Mpa	32Mpa
Max Glass Size	2500*4000mm	2500*4000mm
Min Glass Size	300*300mm	300*300mm
Glass Thickness	12-56mm	12-56mm
Working Speed	5-40m/min	5-40m/min
Overall Dimension	863014003500mm	863014003500mm

📦

Packing & Delivery

Package Size

870.00cm * 150.00cm * 360.00cm

Gross Weight

6000.000kg

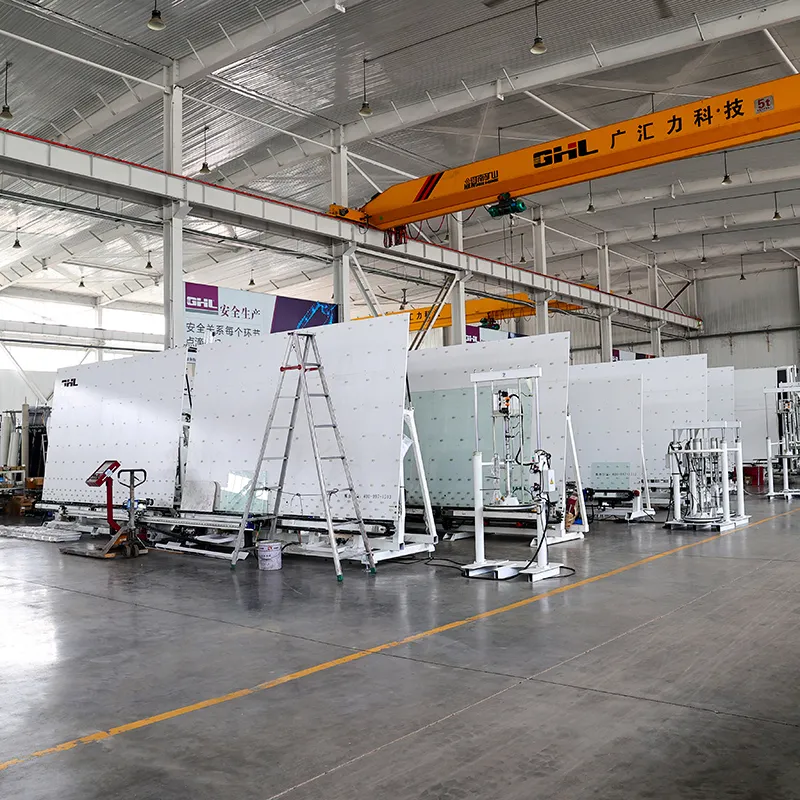

Machine Packing Process

🛠️

Service & Support

Standard Warranty

12 to 24 months comprehensive coverage for core components.

Global Support

24/7 technical assistance and rapid spare parts supply.

Training

On-site or remote operation and maintenance training programs.

📜

Quality Certifications

ISO Certification

CE Certificate

SGS Certificate

❓

Frequently Asked Questions

1. What is the maximum glass size this machine can process?

The machine can handle super large glass with dimensions up to 2500mm * 4000mm.

2. Does the machine support triple glazing production?

Yes, it is specifically designed to seal two cavities of triple-glazed units in a single operation.

3. What control system is integrated into the equipment?

The machine uses a high-end CNC/PLC system from world-famous brands like YASKAWA, featuring a sensitive Ethernet-based touch screen.

4. Can it be integrated with factory ERP or MES systems?

Yes, the system is designed for flexible connectivity with ERP/MES systems to support smart factory automation.

5. How does the machine prevent the sealant mixer from blocking?

It features an anti-blocking device and a timing sealant discharge function to ensure the mixer remains clear even during pauses.

6. Is the corner sealing quality consistent?

Absolutely. The servo-controlled output ensures full edges and corners with a smooth surface, eliminating the need for manual corner paring.
