Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line
1 / 5
Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line
Glasino Full Automatic PVB Laminated Glass Production Line

Glasino Full Automatic PVB Laminated Glass Production Line

Customization: Available
Warranty: 1year
Type: Glass Laminating Machine
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
GSPV2500
Certification
CE, ISO
Structure
Horizontal
Control System
PLC
Machine Type
Horizontal Glass Washing
Condition
New
After-sales Service
1 Year
Production Capacity
10 Sets/Month
⚙

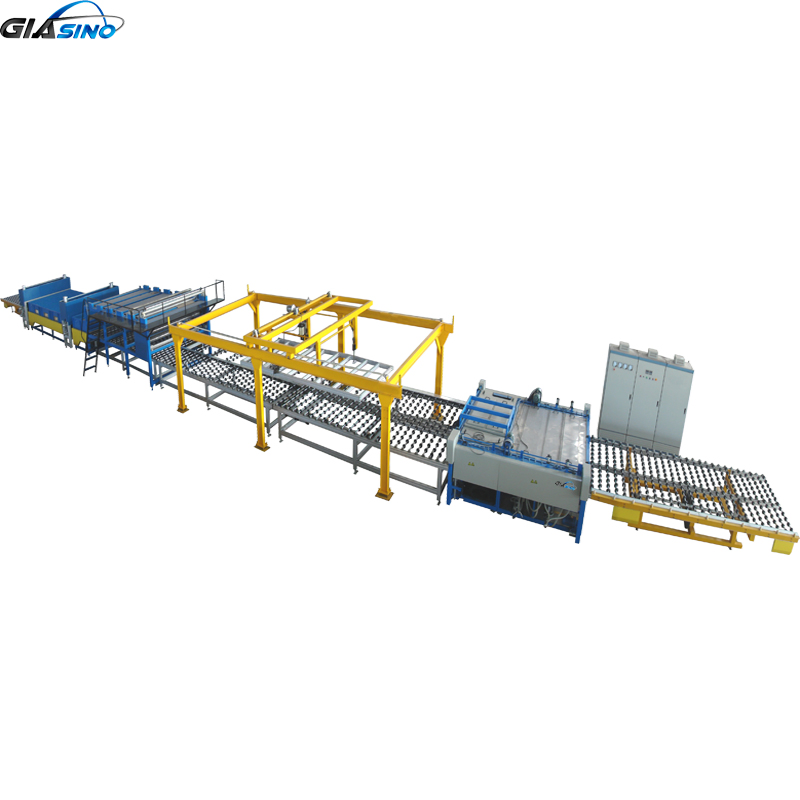

PVB Laminated Glass Making Line

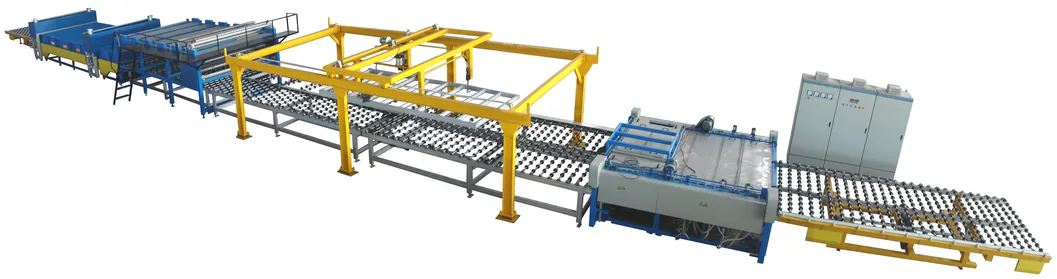

PVB Laminated Glass Production Line

Line Components

  • Loading table
  • Washing & drying machine
  • Transition table
  • Glass sheet-combining table

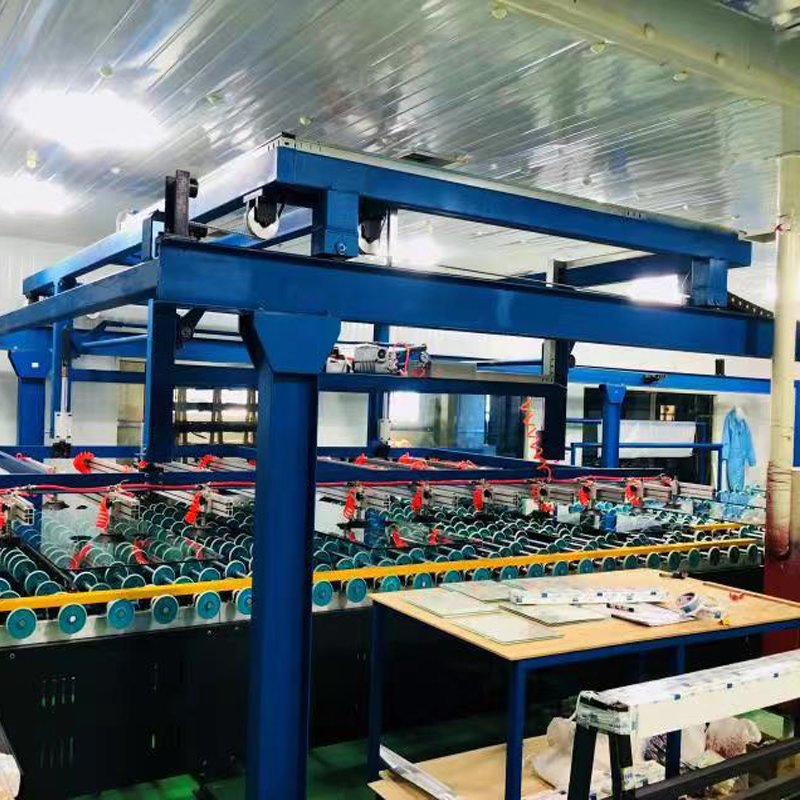

  • Movable sucking hanger
  • PVB film laying machine
  • Roller press machine
  • Sheet combining system
  • Autoclave system

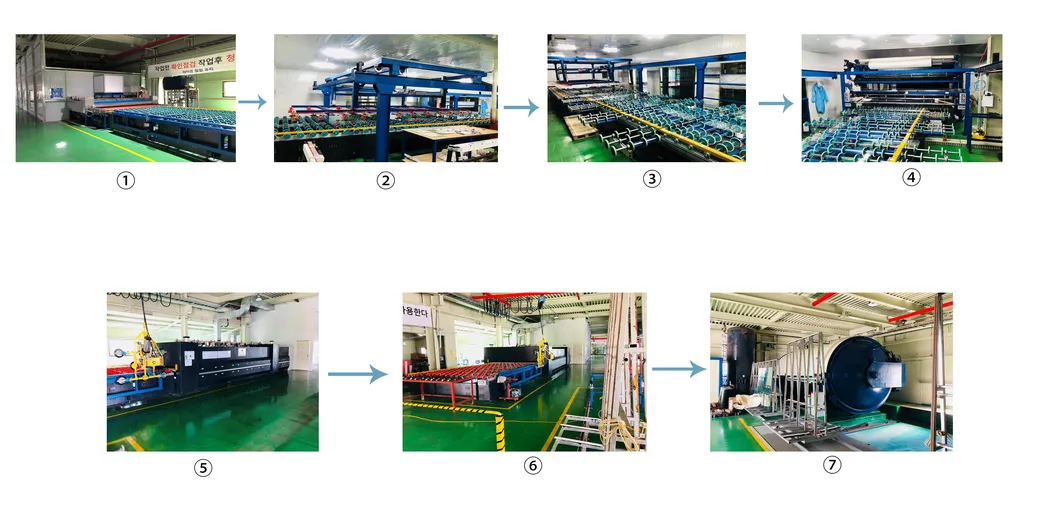

Production Process View 1

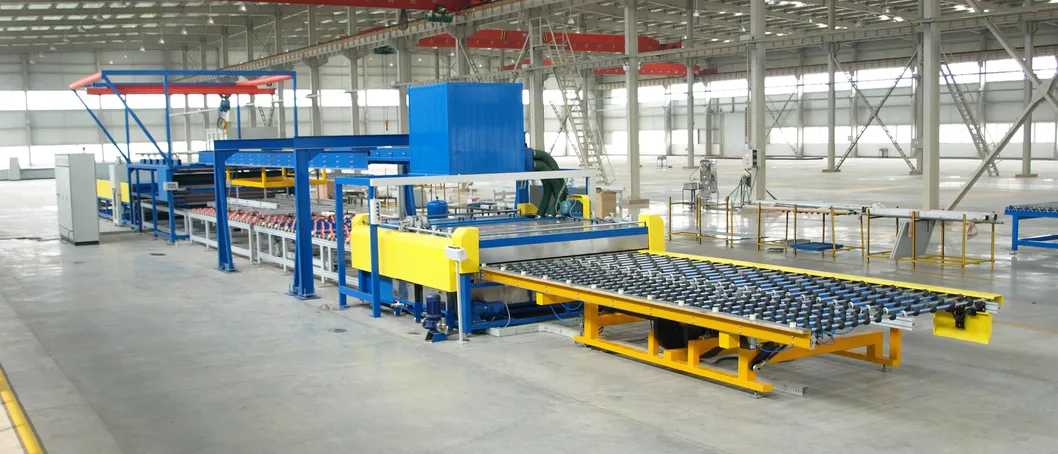

Production Process View 2

PVB Film Laying Machine

Features three specification support for PVB film simultaneously. Equipped with electric film release and receiving rollers for precise middle film placement. Includes a lifting replacement system for easy film tube exchange.

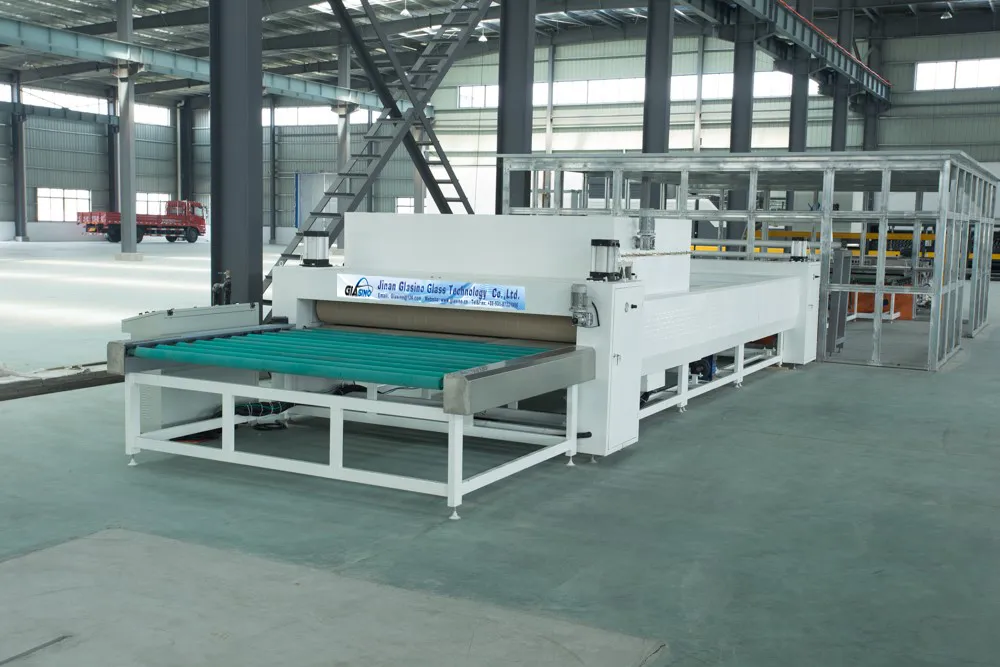

Roller Press Machine

This unit consists of preloading, heating, roller pressure, and footage sections controlled by an electric cabinet, designed for processing glass with PVB film pressure.

Technical Parameters
Max Glass Width2500mm
Glass Thickness4-60mm (Digital display)
Min Glass Size420×300mm
Center Distance between Transfer Roller200mm
Total Power190KW
Transfer Speed0.5-2.5m/min
Air Source Pressure0.6~0.8MPa

Sheet Combining & Dehumidifier

Power
40KW
Total Air Volume
27kg/h

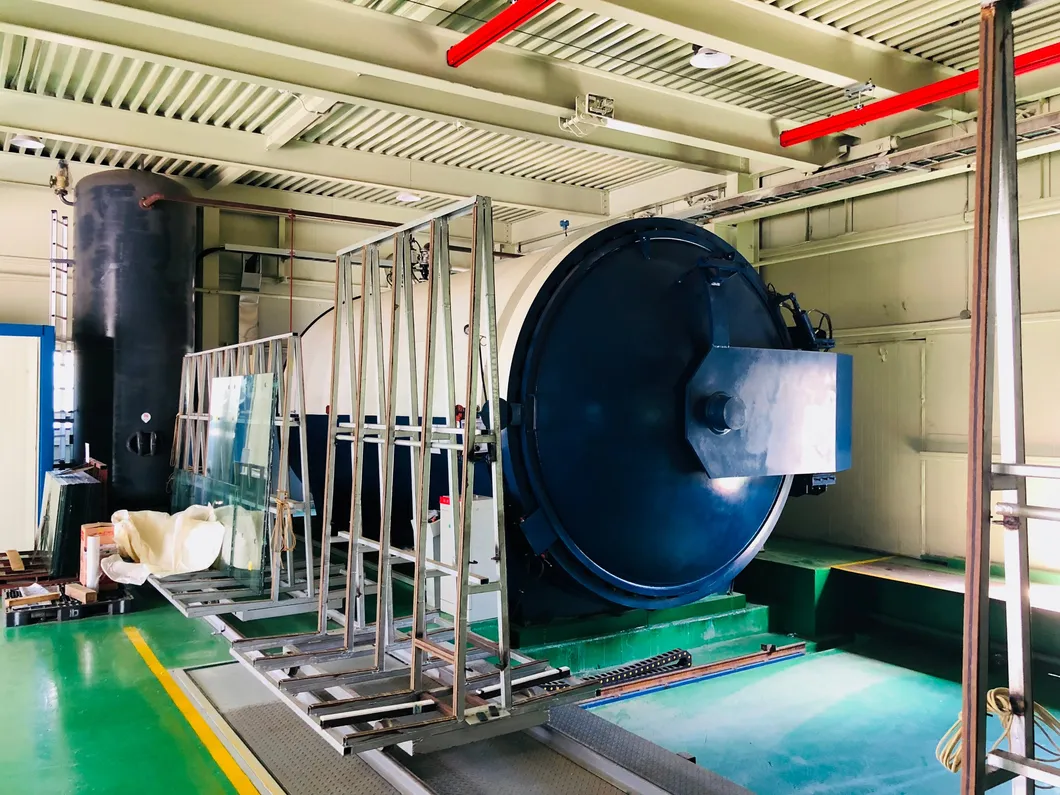

Combining System Details

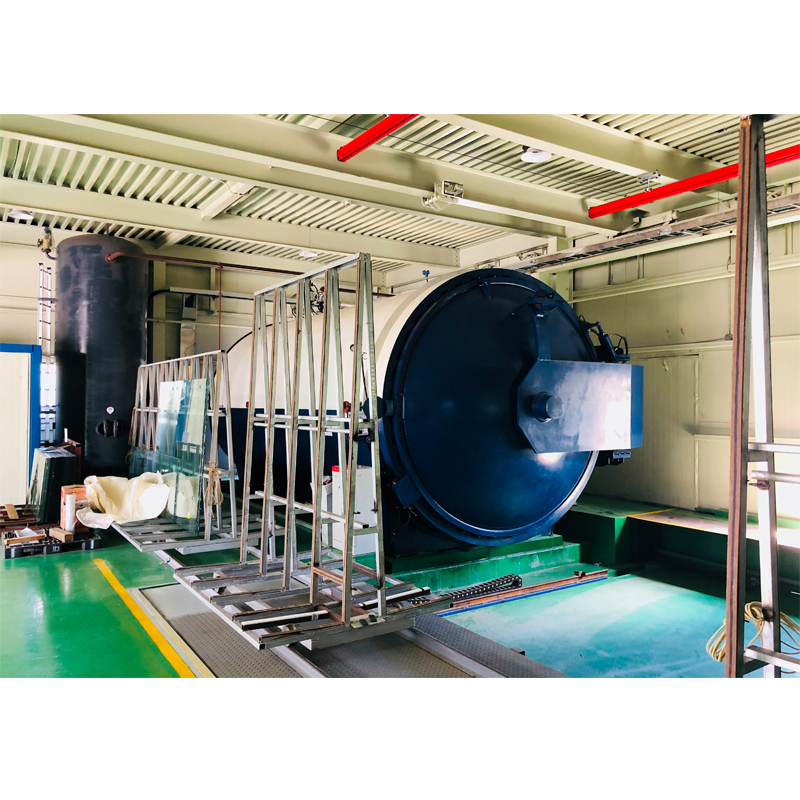

Autoclave Body

Manufactured using 16MnR material in accordance with GB150-2011 standards. Features 100% weld pressure parts ray flaw detection for safety. Uses electric or pneumatic rapid door locking systems and high-efficiency nickel-iron alloy heating elements for energy conservation.
Autoclave Equipment

Main Configuration

Item Component Name Specification/Origin
1Insulating MaterialHigh Grade
2Pneumatic ComponentsAirtac
3BearingStandard Grade
4Proximate MatterWu Steel
5PLC SystemSiemens
6InverterSchneider
7ThermocoupleChuanyi
8SSRWuxi Gold
9Touch ScreenIndustry Grade
?

Frequently Asked Questions

What is the maximum glass processing width for this line?
The GSPV2500 model supports a maximum glass width of 2500mm.
What thickness of glass can the roller press handle?
The machine is capable of processing glass thicknesses ranging from 4mm up to 60mm, with digital display monitoring.
What brands are used for the control system?
The production line is equipped with high-quality global components, including a Siemens PLC and Schneider Inverters.
How is the autoclave door operated for safety and speed?
The autoclave features a fast-reactor door system that can be operated via electric or pneumatic unilateral ways to achieve rapid automatic locking.
What type of heating is used in the roller press?
It uses quartz infrared heating tubes controlled by an automatic constant temperature system for uniform processing.
Is the production line compliant with international standards?
Yes, the line is CE and ISO certified, and the autoclave body is designed and manufactured according to GB150-2011 pressure vessel standards.
