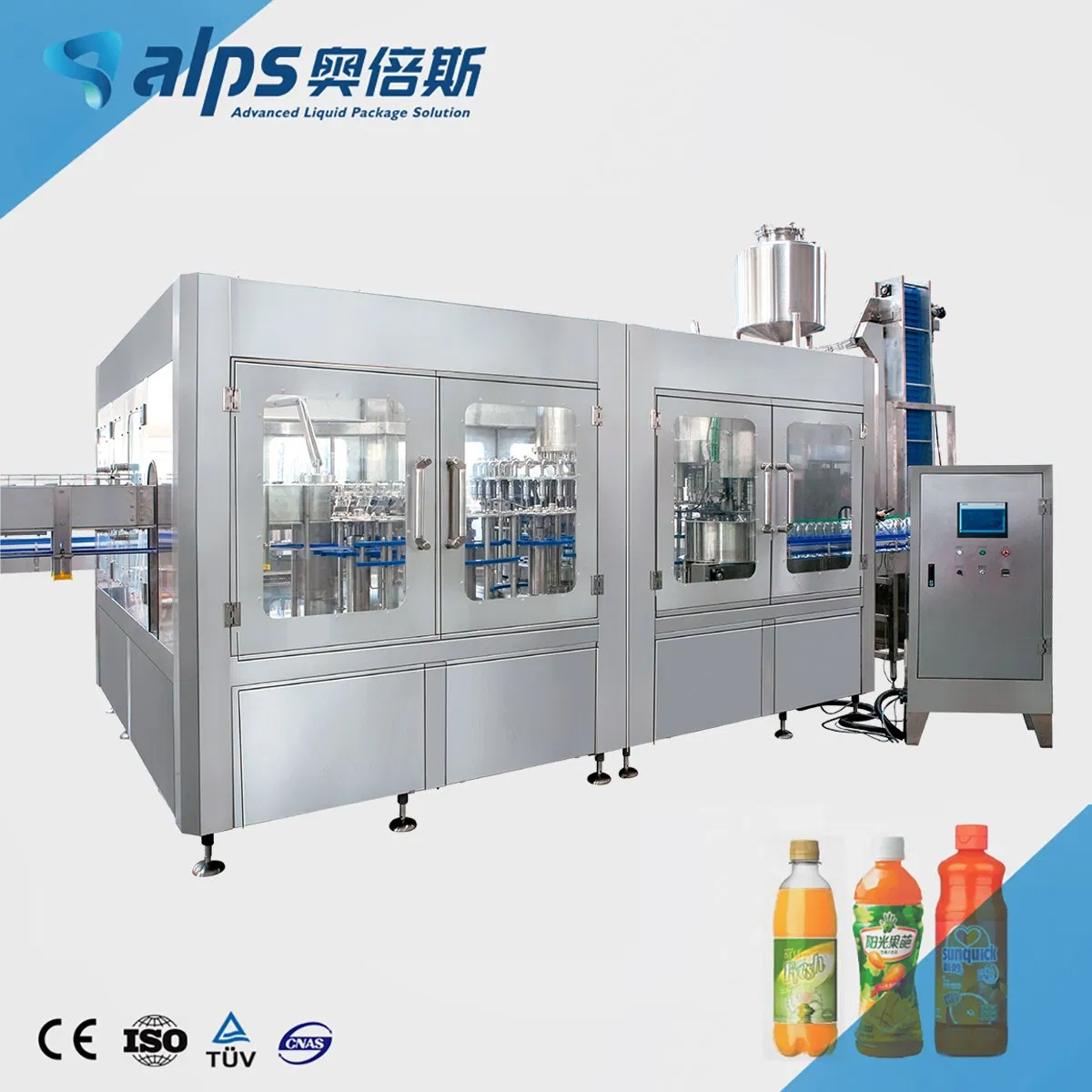

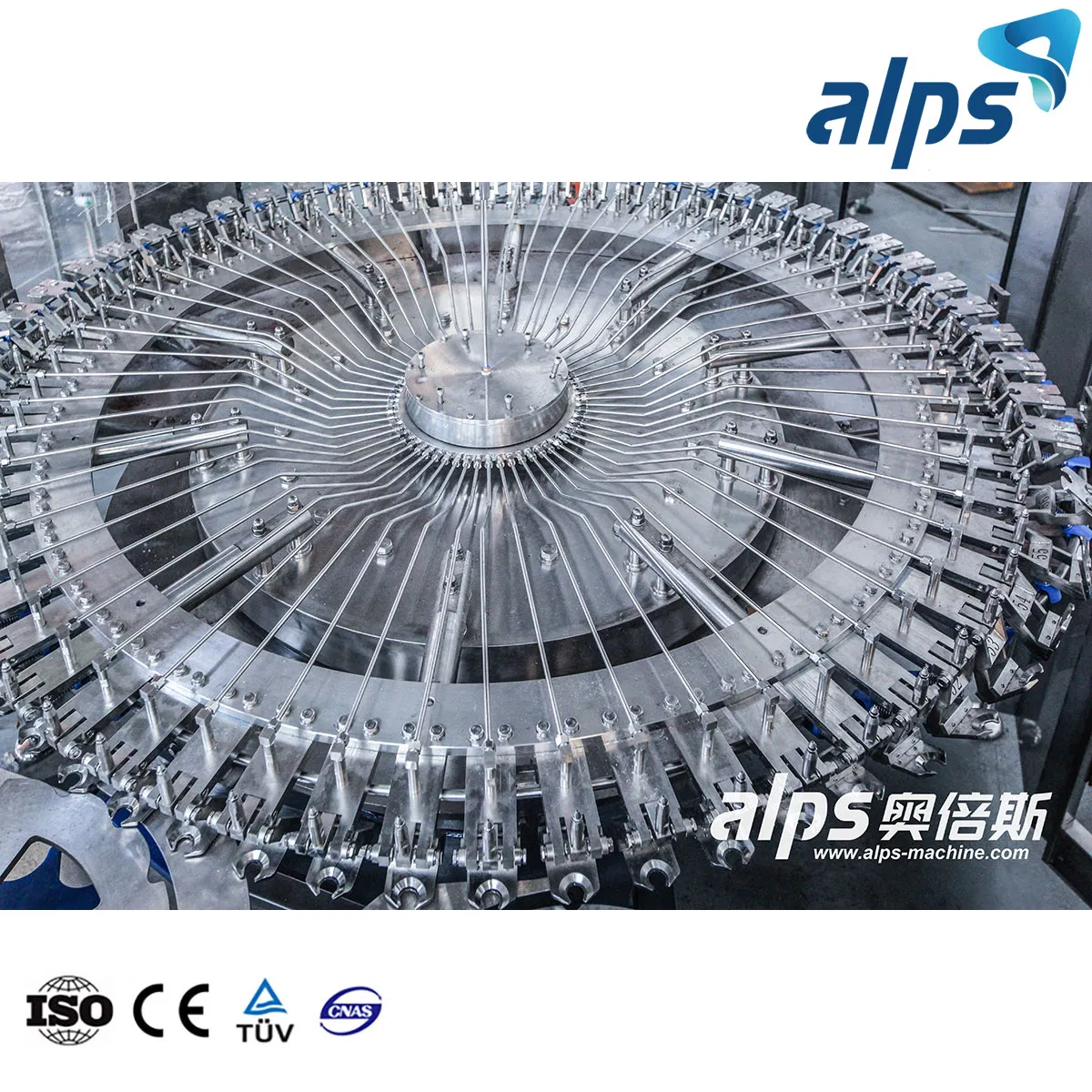

Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine
1 / 5
Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine
Glass Bottle Juice Production Line / Making Machine

Glass Bottle Juice Production Line / Making Machine

Customization: Available
After-sales Service: Available
Warranty: 12 Months
Send Inquiry

Product Description

📋

Basic Specifications

Model
RCGF
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve
Multi-Head
Dosing Device
Plunger
Structure
Rotary
Packaging
Bottle (Plastic/Glass)
Material
SUS304 / 316L
Filling Product
Pure Water / Juice / Mineral Water
Bottle Volume
200ml - 2L
Capacity
2000bph - 24000bph
Control
PLC
Certification
CE, ISO, SGS
📦

Packaging & Delivery

Package Size
6500.00cm * 3500.00cm * 3500.00cm
Gross Weight
6000.000kg
Transport Package
Wooden Case
⚙️

Product Description

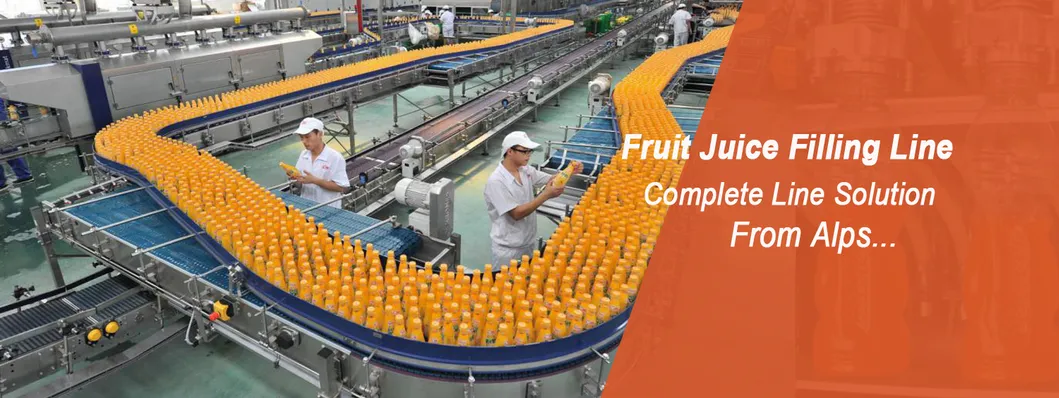

Juice Production Line

Complete solution for the juice filling machine: Including Water treatment system, Juice mixing system, UHT Sterilizer, Washing filling capping machine, Code sprayer, Automatic labeling machine, Automatic packing machine, and Automatic Palletizer system.

Model RCGF14-12-5 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12
Capacity (500ml) 2000-3000 6000-8000 8000-12000 12000-15000 18000-20000
Bottle Shapes PET / Glass circular
Bottle Dia (mm) Dia50-Dia115mm
Bottle Height (mm) 160-320mm
Filling Type Hot filling
Total Power (KW) 4.4kw 5.2kw 6.2kw 7.5kw 8.2kw
Weight (kg) 3000kg 4500kg 6000kg 8500kg 10000kg

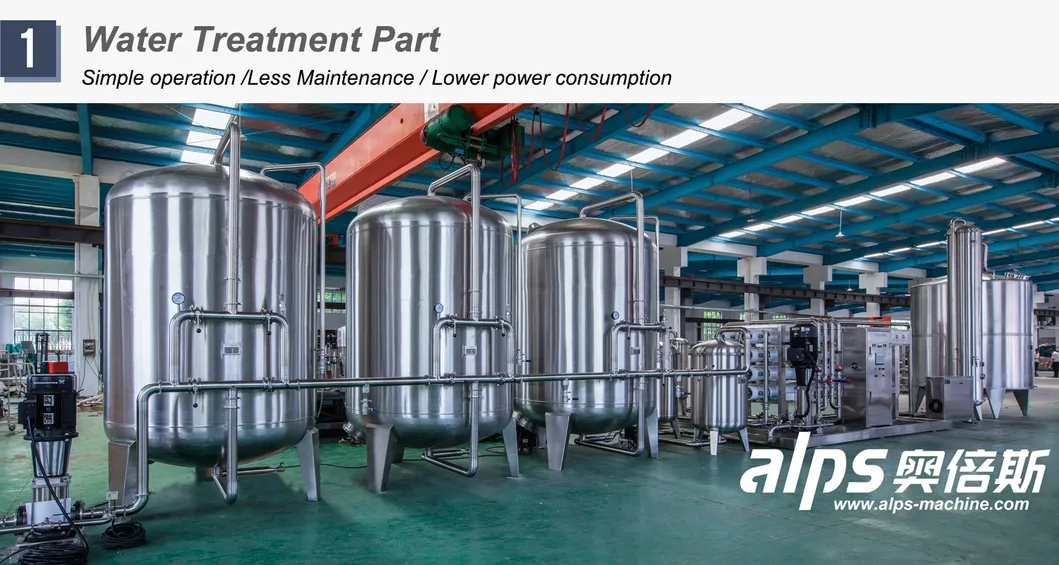

Filling Capacities Detail Description
💡

Technical Main Features

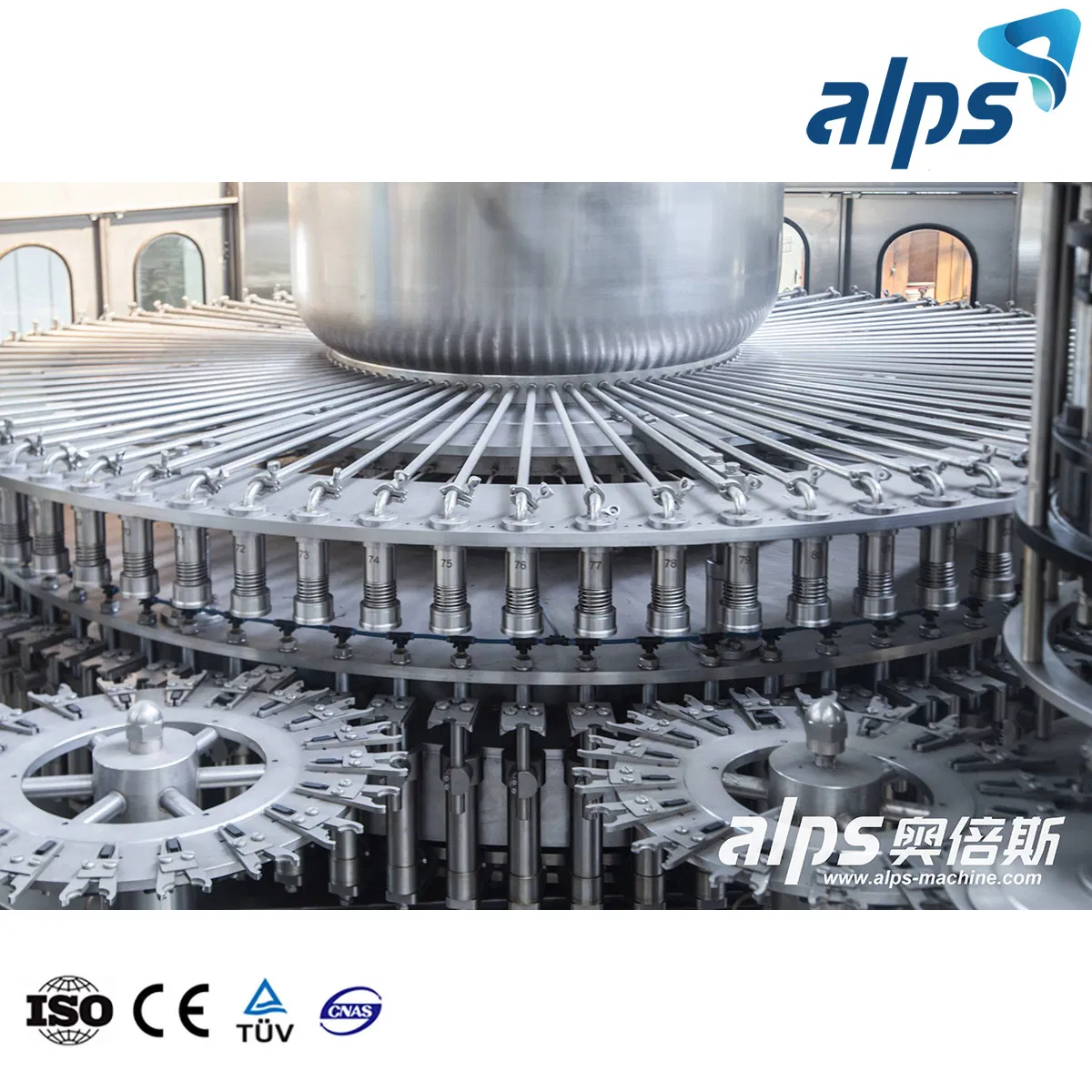

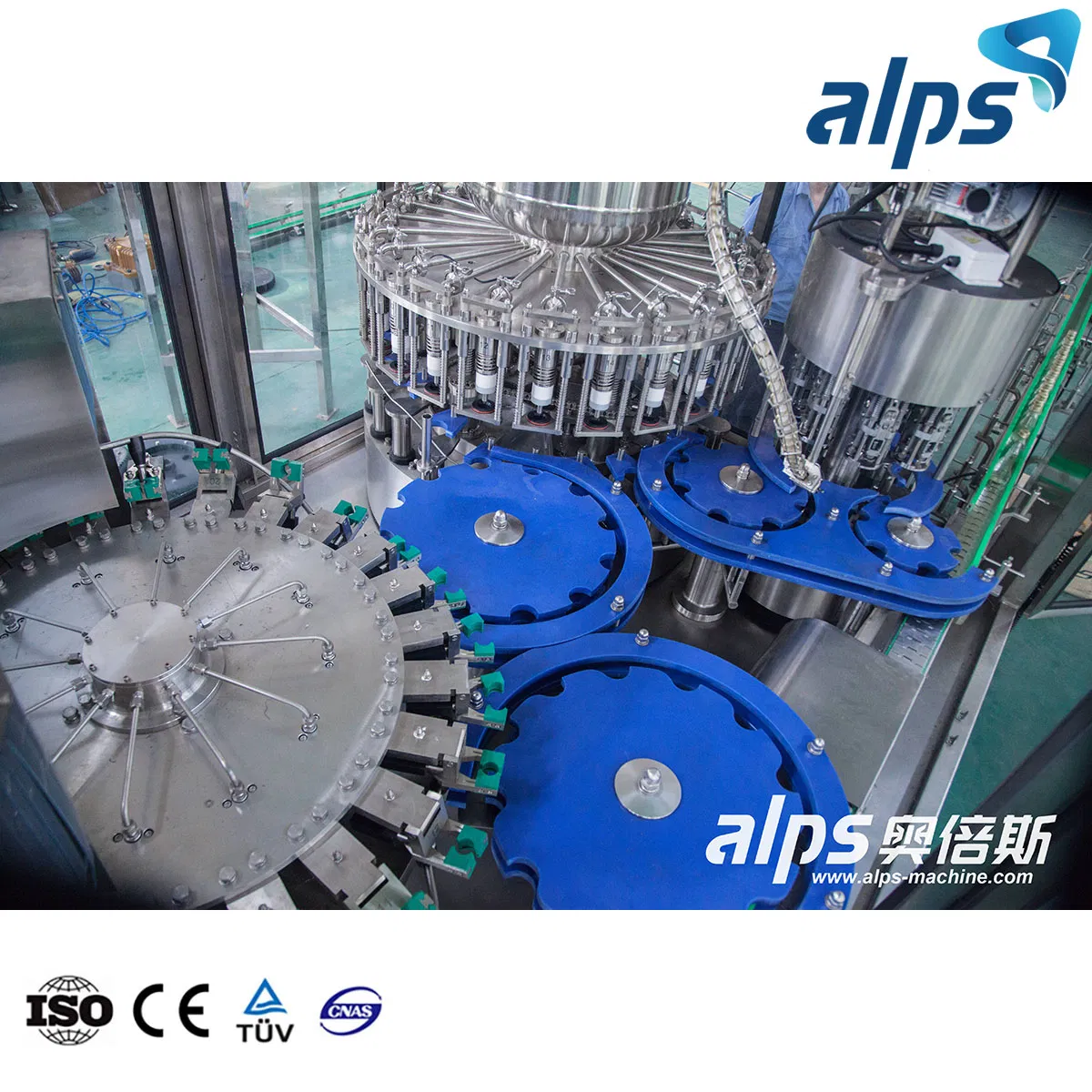

  • Wind Sent Access: Direct bottle connection technology cancels screw and conveyor chains for easier bottle-shape changes.
  • Clip Bottleneck Technology: Transmission avoids the need to adjust equipment levels for different bottle shapes.
  • Stainless Steel Washers: Solid and durable clips prevent secondary pollution at the bottle mouth.

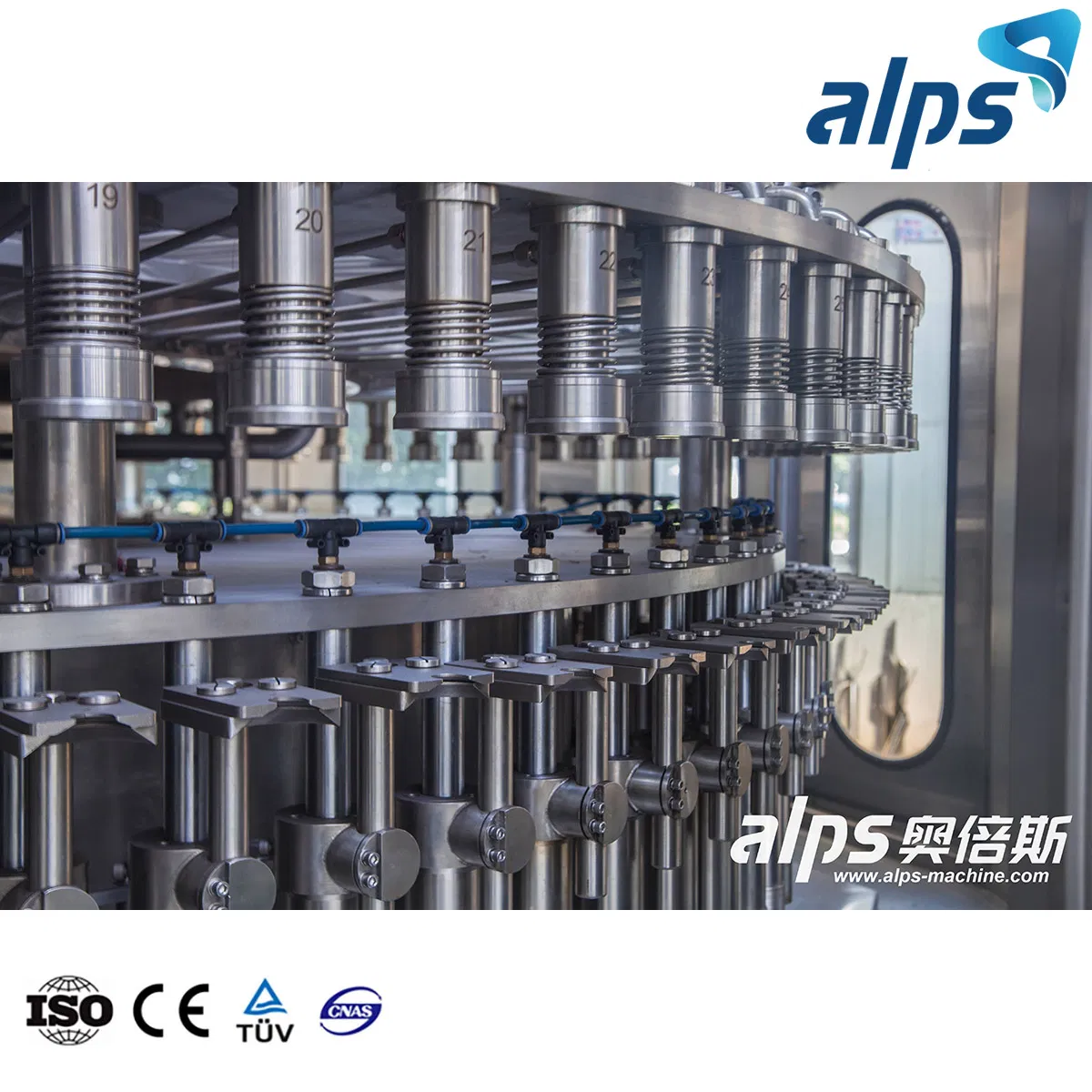

  • High-Speed Valves: Large hot filling valves ensure fast, accurate filling with zero liquid loss.
  • Advanced PLC Control: Equipped with premium electrical components from Mitsubishi, Schneider, and OMRON.

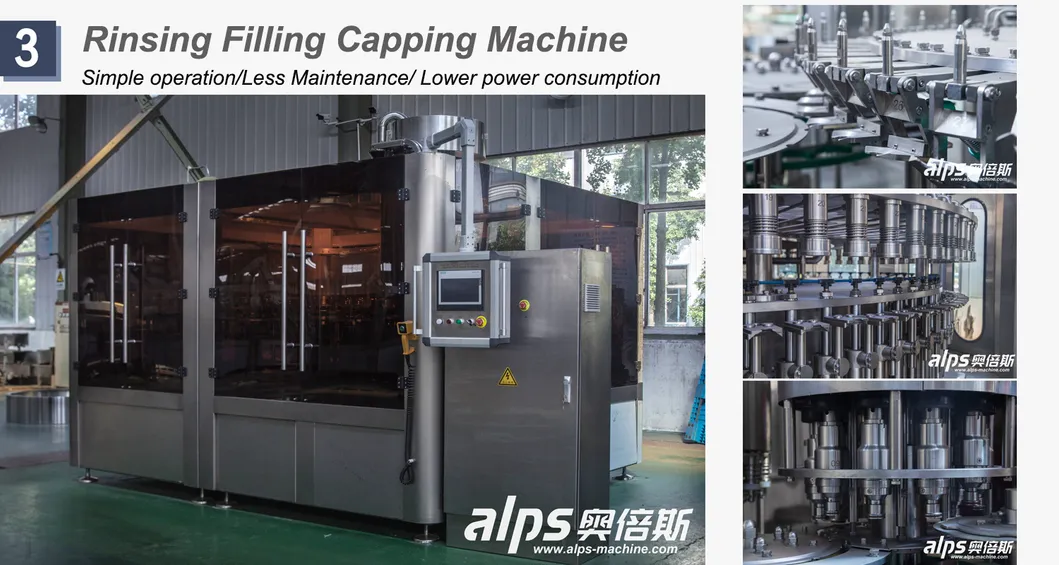

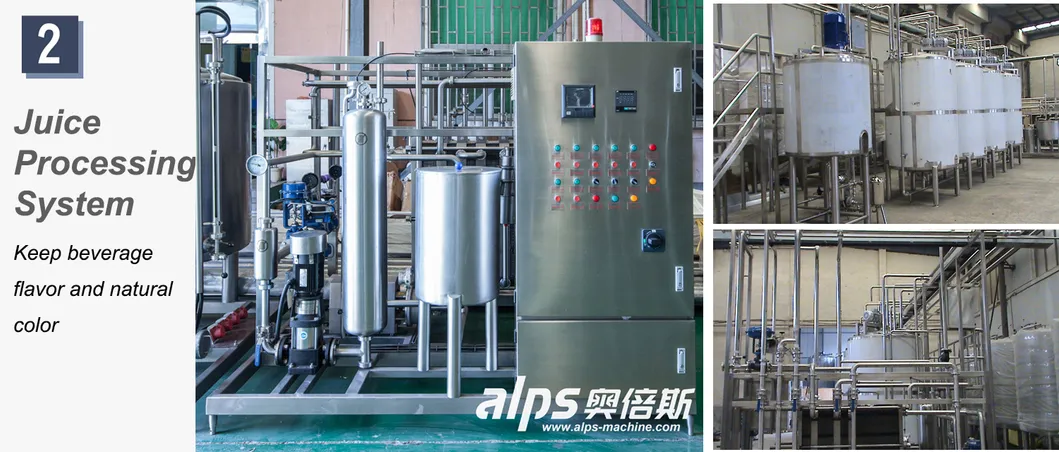

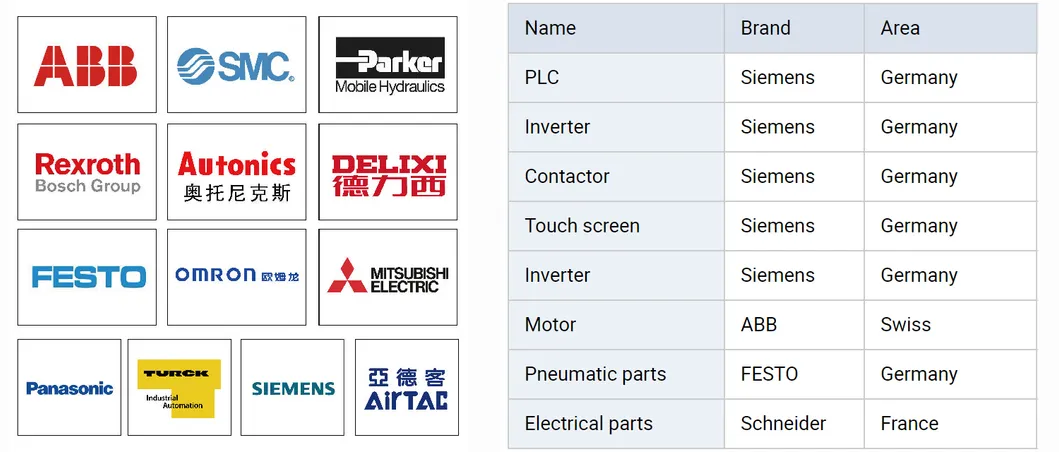

Juice Processing UHT System Machine Interior
🏗️

Turnkey Solution & Production

From raw materials to bottled beverages, we provide A-Z turnkey plant solutions. This includes factory layout design based on customer facility dimensions, featuring high-efficiency motors and automatic lubricant systems to minimize power consumption and space.

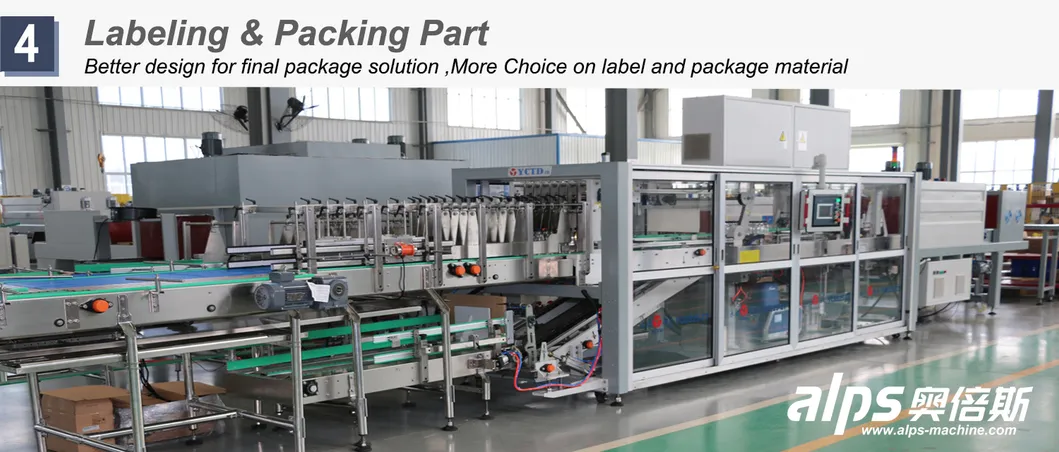

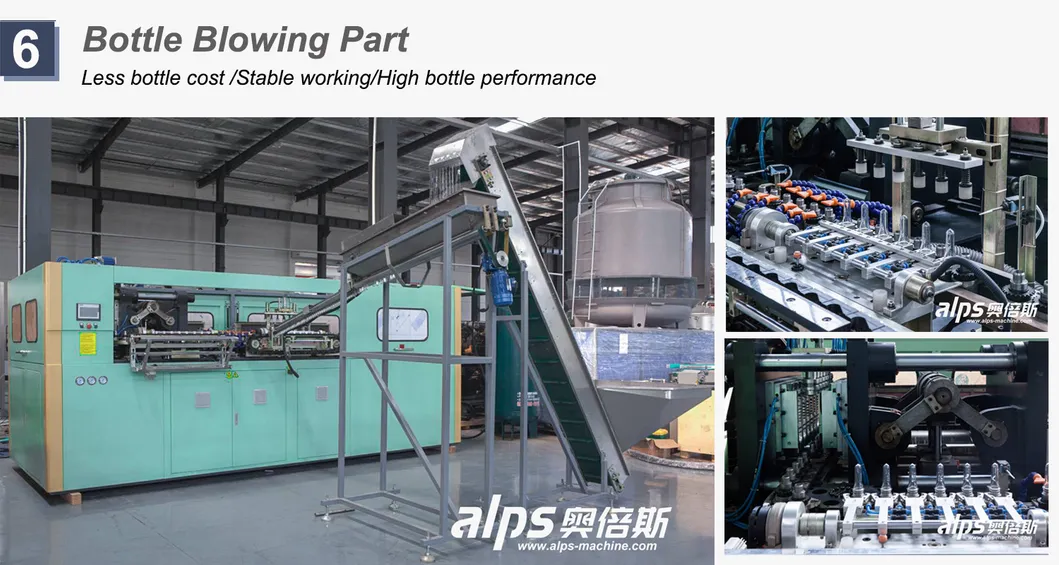

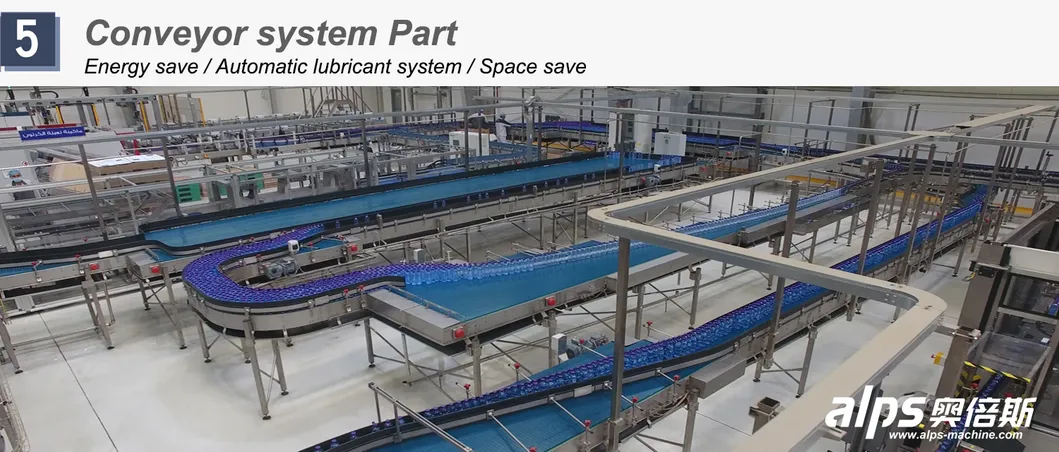

Packaging Solution Factory Layout Blowing Machine
📜

Manufacturing Excellence

Our production facilities utilize advanced processing units, including water jet cutters, plasma cutters, laser cutters, and CNC machines to ensure part precision. All equipment undergoes a 24-hour test run before leaving the factory to ensure mechanical, electrical, and pneumatic stability.

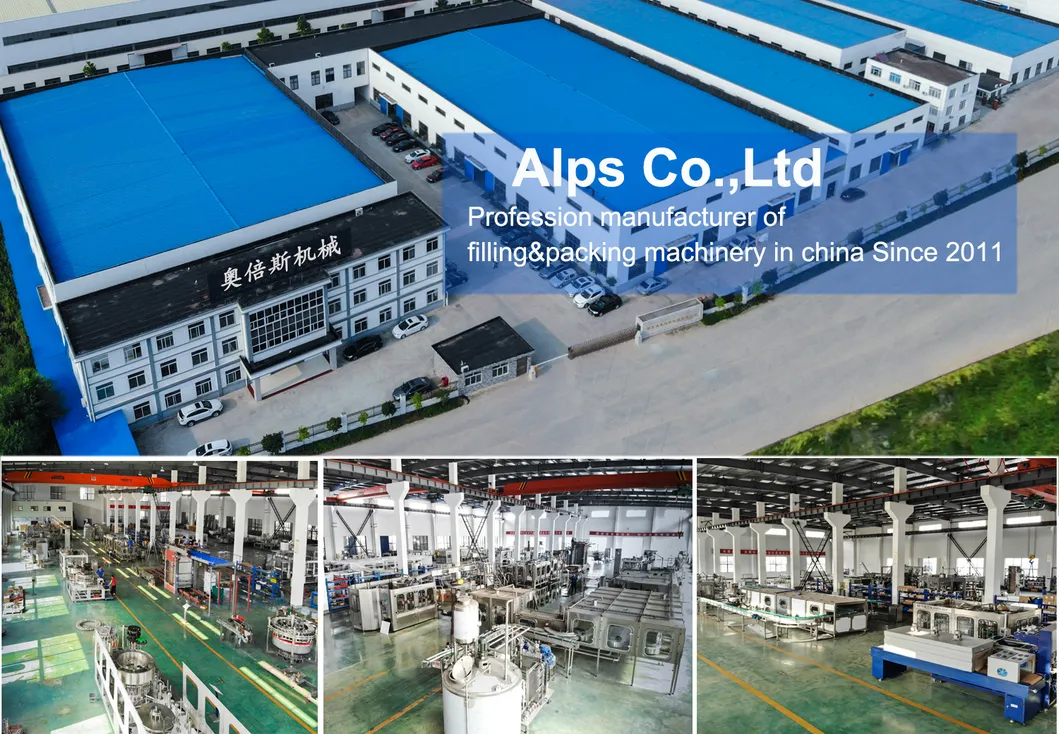

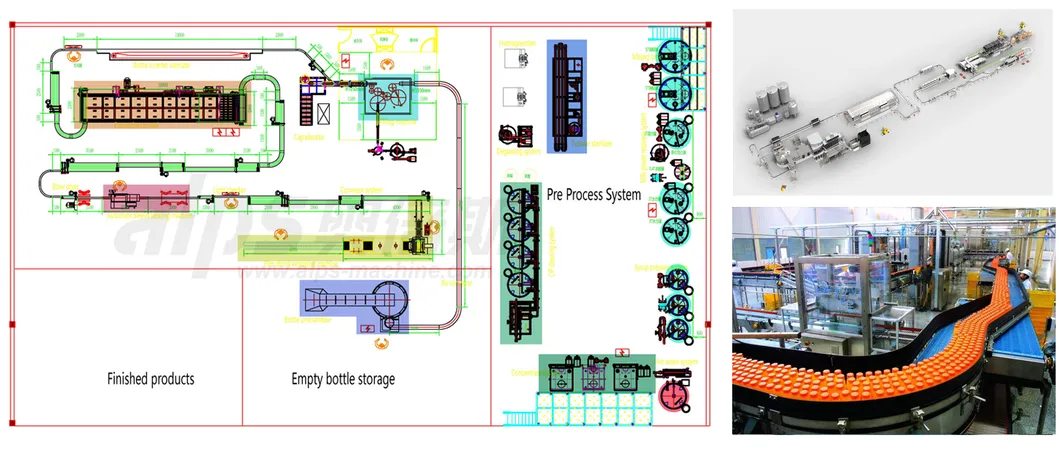

Turnkey Plant Workshop Certificates
❓

Frequently Asked Questions

What types of liquids can this machine fill?
The RCGF series is designed for liquid products including pure water, mineral water, and various types of fruit juices.
What bottle materials are compatible with the production line?
The system is compatible with both PET plastic bottles and glass bottles, ranging from 200ml to 2L in volume.
What is the production capacity of the juice filling machine?
Depending on the specific model, the capacity ranges from 2,000 bottles per hour (BPH) up to 24,000 BPH.
Does the machine use advanced automation controls?
Yes, the host adopts advanced PLC automatic control technology with key electrical components from world-renowned brands like Mitsubishi and Schneider.
Is this a complete turnkey solution?
Yes, we provide a full A-Z solution including water treatment, mixing, sterilization, filling, capping, labeling, and packaging.
What quality certifications do these machines hold?
The equipment is manufactured under ISO9001:2000 standards and holds CE, SGS, COC, and TUV certifications.
