| Model NO. | YD-DE-2520 and YD-DE-4220 |
| Processing Thickness | 3-19 mm |
| Voltage | 220/380/440/415/480V |
| Warranty | 1 Year |
| Max. Size of Glass | 4200*2500mm |
| Control Panel | PLC |
| Motors | 20 Spindles |
| Power | 100kw |
| Package Size | 400.00cm * 200.00cm * 200.00cm |
| Package Gross Weight | 1000.000kg |
| Transport Package | Bubble Plastic Film |

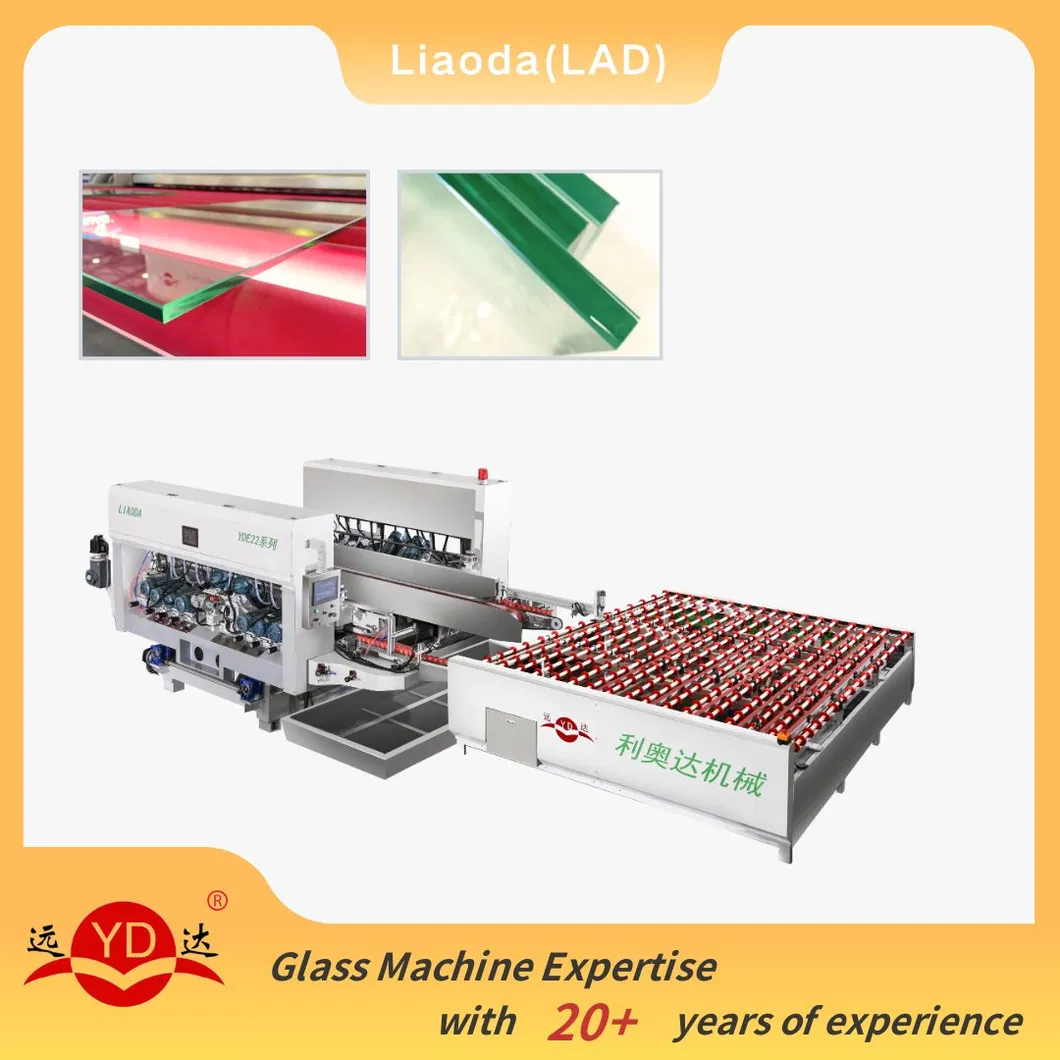

2020 NEW Glass Double Edging Machine Production Line

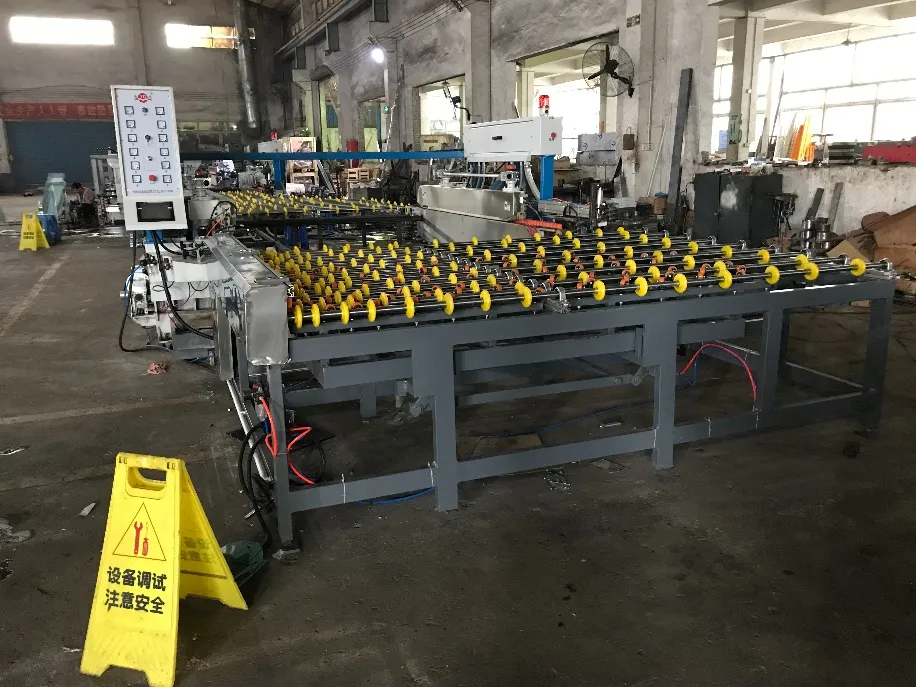

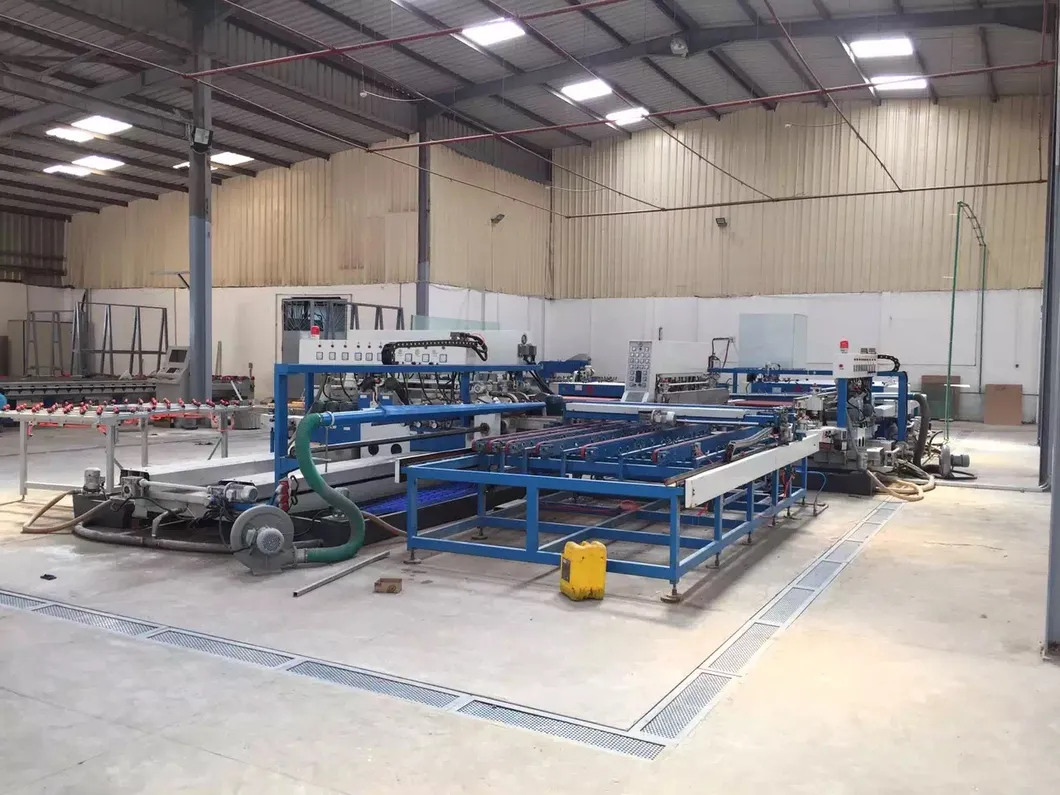

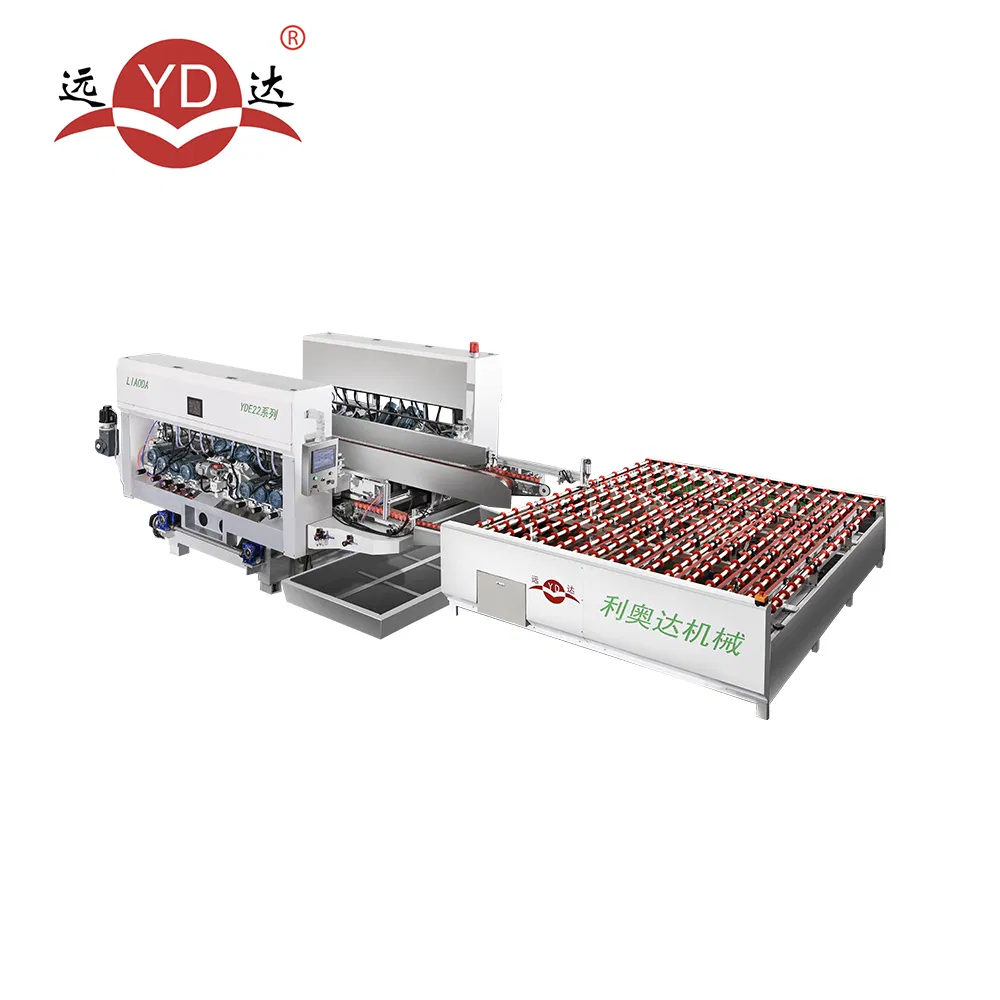

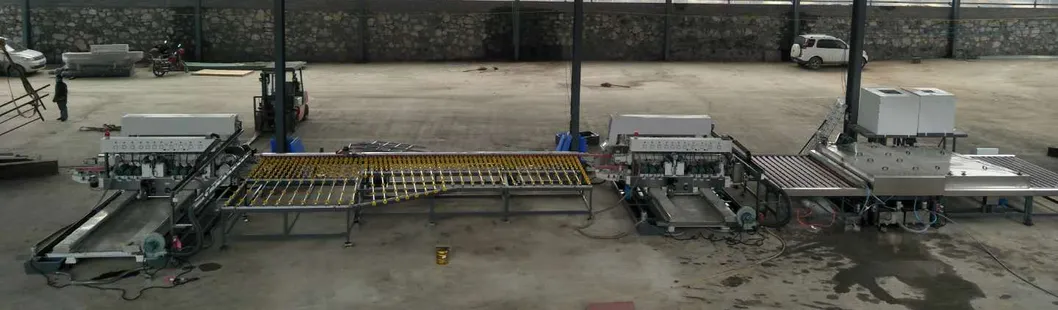

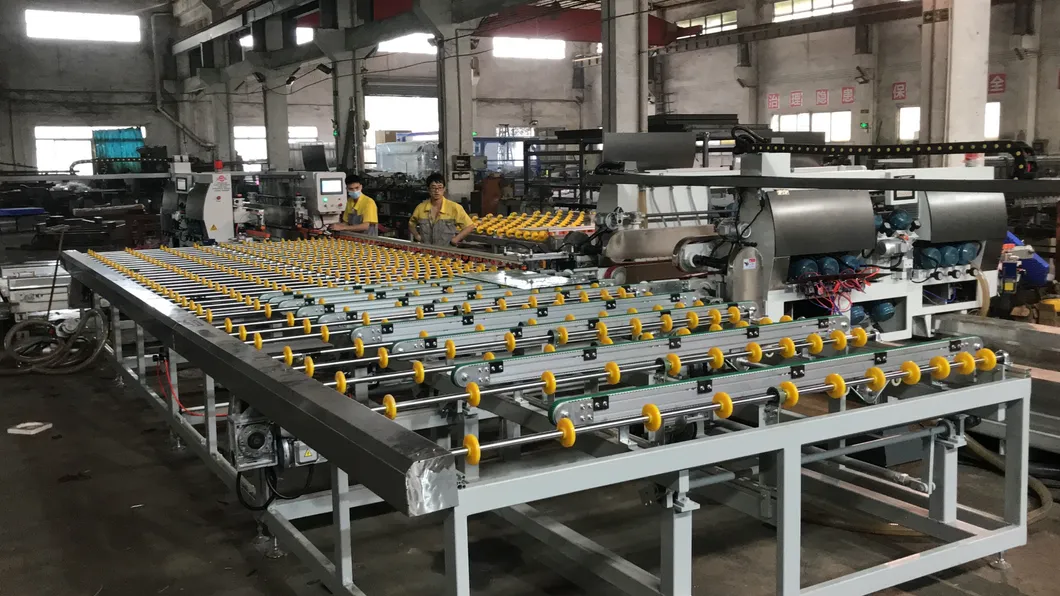

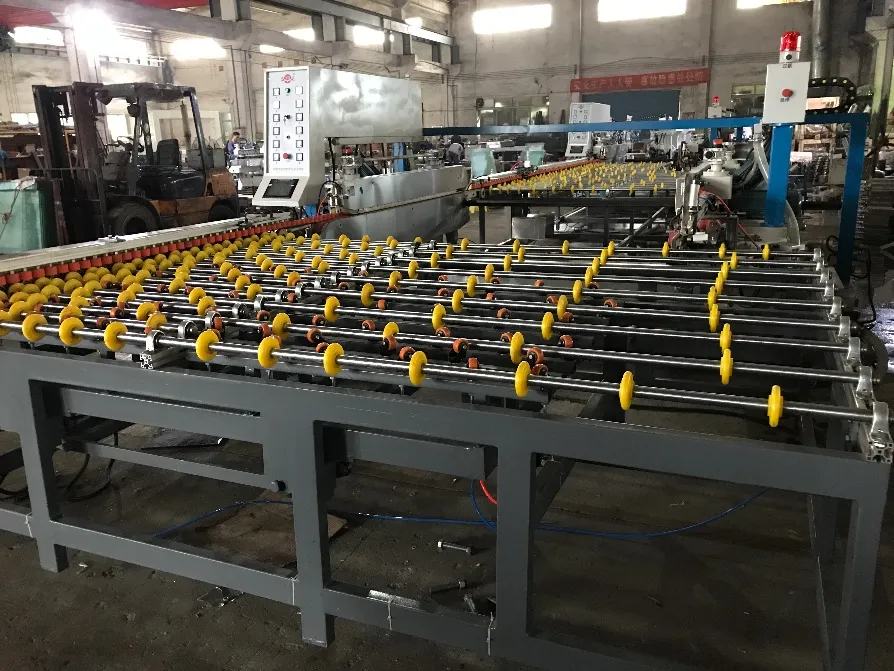

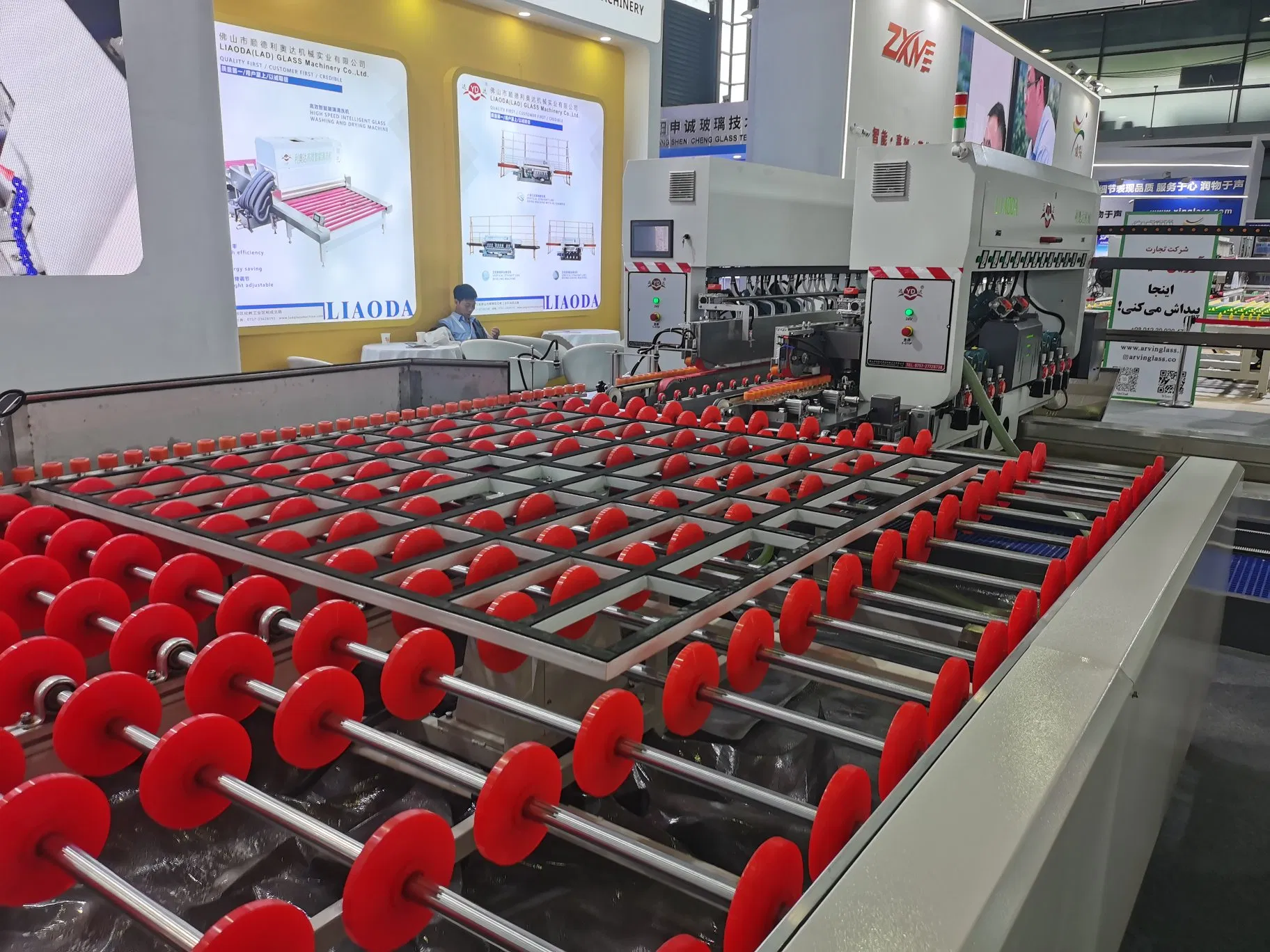

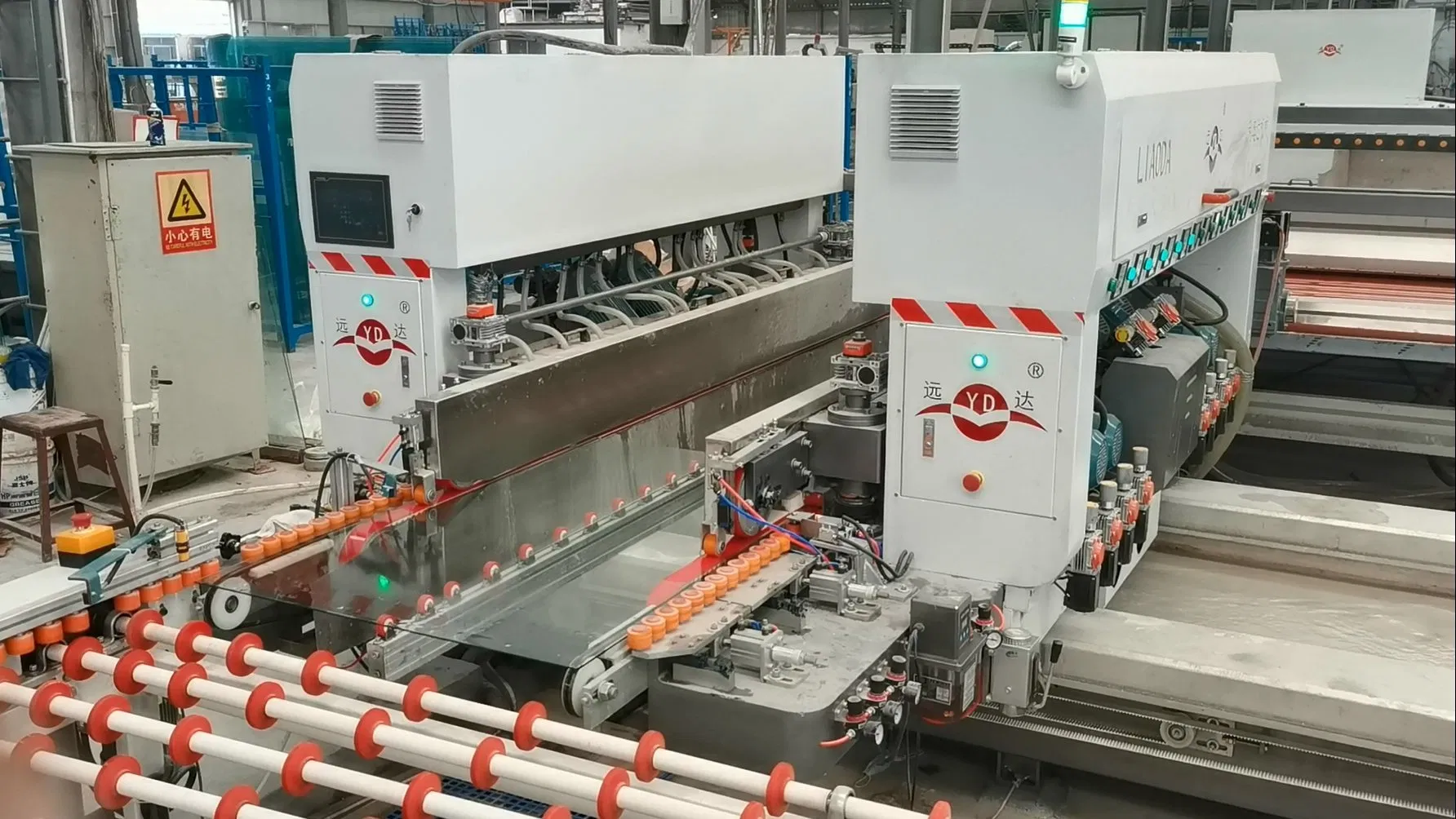

Automatic glass double edging machine production line is combined by glass loading table, glass transfer table, and two glass double edging machines. It is fully automatic, glass finish four side edging and polishing at one pass. This production line save labor and increase productivity.
Machine size can be customized!
No.1 machine model: YD-DE-2520
| Max. glass width | 2500mm |
| Min. glass size | 200x200mm |
| Glass thickness | 4-19mm |
| Machine spindles | 20pcs (customizable) |
| Working speed | 0.8-12m/min |
| Overall dimension | 3000x4200x1800mm |
| Weight | 4000kg |
No.2 Machine model: YD-DE-4220
| Max. glass width | 4200mm |
| Min. glass size | 200x200mm |
| Glass thickness | 5-19mm |
| Machine spindles | 20pcs (customizable) |
| Working speed | 0.8-12m/min |
| Overall dimension | 4000x4400x1800mm |
| Weight | 5000kg |
| # | Wheels Description | # | Wheels Description |
|---|---|---|---|
| 1 | Diamond wheel, bottom edge | 6 | Resin wheel for arris |
| 2 | Diamond wheel, bottom edge | 7 | BD wheel for arris |
| 3 | Resin wheel, bottom edge | 8 | Yew wheel for bottom edge |
| 4 | Resin wheel for arris | 9 | Yew wheel for bottom edge |
| 5 | BD wheel, arris | 10 | X098 for bottom edge |
A: It is significantly faster as it edges two sides simultaneously. It offers higher precision for parallelism and corners, and can be integrated with automatic loading tables to reduce labor costs.
A: The machine is designed to process glass thicknesses ranging from 3mm to 19mm, depending on the specific model selected.
A: The equipment utilizes a high-performance PLC control system with a user-friendly interface available in both English and Chinese.
A: Terms are typically a 30% deposit by T/T, with the balance paid before delivery. Production usually takes about 30 days.
A: We provide a one-year guarantee for the entire machine, 24-hour technical support, user manuals, and professional installation/training services at the customer's site.
A: Yes, we offer customization for the number of spindles and the overall machine dimensions to meet your specific production requirements.
