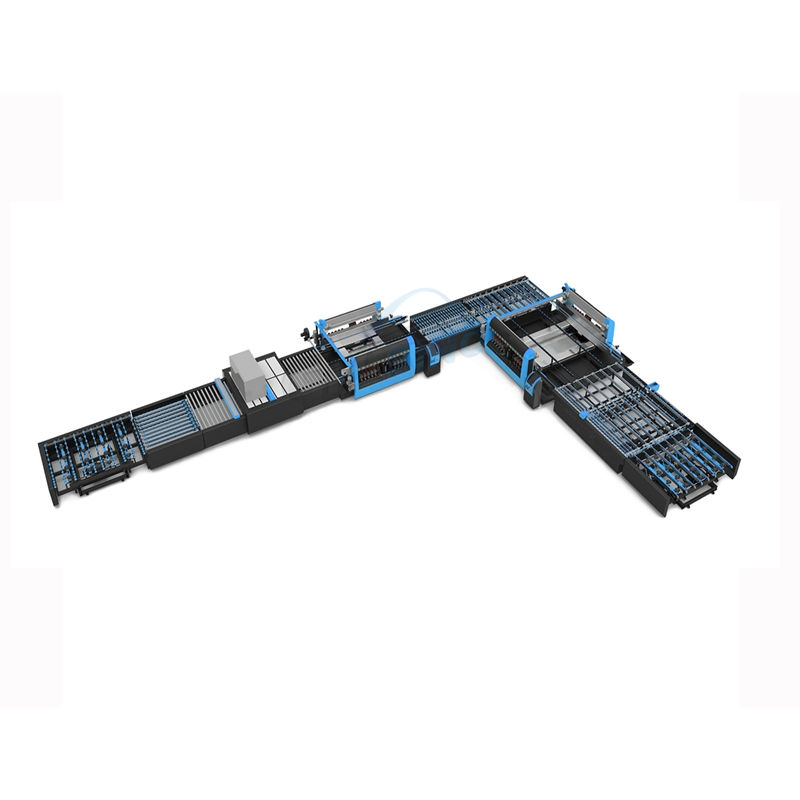

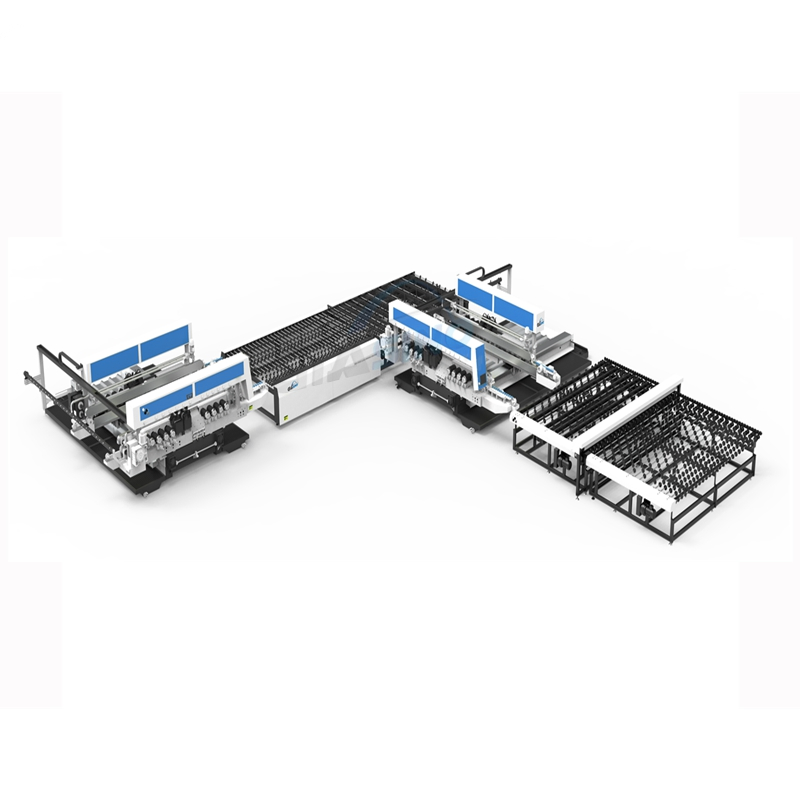

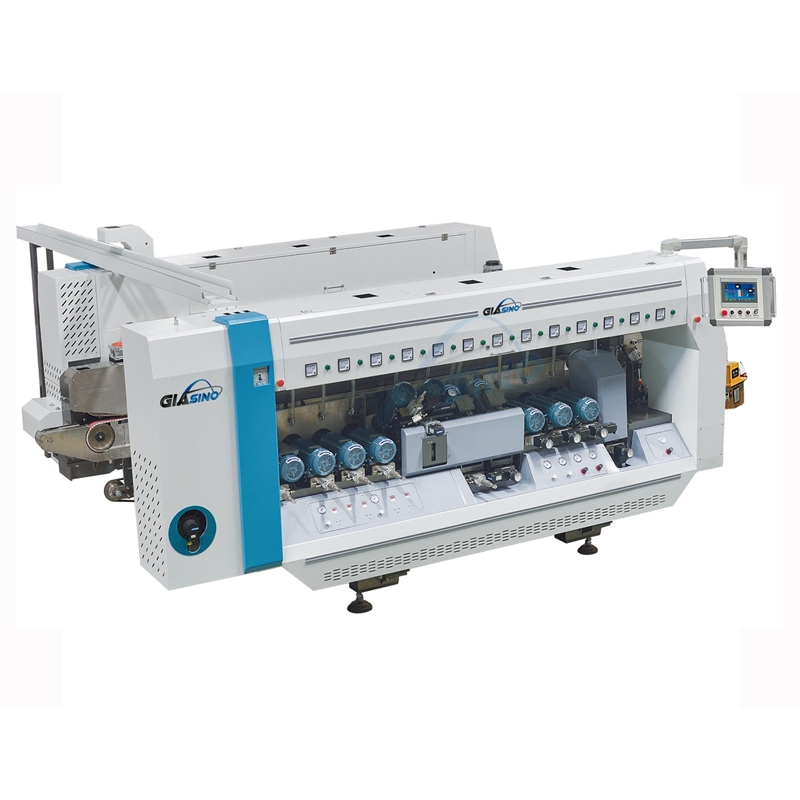

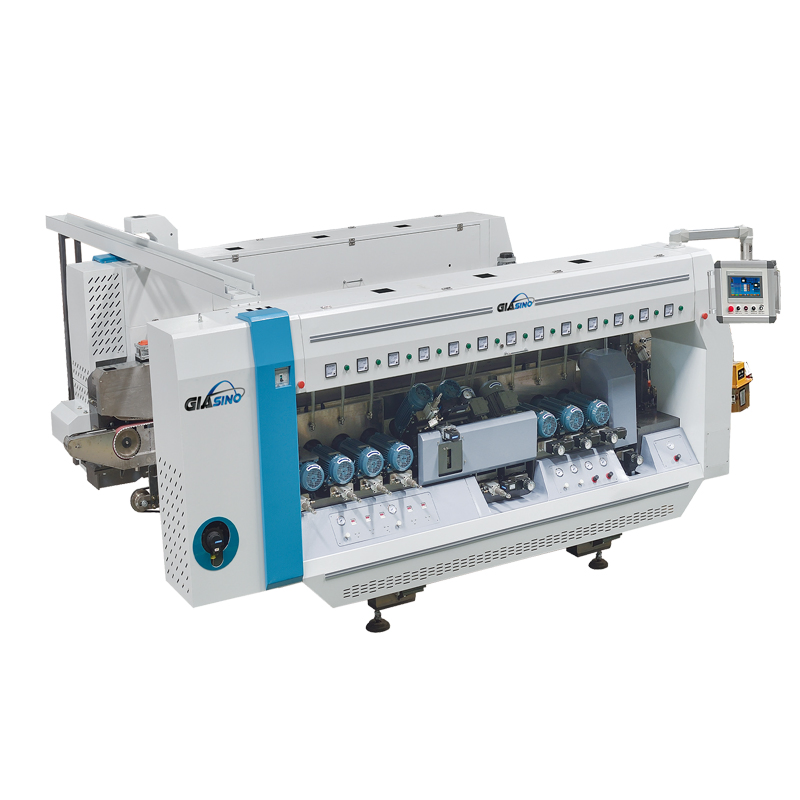

Glass Straight Line Double Edging Machine with Production Line
Glass Straight Line Double Edging Machine with Production Line
Glass Straight Line Double Edging Machine with Production Line
Glass Straight Line Double Edging Machine with Production Line
1 / 4
Glass Straight Line Double Edging Machine with Production Line
Glass Straight Line Double Edging Machine with Production Line
Glass Straight Line Double Edging Machine with Production Line
Glass Straight Line Double Edging Machine with Production Line

Glass Straight Line Double Edging Machine with Production Line

Customization: Available
Certification: CE, ISO
Warranty: 12 Months
Send Inquiry

Product Description

ℹ Basic Information
Name
Glass Straight Line Double Edging Machine with PRO
Function
Edging Glass Side
Use
Machine for Edging Glass Side
Type
Glass Edging Machine
Structure
Horizontal
Control System
PLC
Grinding Heads
9
Condition
New
Origin
China
Capacity
30 Sets/Month
⚙ Product Description

High Speed Double Edging Machine Production Line

High Speed Double Edging Machine

The GSZM2042+GSTL4225+GSZM2025 Glass Straight Line Double Edging Machine production line is an economic, high efficiency, high precise, and reliable solution for all sizes of flat glass, laminated glass, and Low-E glass in mass production.

Opening and closing structure adopt ball screw and straight line lead rail.
Grinding wheel adopts double V type guide rail with high precision, smooth operation, and small vibration.
Semi-automatic for polishing.
Upper angle chamfer adopts ball screw and linear guide for precise orientation.
Automatically lifted cleating bracket (reaches up to 120mm).
Main transmission drive adopts mechanical frequency conversion to adjust speed, conveniently posited for maintenance.
Annular synchronous belt and pneumatic positioning device for smooth glass conveying.
Human-computer interface and PLC controlling system for easy operation.

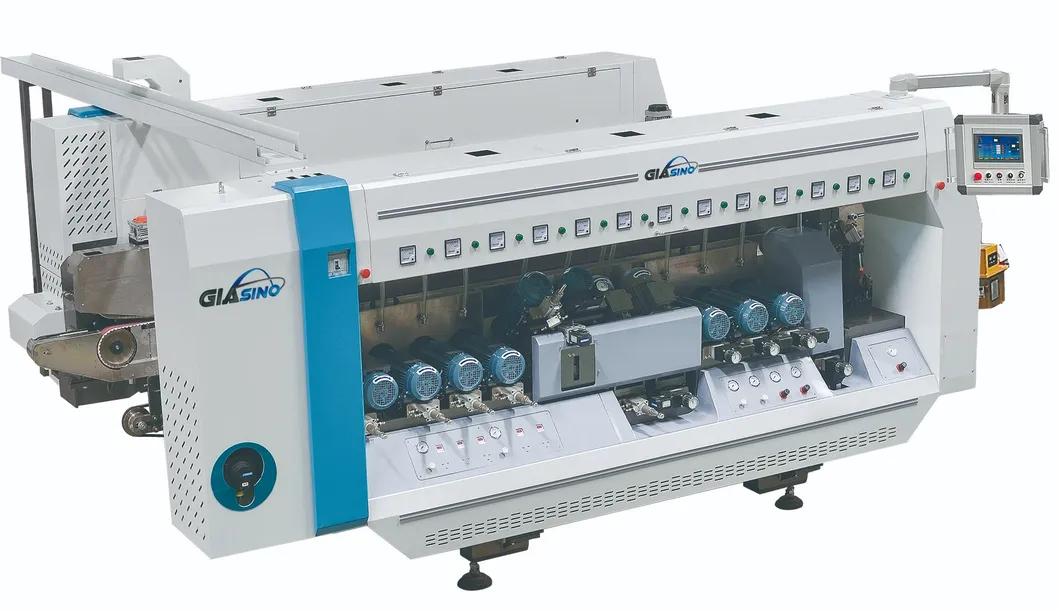

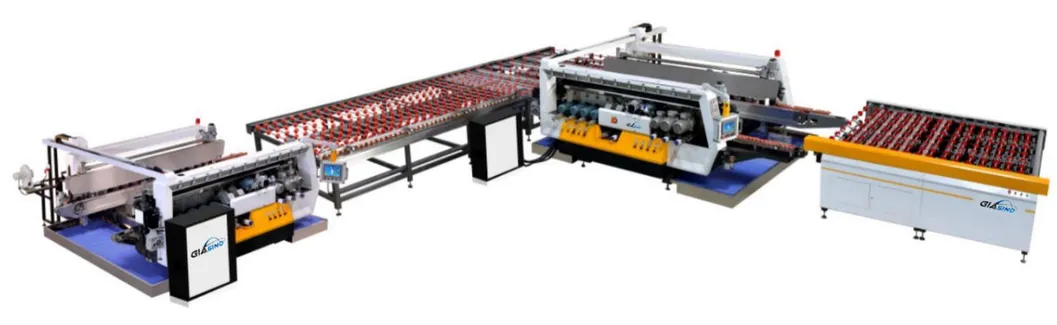

Production Line View 1 Production Line View 2
📊 Product Parameters
Technical Parameters of the Whole Machine
Voltage (V/Hz) 380/50 Installed Power (KW) 81.2
Compressed Air (kg/cm²) 6 Processing Glass Width (mm) 350-4500 / 350-2500
Conveying Speed (m/min) 0.5-15 Glass Thickness (mm) 3-25
Parallel Difference (mm) ≤0.2 Diagonal Difference (mm/mm) ≤0.5/1000
Working Surface Height (mm) 920±20 Total Weight (kg) 4800
📸 Detailed Photos

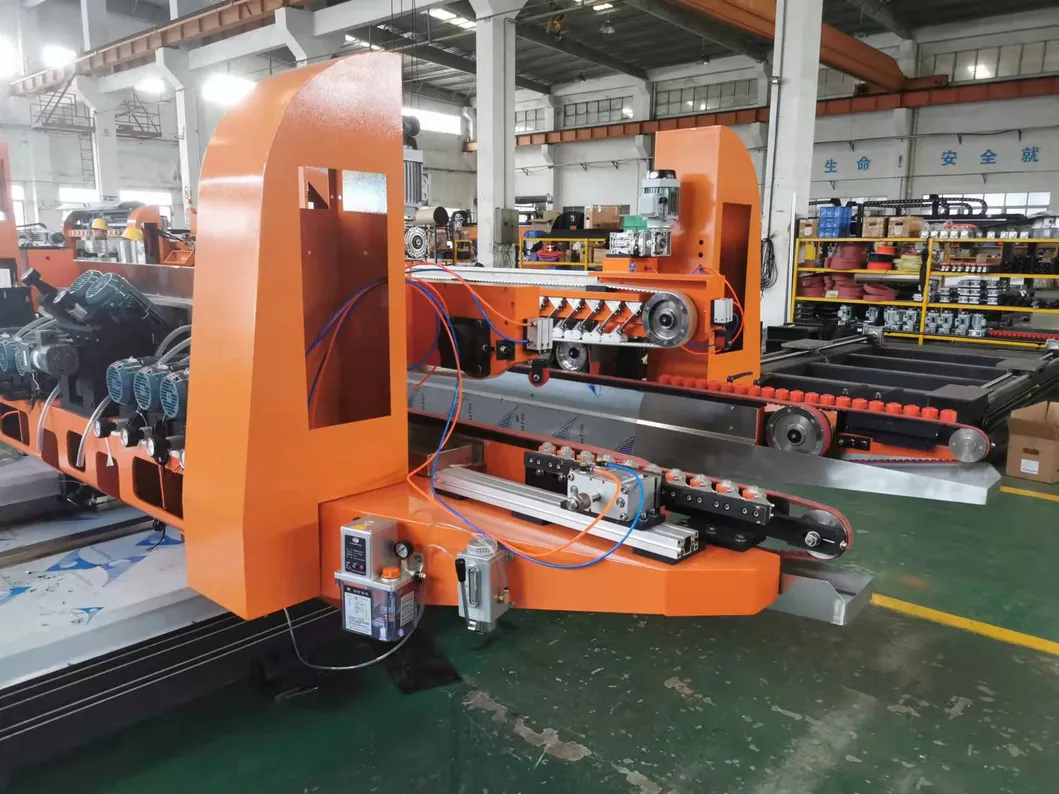

Detail View 1

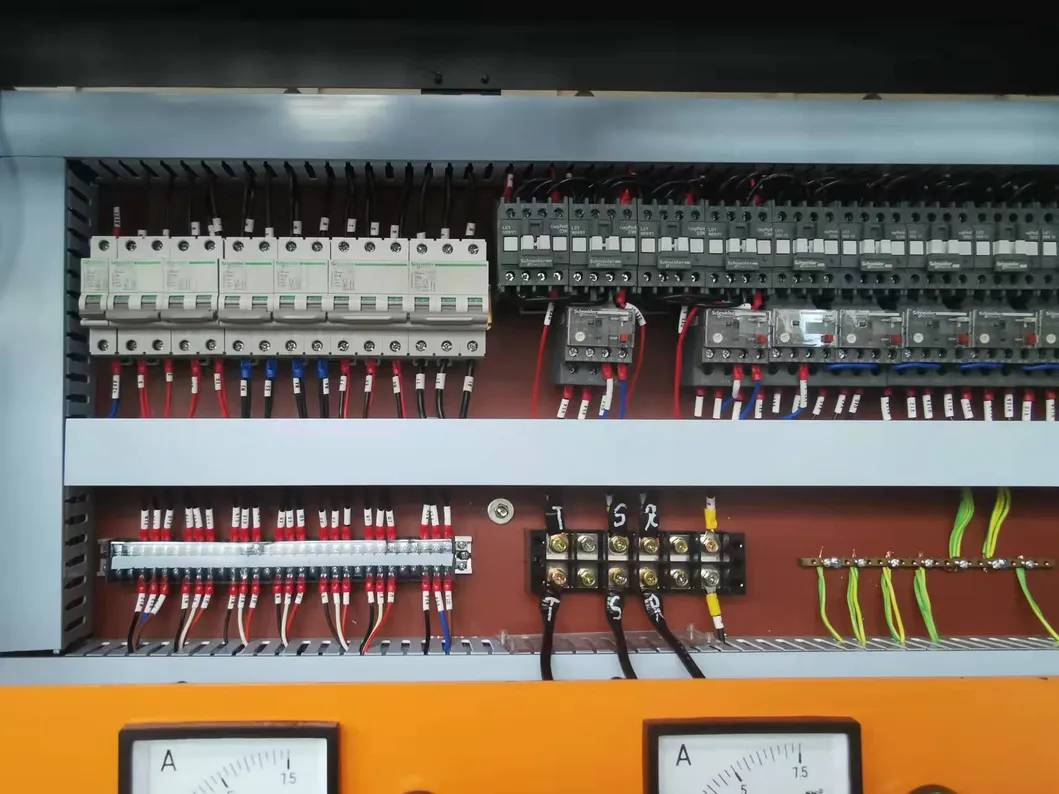

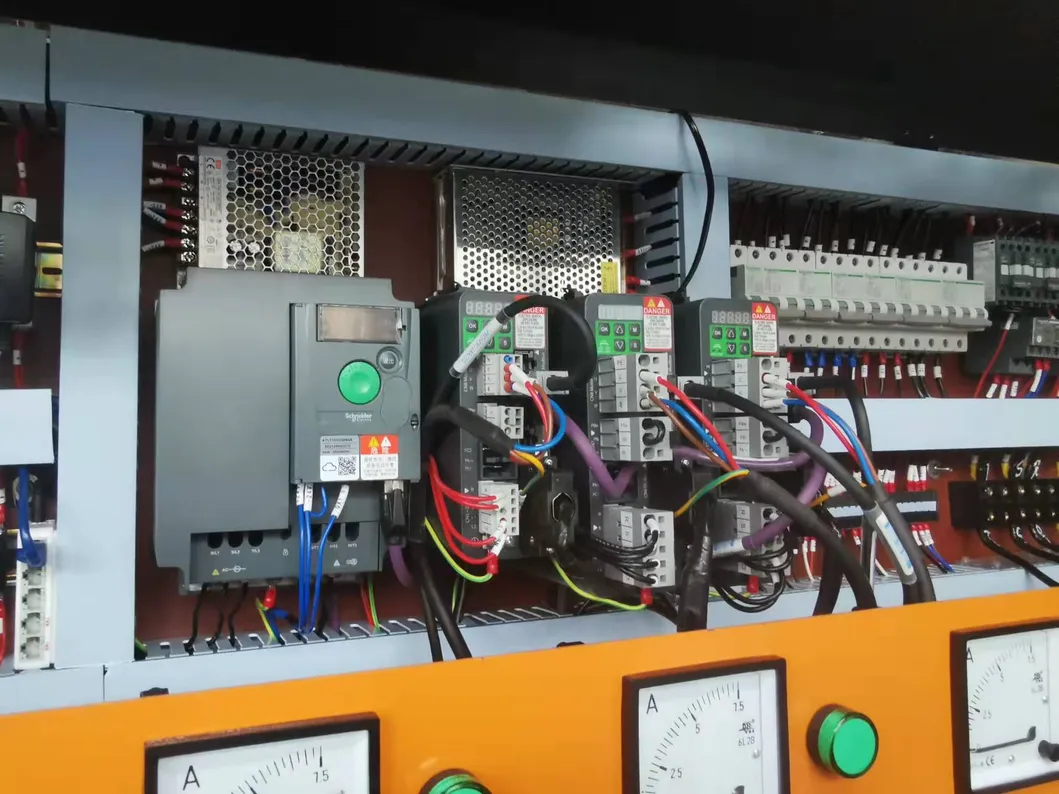

Detail View 2 Detail View 3

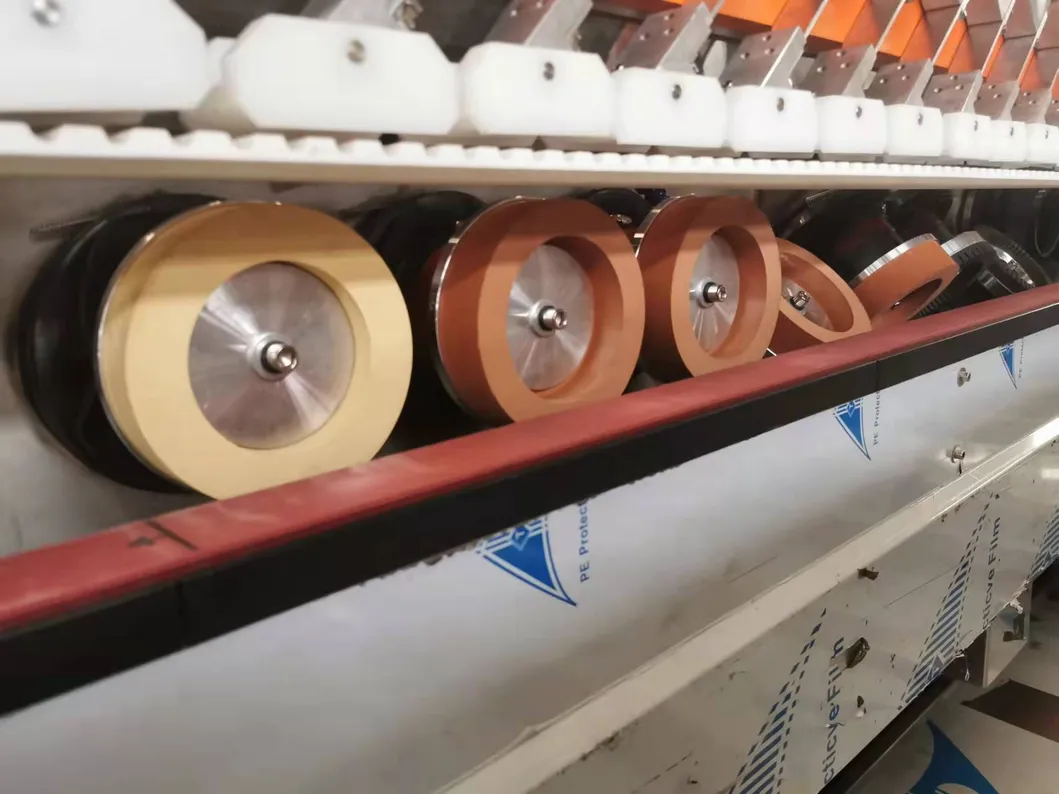

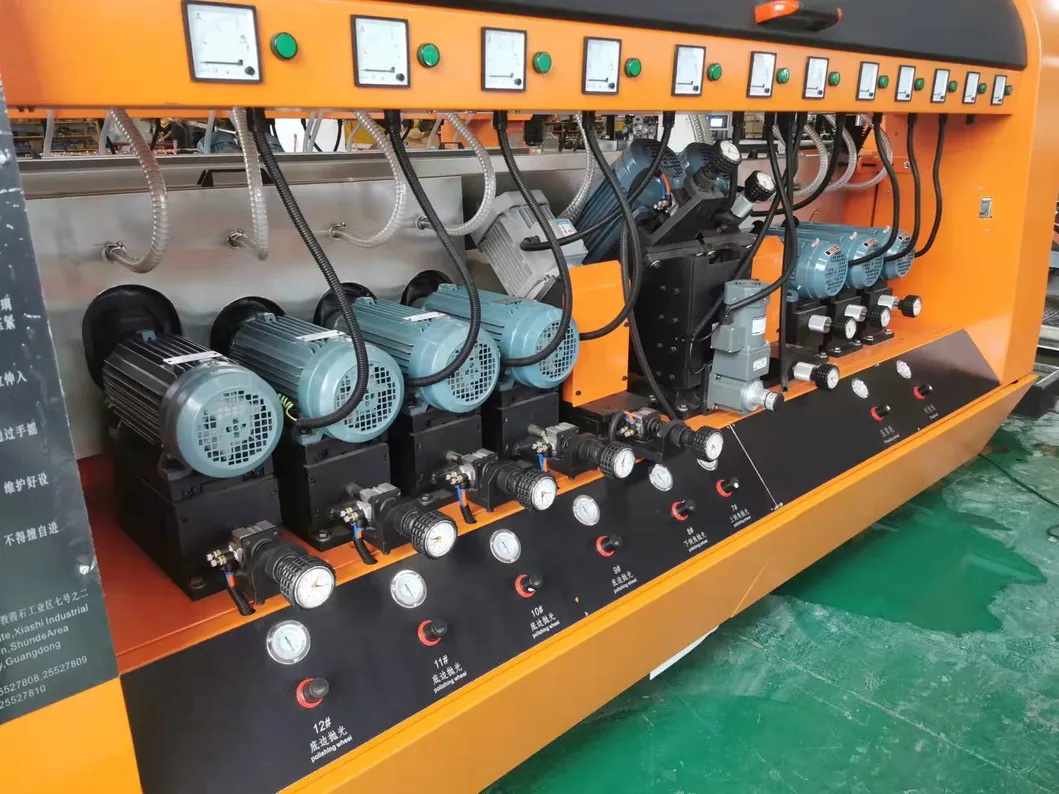

Detail View 4 Detail View 5
⭐ Our Advantages
Professional Service
Rapid response within 12 hours via email.
Efficient delivery within 15 days.
24-hour dedicated after-sales service.
Over 12 years of industry experience in glass machinery.
Fluent communication for seamless collaboration.
Quality Guarantee
18-month comprehensive warranty.
24/7 technical support via calling or email.
Complete English manuals and video tutorials provided.
2-year quality guarantee for the machine (excluding consumables).
Consumable parts available at agency pricing.

Only quality processes market, and improvement gets progress.

❓ Frequently Asked Questions
Q: What types of glass can this double edging machine process?
A: The machine is designed for various types of glass, including flat glass, laminated glass, and Low-E glass, making it ideal for mass production.
Q: What is the maximum glass conveying speed?
A: The conveying speed is adjustable from 0.5 to 15 meters per minute, allowing for flexibility based on production needs.
Q: Does the machine require complex maintenance?
A: No, the machine features a mechanical frequency conversion drive that is conveniently posited for easy maintenance and belt changes.
Q: What is the precision level of the edging?
A: The machine maintains high precision with a parallel difference of ≤0.2mm and a diagonal difference of ≤0.5mm per 1000mm.
Q: What kind of control system does it use?
A: It utilizes a robust PLC control system with a user-friendly human-computer interface for easy and efficient operation.
Q: What are the glass thickness requirements?
A: The machine can process glass with a thickness ranging from 3mm to 25mm.
