Basic Information
Type
Glass Edging Machine
Machine Type
Glass Straight Edging Machine
After-sales Service
400 Days
Transport Package
Container
Production Capacity
100 sets/Year
Product Description
⚙️
Glass Edge Polishing Machine

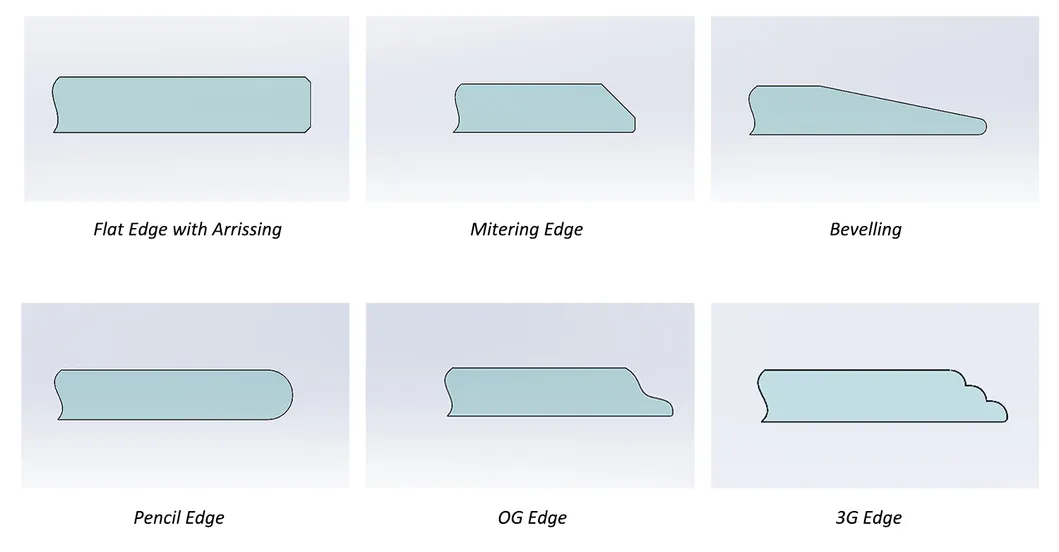

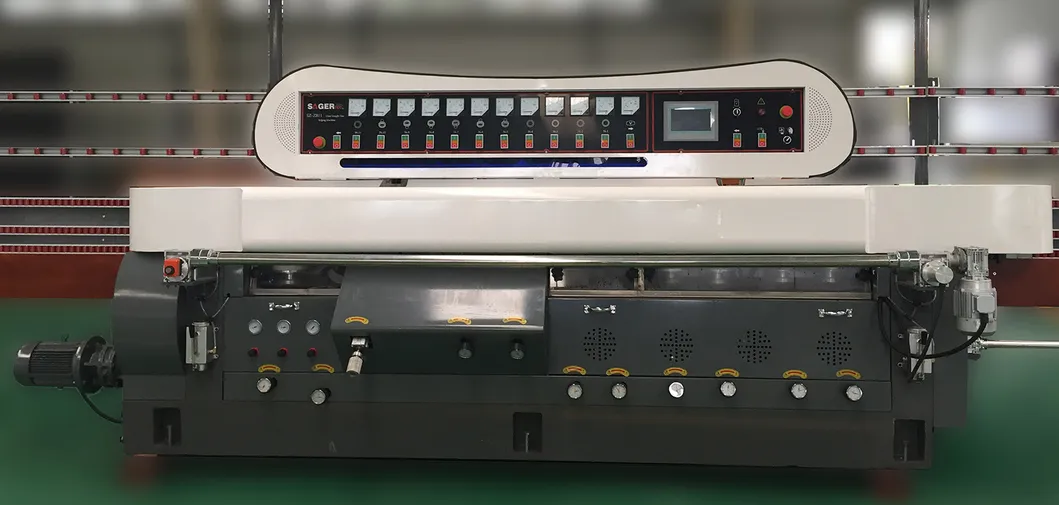

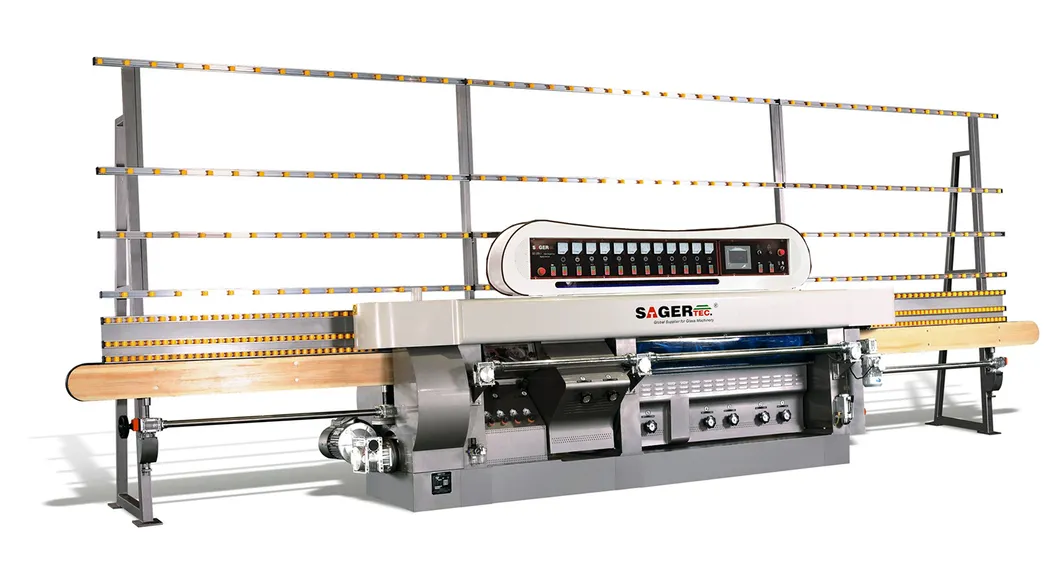

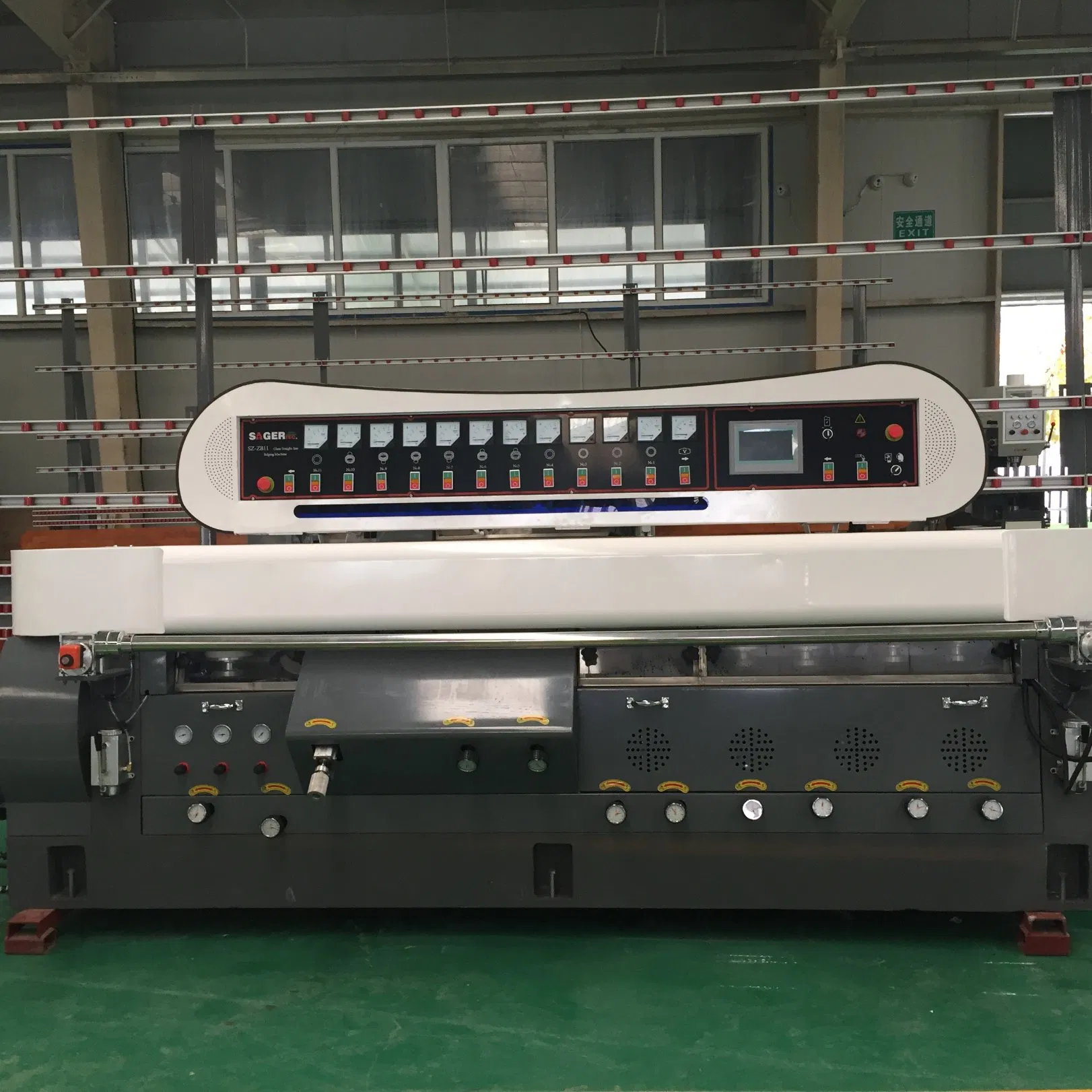

The Straight-line Glass Edging Machine is designed for grinding the straight-line edges and 45 degree arrissing of flat glass sheet with different size and thickness. The rough grinding, fine grinding & polishing can be finished at one time.
| Min. glass size |
80*80mm |
| Glass thickness |
3-28mm |
| Angle of arrising |
45° |
| Processing speed |
0.6-5.5m/min |
| Spindles (Option) |
8pcs, 9pcs, 10pcs, 11pcs |
| Voltage |
Customizable |
Product Details & Key Features
✓

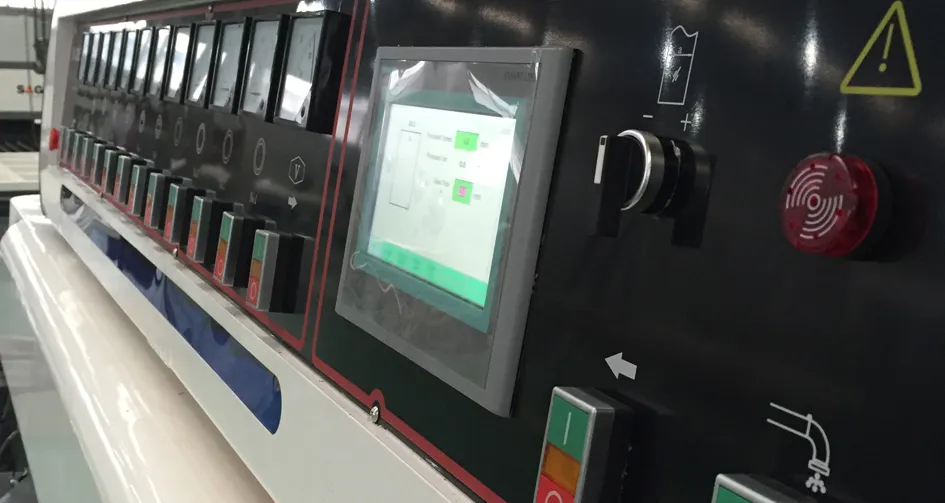

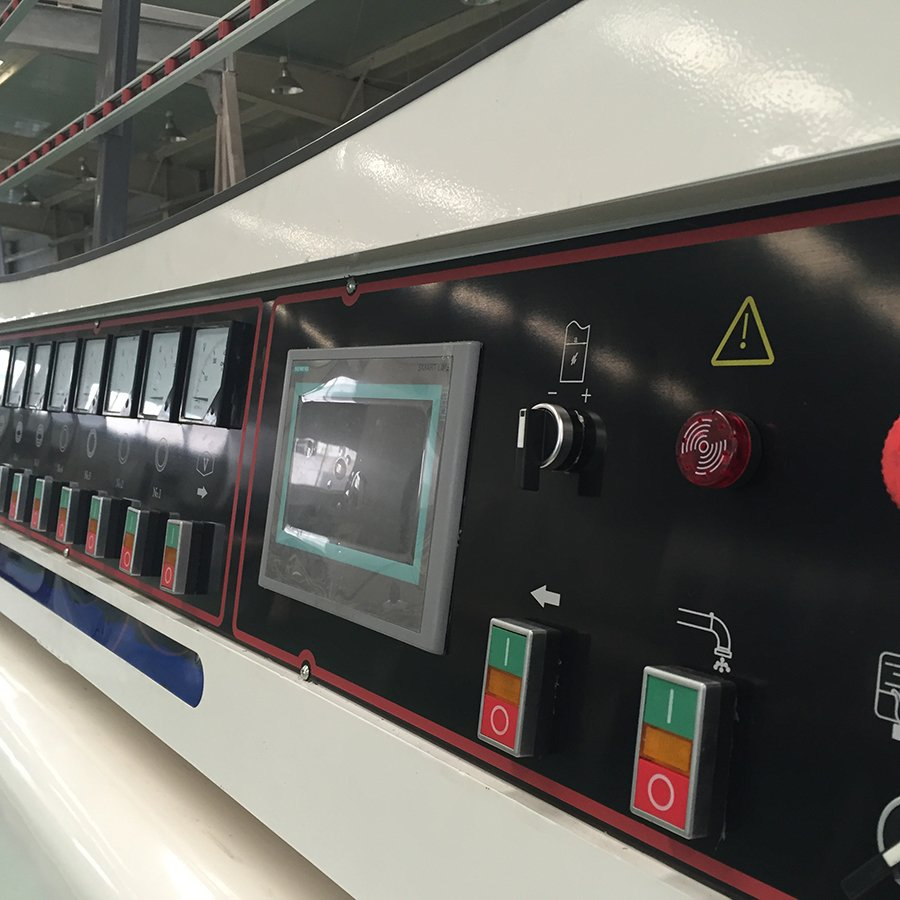

Siemens PLC with touch screen for integrated control system.
✓
Stainless steel water tank and stainless steel polishing tank with electrical agitator.
✓
Automatic lubricating pump for consistent maintenance of moving parts.
✓
Full compliance with CE electronics regulations.
⭐

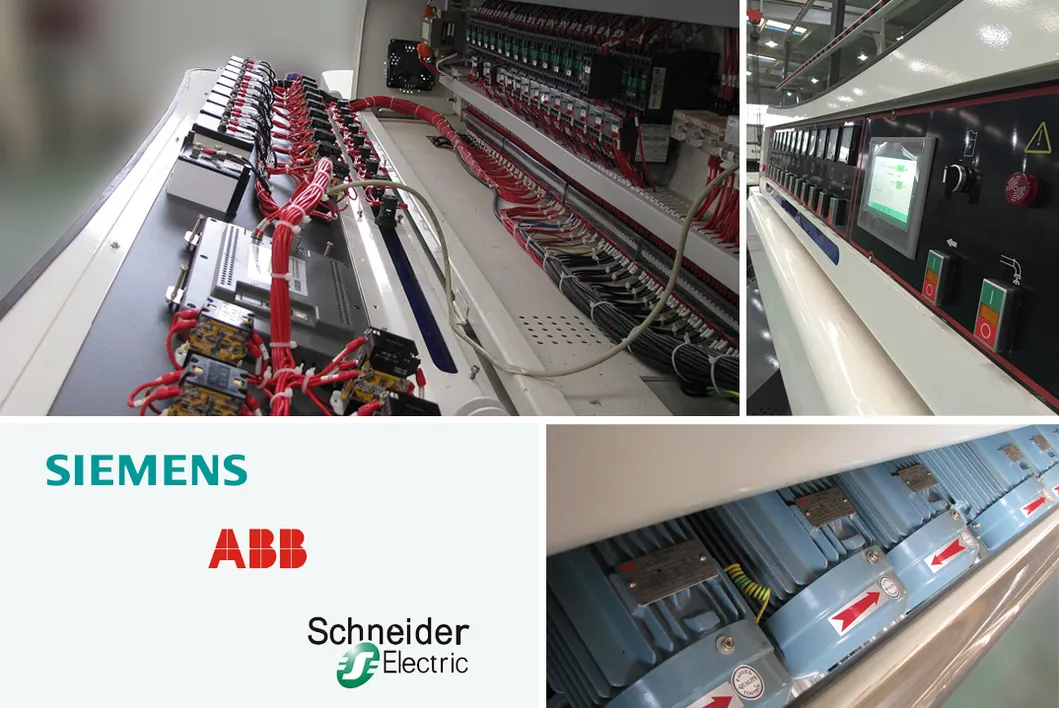

The machine is equipped with the best quality and reliable parts as its components, including world-renowned brands such as Siemens and Schneider.

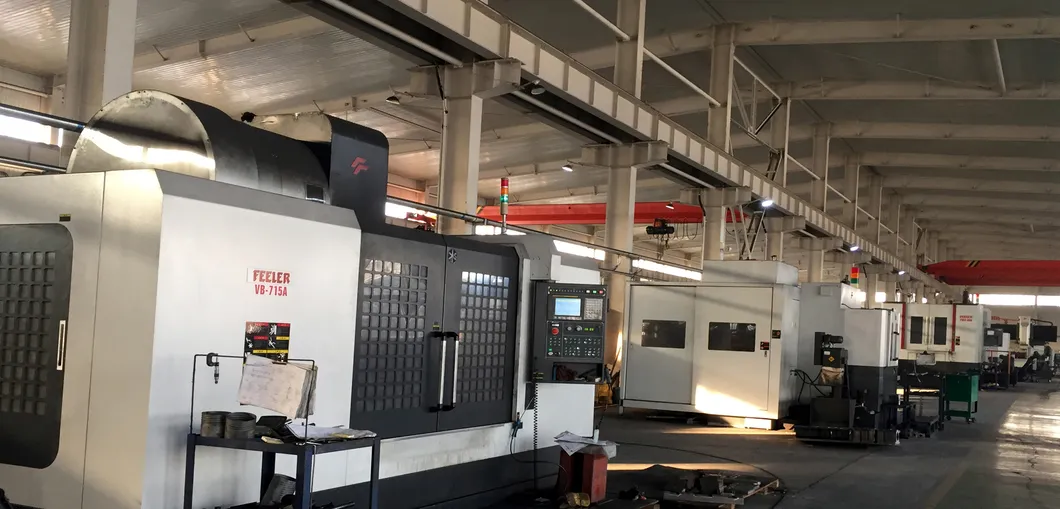

All metal sheets used on the equipment are processed by laser cutting. The main body of the machine is constructed from high-quality cast iron and processed by CNC gantry milling, ensuring long-term stability and precision.
⚙️

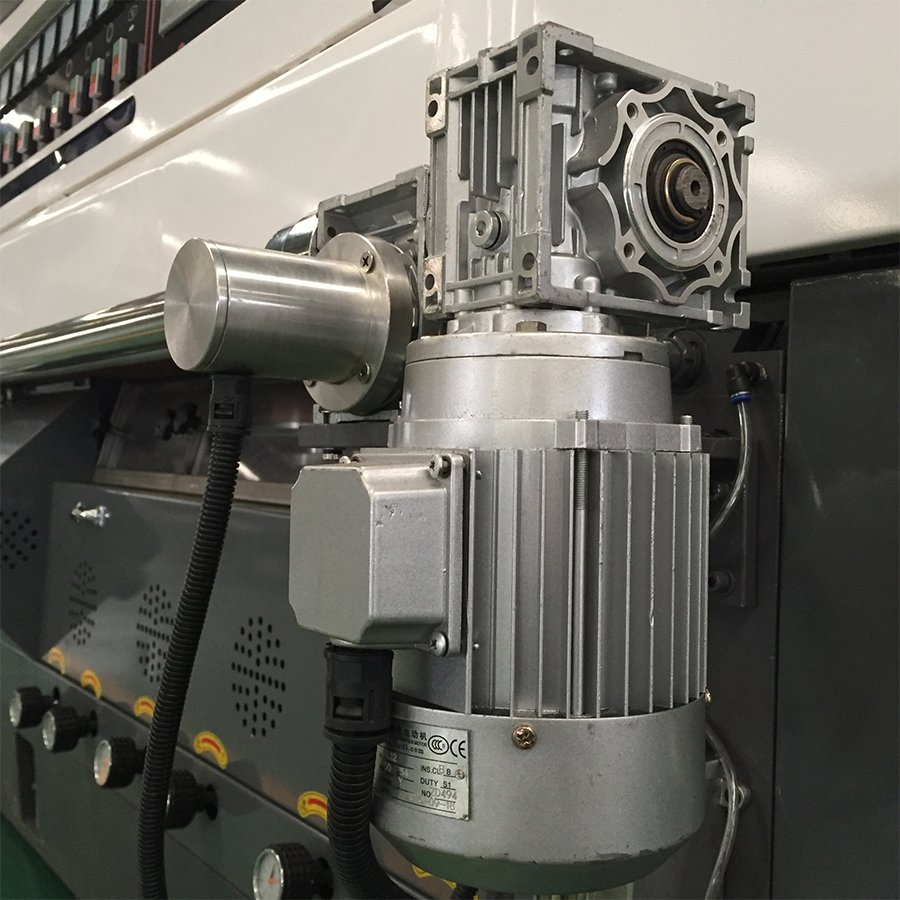

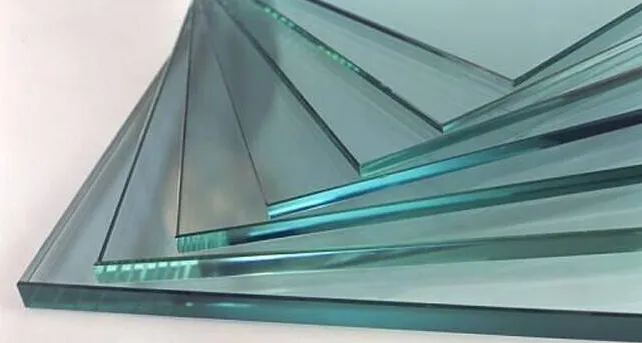

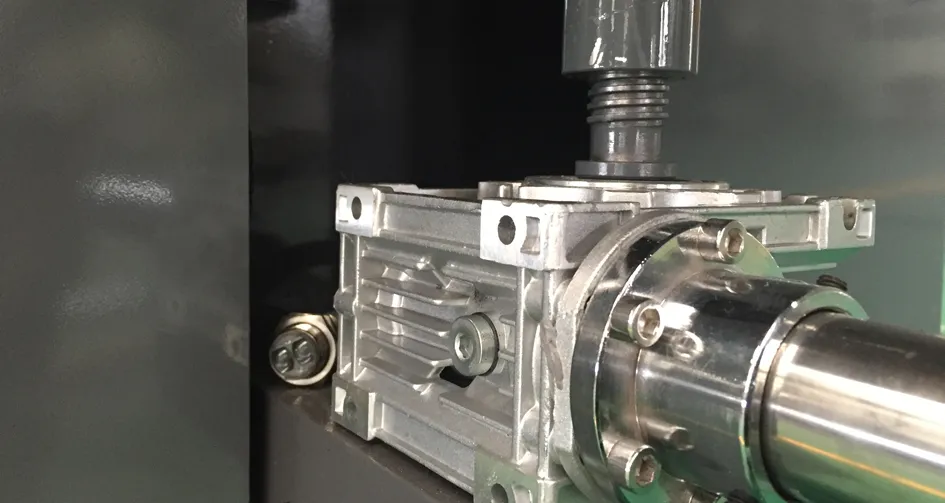

The machine is available for various sizes and thicknesses. Glass thickness adjustment is motorized with a digital display. The specialized in-feed section allows for integral control of feeding values, eliminating the need to adjust spindles individually.
Frequently Asked Questions
What is the range of glass thickness this machine can handle?
The machine can process glass with a thickness ranging from 3mm to 28mm.
What are the main components of the control system?
The machine uses a Siemens PLC with a touch screen interface and Schneider electrical components for high reliability.
Can I customize the voltage for my factory?
Yes, the machine's voltage is fully customizable to meet the power standards of different regions.
How is the machine's body durability ensured?
The main body is made of high-quality cast iron and processed by CNC gantry milling, while all metal sheets are laser-cut for precision.
Does the machine provide high-quality polishing?

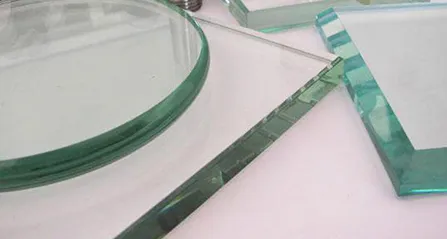

Yes, it features an independent felt wheel and a cerium water recirculation system to ensure a shiny, high-quality flat edge.
What is the minimum glass size for processing?
The minimum processing size for glass sheets is 80mm x 80mm.
