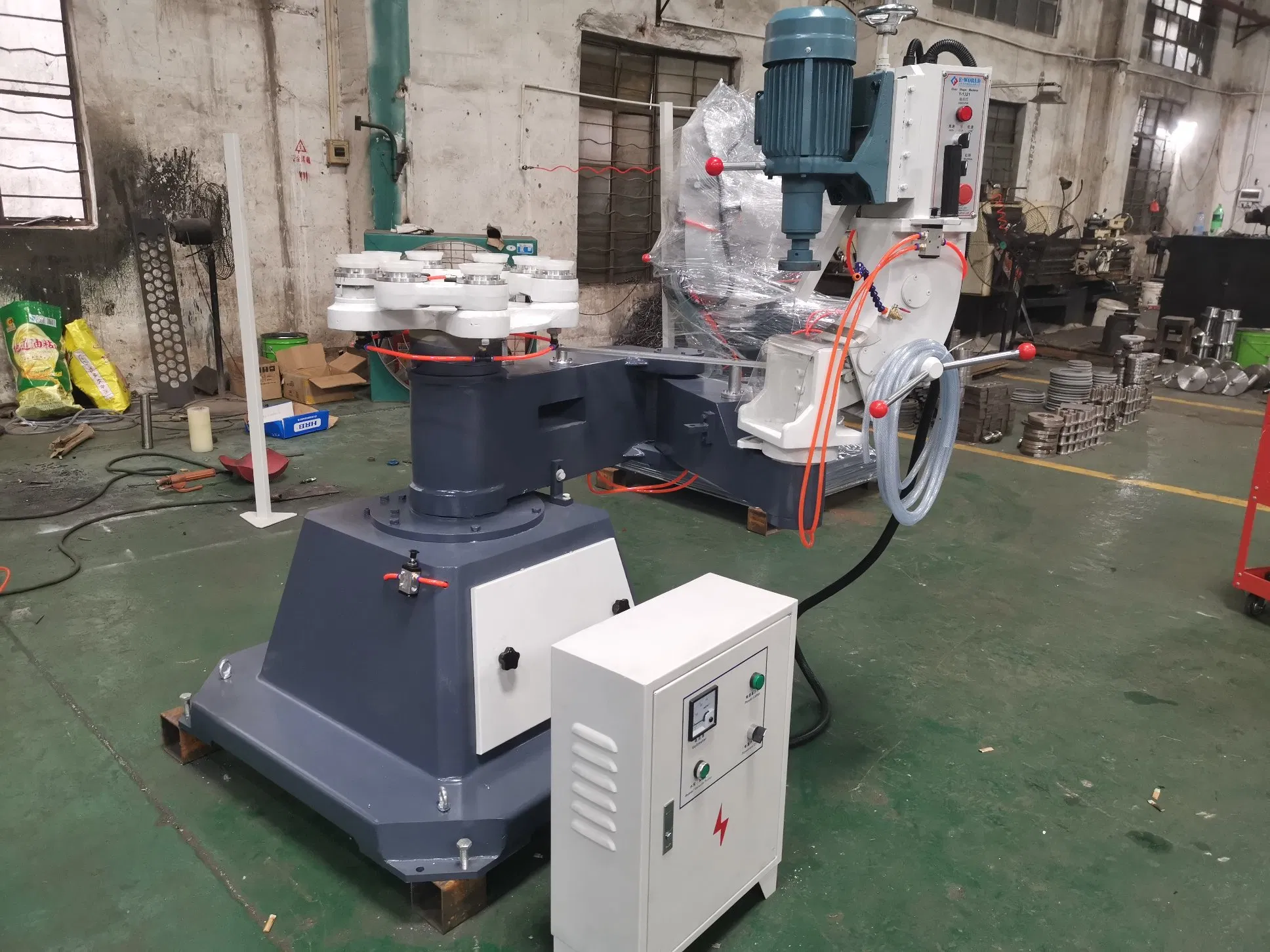

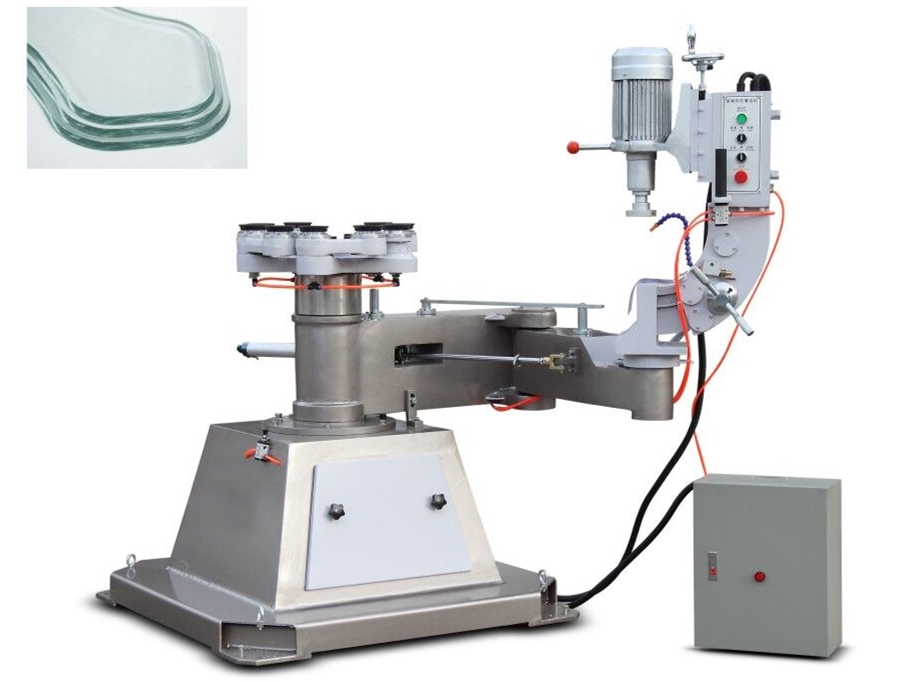

Glass Shape Edging Machine

Customization:	Available
Certification:	CE, ISO
Type:	Glass Edging Machine

Send Inquiry

Product Description

Basic Information

Model NO.

E-LD1320

Structure

Horizontal

Control System

PLC

Machine Type

Horizontal Glass Washing & Grinding

Grinding Heads

Condition

New

Package

Seaworthy Wooden Case

HS Code

8464201000

Product Description

Glass Shape Edging and Beveling Machine is designed for high-precision processing of round, oval, and other irregular glass sheet shapes across various sizes and thicknesses.

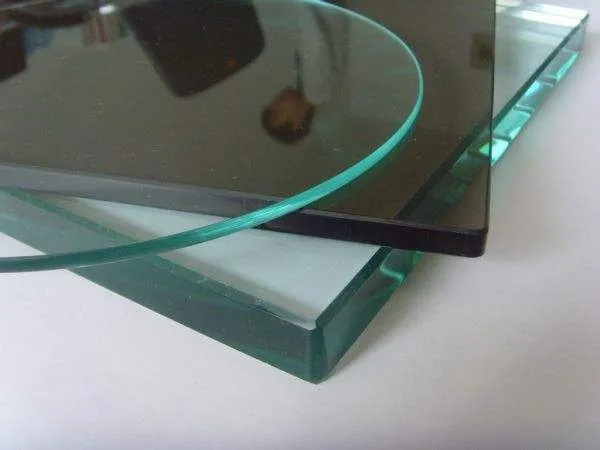

By utilizing different grinding wheels, the machine can process semicircular, flat, and OG edges. Adjusting the motor angle with a cup-shaped wheel allows for professional bevel edge processing.

Ideal for grinding and polishing outer edges (rounded or duckbilled) for circular, oval, and irregular flat glass.

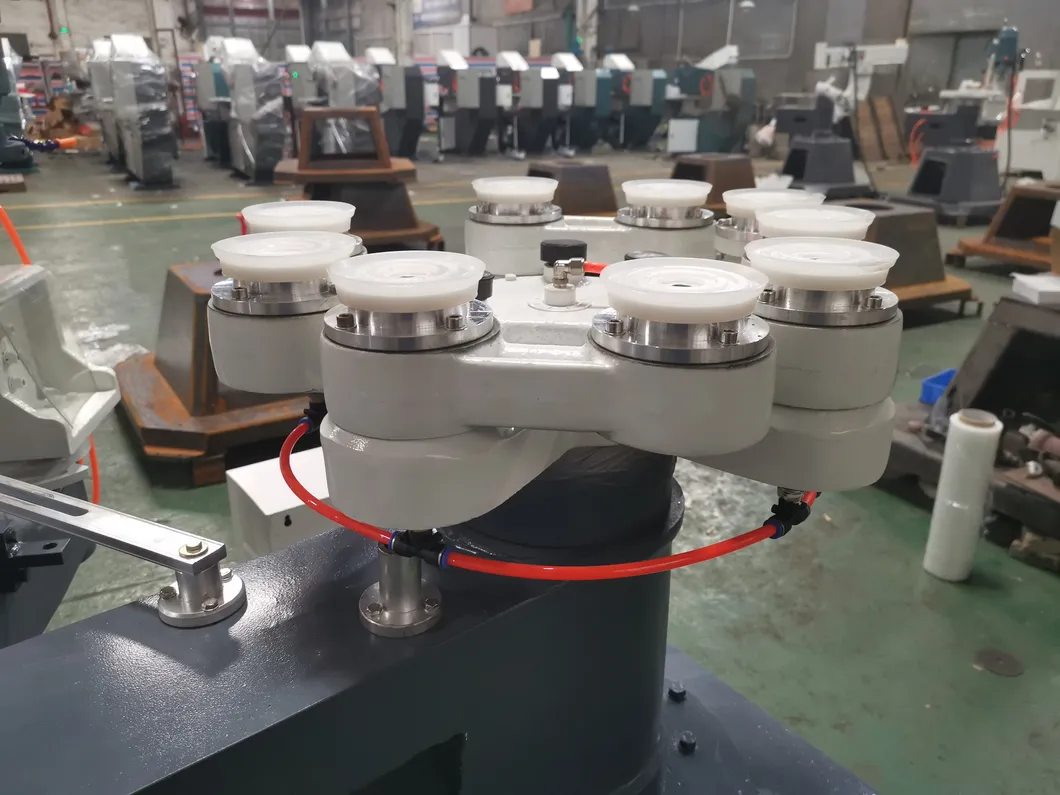

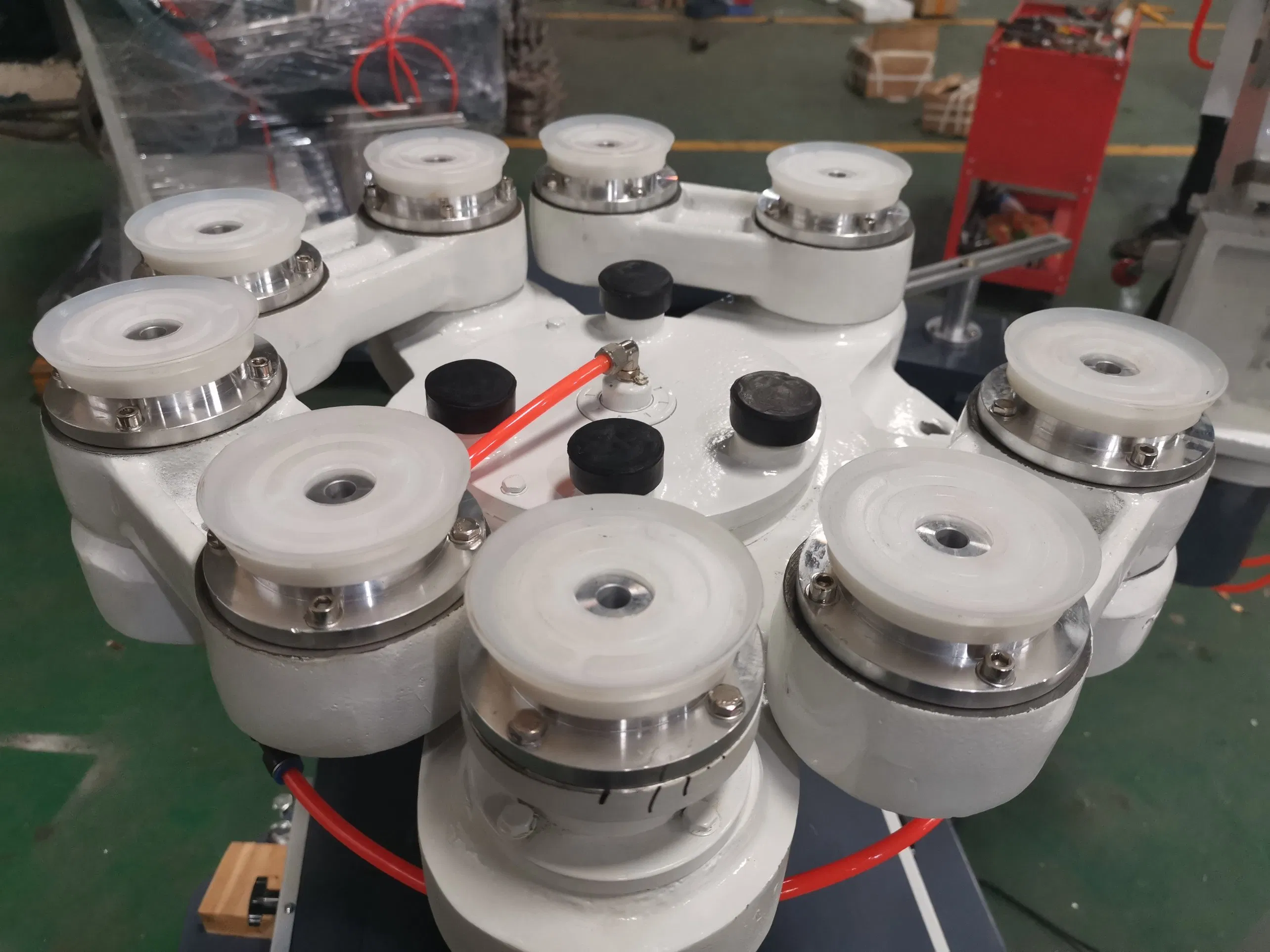

Glass is securely held by a vacuum sucker; features an independent five-star turntable with adjustable rotary speeds.

Equipped with an air cylinder for semi-automatic grinding of simple glass shapes.

Supports pencil edging with three grinders for coarse grinding, fine grinding, and polishing stages.

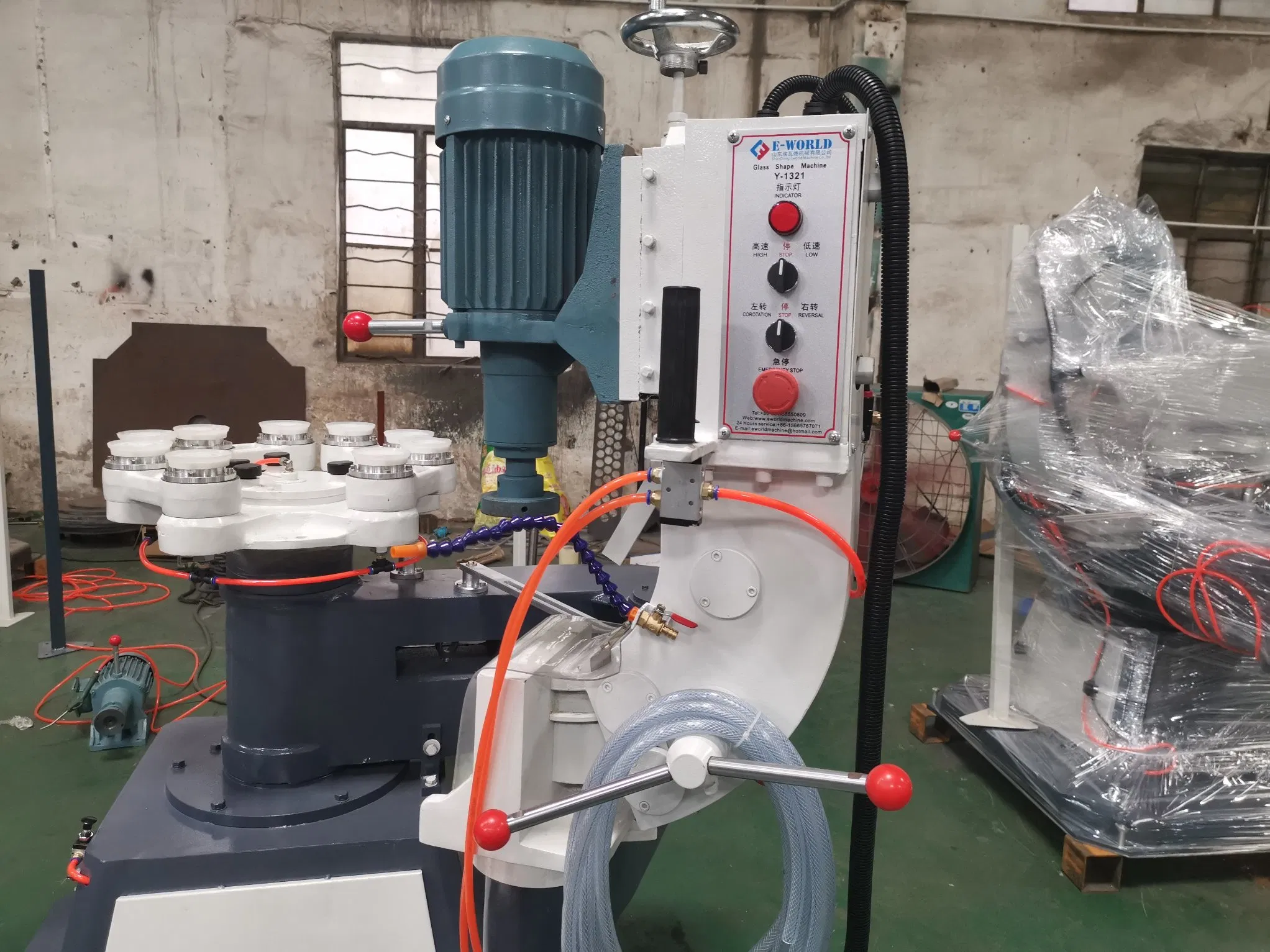

Beveling is achieved using bowl-shaped wheels with adjustable tilted-back grinder heads.

Detailed Photos

Product Parameters

Specification Item	Technical Data
Diameter of rotary glass	100~2000mm
Bevelling degree	0~15°
Speed dial	0.5 ~ 2.5 r / min
Disk speed	1.3 ~ 6.5 r / min
Bevelling abrasive wheels	φ150
Abrasive wheels	φ100, φ150, φ175
Max bevelling width	35mm
Glass thickness	3-25mm
Total power	2.5kw

Packaging & Shipping

Packing Terms: Professionally packed and suitable for long-distance shipment by sea.

Terms of Payment: 30% T/T deposit required, with the balance cleared before shipment.

Delivery Time: Within 20-25 days after receipt of the initial 30% deposit.

Manufacturing Excellence

Frequently Asked Questions (FAQ)

Q1: What shapes of glass can this machine process? A: The machine is highly versatile and can process round, oval, and various irregular shapes of glass sheets.

Q2: What is the range of glass thickness supported? A: This model supports glass thickness ranging from 3mm up to 25mm.

Q3: Can the machine perform beveling? A: Yes, it can perform beveling with an adjustable degree from 0° to 15° and a maximum width of 35mm.

Q4: What is the maximum size of glass the machine can handle? A: It can handle glass with a rotary diameter ranging from 100mm to 2000mm.

Q5: How is the glass held in place during processing? A: The glass is securely absorbed onto a vacuum sucker to ensure stability and precision during grinding and polishing.

Q6: What type of control system does the machine use? A: The machine utilizes a high-reliability PLC control system for stable operation and easy management.
