Customization: Available
Certification: CE, ISO
Processing Speed: 10-15 m/min
Send Inquiry

Product Description

Basic Specifications

Model NO.
E-LD4325
Processing Thickness
3-19 mm
Voltage
220V
Warranty
1 Year
Max. Flat Edging Level
3mm
Min.Arrising Width
2.5mm
Max. Glass Size
2440X3660mm
Min.Glass Size
60X60mm
Type
Glass Edging Machine
Control System
PLC
Grinding Head Number
4
HS Code
8464201000
Straight Line Glass Edging Machine

Product Description & Features

Small glass edging machine with compact design.
Equipped with 4 spindles for precision processing.
Stepless speed control for flexible operation.
Advanced electric controlling system.
Processes rectilinear glass plates in various sizes and thicknesses.
Simultaneous performance of grinding (roughing), finishing resin, and fillets.

Technical Data Sheet

Item Specification
Arris Angle45°
Glass Thickness3-25mm
Working Speed0.7-7.0m/min
Overall Dimension6000x1000x2500mm
Worktable Height750mm
Weight1800kg
Installed Power9.85kw
Banner Specification

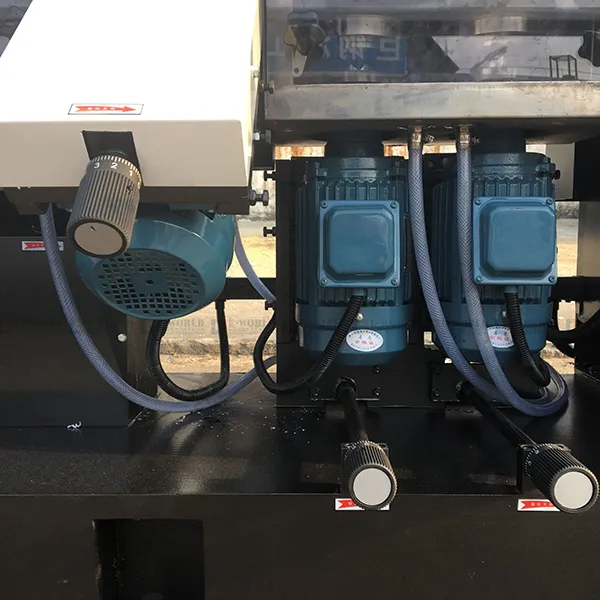

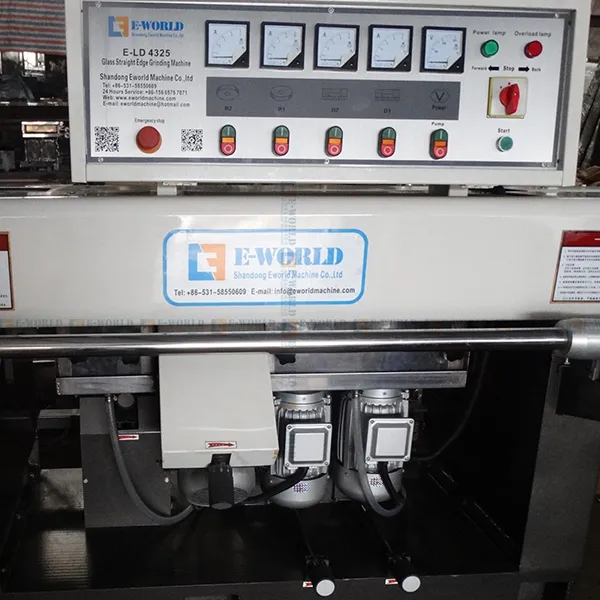

Machine Detail 1 Machine Detail 2

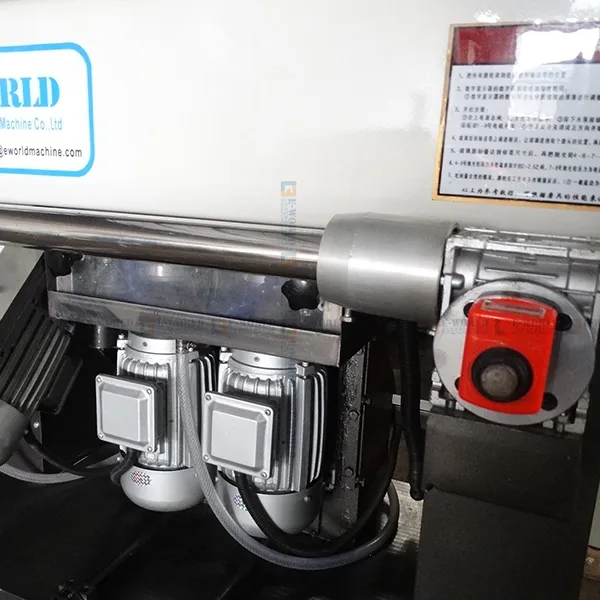

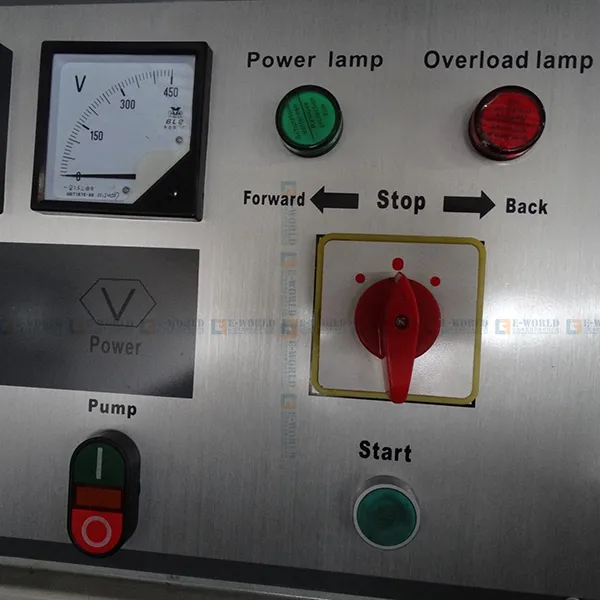

Processing Example 1 Processing Example 2 Processing Example 3

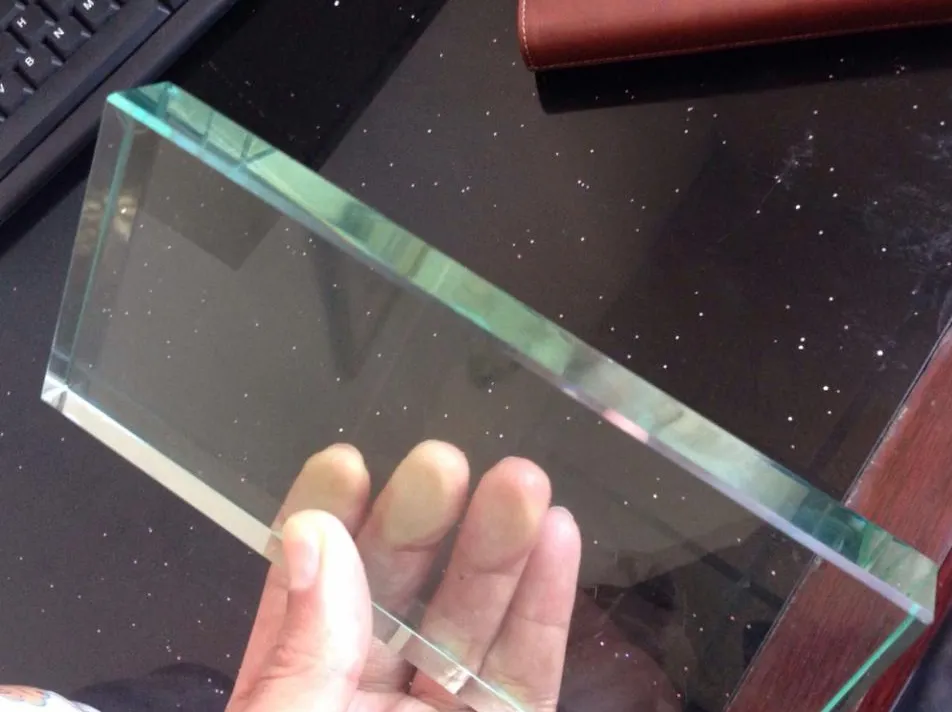

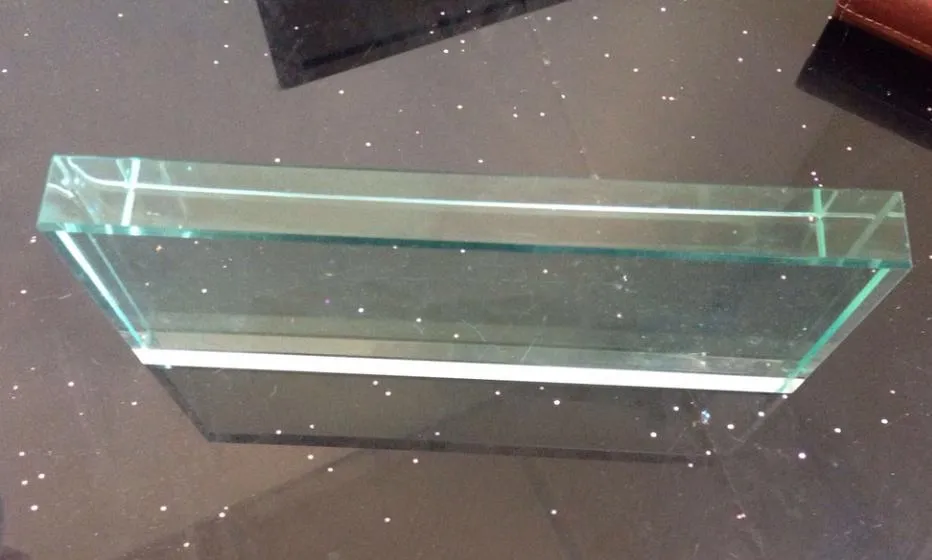

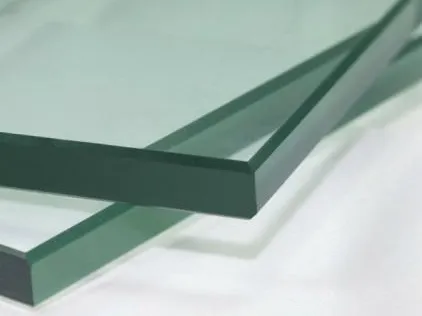

Machine Component 1 Machine Component 2 Machine Component 3

Packaging & Delivery

Package Size
6000.00cm * 1000.00cm * 2500.00cm
Gross Weight
1800.000kg
Package Type
Packed in Wooden Case, Seaworthy Package

Frequently Asked Questions

What glass thicknesses can this machine process?
The machine is designed to process glass with a thickness range of 3mm to 25mm.
What is the maximum glass size for processing?
The maximum glass size supported is 2440x3660mm, while the minimum size is 60x60mm.
How many grinding heads does the machine have?
This model features 4 spindles (grinding heads) capable of processing flat edging with 45-degree arris.
How do you guarantee the quality of the machinery?
We ensure quality through a pre-production sample before mass production and a strict final inspection before shipment.
What control system does the glass edging machine use?
The machine utilizes a PLC (Programmable Logic Controller) system for precise and reliable operation.
What is the working speed of the E-LD4325?
The working speed is adjustable via stepless control, ranging from 0.7m/min to 7.0m/min.
