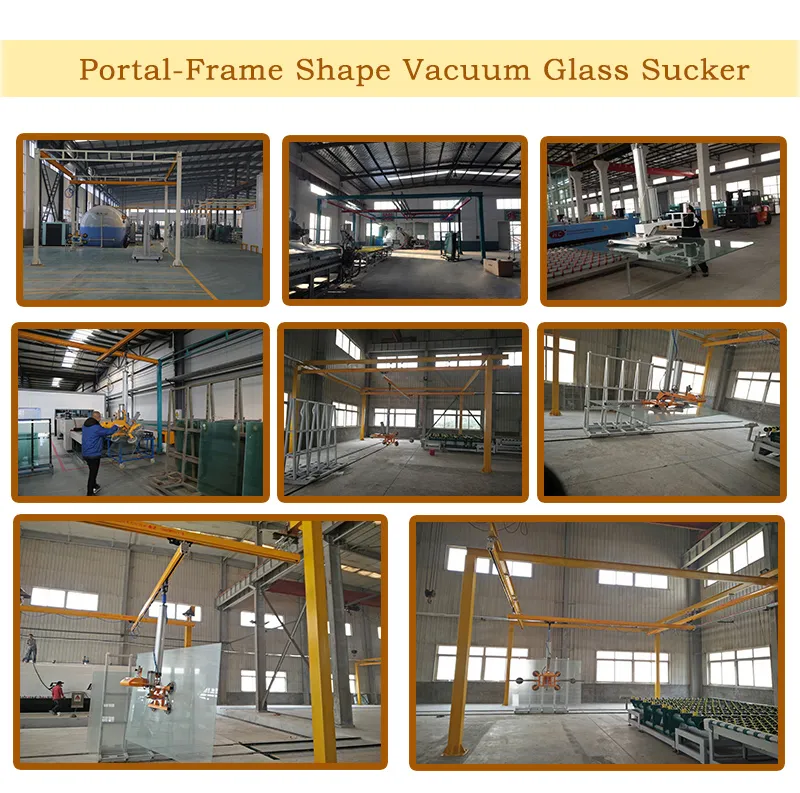

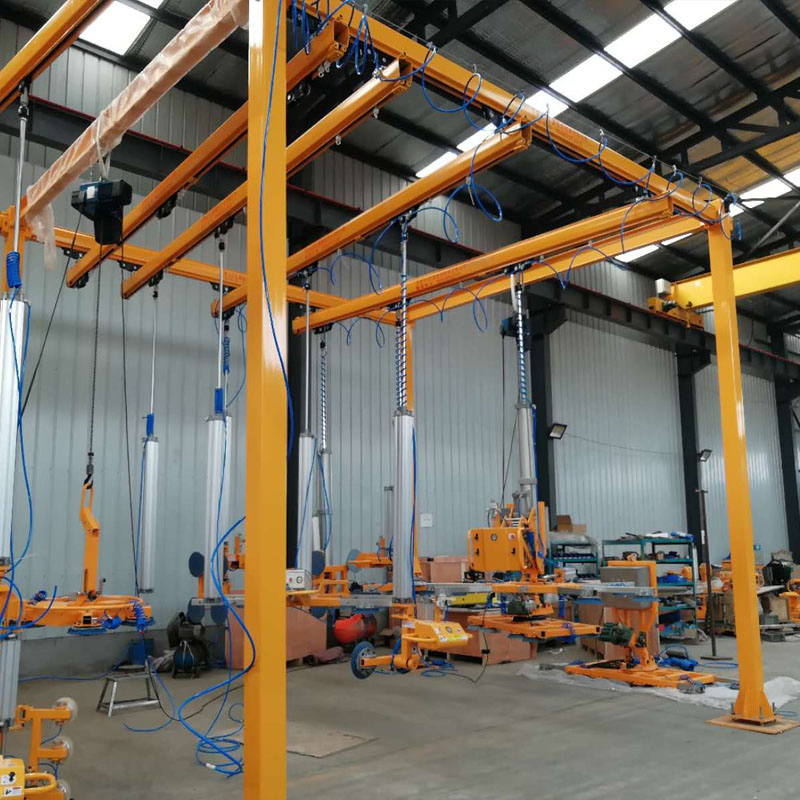

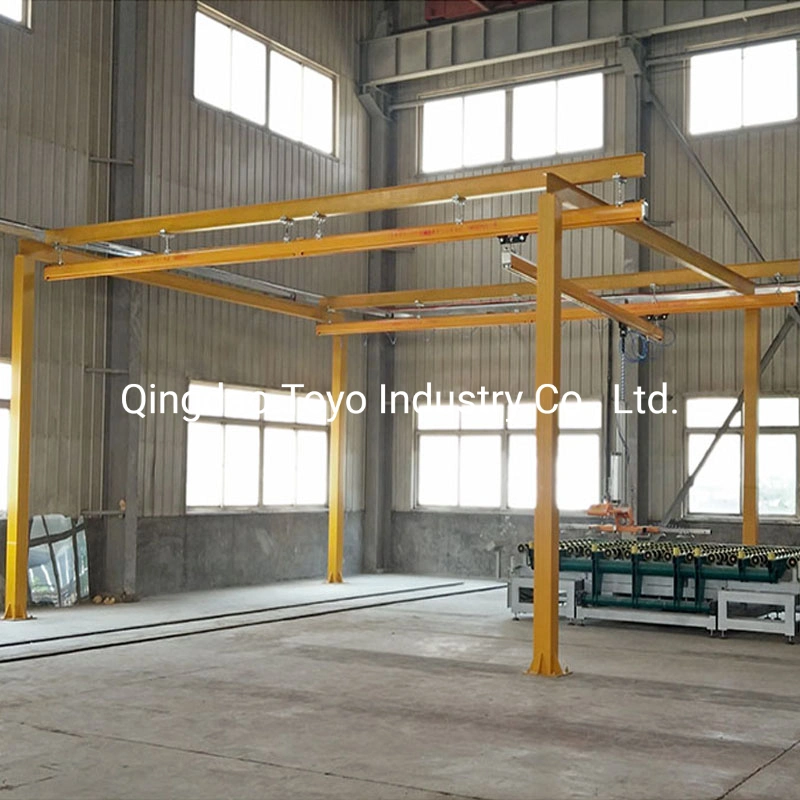

🏗️ Porch-Shaped Overhead Crane

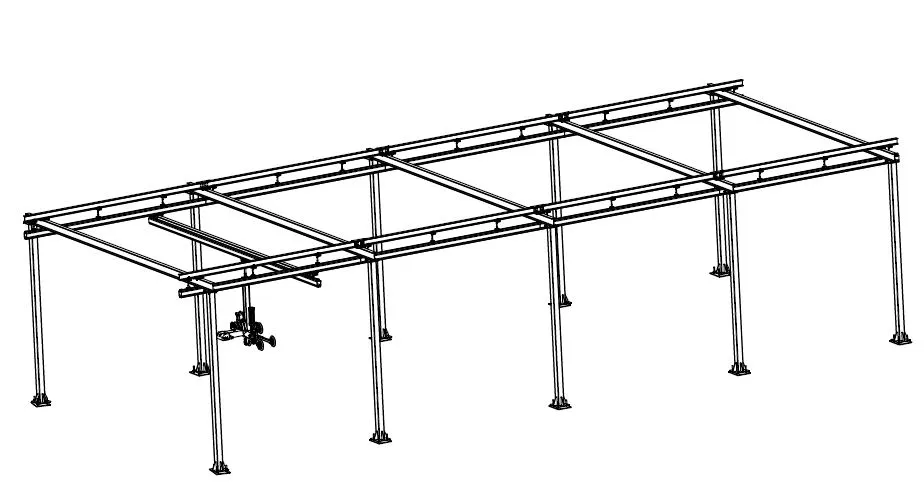

The appearance features a porch-shaped design where the vacuum lifter runs along the travelling beam, and the travelling beam moves along the main frame.
It is extensively utilized in insulating glass lines, lamination lines, vertical CNC stations, tempering lines, and cutting lines. Key advantages include space-saving design, stable operation, reduced manpower requirements, and large area coverage.

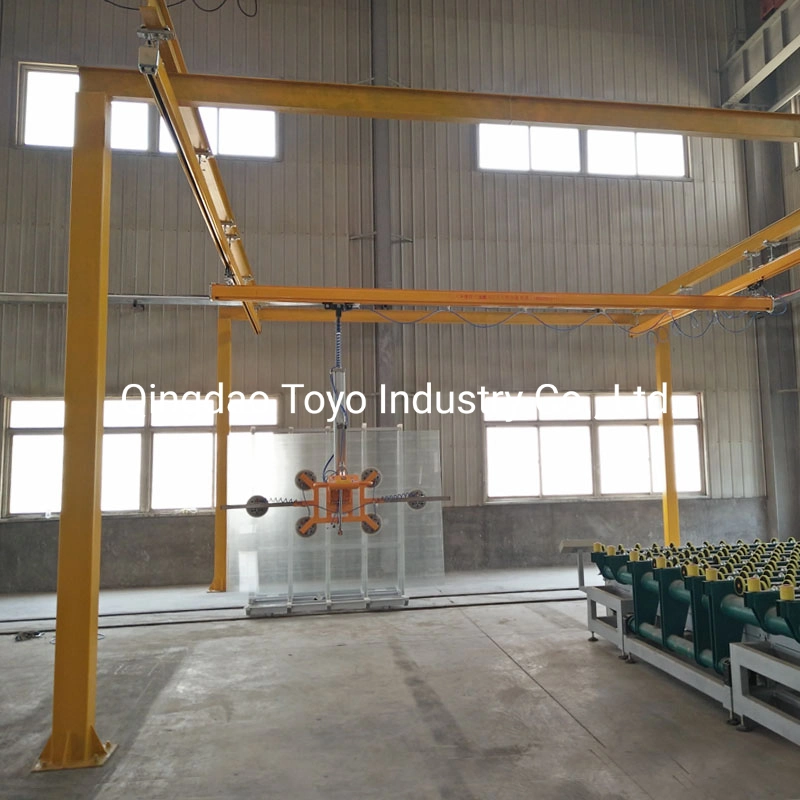

This system efficiently moves glass sheets to the correct production position. Equipped with a vacuum lifter, it allows a single worker to easily lift, rotate, and turn over glass sheets.

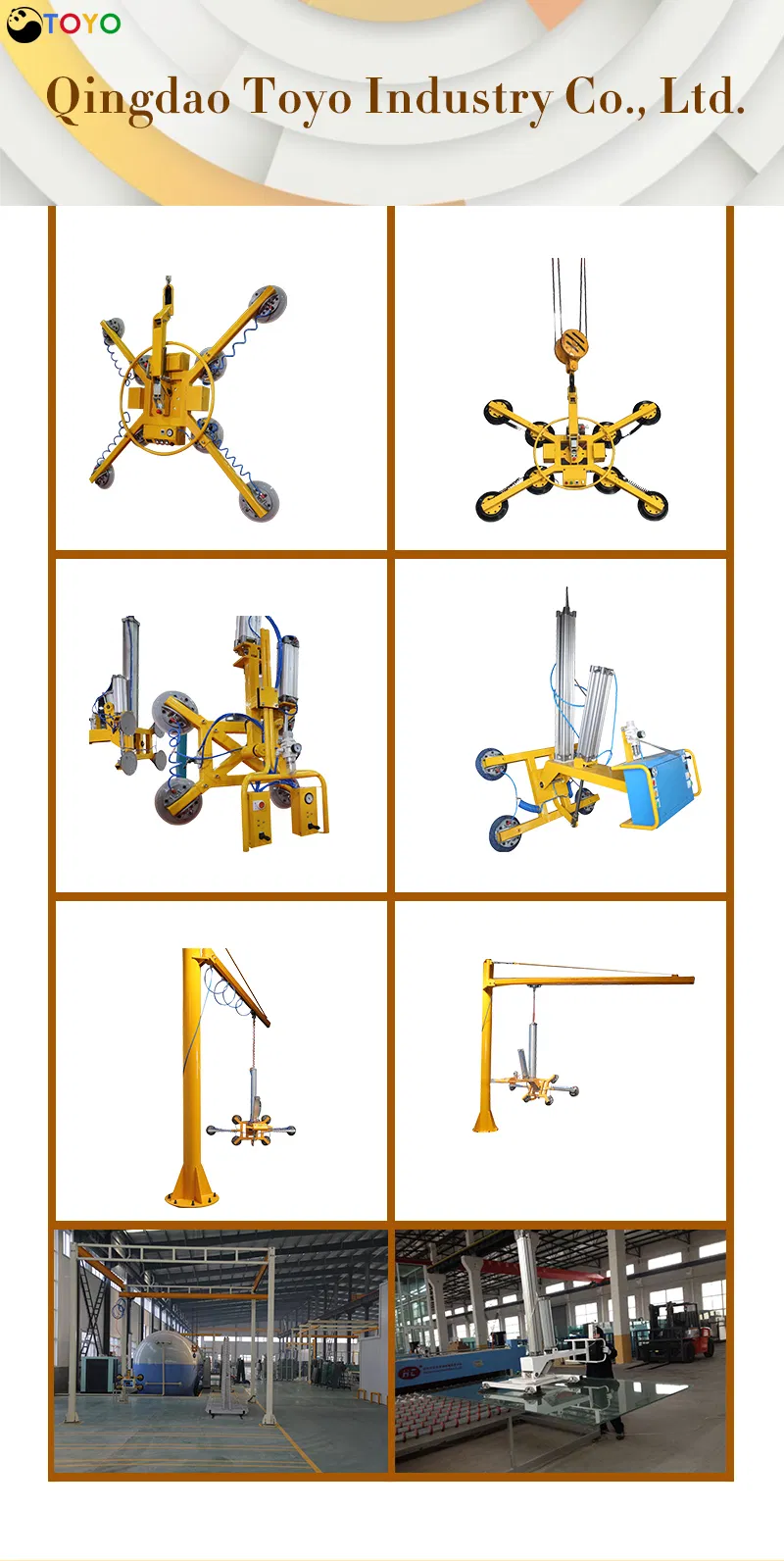

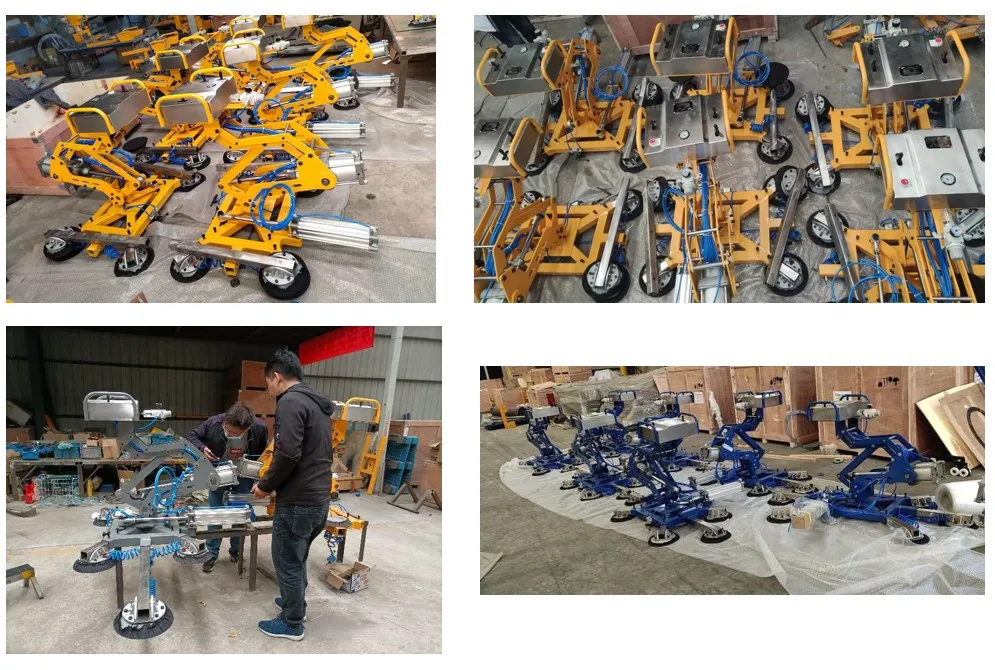

🛡️ Vacuum Glass Lifters
Vacuum glass lifters are essential for factory lifting and outdoor glass wall installation.
Safety and Efficiency: This equipment reduces the personnel needed for handling and minimizes injury risks. Glasses are moved safely and stacked without extra personnel in unloading areas.
Our lifters utilize Thomas brand (USA) vacuum pumps and Japan SMC control systems. The imported suction pads are made of special silicone, resistant to temperatures ranging from -20°C to 90°C without cracking.
Safety Feature: In the event of a power cut or pipe burst, the system automatically locks the vacuum to ensure the glass remains held for 10-15 minutes.
❓ Frequently Asked Questions
What is the maximum lifting capacity for this system?
The TYGantry model supports a maximum lifting weight of less than 20 tons, while the integrated vacuum lifter typically handles loads between 350kg and 450kg.
Is the equipment customizable for specific factory layouts?
Yes, the pillar height, frame length, travelling beam width, and vertical lifting range can all be customized to fit your specific production line requirements.
What safety measures are in place for vacuum failure?
The system features an automatic locking control. If the air pipe bursts or power is cut, the vacuum will hold the glass securely for 10-15 minutes to prevent falling.
What temperatures can the suction cups withstand?
The suction pads are made of high-quality silicone or NBR, capable of operating in extreme temperatures ranging from -20°C (or -40°C for specific models) up to 90°C.
Which components are used in the vacuum control system?
We use high-performance Thomas brand vacuum pumps from the United States and SMC control systems from Japan to ensure reliability and precision.
Does the equipment leave marks on the glass surface?
No, the sucker material is made of white silica gel specifically designed to leave no traces on the glass surface during handling.
