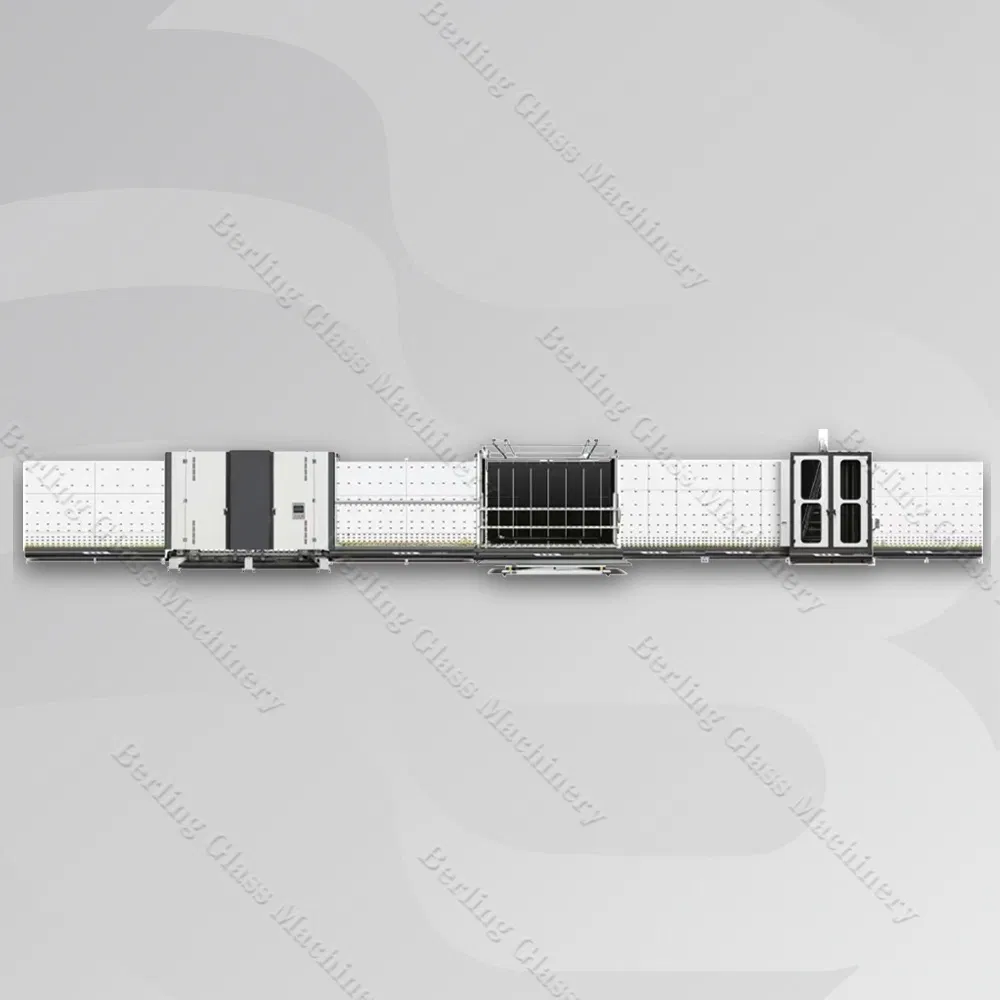

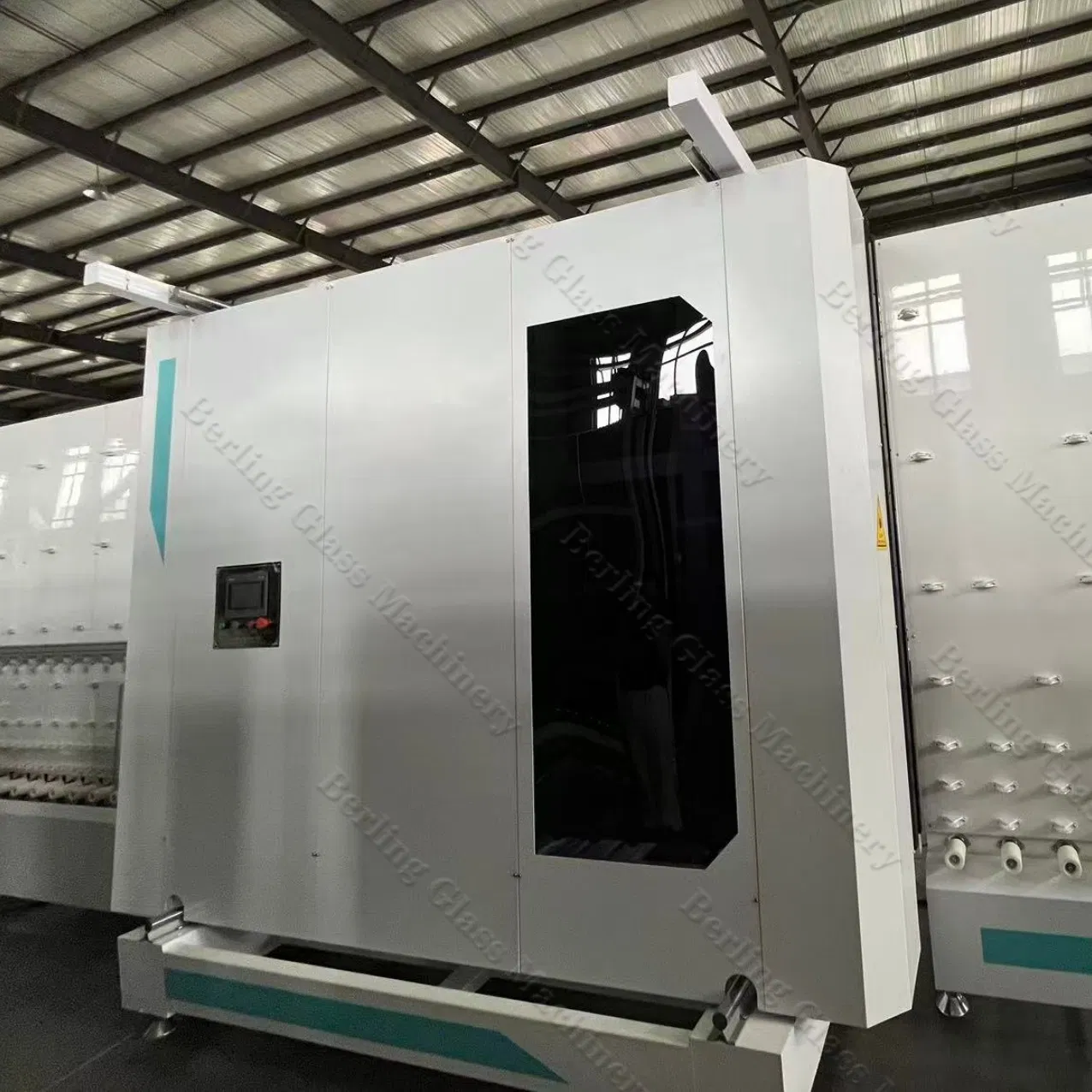

Glass Vertical Insulating Igu Line Machinery with Advanced Automation

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Basic Information

Model NO.

BLBG2030

Glass Thickness

3-12mm

Max Glass Size

2000*3000mm

Min Glass Size

200*300mm

Working Speed

2-40m/Min

Total Power

36kw

Voltage

380V/50Hz

Core Components

Motor, PLC, Pump

Origin

China

HS Code

8464901900

Product Description

Providing high-performance vertical insulating glass production lines for manufacturing double, triple, and structural glass units. Our systems feature PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient IGU processing.

PLC Touchscreen ControlEasy operation and real-time monitoring.

Low-E Glass DetectionOmron sensors automatically identify coated glass.

Independent Brush MotorsEach brush is motor-driven for better cleaning.

Argon Gas Filling SystemServo-controlled, pressurized gas injection.

Flexible Assembly ModesSupports both inner and outer press options.

Durable Stainless SteelCorrosion-resistant for industrial environments.

Product Parameters

Item	BLBG-3060	BLBG-2850	BLBG-2540	BLBG-2030
Total power	90KW	70KW	46KW	36KW
Max glass size	3000*6000mm	2800*5000mm	2500*4000mm	2000*3000mm
Min glass size	280*450mm	280*450mm	280*450mm	280*450mm
Panel glass thickness	3~30mm	3~12mm	3~12mm	3~12mm
Max LG unit thickness	12~80mm	12~80mm	12~40mm	12~40mm
Washing speed	2-12m/min	2-12m/min	2-12m/min	2-12m/min
Air pressure	0.8m³/min	0.8m³/min	0.8m³/min	0.8m³/min

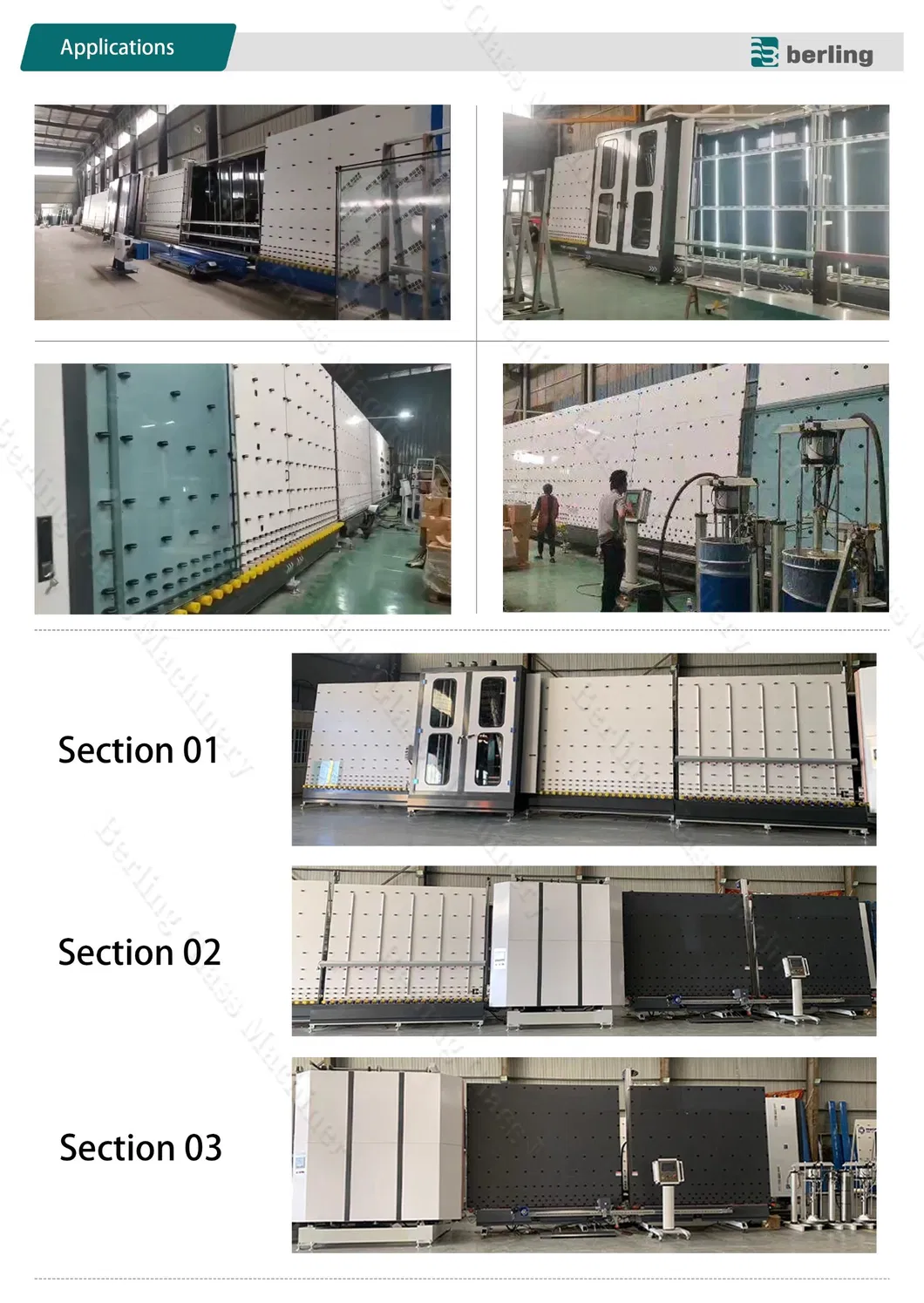

Application

Residential & commercial window IGU manufacturing
Curtain wall insulating glass unit production
Low-E energy-saving glass processing
Structural glass façade panel fabrication
Glass panel assembly and sealing in building industry

Certifications & Shipping

After Sales Service & Facility

FAQ

1. Who are we?

We are a dedicated machinery provider based in China. Founded in 2019, we export to global markets including Europe, North America, and South America, supported by a professional technical team.

2. How can we guarantee quality?

We ensure quality by providing a pre-production sample before bulk production and conducting a comprehensive final inspection before every shipment.

3. What can you buy from us?

We offer complete solutions including Insulated Glass Production Lines, Glass Cutting Machines, Washing Machines, Edging Machines, Tempering Furnaces, and Laminated Glass Lines.

4. Why should you choose us over other suppliers?

With over 20 years of production experience, an excellent engineering team, and a professional after-sales service department, we provide stable and high-quality products.

5. What delivery and payment terms are accepted?

We accept various delivery terms (FOB, CIF, EXW, DDP, etc.) and payment methods (T/T, L/C, PayPal, Western Union). Our team communicates fluently in multiple languages including English, Spanish, and French.

6. What is the typical lead time?

Delivery times vary depending on the specific machine configuration and order volume. Please contact our sales team for a detailed production schedule.
