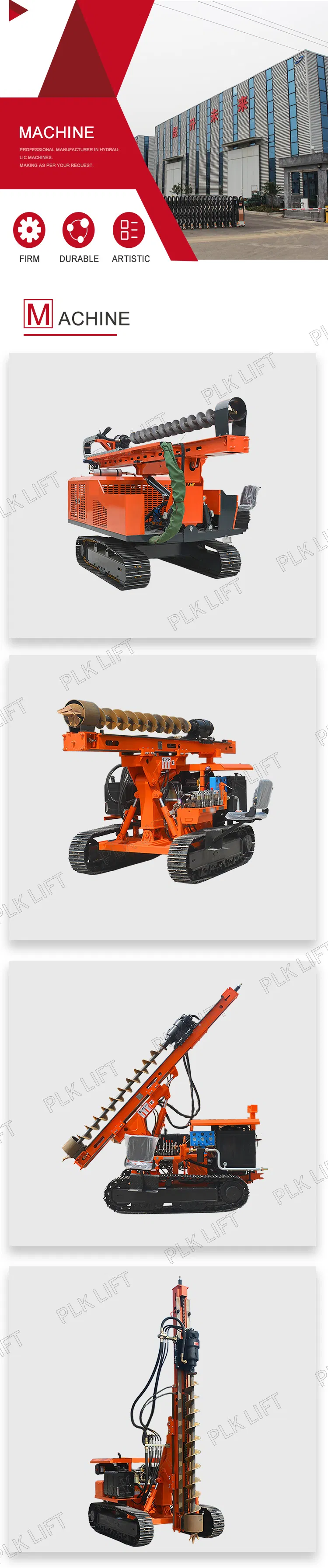

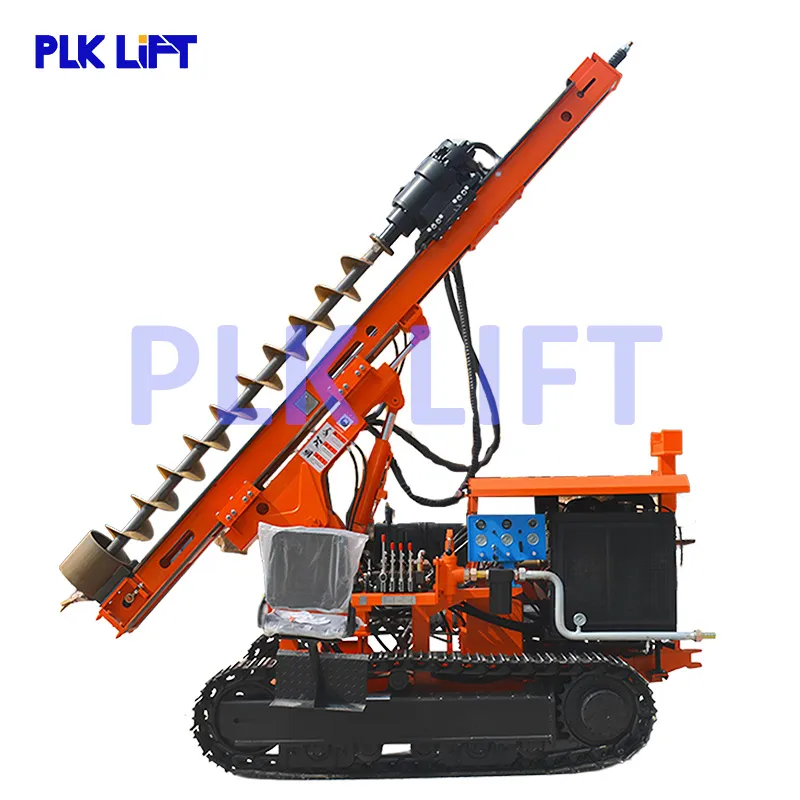

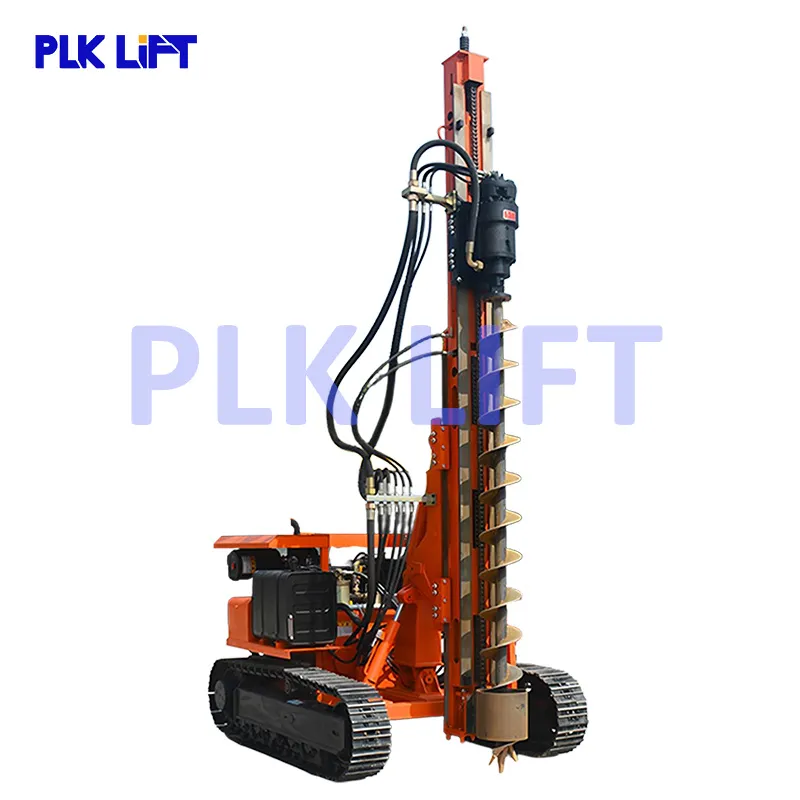

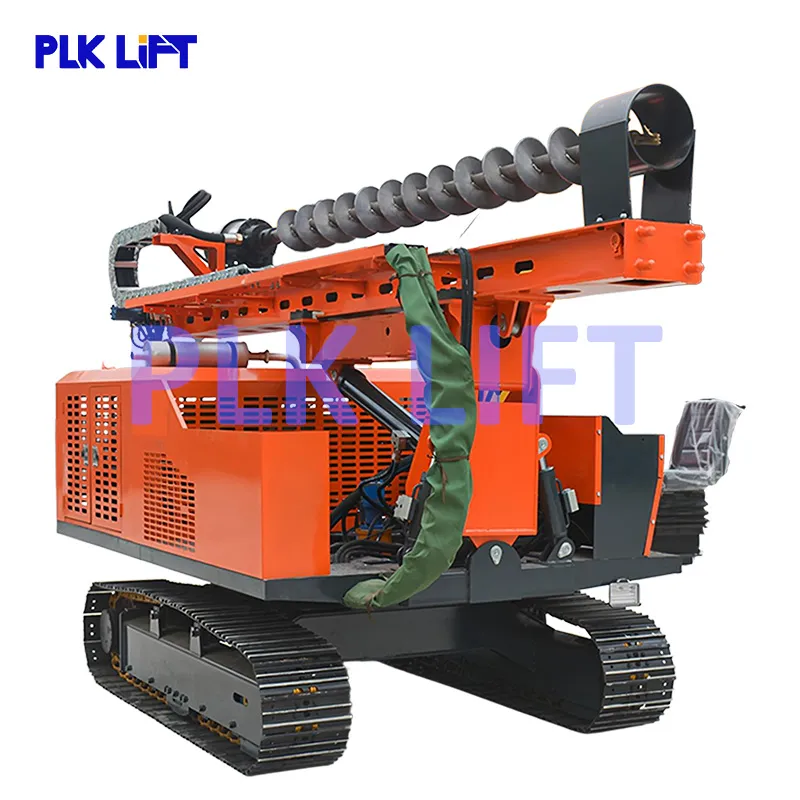

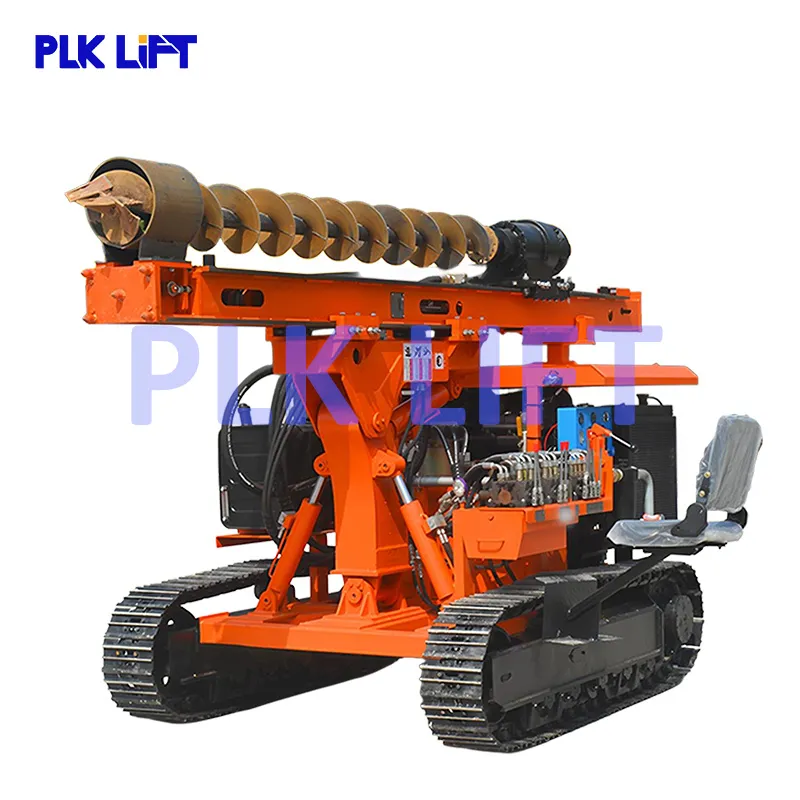

Solar Pile Driver (hydraulic/electric) is a specialized pile foundation construction equipment designed for photovoltaic power station construction. It efficiently drives or screws into pile foundations such as steel pipe piles and screw piles to support photovoltaic modules.
Main Applications: Solar farms, rooftop PV installation, and ground mounting systems.
| Overall size | 4700*2200*2800mm | Track shoe width | 300mm |
| Engine | Yuchai four cylinder (85kw) | Max drilling diameter | 400mm |
| Max Drilling depth | 6M | Reducer torque | 13000N.m |
| Mainstream pump | Triple pump | Oil pump | 40/40/32 |
| Drill pipe speed | 180r/min | Climbing angle | 45° |
| Rock Hardness | 6-20F | Travel speed | 5km/h |
Principle: Uses hydraulic or vibratory hammers to drive steel pipe piles vertically. Best for hard soil or rocky geology. High speed construction.
Principle: Screws helical piles into soil by rotation without pre-drilling. Ideal for soft soil with low noise and high environmental protection.
Principle: Uses hydraulic static pressure to slowly press piles. Perfect for noise-sensitive areas and soft soil foundations.
Principle: Integrated crawler chassis for independent movement. Often equipped with GPS for high-precision large-scale PV projects.
All products are CE certificated with competitive pricing. Welcome to send your inquiry!
