Glass Machine Latest Models with Bending Easttec Factory Toughening for Sale Machine

Customization:	Available
Certification:	CE
Control System:	Industrial Computer

Send Inquiry

Product Description

Basic Specifications

Model NO.

SH-FAB2030-10

Glass Thickness

3 mm - 19 mm

Maximum Glass Size

2000*2300-10

Warranty

12 Months

Type

Forced Convection

Customizable

Yes

Structure

Horizontal

Grinding Head

Production Capacity

100 Sets Per Year

HS Code

8475291900

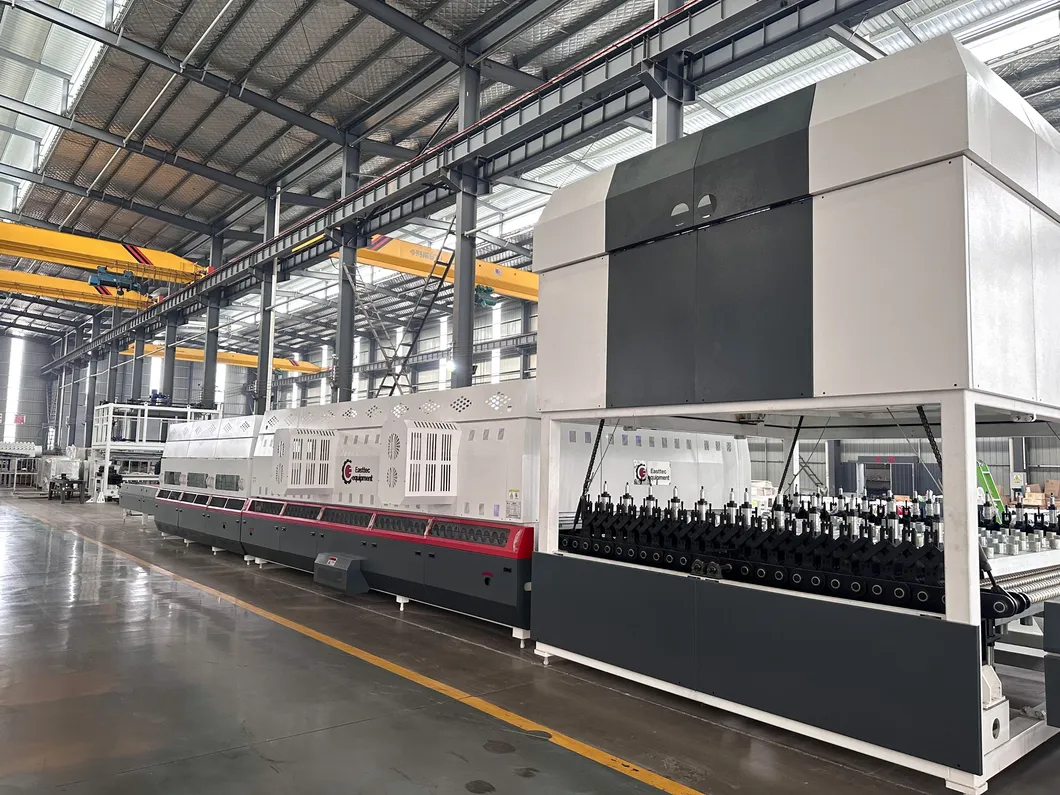

Product Description & Performance

Glass Processing Capability:

Maximum flat glass size: 2000 mm x 3000 mm
Tempering thickness range: 4-19 mm
Minimum glass size: 100 x 300 mm
Energy consumption: Approx 4.5kwh/m2 (based on 5mm thickness)
Finished product yield: ≥ 98% for thickness over 5mm

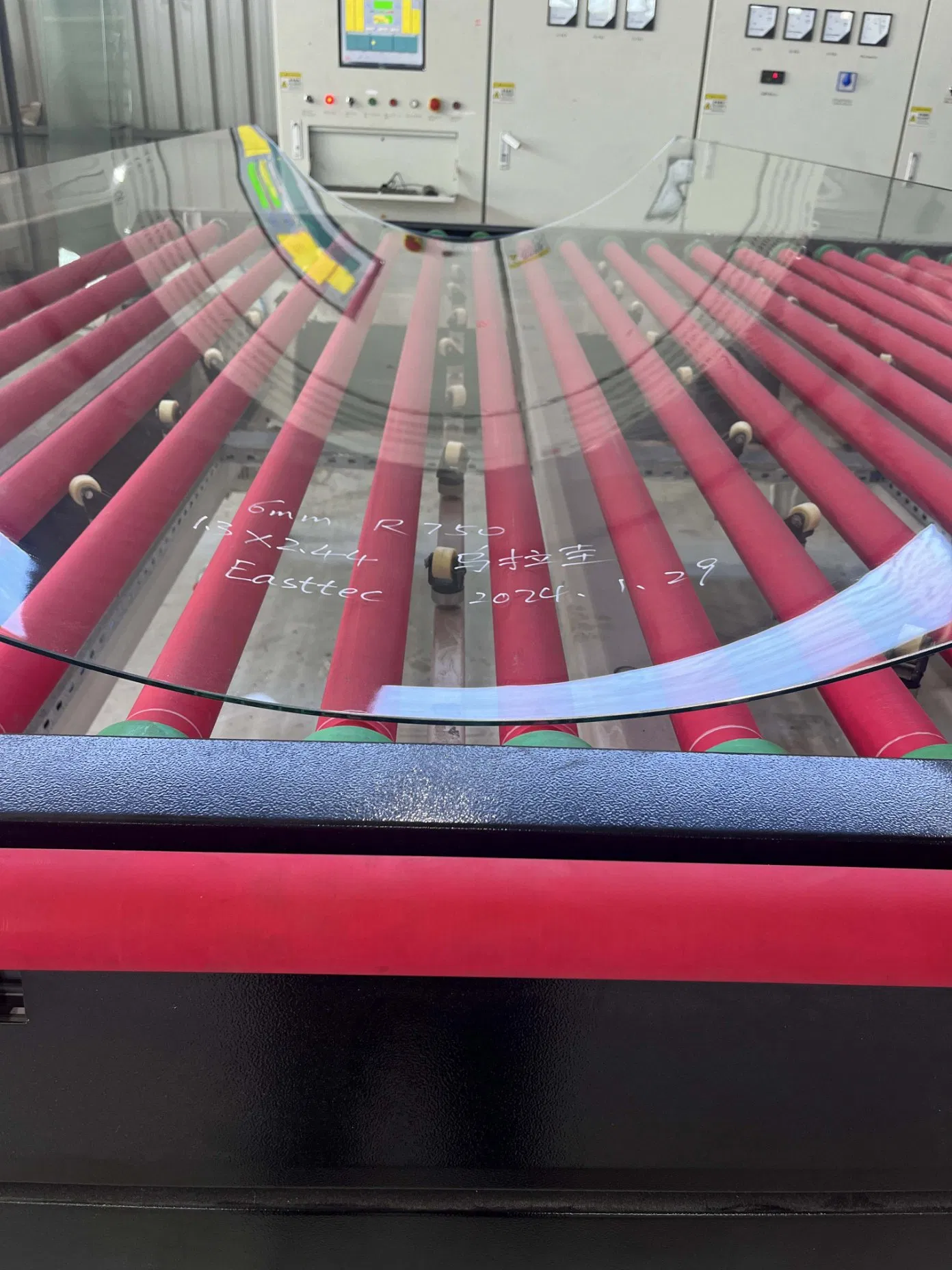

Bending Glass Specifications:

Maximum bent glass size: 2,000 x 1,000mm (5-12mm)
Minimum glass size: 300 x 400mm (Arc length)
Radius R≥850mm (5~6mm); R≥1000mm (8~10mm); R≥1500mm (10~12mm)

Technical Parameters

Overall Dimensions	16300mm × 3000mm × 4800mm
Max Flat Glass Size	2,000 mm x 3,200 mm (5-19mm)
Power Requirements	Transformer not less than 400 kW
Supported Glass Types	Clear Floating Glass, Coated Glass, Sheet Glass, Colored Glass

Manufacturing Advantages

Over 20 years of expertise in the steel and glass tempering industry.
Equipped with advanced convective technologies.
Integration of energy-saving systems across all models.

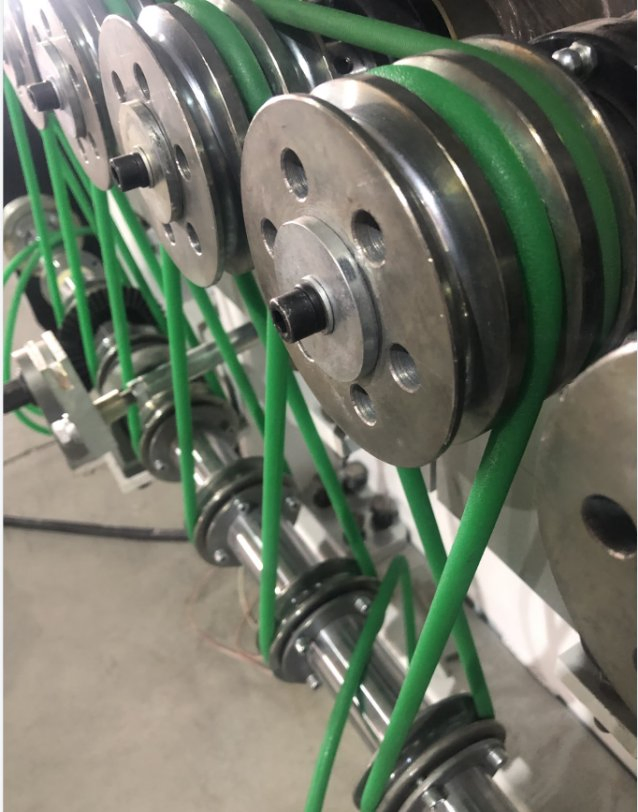

Stable long-term performance with low-maintenance drive motors.
Remote support systems for 24/7 technical assistance.

Customer Feedback

Frequently Asked Questions

What types of glass can this tempering furnace process?

The furnace is designed to process Clear Floating Glass, Coated Glass (Low-E), Sheet Glass, and Colored Glass.

What is the thickness range for glass tempering?

This model supports a wide thickness range from 3mm up to 19mm.

Is the machine energy efficient?

Yes, it utilizes advanced convective technology and energy-saving systems, consuming approximately 4.5kwh/m2 for 5mm glass.

Does the machine support custom sizes?

Yes, the machine is fully customizable to meet specific industrial requirements and glass size needs.

What is the warranty and after-sales policy?

The machine comes with a 12-month warranty and is supported by a remote system for 24/7 technical troubleshooting.

Can it produce both flat and bent tempered glass?

Yes, there are specific configurations that allow for both flat glass tempering and bending glass processing with various radius options.
