Glass Processing Machinery Two Component Rubber Silicone Sealant Spreading Machine/ Double Glazing Machine/ Insulating Glass Machine

Customization: Available
Certification: CE, ISO, FDA, UR, PCI, PDA
Control System: PLC

Product Description

Basic Specifications

Weight
650kg
Mixing Ratio
6:1-14:1
Material Drum
55gallon (200L)
Firming Agent
5gallon (20L)
Working Pressure
30MPa
Max Squeeze
0.8m³/Min
Supply Gas Pressure
0.6-1.0MPa
Output
4-10L/Min
Type
Glass Coating Machine
Structure
Vertical
Grinding Heads
16
Dimensions
1100*950*1980mm

Product Description

Glass Processing Machinery Two Component Rubber Silicone Sealant Spreading Machine / Double Glazing Machine / Insulating Glass Machine

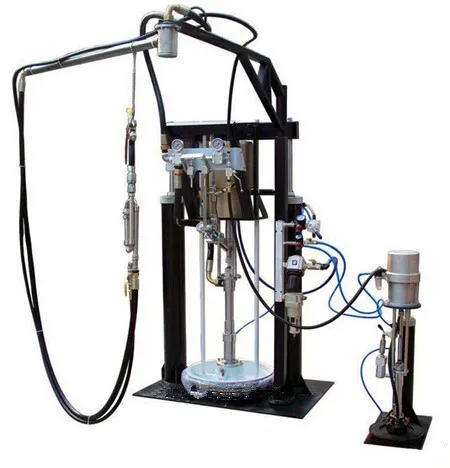

Glass Sealant Spreading Machine

Main Features

  • The curing agent is provided with a filter device and high pressure safety protection device in the pipe line to ensure safer operation.
  • Closed system design prevents air contact with the curing agent, ensuring media flow stability and avoiding premature curing.
  • High pressure valves for base material, curing agent, and proportional pumps adopt zero-leakage special alloy grinding.
  • Unique and convenient adjustable proportioning mechanism meets harsh bi-component sealant ratio requirements.
  • Mixing system uses a precision stainless steel mixer and specially designed unidirectional needle valve to ensure even mixing.

Technical Parameters

Parameter Details Parameter Details
Model JYT-03 Mixing ratio 6:1-14:1
Material drum 55gallon(200L) Curing agent drum 5gallon(20L)
Max. air consumption 0.8m³/min Max. dispensing pressure 30Mpa
Output 4~10L/min Air supply pressure 0.6~1.0Mpa
Outside dimension 1100*950*1980mm Weight 650Kg

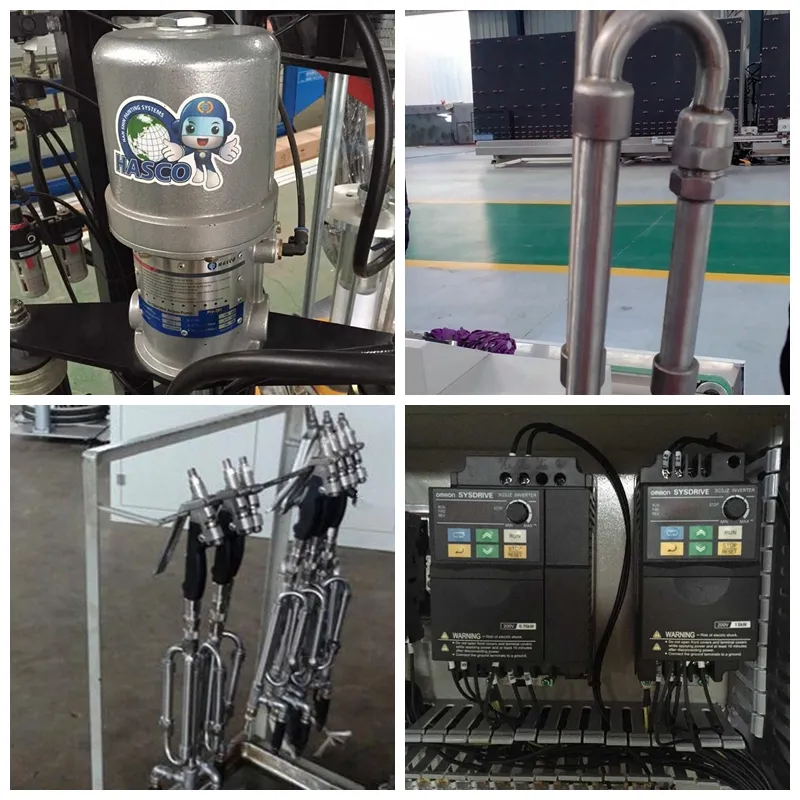

Machine Detail 1
Machine Detail 2
Full Machine View

Frequently Asked Questions

What is the mixing ratio range for this machine?
The machine offers a flexible mixing ratio ranging from 6:1 to 14:1, which can be adjusted via a unique and convenient proportioning mechanism.
How does the system prevent the curing agent from hardening inside?
The equipment utilizes a completely closed system that prevents air from contacting the curing agent, ensuring the material remains stable and does not cure prematurely.
What kind of safety features are included?
The machine is equipped with a high-pressure safety protection device in the pipeline and a filter device for the curing agent to ensure safe and reliable operation.
What are the drum capacity requirements?
The machine is designed for a 55-gallon (200L) material drum and a 5-gallon (20L) curing agent drum.
Is the mixing quality consistent?
Yes, the mixing system uses a precision stainless steel mixer combined with a specially designed unidirectional needle valve to ensure the two components are mixed thoroughly and evenly.
What is the maximum output capacity of the machine?
The machine provides a stable output of 4 to 10 liters per minute, depending on the working pressure and material viscosity.
