| Model NO. | BXLP1800 |
|---|---|
| Max. Processing Size | 1800*2500mm |
| Min. Processing Size | 450*200mm |
| Production Efficiency | 1600 Square Meters Per Set Per Day |
| Type | Glass Washing and Drying Machine |
| Structure | Vertical |
| Control System | PLC (Schneider/Omron) |
| Warranty | Lifetime Warranty (Free for first 2 years) |

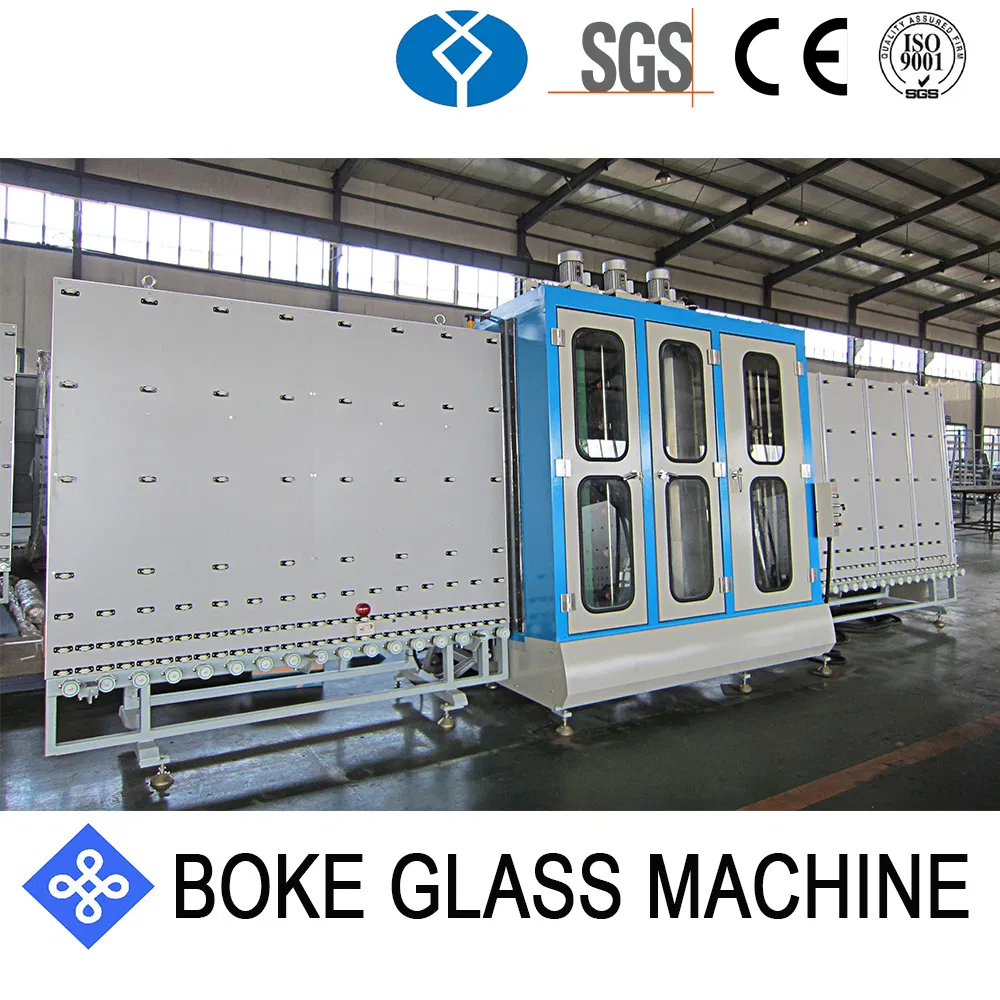

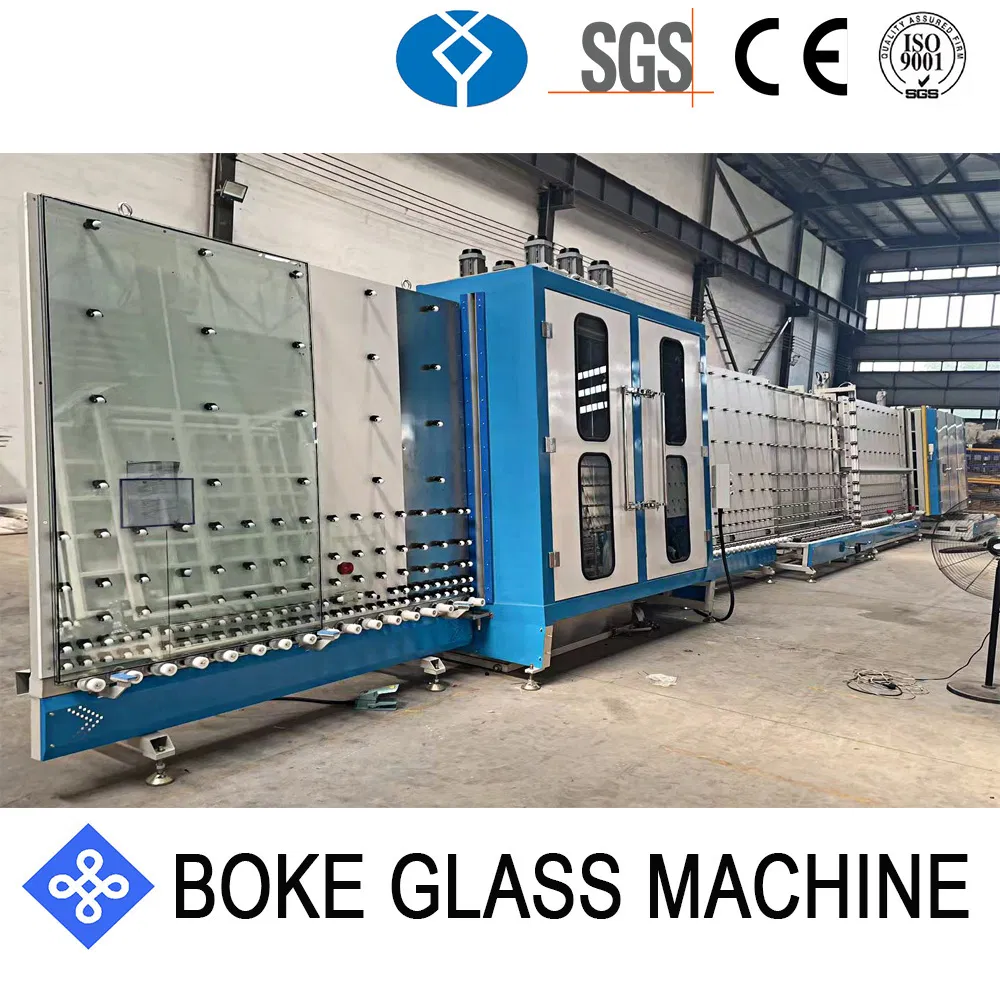

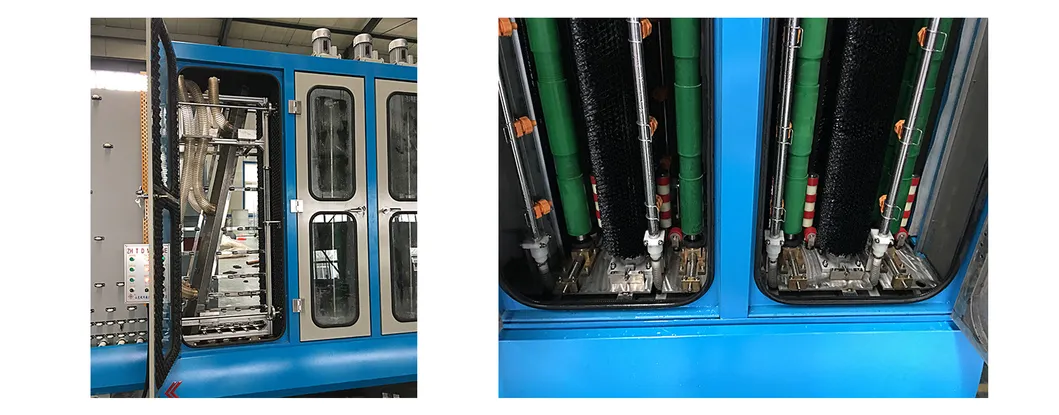

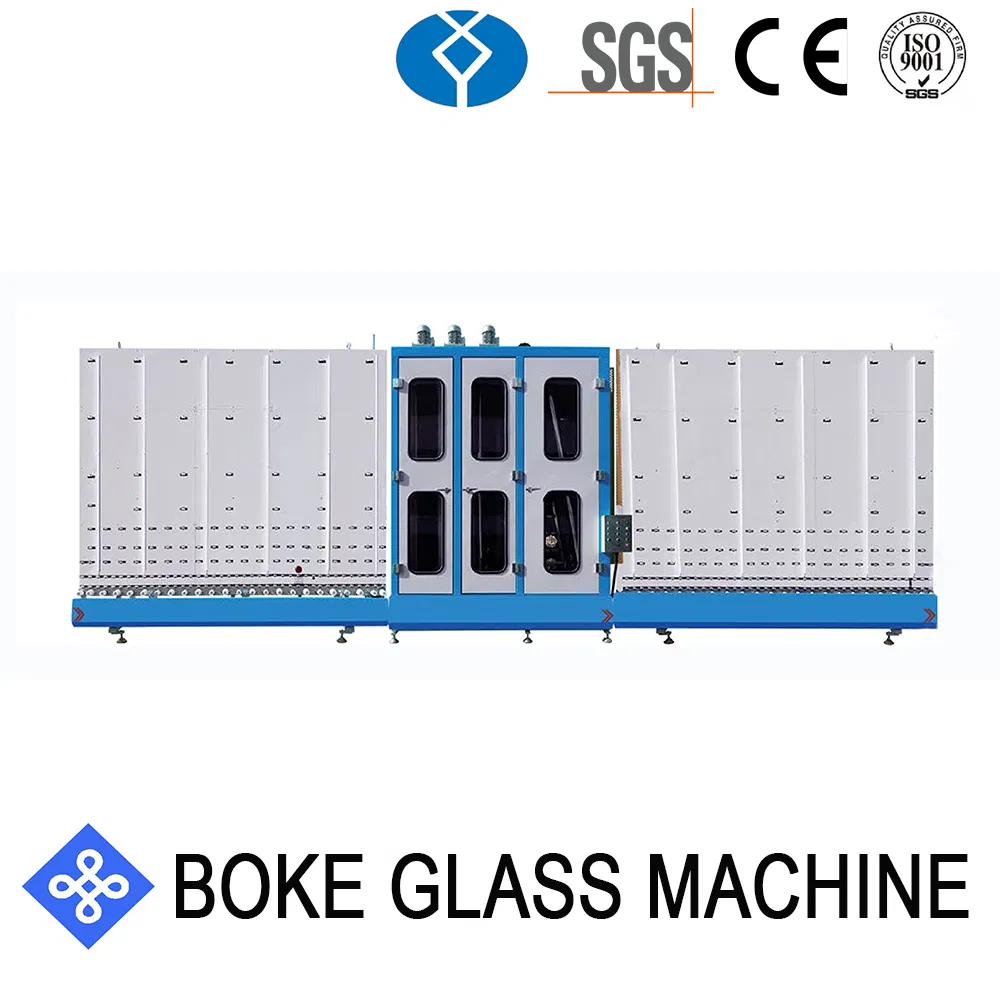

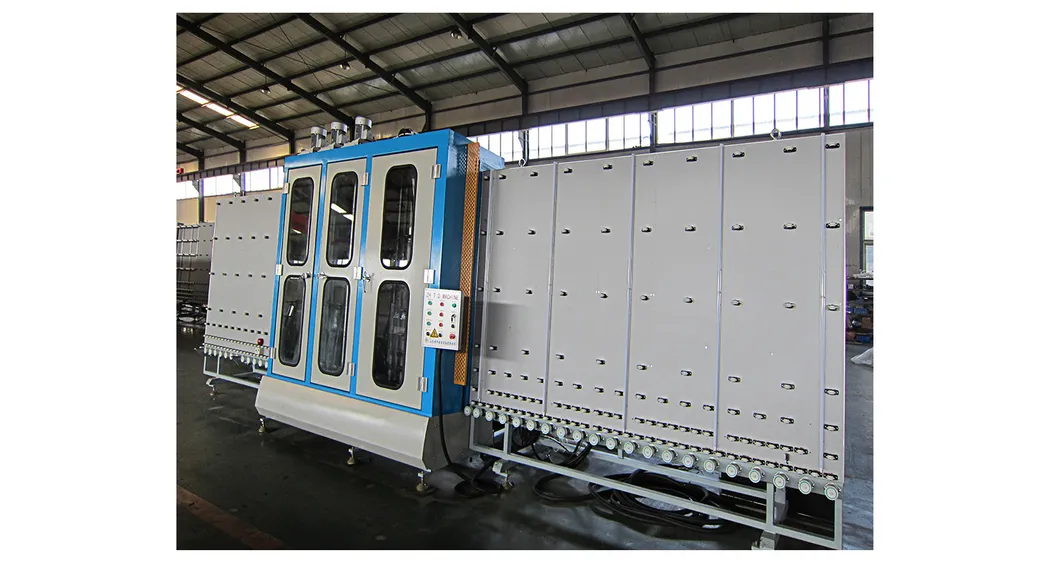

This Vertical Glass Washing Machine is composed of a glass loading section (2000mm), a washing and drying section (1750mm), and a light inspection/unloading section (2500mm). Specially designed to wash Low-E glass effectively at high speeds.

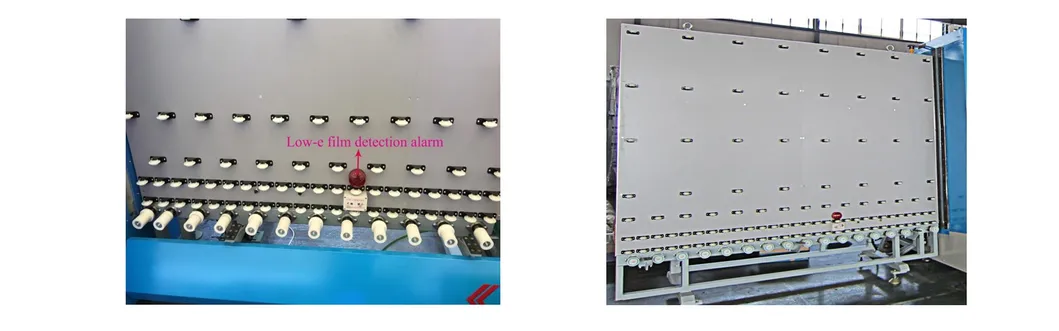

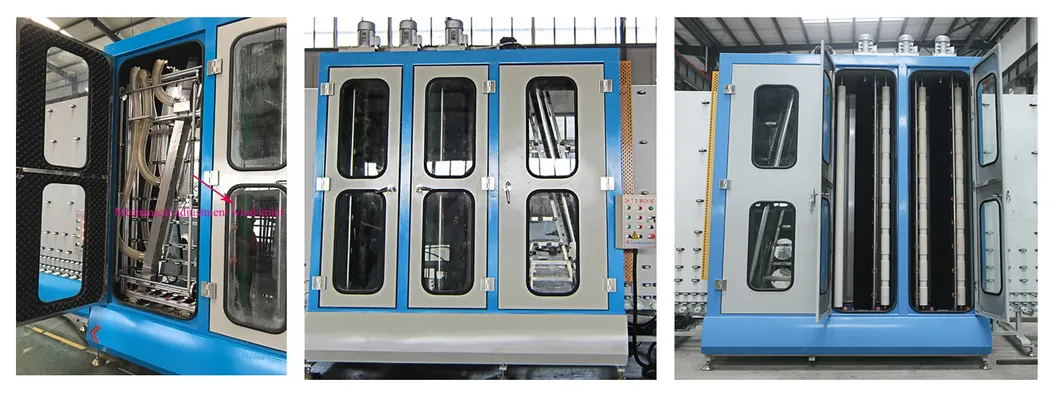

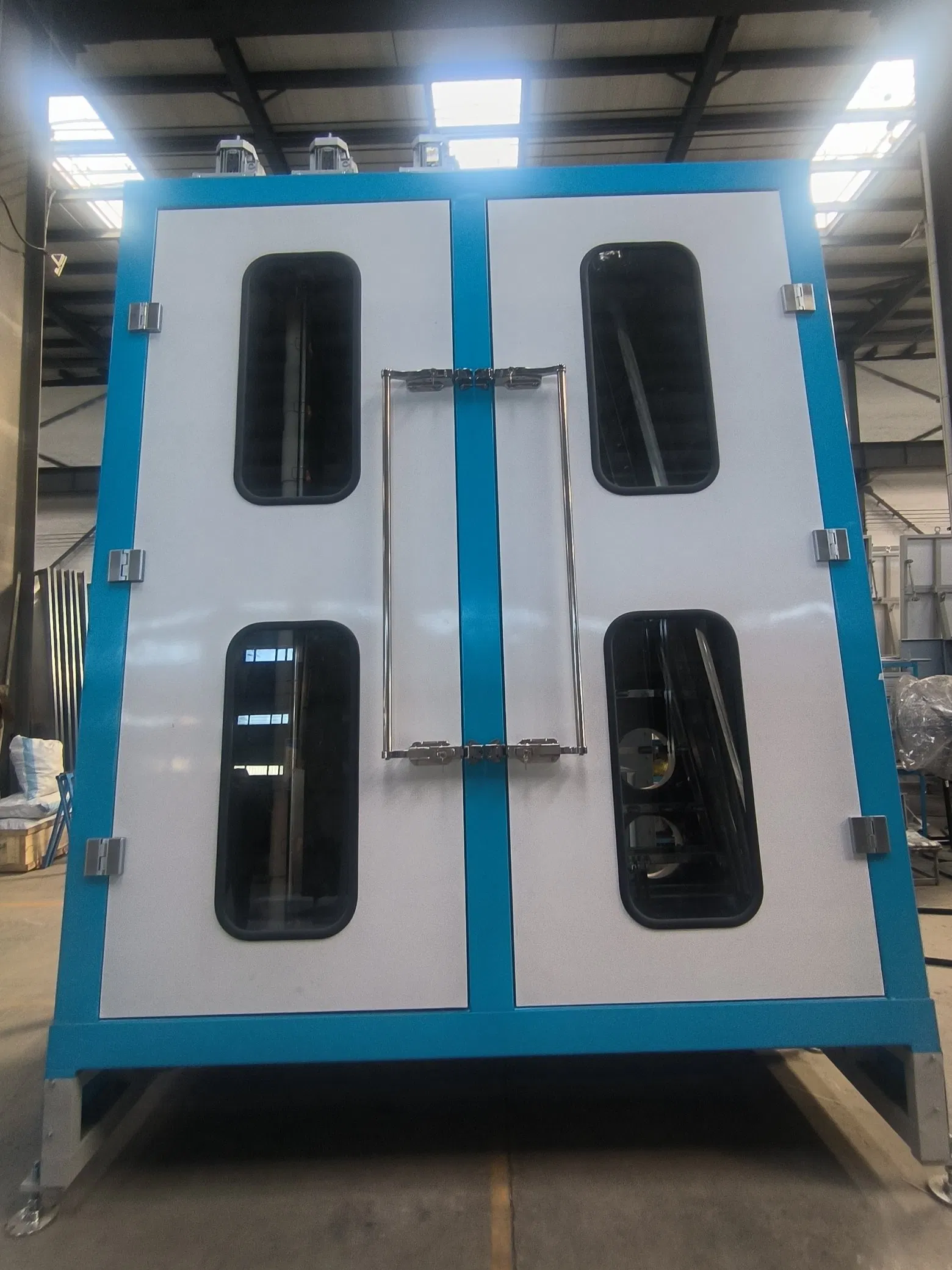

Includes a Low-E glass automatic diagnosis system. The back board is crafted via NC machining for durability and aesthetics. The transmission speed is synchronized with the washing section via inverter control.

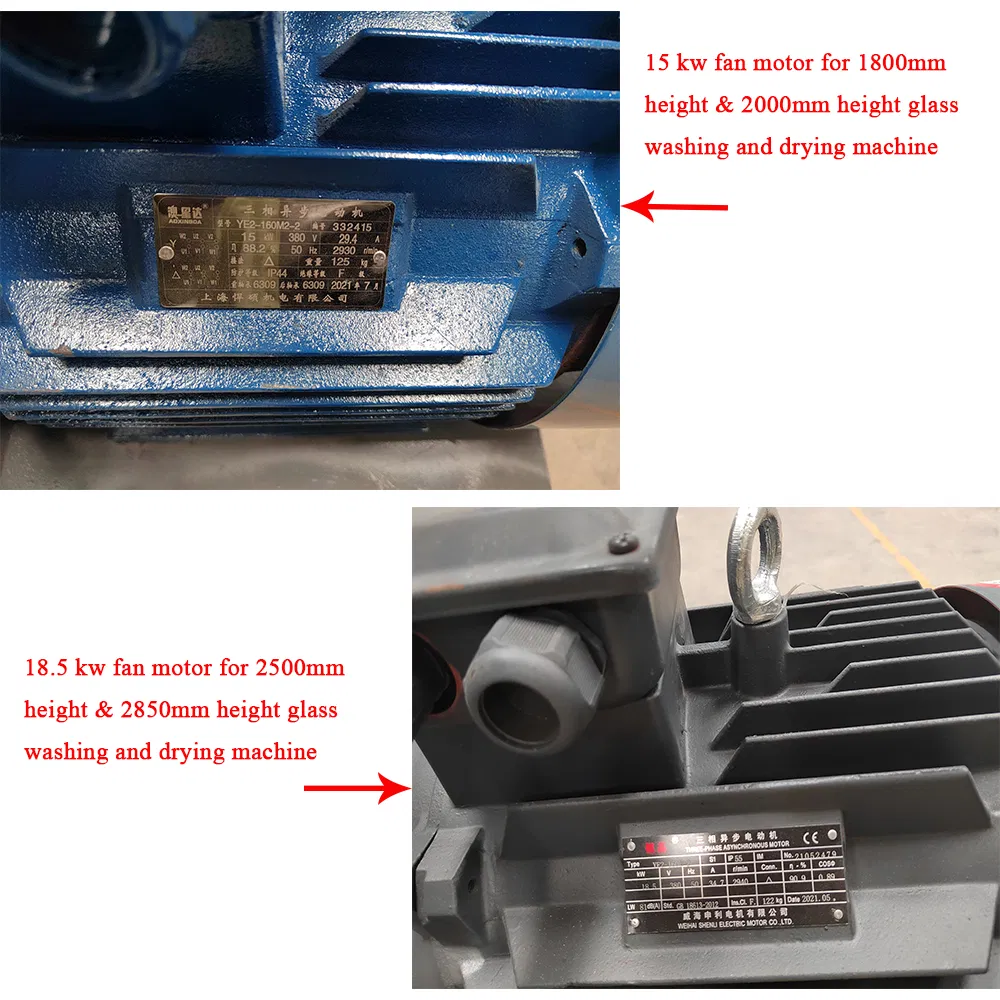

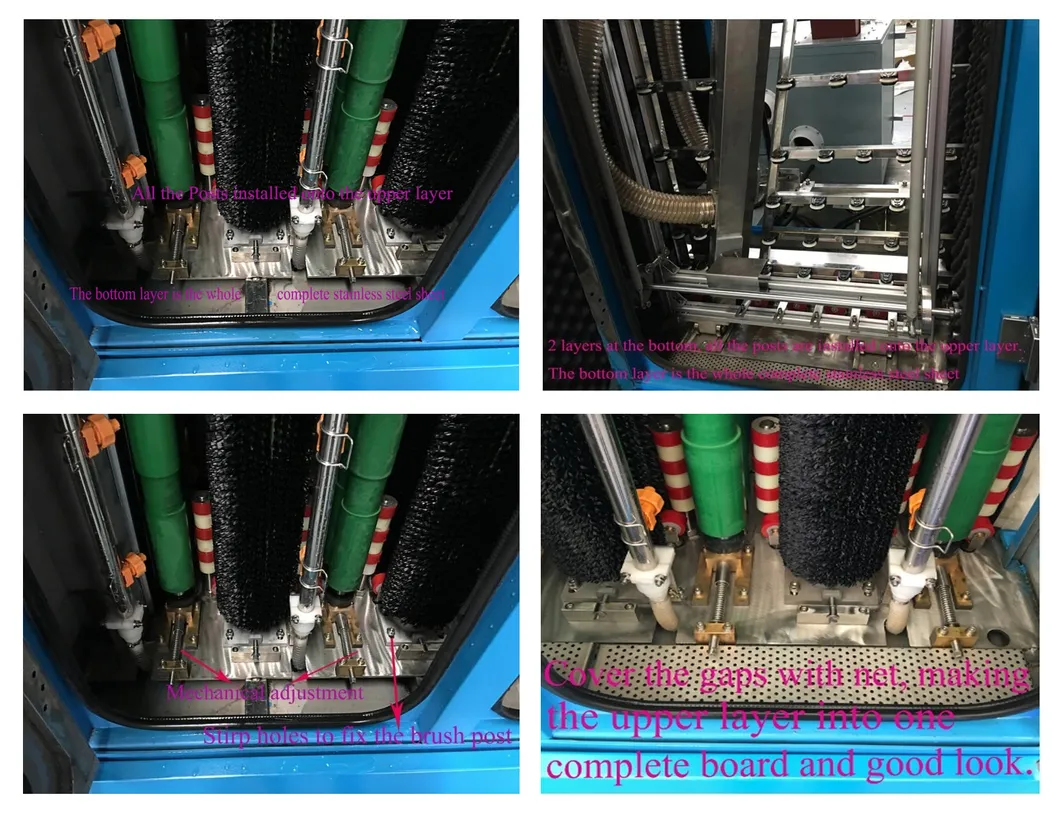

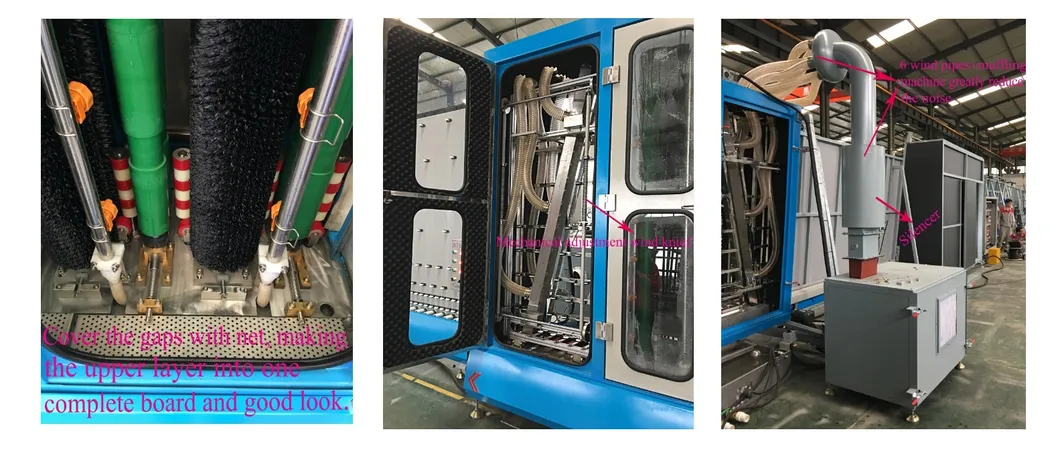

Uses purified water and mechanical wind knife adjustment based on glass thickness (3-18mm). Features a 15kw fan with muffling equipment to reduce noise while ensuring uniform drying.

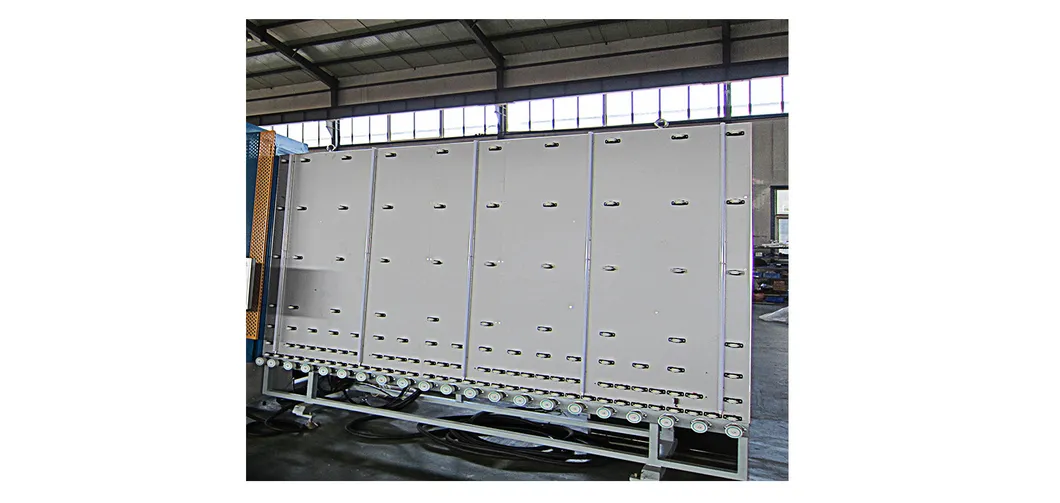

Facilitates glass storage and transmission. Integrated high-intensity lights on the back board allow for clear quality inspection of the cleaned glass surfaces.
| Model | BXLP1800 |
|---|---|
| Max Processing Size | 2500*1800mm |
| Min Processing Size | 400*200mm |
| Glass Thickness | 3-18mm |
| Cleanout Speed | 3-9m/min |
| Power Supply | 3P 380V/50Hz |
| Total Power | 19.8Kw (Include heater 10Kw) |
| Outline Dimension | 7300*2200*2850mm |
| Component | Origin | Brand |
|---|---|---|
| PLC / Touch Screen | Japan | OMRON |
| Electric Apparatus | France | SCHNEIDER |
| Bearings | Sweden | SKF |
| Photoelectric Switch | USA | BANNER |
| Vacuum Sucker | Korea | YSC |

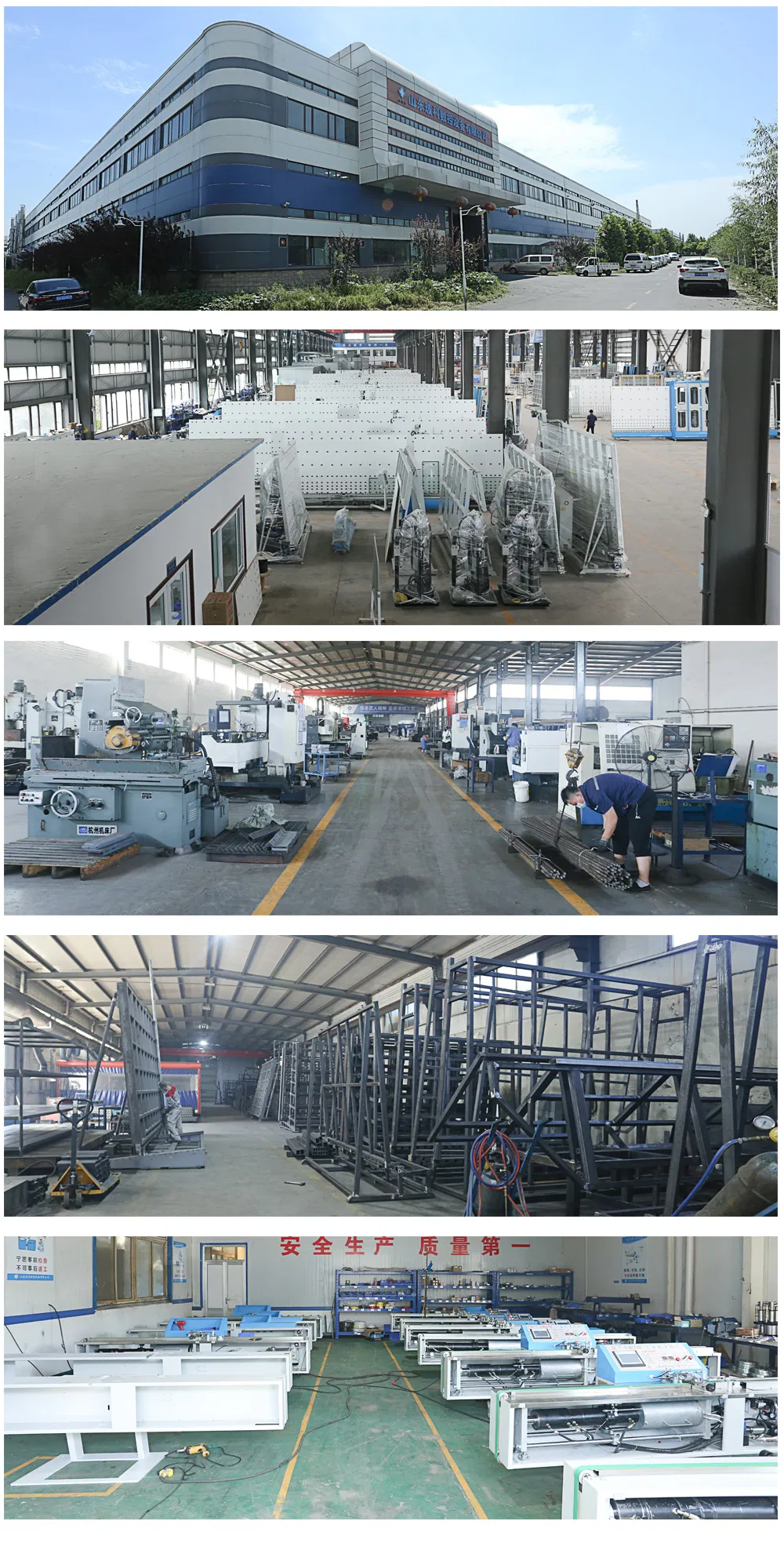

Professional manufacturer of insulating glass production lines for more than 21 years. Established in July 2000, we are a high-tech enterprise integrated with production, scientific research, and development of middle and high-grade insulating glass equipment. Our machines have attained CE certification and follow ISO9001 quality standards.
