Inline coating equipment can provide three designs: vertical, inclined 5–7° vertical, and horizontal. Coating technologies such as magnetron sputtering, evaporation, HiPIMS, PECVD, or their combination can be applied. The automatic loading and unloading system can be selected to optimize large-scale production. The rotating target technology replaces the planar target to achieve high target utilization.

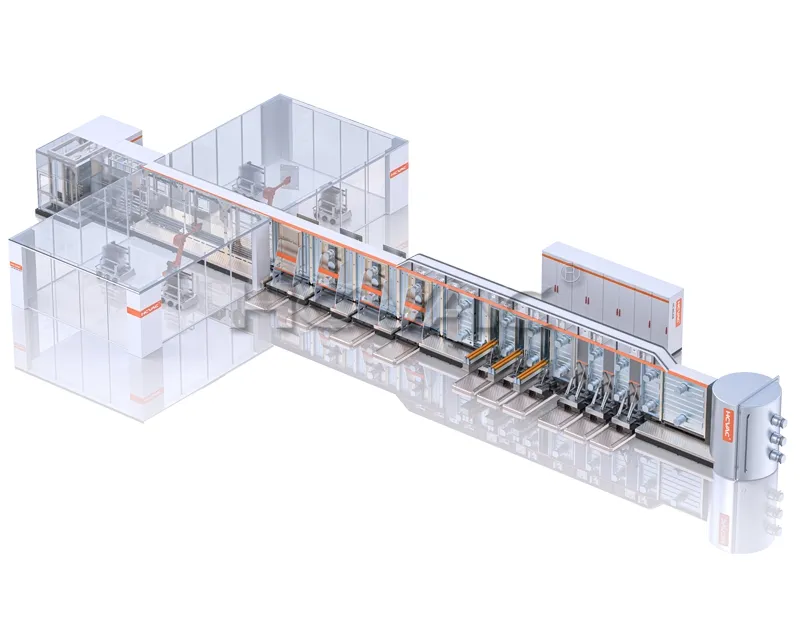

Vertical Inline Coating Equipment

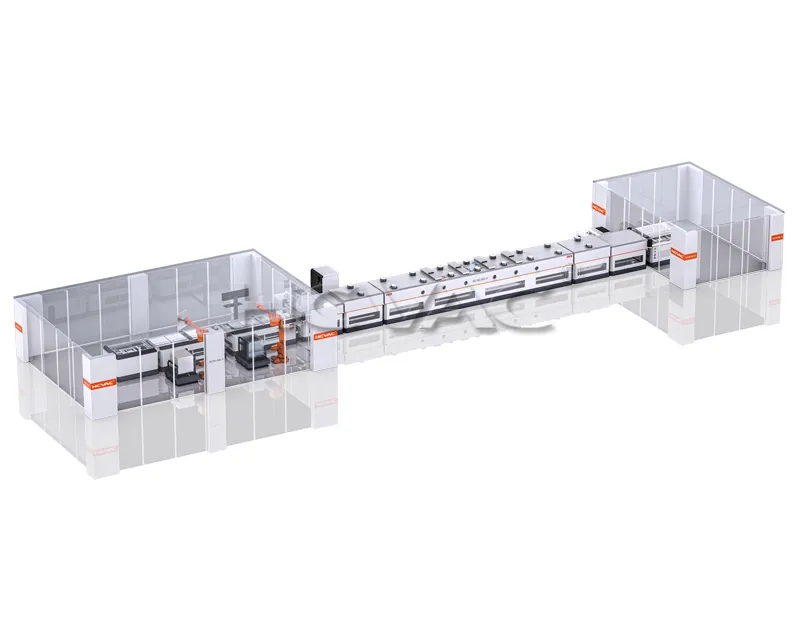

Horizontal Inline Coating Equipment

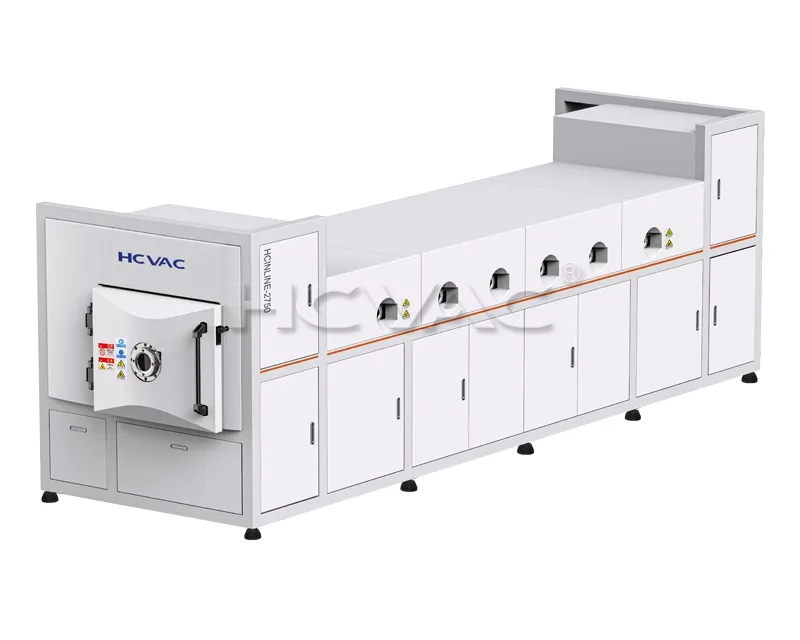

Inline Coating System for TGV

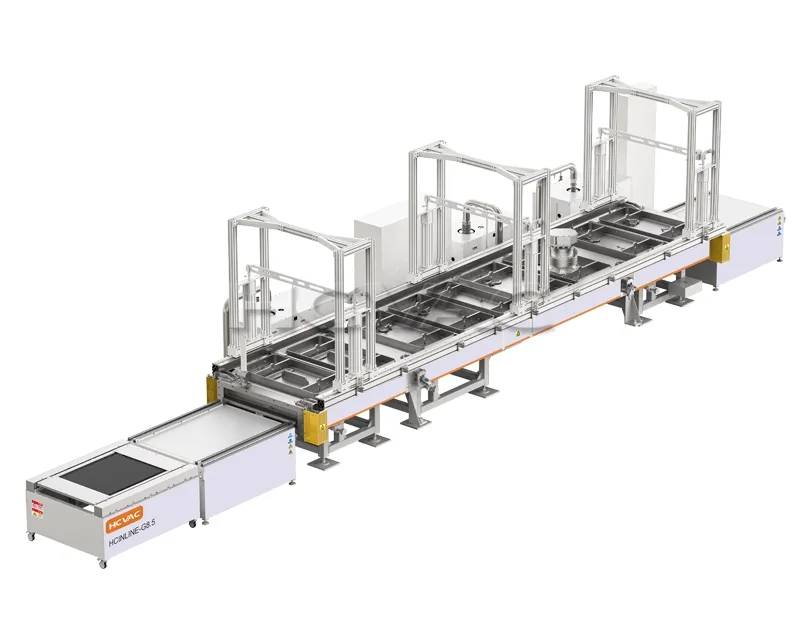

Inline Coating System for Pan Semiconductor
Characteristics
- Standard and modularized design
- Single-sided or double-sided coating
- Highly customizable high quality and low cost
- Turnkey project solutions
Applications
- Solar cells, Low-E glass
- Optical LED/OLED, Displays
- Semiconductors, MEMS, Sensors
- Automotive, Decorative, Medical
As a global supplier of vacuum application solutions, we specialize in the research, development, and production of optical, functional, and decorative coating equipment. With a strong focus on PVD and ALD technologies, the facility serves as a provincial engineering technology research center, focusing on specialized, refined, and innovative industrial systems.
?
Frequently Asked Questions
What substrates are compatible with this inline coating system?

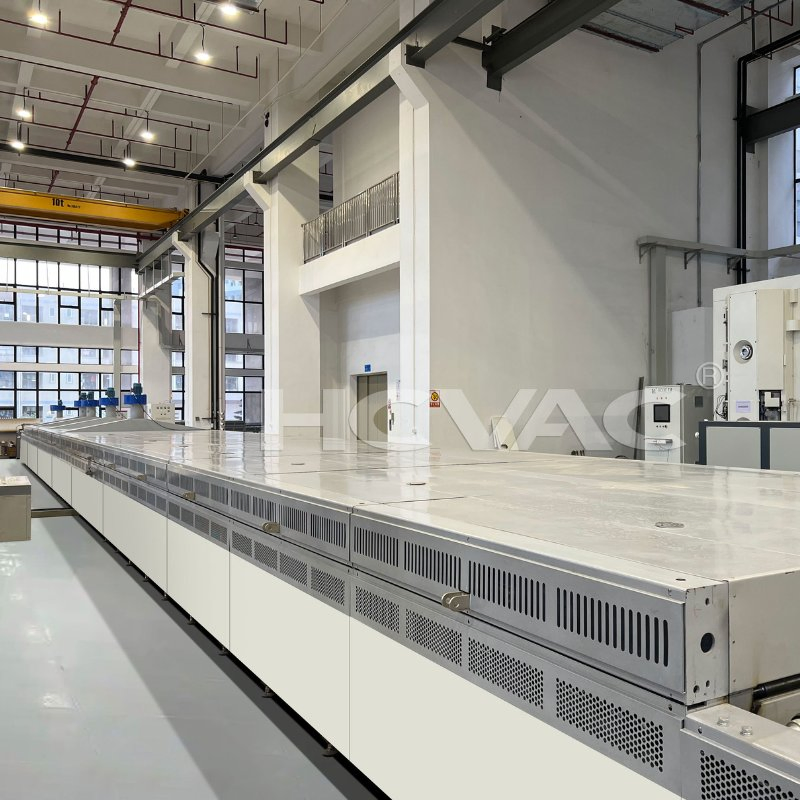

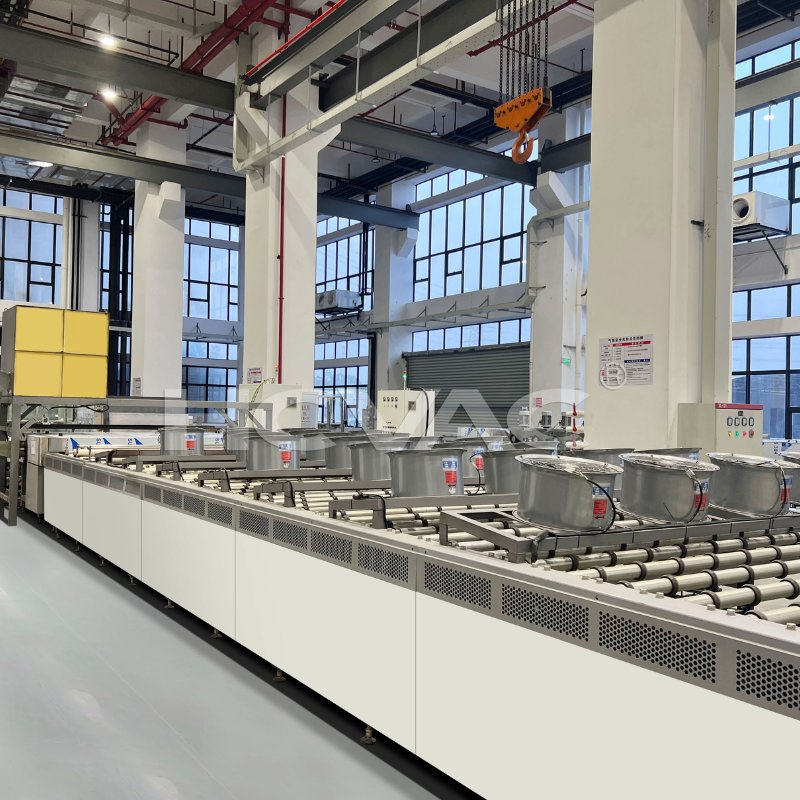

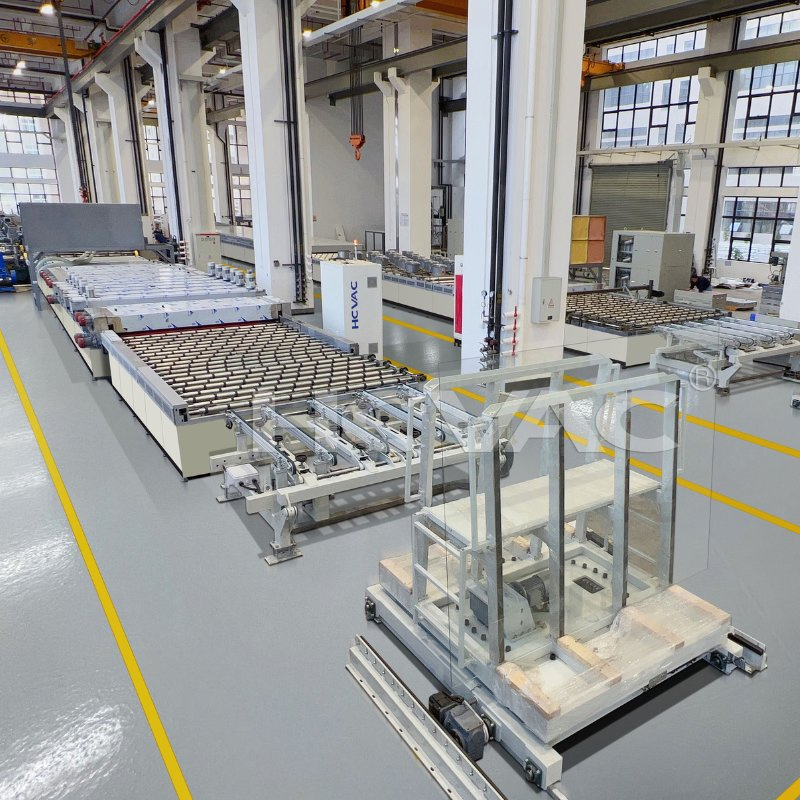

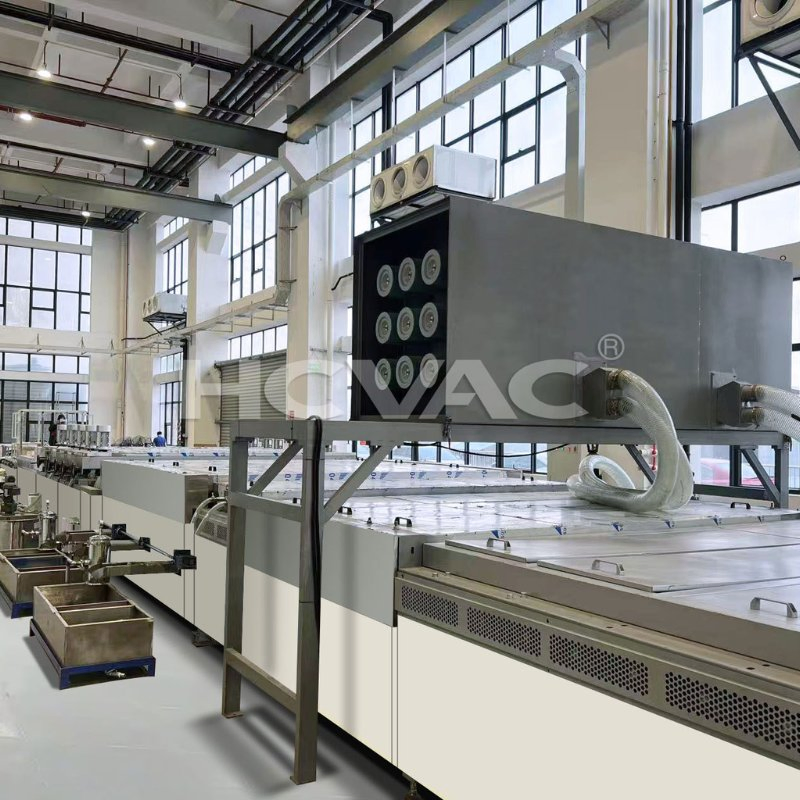

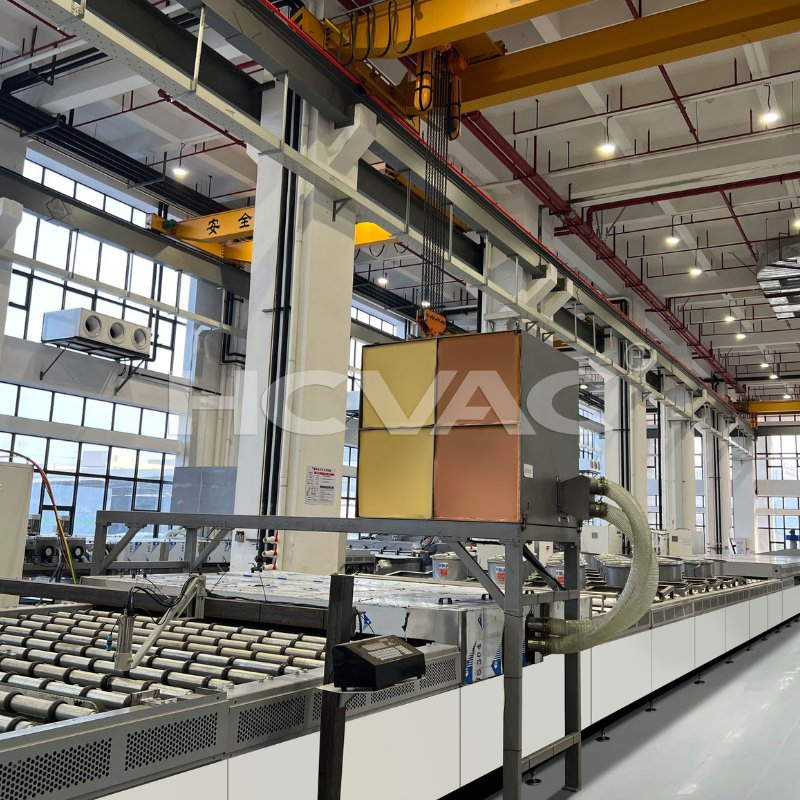

The system is primarily designed for glass substrates, including float glass, reflective glass, and Low-E glass, with thicknesses ranging from 3mm to 25mm.
What types of coating technologies can be applied?
Our equipment supports Magnetron Sputtering, Evaporation, HiPIMS, and PECVD technologies, or a combination of these to meet specific industrial needs.
What is the maximum glass size the machine can handle?
The system can accommodate glass sizes up to 2440mm x 3660mm.
How is the production line controlled?
It features an automatic PLC touch screen control system for high accuracy, ease of operation, and consistent productivity.
Do you provide turnkey solutions for the production line?
Yes, we provide complete turnkey projects including design, manufacturing, installation, commissioning, training, and maintenance services.
What coating colors can be achieved?
Common colors include Gold, Rose Gold, Silver, Black, Blue, and Rainbow effects, among others.
