| Parameter | Specification |
|---|---|
| Processing speed | 0.5~3.5 m/min (depend on material) |
| Max no-load moving speed | 15m/min |
| Installed Power | 40kW |
| Water inlet pressure | 0.2 ~ 0.4 Mpa |
| Maximum water discharge ratio | 3.7 L/min |
| Water compression ratio | 20:1 |
| Diamond orifice size | 0.33 mm |

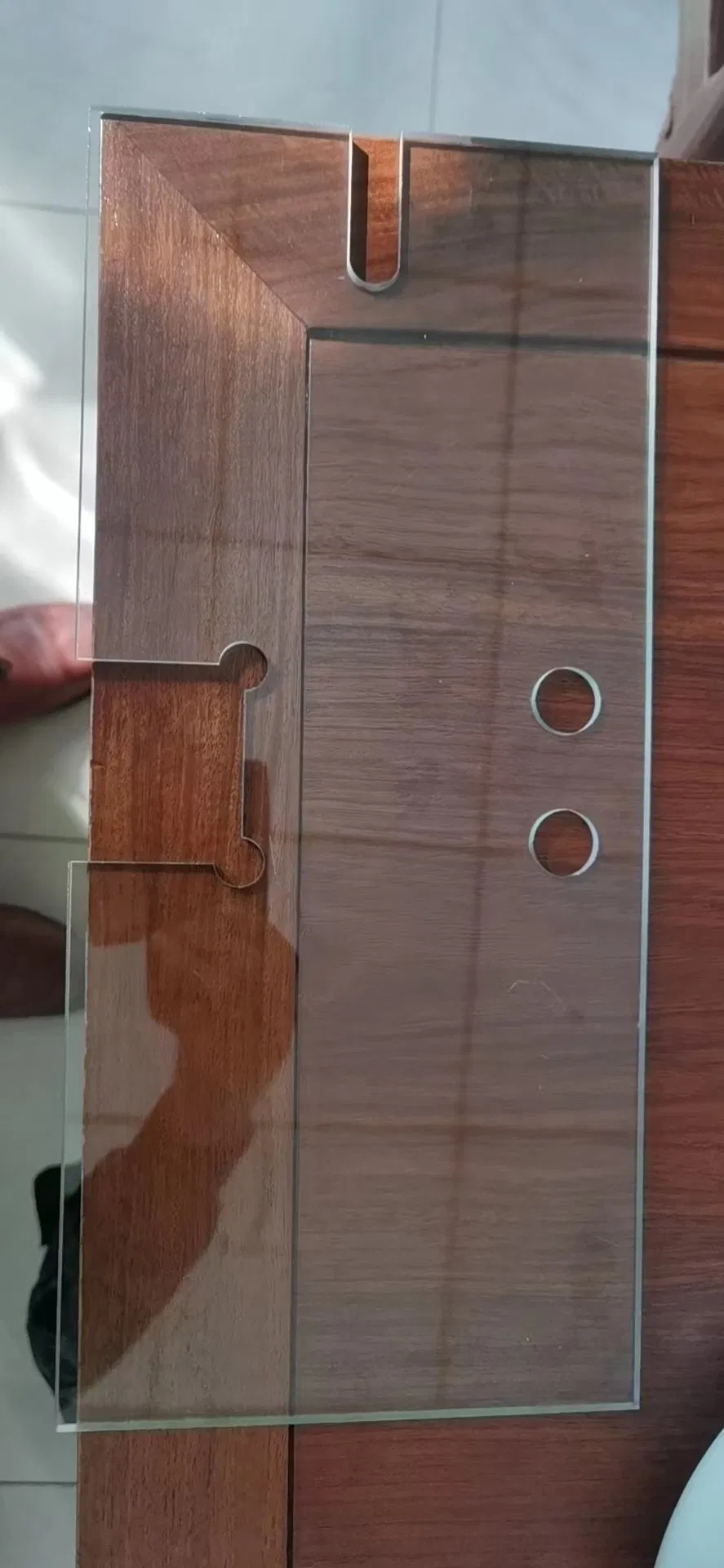

| Material | Glass | Ceramic | Marble | Steel | Aluminum | Porcelain Slab |
|---|---|---|---|---|---|---|
| Thickness | 80mm | 40mm | 80mm | 40mm | 100mm | 30mm |
| Component | Source/Specification |
|---|---|
| Seal parts | Imported from America |

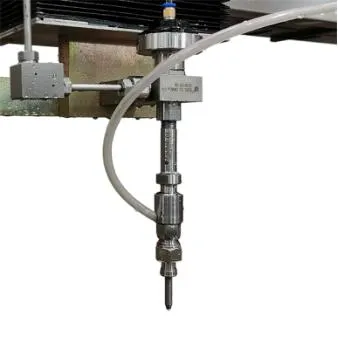

| High-pressure Cylinder | Imported from America |
| Ceramic plunger | Imported |
| Oil pump type | Variable Pump |
| Main motor power | 37KW |
| CNC controlling system | IWCUT |
| CNC computer software | Auto CAD, Win10 |
| Axis motor and driver | INVOANCE |
| Other equipment | Schneiider |
Providing high-quality flat glass processing machinery, services, and supplies. We offer innovative and reliable equipment for fabricating, handling, and processing flat glass. Each system is characterized by innovative features, long-lasting durability, and high reliability.

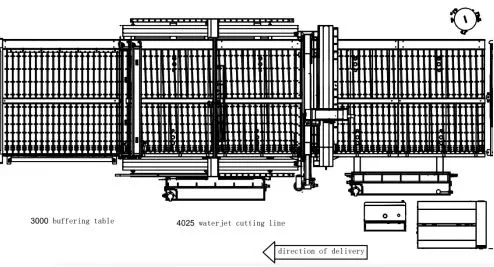

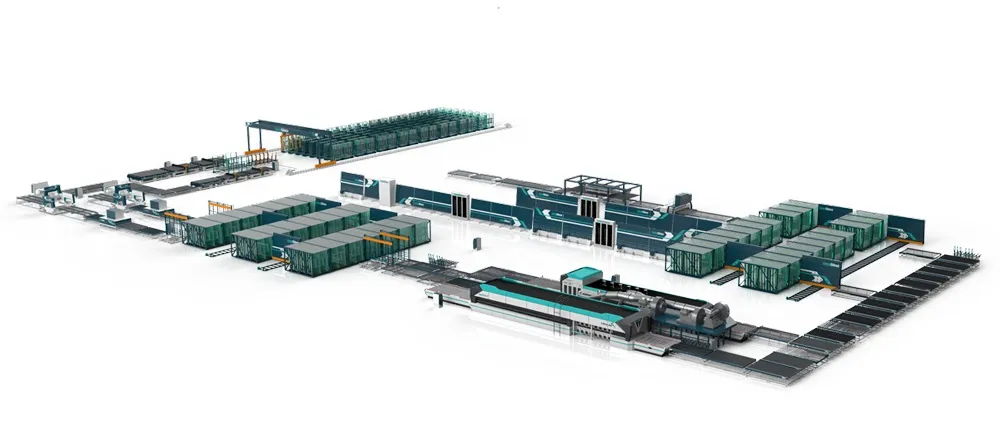

We provide complete turnkey solutions for both new and existing glass processing facilities. This includes production lines and manufacturing packages tailored to specific needs, along with assistance with technical drawings and recommendations for factory layout.
