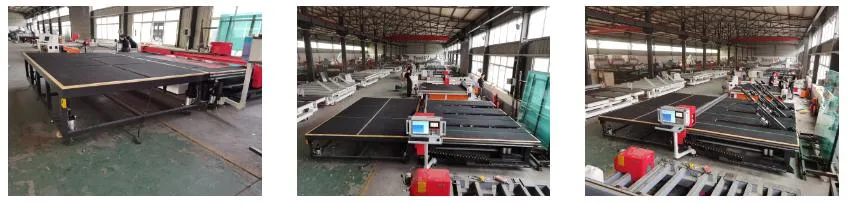

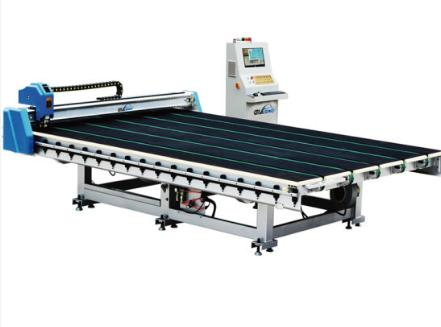

All in one CNC Integrated Glass Cutting Machine with loading, cutting and break off table
| The cutting thickness | 2-30mm |
| The cutting accuracy | Parallelism:≤±0.15mm/m |
| The cutting speed | 180m/minute (adjustable) |
| The outline size | 4300*3600*900mm |
| The max cutting size | 3660*2840mm |
| Transmission system | X, Y, Z Axis equipped with reliable motor |
| The cutter block | Pneumatic and spring; 360° rotation for any shape |
| Oiling supply method | AUTO oiling |
| Transportation device | Flotation device for convenient glass movement |

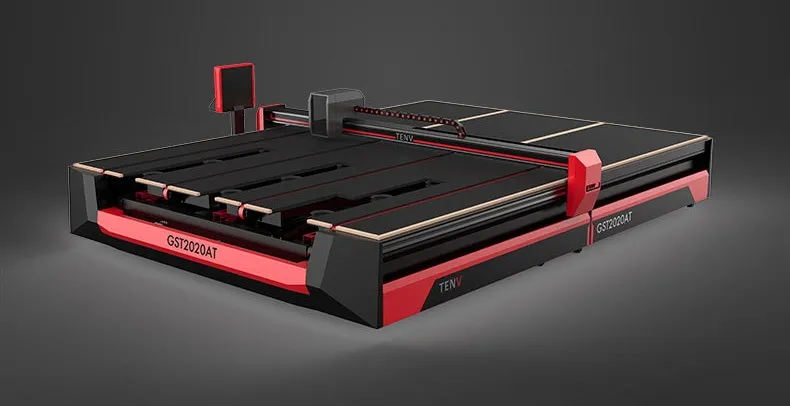

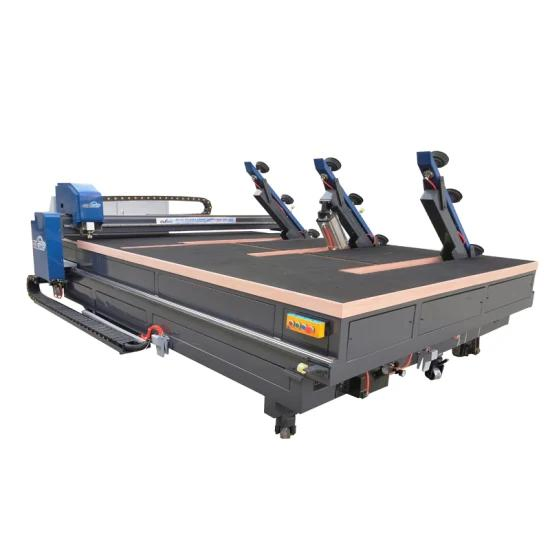

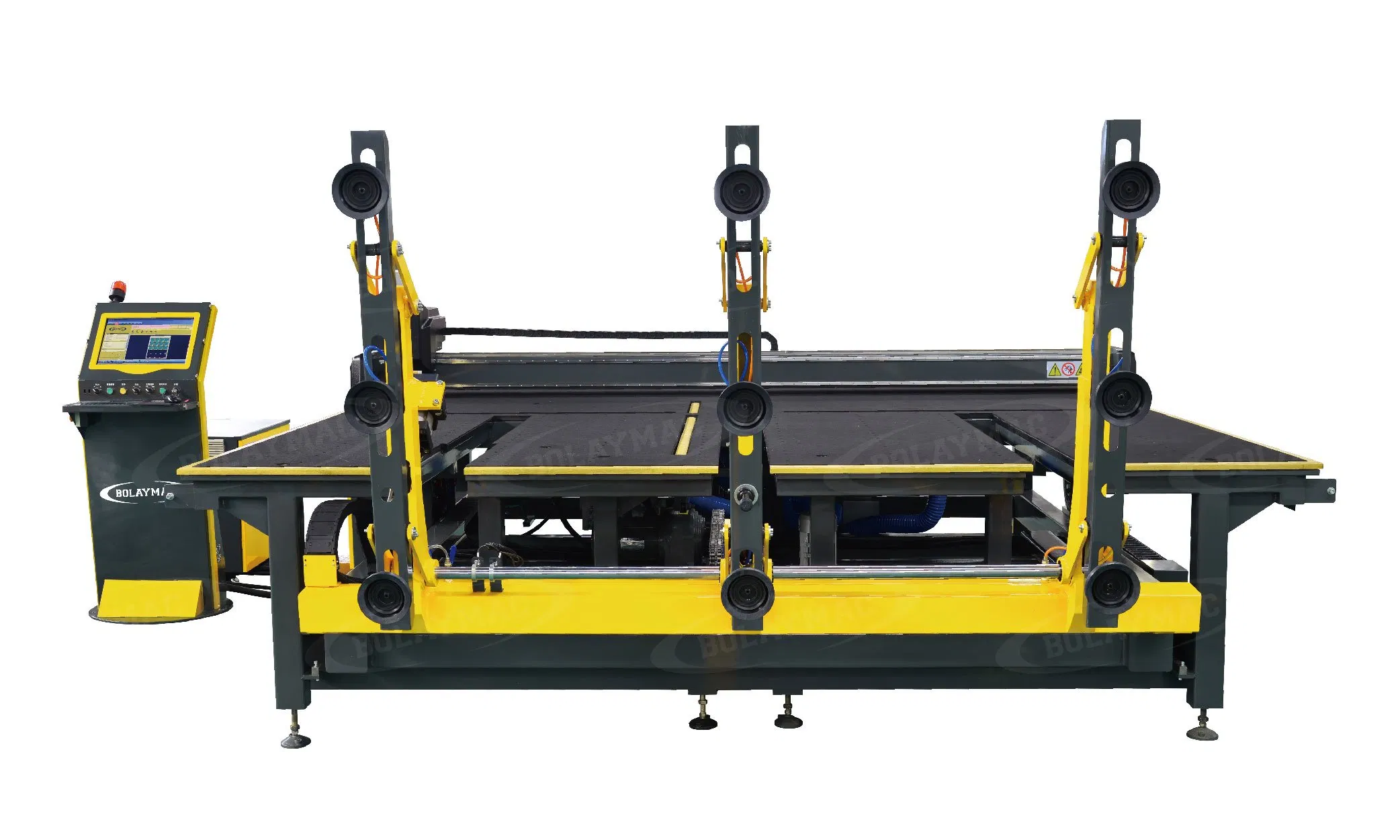

The CNC integrated cutting machine for flat float glass is an automatic, self-loading table for straight and shaped cutting of float glass. It is equipped with a fixed working table, loading arms and breakout bars. The high-tech table has suction cups on the cutting bridge for automatic transfer to a breakout table.

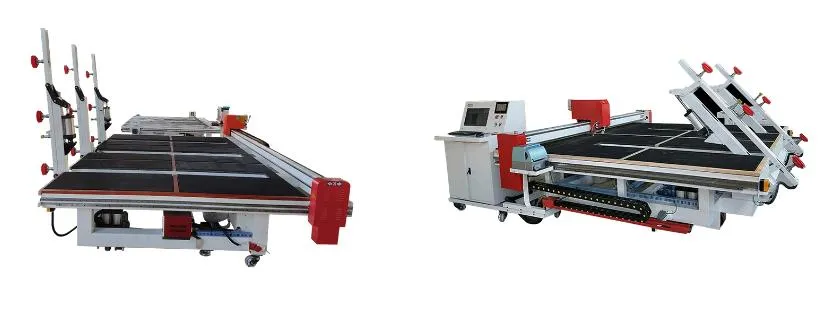

The loading arms are equipped with double suction cups powered by a vacuum pump to ensure maximum safety when loading glass sheets. Sheets are picked up directly from a glass rack with wheels, which is positioned in front of the table, via a quick coupling/uncoupling device. Glass sheets are positioned automatically and squared electronically without any intervention by the operator.
Our team has been a leading provider of high-quality flat glass processing machinery, service and supplies. We continue to search for the most innovative and reliable equipment manufacturers for fabricating, handling and processing flat glass. Each manufacturer specializes in a certain type of machinery characterized by innovative features, long lasting durability and high reliability.
One-Stop-Shop Partner: We identify the most innovative equipment for fabricating, handling, and processing flat glass. Innovative features and high reliability characterize all of our equipment.

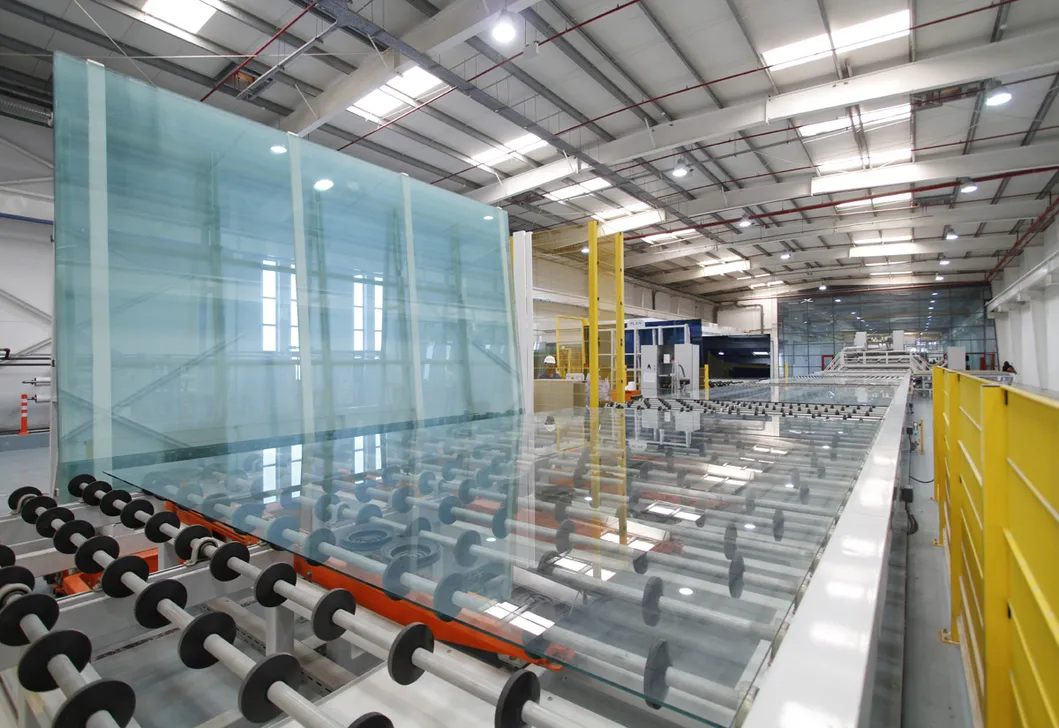

Production Line Planning: We provide complete turnkey solutions for both new and existing glass processing facilities, including manufacturing packages tailored to specific needs and factory layout assistance.
End-to-End Technical Service: On-site/remote installation, commissioning and training support. We guarantee the supply of spare parts and provide customized technical manuals.
