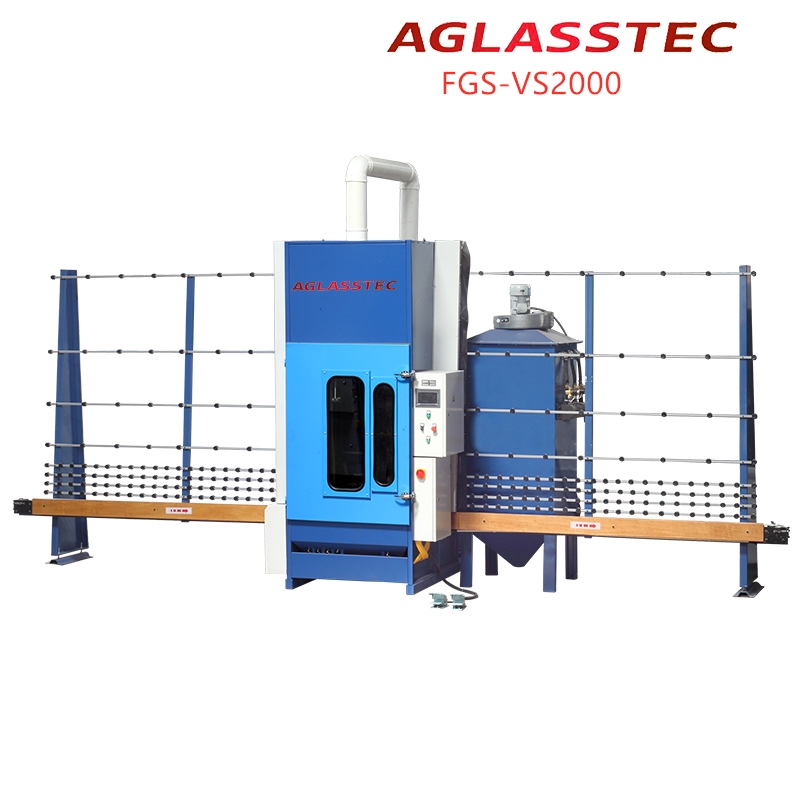

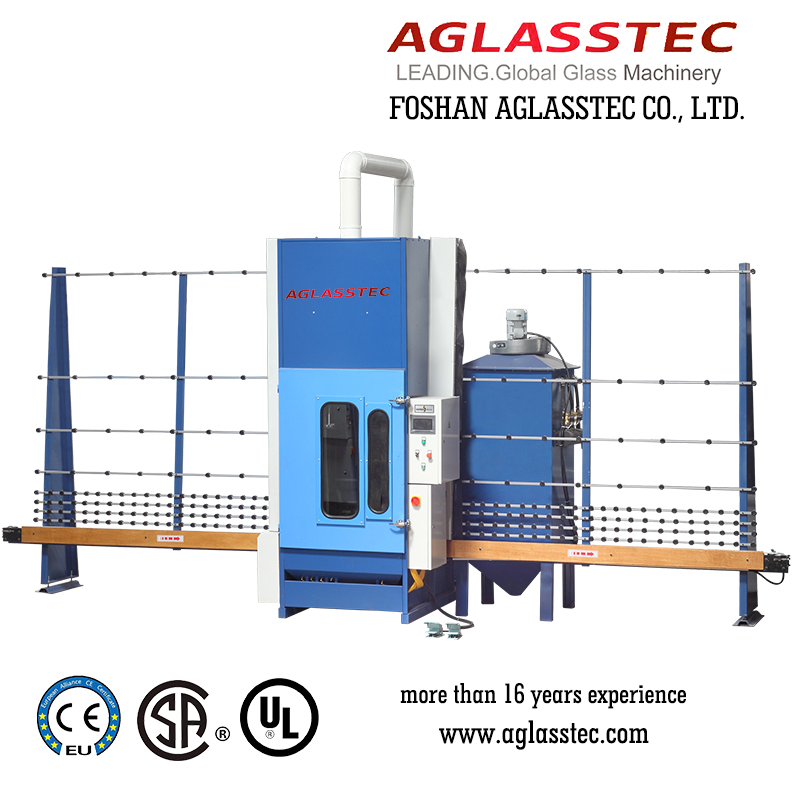

High Efficiency and High Quality Automatic Vertical Glass Sandblasting Machine with Automatic Gun and Manual Gun

Customization:	Available
Certification:	CE, CCC
Glass Thickness:	3-50mm

Basic Info

Model NO.FGS-VS2000

Voltage220V/380V-600V

Warranty1 Year

Manual Gun1PCS

Automatic Gun3PCS

ApplicationLarge Scale Glass Sandblasting

Speed20-25m²/H

Max Glass Size2000X3660mm

Working Pressure0.6-0.8MPa

OriginChina

Product Description

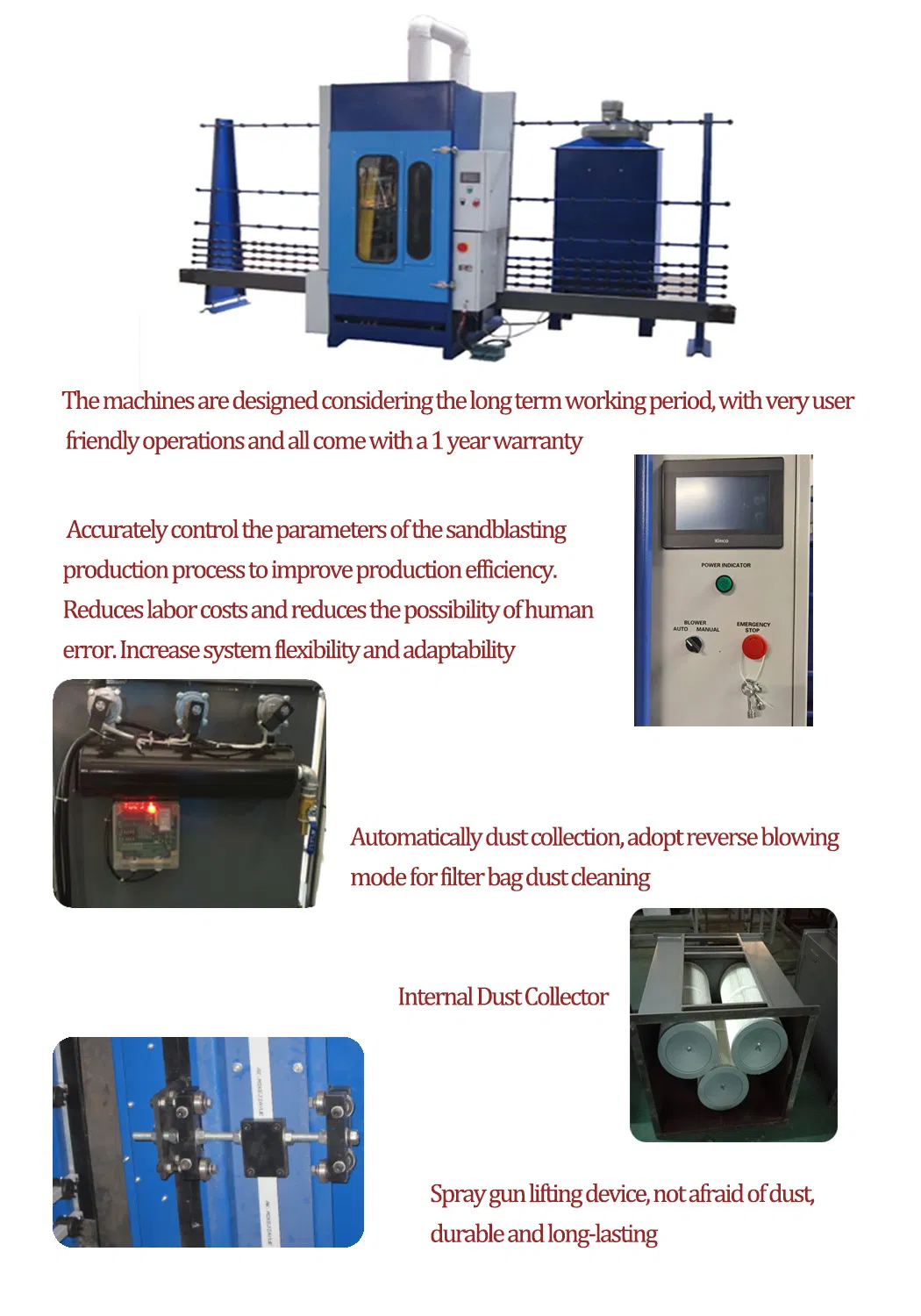

The automatic glass sandblasting machine is a PLC-controlled vertical system designed for efficient glass processing. It is suitable for sandblasting and engraving patterns on flat glass with thicknesses ranging from 5mm to 50mm. The synchronous belt transport system ensures smooth movement, while the sandblasting height and width can be customized via touch screen control.

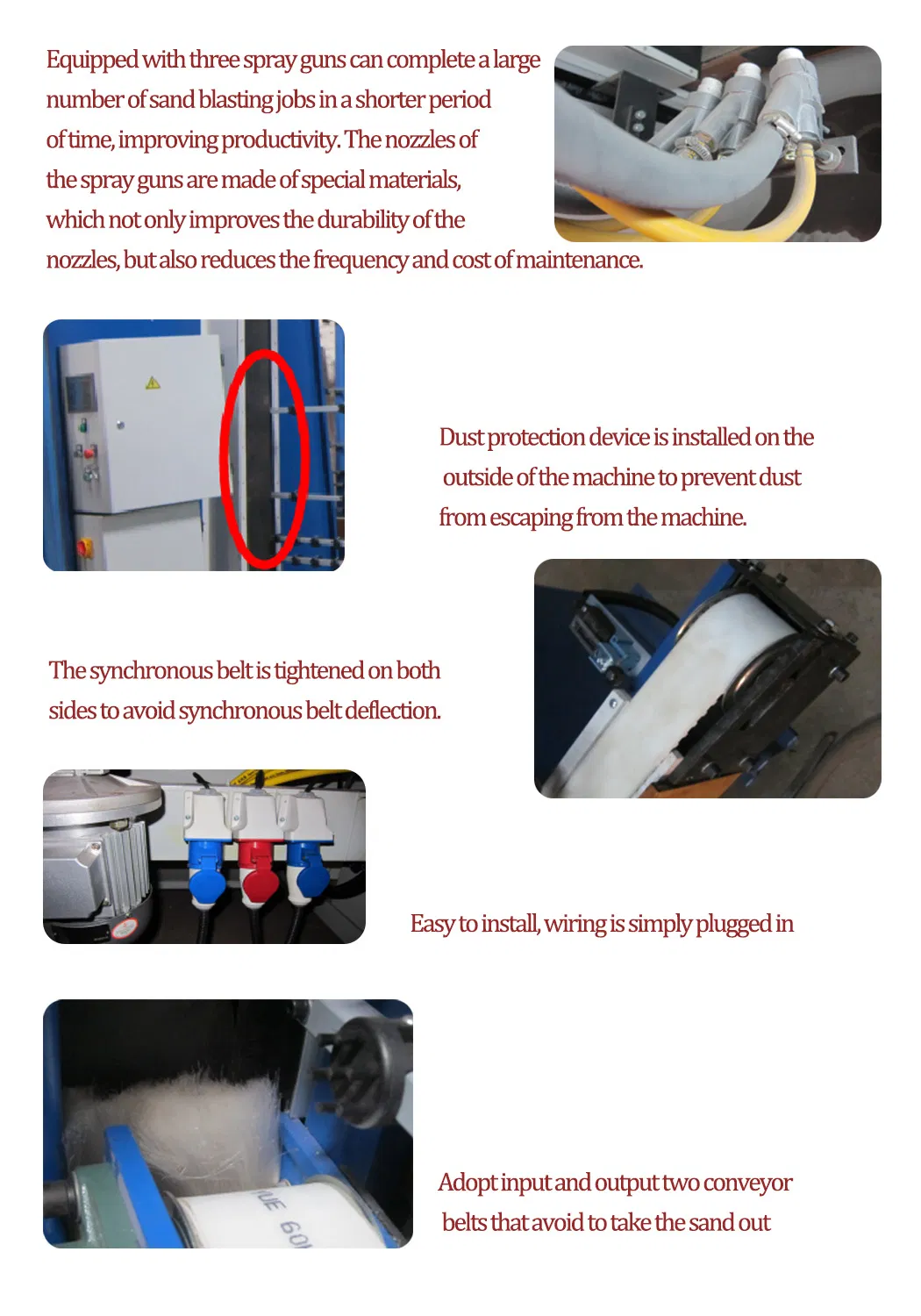

Main Features

Controlled by PLC programmable controller with touch screen interface.
Supports both automatic and manual operation modes.
Nozzles made of high-durability materials for long service life.
Automatic dust collection system with reverse blowing filter cleaning.
Double transfer belt structure to prevent sand leakage.
Equipped with three automatic guns and one manual gun for versatile processing.

Technical Parameters

Parameter	Specification
Model	FGS-VS2000
Automatic / Manual Gun	3 PCS / 1 PC
Sandblasting Speed	20-25m²/h
Max. Glass Size	2000x3660mm
Glass Thickness	3-50mm
Power	3.5kW
Compressed Air Consumption	3m³/min 22kW
Abrasive Material	Aluminum oxide
Gross Weight	1200kg

Main Configuration

Name	Brand	Origin	Remark
PLC	Mitsubishi	Japan	High Reliability
Touch screen	XianKong	Shenzhen	User-friendly
Electrical	CHINT	Zhejiang	Global Standard
Nozzle	-	China	Boron Carbide
Blower Motor	Weidian	Guangdong	2.2KW

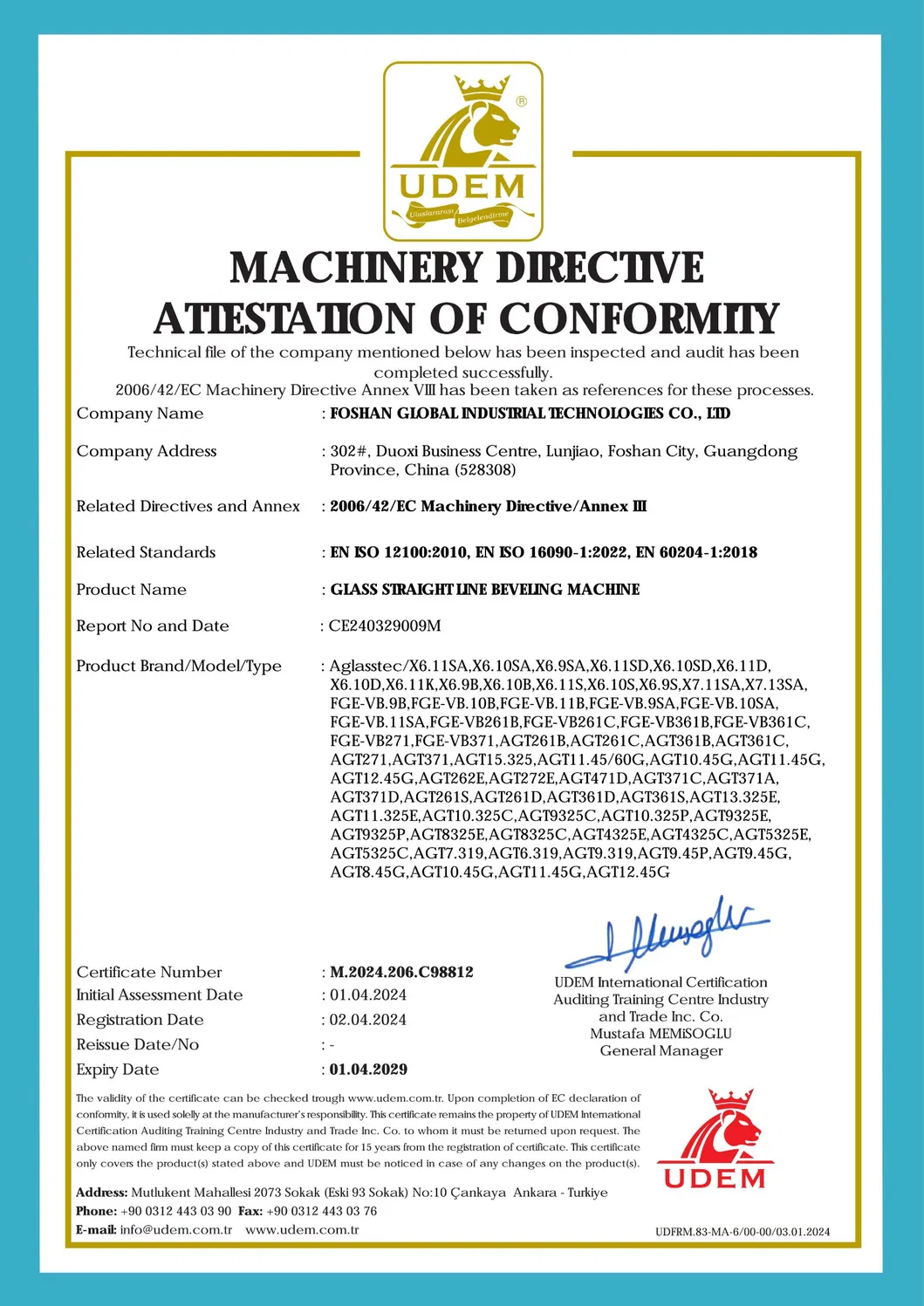

Certifications & Global Presence

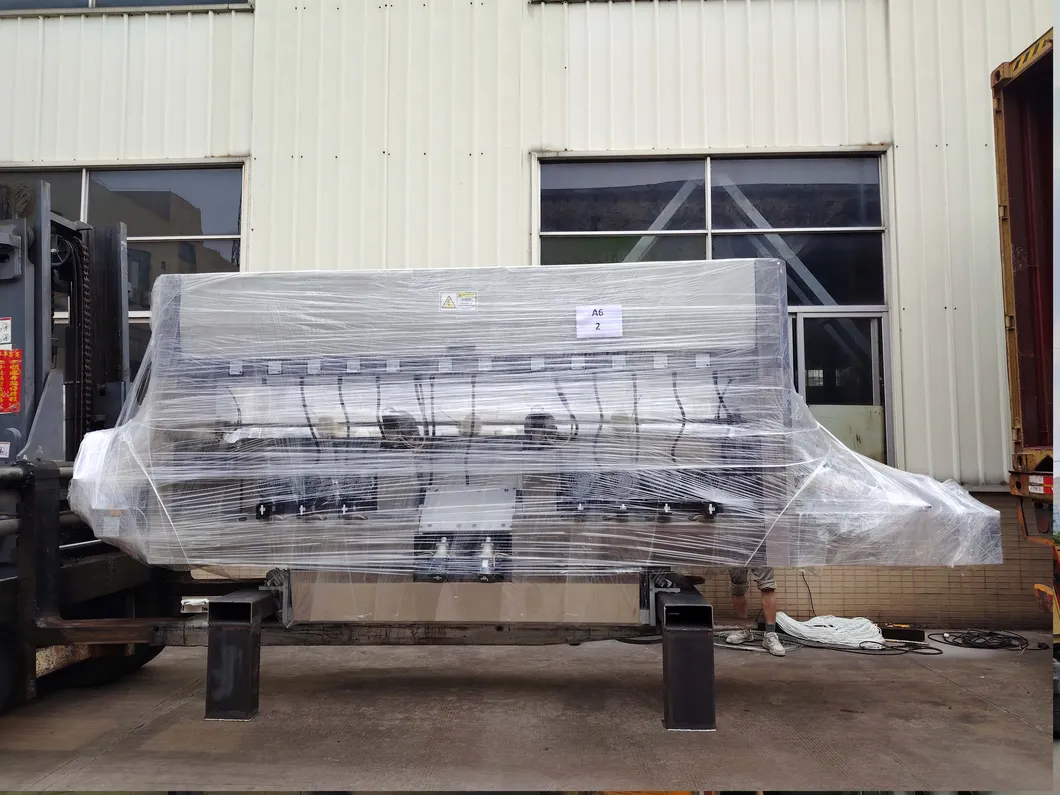

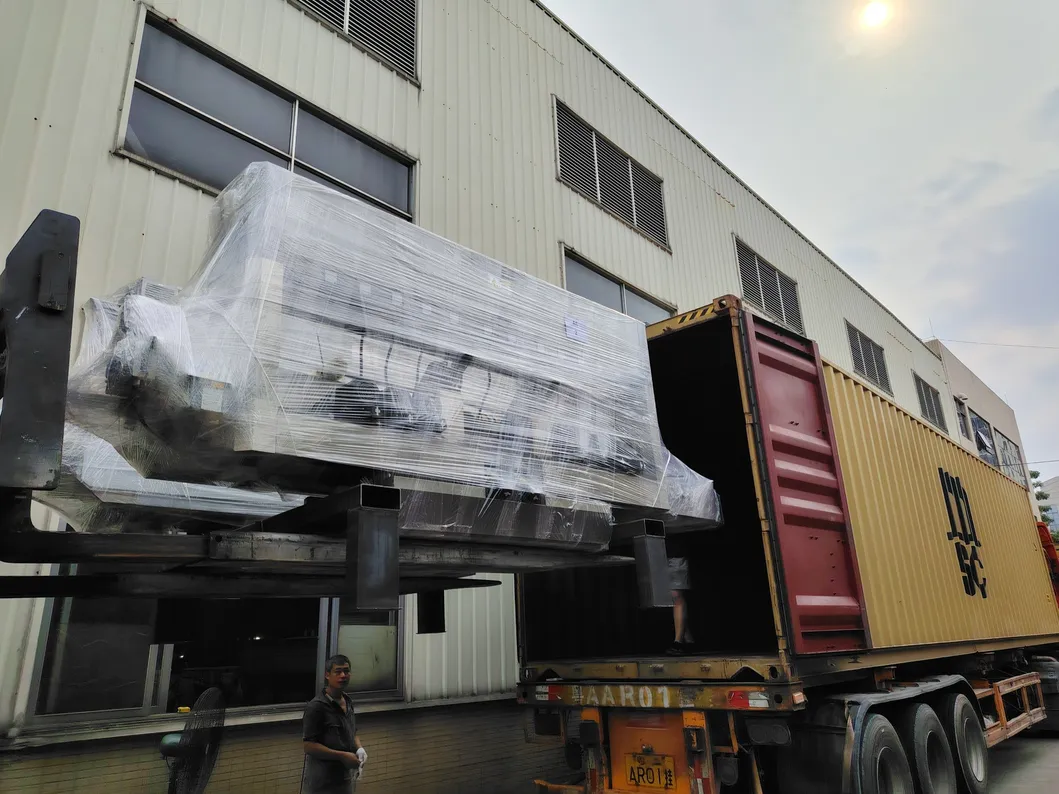

Packaging & Shipping

Frequently Asked Questions

Q1: Is the machine easy to operate for a first-time buyer?

A1: Yes, we provide a detailed operation manual and video guides. We can also assist via online remote support or send engineers to your facility for installation and staff training.

Q2: How do I choose the most suitable machine?

A2: Please provide your workpiece material, dimensions, and desired functions. Based on our experience, we will recommend the best model for your needs.

Q3: What is the machine warranty and after-sales service?

A3: We provide professional maintenance support. During the warranty period, we solve technical issues free of charge. Beyond the warranty, we continue to provide support with spare parts at cost price.

Q4: How do you ensure machine quality before delivery?

A4: The entire production process undergoes strict quality control. Every machine is fully tested, and testing videos/photos are available for inspection before shipping.

Q5: What should I do if the machine encounters an issue after ordering?

A5: We offer free parts during the warranty period and lifelong after-sales service. You can contact us 24/7 via phone or messaging apps for immediate assistance.

Q6: Are spare parts readily available?

A6: Yes, a complete spare parts list is provided, and you can purchase them at any time at factory cost price.
