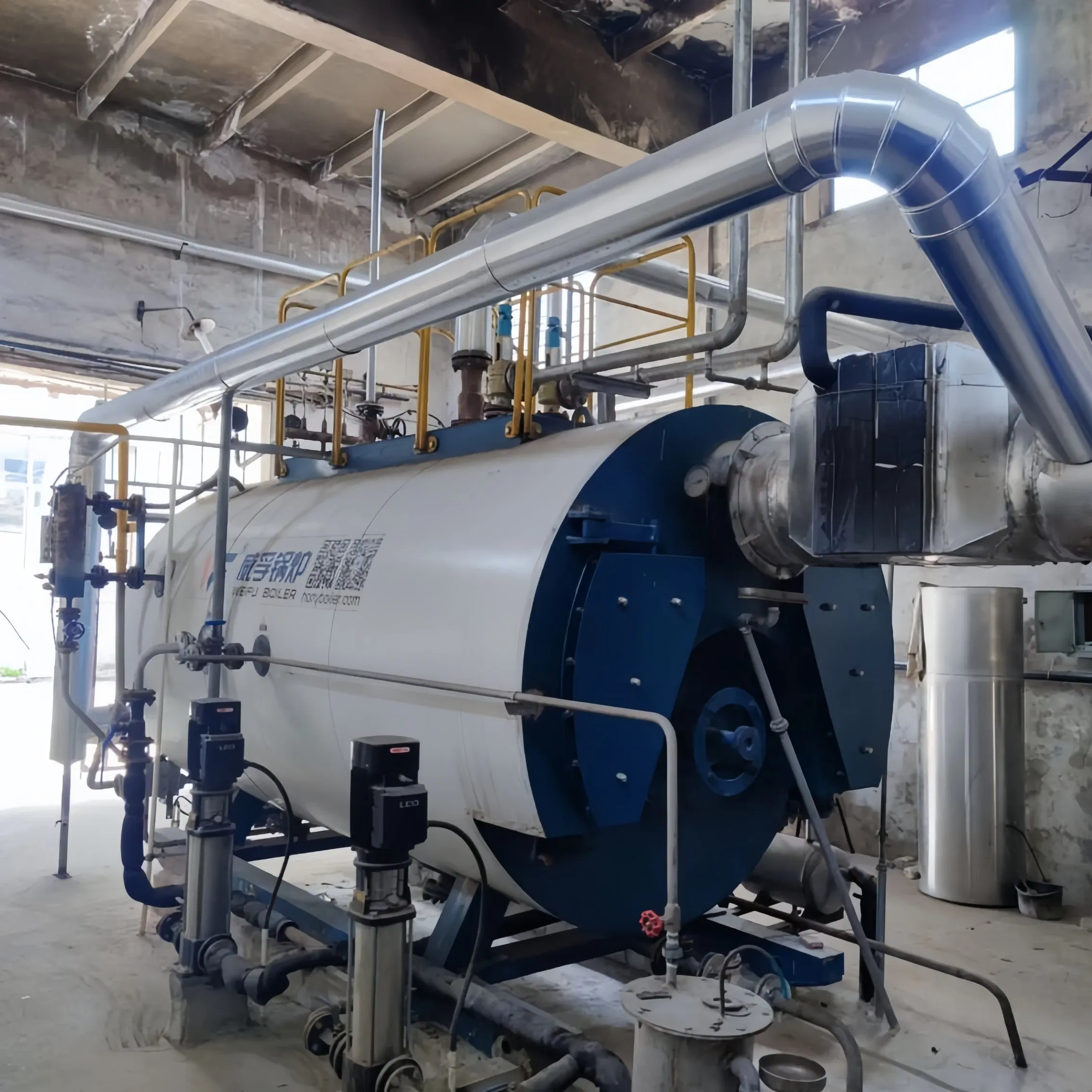

| Gas/oil Steam & Hot Water Boiler Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model | Capacity (Ton/h) | Horsepower (hp) | Pressure (Mpa) | Steam Temp (ºC) | Feed Water Temp (ºC) | Diesel (kg/h) | Nat. Gas (Nm3/h) |
| WNS 0.5 | 0.5 | 35 | 0.4 - 3.82 | 130~450 | 20/105 | 32.5 | 35.7 |
| WNS 1 | 1 | 71 | 0.4 - 3.82 | 130~450 | 20/105 | 64.6 | 70.1 |
| WNS 2 | 2 | 150 | 0.4 - 3.82 | 130~450 | 20/105 | 129.3 | 140.3 |
| WNS 5 | 5 | 350 | 0.4 - 3.82 | 130~450 | 20/105 | 323.5 | 354.7 |
| WNS 10 | 10 | 700 | 0.4 - 3.82 | 130~450 | 20/105 | 641.7 | 707.8 |
| WNS 20 | 20 | 1400 | 0.4 - 3.82 | 130~450 | 20/105 | 1276.2 | 1415.8 |

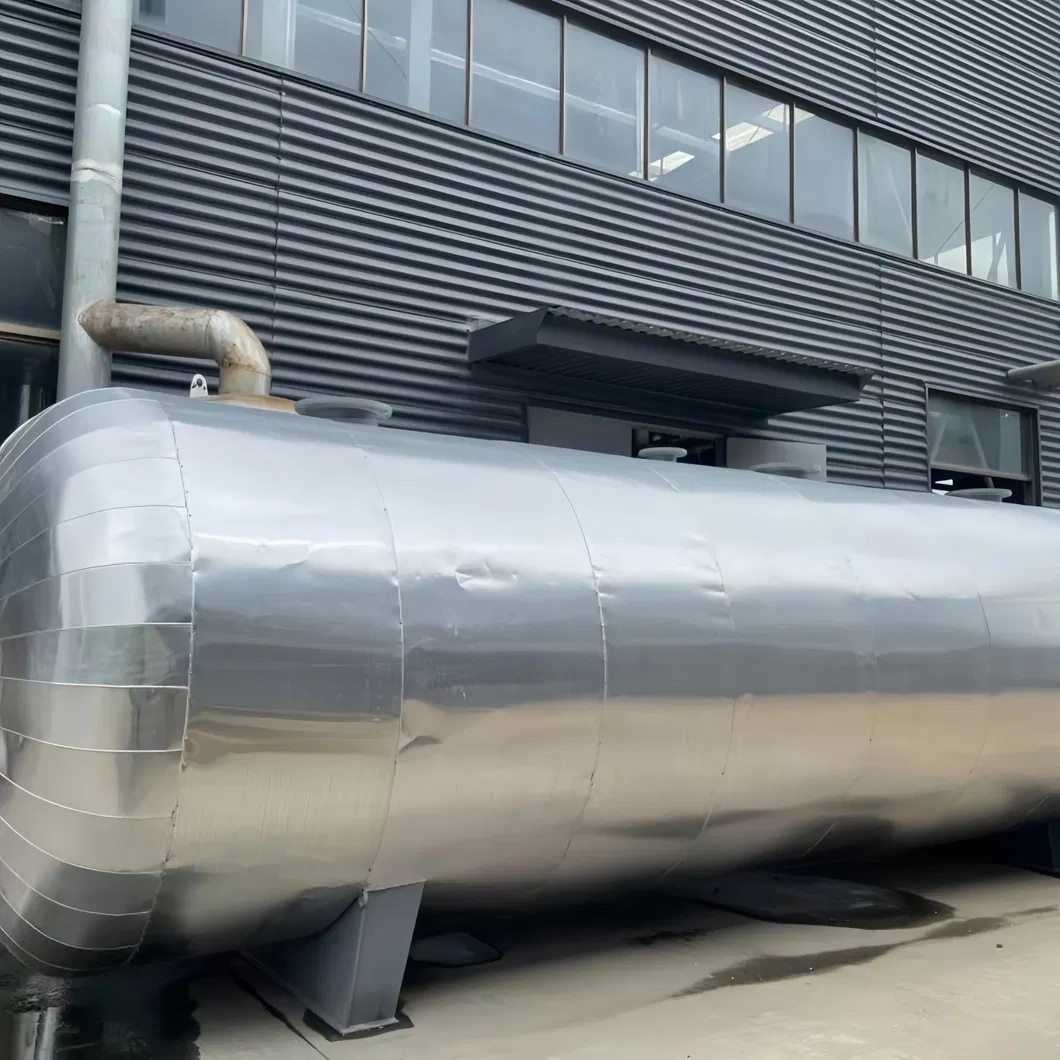

Composed of box, agitator, manhole, and cleaning ports. Conical heads design ensures no dead corners. Features high-strength insulation and automatic control options for temperature and feeding.

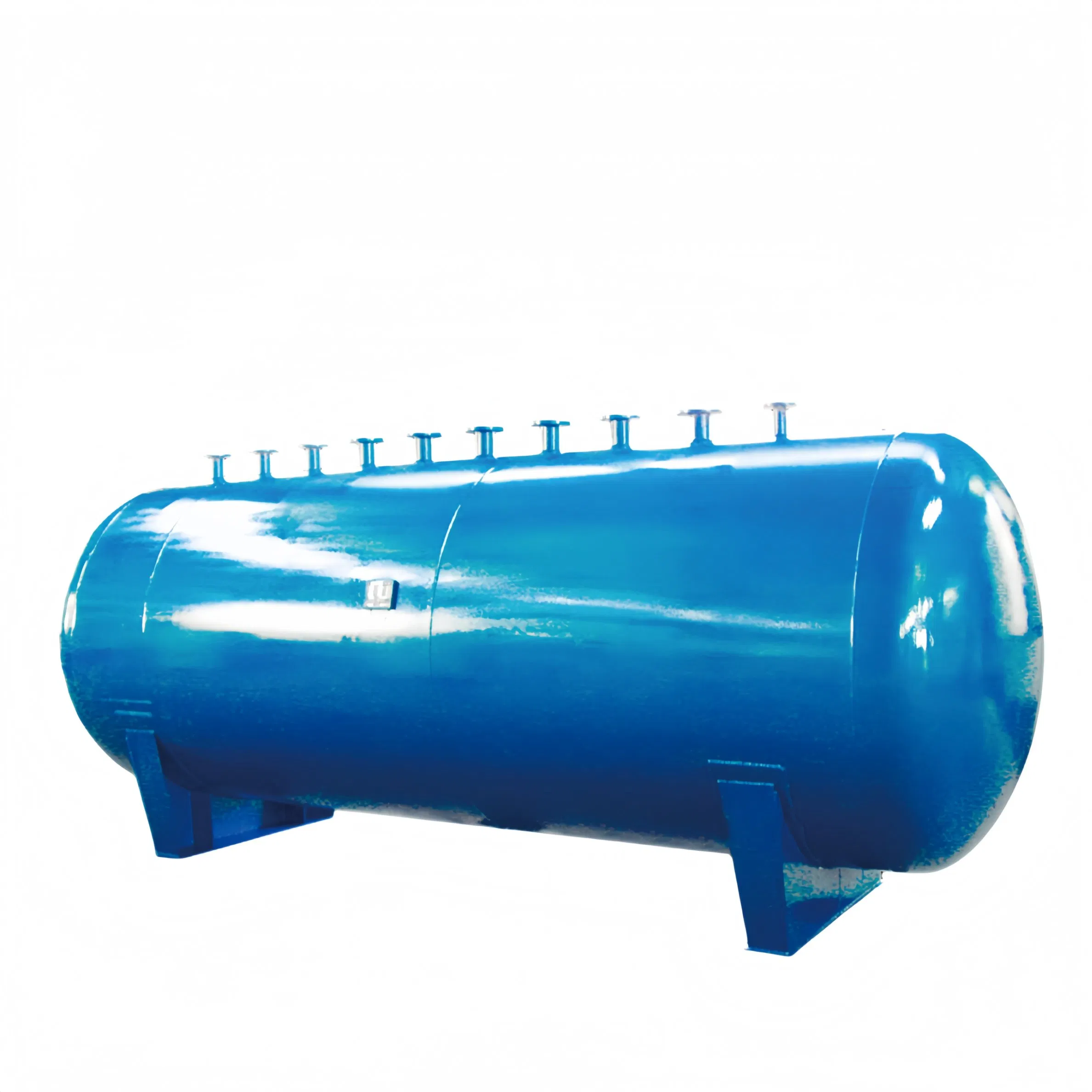

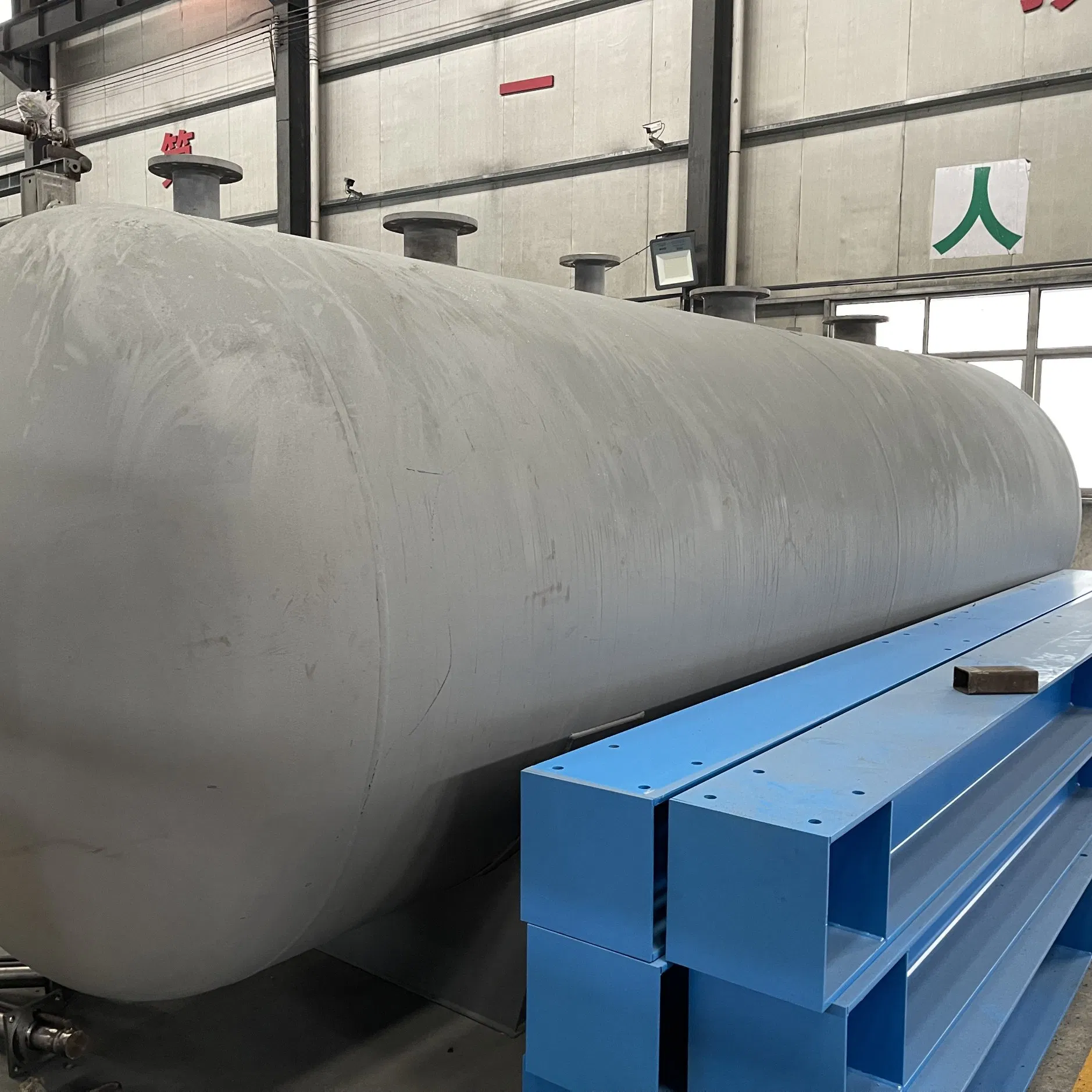

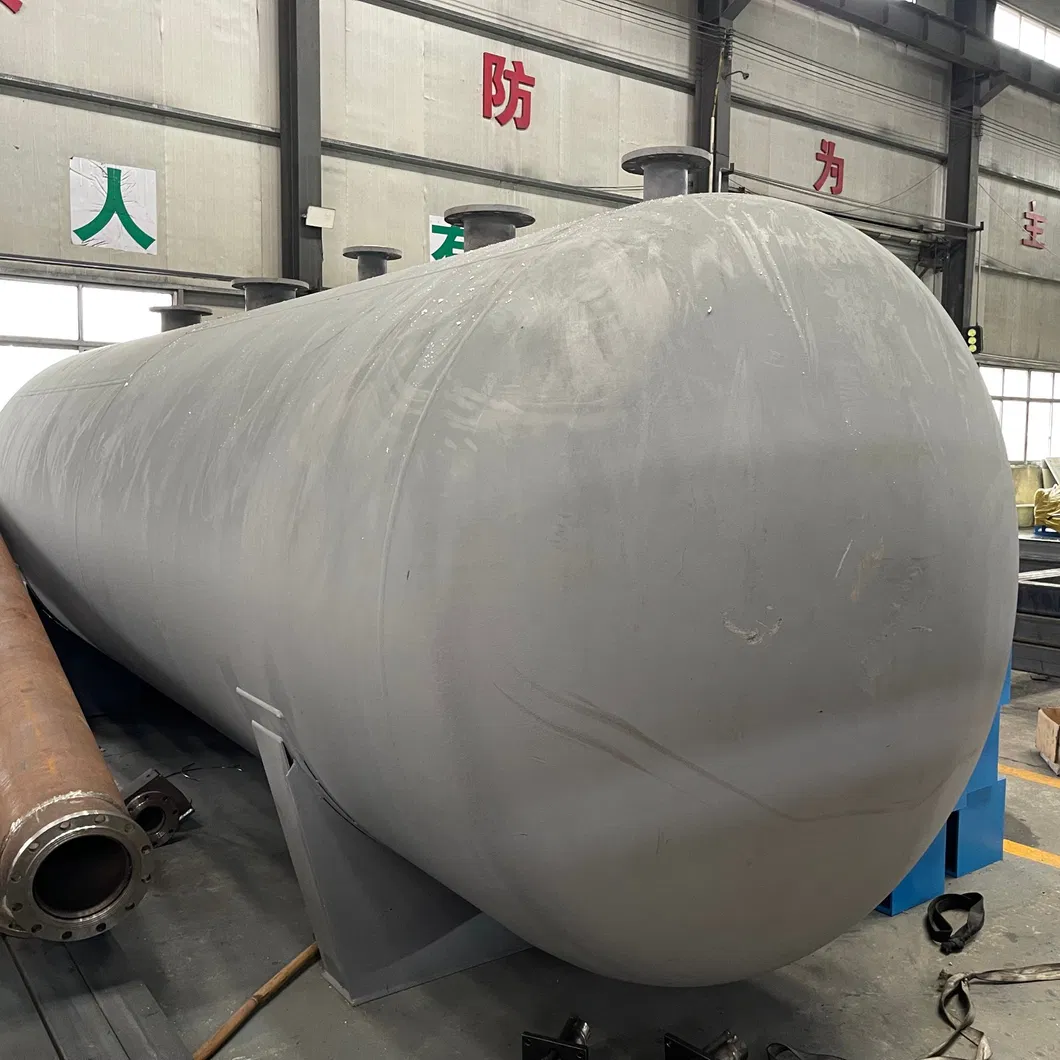

Stores pressurized air for pneumatic tools and industrial machinery, enhancing efficiency in diverse commercial settings.

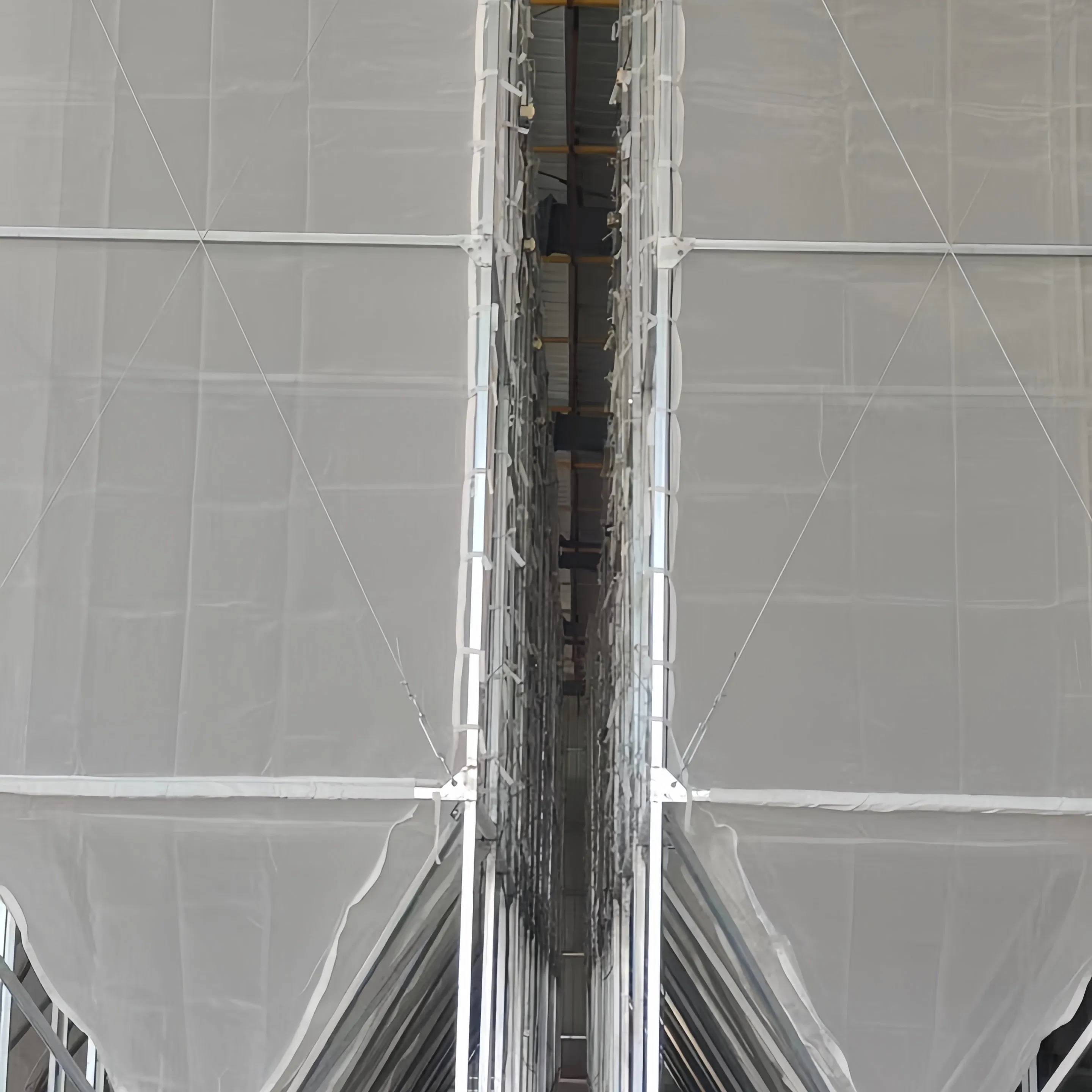

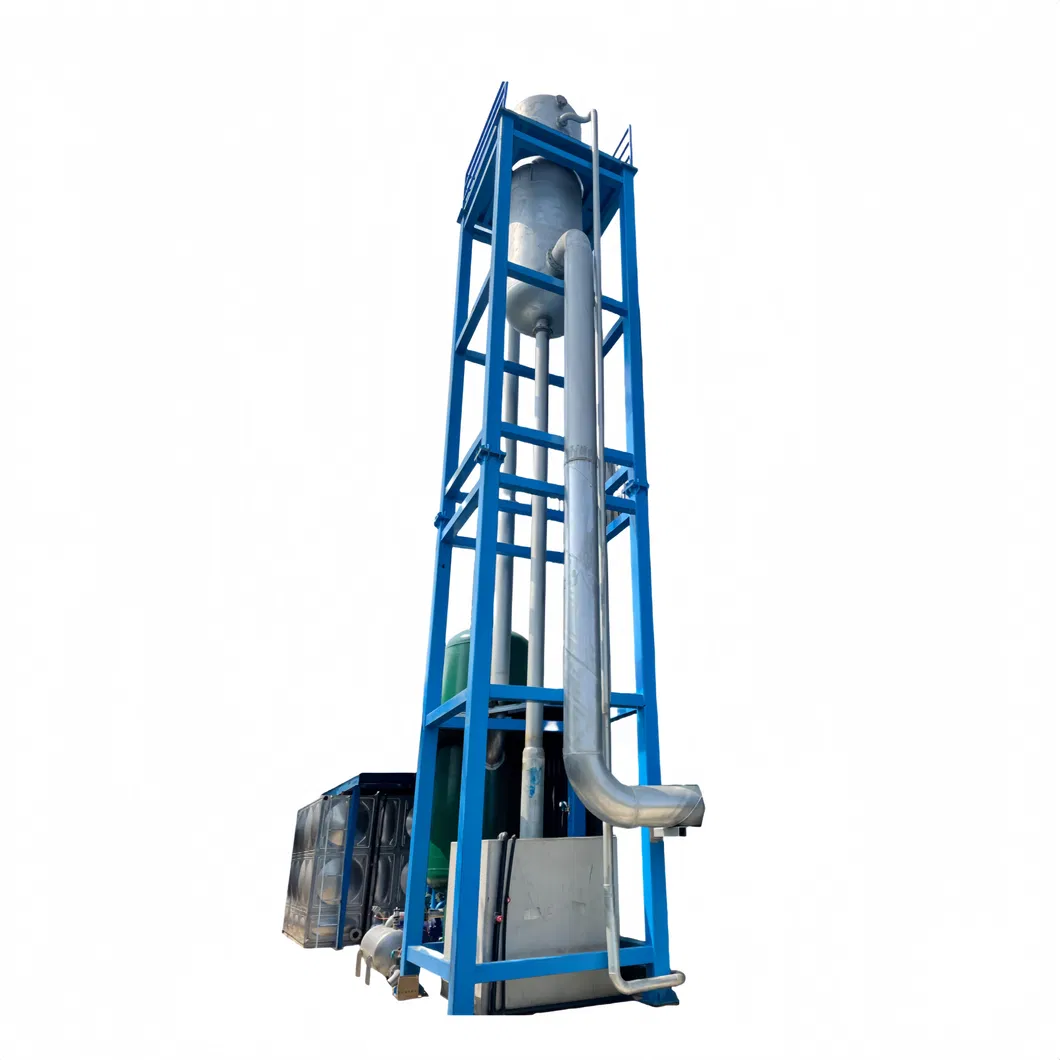

High strength FRP complex materials, wind and snow resistant. Advanced noise elimination technology and energy-saving motors (up to 30% power saving) ensure reliable and eco-friendly operation.

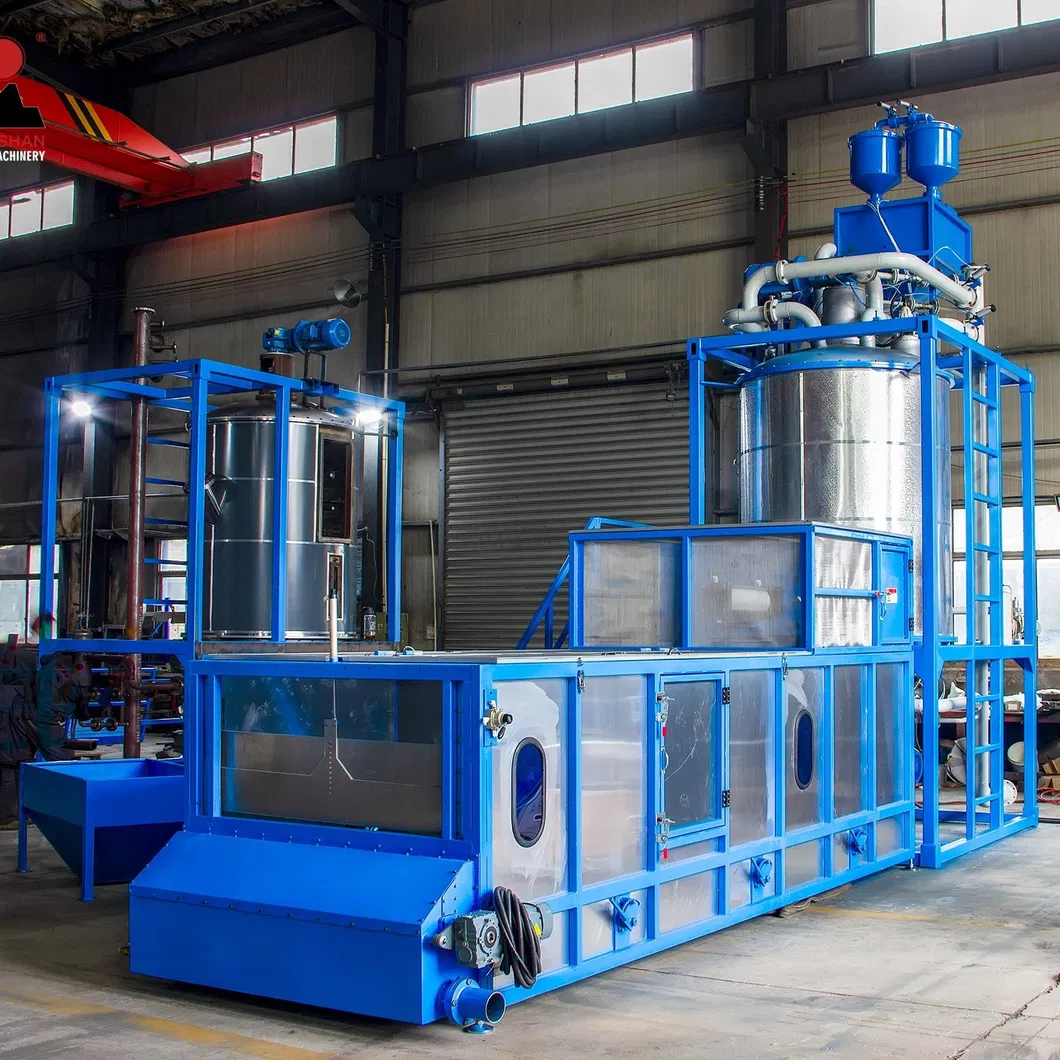

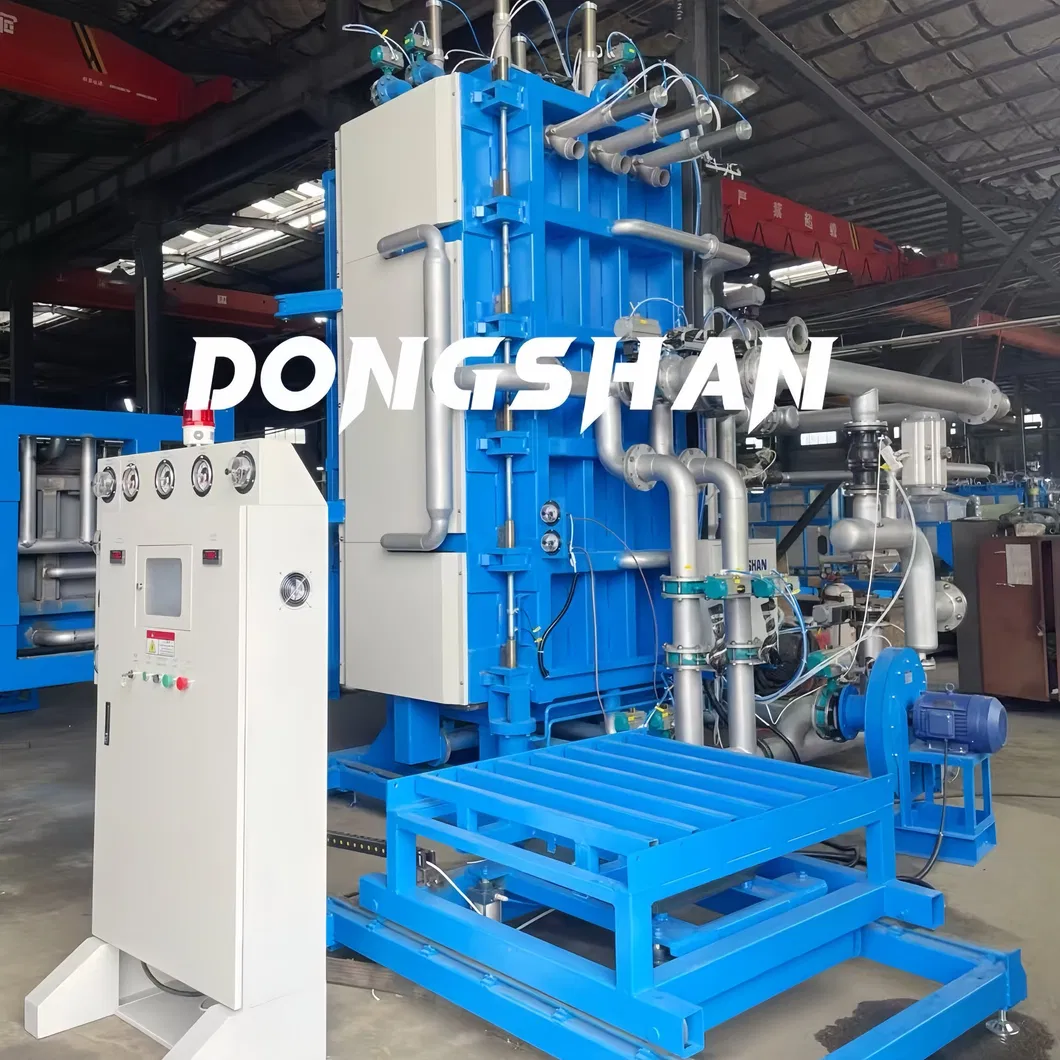

Our company has specialized in EPS and EPP foam plastics machines for nearly 20 years, integrating R&D, manufacturing, sales, and service. Since 2007, our machinery has obtained CE certification and ISO9001 quality management system certification. We have been recognized as a high-tech enterprise with 48 utility model patents and 6 invention patents, winning acclaim in the plastic machine industry.
