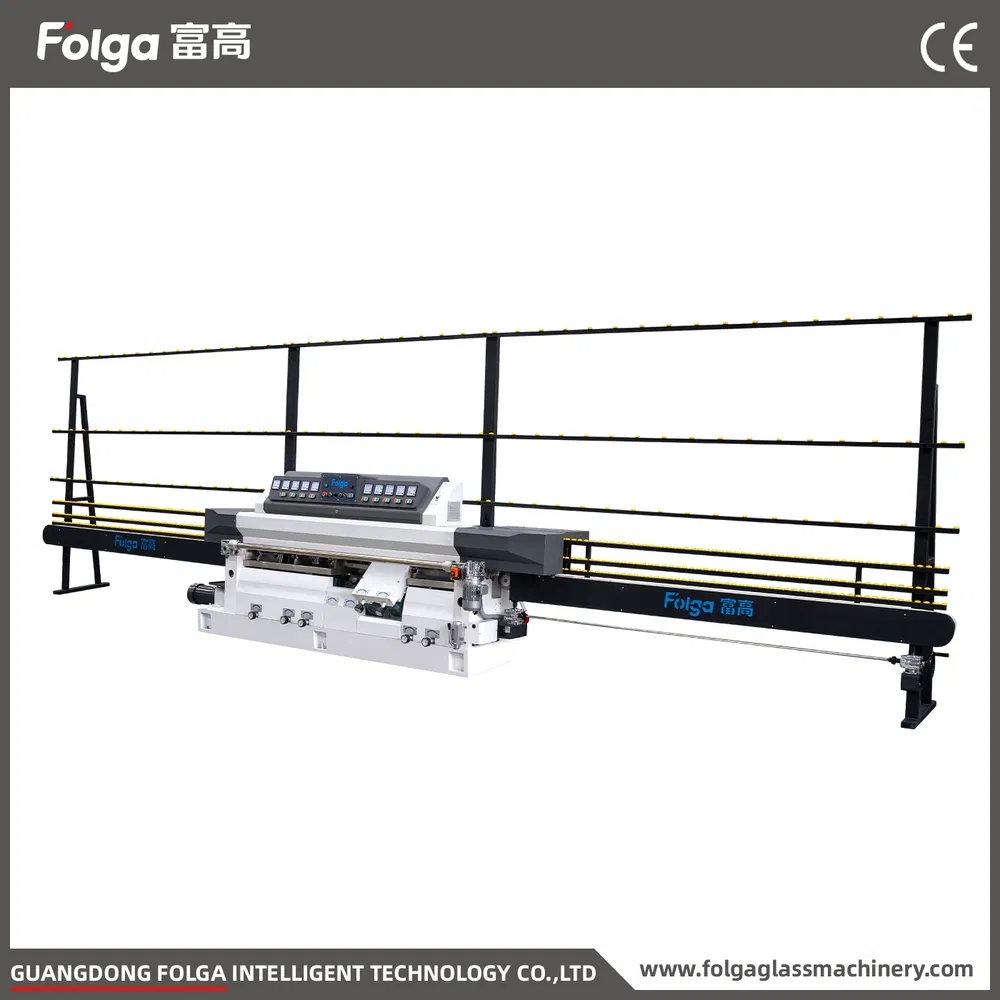

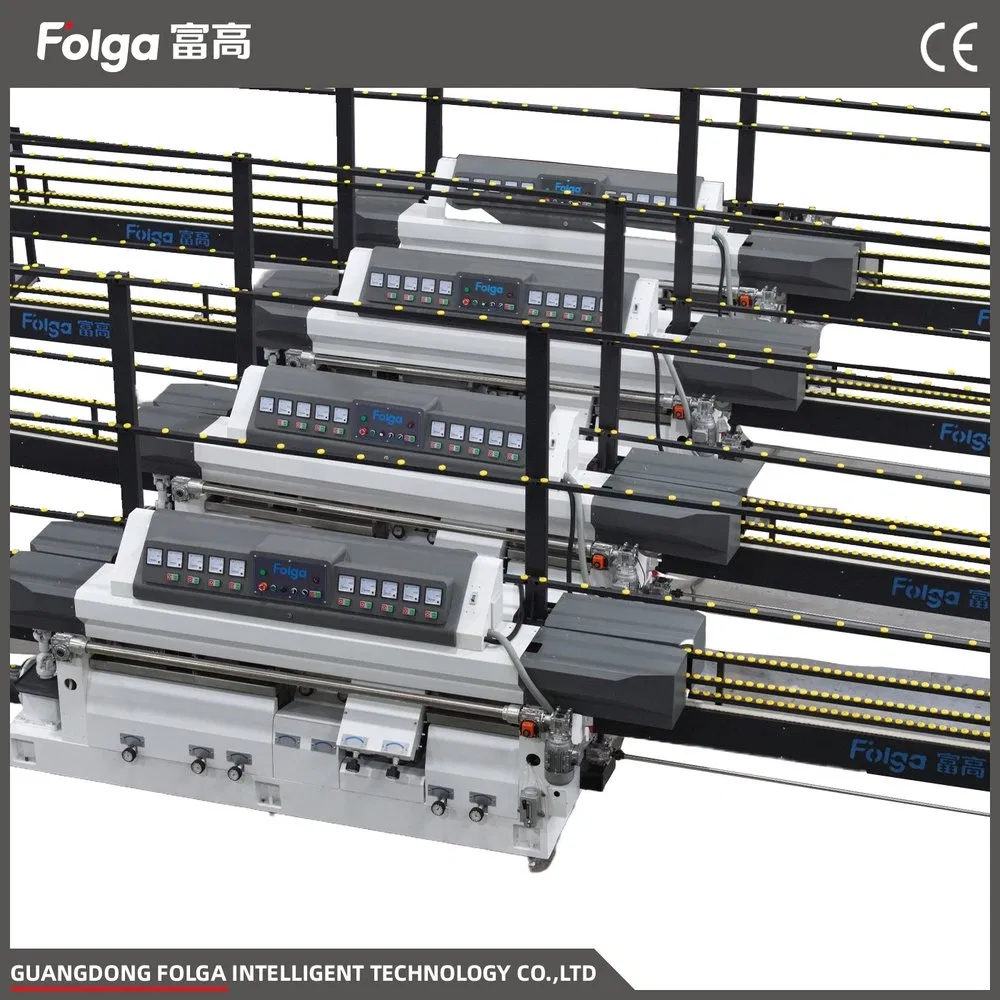

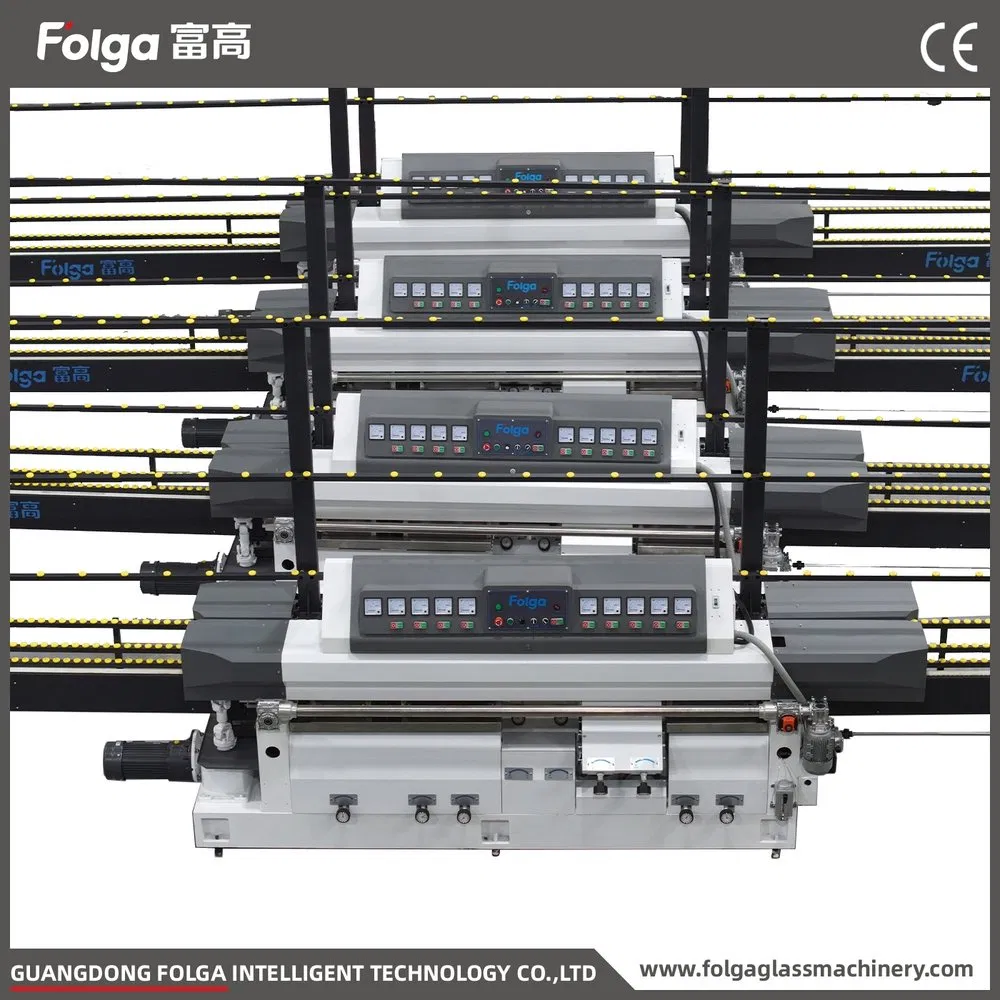

High-Efficiency Low-Maintenance Cost Glass Vertical Straight Edging Machine for Aquarium-Glass Processing

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	1-5 m/min

● Overview

Model NO.

FZM9, FA-12E

Product Name

Glass Straight Line Edging Machine

Processing Thickness

3-25 mm

Voltage

380V

Max. Size

2000X2000mm

Min. Size

100X100mm

Max.Edge Grinding

2.5mm

Max. Chamfer Grinding

3mm

Overall Size

6800X1500X2500mm

Power

18kw

Production Capacity

5000 Sets/Year

● Product Description

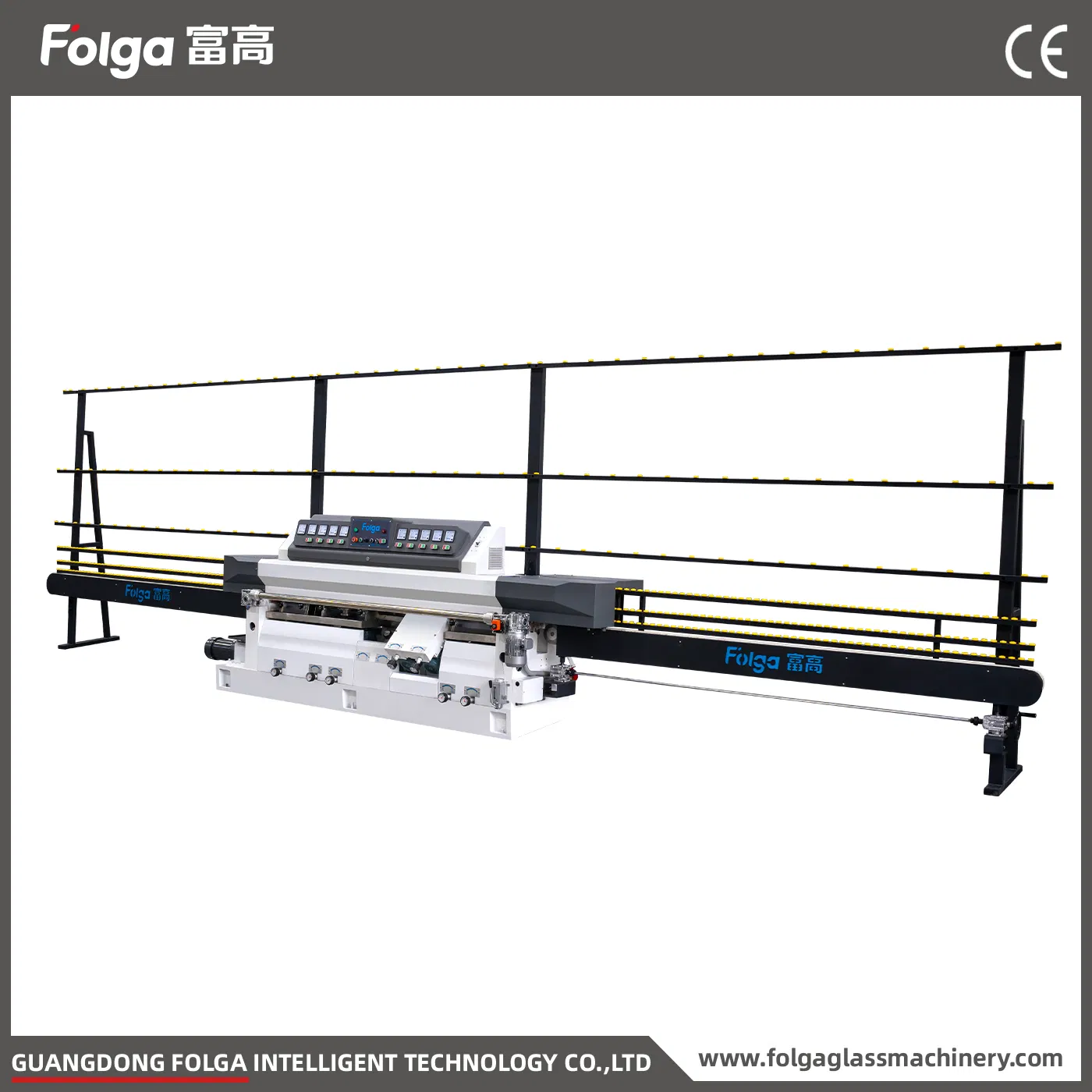

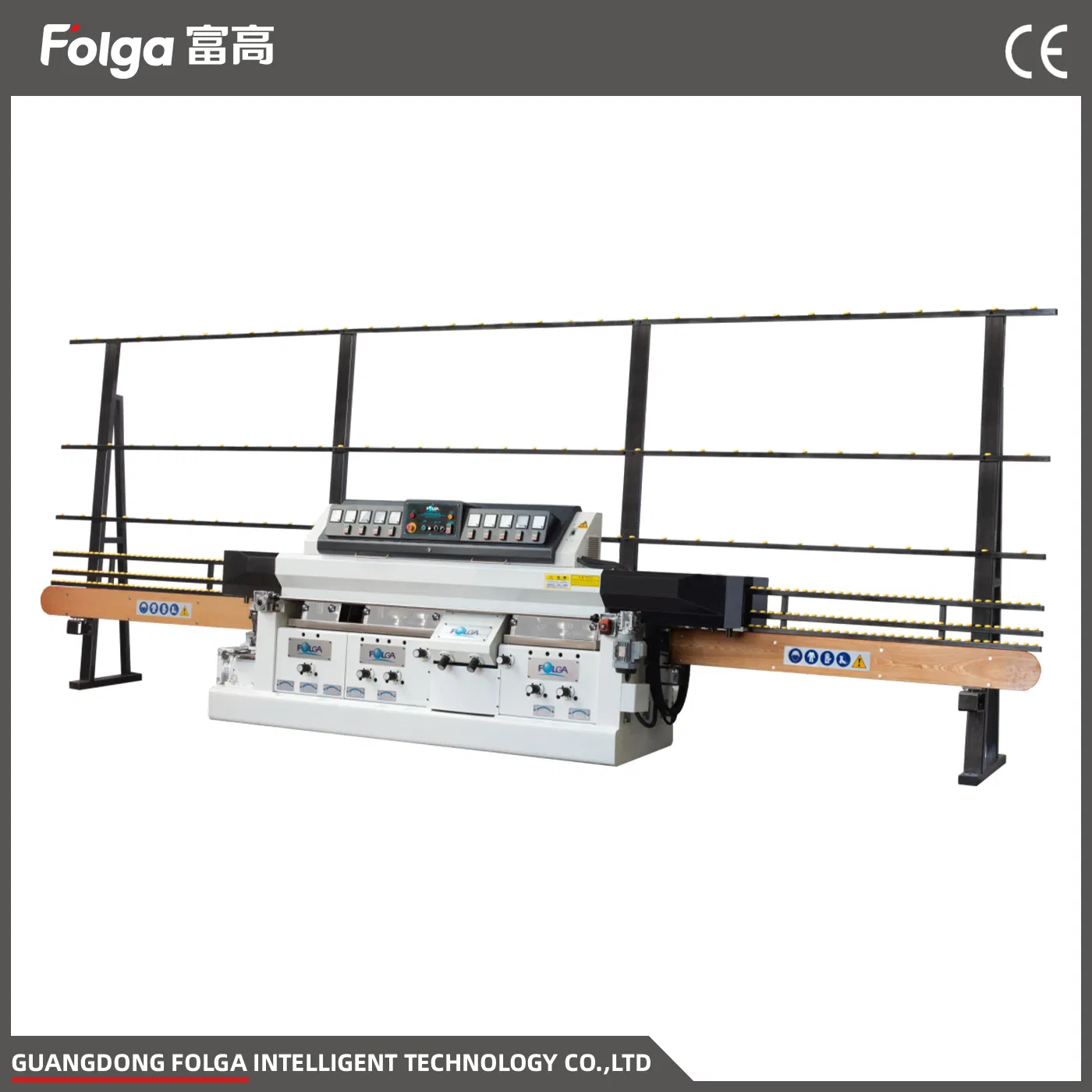

GLASS STRAIGHT LINE EDGING MACHINE

The Glass Vertical Straight Edging Machine is a professional straight line edging solution designed for precision straight edge grinding and chamfering of flat glass. This vertical glass edger efficiently processes glass of various sizes and thicknesses, delivering smooth, polished edges with exceptional accuracy.

Engineered for high productivity and ease of operation, this machine features advanced hydraulic systems, automatic thickness measurement, and premium imported grinding wheels.

01

Hydraulic-Assisted Electric Box Cover

Automatically opens and hydraulically supports for effortless daily maintenance and repair access, significantly reducing service time and improving operational safety.

02

Intelligent Glass Processing System

Automatically measures glass thickness and precisely adjusts the front pressing block position to ensure optimal glass stability during processing.

03

Superior Drainage Management

Dual-side guide rail drainage trays with water-receiving function at both ends maintain a clean, dry working environment and prevent coolant accumulation.

● Technical Parameters

Parameter	Specification Details
Product Name	Glass Straight Line Edging Machine
Glass Thickness	3-25mm
Max. Processing Size	2000x2000mm
Min. Processing Size	100x100mm
Max. Edge Grinding	2.5mm
Max. Chamfer Grinding	3mm
Overall Dimension	6800x1500x2500mm
Working Height	750mm
Total Power	18KW

● Detailed Highlights

High-Quality Imported Grinding Wheels

Delivers exceptional edge finish quality, extended service life, and consistent grinding performance across all glass types.

Heavy-Duty Pressing System

Front and rear pressing plates utilize premium materials, ensuring stable glass positioning and uniform pressure distribution.

● FAQ

Q1: What are your main glass processing products? We mainly produce glass single edging machines, glass double edging machines, and glass seaming machines. We also offer washing machines, loading/unloading systems, and drilling machines.

Q2: How much experience do you have in manufacturing glass machinery? We have over 21 years of experience (established in 2004), ensuring stable technology, high quality, and professional after-sales support.

Q3: Do you provide on-site installation and training? Yes, global installation services and technical training are available for all our equipment.

Q4: Can the machine be customized for specific glass sizes? Absolutely. We can customize the machine dimensions and specifications based on your specific jumbo glass or unique processing requirements.

Q5: What glass finishes can be achieved? Our machines process all kinds of glass, achieving either a high-gloss polished edge or a matte grinding finish depending on the setup.

Q6: How do you handle technical troubleshooting? We respond within 8 hours. Within 24 hours, our engineers provide step-by-step troubleshooting. If parts are needed, we dispatch them urgently via DHL or other express services.
