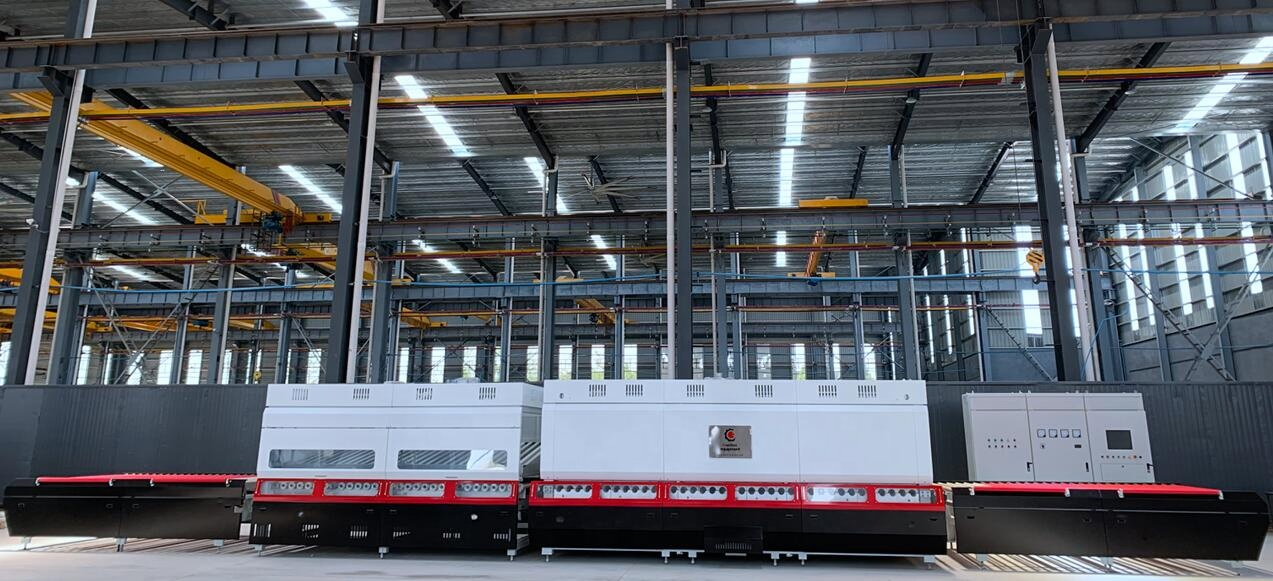

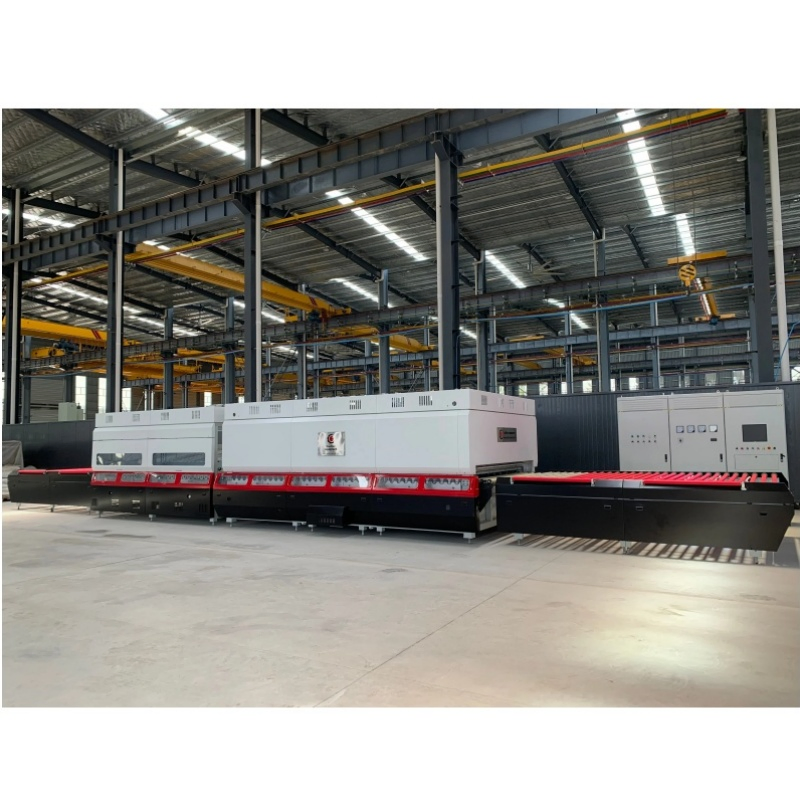

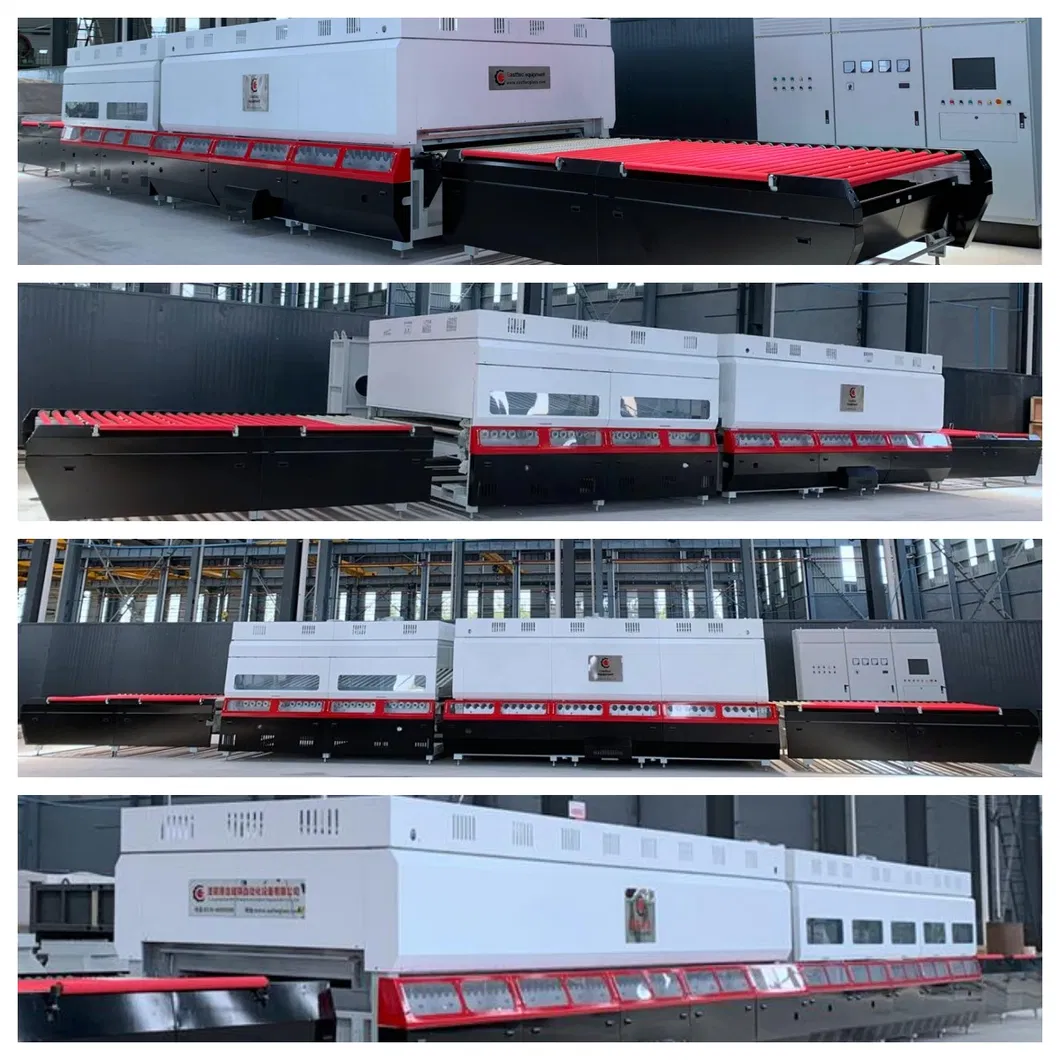

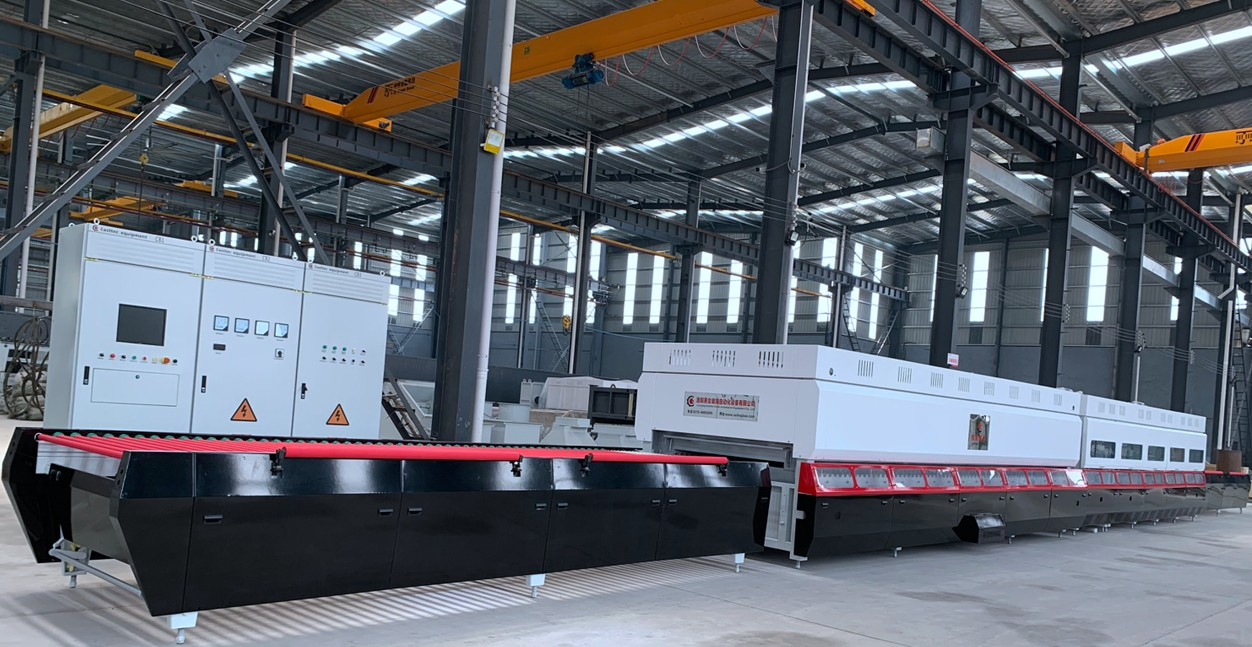

SH-A1018 Series horizontal roller glass tempering furnace is designed for flat tempering of architecture glass, furniture glass, appliance glass, shower room glass, doors, and windows.
Glass Size Capacity:
• Max glass size: 1,000mm x 1,800 mm
• Min glass size: 100 x 300 mm
• Glass thickness range: 4-19 mm
• Finished product rate: Over 5mm not less than 98%
Energy Efficiency:
The energy sources consume of production is less than 4.5 kwh/m2 (According to 5 mm model).
🔄
Glass Tempering Processing

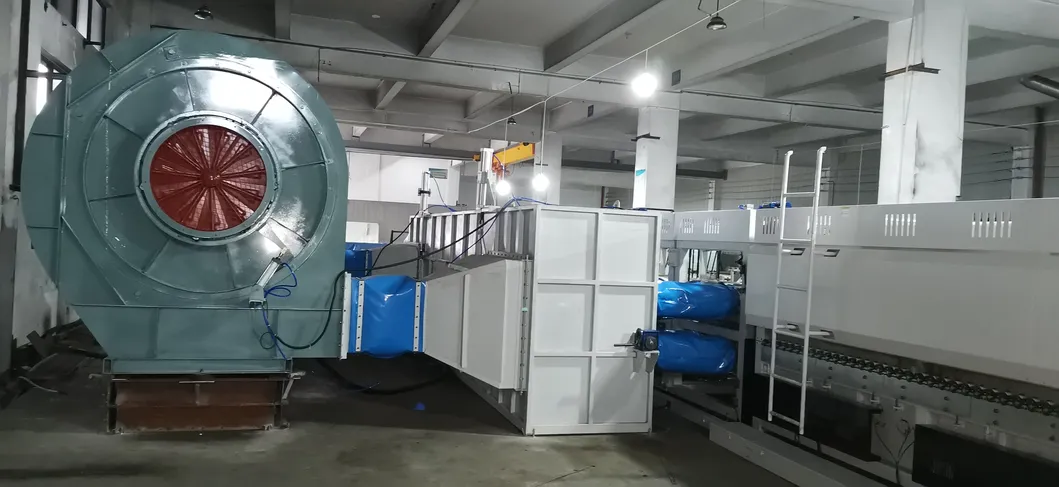

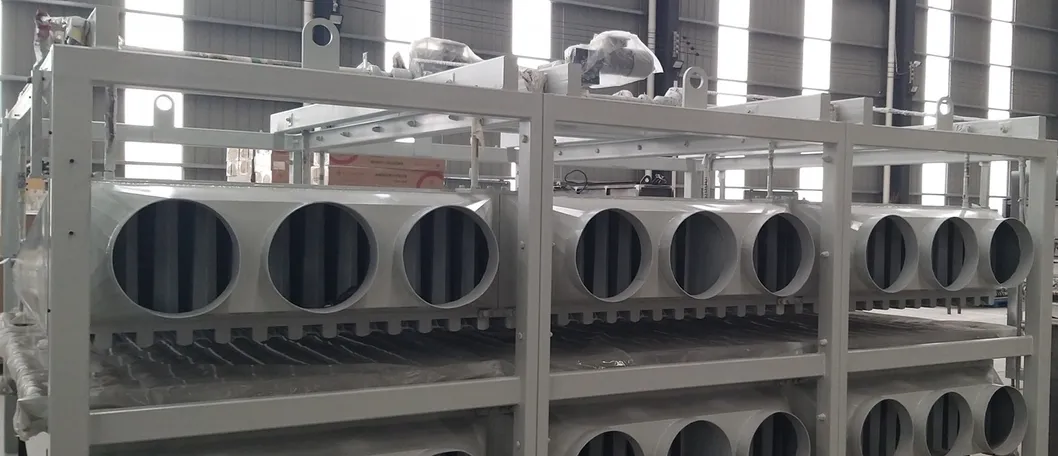

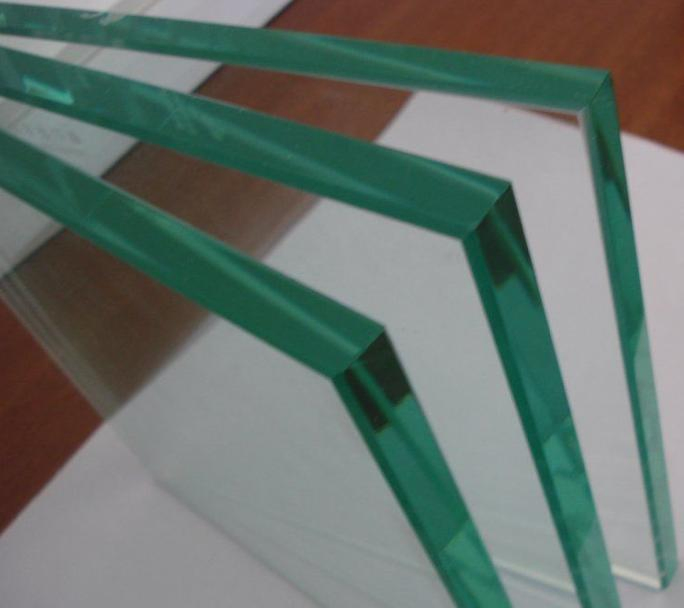

Clean glass is placed on the loading table. Rubber coating rollers transmit the glass into the heating furnace, where it is heated to a soft status at 600-700 degrees. Ceramic rollers then move the glass into the flat tempering section for quenching and cooling via air blowers. Finally, steel rollers transmit the finished tempered glass to the unloading table.
❓
Frequently Asked Questions
How is the machine installed at my facility?
The machine is dismantled into sections for container loading. We send engineers to your factory for professional installation and setup.
Is it difficult for operators to use the machine?

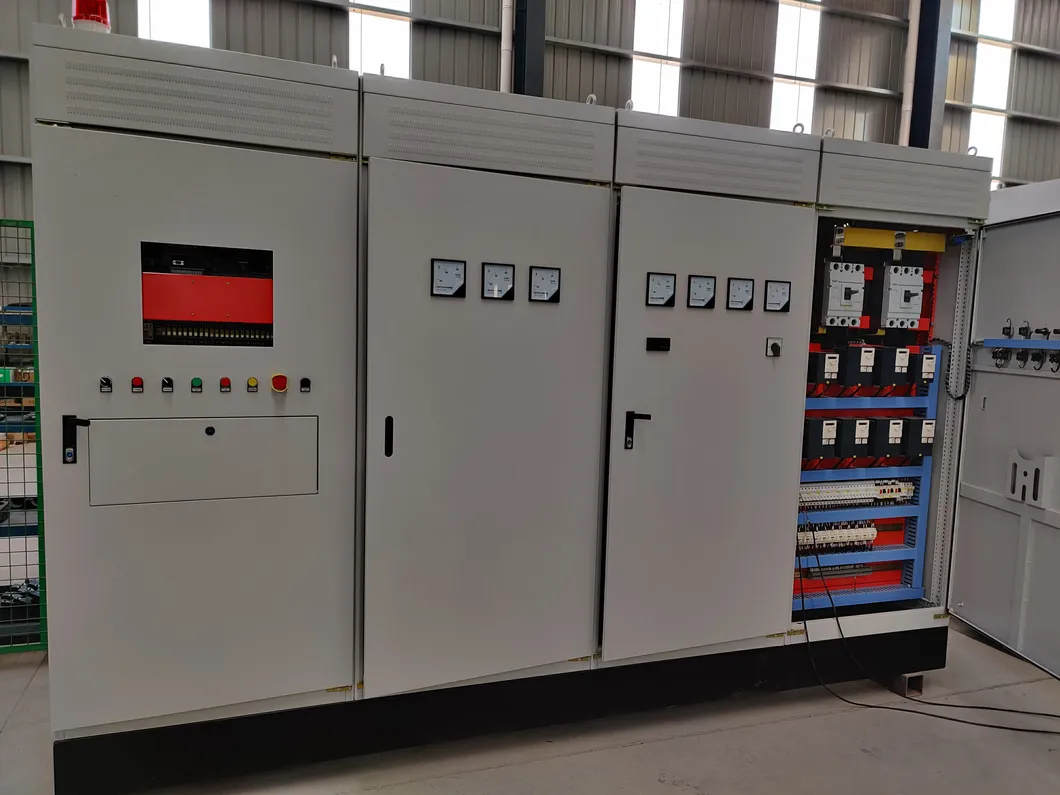

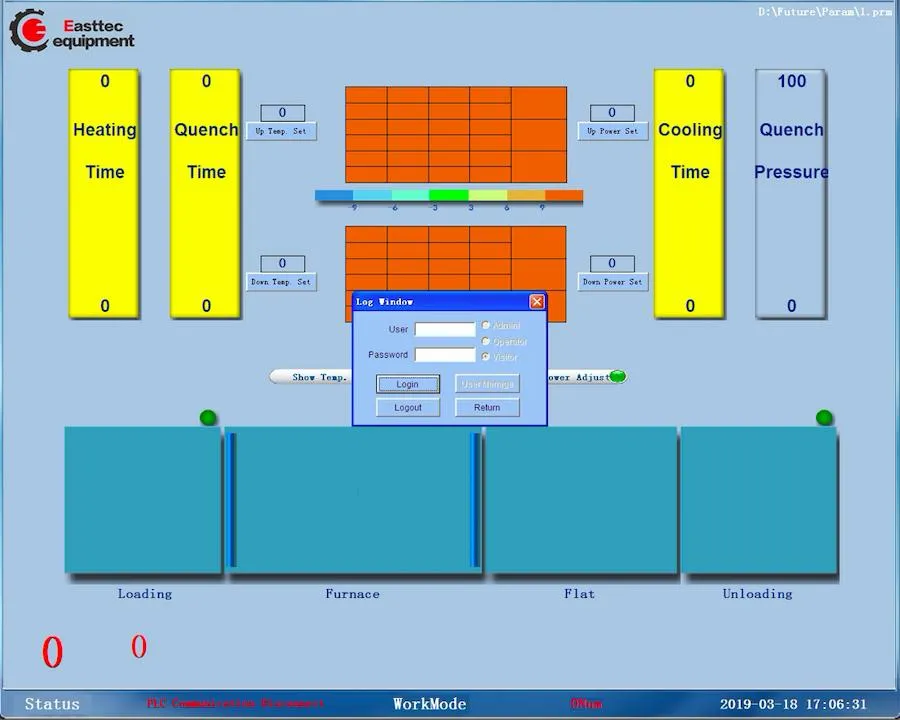

No, the control system includes preset recipes for different glass types and thicknesses, allowing for easy selection and minor adjustments.
Can you customize the machine for specific local voltages?
Yes, we can manufacture machines to meet specific power requirements such as 380V, 400V, 440V, or 480V.
What kind of technical support is available if the machine stops?
We provide 24-hour technical support. Most issues are addressed within 12 hours via remote diagnosis or direct communication.
What are the standard payment terms?
The standard terms are a 30% down payment, with the remaining 70% of the total balance to be paid before delivery.
What is the typical delivery timeframe?
The standard delivery time is approximately 90 days from the date of order confirmation.
