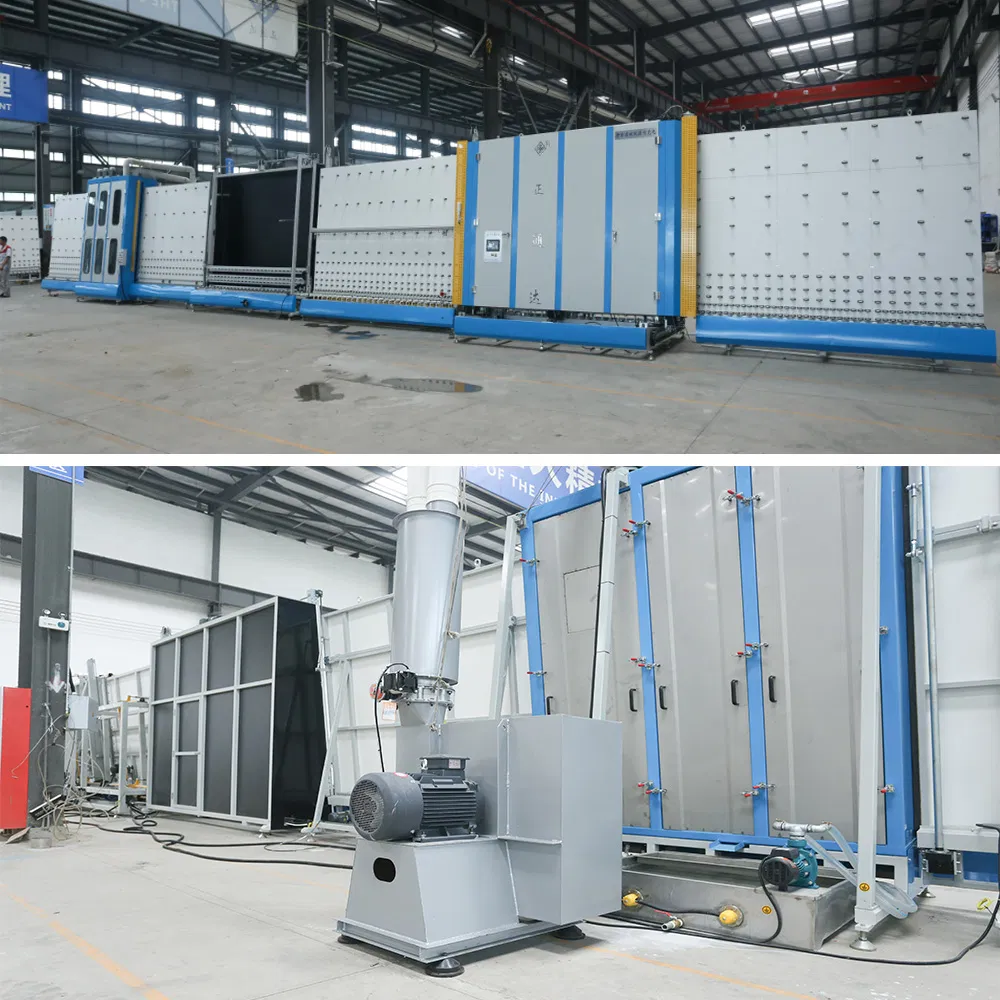

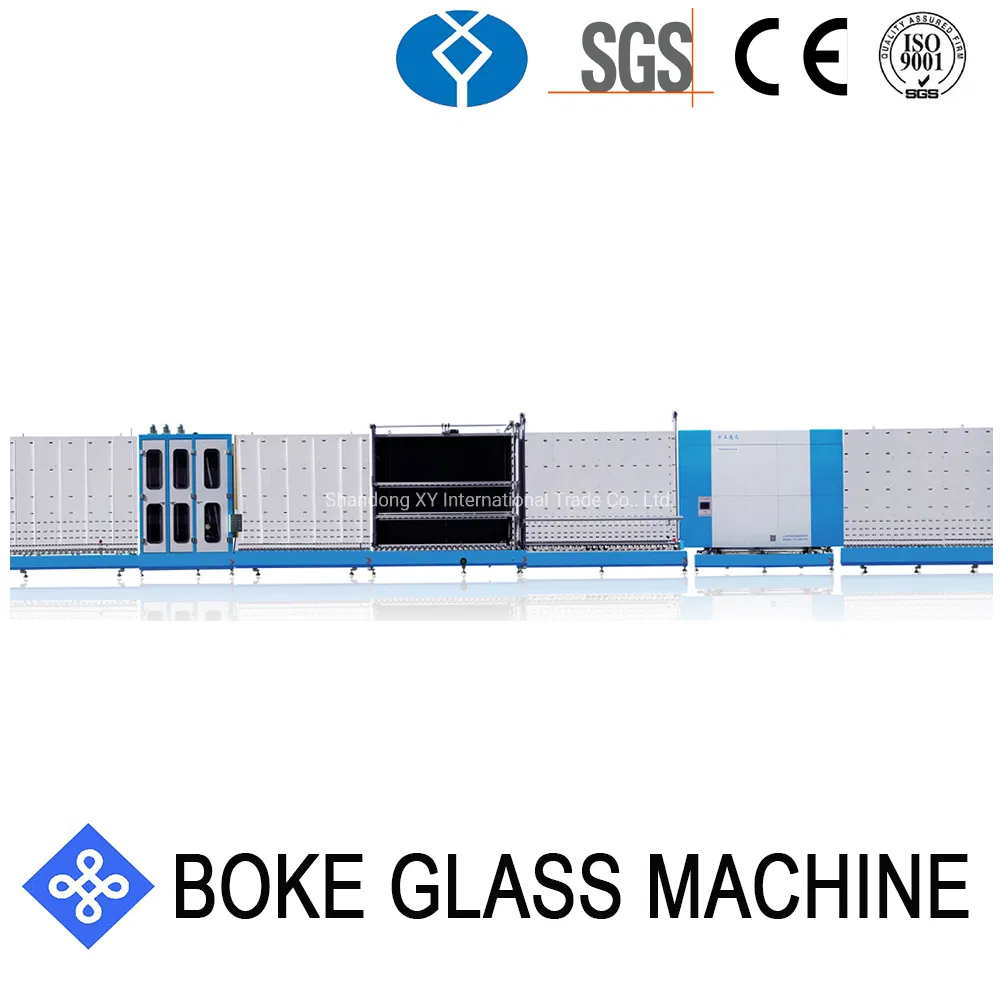

Brief Introduction of LBP2500Q Double Glass Machine

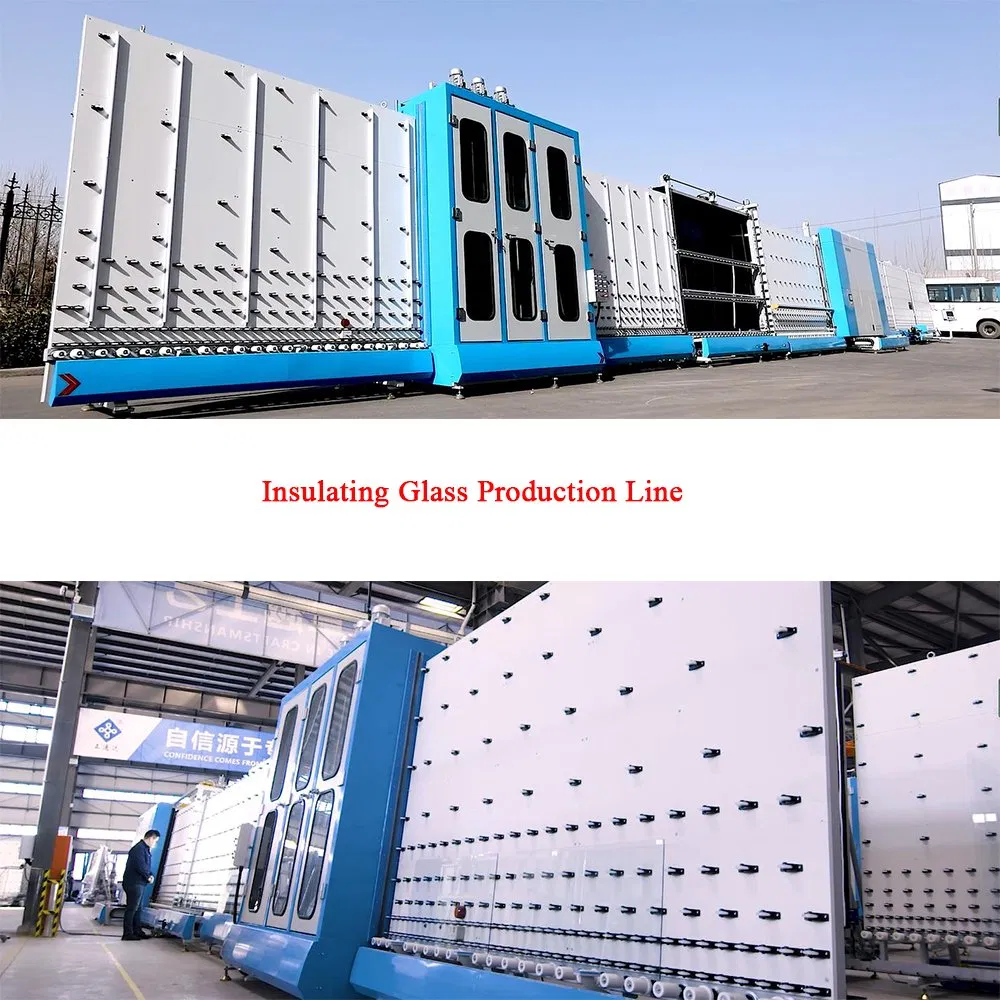

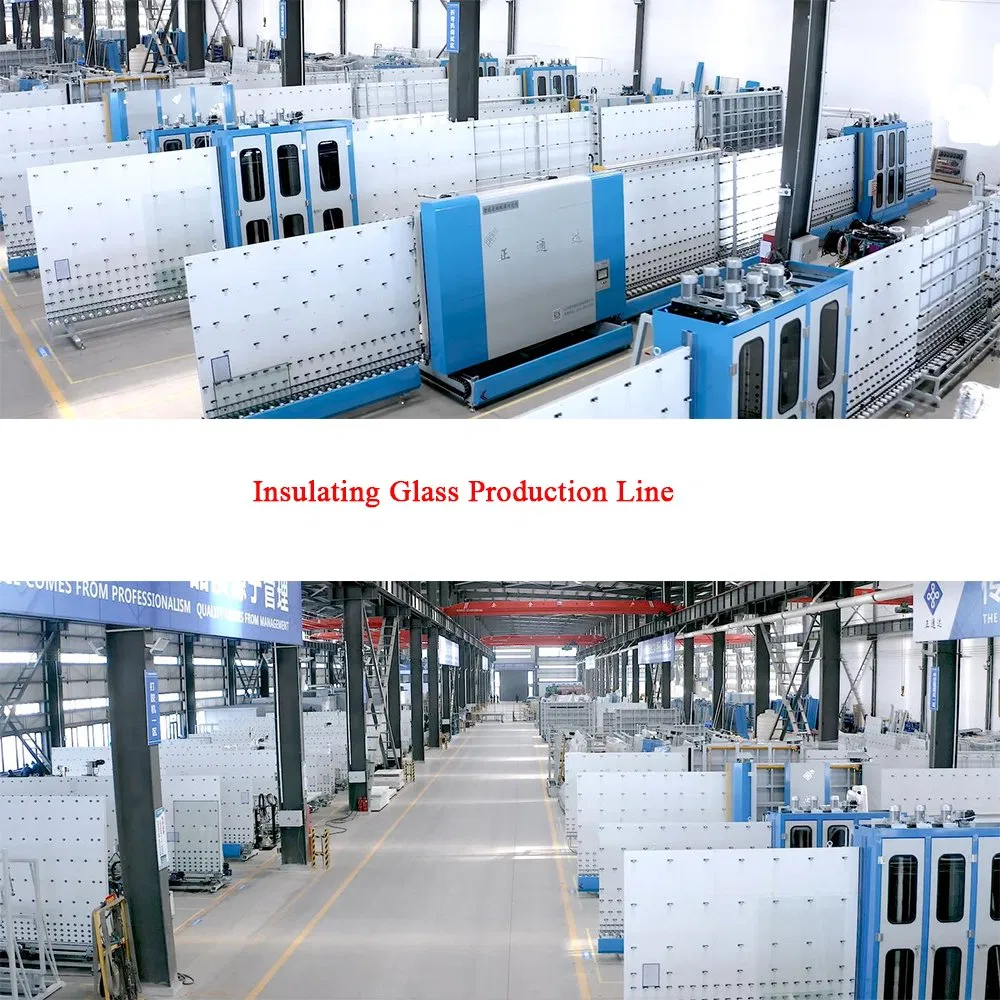

The Vertical automatic insulating glass flat press production line is primary equipment for Insulating Glass Units (double glazing) production. It is designed for professional glass processing companies and windows & doors fabricators.
| Description | Specifications (Model LBP2500Q) |
|---|---|
| Max. processing glass size | 3600*2500 mm |
| Min. processing glass size | 450*200 mm |
| Single glass thickness | 3-15 mm |
| Max. Insulating glass thickness | 52 mm |
| Capacity | 110 pc/h |

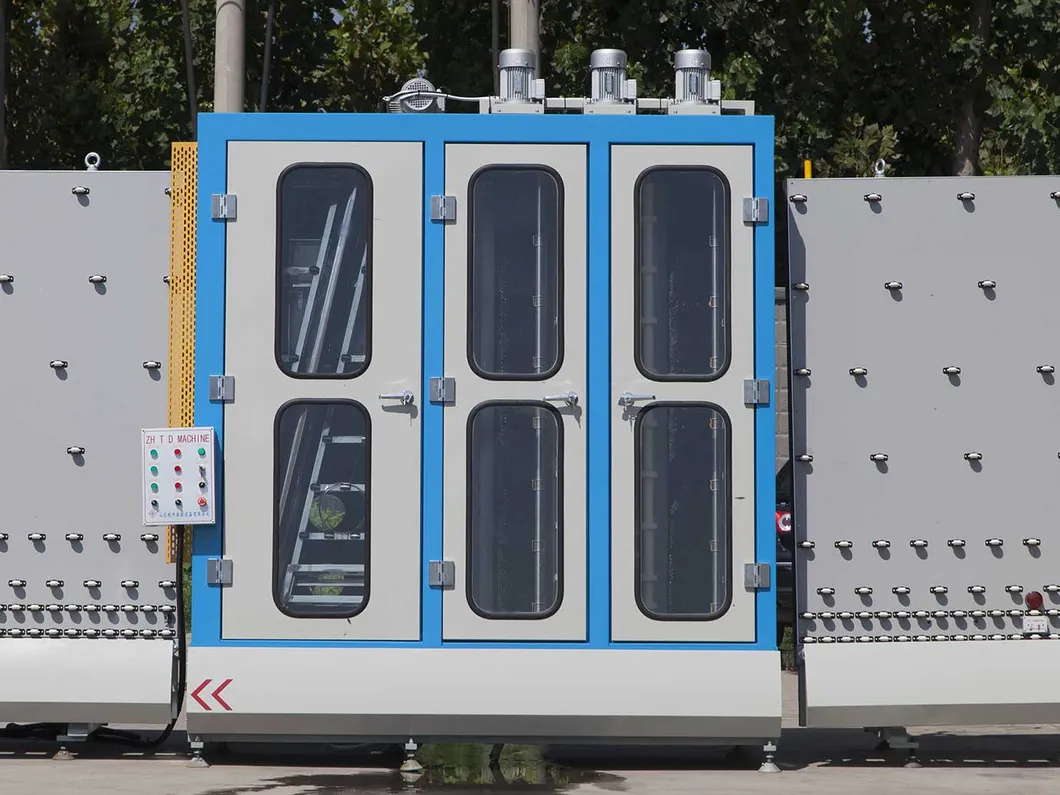

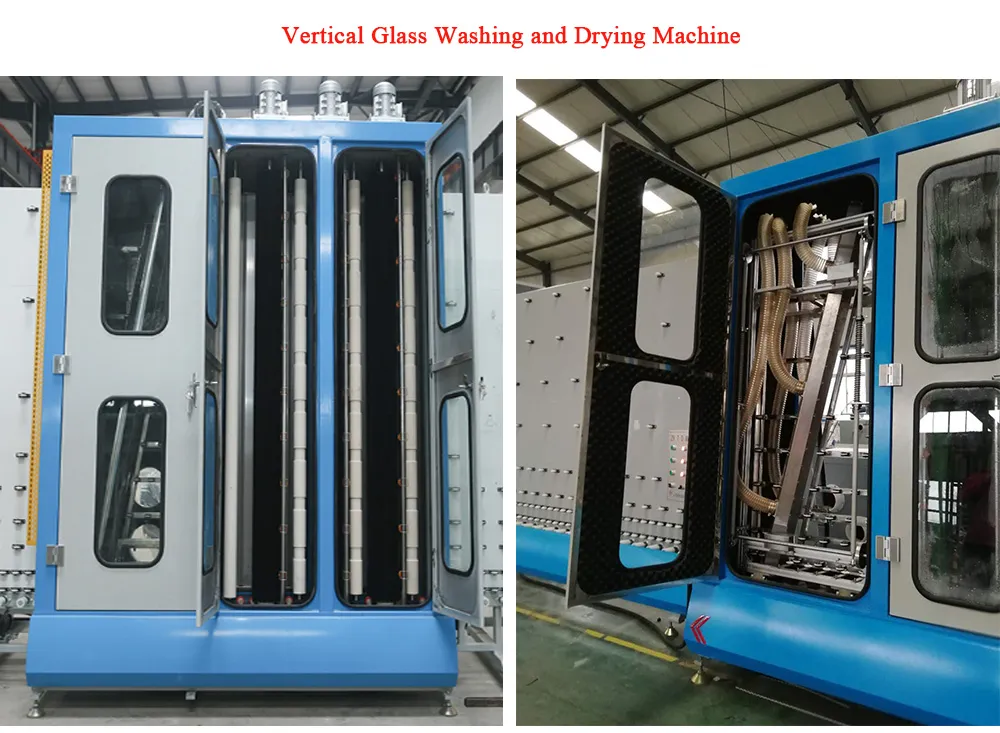

| Washing speed | 3-10 m/min |

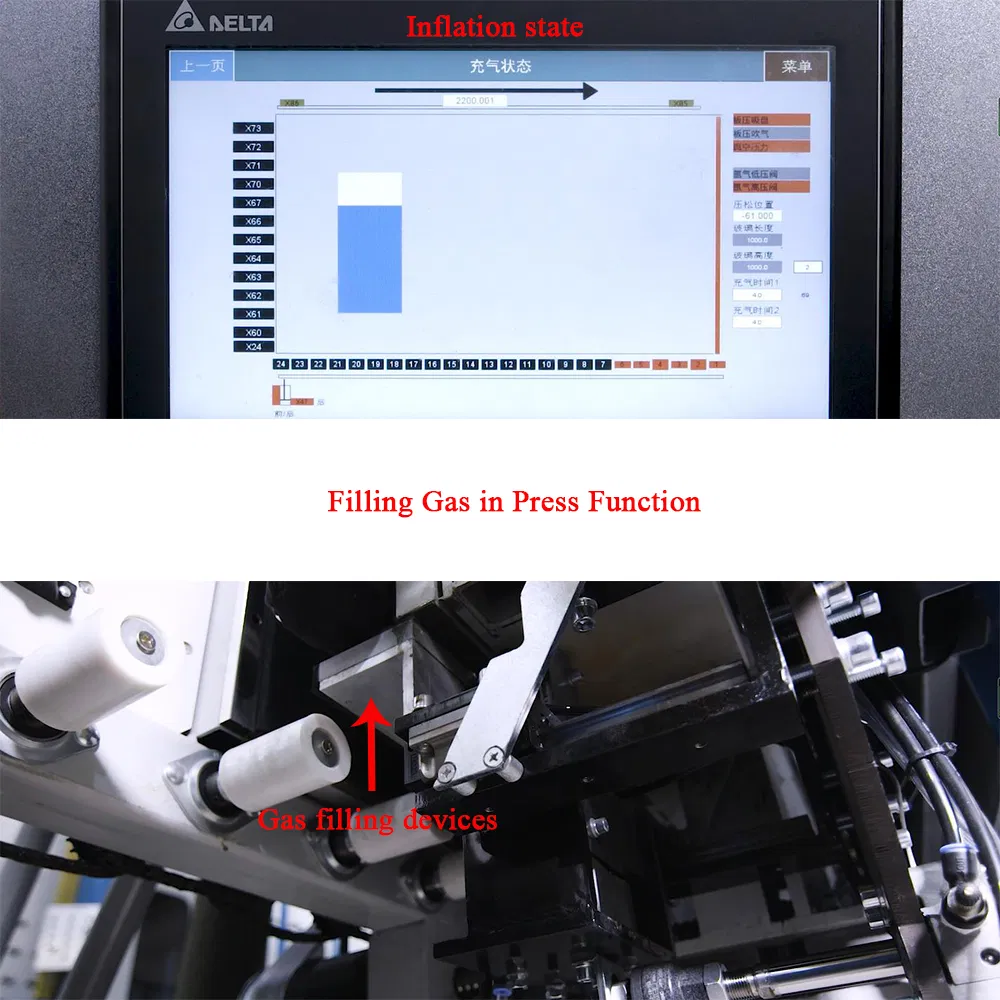

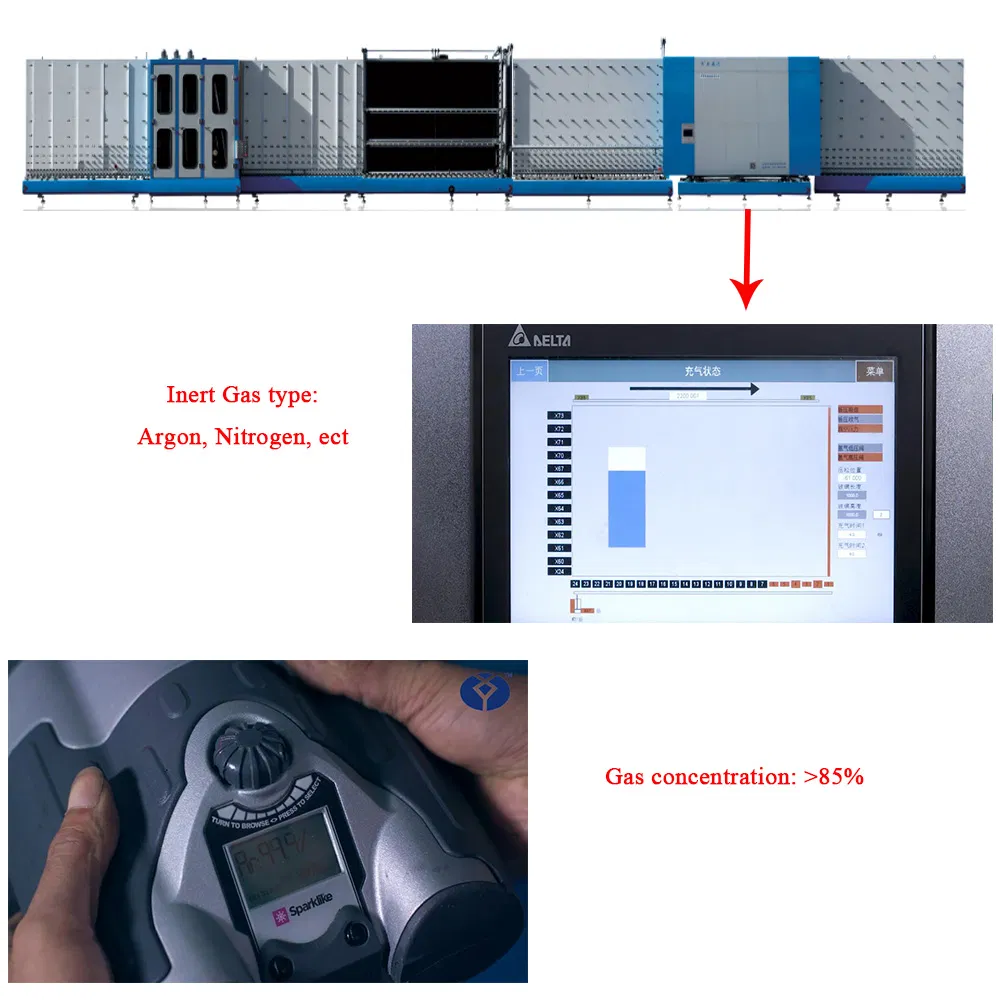

| Inert gas concentration | More than 90% |
| Total Weight | 10500 Kg |
| Outline dimension | 24600*2500*3680 mm |
Energy Saving & Protection:

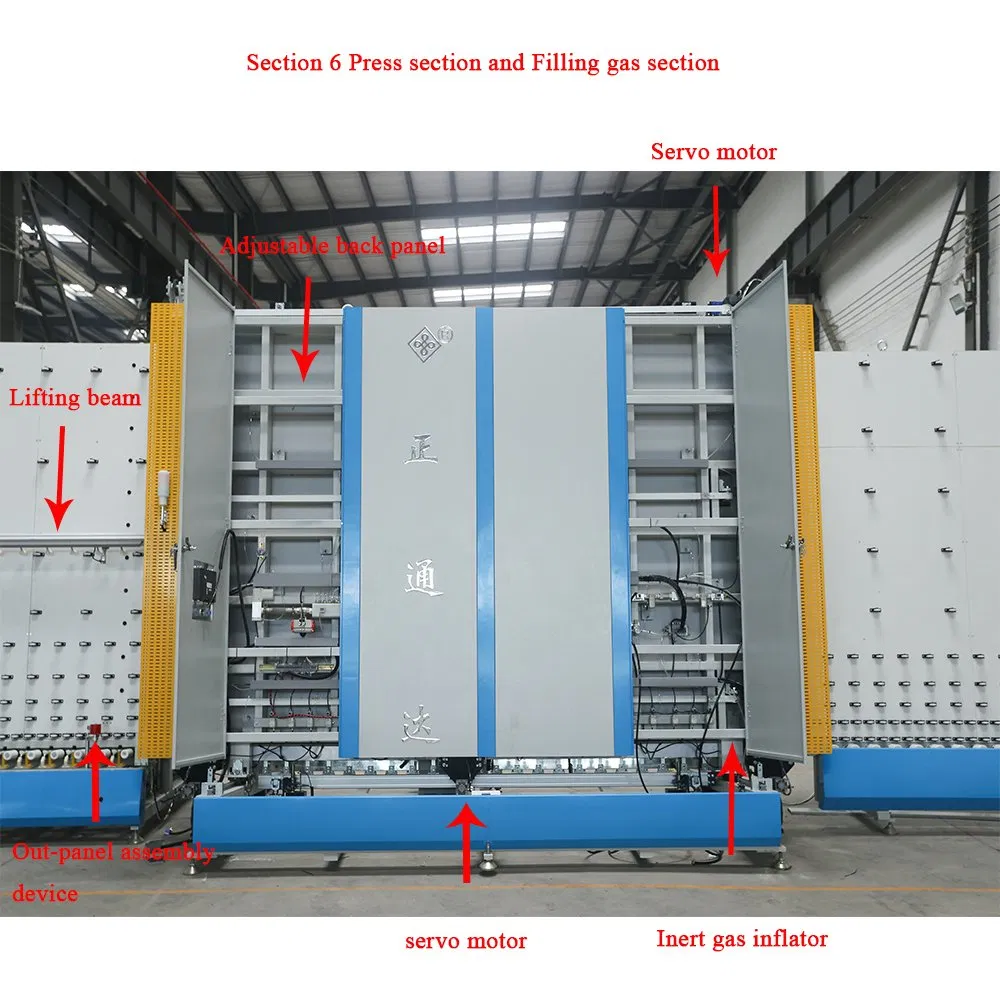

Precision Pressing & Filling:
As a high-tech enterprise founded in 2000, we specialize in high-grade insulating glass processing equipment. With over 20 years of experience and more than 5,000 production lines supplied globally, we provide integrated solutions from research and development to sales.
