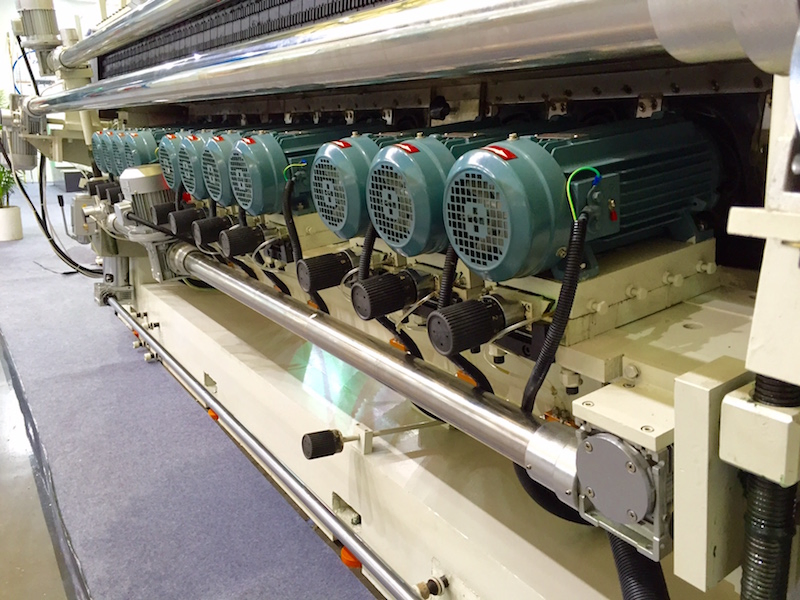

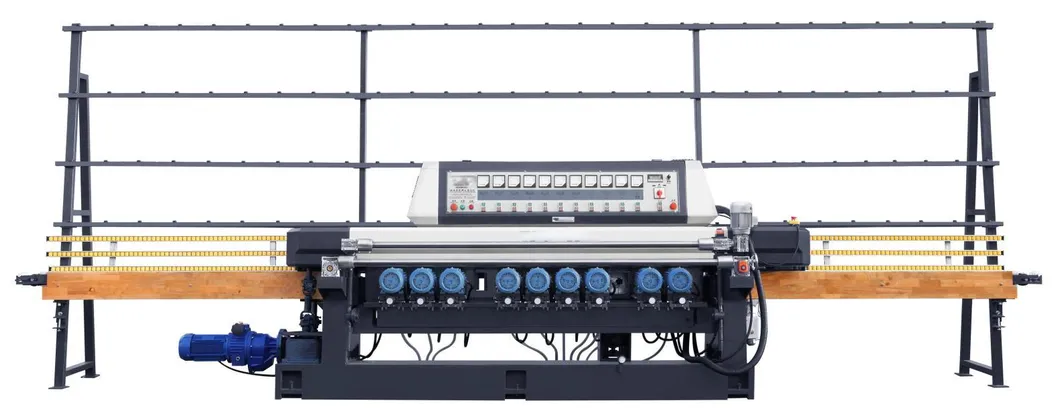

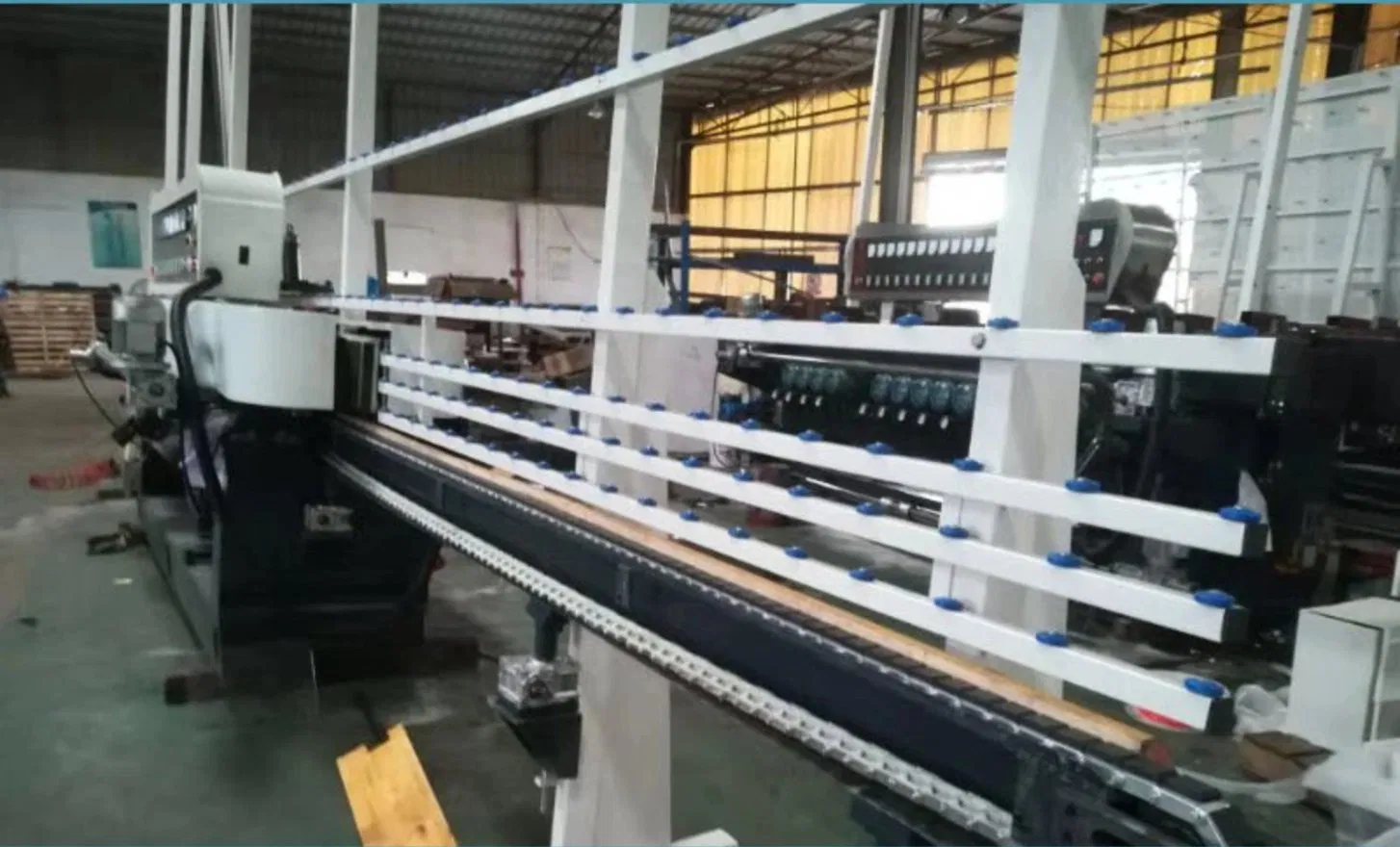

This machine is suitable for edging and polishing of flat glass's bevel and bottom edge in bulk, combining bevel edge's coarse grinding, fine grinding and polishing with bottom edge's grinding at one time. The clamp plate using the forging parts, middle splint are refined with 40cr materials, so their wear ability can reach an incalculable limitation. In addition, the motors adopts international famous brand. Overall, this is a practical beveling machine made up of good-quality components.
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Size | φ150 | φ150 | φ175 | φ150 | φ150 | φ150 | φ150 | φ150 | φ150 | Φ150 |
| Type | diamond wheel | diamond wheel | round wheel | resin wheel | resin wheel | resin wheel | Polishing wheels | felt wheel | felt wheel | felt wheel |
| Model | JGXM361 |
| Power Supply | 380V/50HZ |
| Power | 24KW |
| Max. Bevel Width | 35mm |
| Min. Glass Size | 80*80mm |
| Glass Thickness | 3-12mm |
| Weight | 3800KG |
| Bevel Angle | 0-27° |
| Transmission | Stepless speed regulation |
| Process Speed | 0.7-3.5m/min |
| Machine Size | 7000*1200*2500mm |
| Glass Parallel Error | ±0.2mm/m |
| Component | Description | Supplier/Material |
|---|---|---|
| Electric Machine | 380V/50Hz (1.5kw~2.2kw) | HuNan JinLong |
| Motor | Main Drive | AnHua |
| Conveyor Drive | 2.2KW variable frequency | GuangDong JinJiang |
| Main Bearing | High Precision | NSK / TaiWan ShangYin |
| Reduction Gears | Standard | MengKaTe |
| Girder, Base | Annealing treatment | Cast Iron |
| Motor Tank | Materials | Stainless Steel |

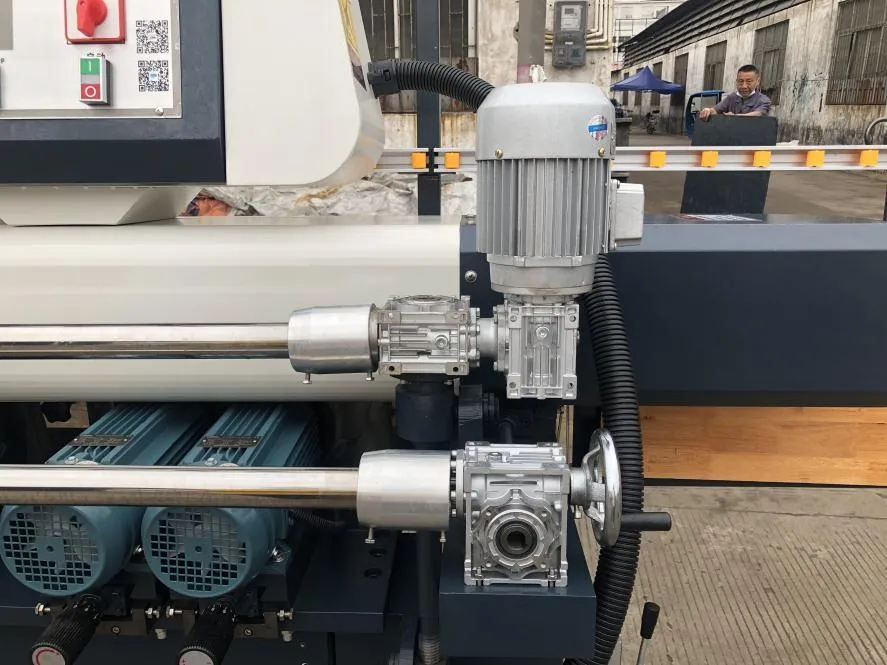

The swing drive motor, the angle of the swing frame is electrically adjusted, and the processing thickness can be adjusted manually or automatically, and can be operated with reference to the thickness display.

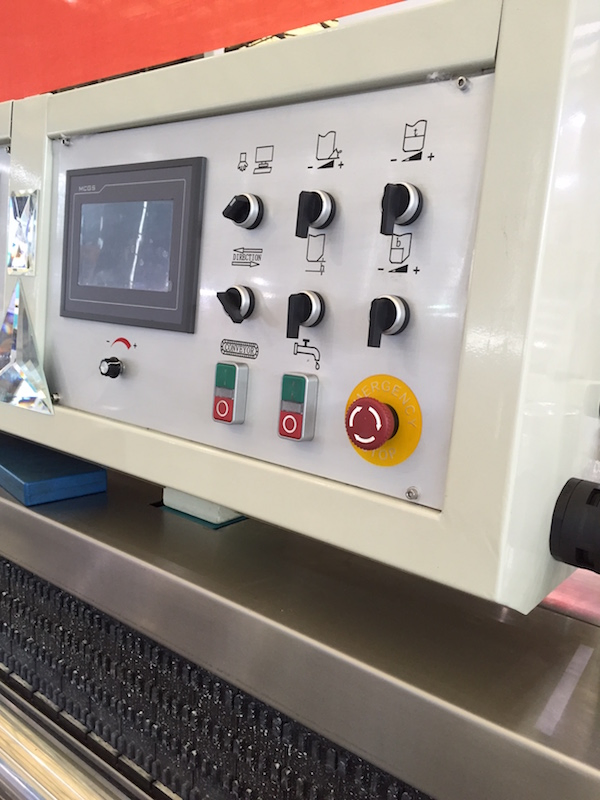

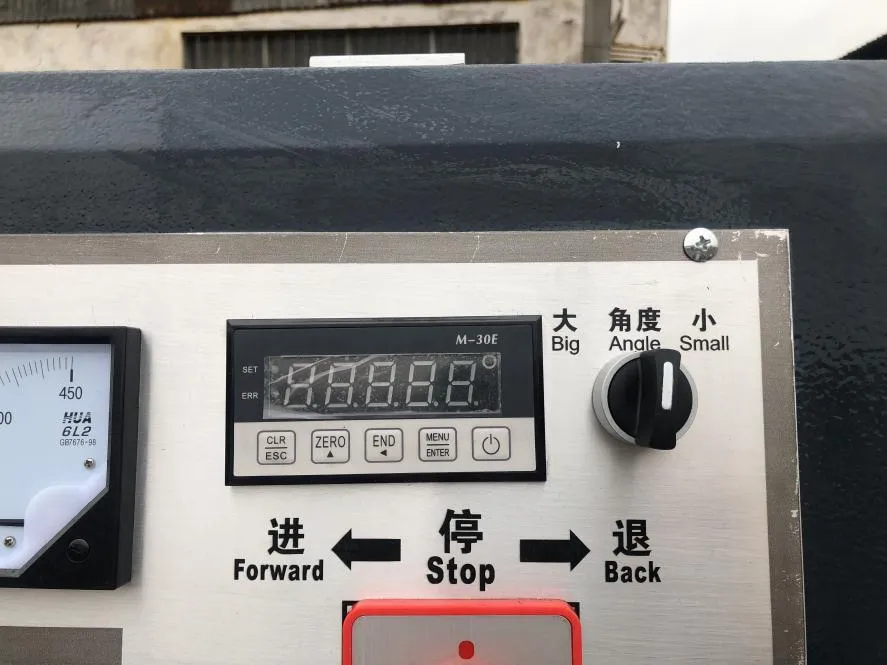

The angle adjustment electronic display makes the operation more convenient and the display more intuitive.

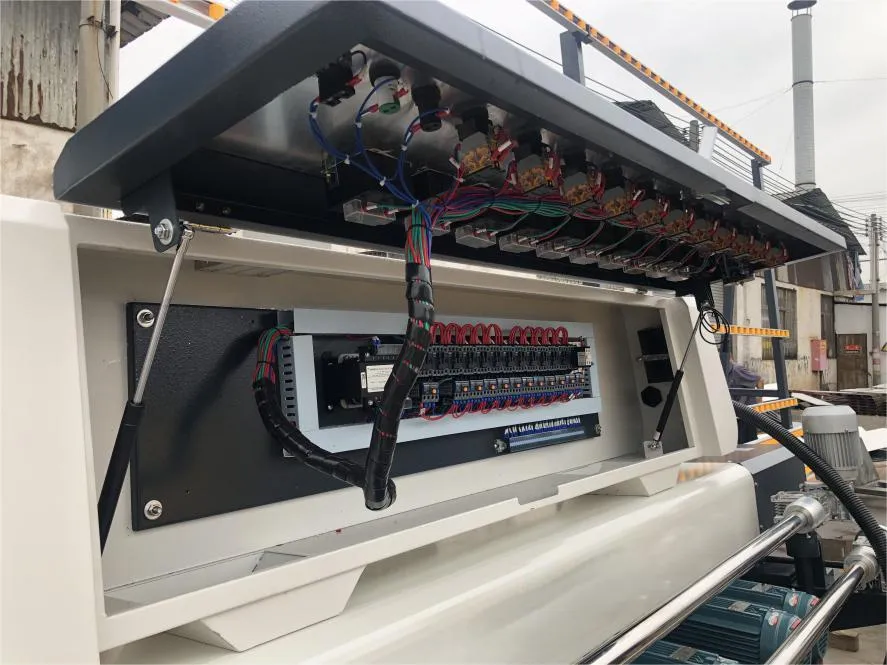

Overload protection circuit: when the motor is overloaded, the machine will automatically stop motors, which provides safety for the motors and operators.

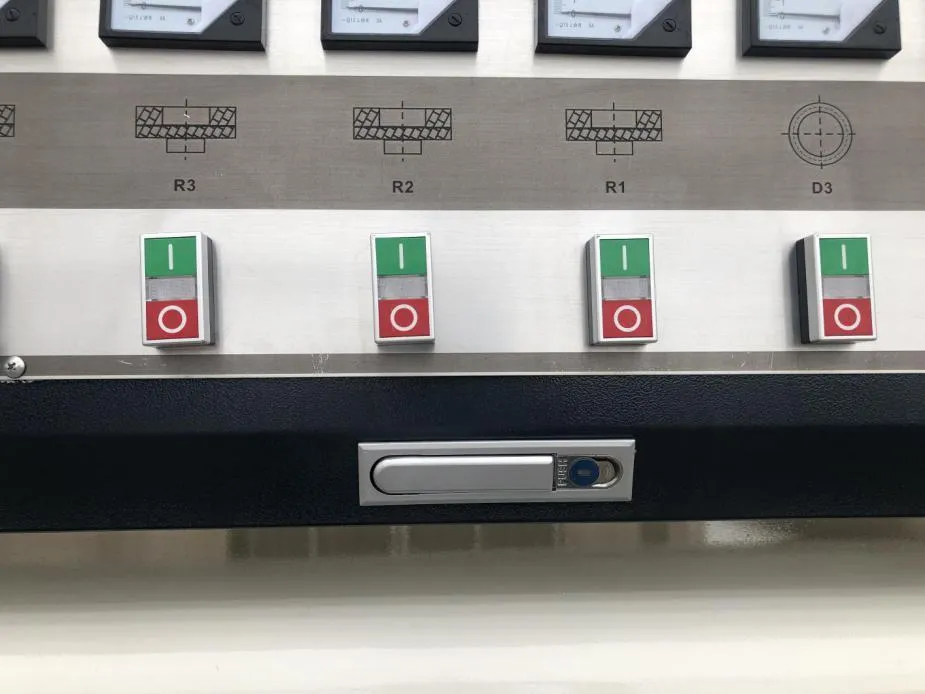

The electric box adopts the pneumatic opening and closing method with a safety lock added to ensure the safety of the operator. This design improves efficiency and safety standards.

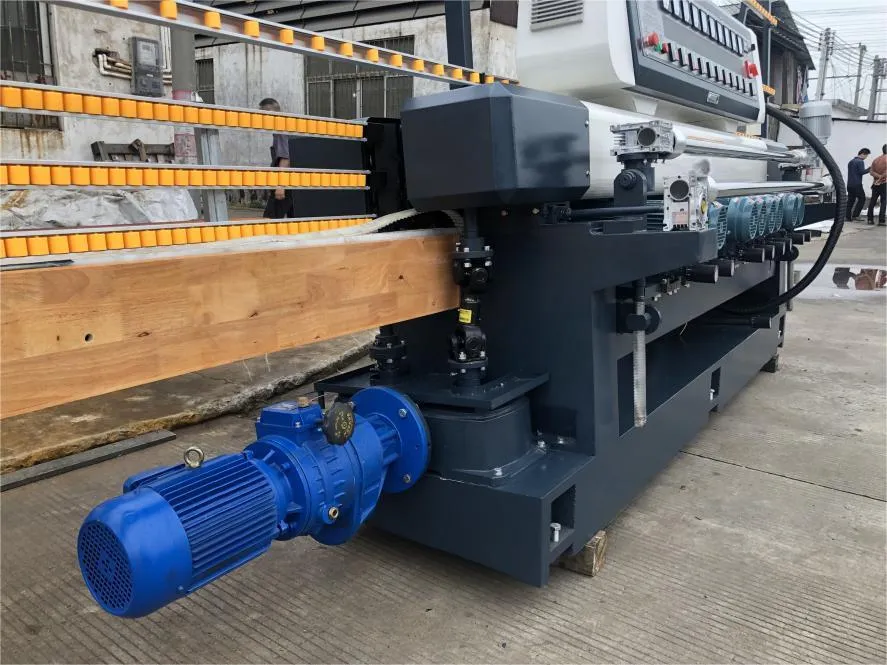

Using stepless speed regulating motor, it can control processing speed, work efficiency and high performance stability.
