Home > Glass Bottle Making Production Line > High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
1 / 5
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line
High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line

High-Speed Glass Bottle Beer Filling Machine Making Machine Production Line

Customization: Available
After-sales Service: Provide After Sale Services
Warranty: 24 Monthes
Send Inquiry

Product Description

i

Overview - Basic Information

Model NO.:PJ8
Type:Isobaric Filling
Automatic Grade:Automatic
Material Type:Liquid
Filling Valve Head:Multi-Head
Structure:Rotary
Packaging:Bottle
Filling Accuracy:1%
Filling Speed:2000-24000bph
Controller:PLC Touch Screen
Machine Material:SUS304/316
Bottle Type:Glass Bottle, Pet Bottle
P

Packaging & Delivery

Package Size:4000.00cm * 2500.00cm * 2500.00cm
Package Gross Weight:4000.000kg
D

Product Description

Glass Bottle Beer Filling Machine

The Beer Bottling Line adopts advanced international technology. The design is scientific and reasonable, appearance is beautiful, operation and maintenance are convenient, and it features a high degree of automation. It is the ideal machine choice for beverage filling factories.

Production Line Features

Main Features:

  • ✓ 2 times vacuum and 2 times CO2 injection with foaming device to reduce oxygen content (<50ppb).
  • ✓ Space-saving design: bottle washing, filling, and capping combined into one machine.
  • ✓ High-quality filling valves ensuring precision.
  • ✓ Replaceable star wheels suitable for various bottle types.
  • ✓ Intelligent sensors: no bottle, no washing/filling/capping.
  • ✓ English operation interface for Electric box and PLC Control panel.
T

Technical Parameters

Model Capacity (BPH) Motor Power (kw) Dimension (L*W*H) Weight (kg)
BCGF6-6-1400-6002kw1600*1200*2200mm2500
BCGF14-12-41200-18002.2kw2000*1800*2200mm3000
BCGF18-18-63000-40003.7kw2460*1720*2650mm3500
BCGF24-24-85000-60005.5kw3100*2100*2650mm4500
BCGF32-32-107000-80006.5kw3500*2500*2650mm5600
BCGF40-40-128000-90007.5kw4600*3300*2650mm6800
BCGF50-50-1213000-1500011kw5300*4500*3400mm7600
BCGF60-60-1518000-2000015kw6500*4500*3400mm9800
Filling Process: Washing bottle → CO2 into bottle → Vacuum → CO2 → Vacuum → Filling Beer → Capping
V

Detailed View

Washing Parts

Washing Parts

The rotatory bottle-rinsing machine features synchronized clipping and turning functions. It includes a "no bottle, no rinse" sensor system to prevent water waste.

Filling Parts

Filling Parts

Adopting neck-holding technology and high-precision centralizing covers, this system ensures perfect alignment between the bottle mouth and filling valve, minimizing liquid loss.

Capping Parts

Capping Parts

Equipped with magnetic force crowning, the torque can be adjusted to handle various types of caps (crown or screw) with constant and powerful sealing force.

C

Company Overview

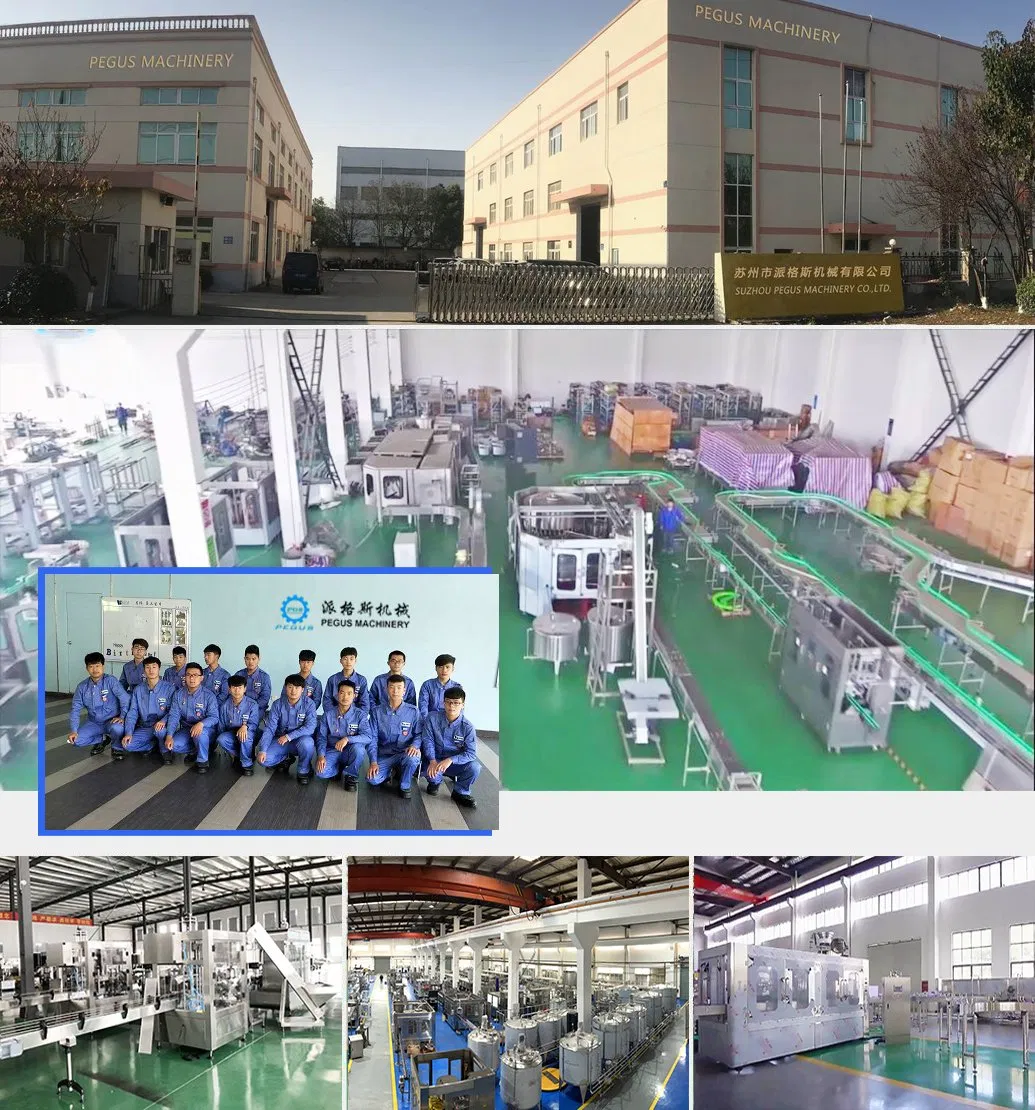

Company Facilities
?

Frequently Asked Questions

1. What types of bottles can this machine handle? The machine is designed to handle both glass bottles and PET bottles by using replaceable star wheels.
2. How does the machine prevent beer oxidation? It utilizes a double vacuum and double CO2 injection process, along with a foaming device to remove air from the bottle neck, keeping oxygen content below 50ppb.
3. Is the filling accuracy high? Yes, the machine features high-precision isobaric filling valves with a filling accuracy of approximately 1%.
4. What is the production capacity of the line? Production capacity ranges from 400 BPH for small models up to 20,000 BPH for high-speed industrial models.
5. Is it easy for operators to use the control system? Yes, the machine is equipped with a PLC touch screen and features a full English operation interface for easy monitoring and adjustment.
6. What happens if a bottle breaks during the process? The machine is designed to flush broken bottles out of the base automatically, ensuring the next filling cycle is not affected.
