Low-Energy Consumption High-Speed Glass Double Edging Machine for Mixed-Size-Glass Processing

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	10-15 m/min

Basic Info

Model NO.	FSM	Processing Thickness	5-25 mm
Voltage	380V	Warranty	One Year
Product Name	Glass Edging Machine	Keywords	Double Edger Machine
Glass Thickness	3-25mm	Max.Edge Grinding	5mm
Max.Chamfer Grinding	2mm	Working Speed	1-30m /Min
Parallel Error	≤0.2mm /M	Diagnial Error	≤0.5mm /M
Air Pressure	≥0.6MPa	Single Machine Power	74kw(24motors)
Production Capacity	5000 Sets/Year	Size Changing Speed	1-18m /Min

Product Description

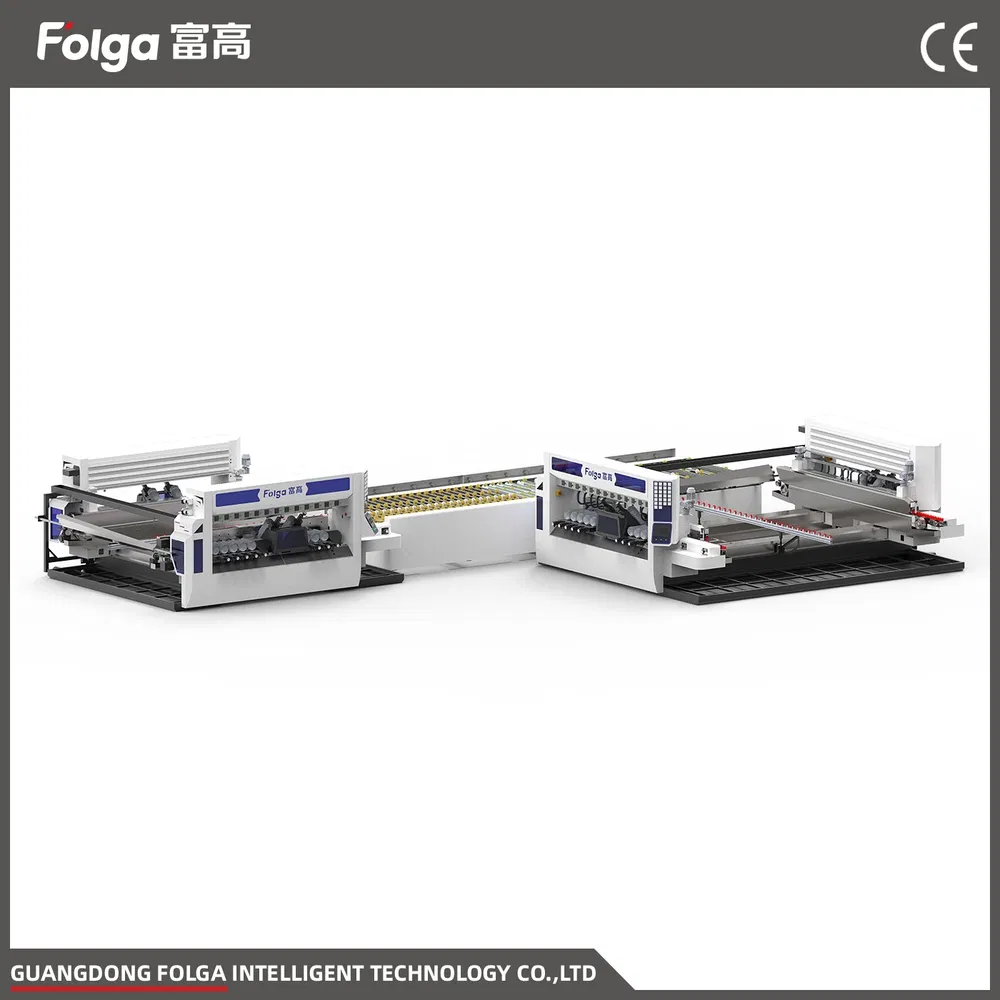

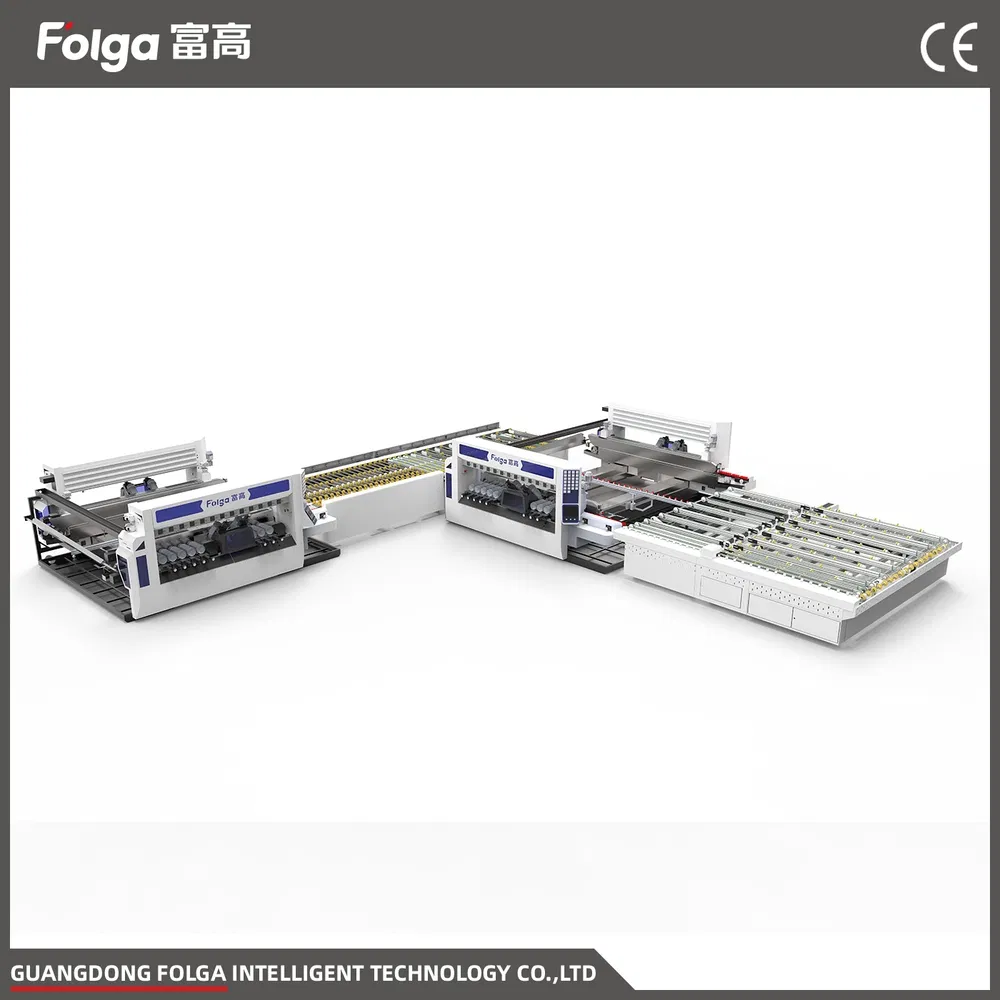

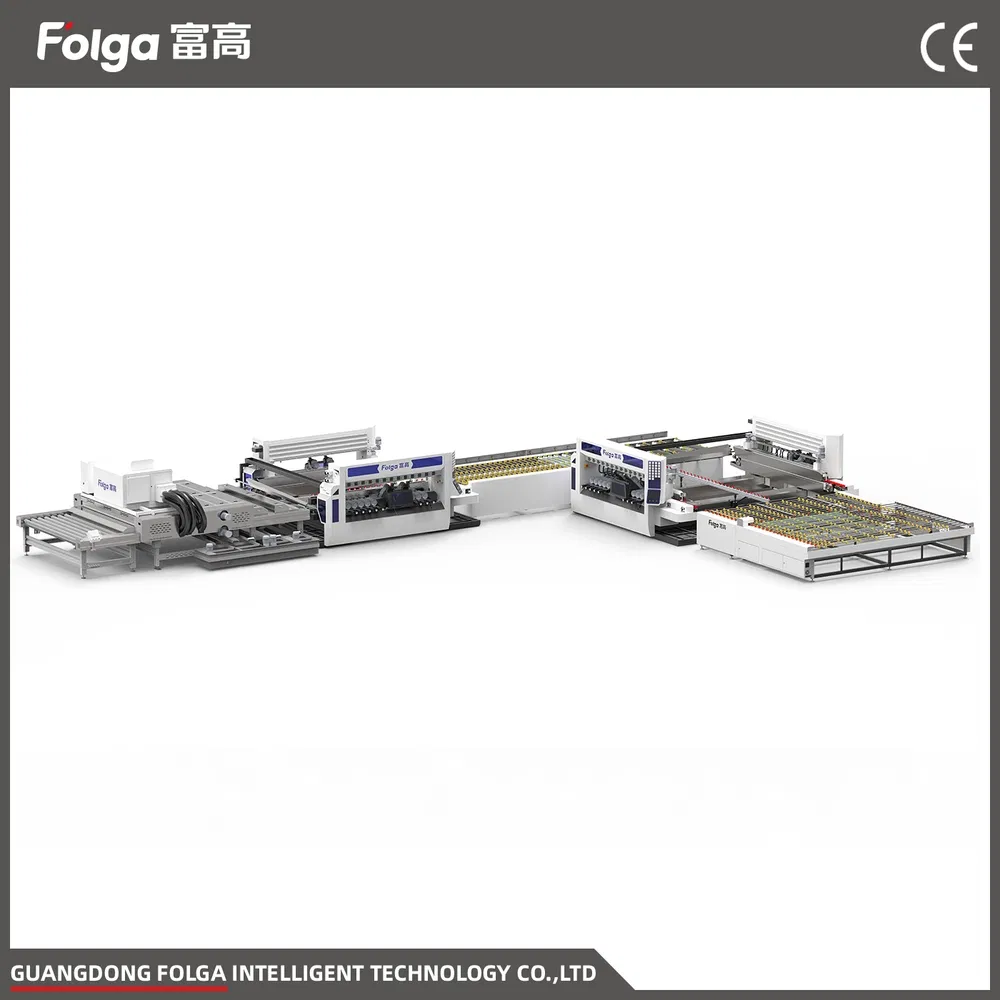

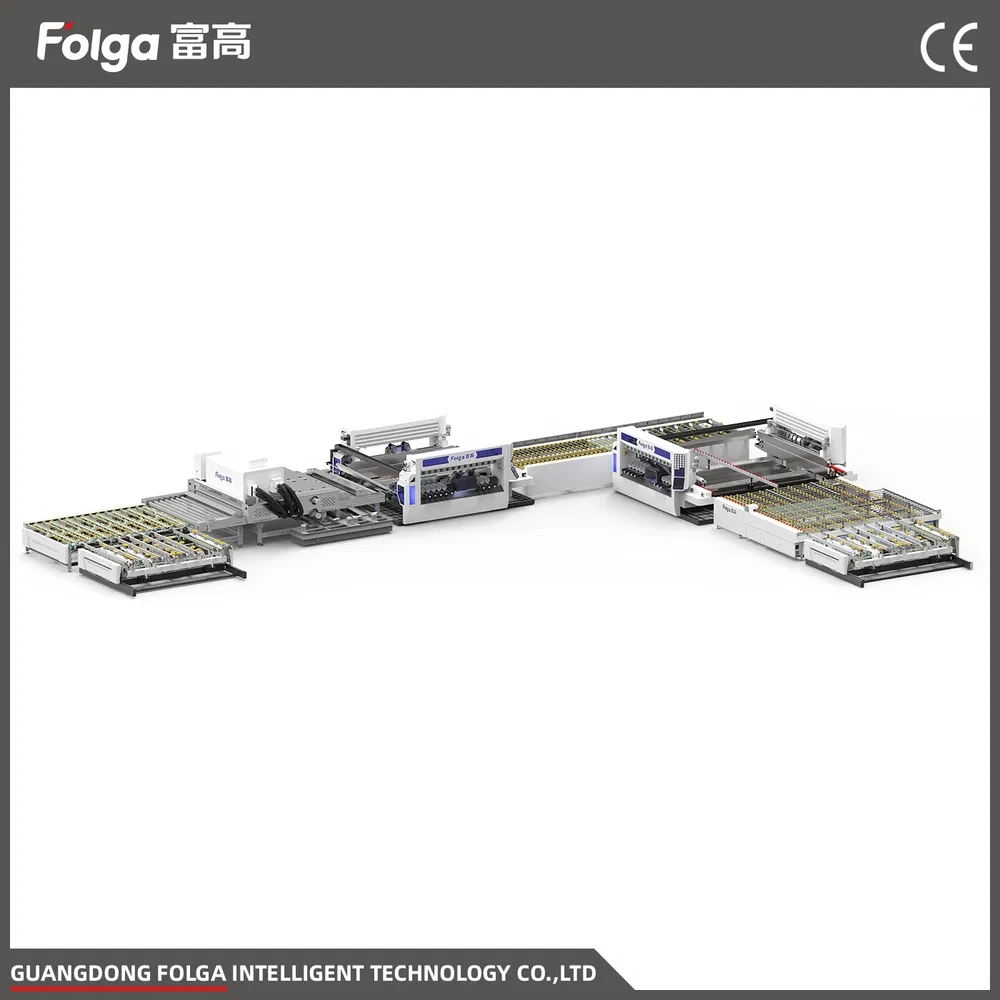

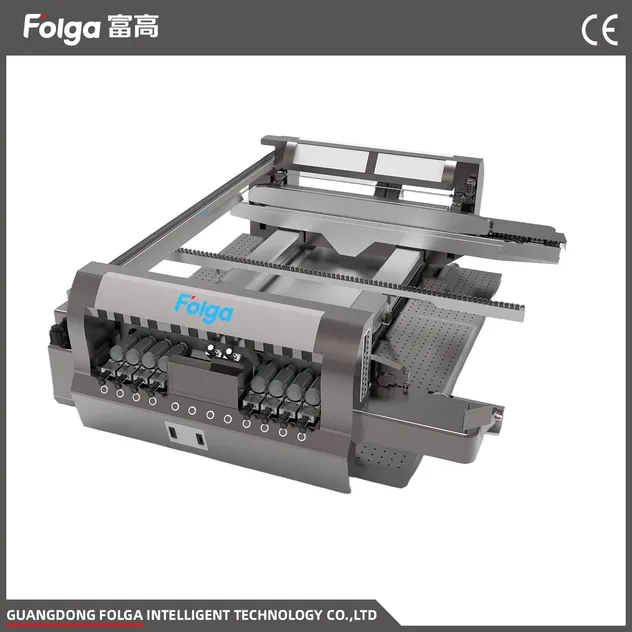

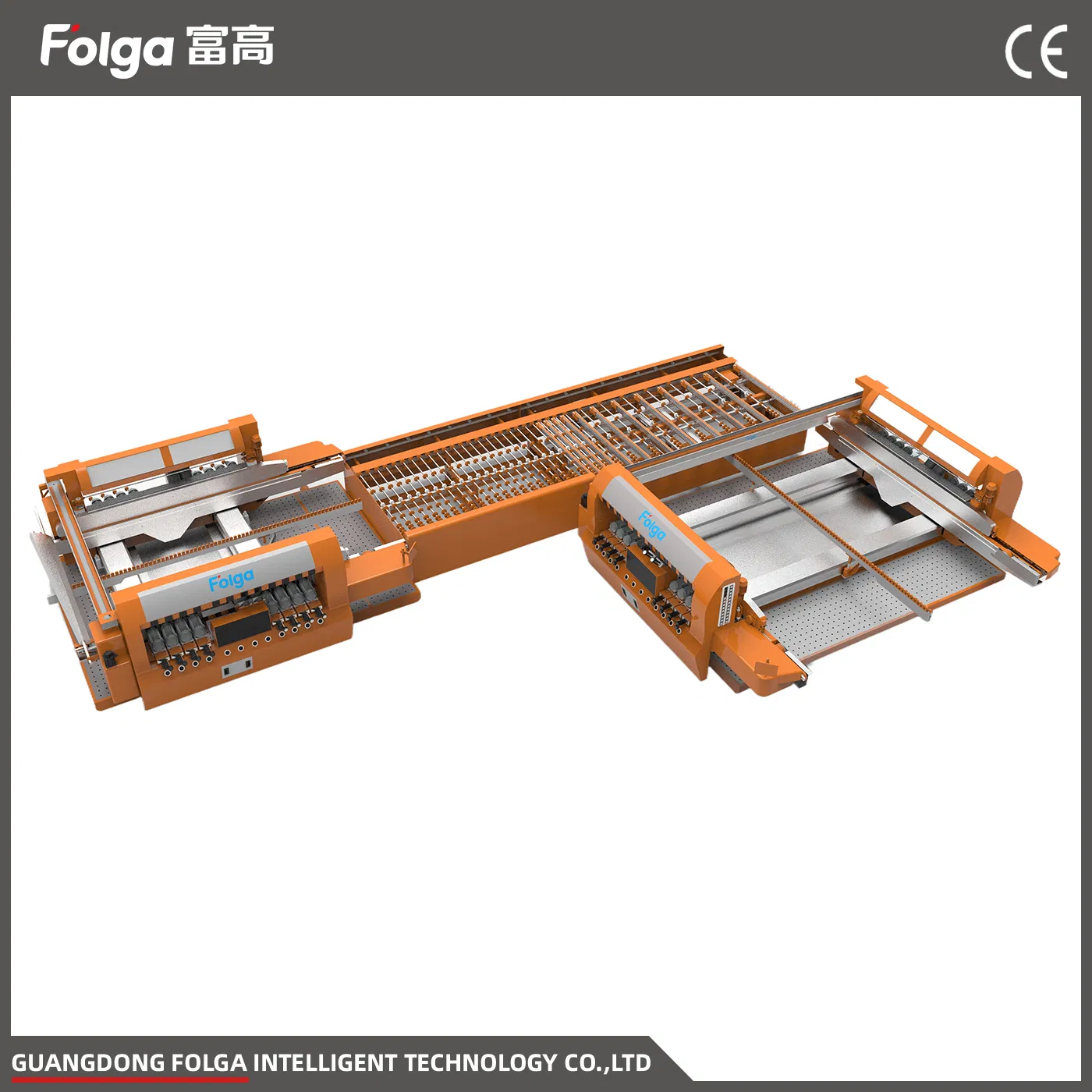

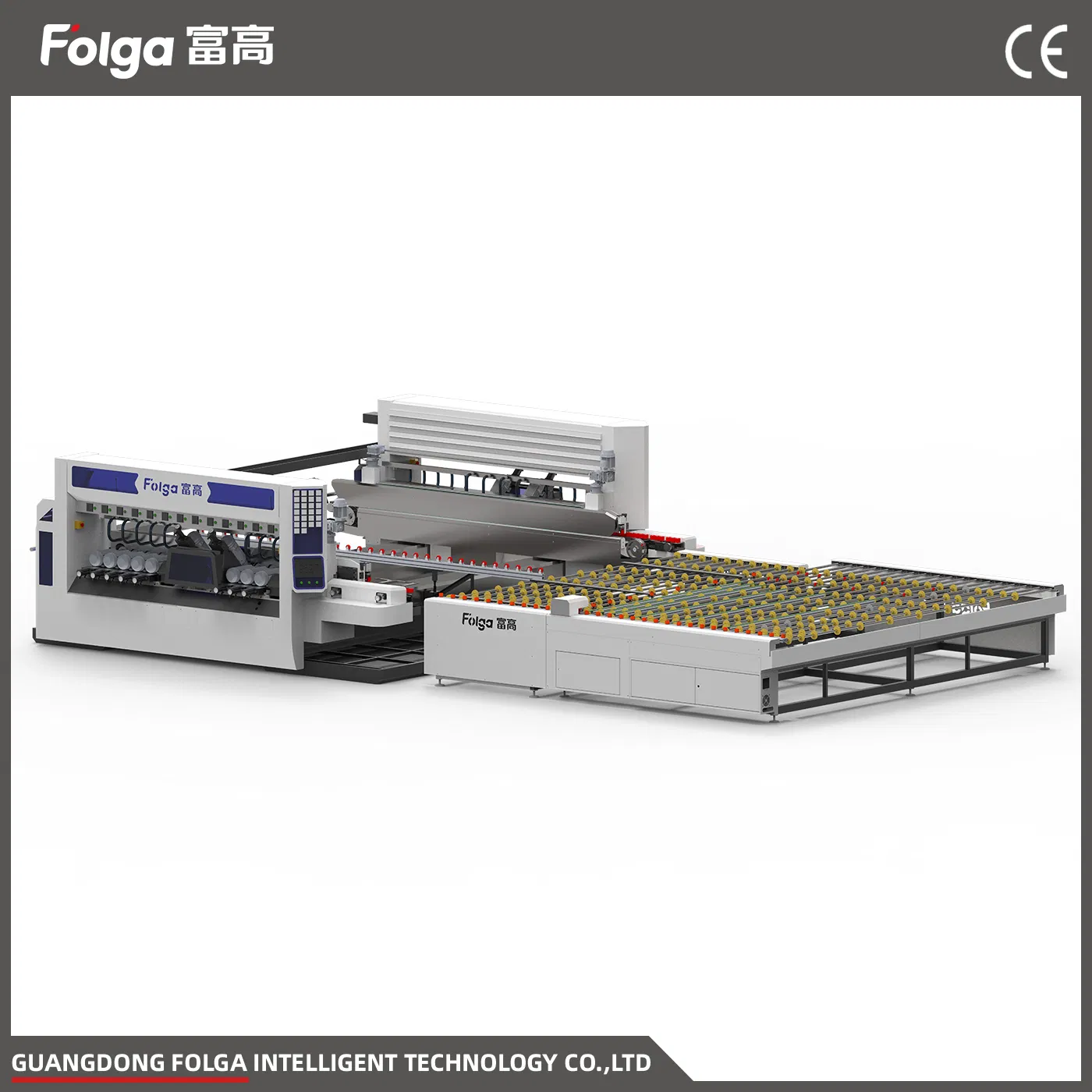

GLASS DOUBLE EDGING MACHINE

The FSM Series Glass Double Edging Machine is a high-performance automatic double edger line engineered for precision glass processing in industrial applications. This straight line double-edge grinding machine combines economy, high efficiency, and exceptional accuracy to deliver superior edging results for building glass, furniture glass, and window & door glass.

Featuring advanced servo system control and PLC automation, our glass bilateral edging machine automatically measures glass dimensions and adjusts processing parameters for mixed or uniform size production.

Automatic Glass Dimension Detection

Equipped with an intelligent measuring table that automatically measures glass length, width, and thickness without manual input, enabling seamless processing of mixed-size batches with enhanced capacity and efficiency.

Servo-Driven Size Adjustment

Features a double screw rod and a linear guide rail structure with a servo system drive for automatic opening/closing with excellent repositioning accuracy and stability.

Dual Grinding Configuration

Double dovetail guide rail base for coarse grinding motor ensures stability, with manual-automatic servo compensation integration for optimal grinding performance across varying glass thicknesses.

Specification

TECHNICAL PARAMETERS
Product Name	Glass Edging Machine
Glass Thickness	3-25mm
Max.Edge Grinding	5mm
Max.Chamfer Grinding	2mm
Working Speed	1-30m /min
Size Changing Speed	1-18m /min
Parallel Error	≤0.2mm /m
Diagnial Error	≤0.5mm /m
Air Pressure	≥0.6Mpa
Single Machine Power	74kw(24motors)

Detailed Features

45° AUTOMATIC CHAMFERING

Integrated automatic lifting device for upper chamfering with accurate positioning and effortless operation for beveled edge applications.

AUTOMATIC CLAMPING FRAME LIFTING

Features 150mm vertical travel range for rapid and convenient grinding wheel replacement, minimizing downtime and maintenance time.

DOUBLE SERVO DRIVE SYSTEM

Main transmission is powered by dual servo motors for reliable performance, simplified timing belt replacement, and reduced maintenance requirements.

PLC & HMI INTEGRATION

User-friendly human-computer interface with PLC control system delivers intuitive operation and high automation levels for operators of all skill levels.

FAQ

What are your main products?

We mainly produce glass single edging machine, glass double edging machine, and glass seaming machine. We also offer other glass machines such as washing machines, loading & unloading machines, irregular glass shaping machines, and drilling machines.

Are you available to dispatch engineers for on-site installation & training?

Yes, global installation services and professional training are available.

Can you customize the machine size for JUMBO glass?

Yes, we can customize the glass machine size based on your specific production requirements.

What kind of glass do your machines process?

Our machines are capable of processing all kinds of glass with either shiny polishing or matte grinding. We recommend the optimum machine based on your needs.

What is your support process if a machine has a problem?

We respond within 8 hours. Within 24 hours, engineers provide troubleshooting steps via group communication. If necessary, spare parts are sent rapidly via DHL or other express services.

How is the technical stability of your equipment ensured?

With a long history in manufacturing, we ensure stable technology, high quality, and prompt after-sales response through strong engineering and rigorous testing.
