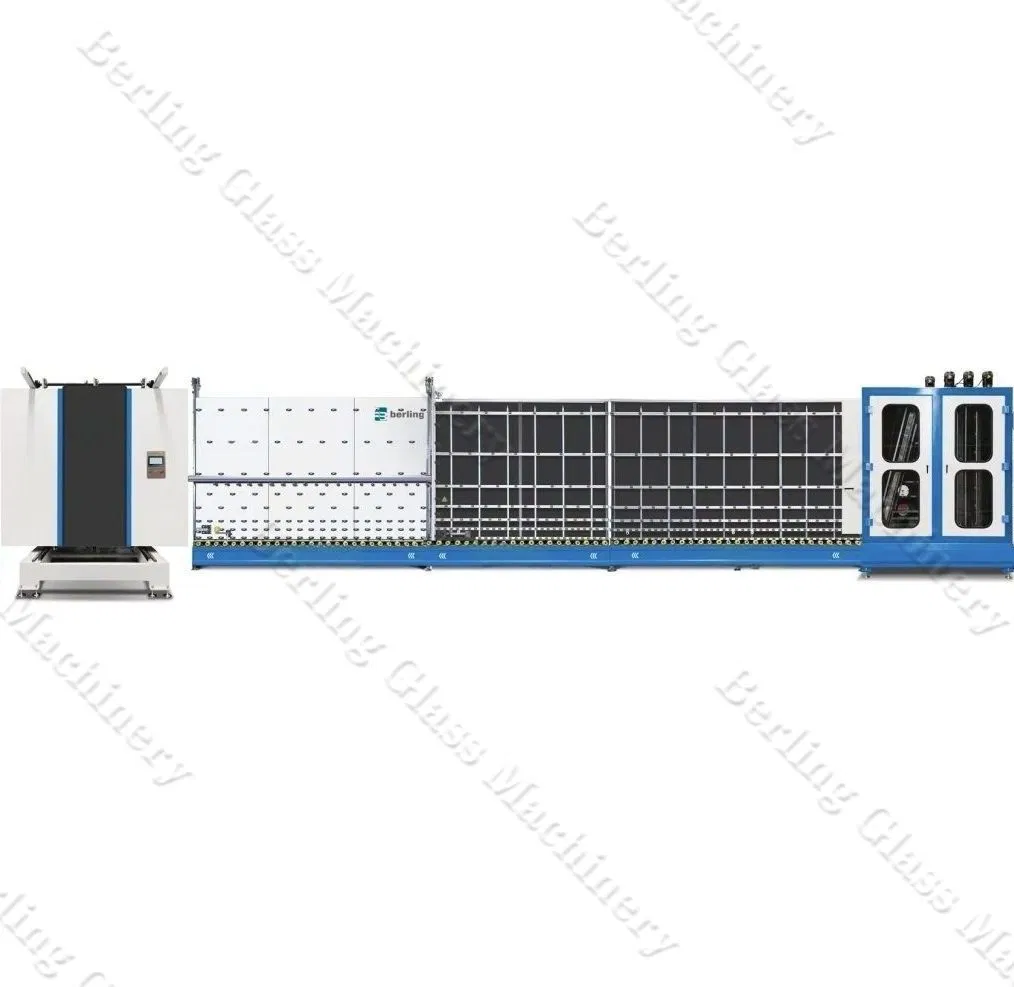

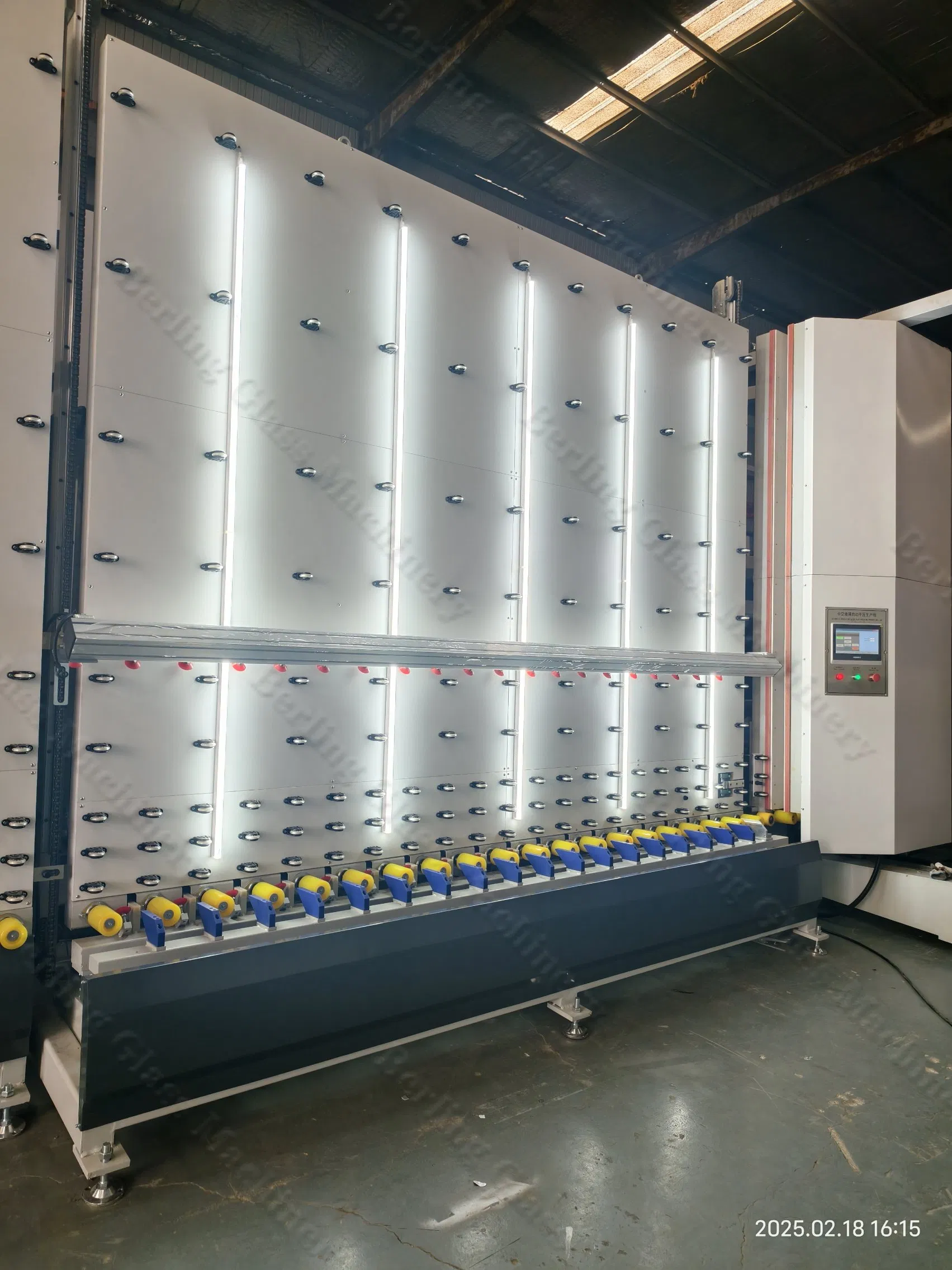

High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
1 / 5
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment
High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment

High-Speed Vertical Glass Washing and Drying Machine for Igu Processing Equipment

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Specifications

Model NO.BLBG2030
Glass Thickness3-12mm
Max Glass Size2000*3000mm
Min Glass Size200*300mm
Working Speed2-40m/Min
Total Power36kw
Voltage380V/50Hz
Core ComponentsMotor, PLC, Pump
HS Code8464901900

Product Description

Vertical Glass Washing and Drying Machine

Providing high-performance vertical insulating glass production lines for manufacturing double, triple, and structural glass units. These systems feature PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient IGU processing.

PLC Touchscreen Control - Easy operation and real-time monitoring.
Low-E Glass Detection - Omron sensors automatically identify coated glass.
Independent Brush Motors - Each brush is motor-driven for better cleaning.
Argon Gas Filling System - Servo-controlled, pressurized gas injection.
Flexible Assembly Modes - Supports both inner and outer press options.
Stainless Steel Build - Corrosion-resistant for industrial environments.
IGU Processing Detail
Machine Structure

Product Parameters

Item BLBG-3060 BLBG-2850 BLBG-2540 BLBG-2030
Total power90KW70KW46KW36KW
Max glass size3000*6000mm2800*5000mm2500*4000mm2000*3000mm
Min glass size280*450mm280*450mm280*450mm280*450mm
Panel thickness3~30mm3~12mm3~12mm3~12mm
Working Speed2-45m/min2-45m/min2-45m/min2-40m/min
Dimensions42000*3200*3900mm30500*3200*3900mm25300*3200*3600mm21000*3000*2910mm
High-Speed Vertical Glass Washing

Key Applications

  • Residential & commercial window IGU manufacturing
  • Curtain wall insulating glass unit production
  • Low-E energy-saving glass processing
  • Structural glass façade panel fabrication
  • Glass panel assembly and sealing in building industry
Application 1
Application 2

Quality & Support

Certifications
Packaging
Factory
Production
After Sales

Frequently Asked Questions

How is product quality guaranteed?
We always provide a pre-production sample before bulk production and conduct a final inspection before shipment to ensure high standards.
What types of machinery can I purchase?
Our range includes Insulated Glass Production Lines, Glass Cutting, Washing, Edging Machines, Tempering Furnaces, and Laminated Glass Production Lines.
Why should I choose your equipment over other suppliers?
We offer over 20 years of production experience, an excellent engineering team, professional after-sales service, and stable product quality proven in many global markets.
What delivery terms are accepted?
We support a wide range of terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery to accommodate different shipping needs.
What payment methods and currencies do you support?
Accepted currencies include USD, EUR, and CNY. Payment types include T/T, L/C, Credit Card, PayPal, and Western Union.
Is technical support available after the sale?
Yes, we have a professional after-sales service team dedicated to providing technical support and ensuring the long-term performance of your equipment.
