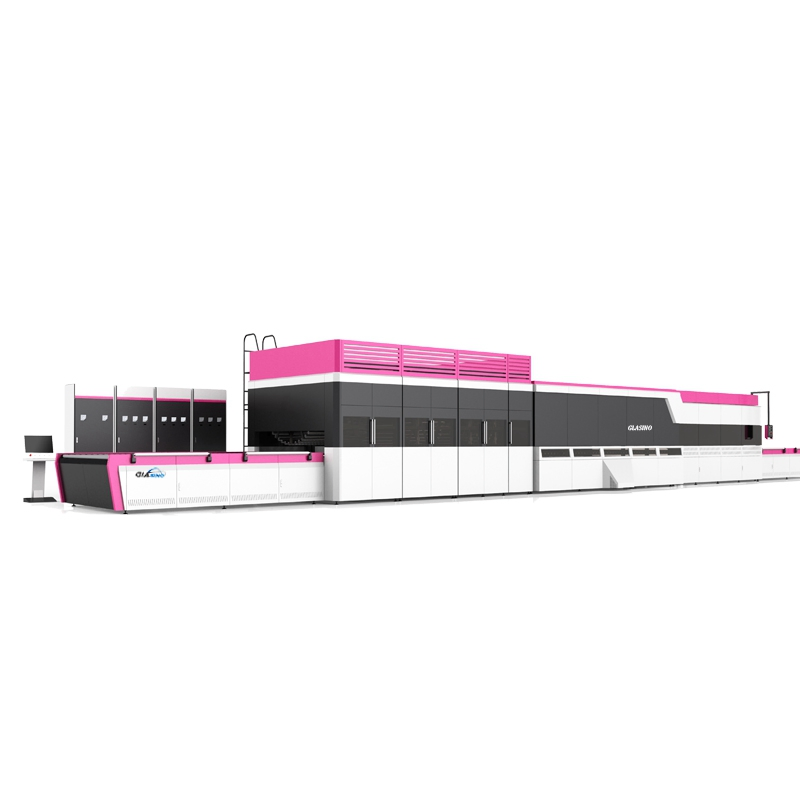

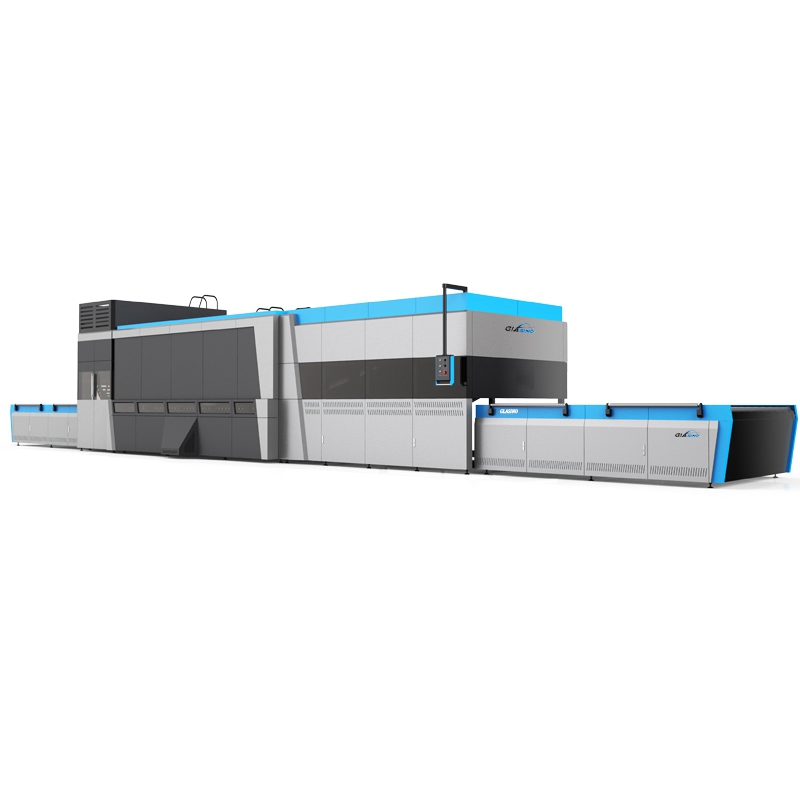

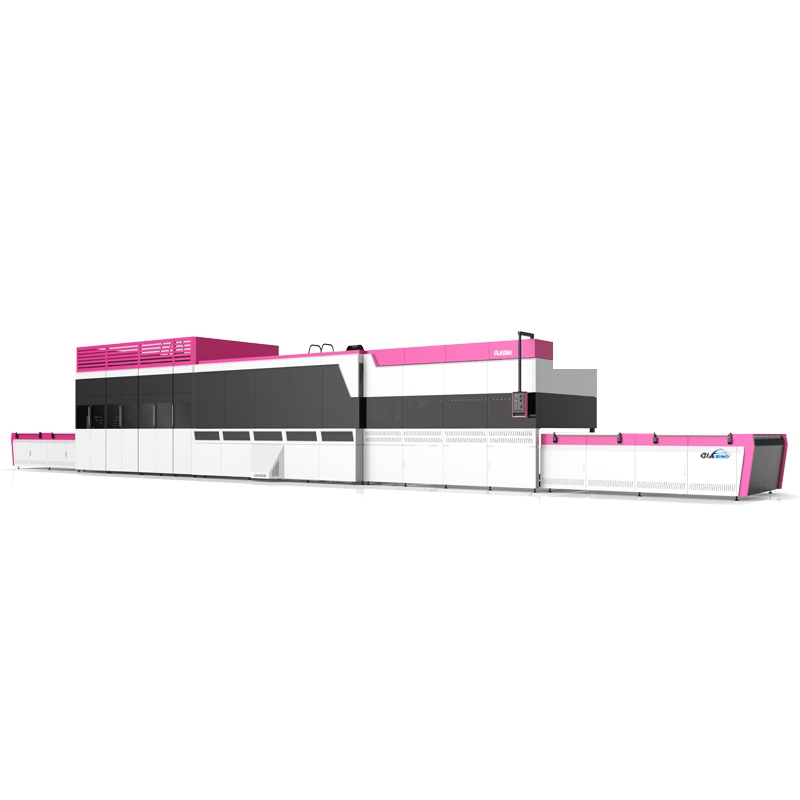

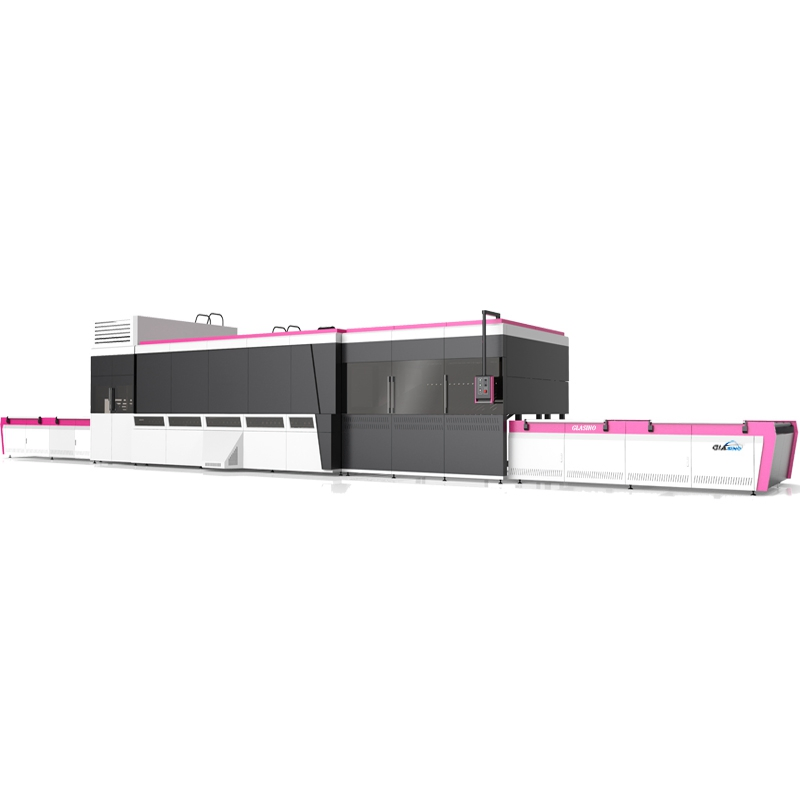

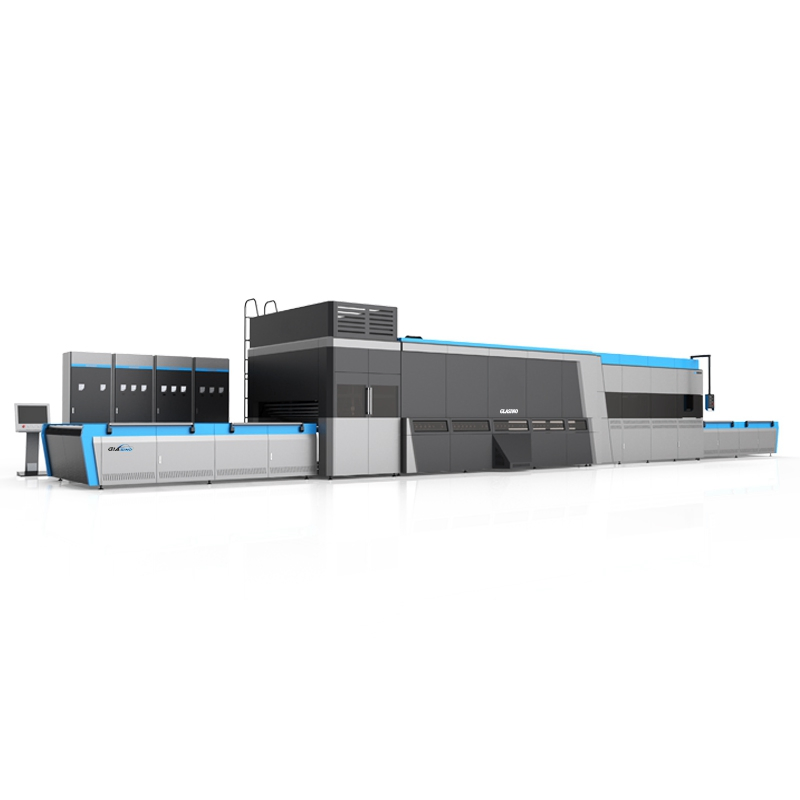

Horizontal/Bending Glass Tempering Machine/Furnace for Sale Glass Factory

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Basic Specifications

Model NO.

GS-TAQ2436/2442/3050

Warranty

12 Months

Product Name

Glass Tempering Furnace Machine

Function

Tempering Glass

Glass Thickness

4-19mm

Max Glass Size

2000*2500mm

Structure

Horizontal

Condition

New

After-sales Service

24 Hours

Origin

China

Capacity

80 Sets/Year

Main Features & Technology

Top installed special heat-proof convection fan for uniform heating.

Dual cooling and tempering blowers (larger and smaller KW) for high efficiency and energy saving.

Convection system constructed with top-quality heat-proof and antioxidant stainless steel.

Advanced blowing and trough-type design supporting 3.5mm to 19mm glass production.

Wide glass compatibility: off-line/on-line low-E, extra white, screen printed, pattern, color, and clear glass.

Computer-controlled curvature forming process with easy data input for specific radius requirements.

Automatic quench transmutation method—no mold required for forming.

Precision sensors for accurate glass length measurement.

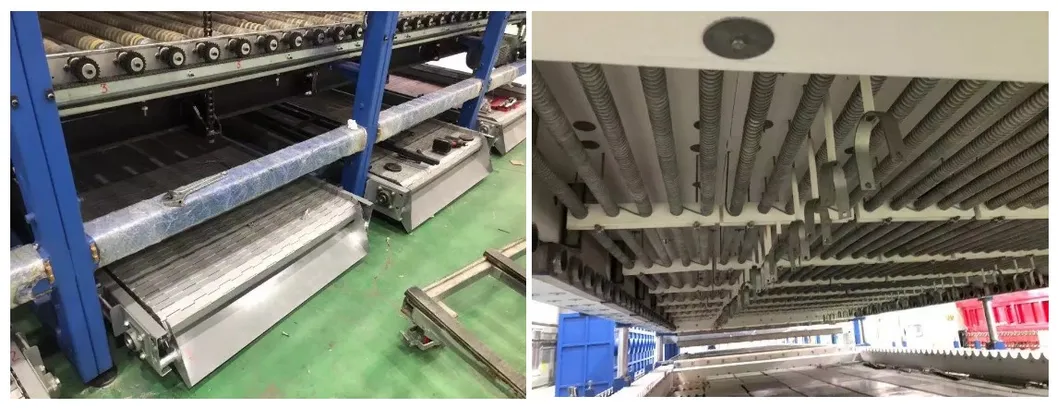

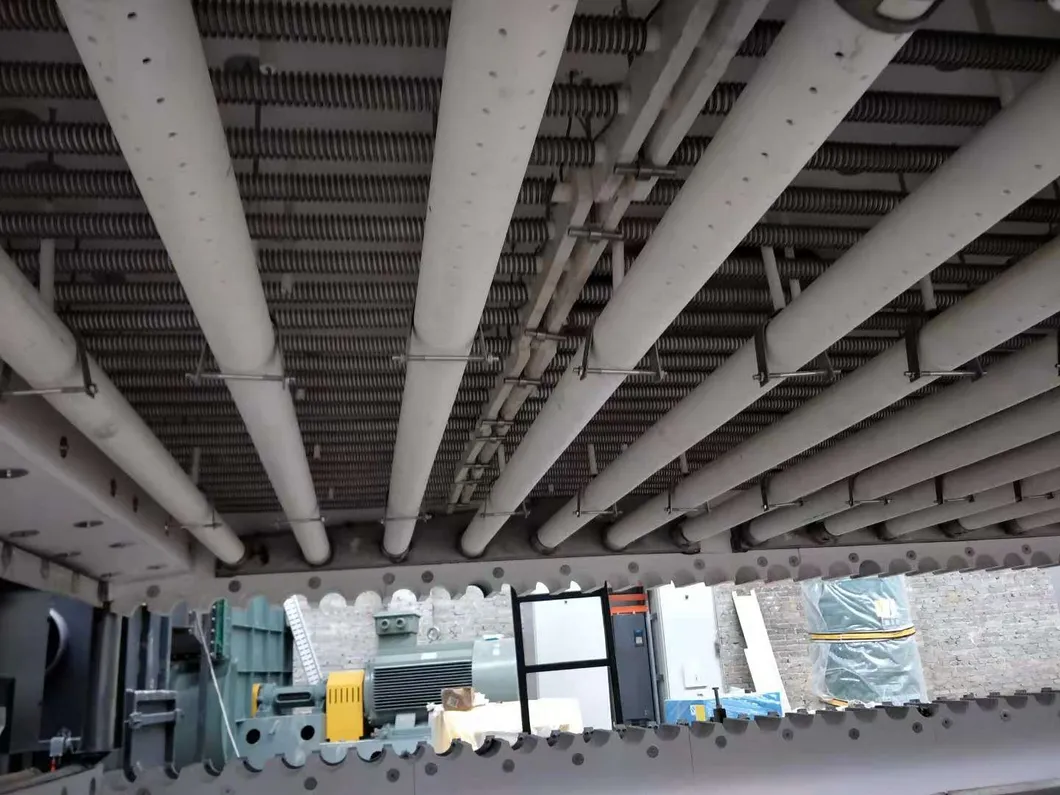

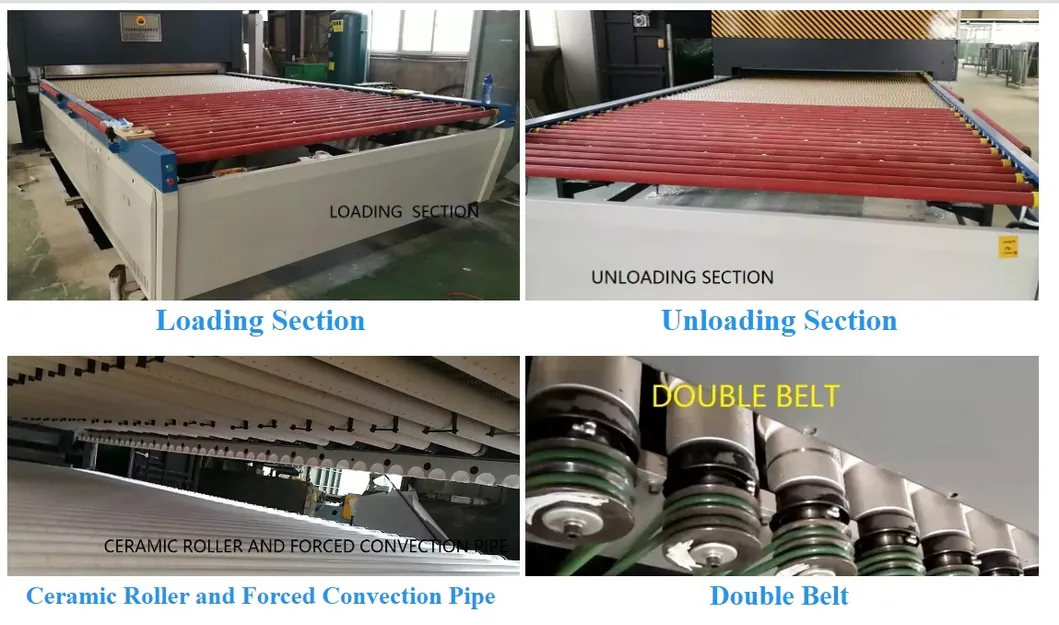

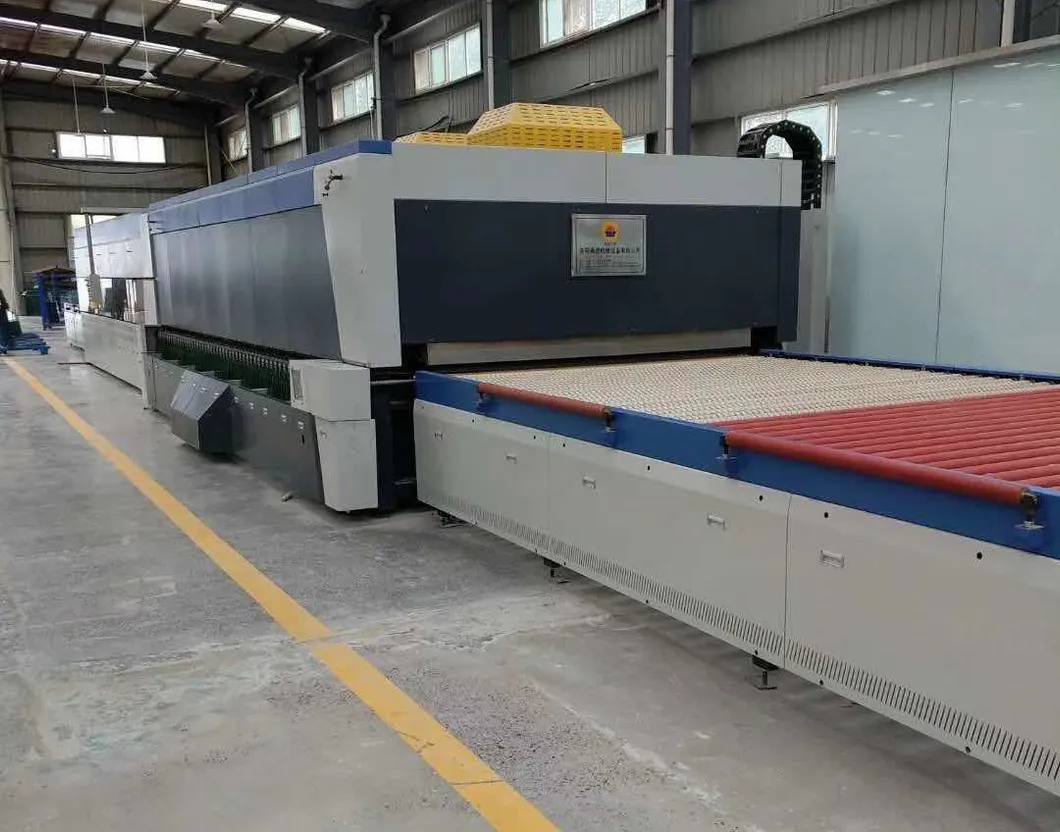

Detailed Visuals

Technical Parameters

Model	Max Loading Size (mm)	Min Size (mm)	Thickness (mm)	Output (m²/h)	Capacity (KVA)
AT-TA1225	1250×2500	100×250	3-19	53	200
AT-TA1636	1600×3660	100×250	3-19	91	400
AT-TA2036	2000×3660	100×250	4-19	126	500
AT-TA2436	2440×3660	100×300	4-25	152	630
AT-TA2442	2440×4200	100×300	4-25	173	630
AT-TA2450	2440×5000	100×300	4-25	202	800
AT-TA2460	2440×6000	100×300	4-25	245	1000
AT-TA2842	2850×4200	200×350	5-25	213	800

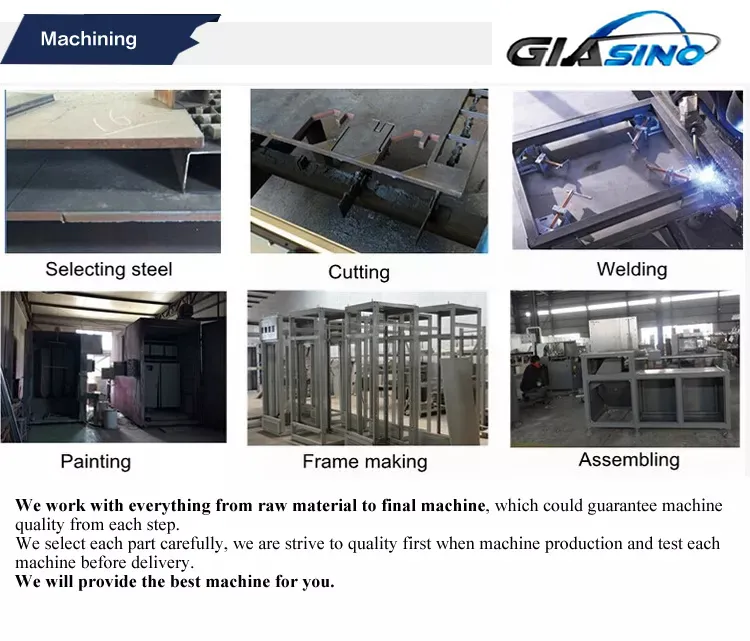

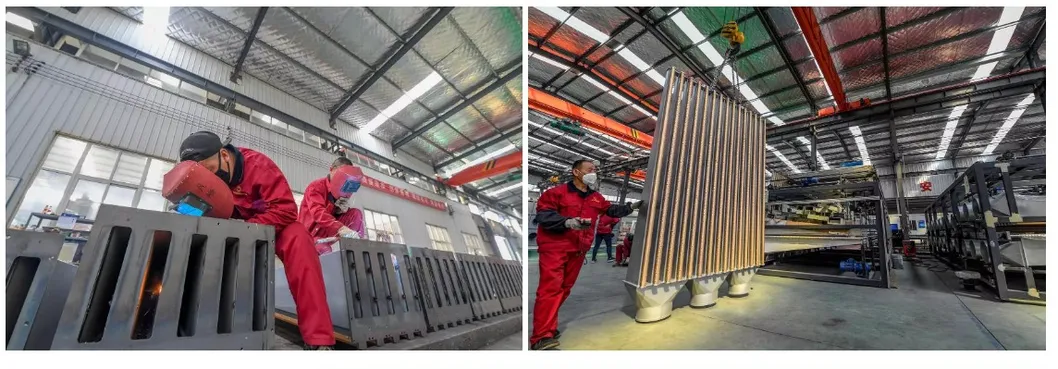

Facility & Operations

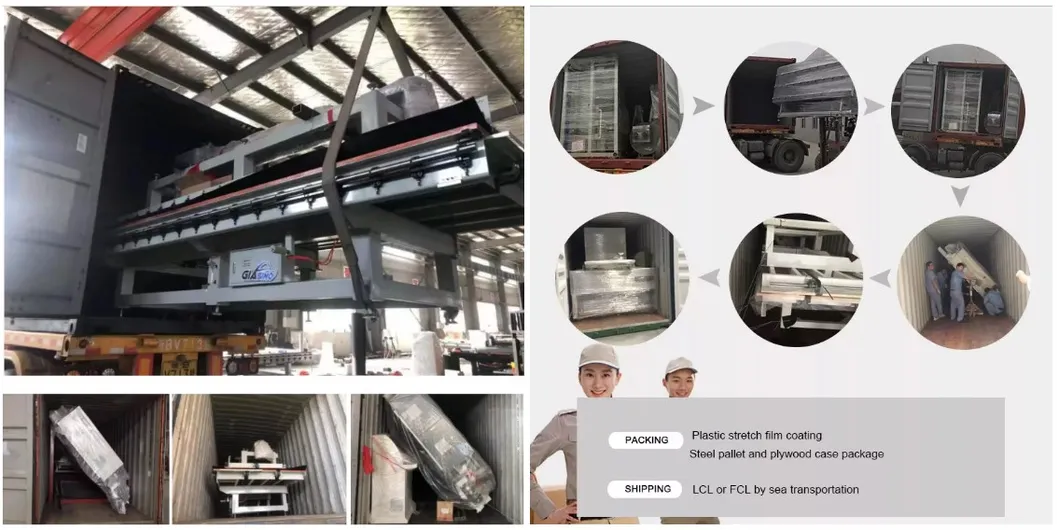

Packaging & Shipping

Frequently Asked Questions

What types of glass can be processed by this furnace?

Our furnace is designed to temper various glass types, including off-line and on-line low-E glass, extra white glass, screen printed glass, pattern glass, color glass, and standard clear glass.

What is the glass thickness range for tempering?

Depending on the specific model, the furnace can process glass thickness ranging from 3mm to 25mm, covering standard architectural and automotive requirements.

How does the computer control the glass curvature?

The curvature forming process is fully computer-controlled. Users input the required radius data, and the machine automatically adjusts the quench transmutation for precise forming.

Is the furnace energy efficient?

Yes, it is equipped with two sets of blowers with different KW ratings. This allows for optimized airflow and significant energy savings during the cooling and tempering phases.

What quality guarantees do you provide?

We ensure quality through pre-production sample testing and a final inspection before shipment. All equipment comes with a standard 12-month warranty and 24-hour after-sales support.

What material is used for the convection system?

The convection system is built using top-grade stainless steel, which is highly heat-proof and antioxidant, ensuring a long service life and consistent performance.
