Gripping, guiding, setting down and deflecting - our custom-tailored graphite components are specially developed to reliably transport your hot container glass over the entire production process. Our superior graphite materials ensure smooth production.

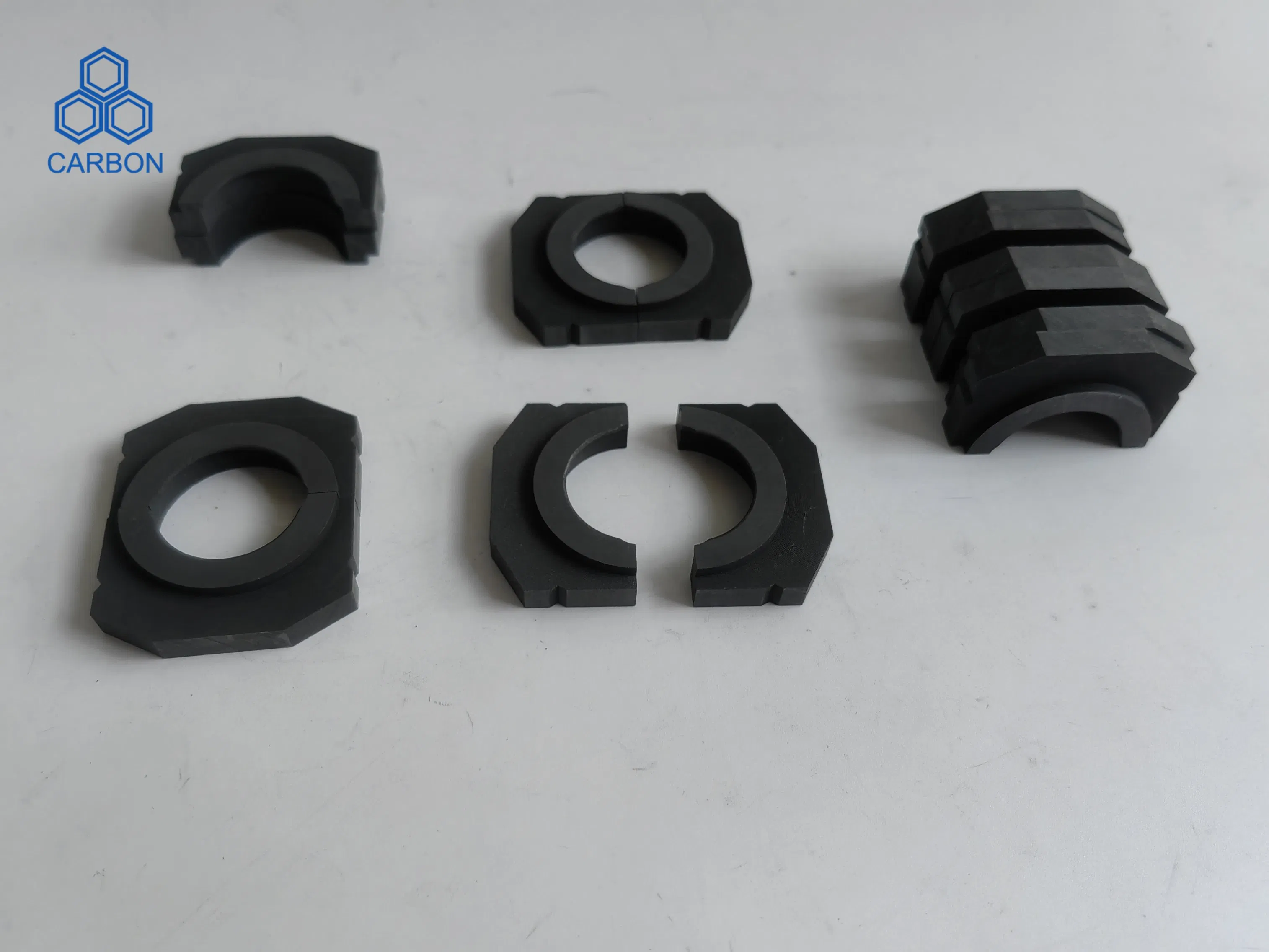

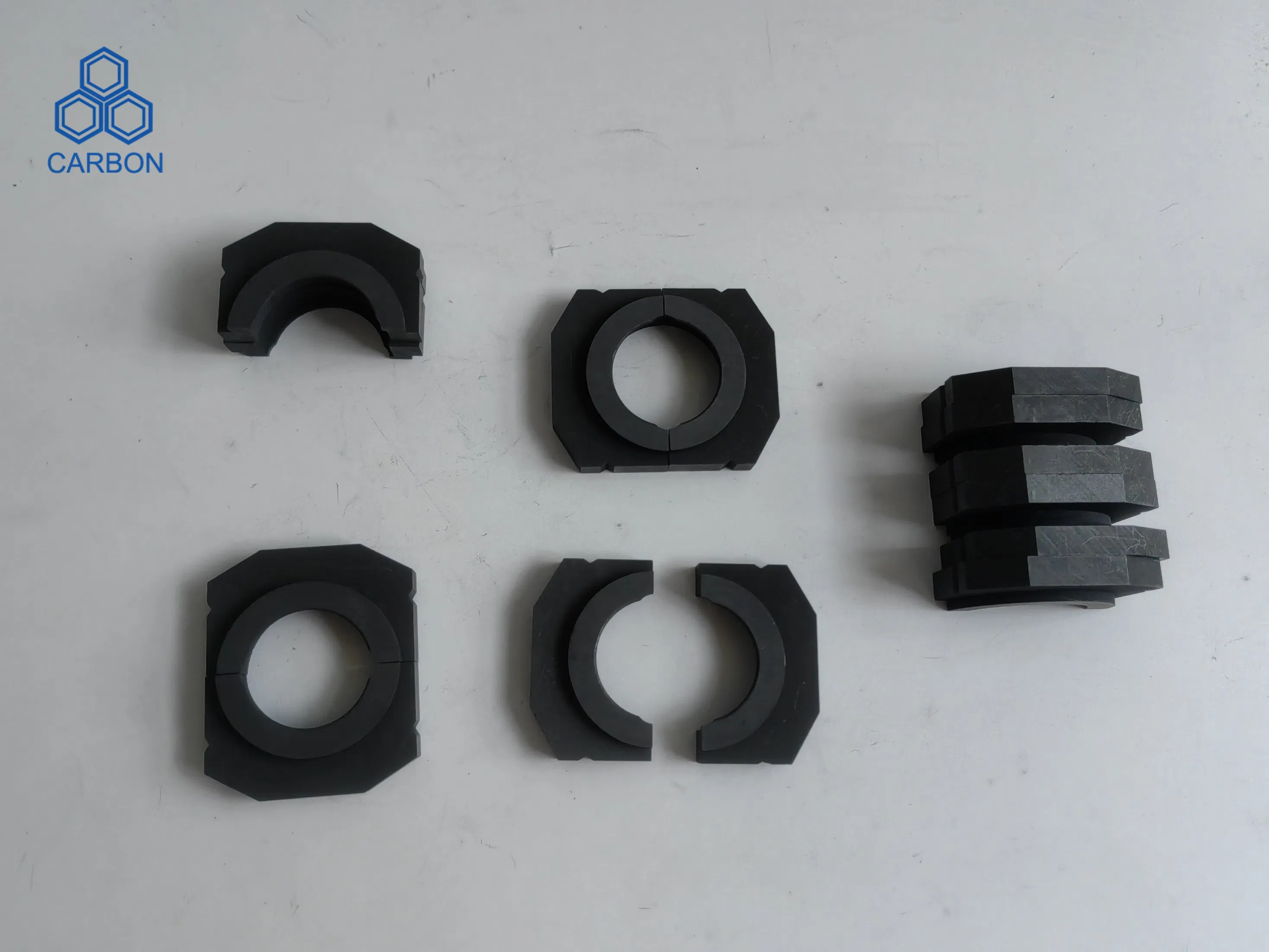

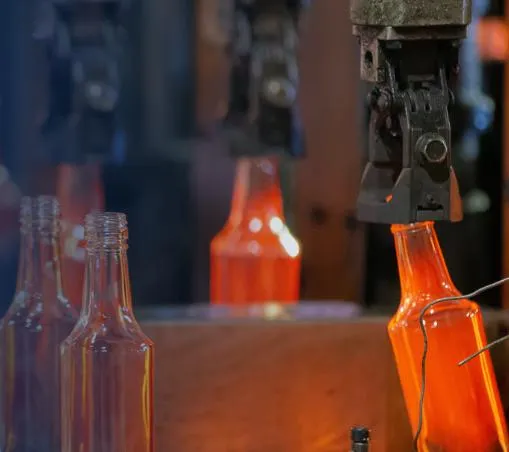

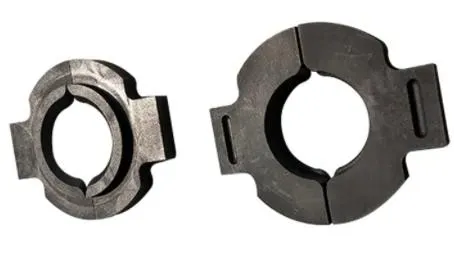

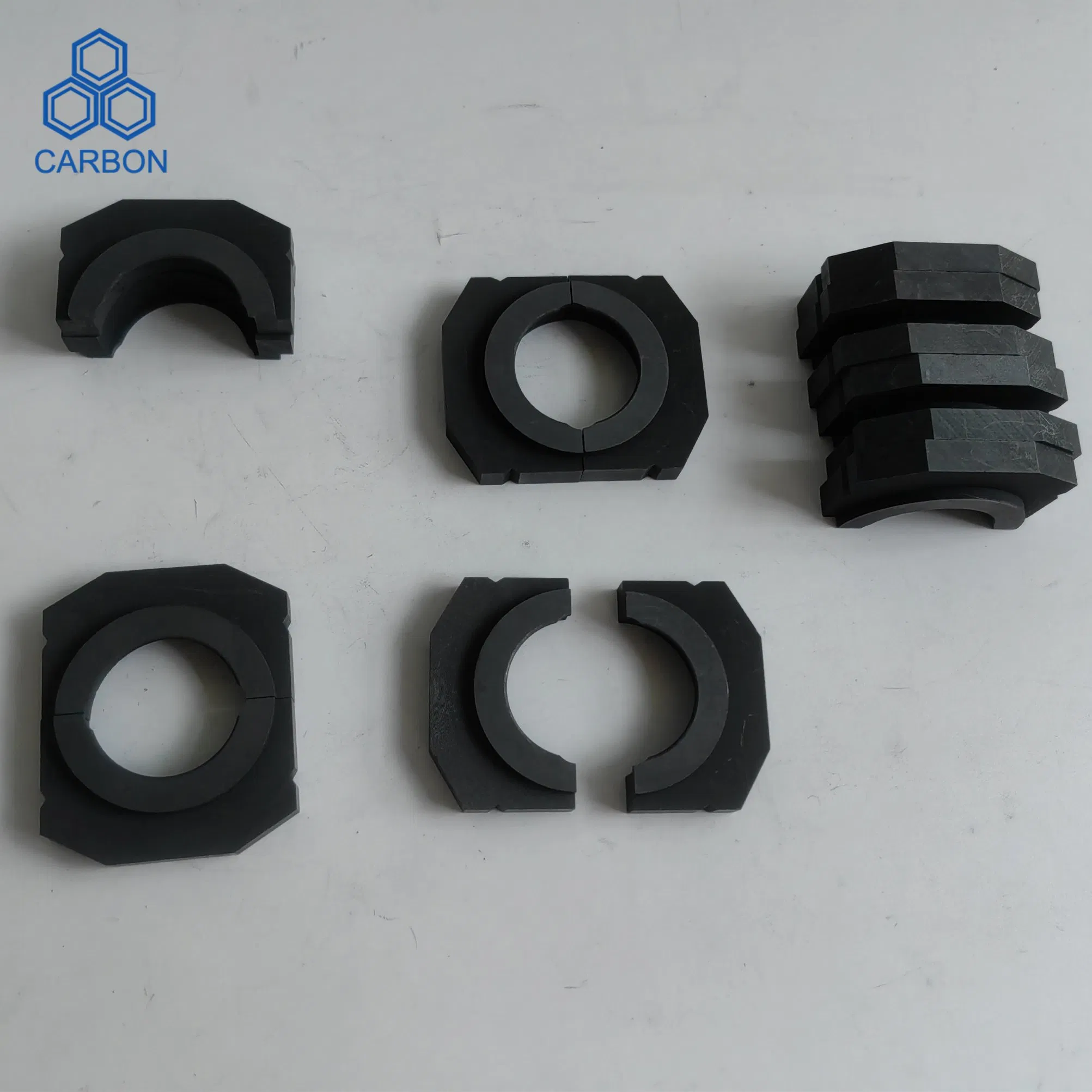

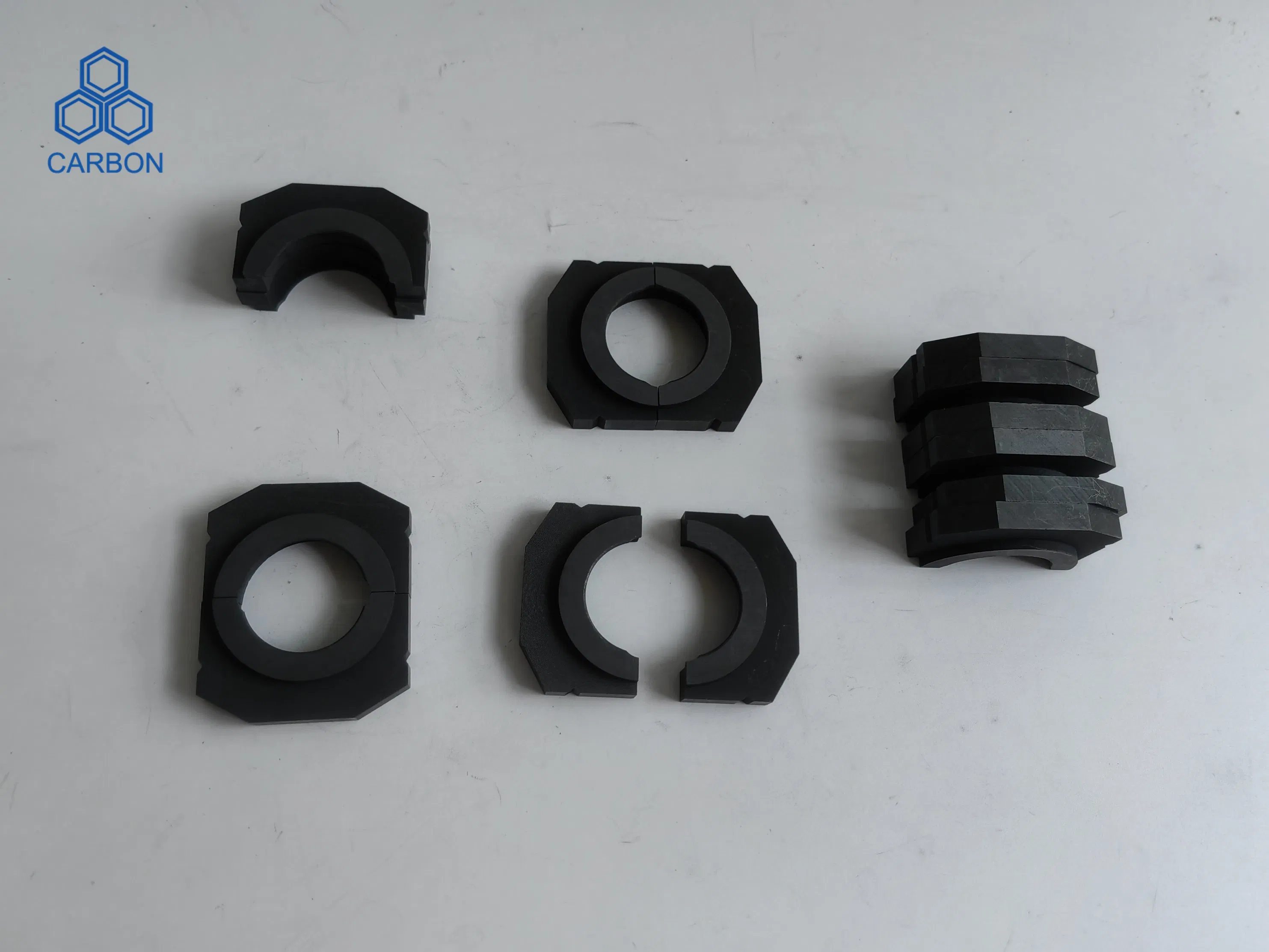

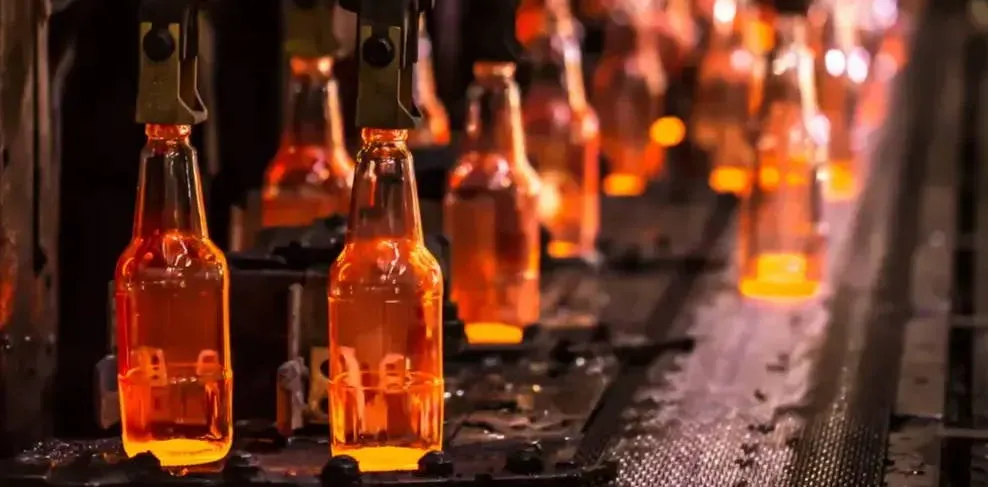

Take-out inserts are the first parts to contact the newly formed hot glass containers after the final blowing stage in the finishing mould. At this point, the glass is still very hot and easily damaged. A pair of inserts closes around the neck of each container, lifting them out of the mould and transferring them to the deadplate where the base of each container is cooled by air jets prior to being set down.

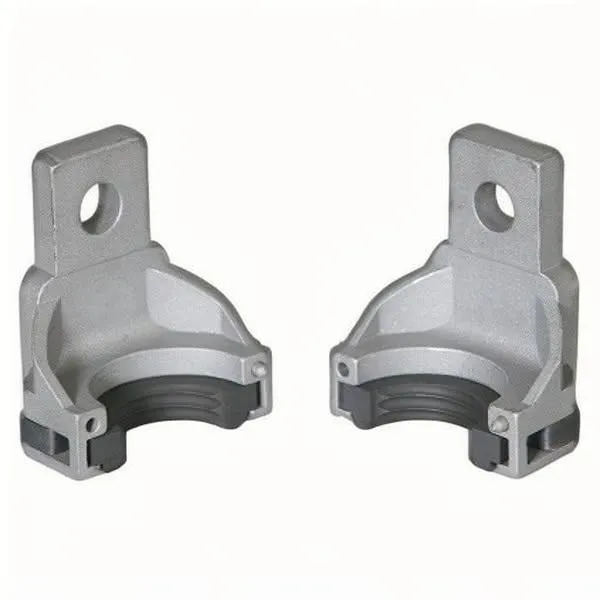

The pick-up profile and finish of the inserts are custom designed to suit each particular container, having four main categories: crown, thread, underthread and bead. Our take-out holders and inserts are specially designed to fit each application with a range of insert materials available.

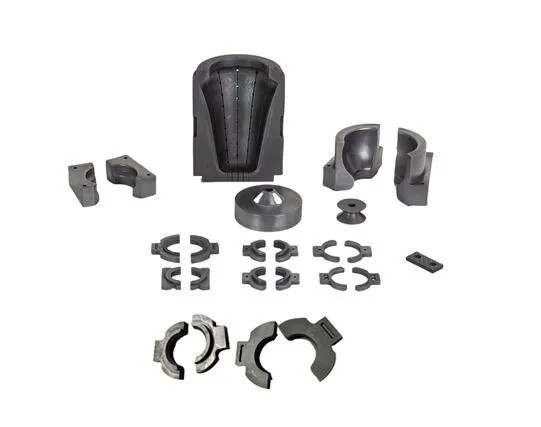

Graphite is the ideal material for glass manufacturing due to its physical and chemical composition properties, especially in the industrial hollow glass and container glass industries. Our experienced designers and engineers can assist with designing insert drawings, and our experienced operators can make sure graphite blanks be machined into insert pairs to be precision.
| Property | KBD-5 | KBD-6 | KBD-7 | KBD-7B | KBD-8 | Unit |
|---|---|---|---|---|---|---|
| Apparent Density | 1.85 | 1.90 | 1.82 | 1.82 | 1.90 | g/cm³ |
| Max Grain Size | 13-15 | 8-10 | 8-10 | 13-15 | 8-10 | µm |
| Ash value | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 | ppm |
| Resistivity | 8-10 | 8-9 | 11-13 | 11-13 | 11-13 | μΩm |
| Flexural Strength | 46 | 55 | 51 | 59 | 60 | Mpa |
| Compressive Strength | 85 | 95 | 115 | 121 | 135 | Mpa |
| Shore Hardness | 48 | 53 | 65 | 70 | 70 | HSD |
| Property | KBG-4 | KBG-5 | Unit |
|---|---|---|---|
| Apparent Density | ≥1.80 | ≥1.85 | g/cm³ |
| Ash value | ≤500 | ≤500 | ppm |
| Shore Hardness | ≥40 | ≥45 | HSD |
| Flexural Strength | 38 | 41 | Mpa |
| Max Grain Size | 25 | 25 | μm |
