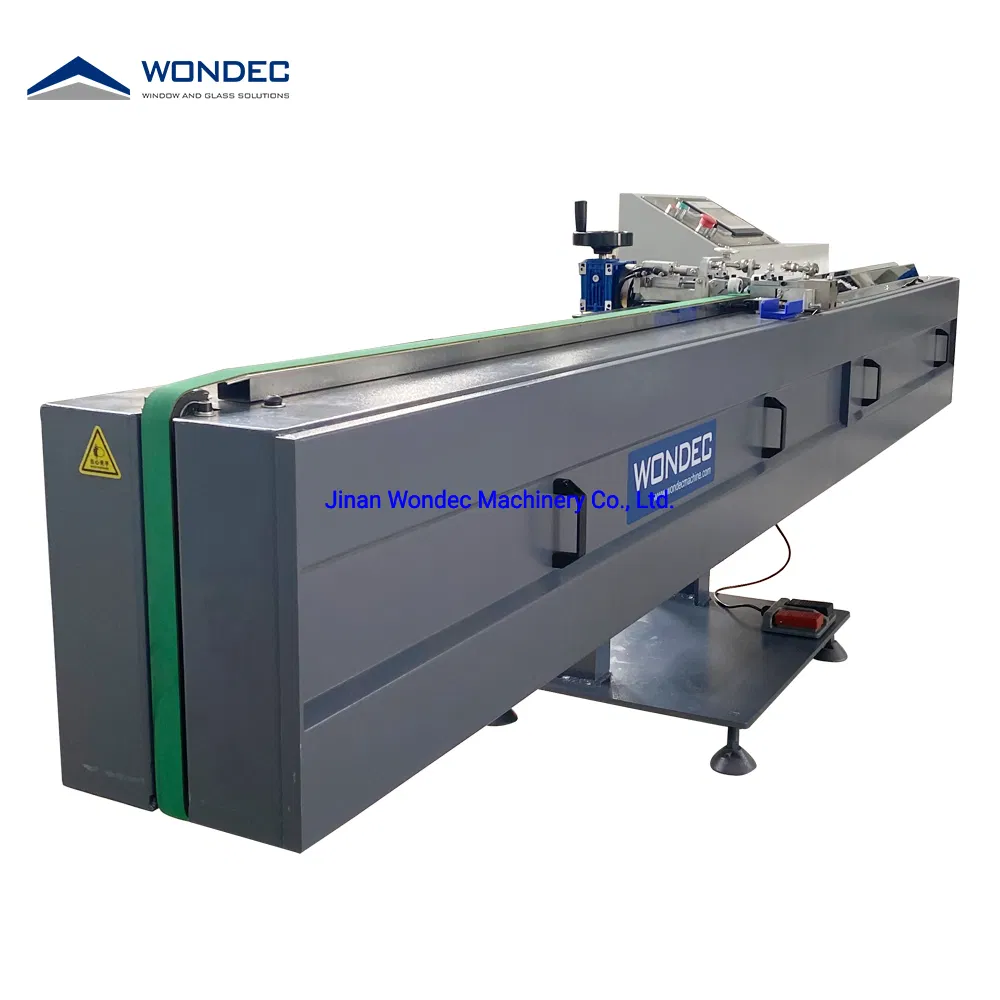

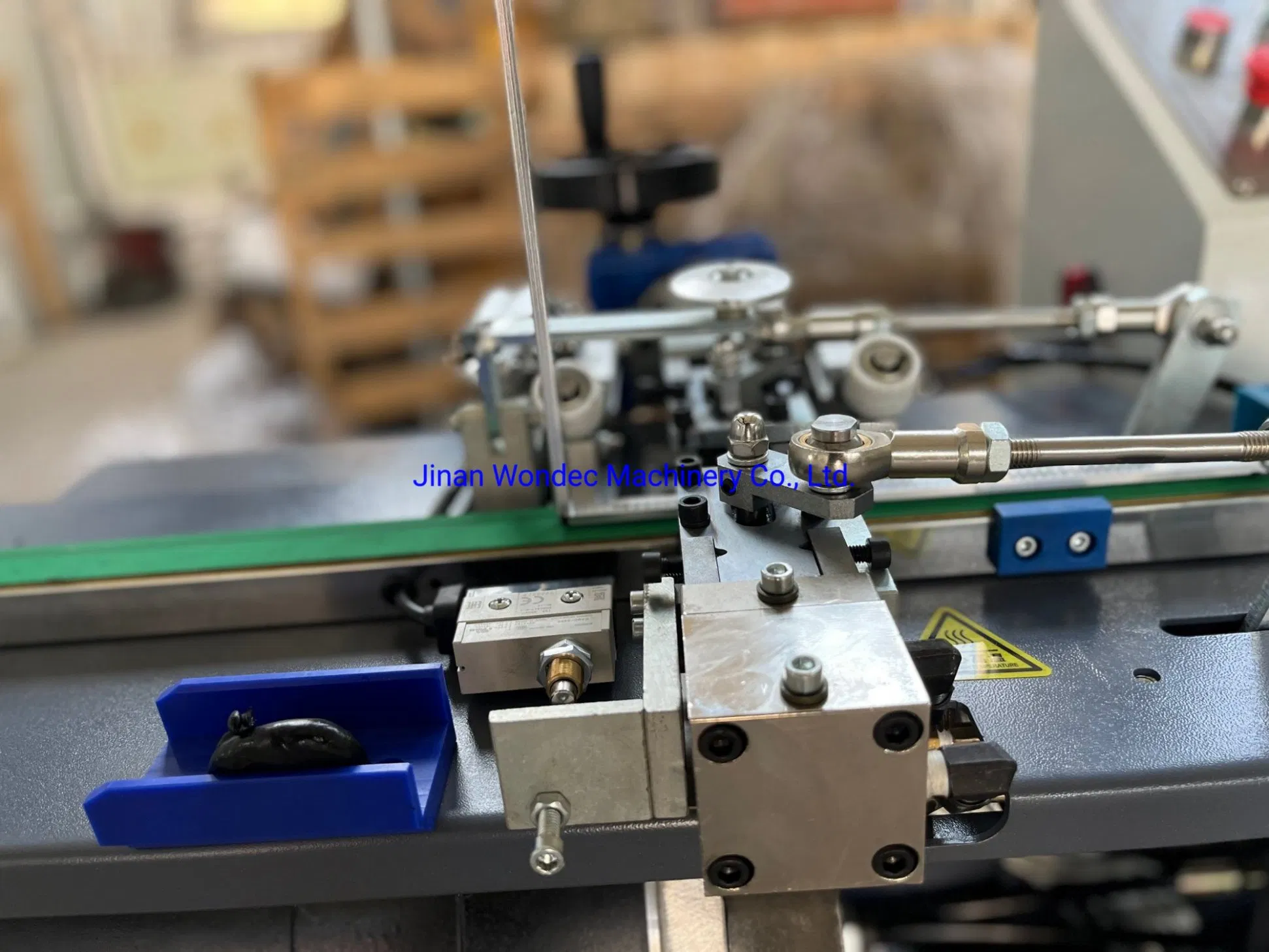

Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
1 / 5
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder
Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder

Hot Melt Insulating Glass Primary Sealing Sealant Butyl Adhesive Machine Automatic Butyl Extruder

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.BEM02
Extruding Pressure10-15MPa
Extruding Temperature110-160 Degree
Input Power4kw
Key Selling PointsEasy to Operate, Automatic, High-Accuracy
ColorCan Be Customized
Core ComponentsPressure Vessel, Motor, Gear, PLC, Pump, Engine
Conveying Speed21m/Min 28m/Min
TypeGlass Coating Machine
StructureVertical
Warranty1 Year
Production Capacity80 set / Per Quarter
⚙️

Product Description

The BEM02 Automatic Butyl Extruder is a conventional, high-performance machine designed for the primary sealing of insulating glass. The specific configuration can be adjusted based on operational requirements.

  • Import gas-liquid pressure boost system ensures stable pressure and energy saving.
  • PLC control system with touch screen for simple operation.
  • Stepless speed regulation of frequency converter (Optional speed frequency control).
  • Spray nozzle space automatically adjusts according to the spacer width.
  • Preheat function available for immediate operation.
  • Integrated non-butyl automatic alarm system.

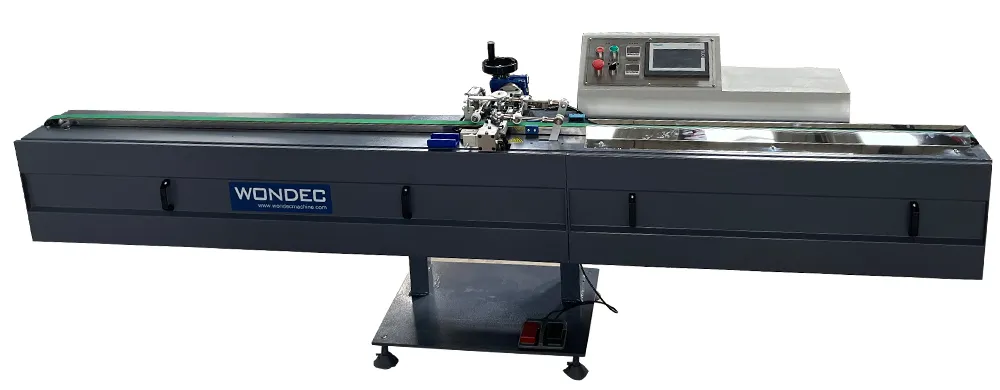

Automatic Butyl Extruder Overview
📸

Detailed Photos

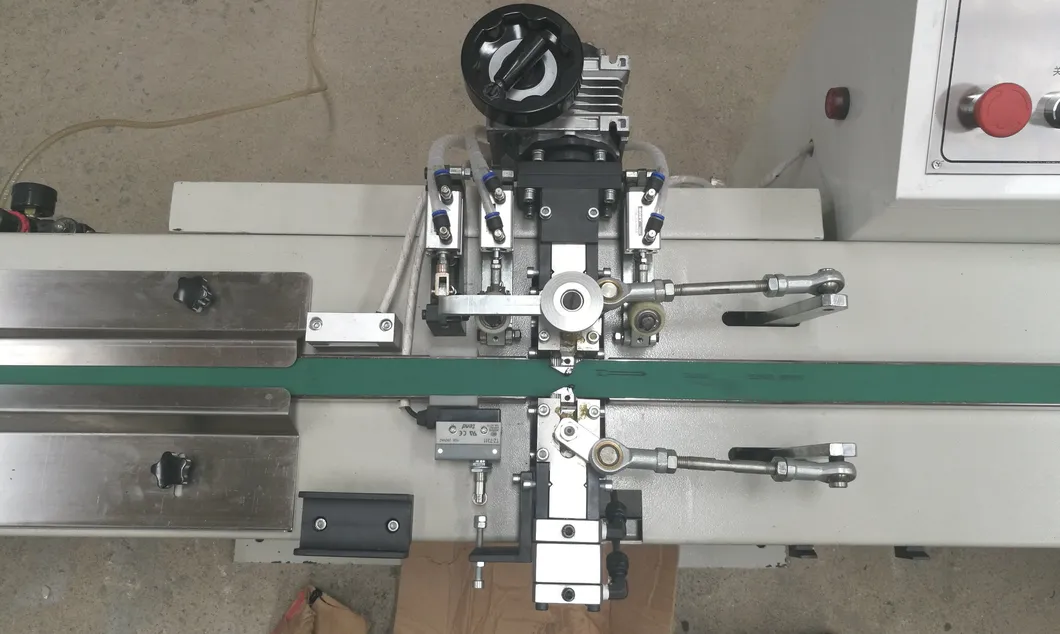

Machine Detail 1

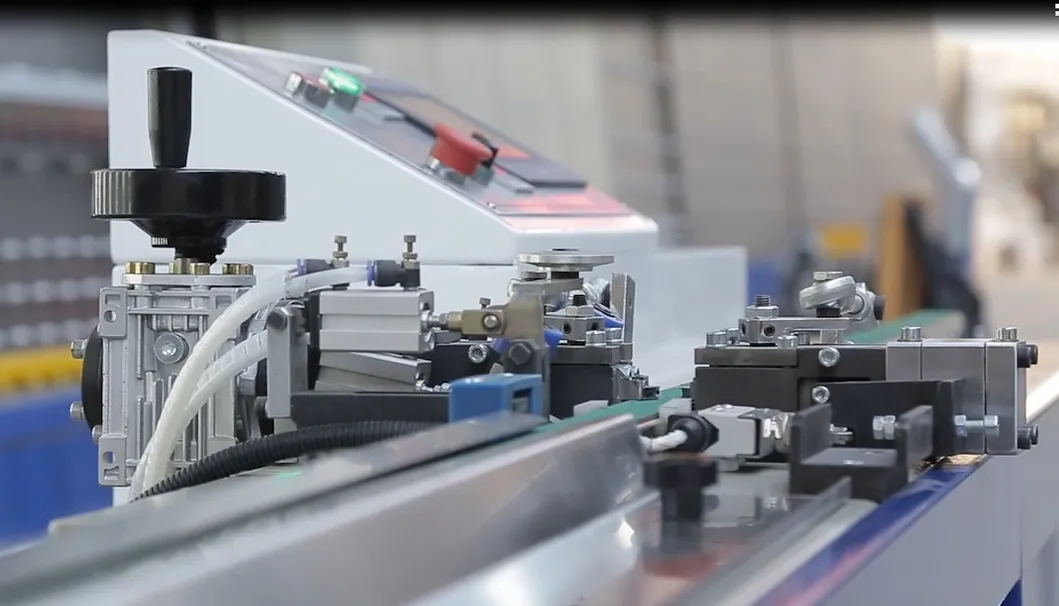

Machine Detail 2

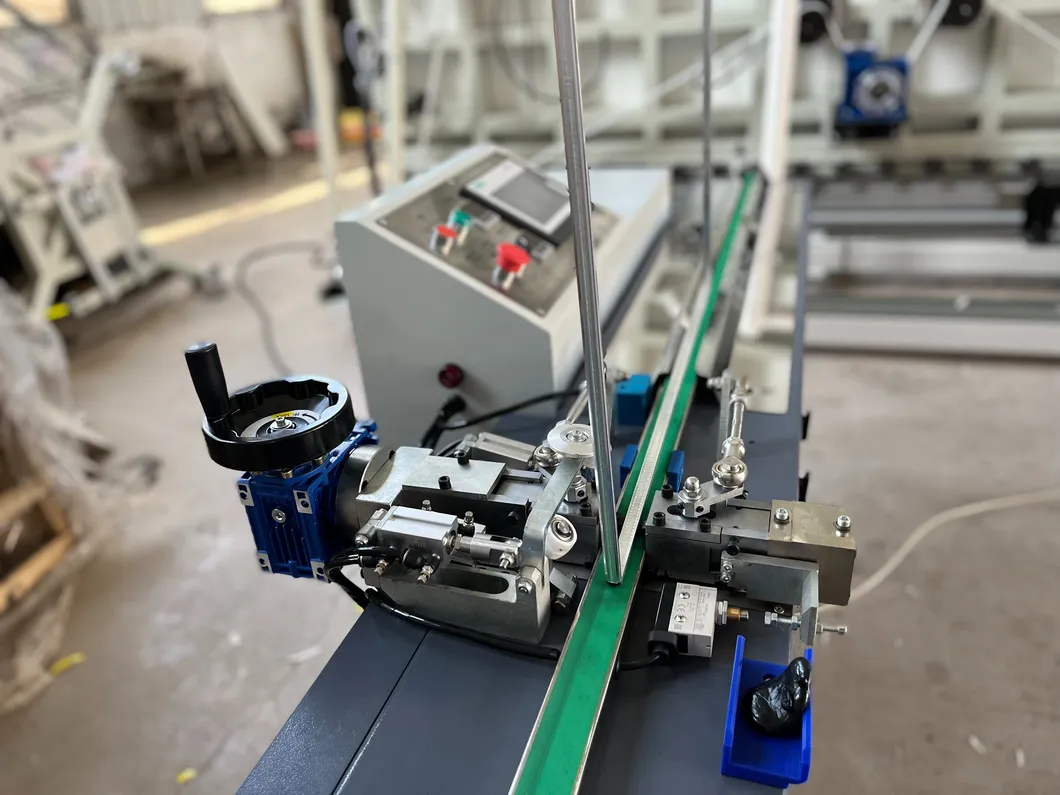

Components Detail 1

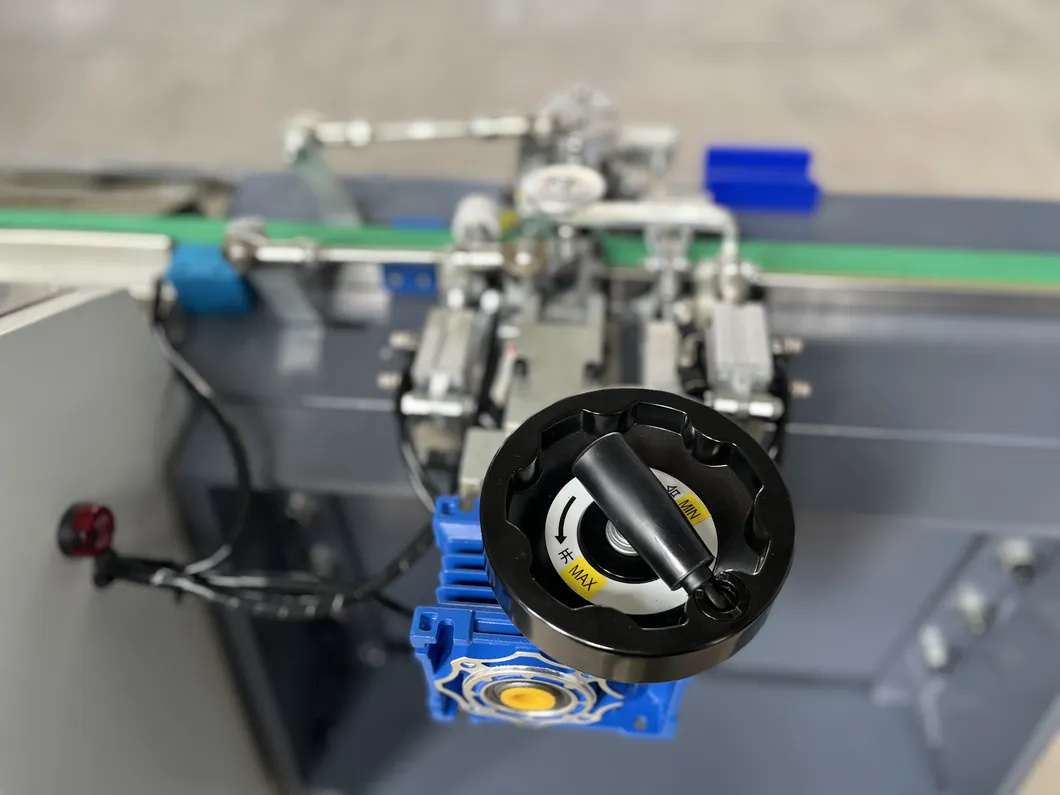

Components Detail 2

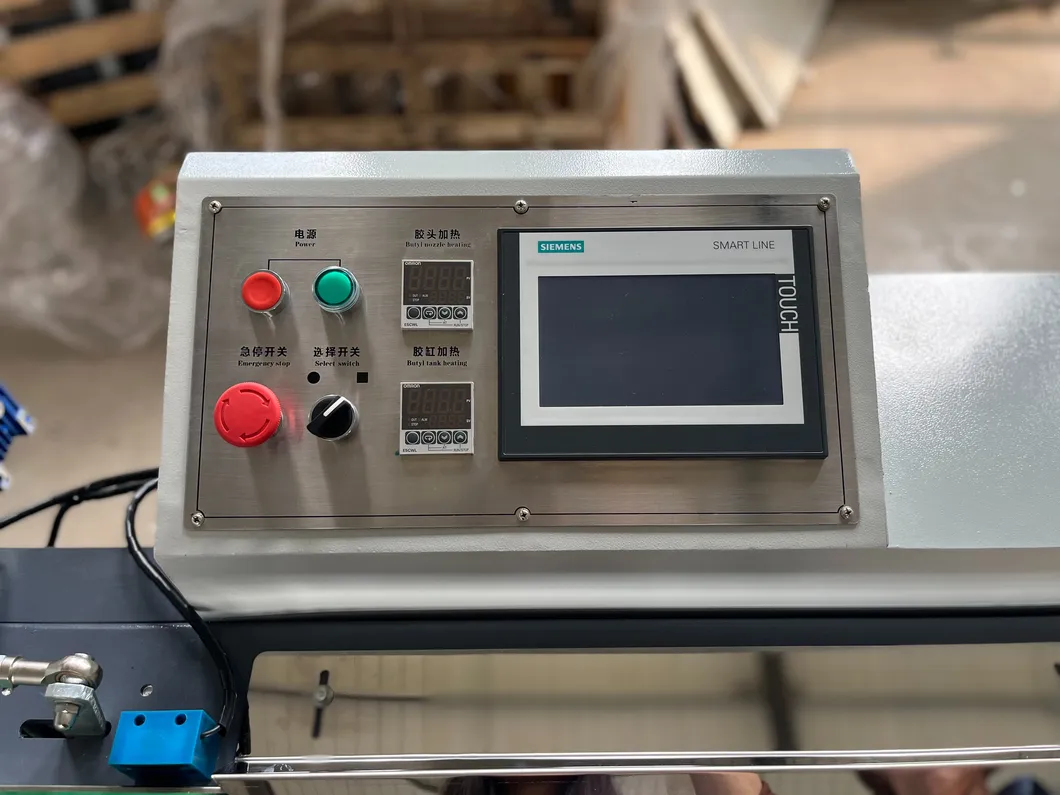

Components Detail 3
📐

Technical Parameters

Power Supply380v / 50Hz
Input Power4KW
Conveying Speed21m/min / 28m/min
Extruding Temperature110~160ºC
Air Pressure0.5~0.8Mpa
Extruding Pressure10~15Mpa
Nozzle Adjustable Range6-27mm
Overall Dimension3000*650*1000mm
📦

Packaging & Shipping

Packaging Process
🛠️

Our Service

Pre-sales Service:

  • Layout Design: Floor plan and equipment footprint analysis.
  • Technical Drawings: Customized drawings based on layout needs.

After-sales Service:

  • Weekly production progress reports.
  • Installation, debugging, and personnel training.
  • English operation manuals provided.
  • Lifetime maintenance and technical support.
After-sales Service Support
🏆

Why Choose Us & Exhibitions

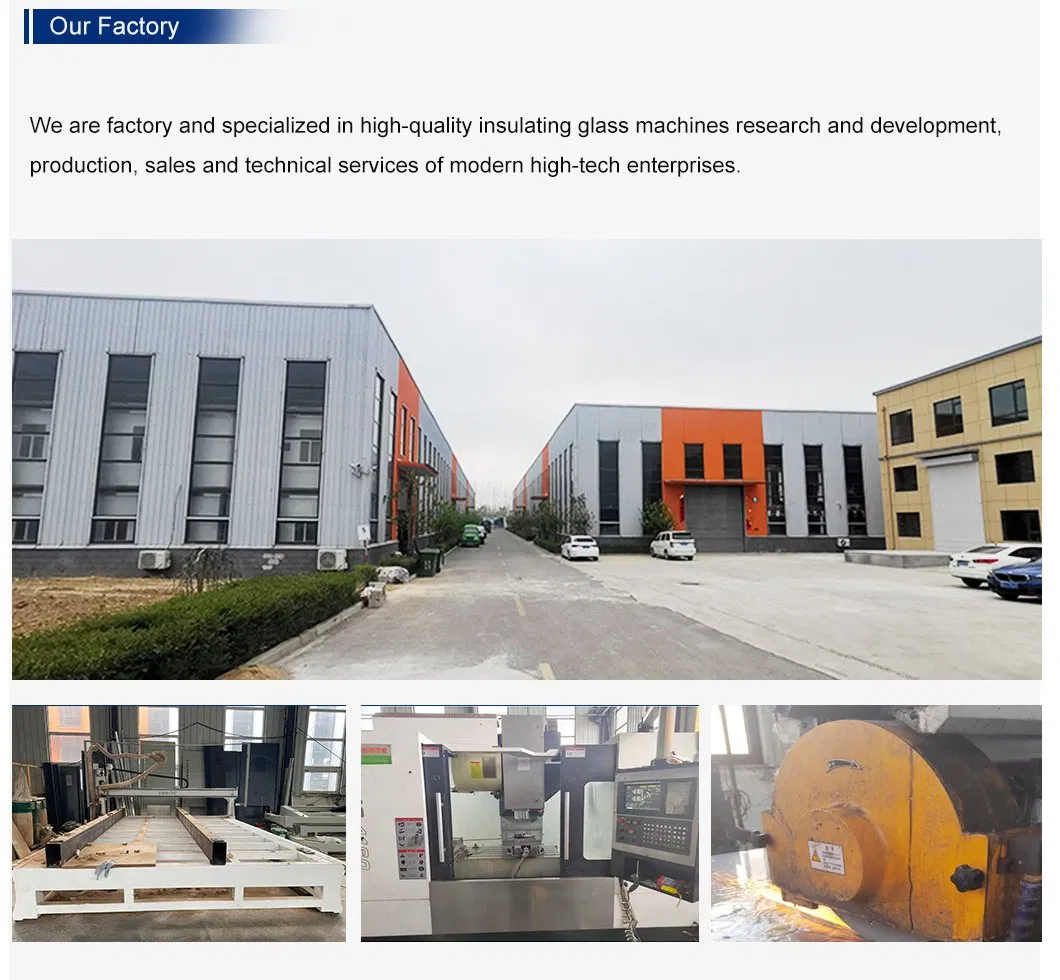

Why Choose Us 1
Why Choose Us 2
Exhibition Gallery
❓

Frequently Asked Questions

1. Which countries are your products exported to? Our equipment has been exported to over 50 countries and regions, including South America, India, Turkey, Canada, Russia, and various European countries.
2. How do we operate the glass processing machinery? We provide comprehensive instructions in English and offer training until your team is proficient in operating the machine.
3. How do you ensure quality control? The entire production procedure undergoes strict inspection. Every component is checked before use, and the completed machine is tested thoroughly before leaving the factory. Testing videos and pictures are available before delivery.
4. Are you a factory or a trading company? We are a professional manufacturer with over 10 years of experience in the glass processing machinery field, providing both hardware and solutions.
5. What happens if the machine has problems after ordering? Free parts are sent during the warranty period. We offer 7/24 free service and support via phone, mail, and messaging platforms for the entire lifespan of the machine.
6. Can you provide installation in my country? Yes, we can arrange for engineers to install the machine at your facility and provide on-site training for your staff.
