| Model NO. | HSL-LSX4228 | Maximum Cutting Thickness | 3~19mm |
| Power Supply | 380V 50Hz | Safety Features | Emergency Stop, Overload Protection, Safety Sensor |
| Product Name | Automatic Glass Cutting Machine | Maximum Cutting Size | 4200X2800mm |
| Accuracy of Linear Cutting | +/-0.20mm/M | Cutting Speed of Glass | 0-200 M/Min |
| Straight Line Acceleration | 3400mm/Ss | Compressed Air | 0.55~0.7 MPa |
| Installed Power | 8kw | Equipment Weight | About 5600kg |

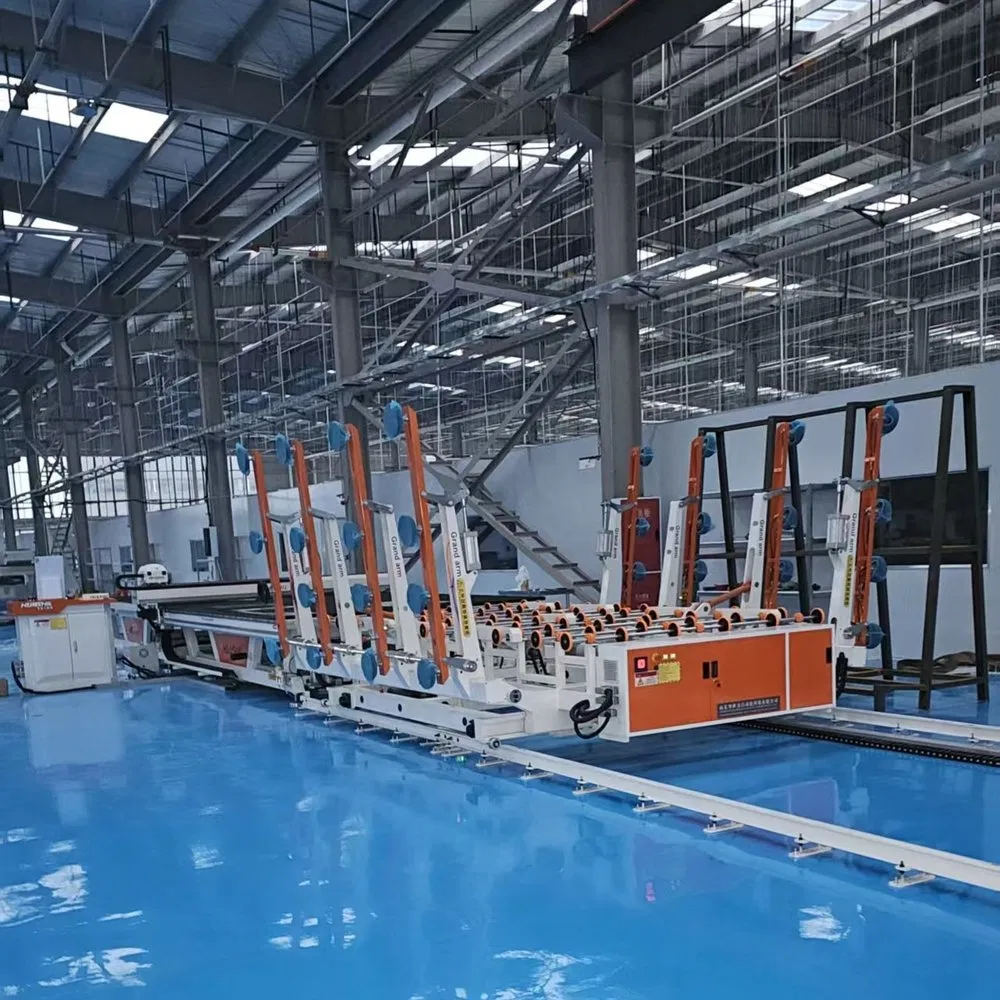

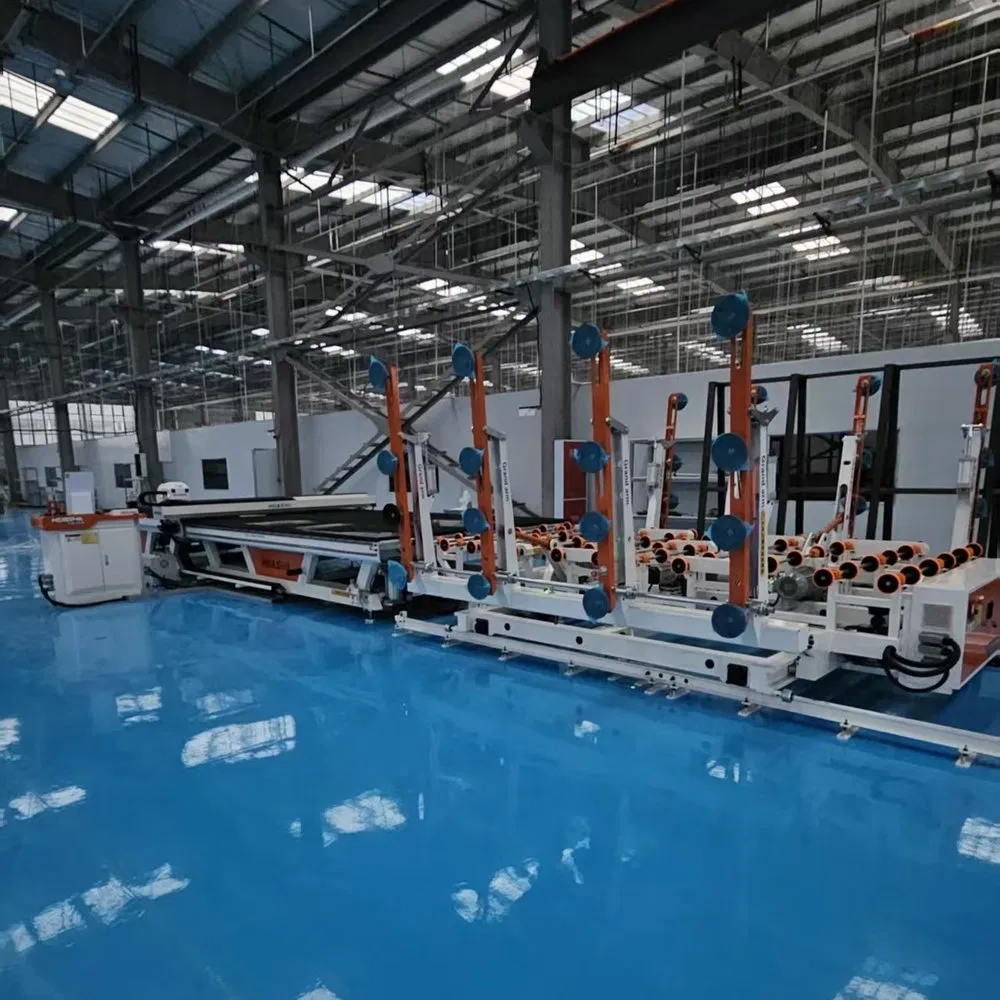

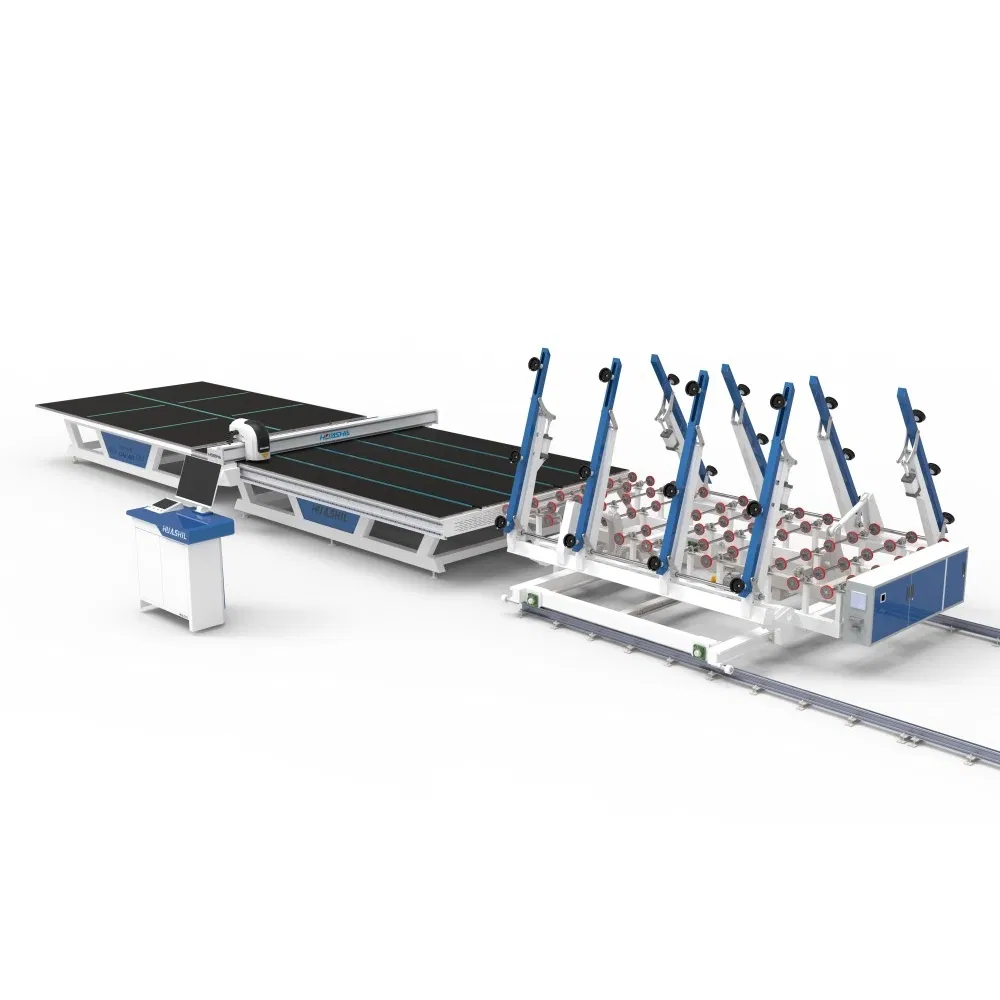

AUTOMATIC GLASS CUTTING MACHINE
The working principle involves transporting glass from the conveyor belt to the worktable, automatically recording positions via a photoelectric scanning system. The cutting head, equipped with a diamond wheel, is program-controlled to move precisely along X and Y axes.
This machine utilizes an industry-leading servo direct drive structure combined with high-quality linear guide rails, ensuring stable, reliable performance and a long service life.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Maximum Cutting Size | 4200*2800mm |
| Glass Thickness | 3-19mm |
| Accuracy Of Linear Cutting | 0.20mm/m |
| Cutting Speed Of Glass | 0-200 M/Min |
| Glass Conveying Speed | 0-26m/min |
| Cutting Bridge Speed | 0-200 m/min |
| Straight Line Acceleration | 3400mm/Ss |
| Compressed Air Requirement | 0.55~0.7 mPa |
| Mesa Height | 900+/-30mm |
| External Dimensions | About 4850*3600mm |

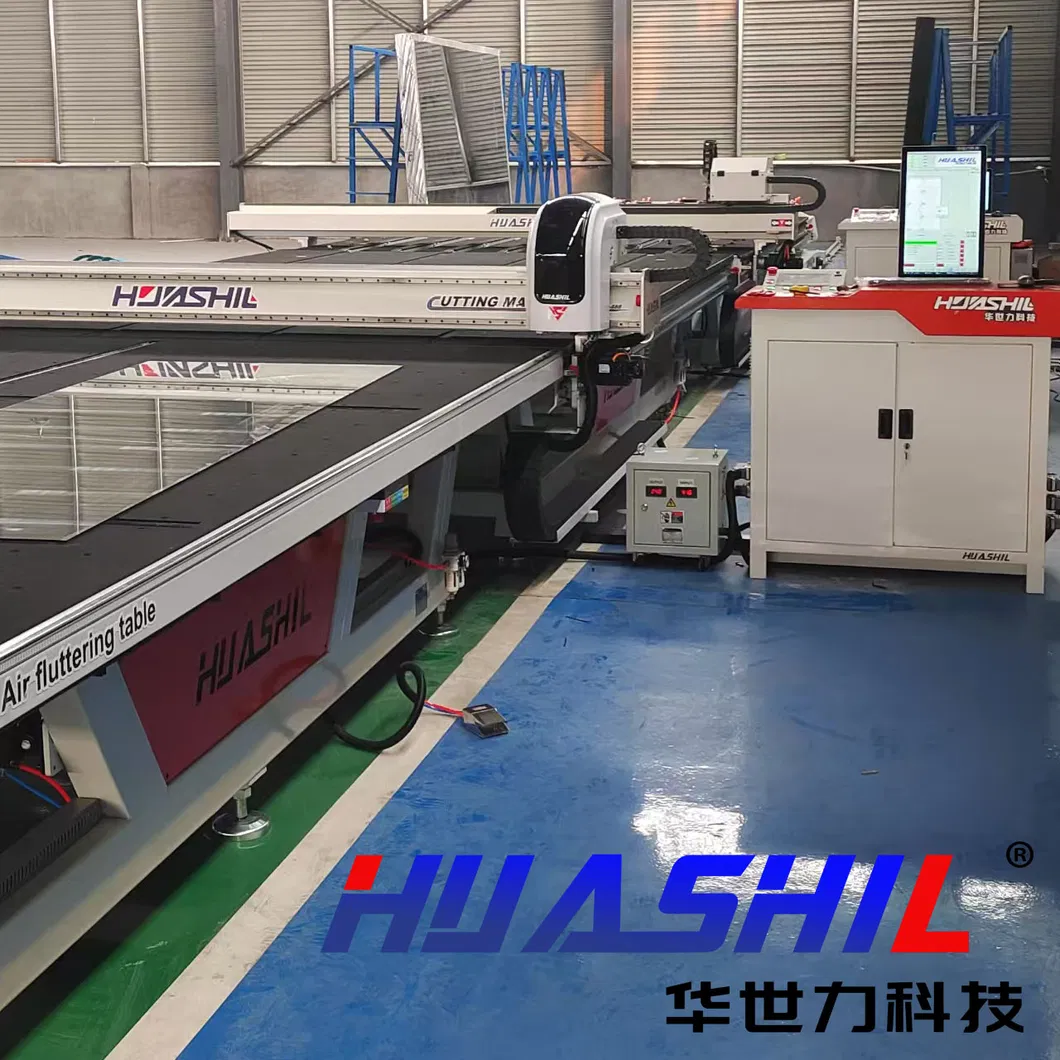

CUTTING CONTROL LAYOUT OPTIMIZATION
Features professional glass cutting and optimized layout functions to improve material utilization and production efficiency. Compatible with standard G code and mainstream optimization software. Includes fault diagnosis and automatic alarm recording.

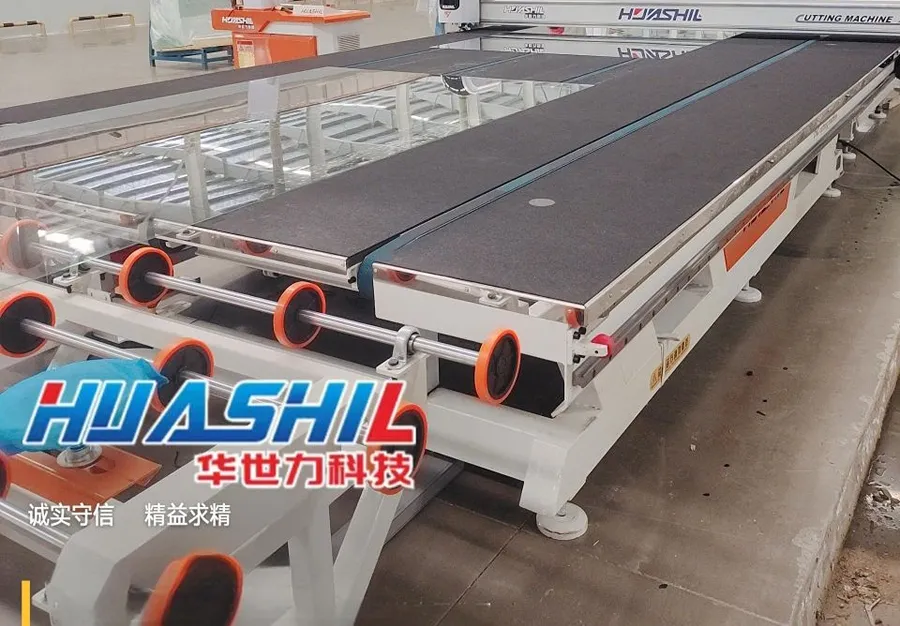

FIBER LASER POSITIONING
Accurately detects glass position and deflection angles to adjust paths automatically. Supports intelligent special-shaped scanning to generate graphics for contour cutting through real-time feedback.
CUTTING TECHNOLOGY
Pressure is managed by a mechatronic precision valve, ensuring the cutter head fits the glass surface perfectly. This eliminates cutter jumping even when dealing with variable glass quality.

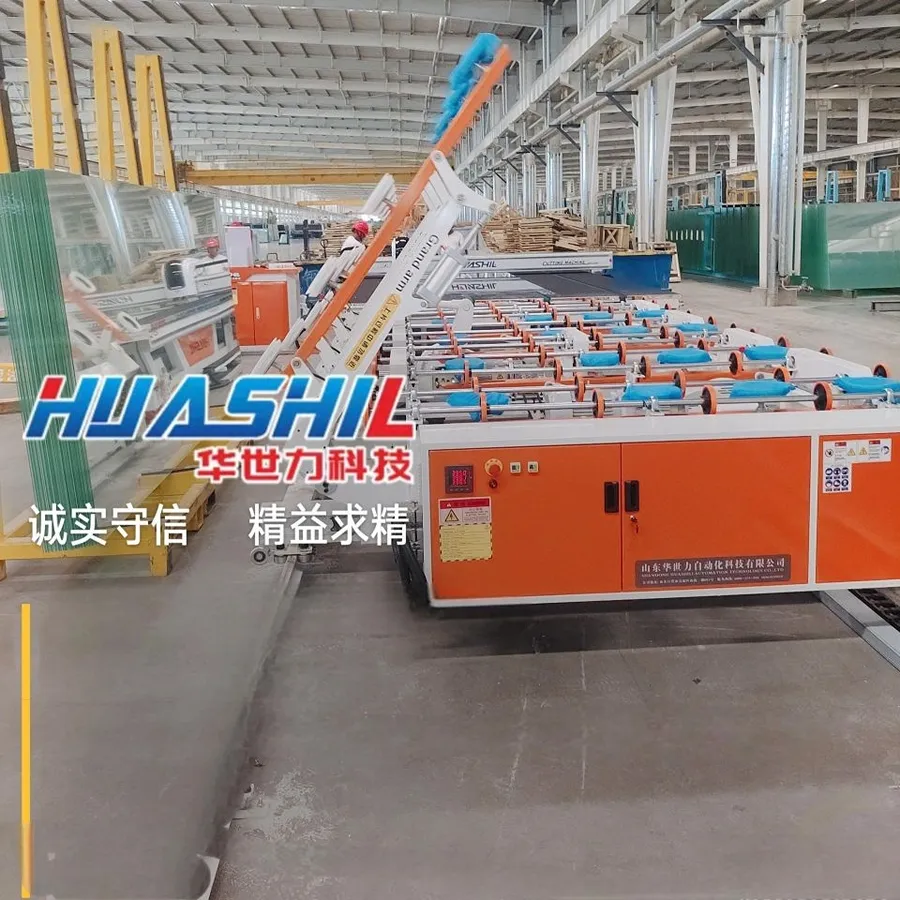

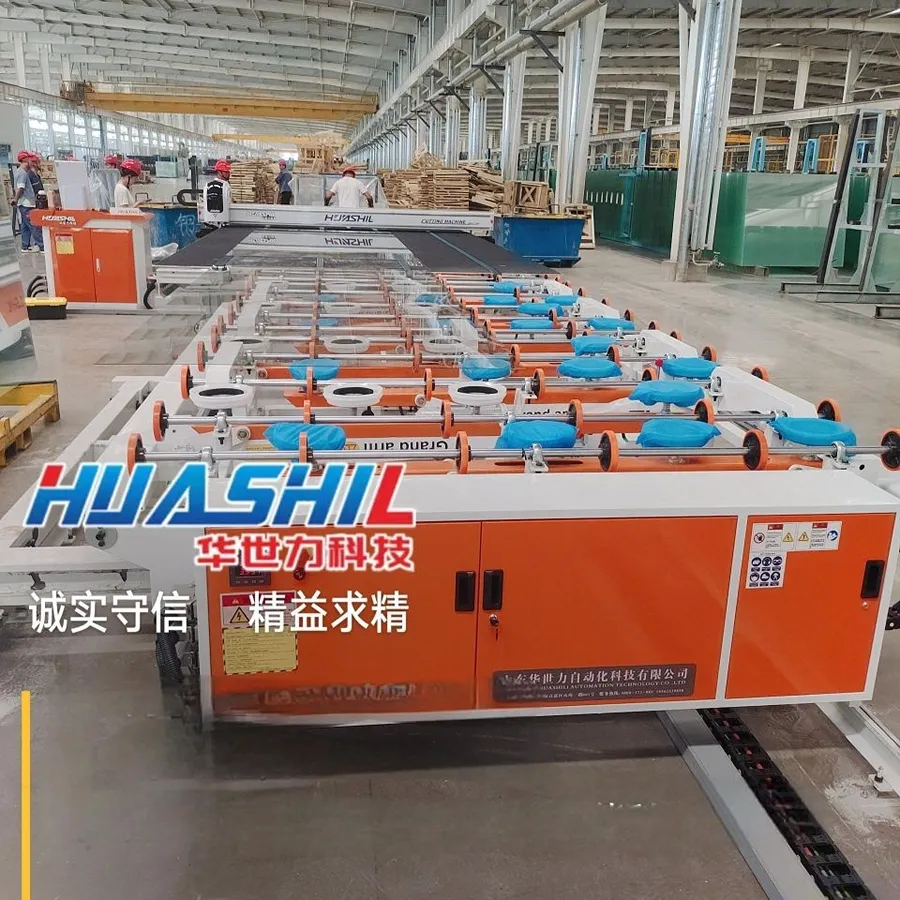

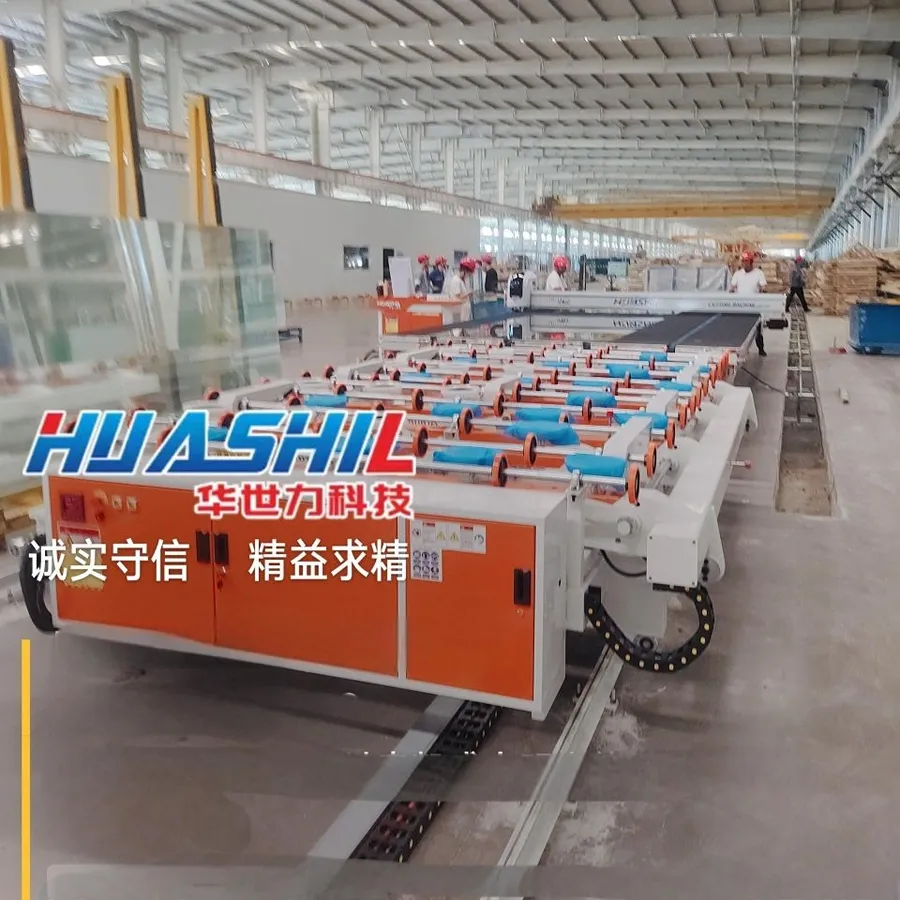

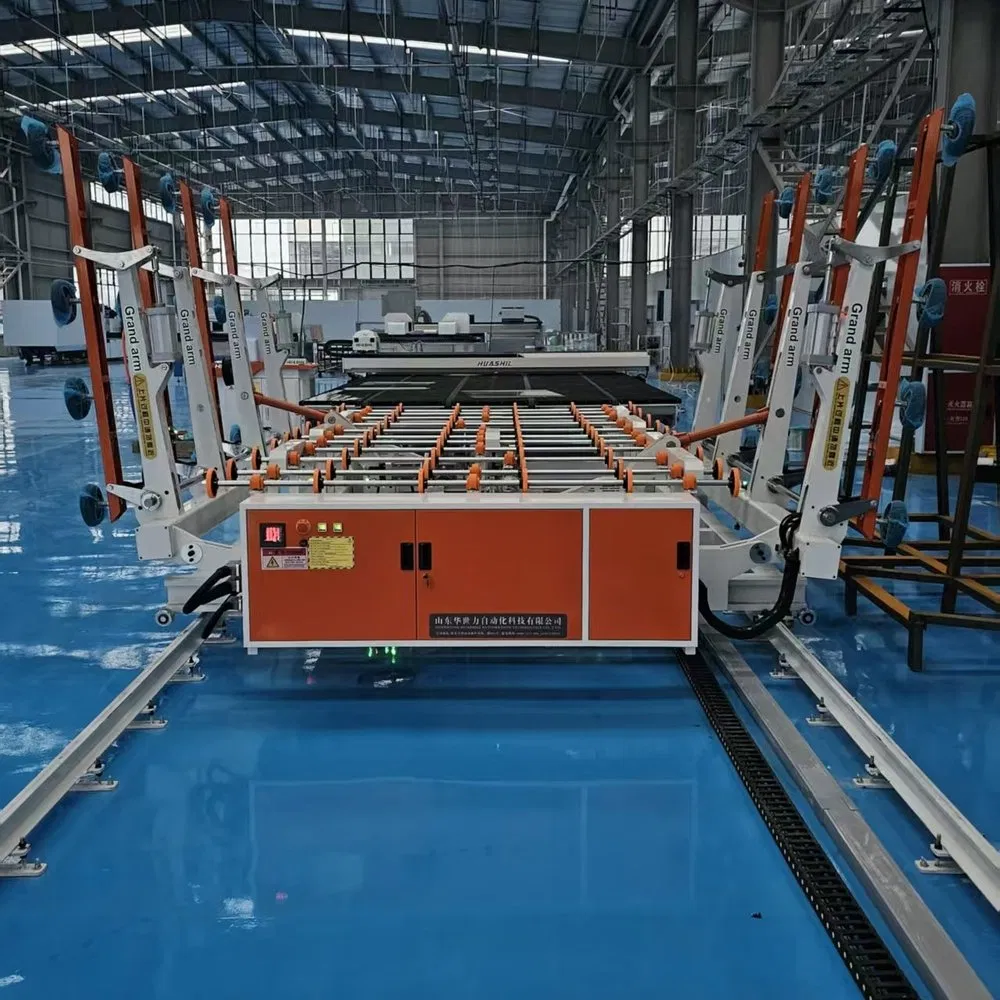

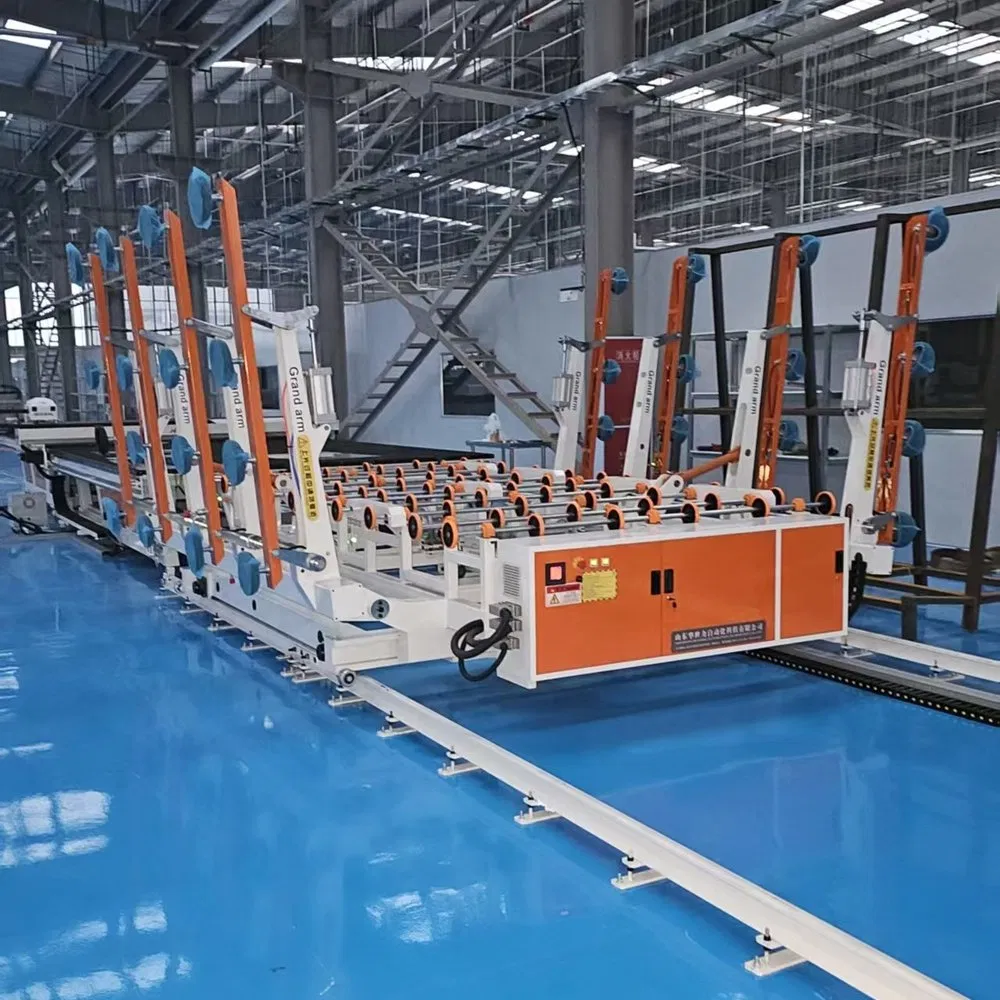

AUTOMATIC OIL SUPPLY & CONVEYING
Pneumatic pressure control handles automatic kerosene filling, synchronized with the cutting head via PLC. After cutting, synchronous belts transport the glass to the breaking table using an air flotation system.
