Igu Glass Sealing Robot for Insulating Windows and Windows

Customization:	Available
Certification:	CE
Control System:	PLC

Send Inquiry

Product Description

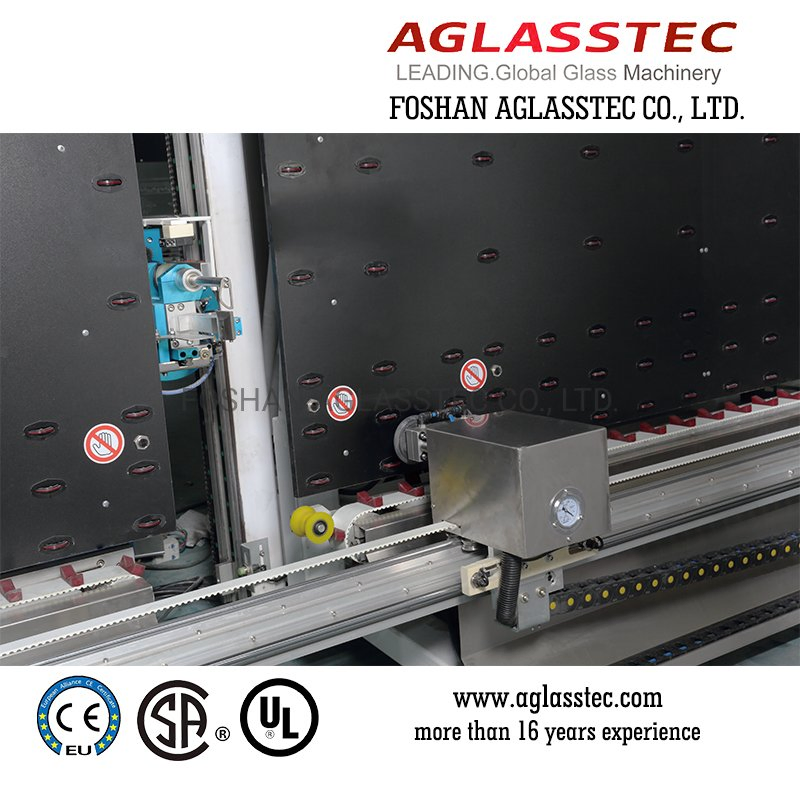

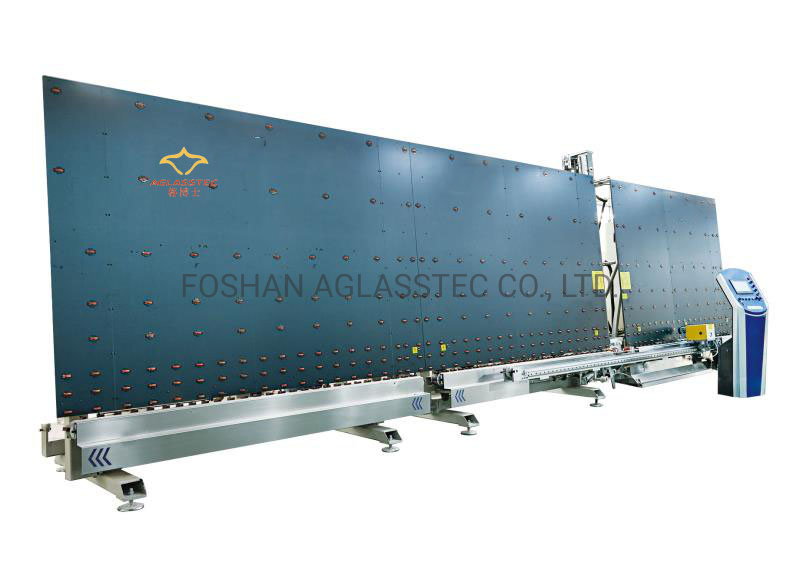

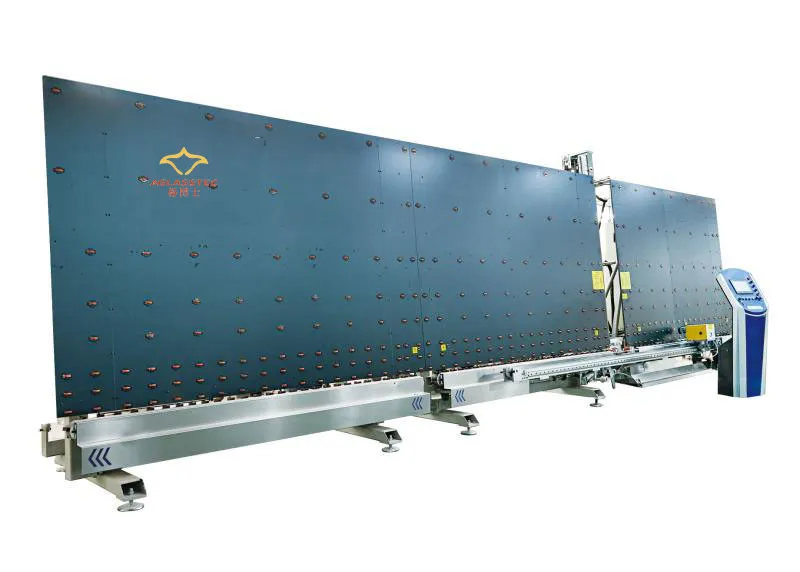

FGI-IG2025 Automatic Glass Sealing Robot

Taiwan delta servo control system, mature technology, stable and reliable operation.
Single-head, double-layer and rectangular insulating glass of equal size can achieve continuous and automatic glue coating.
Electronic mixing ratio system for precise control, especially suitable for curtain wall glass gluing. Adjustable for aluminum spacer widths from 6A to 27A.
Full servo motor transport for input and output, featuring high bearing capacity and transmission efficiency.
V-shaped belt transmission system automatically aligns according to glass thickness to prevent adhesives.
Capable of triple glazing (three layers glass and two cavities) gluing in one pass, ensuring a clean and fast process.
Compatible with two-component polysulfide sealant, silicone sealant, or single-component sealant.
PLC touch screen operating system for simple and stable operation.
Automatic thickness measurement solves issues with uneven insulating glass for full automation.

Technical Parameters

Machine dimensions	8300mm x 1600mm x 2900mm
Max. glass size	2000mm x 2500mm
Min. glass size	300mm x 350mm
Thickness of coating	2mm - 15mm
I.G.U thickness	12mm - 60mm
Monolithic glass thickness	3-15mm
The glue speed	30m/min (6A spacer, 5mm)
Convey speed	0 - 30m/min
Load weight	200kg/m
Glue ambient temperature	15-40 ºC
Electric power	14kw, 380V (50HZ)
Gas source	2.0Ms/min 6Bar
Control	Touch screen

Basic Specifications

Model NO.	FGI-IG2025	Type	Insulating Glass Production Line
Structure	Vertical	Washing Type	Ultrasonic Glass Washing Machine
Condition	New	Specification	Width for 2000mm glass
Origin	China	HS Code	8464201
Production Capacity	15 set / Month	Transport Package	Suitable for Sea Delivery

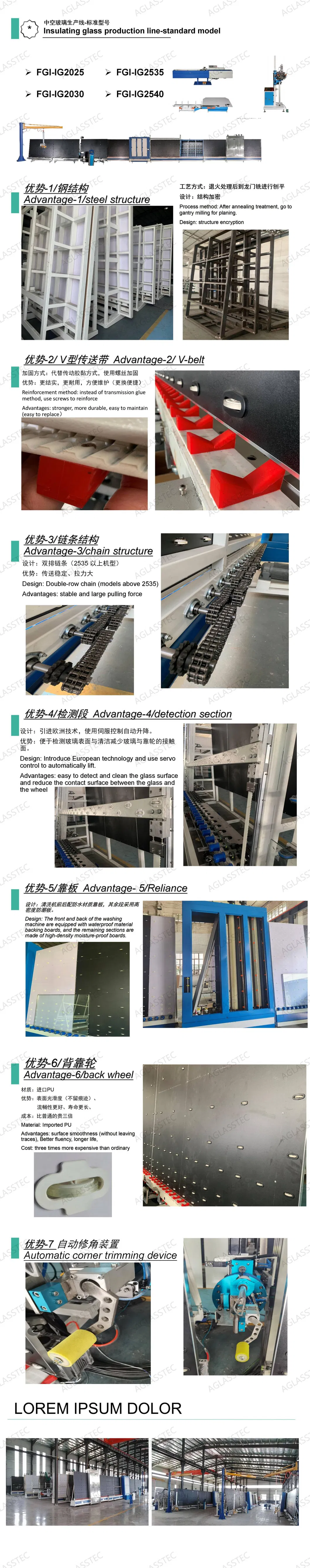

Machine Details & Logistics

Frequently Asked Questions

Q1: What is the maximum glass size this robot can handle? The FGI-IG2025 can process glass up to a maximum size of 2000mm x 2500mm, with a thickness range for I.G.U. between 12mm and 60mm.

Q2: Can this machine handle triple-glazed units? Yes, the machine is designed to achieve three layers of glass and two cavities gluing at one time, ensuring a clean and fast application.

Q3: What type of sealants are compatible with the sealing robot? It is compatible with two-component polysulfide sealants, silicone sealants, and single-component sealants.

Q4: How does the system ensure precision during the gluing process? The machine utilizes a Taiwan Delta servo control system and an electronic mixing ratio system to accurately control the glue amount and width (6A to 27A).

Q5: What kind of support is provided for first-time users? We provide comprehensive operation manuals and videos. Additionally, technical support is available via online guidance or engineer dispatch for installation and staff training.

Q6: How is the quality of the machine verified before shipment? The entire production procedure undergoes regular inspection and strict quality control. Every machine is tested to ensure optimal operation, and testing videos/pictures are available before delivery.
