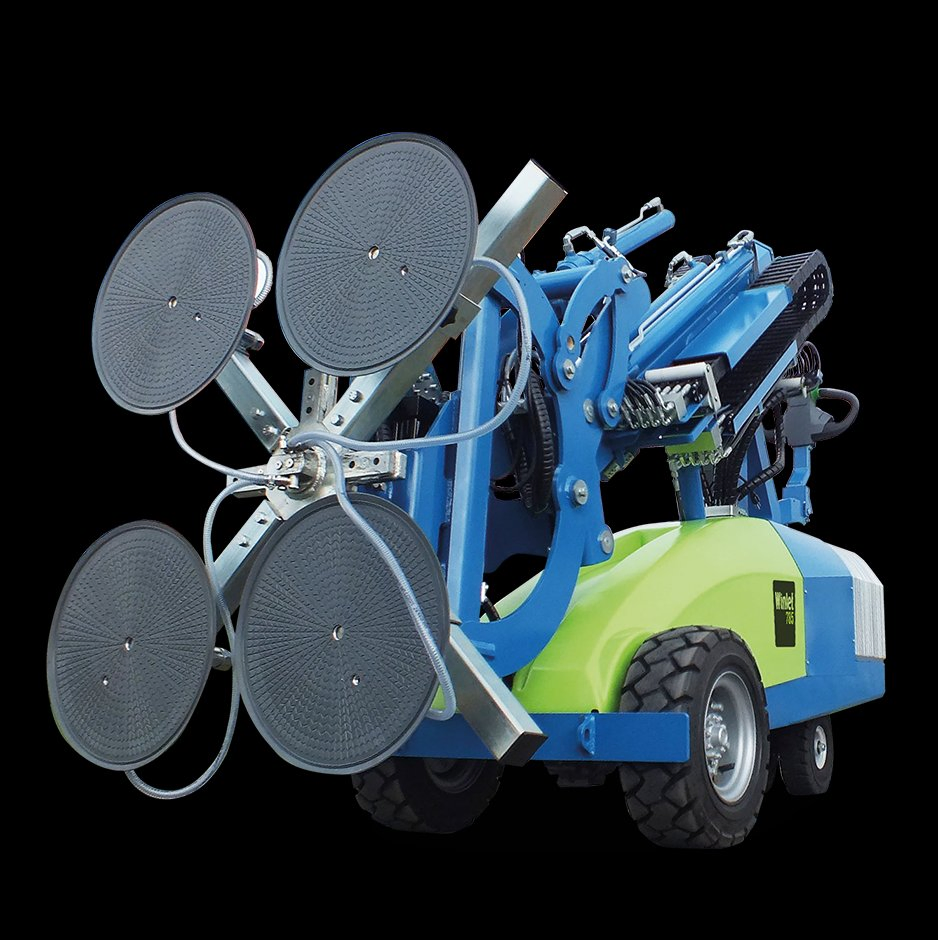

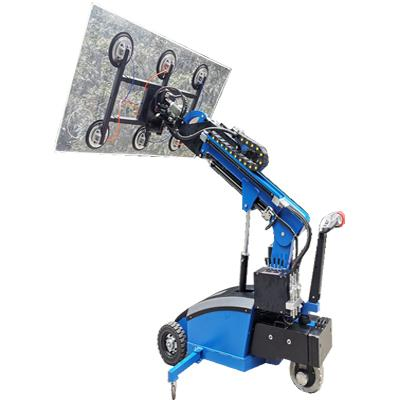

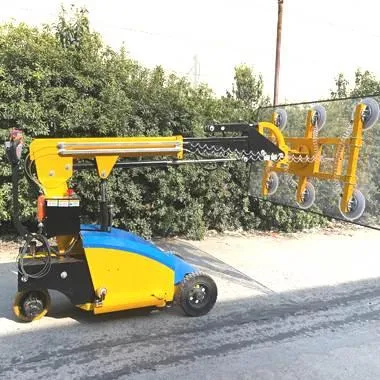

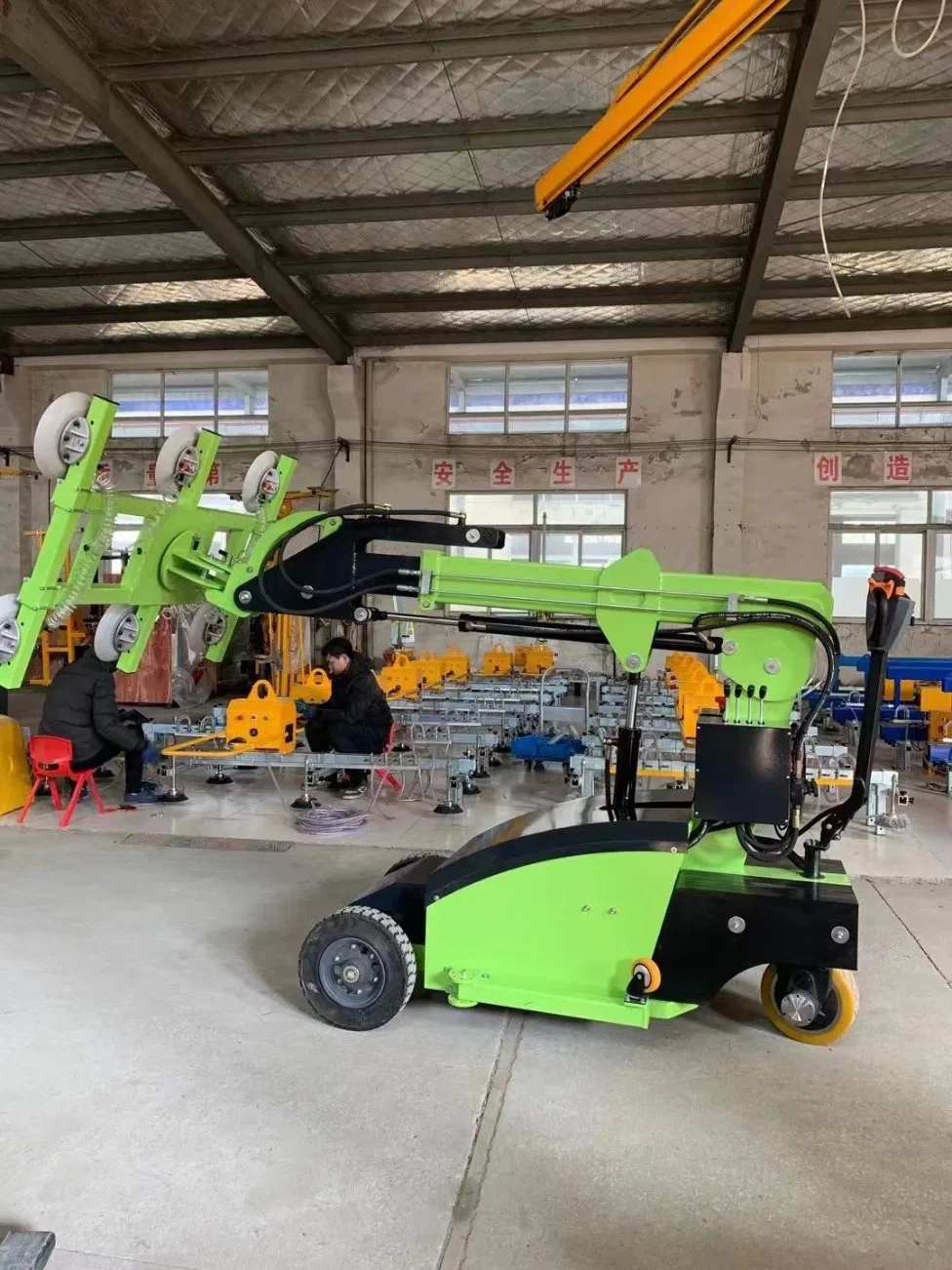

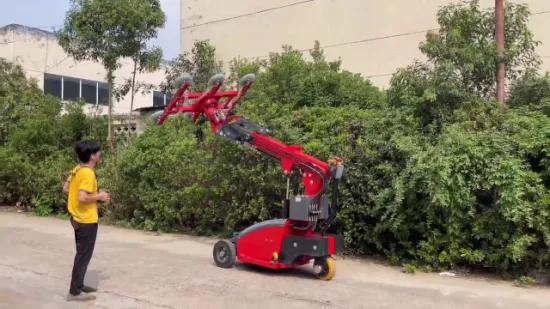

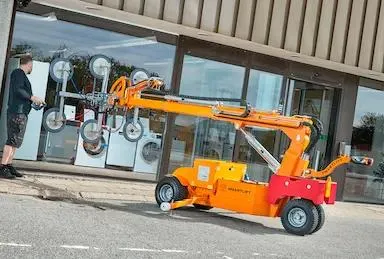

Glazing Robot Electric Suction Cups Glass Vacuum Lifter is a fast, safe and convenient automatic equipment. It utilizes vacuum adsorption principles with a vacuum pump source to firmly hold various workpieces such as glass and iron plates. The rotating mechanical arm transports materials precisely to designated positions.

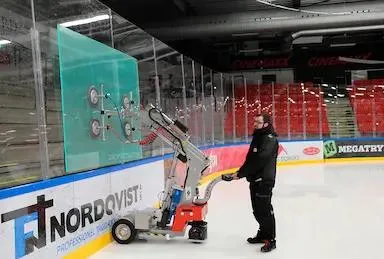

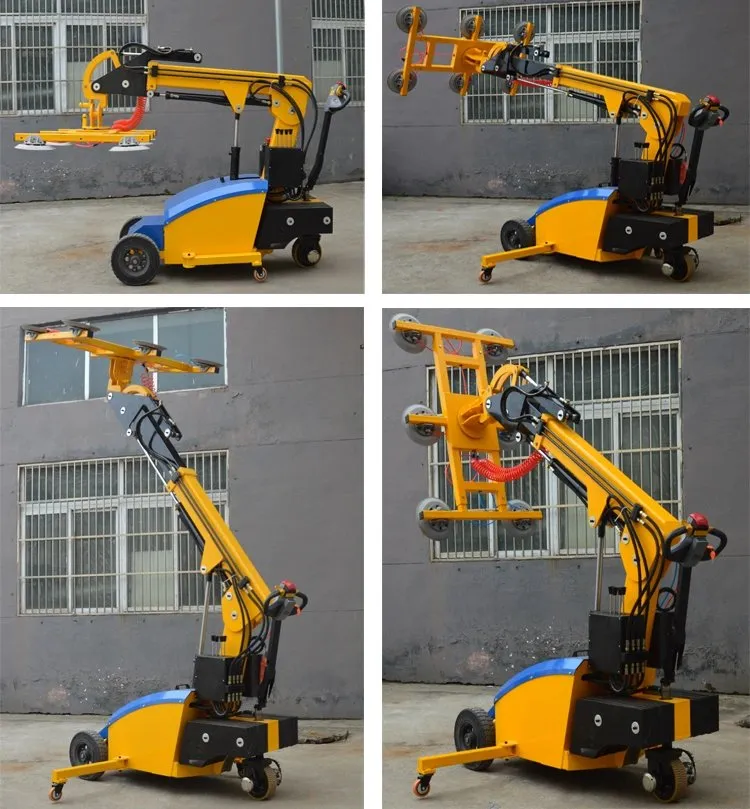

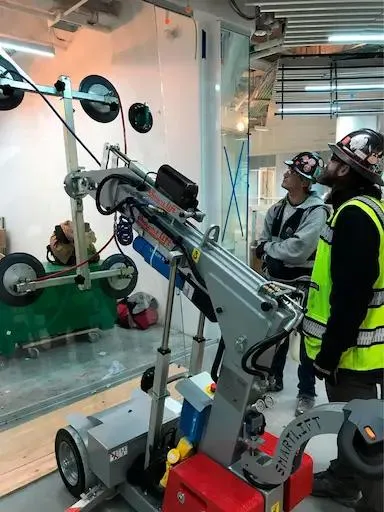

The system is ideal for installing or transporting glass, wood, cement, and iron plates. Sponge suction cups can be substituted for different materials. The automatic glass loading machine features an adjustable bracket to adapt to panels of various sizes.
| Model Type | HH-GR-300 | HH-GR-400 | HH-GR-500 | HH-GR-600 | HH-GR-900 |
|---|---|---|---|---|---|
| Load Capacity | 300kg (retract) / 150kg (extend) | 400kg (retract) / 200kg (extend) | 500kg (retract) / 250kg (extend) | 600kg (retract) / 300kg (extend) | 800kg (retract) / 400kg (extend) |
| Max. Lifting Height | 3880mm | 3880mm | 3880mm | 3880mm | 5000mm |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs |
| Rubber Suction Cap | Ø300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Battery | 2x12V/100AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Drive Motor | 24V/600W | 24V/600W | 24V/900W | 24V/1200W | 24V/1200W |
