Product Description

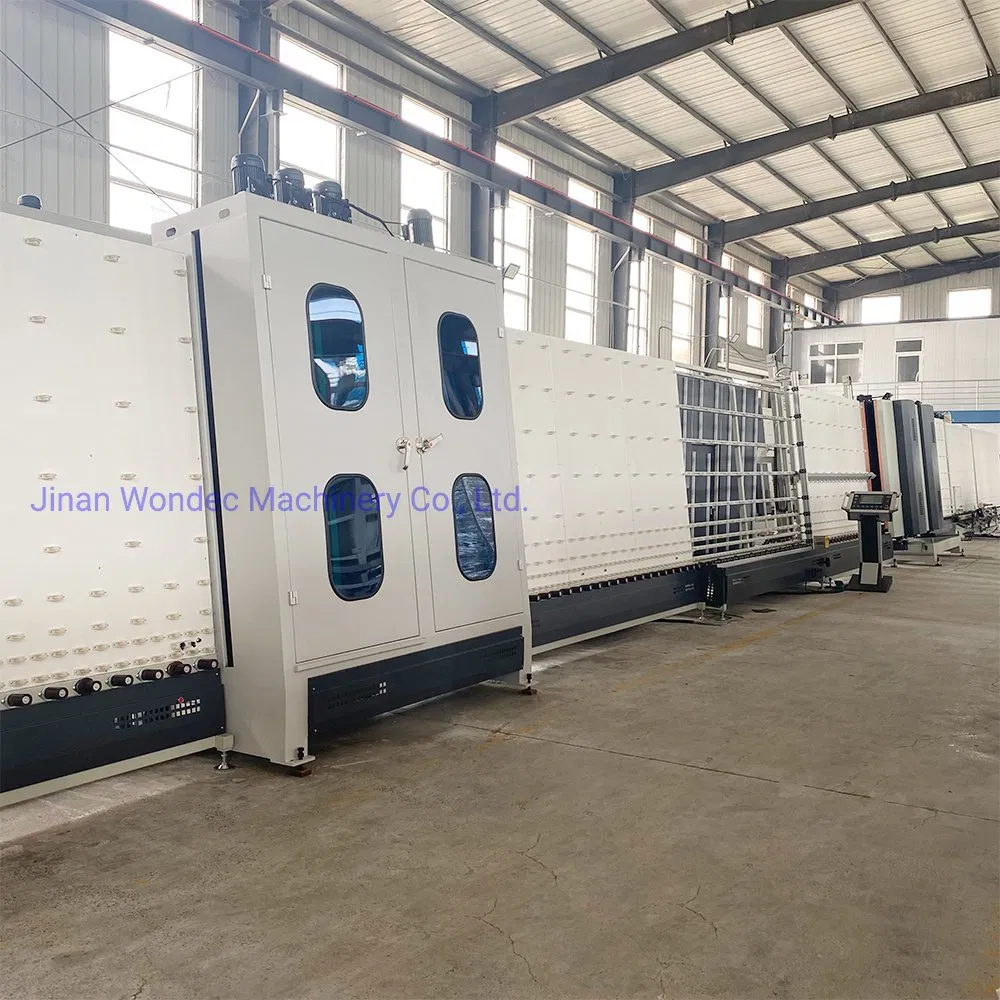

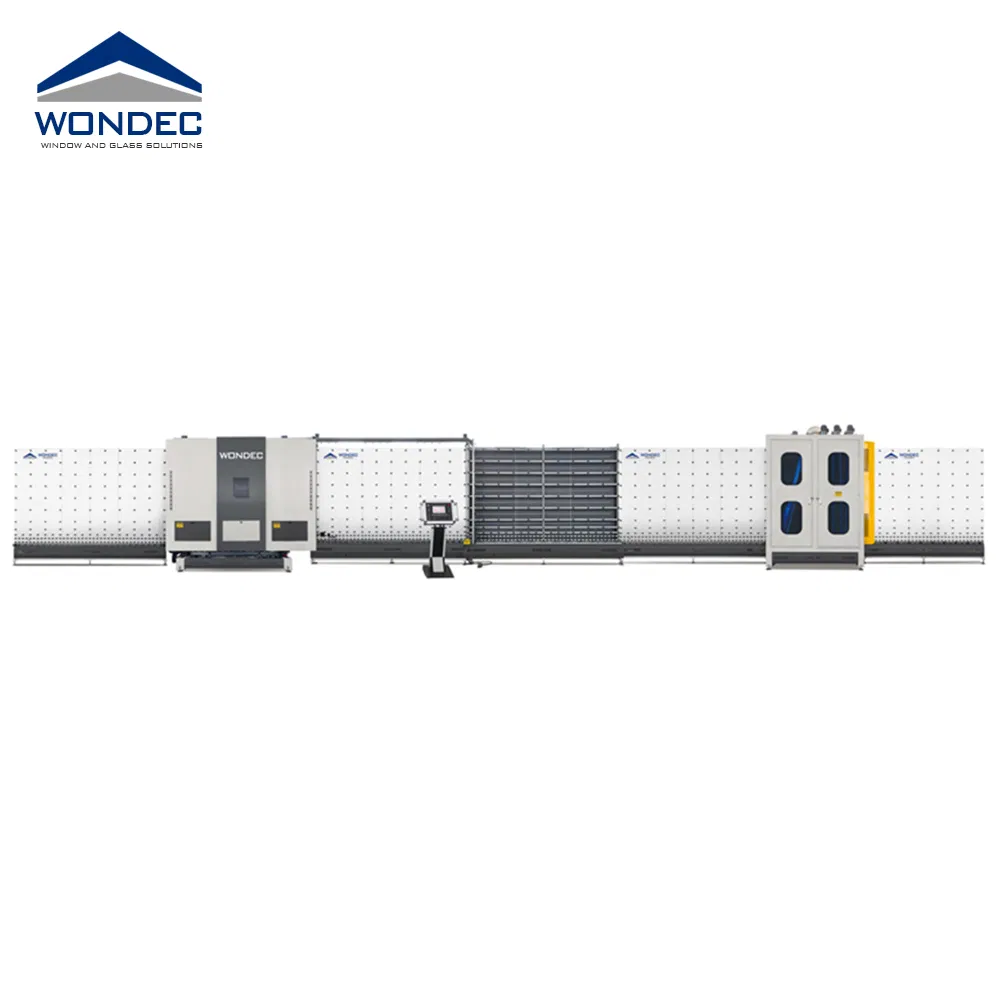

Automatic Vertical Insulating Glass Argon Gas Filling Production Line

This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance. It can be upgraded and expanded according to user's requirements.

Section 01: Input conveyor

This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

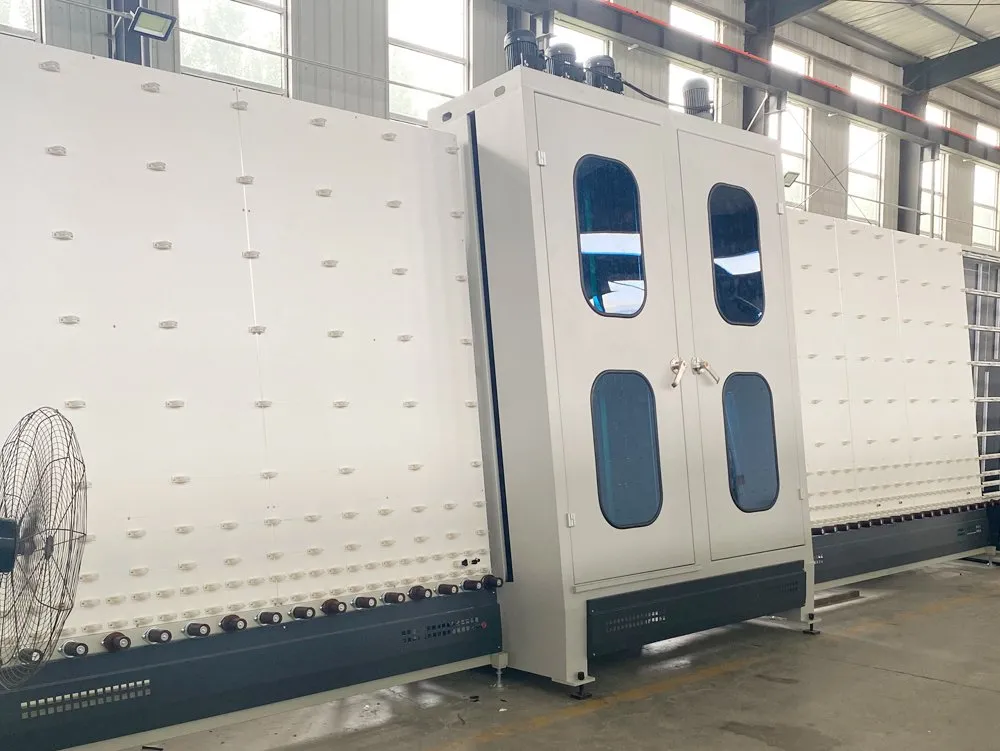

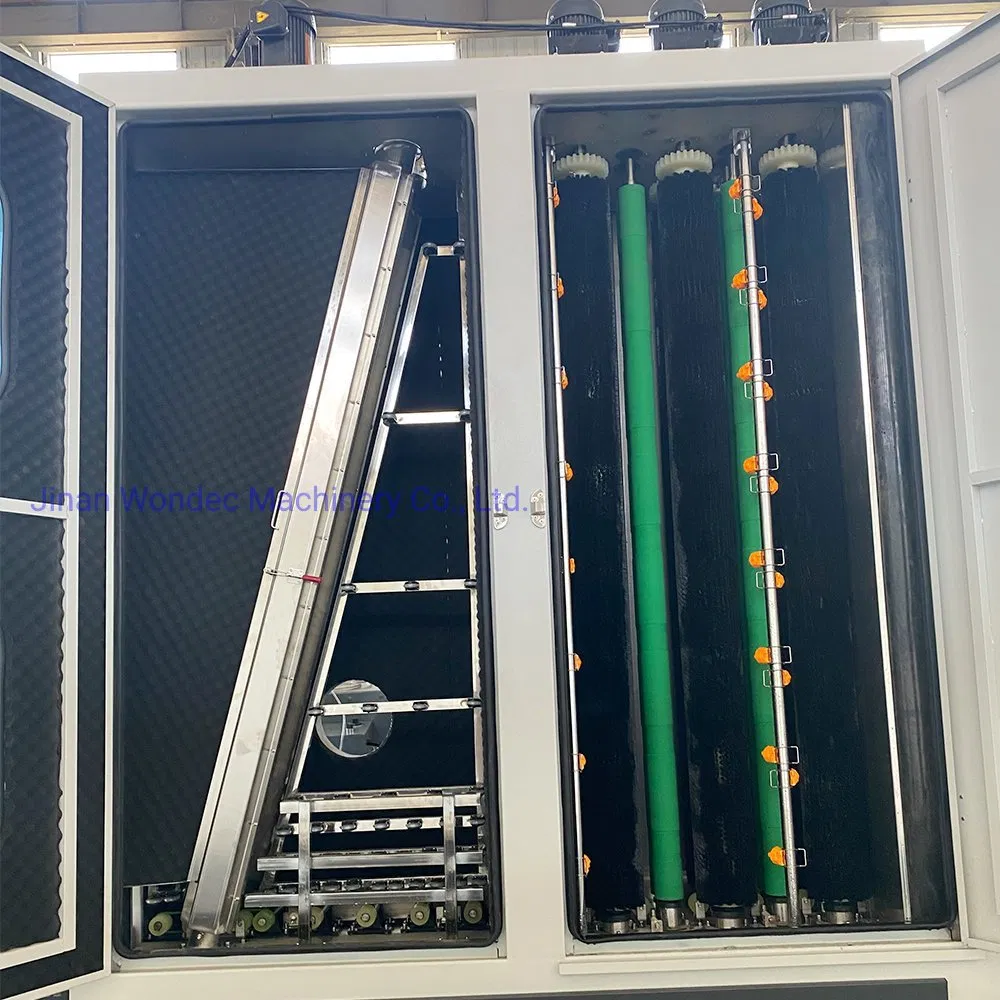

Section 02: Glass washing and drying section

• Stainless steel material and corrosion-resistant material adopted for all washing area.
• The 6 brushes are driven by 6 motors independently.
• Direct coupling connection prevents slip or motor idling.
• Front 3 soft brushes (0.1mm) for Low-E glass; back 3 hard brushes (0.2mm) for ordinary glass.

Section 03: Transition section

Adopts dual motors to drive the transmission. Two small glasses can be parked at the same time to improve work efficiency.

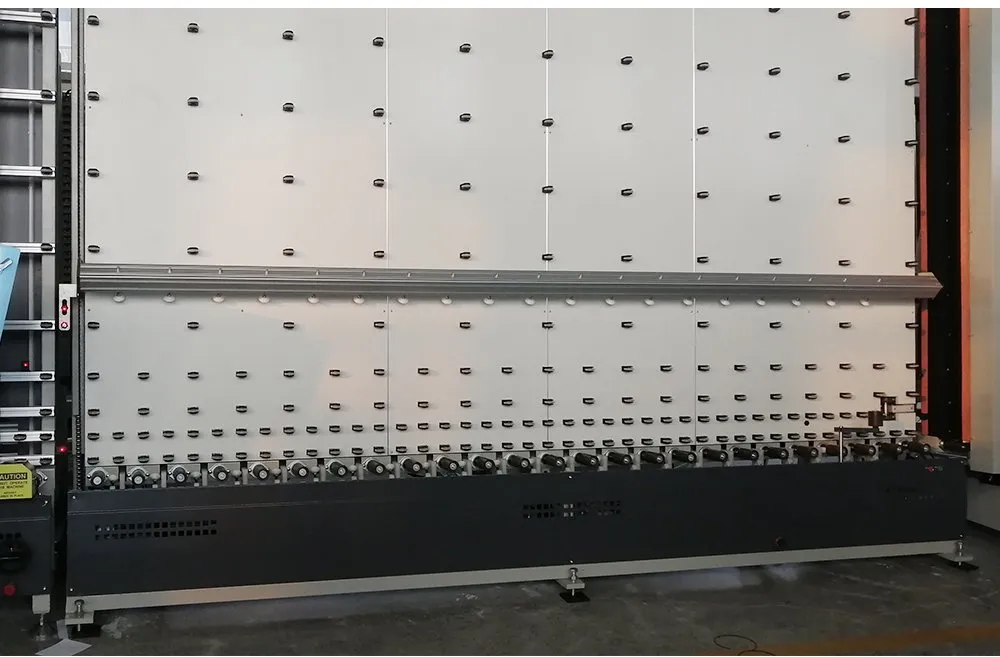

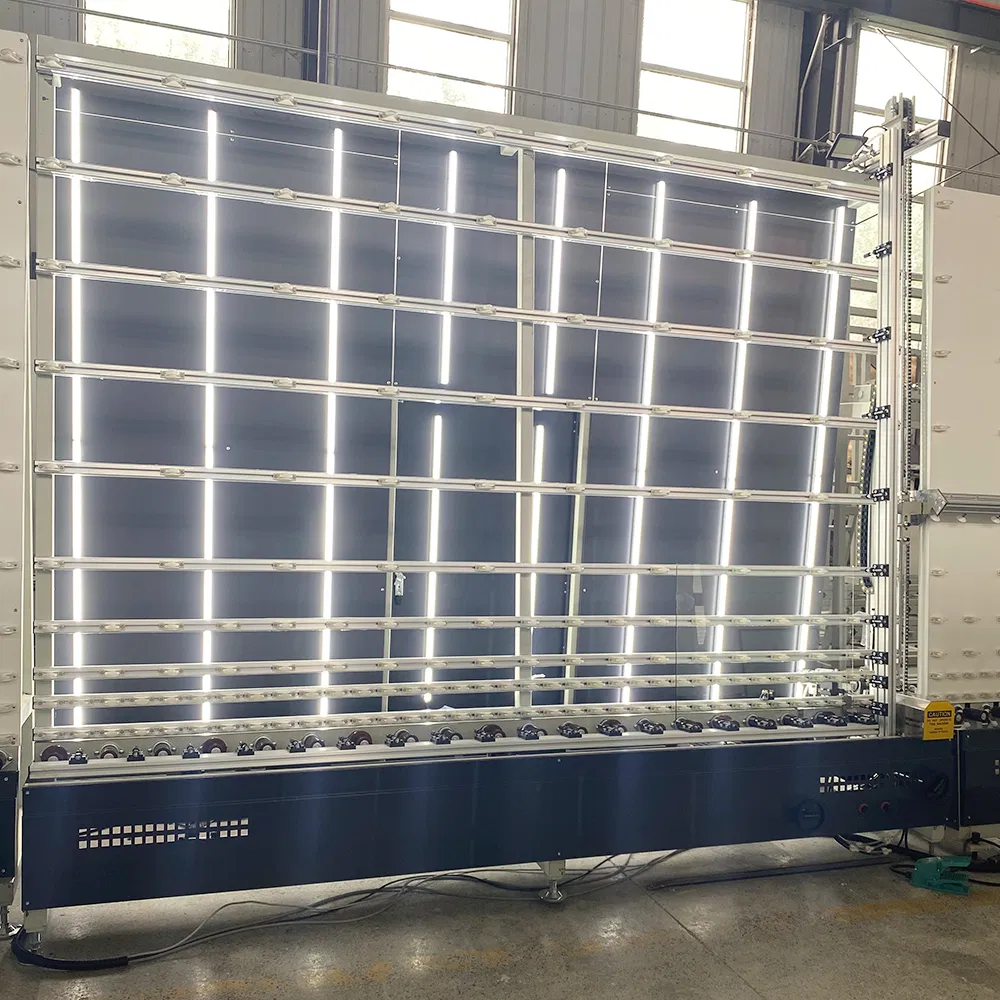

Section 04: Lights Inspection & Aluminum spacer placement

• Aluminum-alloy profile structure for durability and appearance.
• Equipped with a movable door for easy cleaning inspection.
• High quality LED lamps for energy-saving inspection.

Section 05: Outside assembly (Optional)

The advantages of the outside assembly are fast and efficient, ensuring a low failure rate.

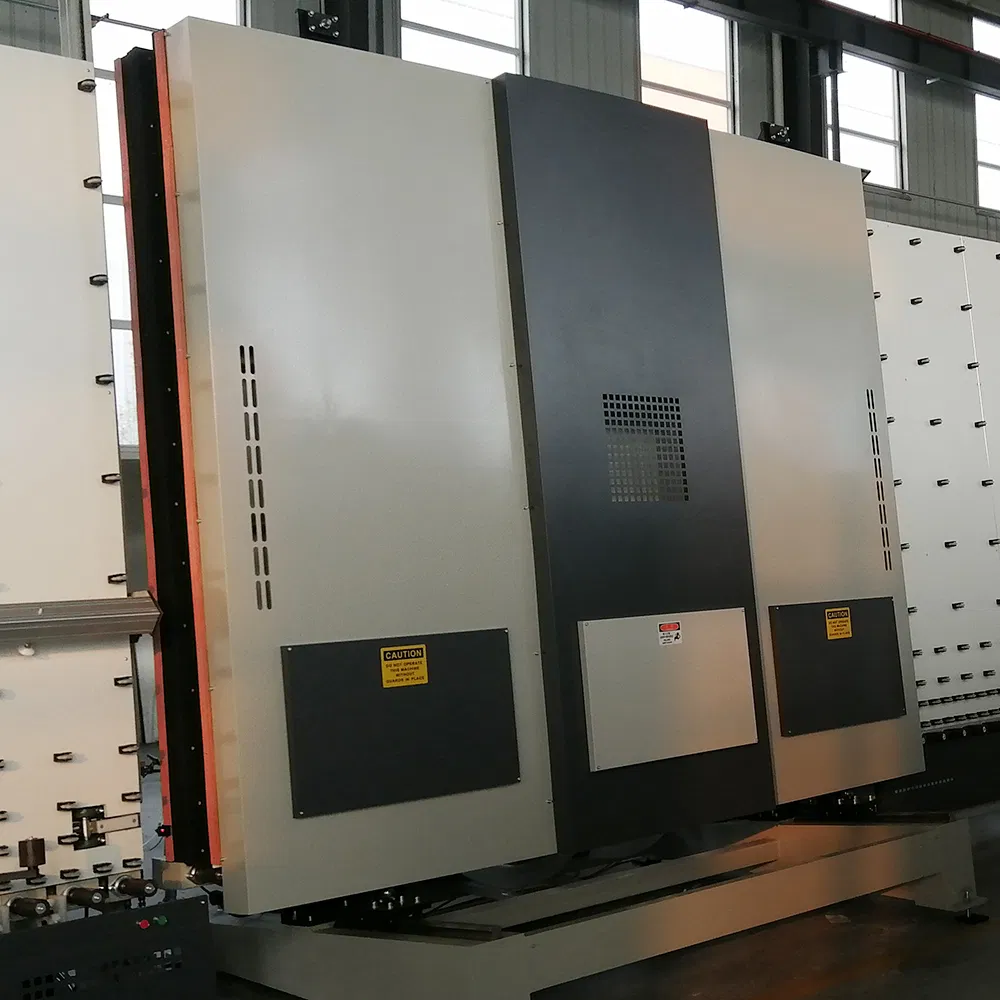

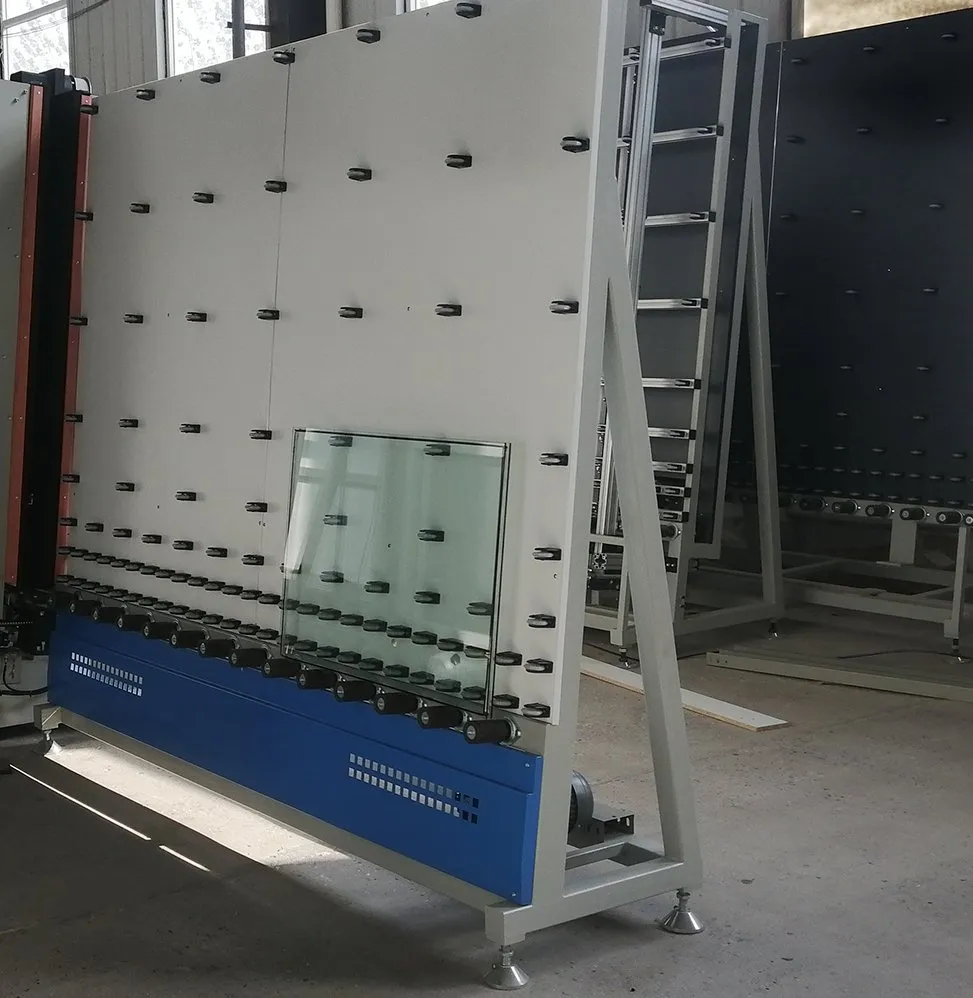

Section 06: Inside assembly & panel press with online argon gas inflation

• Denser steel frame for a stronger machine body.

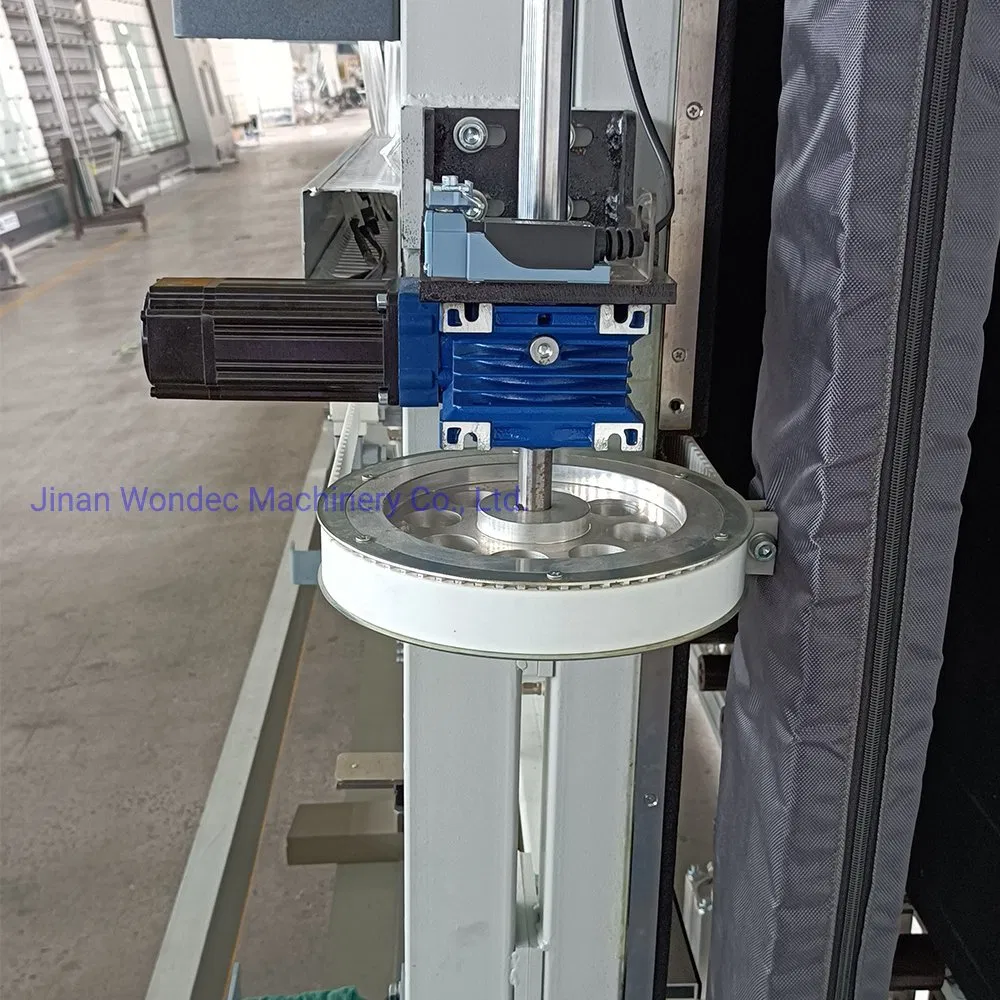

• Panel press controlled by high-precision Servo motor.
• Two-layer front pressing plate ensures long-term flatness.
• Suction cups work partitioned via logic valves based on glass size.
• Automatic online argon gas filling from the bottom side (Double/Triple IGU).

Section 07: Output conveyor

Used to transmit and store glass units. Can be connected with a sealing robot for continuous operation.
