Insulating Glass Production Line with Argon Gas Filling Function Online Igu Making Machine Window and Door Machine for Double Glazing Glass Processing

Technical Specifications

Product Overview

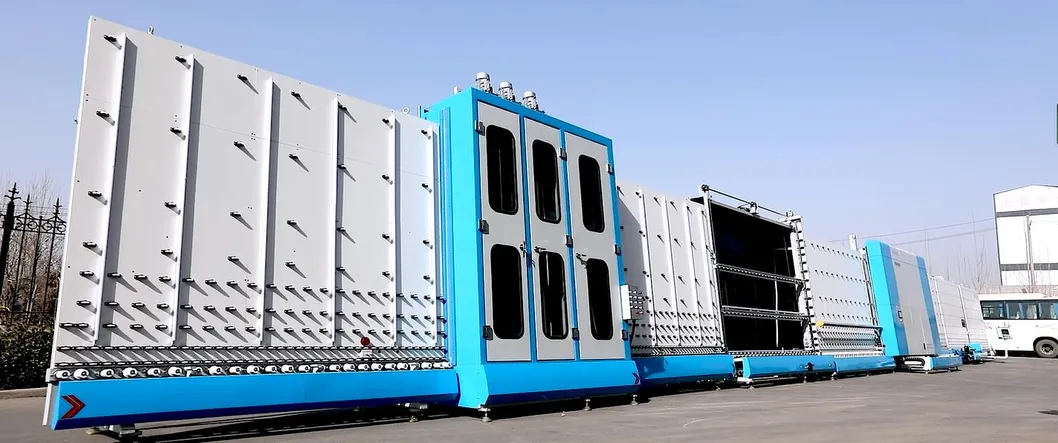

This Vertical Insulating glass machine is a professional solution for high-speed production. It features special designs for effective Low-E glass washing and an integrated argon gas filling system. Controlled by a Schneider PLC system, it ensures precision, reliable movement, and automatic frequency control.

Key Performance Characteristics

• Automatic Recognition: Automatically distinguishes the coating side of Low-E glass with an alarm indicator.
• Advanced Components: Utilizes DuPont brushes (USA), SKF waterproof bearings (Sweden), and Schneider electric elements (France).
• High-Efficiency Washing: 3 pairs of brushes including specific soft brushes for Low-E glass coating protection.

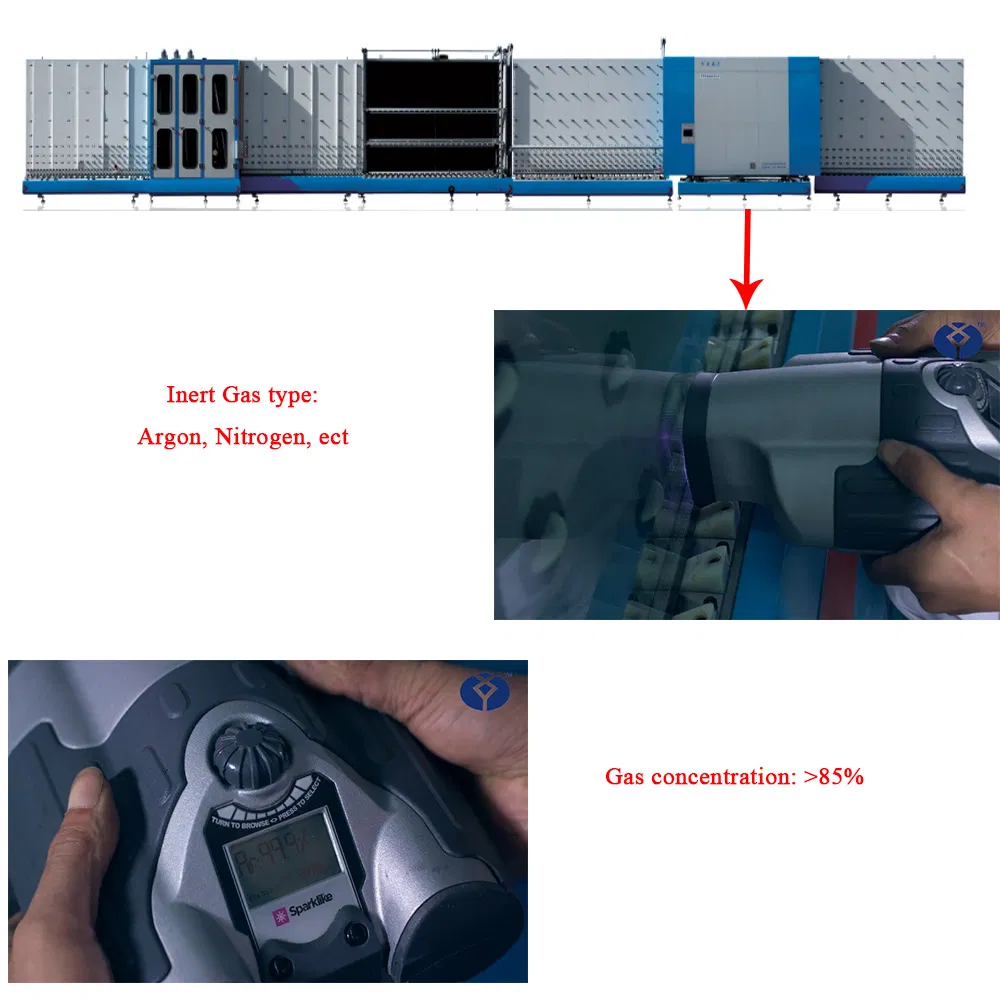

• Inert Gas Filling: On-line gas filling achieves over 95% efficiency in the press section.
• Drying System: Uses circulating hot wind to ensure rapid drying and noise reduction.
• Maintenance Friendly: The press section opens up to 500mm for easy accessibility.

Technical Data

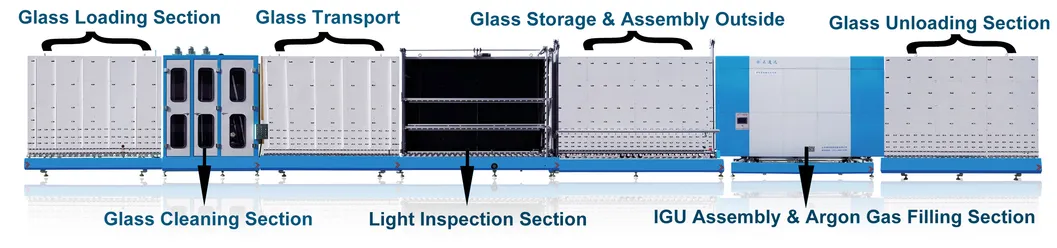

Production Line Sections

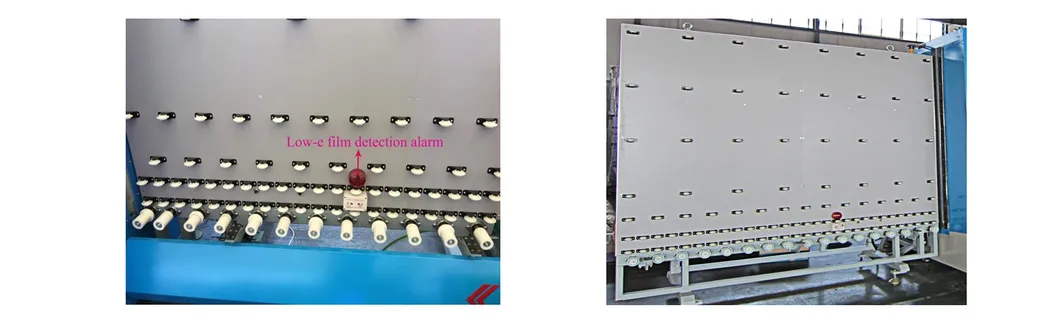

Section 1: Loading & Diagnosis

Equipped with a Low-E glass automatic diagnosis system. High-quality back boards ensure durability and stable transmission speed via inverter control.

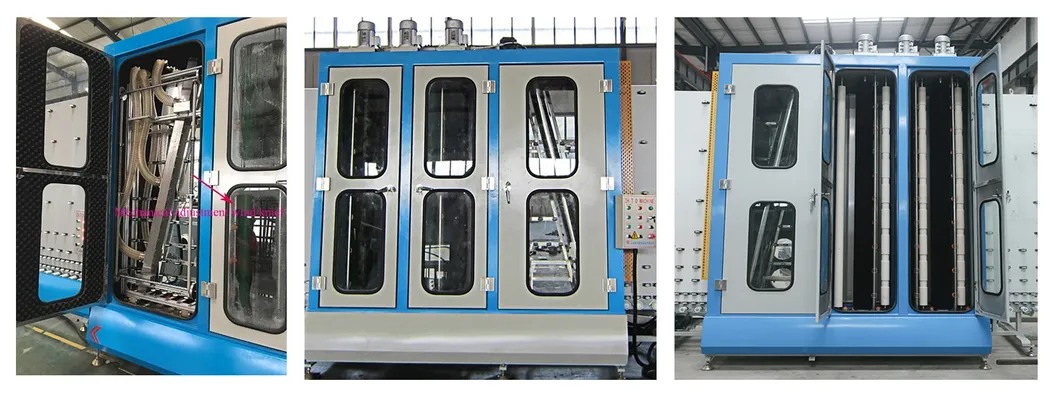

Section 2: Washing & Drying

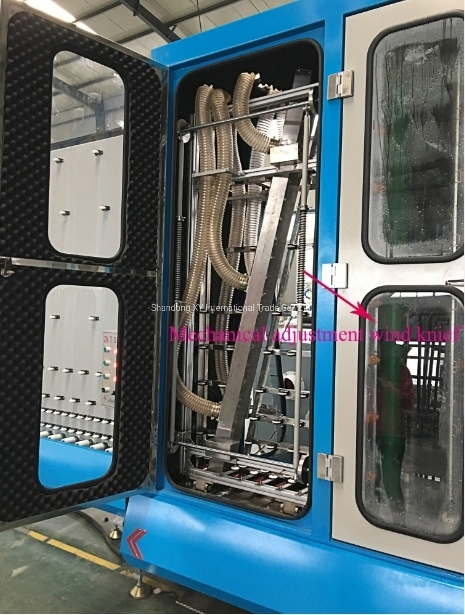

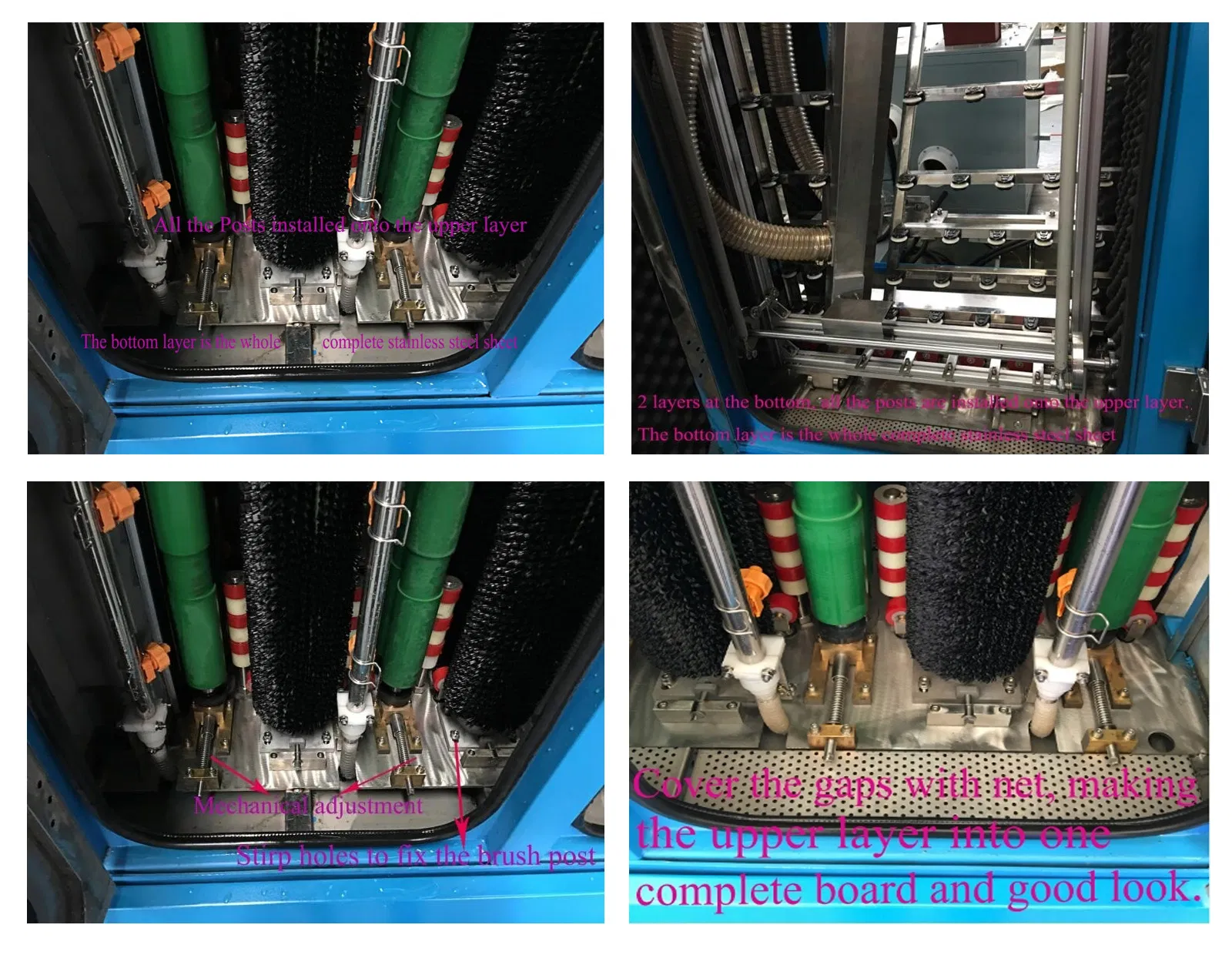

Constructed with 6mm thick stainless steel. Features DuPont food-grade brushes to remove static electricity and ensure clarity. Includes mechanical air knife adjustment and SKF oil-less bearings.

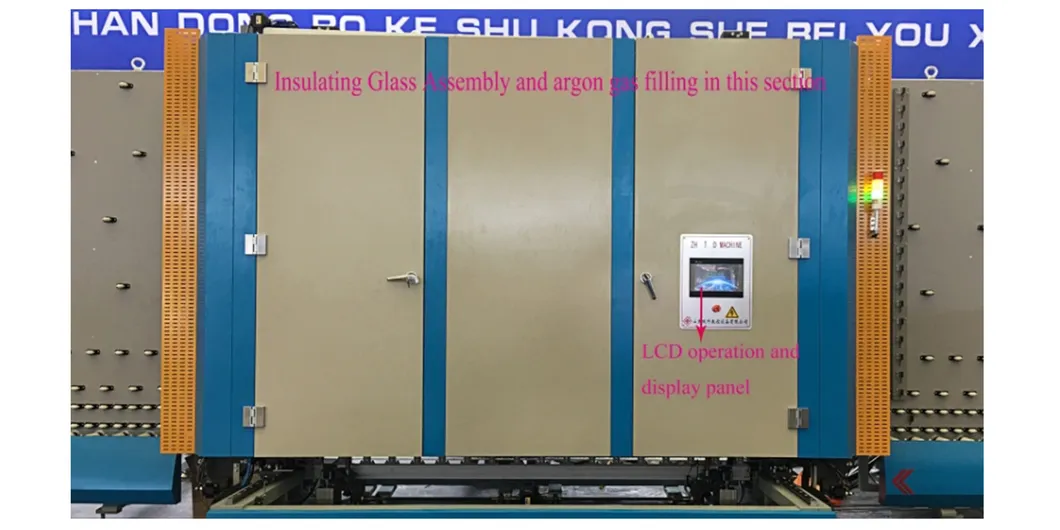

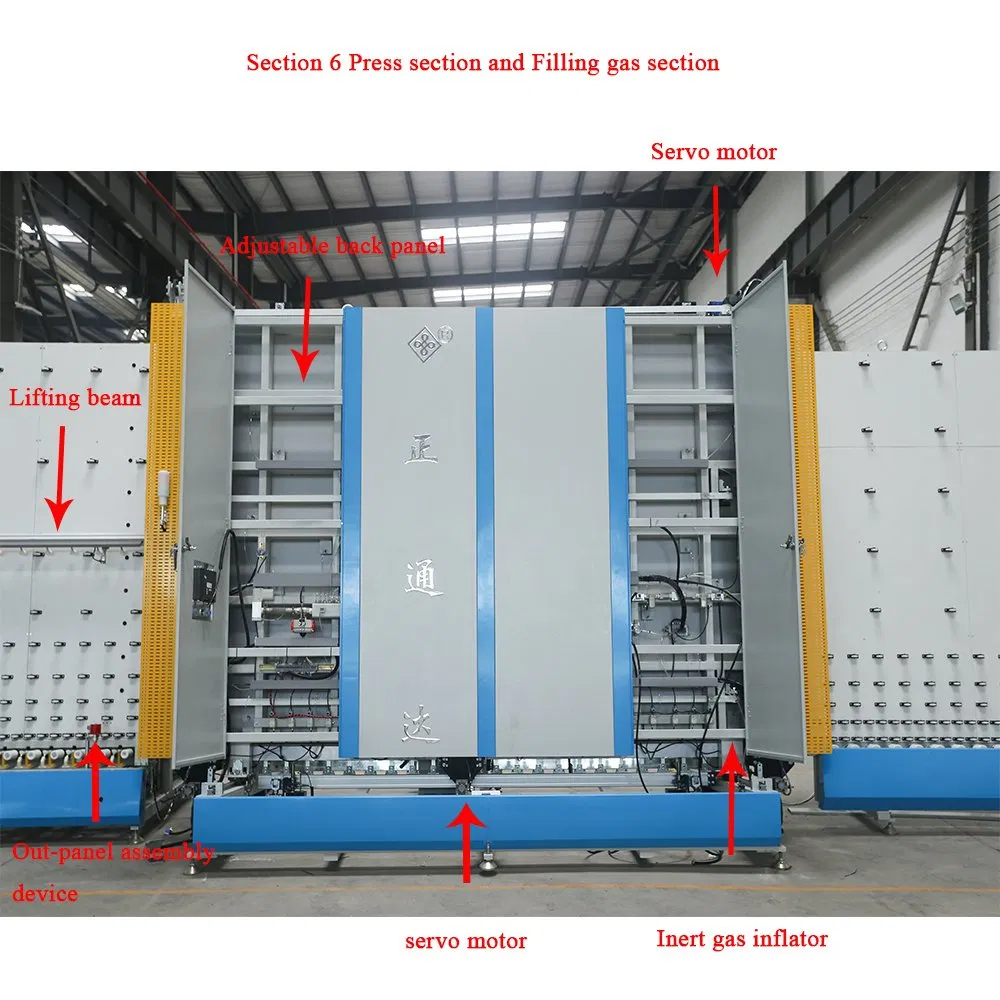

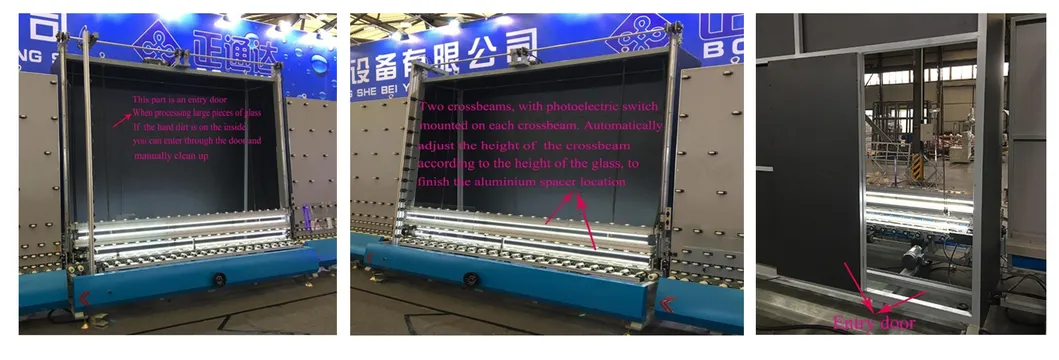

Section 4-6: Inspection, Positioning & Gas Filling

The inspection section uses energy-saving sensors that idle components when glass is not present. The press section uses a servo motor for precision movement and high-standard argon filling.

Global Quality Components

Expert Manufacturing

With over 21 years of experience in the insulating glass machinery field, the production process integrates high-tech scientific research with global service standards. All machinery is ISO9001 certified and carries the CE Certificate, ensuring compliance with international quality and safety requirements.
