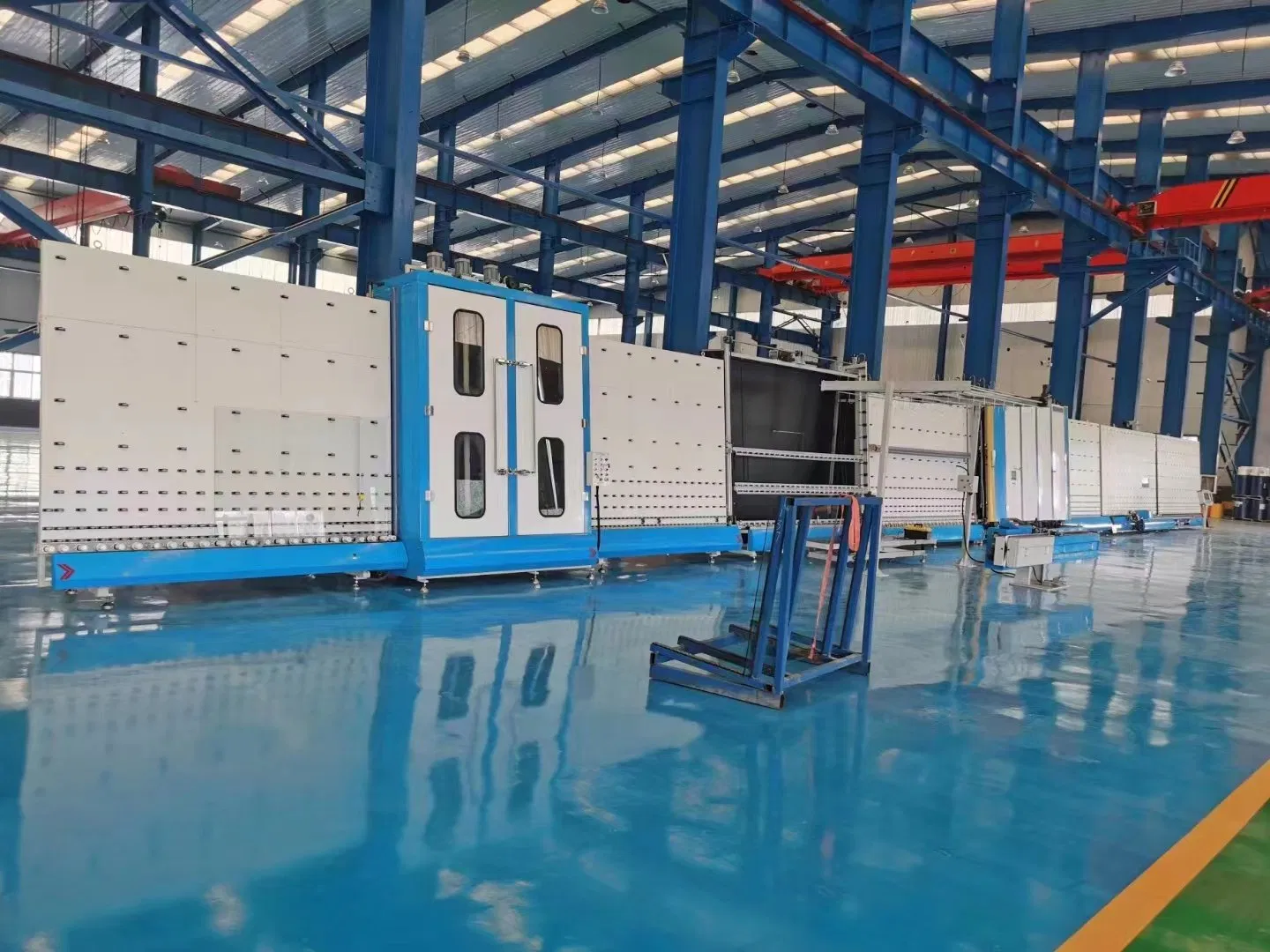

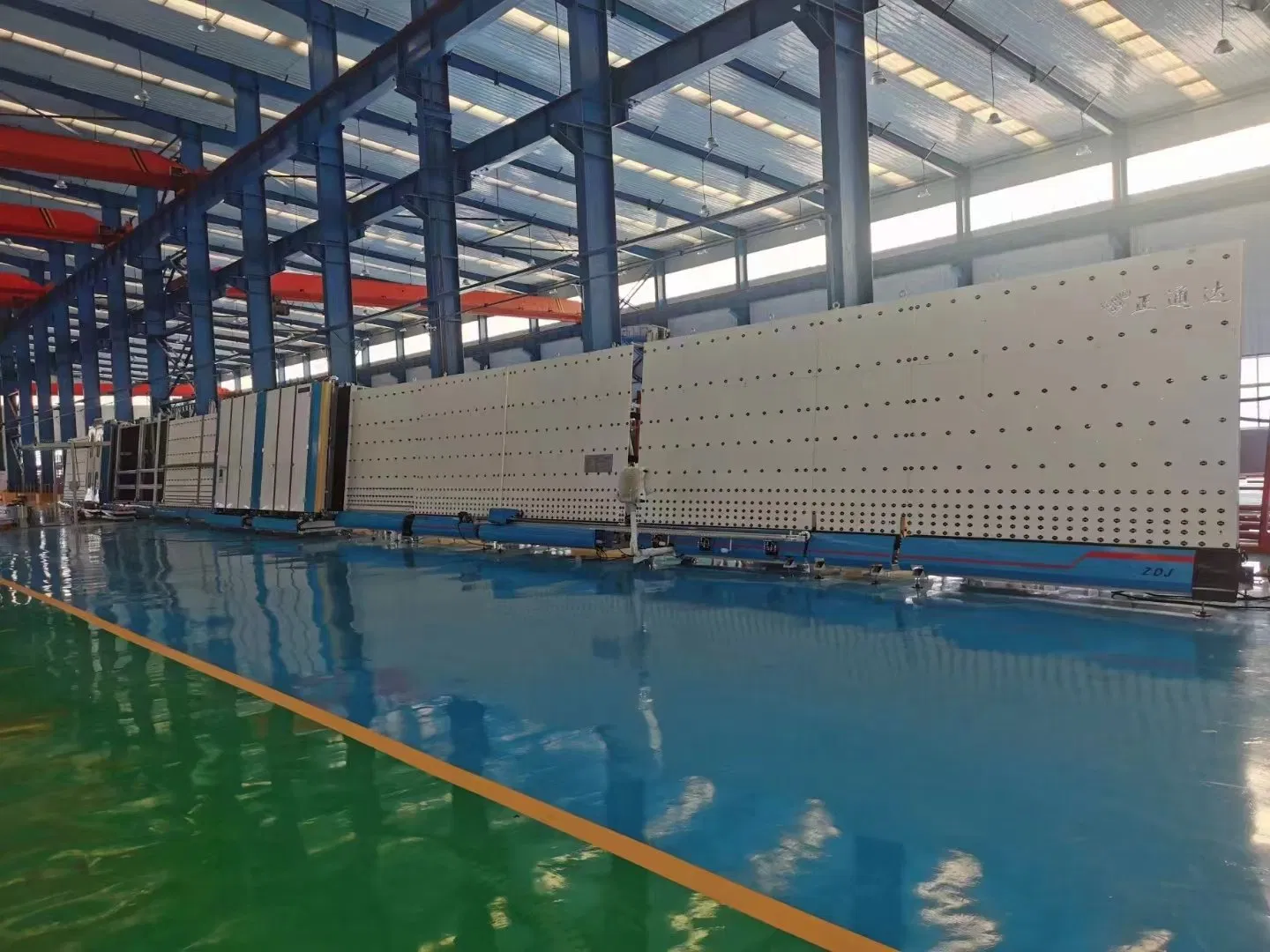

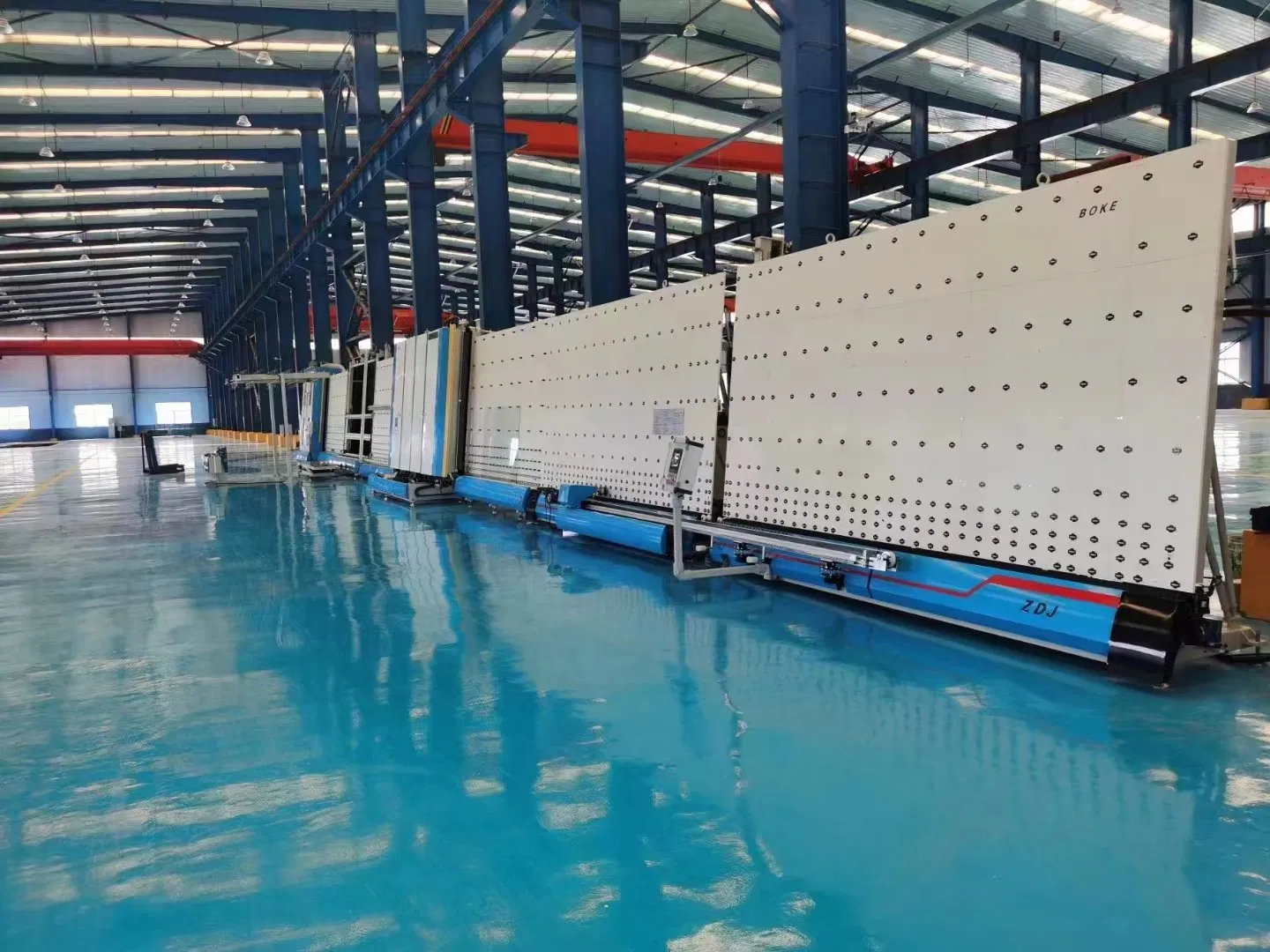

2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
1 / 5
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine
2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine

2850mm Height Insulating Glass Production Line with Automatic Argon Gas Filling Ig Machine

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Specifications
Model NO.
LBP2850Q
Glass Thickness
3-19 mm
Max Glass Size
6000*2850 mm
Min Glass Size
450*200 mm
Work Speed
3-45 m/Min
Total Power
51.35 kw
Power Supply
380V/50Hz
Sections
7 Sections in Total
Outline Dimension
29500*2500*4050 mm
Type
Insulating Glass Production Line
Structure
Vertical
Warranty
1 Year
Origin
China
HS Code
84649019
Product Composition

This Vertical Insulating glass machine is composed of seven integrated sections:

  • Loading section
  • Washing and drying section
  • Transmission and storage section
  • Light inspection and spacer bar attaching section
  • Transmission section
  • Inside assembly and inert gas filling section
  • Storage and unloading section

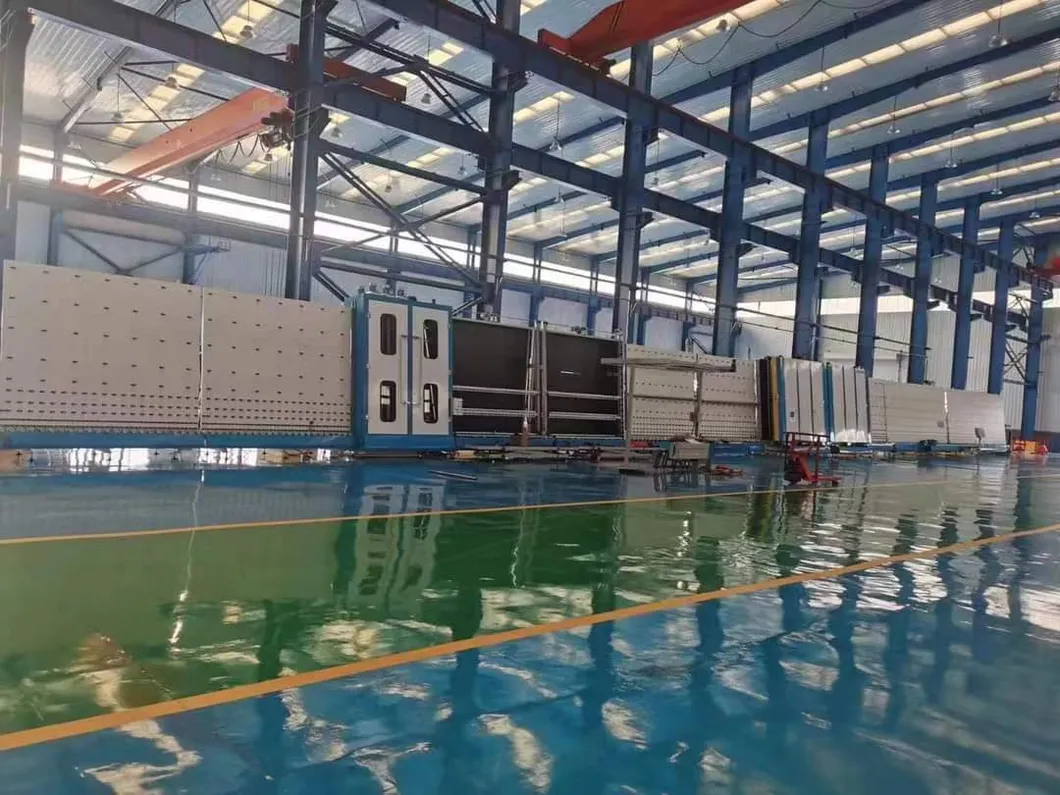

Insulating Glass Production Line 1

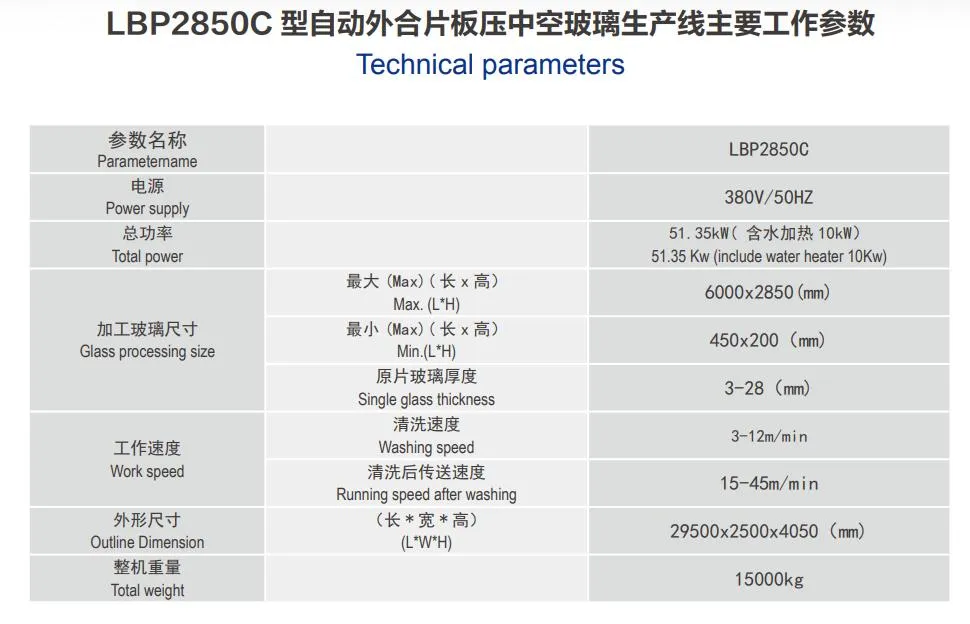

Insulating Glass Production Line 2
Key Technical Features
  • Automatically distinguish the coating side of coated glass and Low-E glass with alarm indication.
  • Static state placement for glass material addition to ensure maximum production safety.

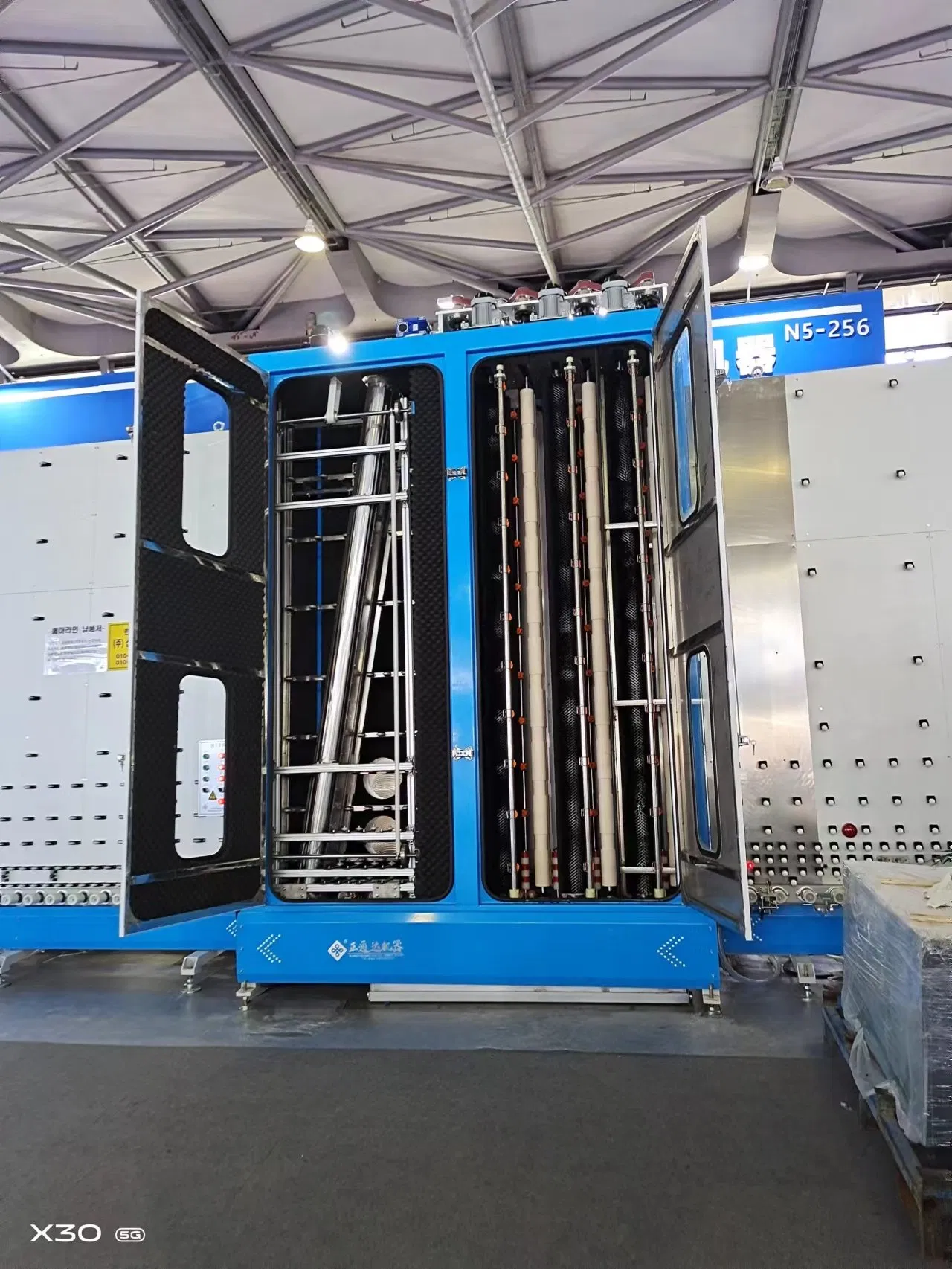

  • Washing machine utilizes stainless steel and corrosion-resistant materials for superior waterproof performance and long life.
  • Equipped with three pairs of brushes, including soft brushes specifically for Low-E glass to prevent coating damage.
  • Wide processing range accommodating glass thicknesses from 3mm to 28mm.
  • High efficiency processing for both same-edge double layer and triple layer insulating glass.
  • Utilizes high-quality SKF bearings with oil-less powder for smooth operation and clean water maintenance.
  • Fully automated control system with PLC and high-precision sensors.
  • Powder-coated baking finish on plate guards for a durable and aesthetic appearance.
  • Drying section uses circulating hot wind to optimize drying effect and reduce operating noise.
  • Maintenance-friendly design with a press section that opens up to 500mm.
  • User-friendly touch screen interface with automatic self-diagnosis for fault detection.
  • Glass position memory function to quickly recover from errors and improve throughput.
Detailed Equipment Views

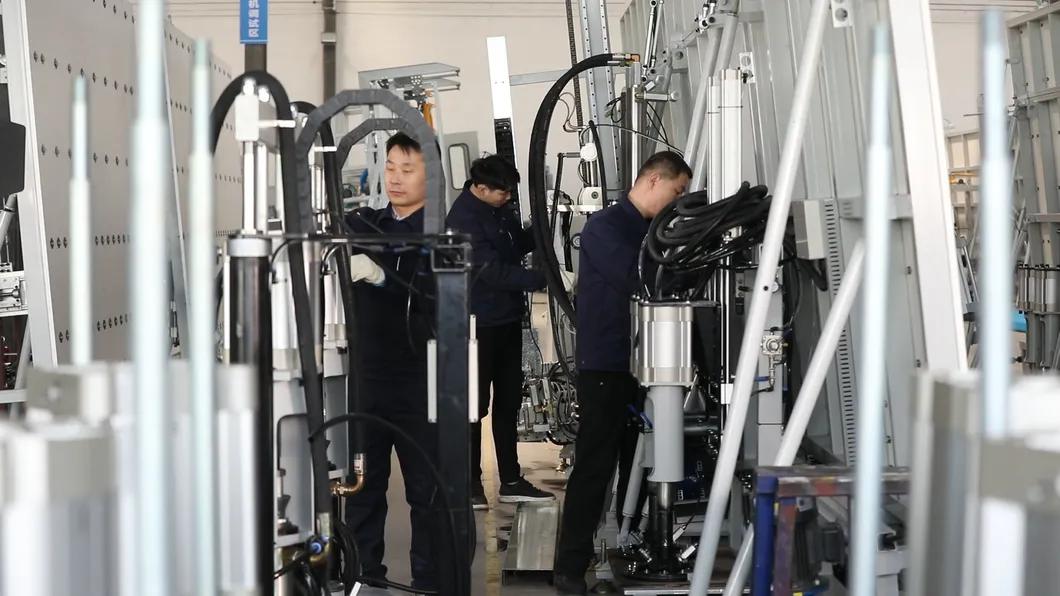

Machine Detail 1
Machine Detail 2

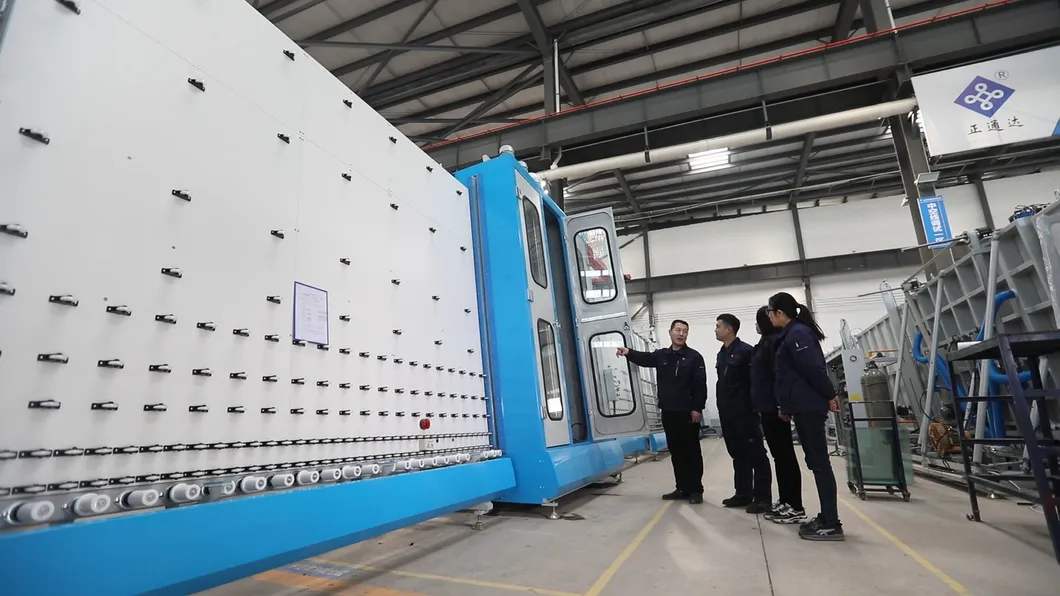

Machine Detail 3

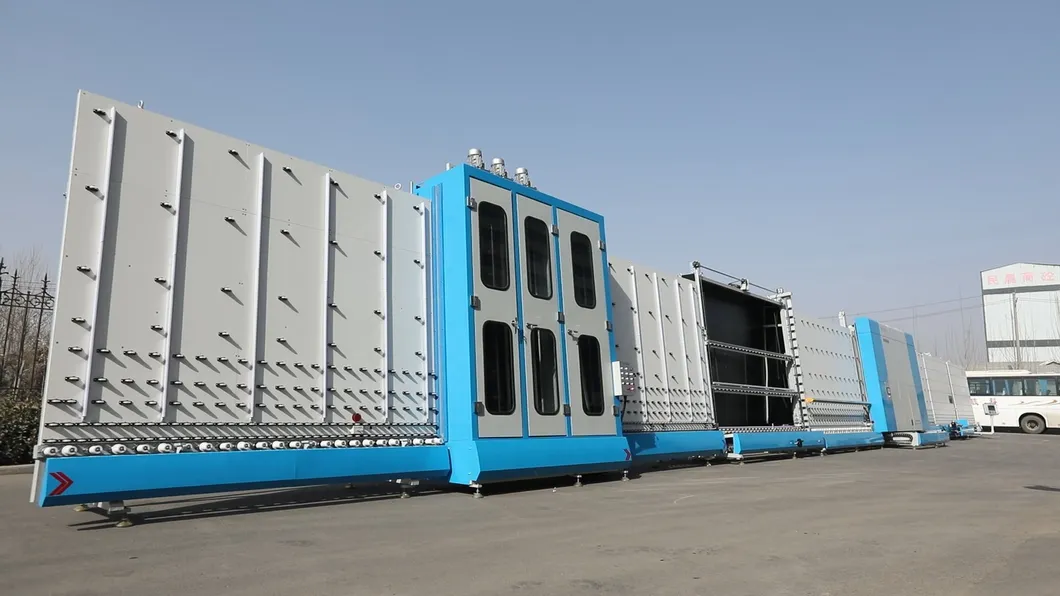

Machine Detail 4

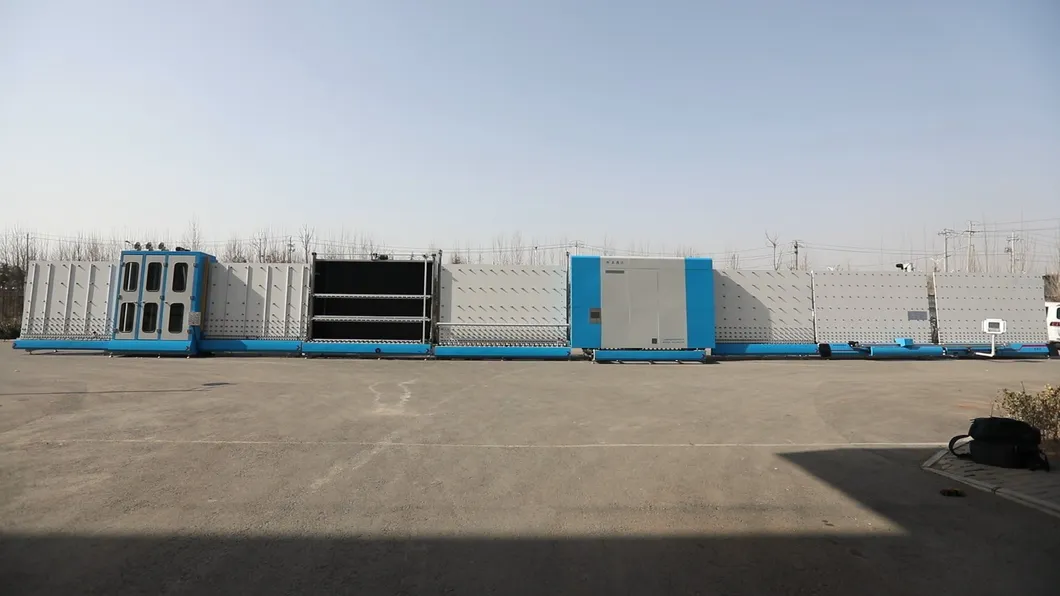

Machine Detail 5
Machine Detail 6

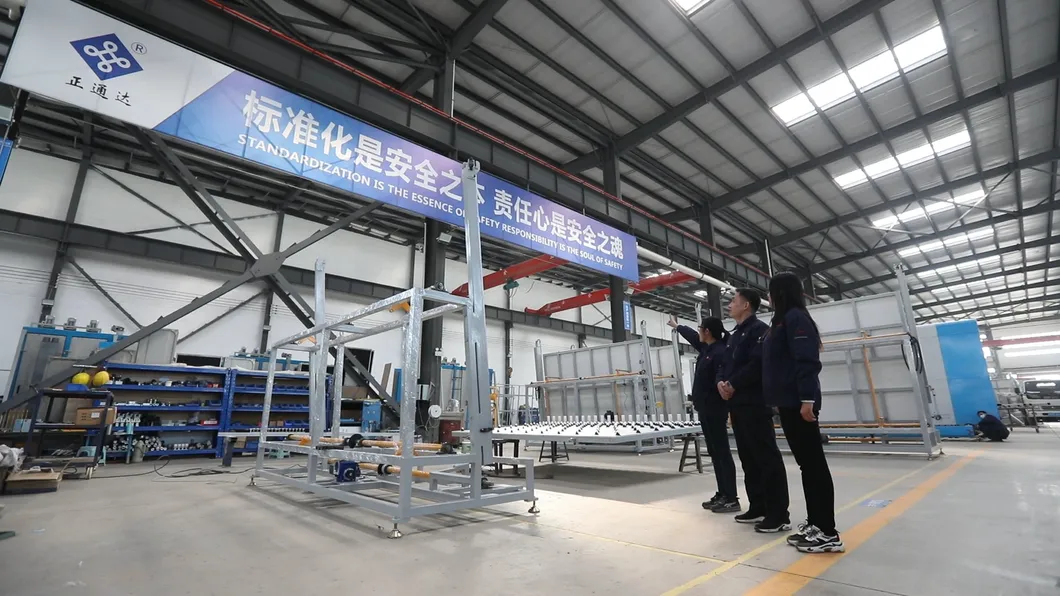

Machine Detail 7
Machine Detail 8

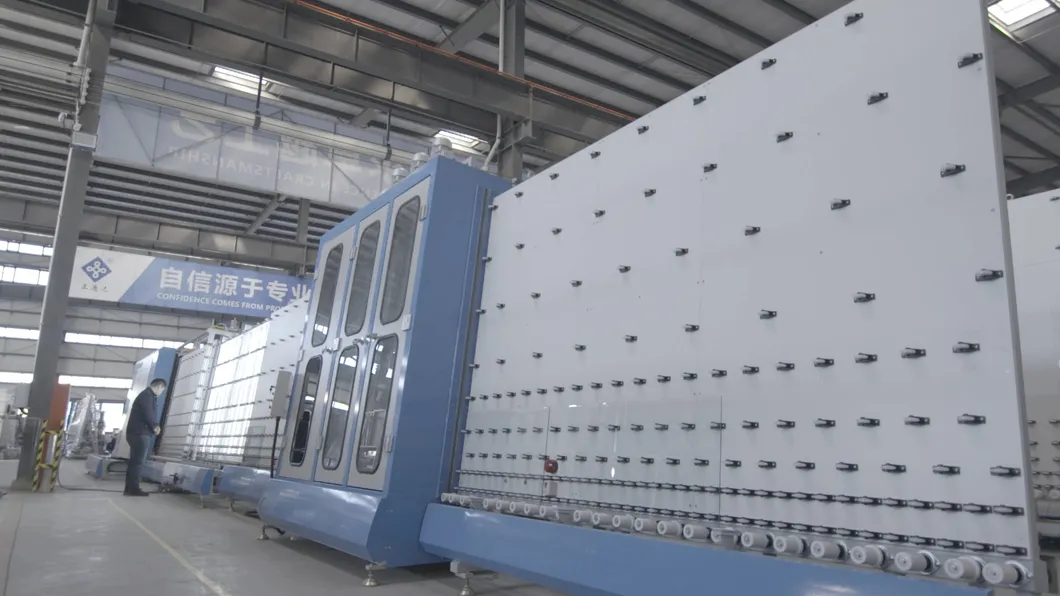

Machine Detail 9
Frequently Asked Questions
What types of glass can this production line process?
The line is designed to process standard glass, coated glass, and Low-E glass with a thickness range of 3mm to 28mm.
Does the machine support argon gas filling?
Yes, the line includes an integrated inside assembly and automatic inert gas filling section for high-performance insulating glass.
How does the machine protect Low-E glass coatings?
It uses a coating side sensor to automatically detect the coating and utilizes specific soft brushes that wash the glass without damaging the sensitive Low-E layer.
Can this line produce triple-layered insulating glass?
Yes, the system is engineered to efficiently process both double layers and triple layers of insulating glass units.
What is the maximum glass size for the LBP2850Q model?
The maximum glass size is 6000mm in length and 2850mm in height.
What happens if there is an error during production?
The PLC control system features a touch screen with automatic self-diagnosis and a glass position memory function to quickly resolve issues and resume production.
