💡 Product Description
| Warranty | One Year (Except Consumable Products) |
| Type | Glass Laminating Machine |
| Certification | CE, ISO |
| Structure | Horizontal |
| Control System | PLC |
| Washing Type | Horizontal Glass Washing Machine |

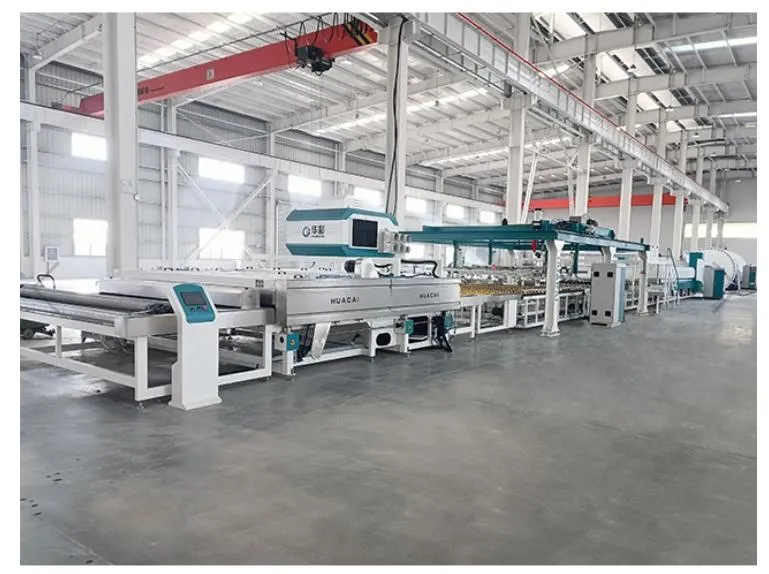

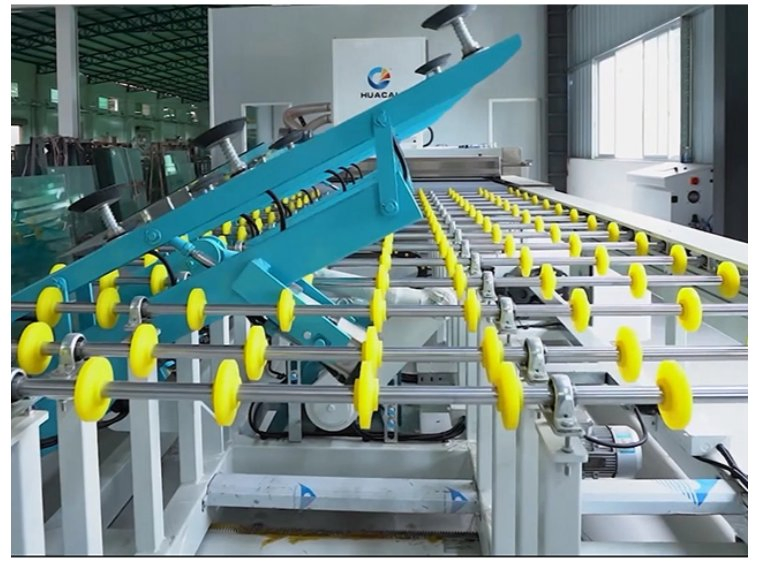

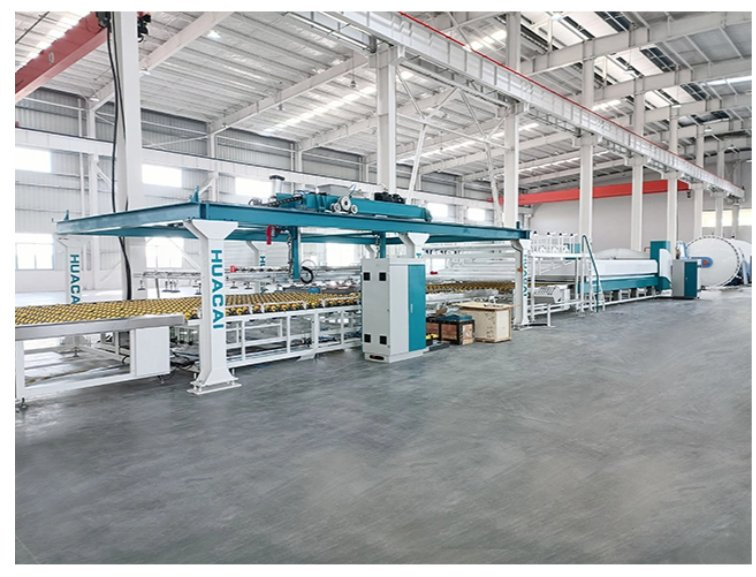

The automatic glass laminating line consists of glass washing machine, automatic glass loading table, glass tilting table, automatic suction cup vacuum lifter, PVB laying machine, roller press and glass laminating autoclave, etc., achieving fully automatic production and higher production efficiency.
The glass laminating line adopts multiple kinds of heating elements: quartz heating tube, medium wave infrared radiant tube and stainless steel heating tube. The flat glass laminating line features high yield and efficiency, easy operations, reliable performance and high safety. The line configuration can be custom-tailored in accordance with customer's requirements.
⚙️ Configuration & Parameters
| Frame body: profile welding molding. |
| Servo transfer, calculate length. |
| Transmission speed: 10-15m/min |
| Barrel capacity: 3 |
| Replacement: Change by hanging equipments. |
| Unwinding and winding driven by motor. |

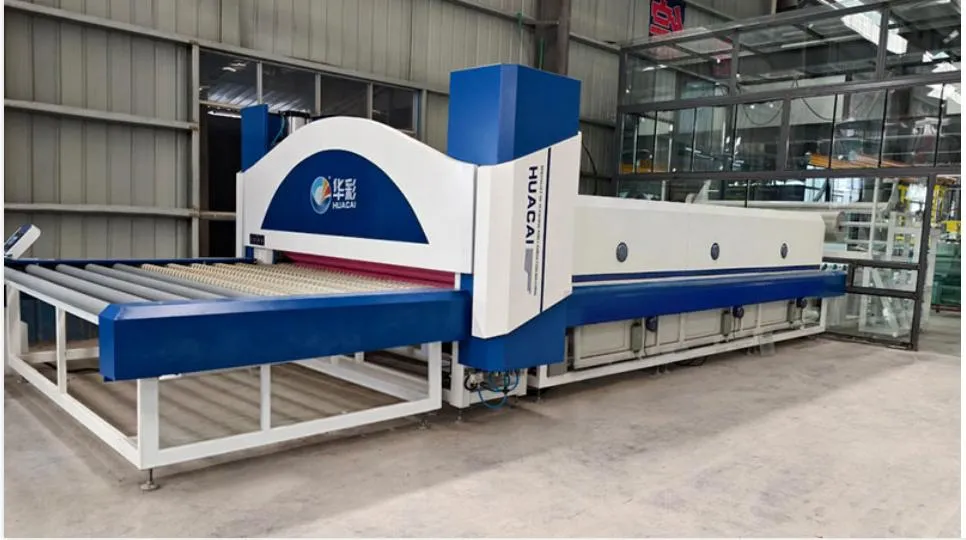

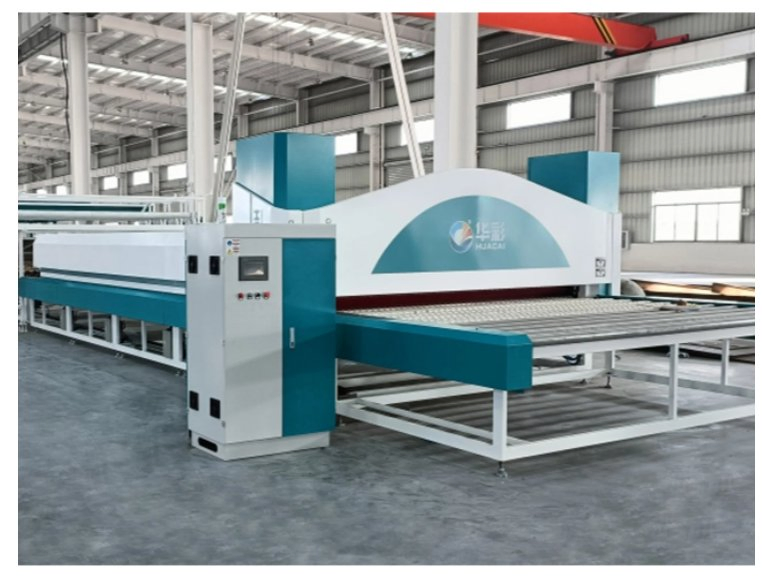

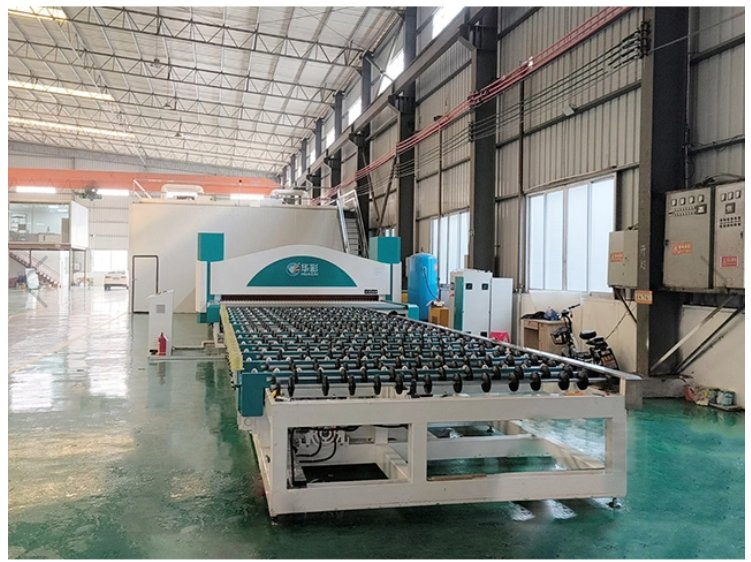

🌀 Glass Heated Roller Press (GY2500)
This unit is comprised of loading, pre-heating, pre-pressing, and multiple heating sections. It bonds two or more layers of glass with PVB/SGP interlayers. The high-temperature-resistant rubber rollers ensure uniform pressure to remove air bubbles.
| Max. glass width (mm) | 2440 |
| Glass thickness(mm) | 6~80 (digital display) |
| Min. glass size(mm) | 450×450 |
| Heating power (KW) | 132 |
| Conveying speed(m/min) | 0.5~2.5 |
| Weight (kg) | 8600 |
❓ Frequently Asked Questions
1. What components are included in the full production line?
The line includes a washing machine, loading table, tilting table, vacuum lifter, PVB laying machine, roller press, and autoclave.
2. Can the equipment handle Low-E glass?

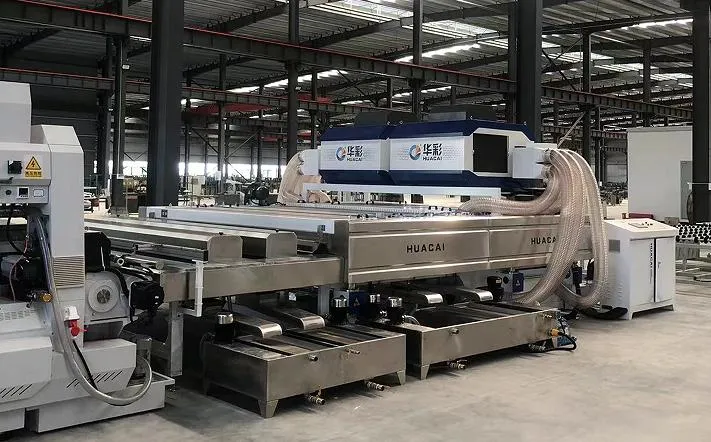

Yes, the washing machine is specifically designed with soft brushes to wash Low-E and coated glass without damaging the surface.
3. What is the maximum glass thickness supported?
The system can process glass thickness ranging from 4mm up to 80mm, with digital displays for precise control.
4. Is the production line customizable?
Yes, the configuration and technical parameters can be custom-tailored to meet specific customer requirements and factory layouts.

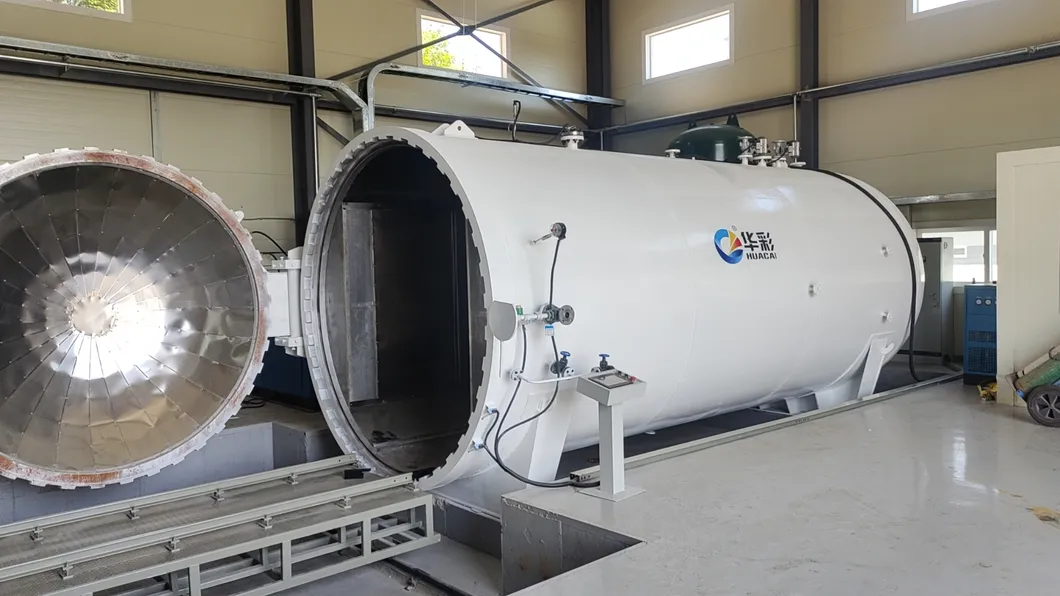

5. What safety systems are in place for the autoclave?
It features manual/mechanical interlocks, pressure sensors, and automatic exhaust valves to ensure safe operation under high pressure and temperature.
6. How is the temperature controlled in the roller press?
It uses a sectional heating system with precision digital displays and automatic constant temperature control via stainless steel heating tubes.
