Intelligent Integrated Flat Pressing Machine for Automatic Insulating Glass Manufacturing

Customization: Available
Certification: CE, ISO
Control System: PLC

Product Description

Basic Specifications
ModelKLVS2030
DescriptionInsulating Glass Production Line
Max Glass Size2000*3000mm
Min Glass Size300*500mm
Glass Thickness3-12mm
Working Speed8 - 45m/Min
Input Voltage380V 50Hz
StructureVertical
ConditionNew
Overall Dimension22000×1800×3100mm
Production Capacity400 set/Year
Company Overview

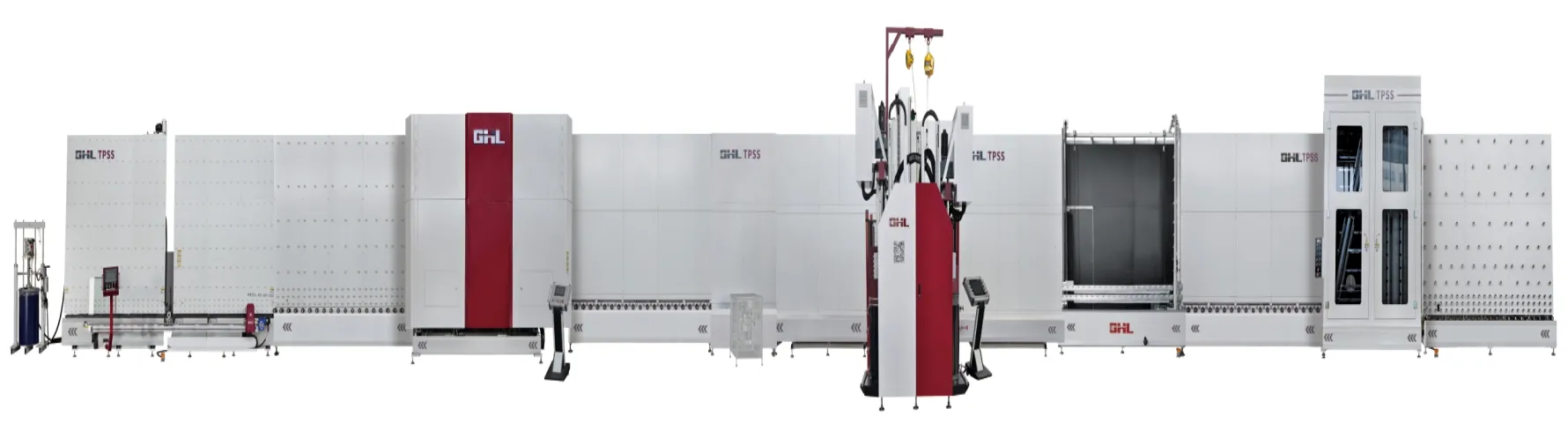

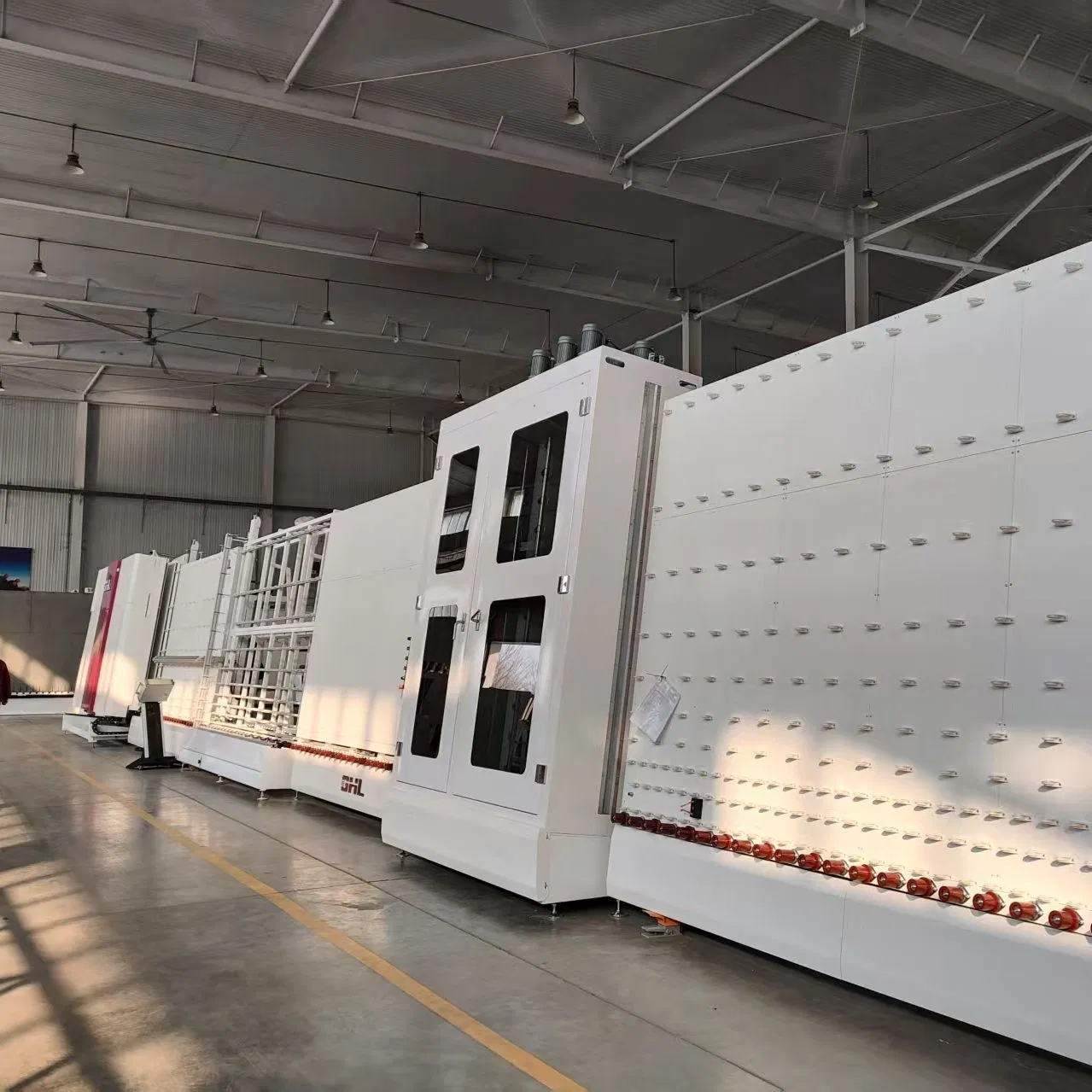

Production Line Overview
Product Description

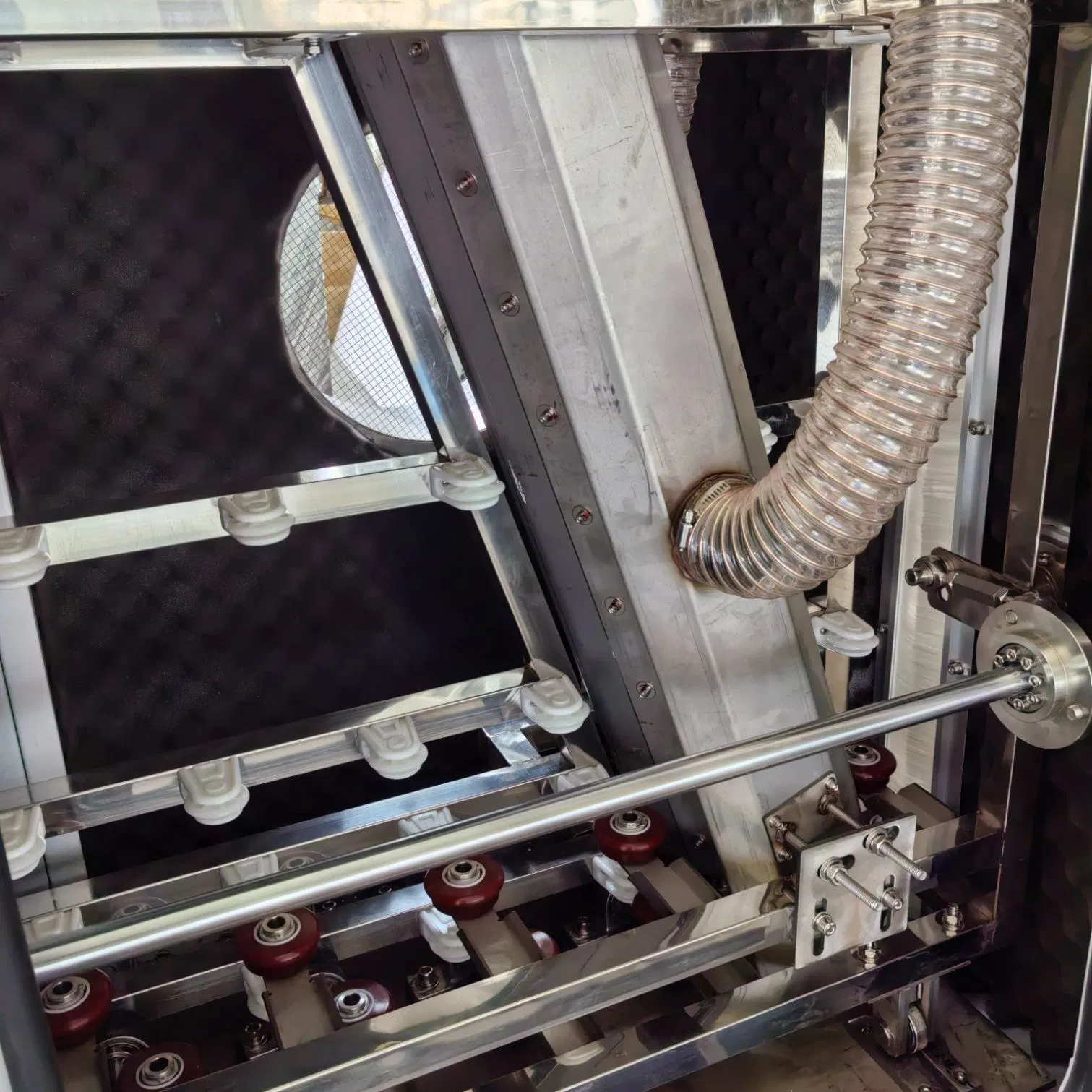

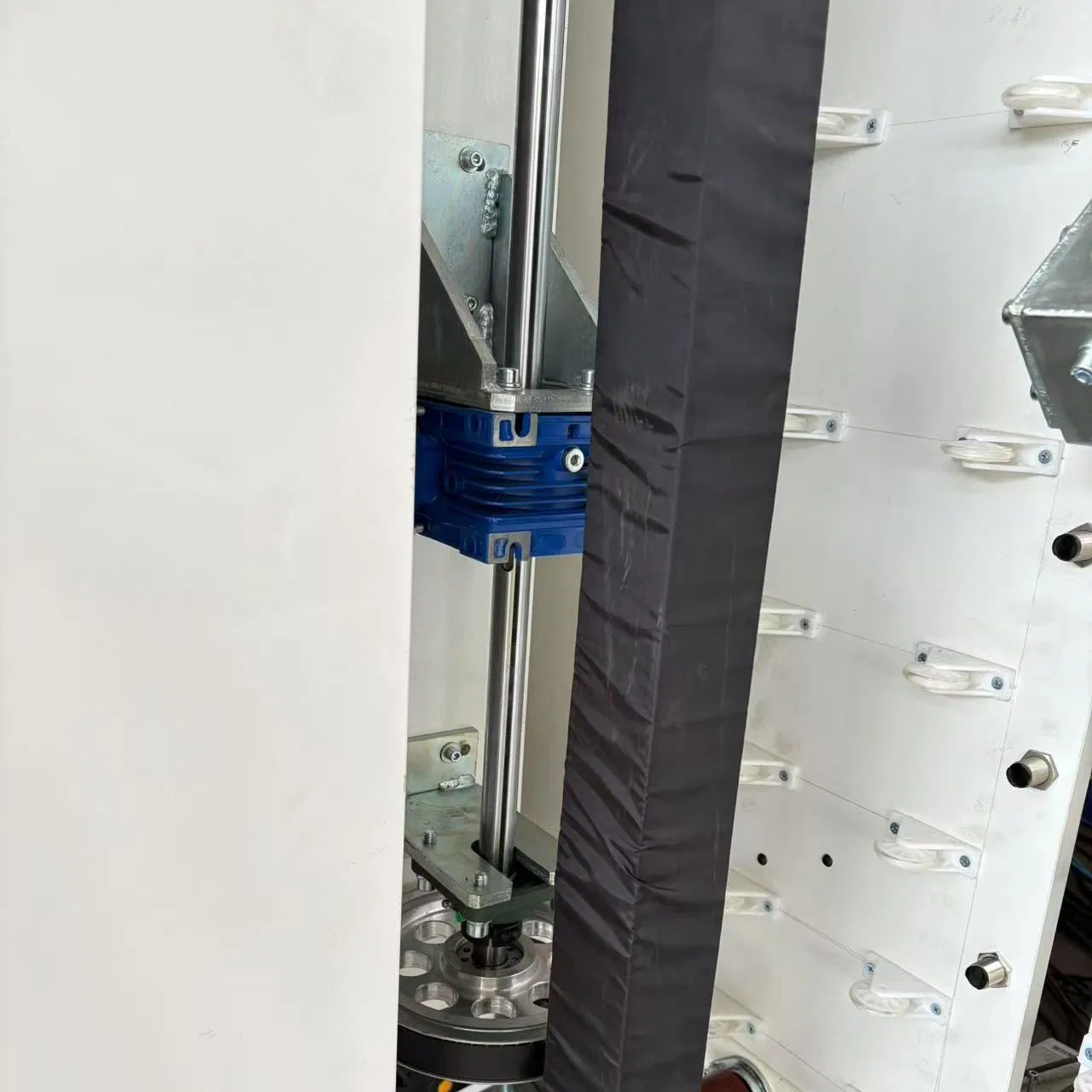

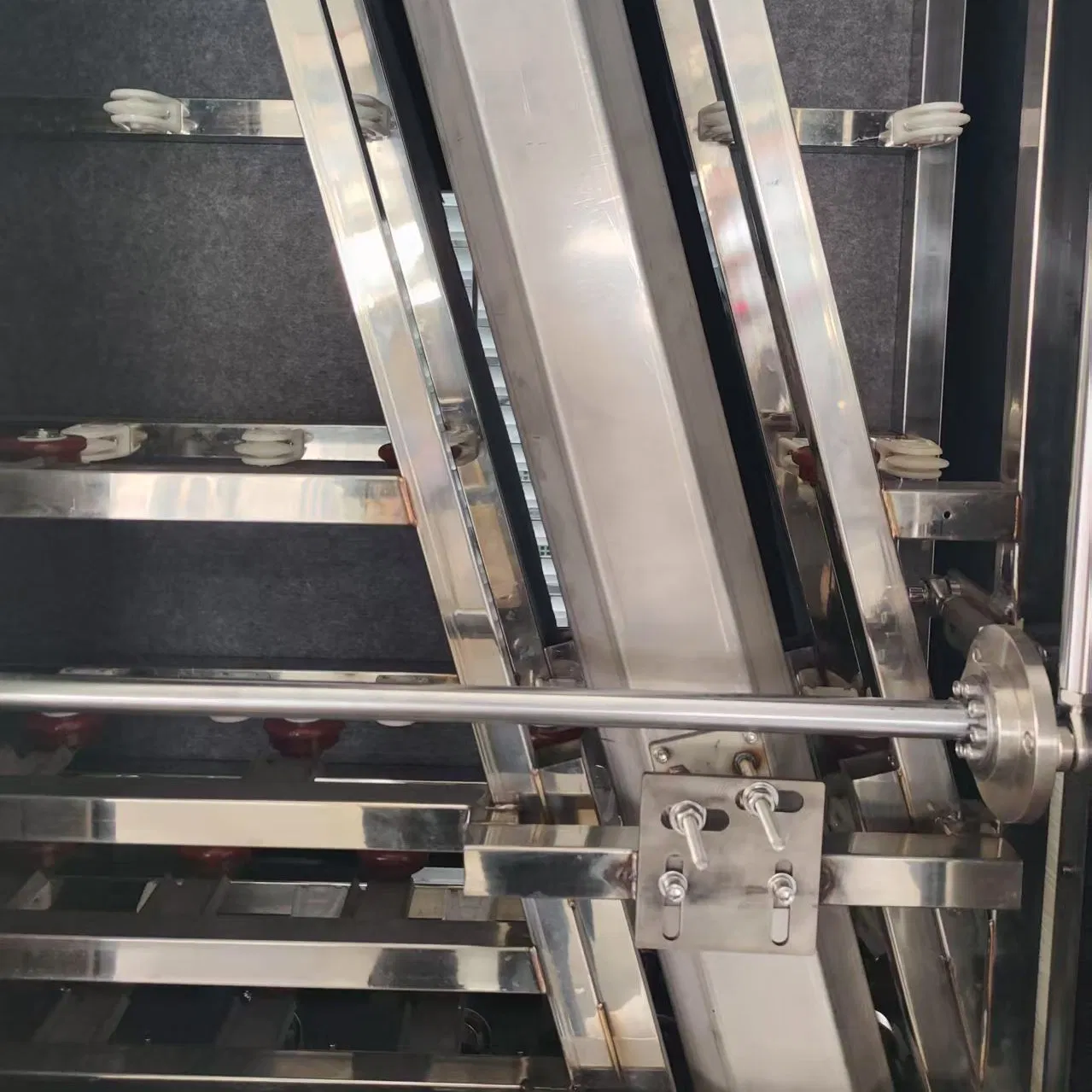

Machine Detail
⚙️
Internationally famous brand PLC control with HMI touch screen interface for manual and automatic operations.
🔍
Automatic identification of coated and Low-E glass with auto-adjusting air knives based on glass thickness.
💎
Double beams in the third and fourth sections to prevent wheel tracks, ideal for home decoration and large insulating glass.
🏗️
Double plate surface design for inner/outer sealing and automatic filling of oversized insulating glass.
Integrated assembling, pressing, and gas filling with automatic panel pressure adjustment.
📏
Intelligent thickness measuring device for glass and aluminum strips, compatible with sealing robots.
Technical Parameters
Total Power30kw
Washing Glass Thickness3—12mm
Total Weight5500kg
SuitabilityDouble glass, triple glass, step glass(optional) curtain wall.
Key Components & Brands
Component Brand Origin
Servo / PLC / Touch ScreenINOVANCEChina
Low Voltage ElectricalSchneiderFrance
SensorAUTONICSKorea
Pneumatic ComponentAIRTACTaiwan
SwitchMingweiChina

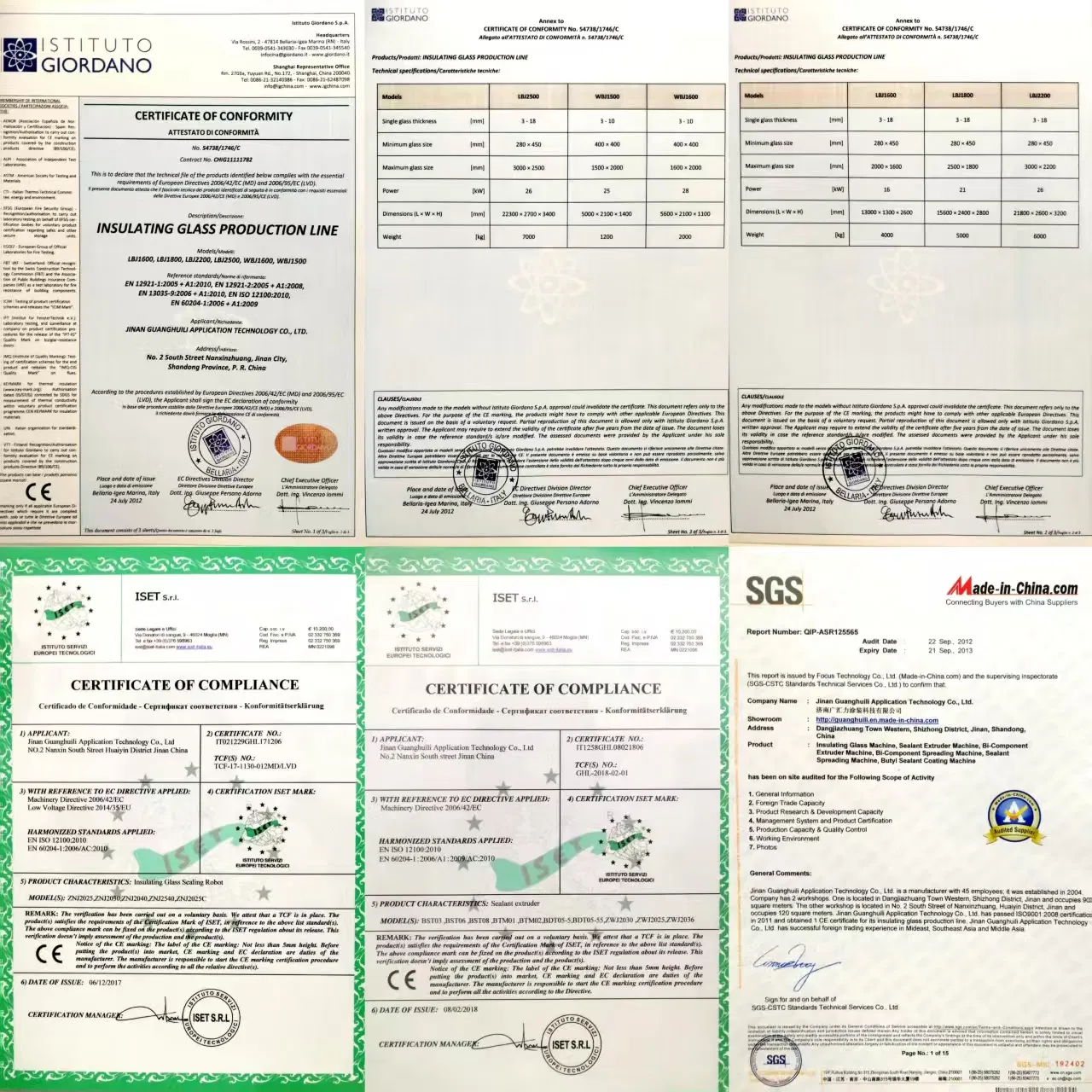

Certifications & Quality
Certification
Quality Certificate 1
Quality Certificate 2 Quality Certificate 3
Frequently Asked Questions
What is the maximum glass size this production line can process?
The KLVS2030 model can handle a maximum glass size of 2000mm x 3000mm.
Can the machine identify Low-E or coated glass automatically?
Yes, the system features automatic identification for coated and Low-E glass, adjusting air knives automatically according to the thickness.
What is the typical shipping lead time?
Standard machines are usually shipped within 15 days after deposit. Customized configurations may require more than 25 days.
Does this line support gas filling for insulating glass?
Yes, the machine is integrated with assembling, pressing, and automatic gas filling functions to ensure optimal insulation effects.
What types of glass structures can be produced?
It is suitable for double glass, triple glass, and optional step glass for curtain wall applications.
What happens if the machine encounters technical problems?
We provide free replacement components if the machine is within the guarantee period, and technical support is available for repairs.
