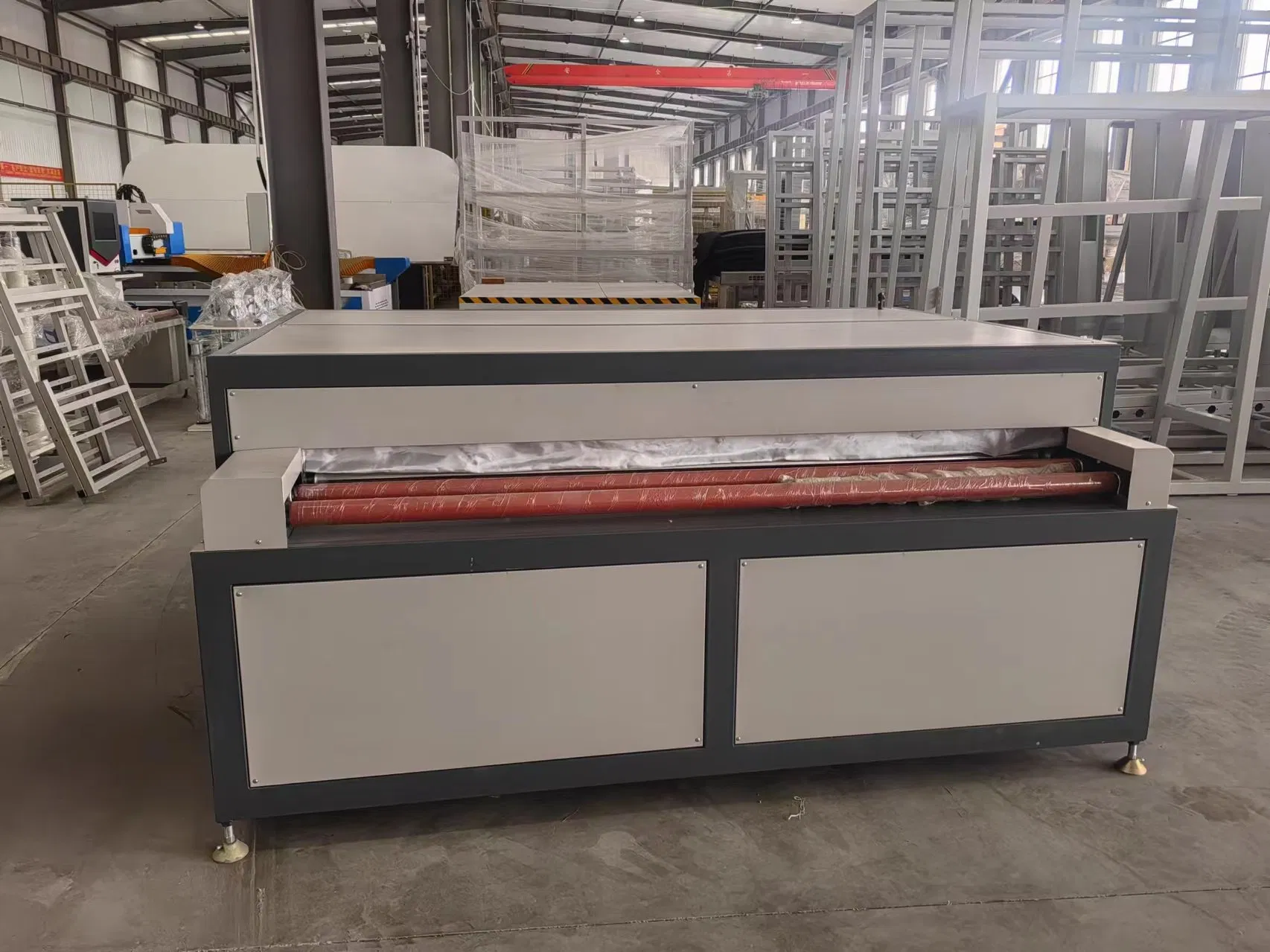

ISO CE Insulating Hollow Glass Production Line Water Washing and Hot Press Horizontal Tilting Combination Table

Customization: Available
After-sales Service: Provided
Warranty: 1 Year

Product Description

⚙️

Basic Specifications

Model NO.:ft-1
Type:Float Glass
Shape:Flat
Structure:Hollow
Glass Thickness:4mm
Air Cavity Depth:6mm
Energy Transfer:Convection
Color:Clear
Usage:Furniture, Door, Building, Window
Voltage Power:220V/50Hz
Air Pressure:0.5~0.8MPa
Table Size:1200*2000 mm
Max Feeding Speed:120m/Min
Bending Angle:90 Degree
Origin:China
📄

Product Description

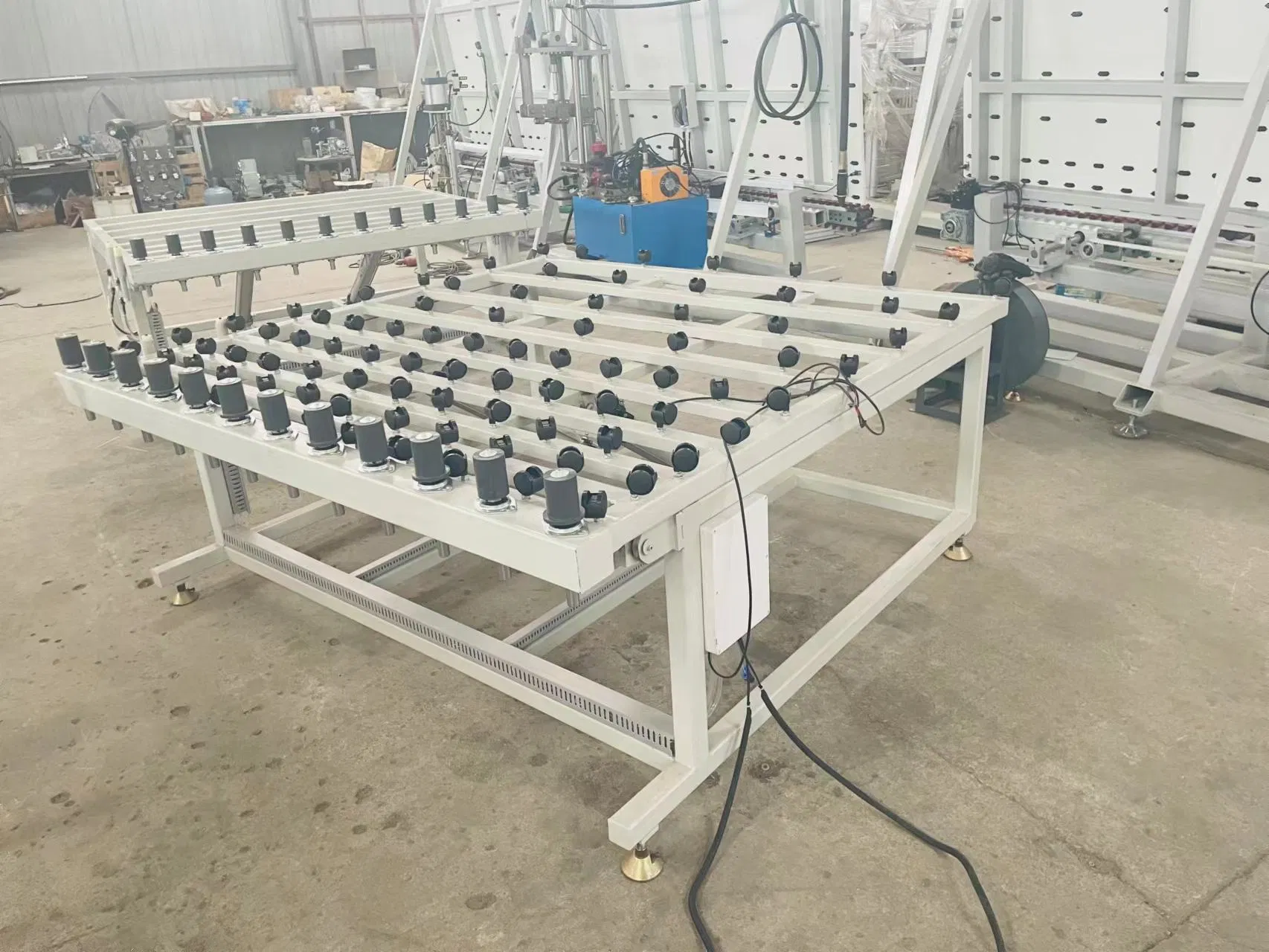

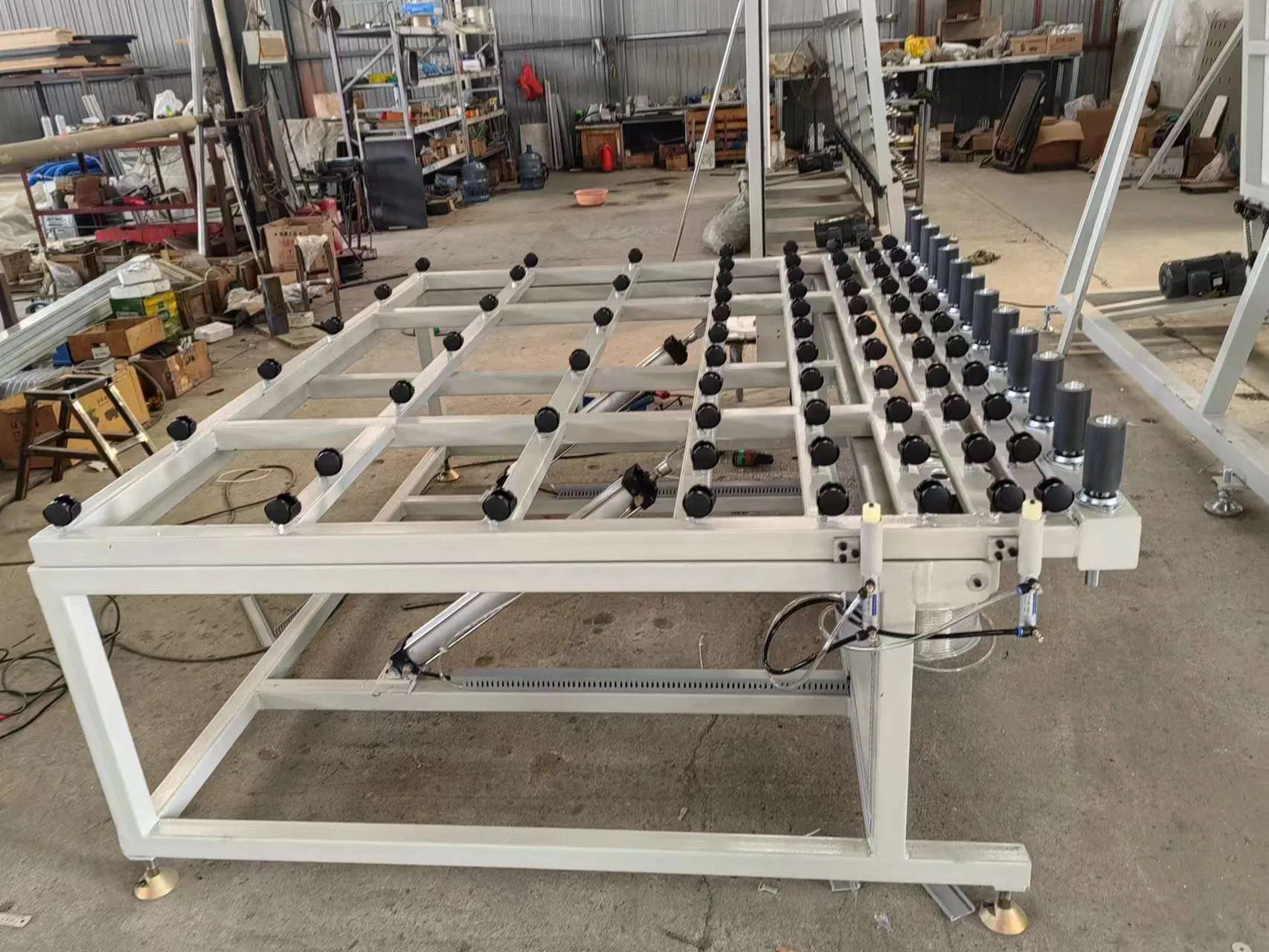

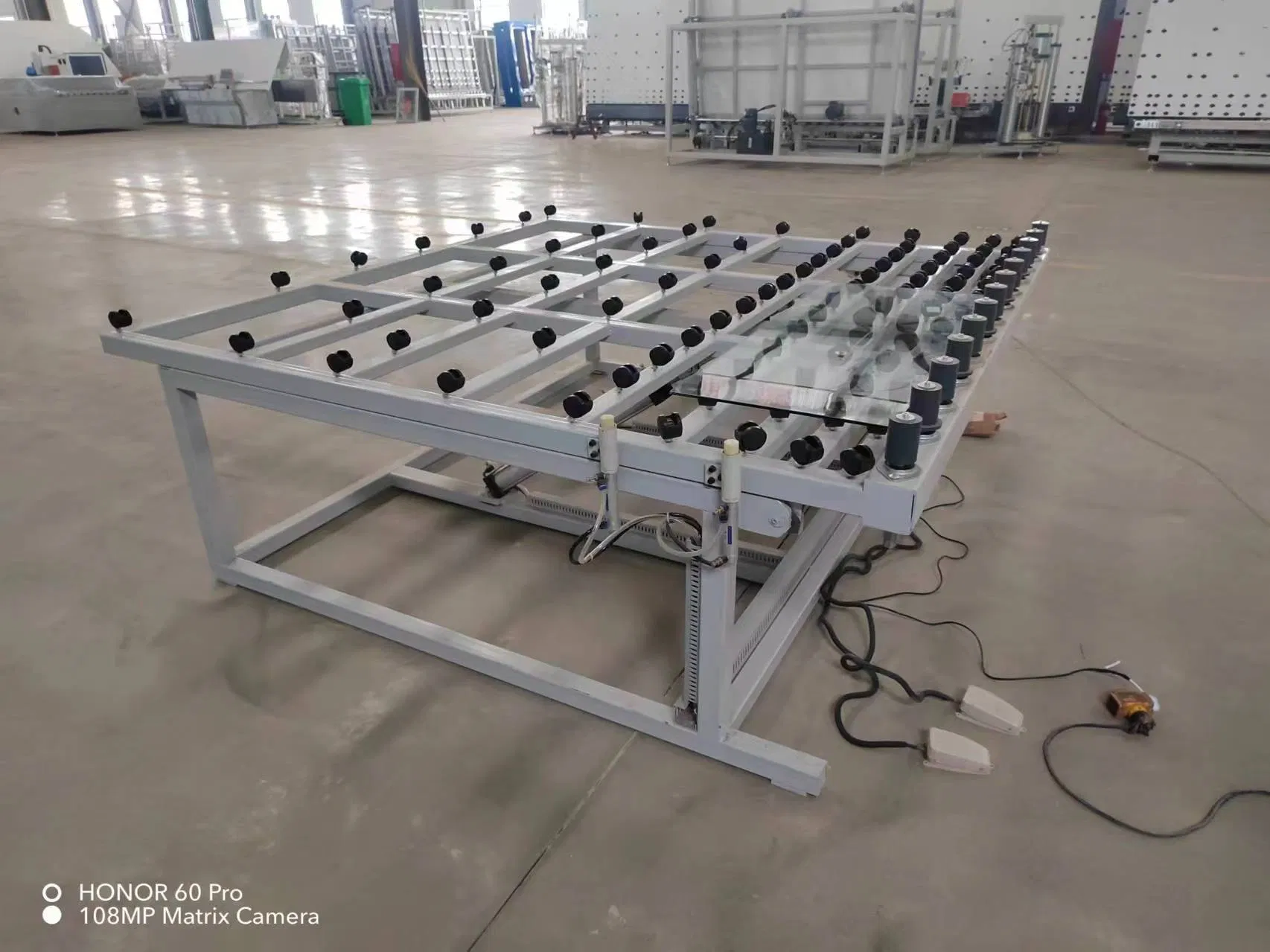

Hollow Glass Horizontal Tilting / Flip Table

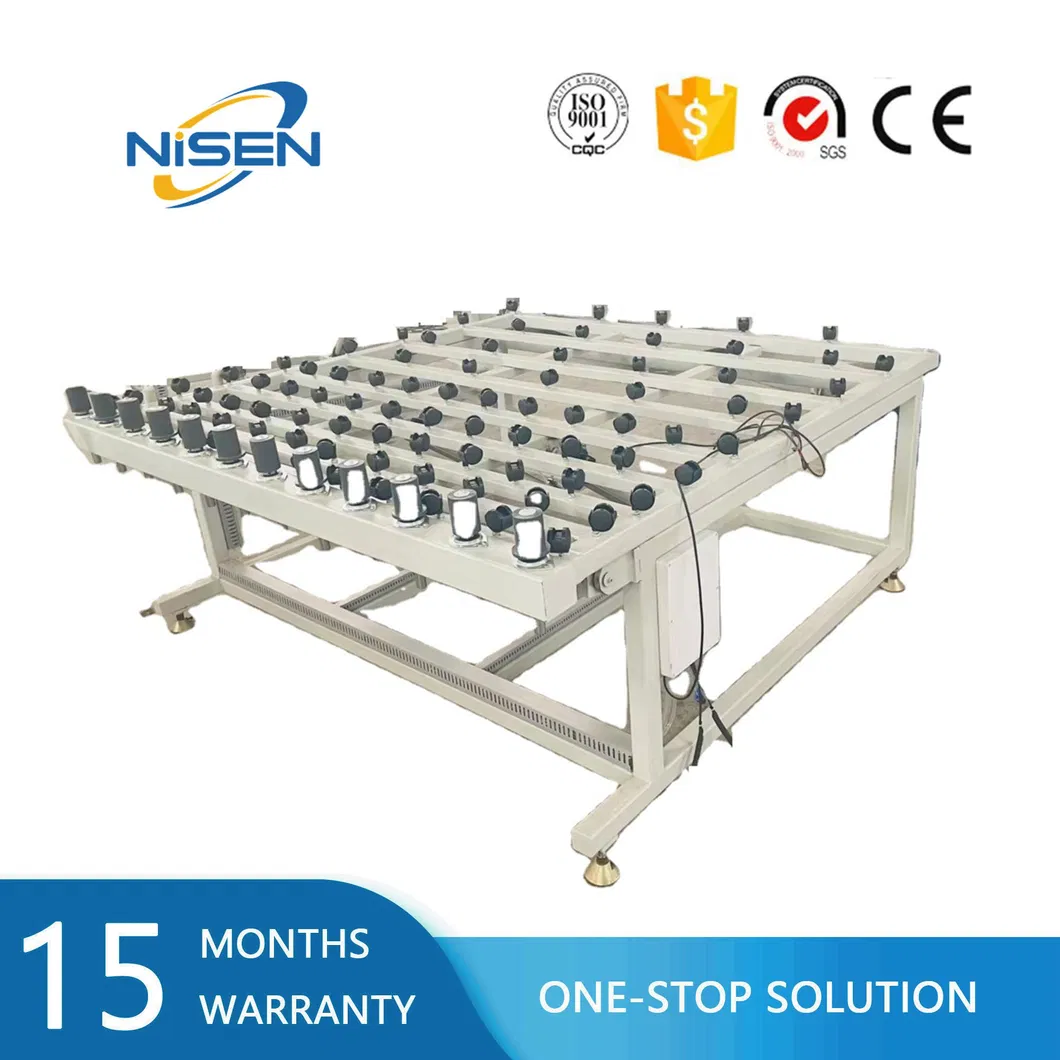

Hollow Glass Horizontal Tilting Table
  • Specially designed for delivering insulating glass with maximum ease.
  • Optimized for assembling double glass units efficiently.
  • Features high efficiency and simple operation for industrial production lines.

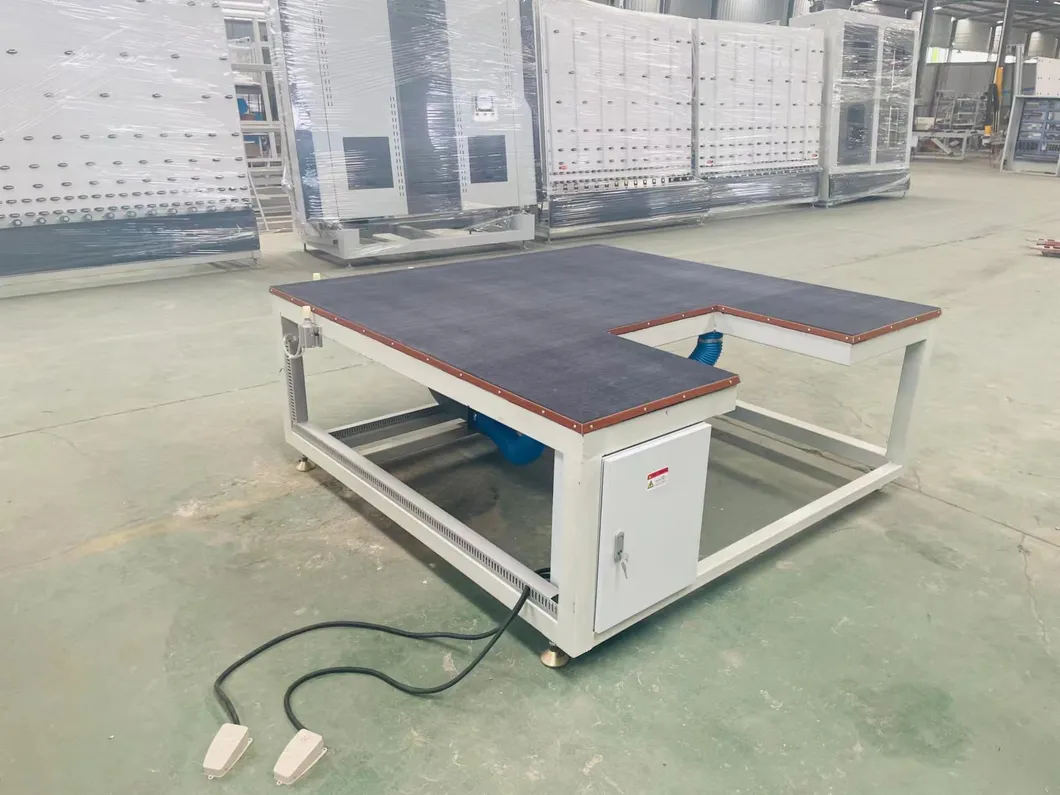

Production Process 1 Production Process 2

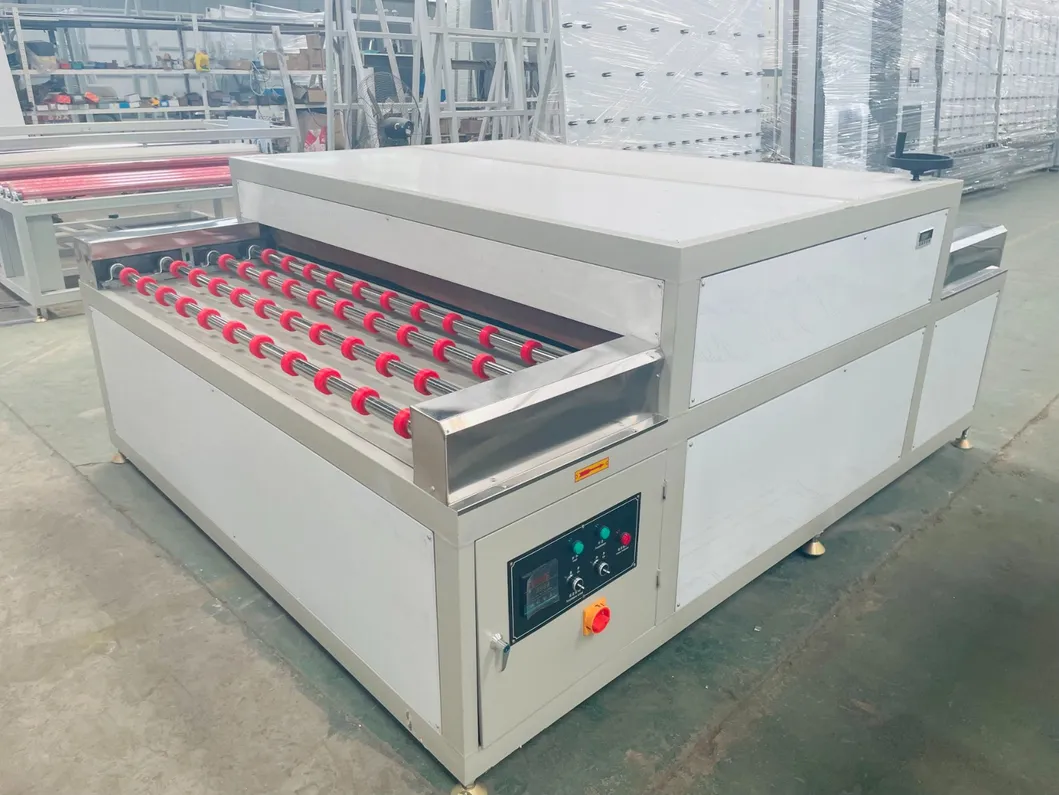

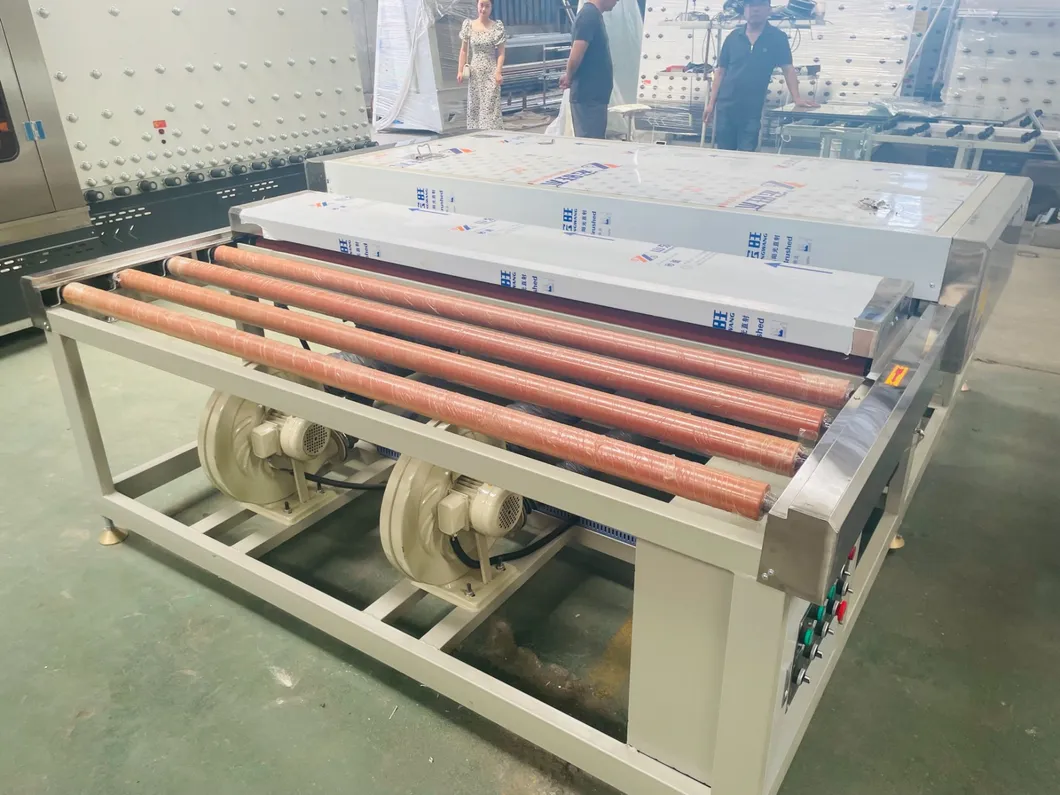

Machine Detail 1 Machine Detail 2

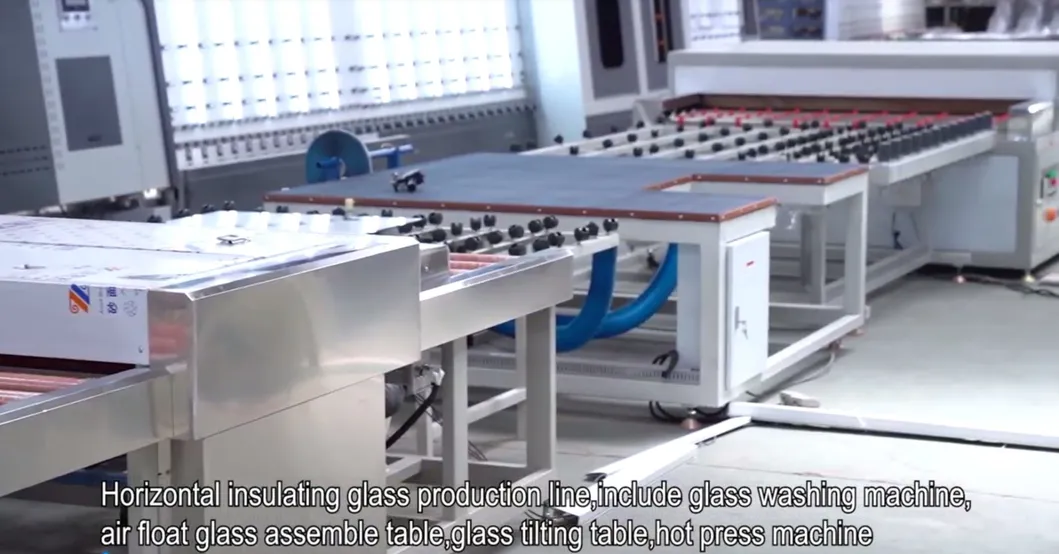

Machine Overview
📊

Technical Parameters

Parameter Item Technical Detail
Input Voltage220V/50Hz
Max Angle80 degree
Height750mm
Weight300kg
Overall Dimension1650*1650*650mm

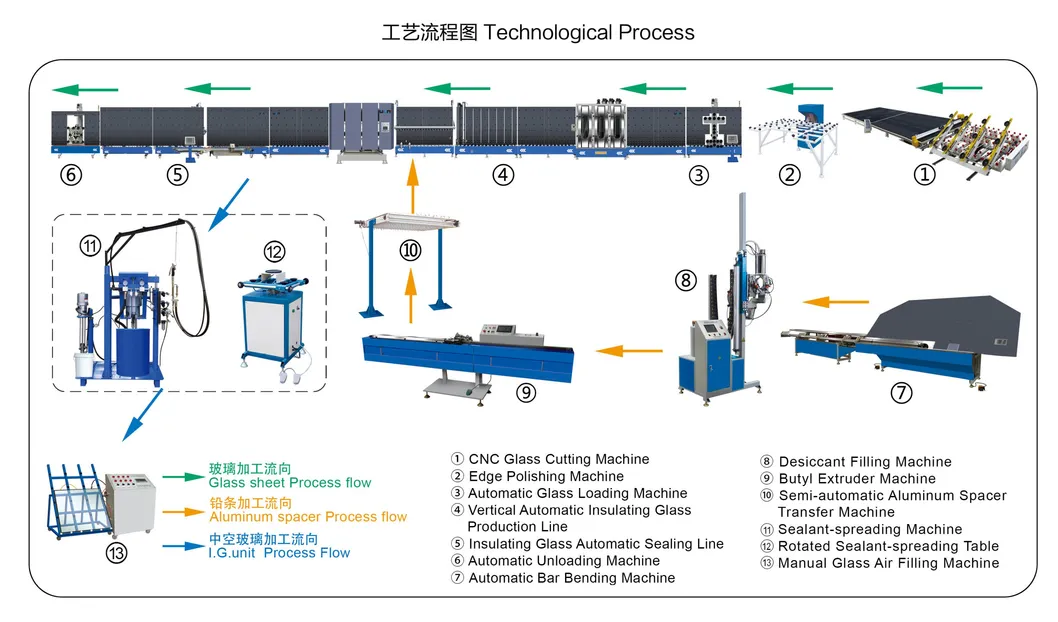

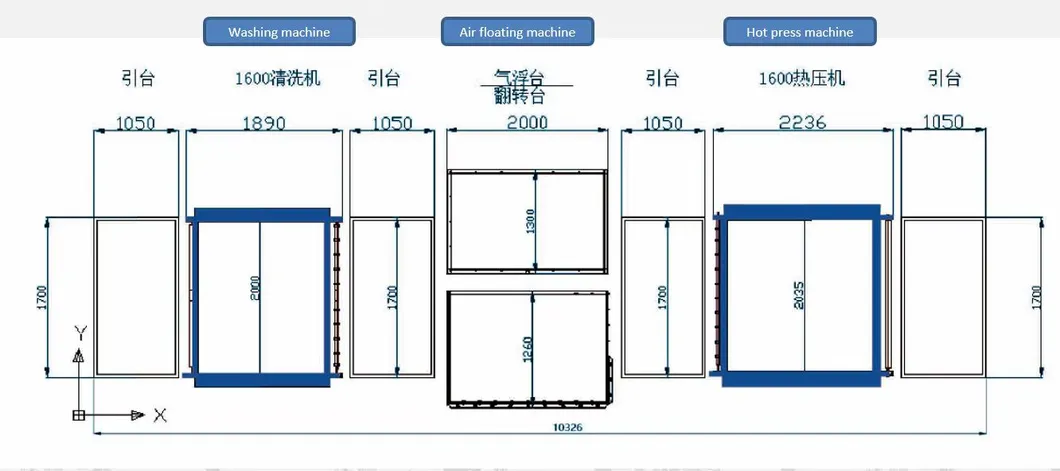

Dimension Detail Technical View
🔗

Related Machine

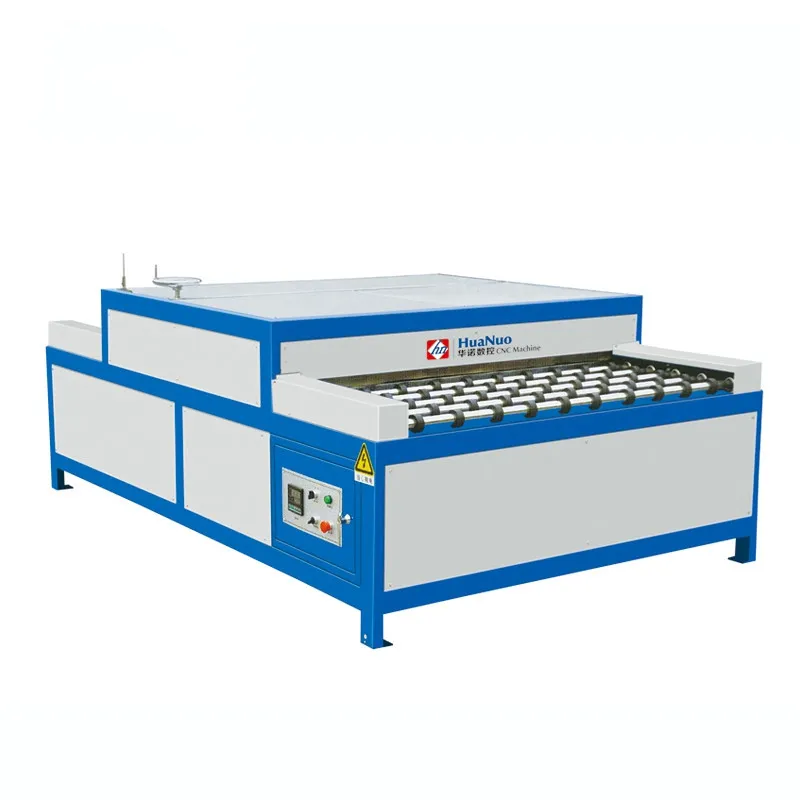

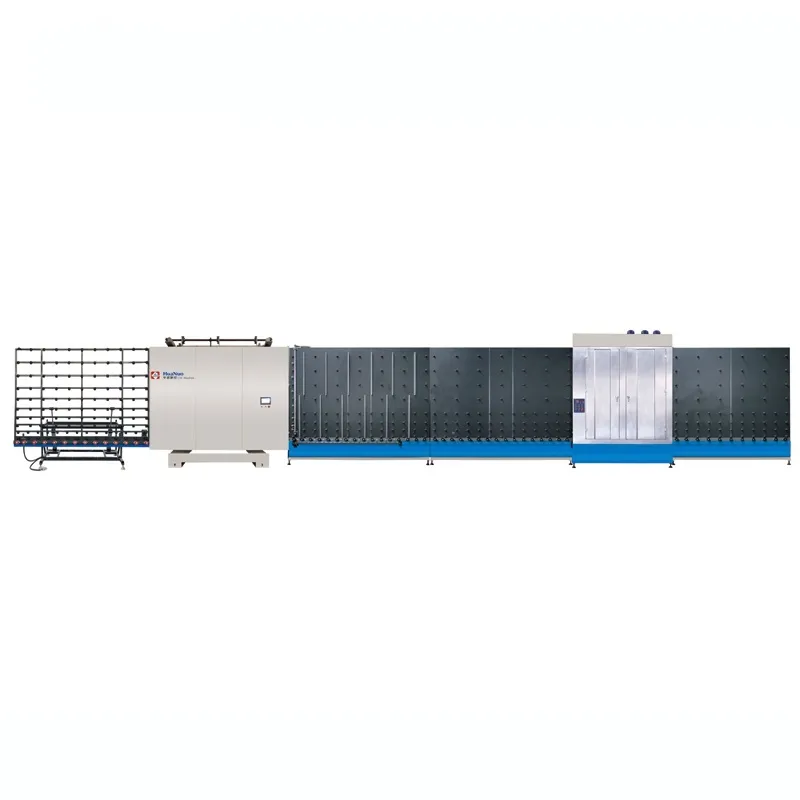

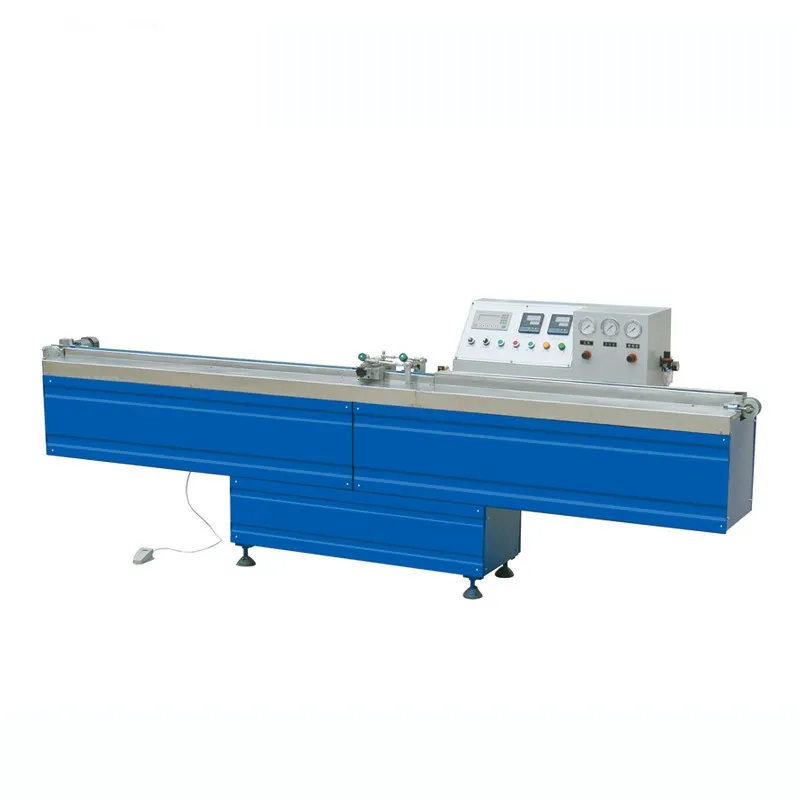

Insulating Glass Production Machine Butyl Coating Machine Hot Press Machine

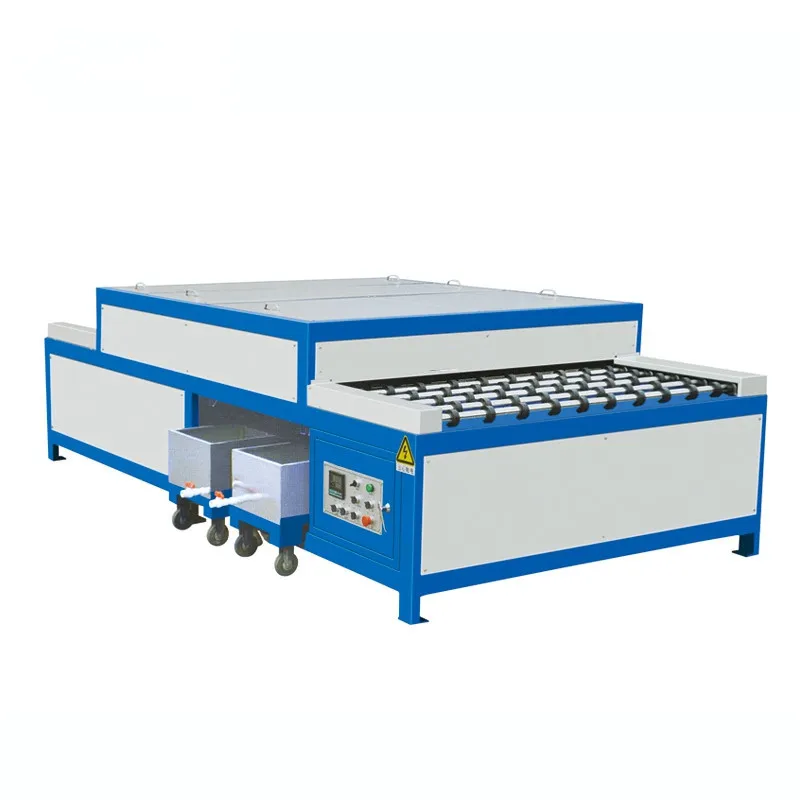

Horizontal Washing Machine
📦

Packaging & Shipping

LCL (Less Container Load): Inner package uses stretch film; Outside package uses standard export plywood cases.

FCL (Full Container Load): All machines wrapped with film and secured into the container with steel iron.

Delivery Time: Usually 3-5 working days after payment. Large or customized orders take 10-15 working days.

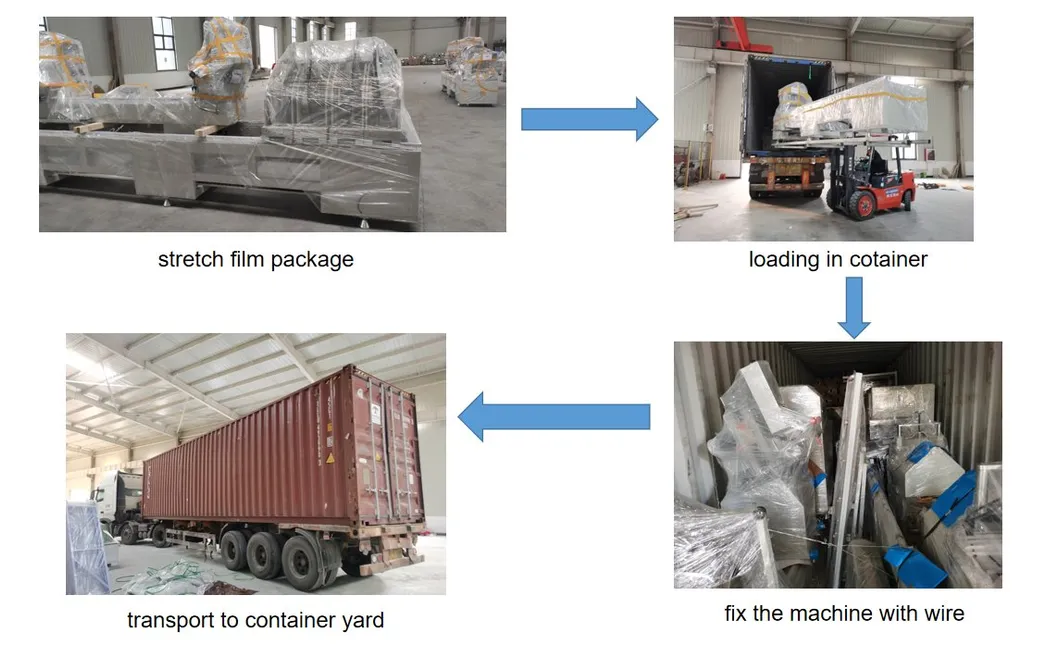

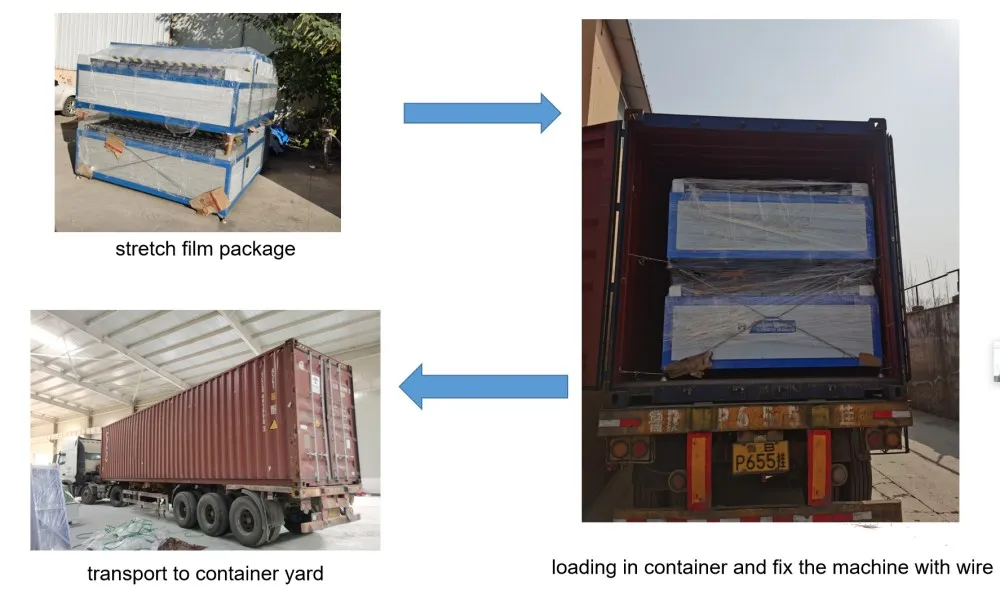

Packaging Process Shipping Load
🏢

Manufacturing Excellence

As a leading manufacturer of window and door machinery with 17 years of experience, we specialize in modern technology development and machinery manufacturing. Our engineers bring over 15 years of production experience, ensuring exceptional machine precision and stability. Each product undergoes professional testing to ensure high performance before delivery.

Factory Overview

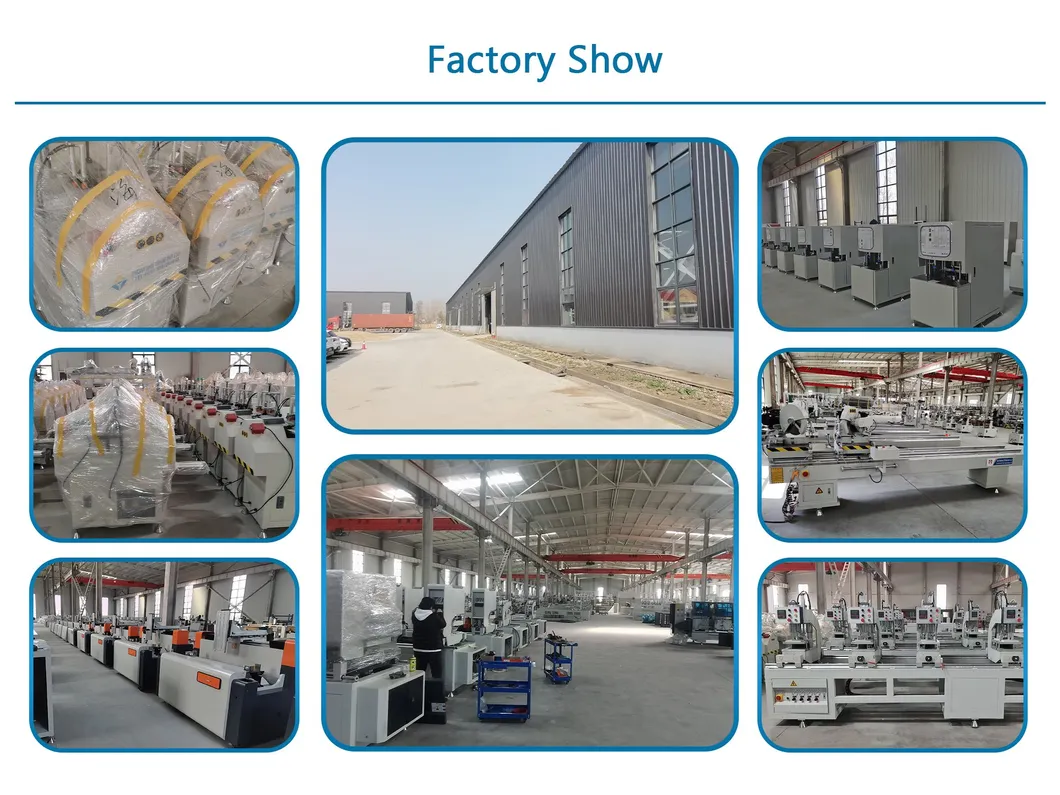

Workshop
Exhibition 1 Exhibition 2 Exhibition 3
🛠️

Our Service

  • Warranty: 12 months warranty with lifetime maintenance support.
  • Initial Support: Problems occurring within 7 days of customs clearance result in free part replacement.
  • Warranty Period Support: Free exchange of old parts for new ones during the warranty term.
  • Post-Warranty: New parts offered at cost price with shipping paid by the customer.

Frequently Asked Questions

Are you a professional manufacturer?
Yes, we are a professional manufacturer with over 15 years of industry experience specializing in window and glass machinery.
What is your standard guarantee?
We offer a 12-month guarantee, 24-hour technical support via email or phone, and provide English manuals and video tutorials for all equipment.
What accessories are included with the machine?
We provide standard accessories with the machine purchase. Consumable parts are always available at agency prices for our customers.
What machines are needed for a UPVC window line?
A full line typically requires: cutting machine, welding machine, V-cutting/end milling machine, glazing bead machine, lock hole machine, water slot milling machine, and corner cleaning machine.
What machines are required for an aluminum window line?
At least 5 machines are needed: double/single head cutting machine, end milling machine, copy routing machine, punching machine, and corner crimping machine.
Do you provide technical support after the warranty?
Yes, we provide free technical support for the lifetime of the machine. Parts are provided at cost price after the warranty period expires.
