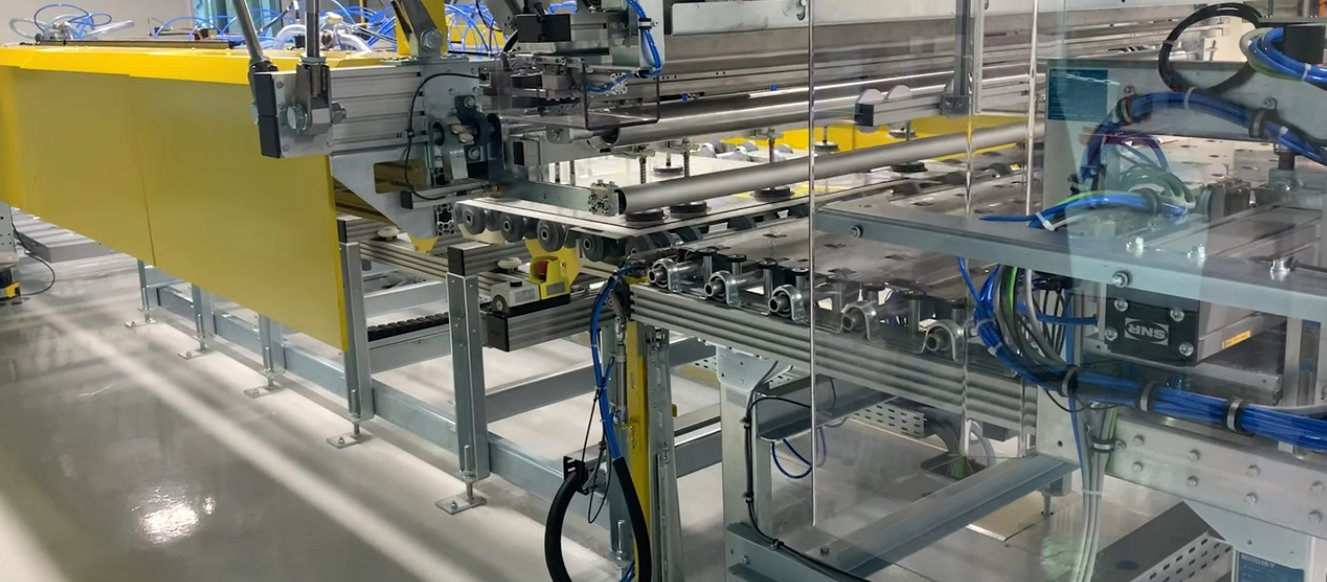

Automatic PVB Film Laminating Production Line with Autoclave

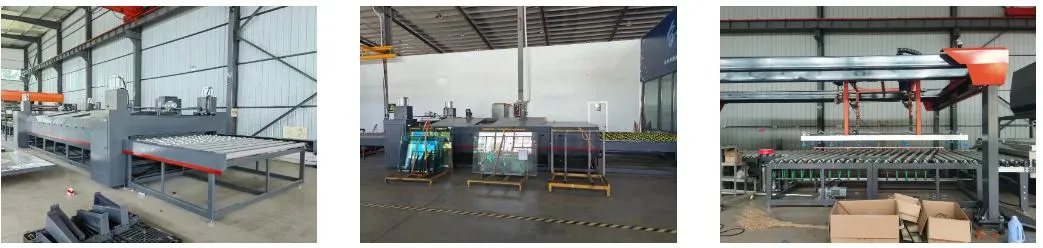

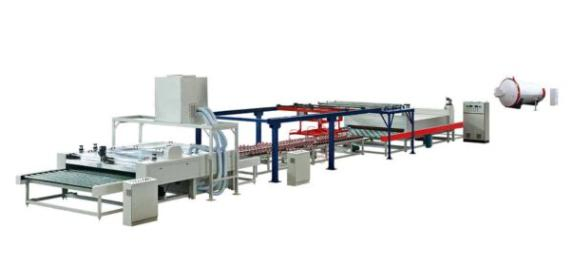

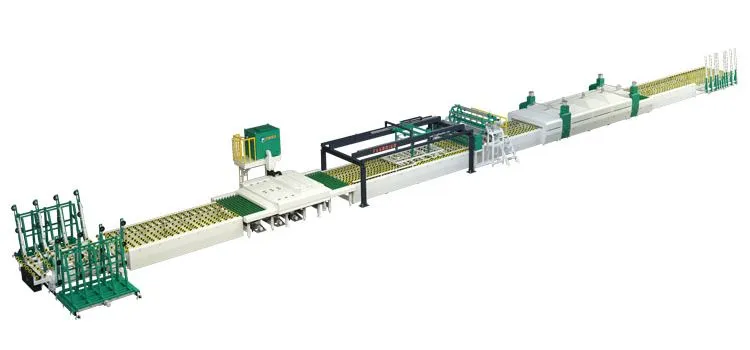

The full automatic laminated glass production line adopts a PLC centralized control system with frequency conversion and 3 sets of HMI interface operation. The entire line is composed of an automatic loading table, glass washing and drying machine, high-precision positioning conveyor, double-station glass combining machine, frequency conversion transition conveyor, infrared roller pressing machine, and flip-type unloading machine.
| Parameter | Details |
|---|---|
| Machine Model | HHFD-L2500 |
| Rated Power | 540KW |
| Glass Size | Max: 2500 x 6000mm | Min: 400 x 600mm |
| Glass Thickness | 4 ~ 60mm |
| Floor Space (L*W) | 63000mm × 8000mm |
| Voltage | 220-440V, 50-60Hz 3-phase AC |
| Working Temperature | 60-135ºC |
| Net Weight | 50t |
| Productivity | 400-600 Sq.m/cycle |
| No | Item | Model | Remarks |
|---|---|---|---|
| 1 | Mechanical Loading Station | HHFDSP25A | Double-arm turnover, speed 0-20m/min |
| 2 | Glass Cleaning & Drying | HHFDQX25A | Low-E glass compatible, energy saving |
| 3 | Positioning Conveyor | HHFDDW25 | Stack error accuracy ≤ 0.5mm |
| 4 | Assembling Table | HHFDHP25 | Adjustable speed, open-close type |
| 5 | Suction Hanger | HHFDGD25A | Servo motor control, no trace on glass |

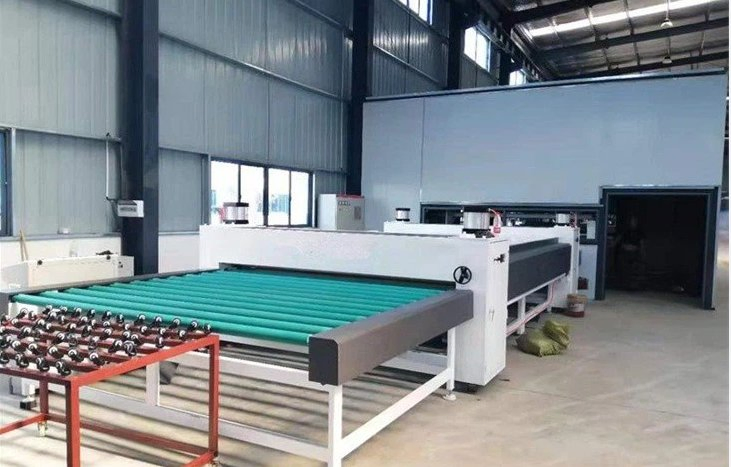

| 6 | Pre-press Machine | HHFDGY25 | Medium wave infrared, forced convection cycle |
| 7 | Unloading Machine | HHFDXP25 | Mechanical unloading system |

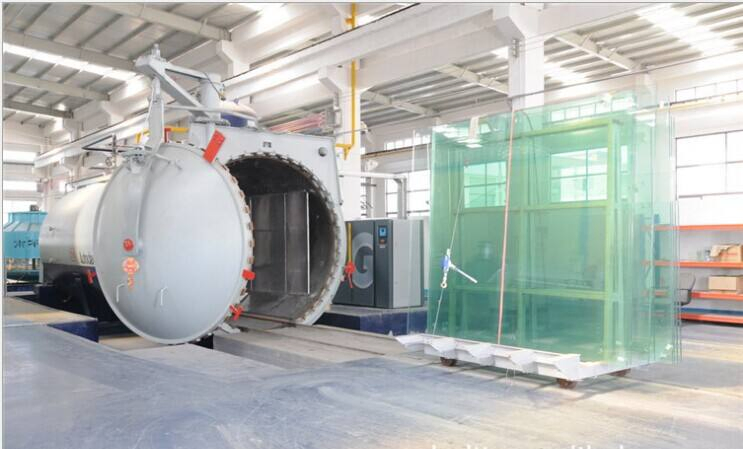

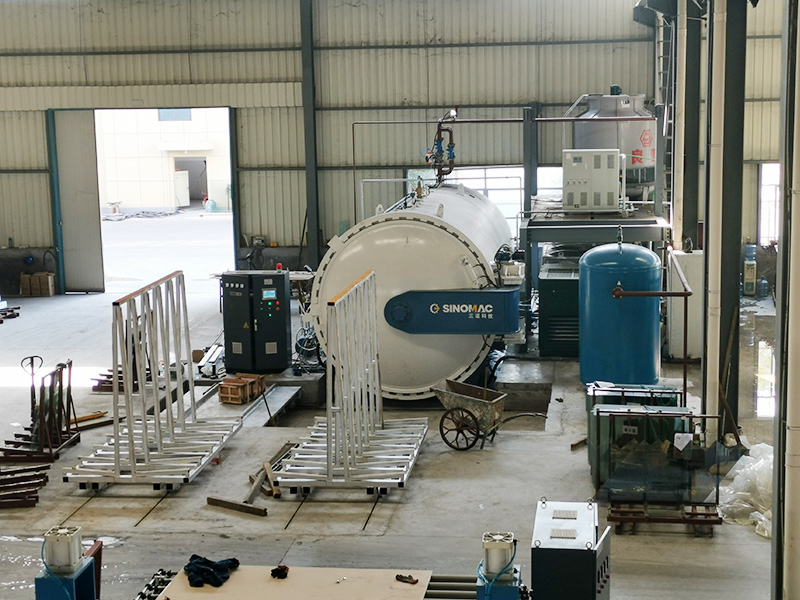

| 8 | Autoclave | HHFD-G2860 | Inner diameter 2860mm, supports 6m glass |
