The machine is combined with rinsing, filling and capping, which is specially designed for glass bottled juice or energy drinks. It features stable performance, advanced technology, professional appearance, and complete functionality.
| Model | Production Capacity (500ml) | Rinsing Heads | Filling Heads | Capping Heads | Overall Size (mm) |
|---|---|---|---|---|---|
| RXGF14-12-5 | 2400-3400 BPH | 14 | 12 | 5 | 2360*1770*1800 |
| RXGF16-16-5 | 4000-5000 BPH | 16 | 16 | 5 | 2760*2060*1910 |
| RXGF24-24-8 | 7000-8000 BPH | 24 | 24 | 8 | 2800*2230*2000 |
| RXGF32-32-8 | 10000-12000 BPH | 32 | 32 | 8 | 4275*2960*1984 |
| RXGF40-40-10 | 14000-15000 BPH | 40 | 40 | 10 | 4697*3322*2700 |

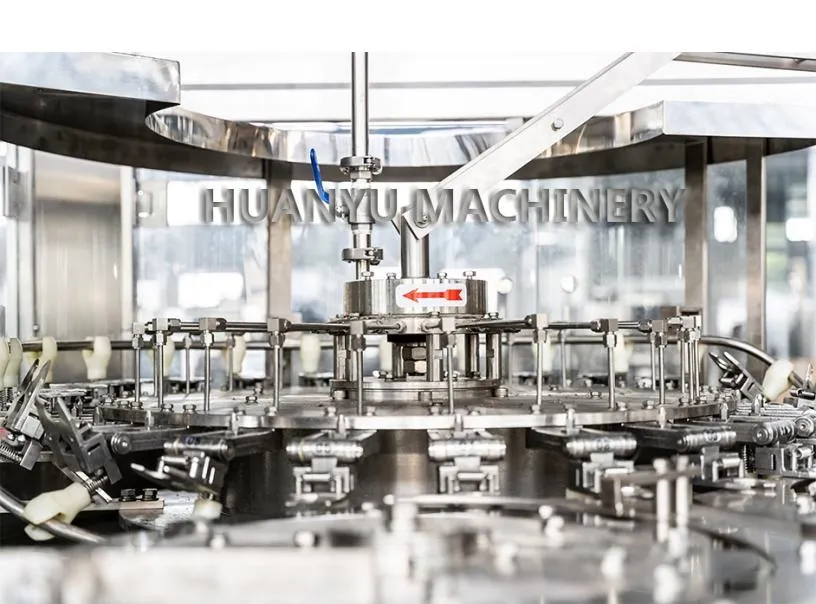

Rotary rinsing machine used for beverage and mineral water bottles. New bottles enter via distribution screws; necks are clipped and turned for rinsing and drying before entering the filling station.

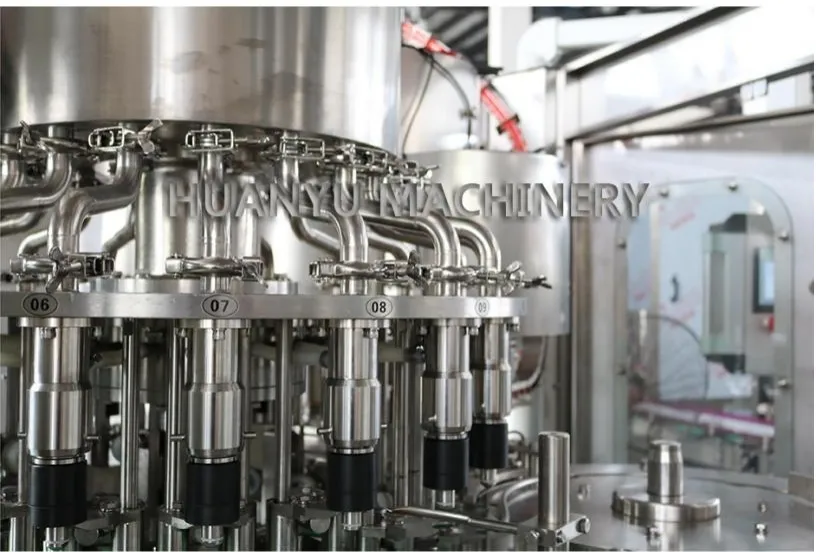

Advanced unique filling valve with no internal springs to ensure hygiene. Features PLC control, gravity filling, negative pressure reflux, and automatic liquid level inspection.

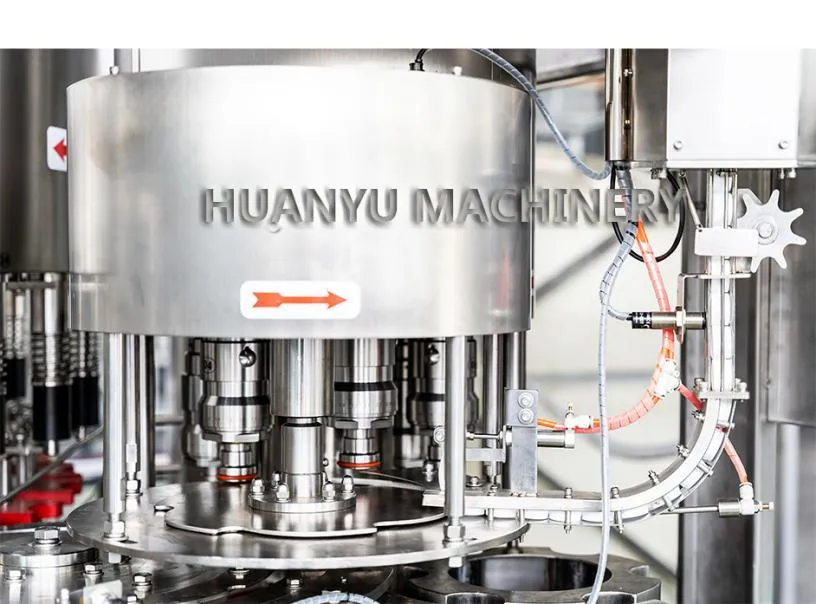

Magnetic capping with overload protection. Features a 304 stainless steel cap chute and electronic capless inspection system to ensure stable torque and reliable operation.

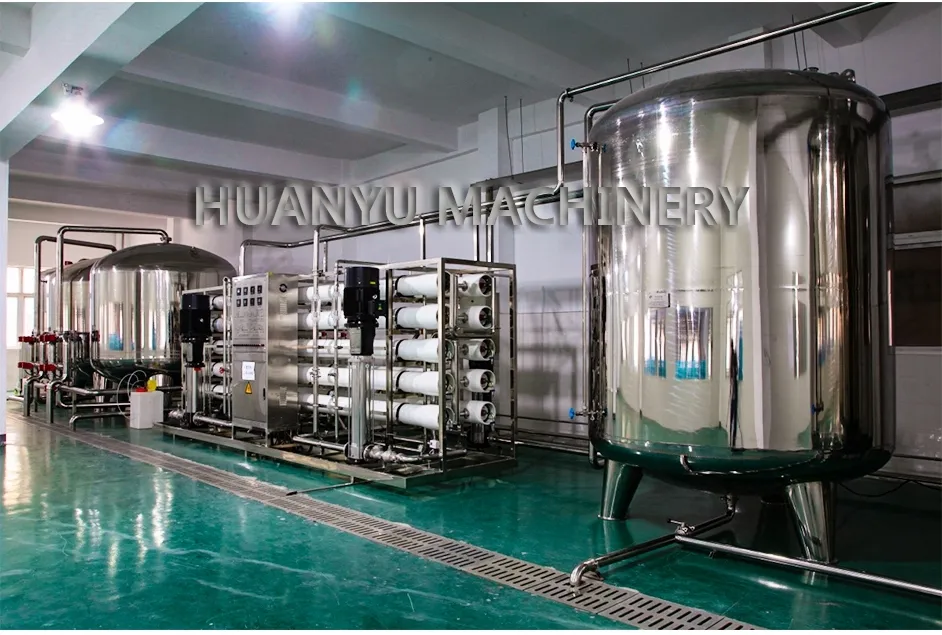

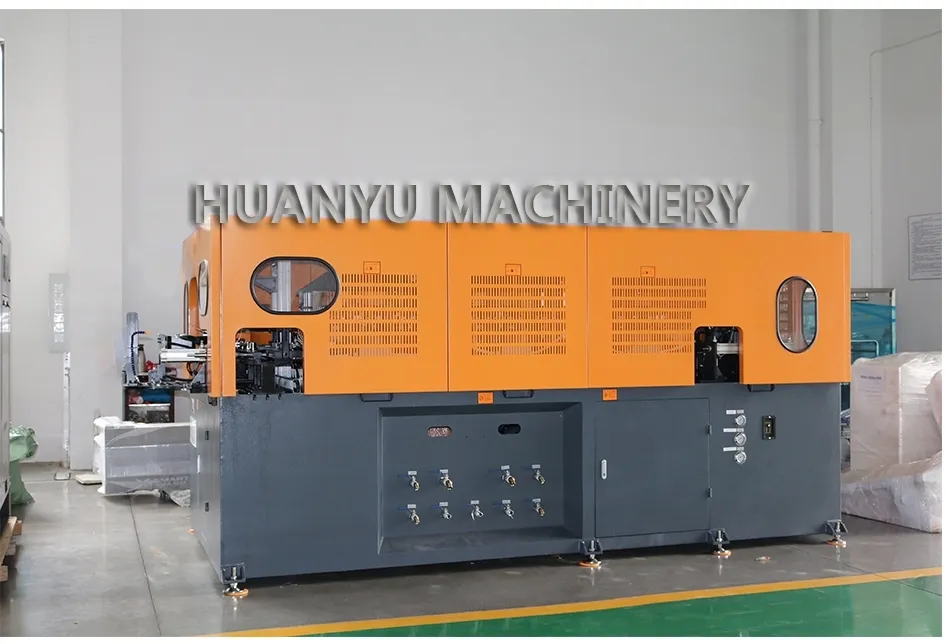

Purifying raw water via silica sand filters, carbon filters, and reverse osmosis systems. The PET stretch blow molding machine produces containers up to 20L for mineral water or carbonated drinks.

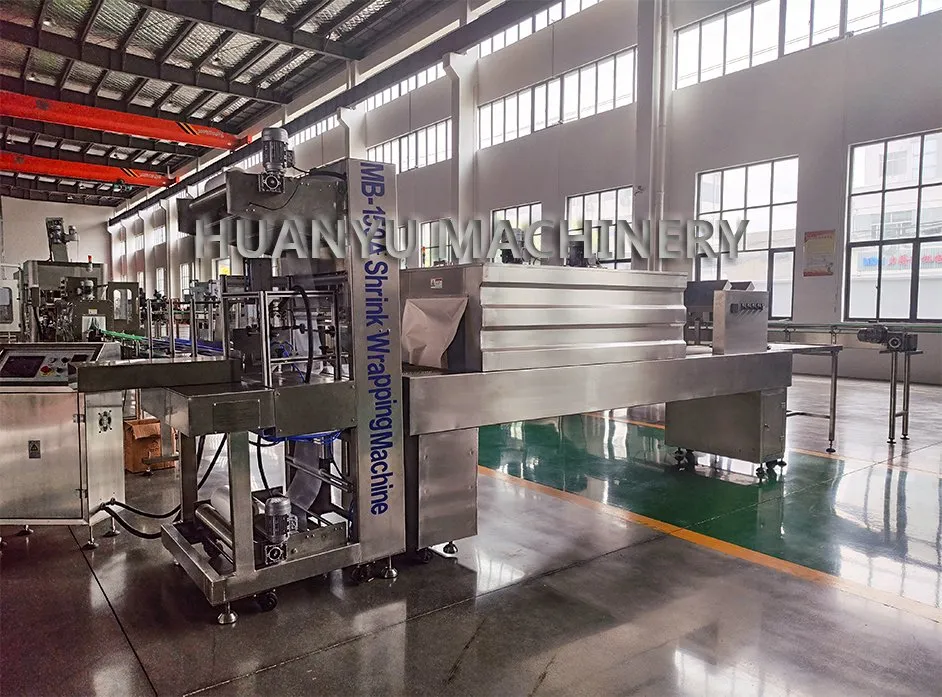

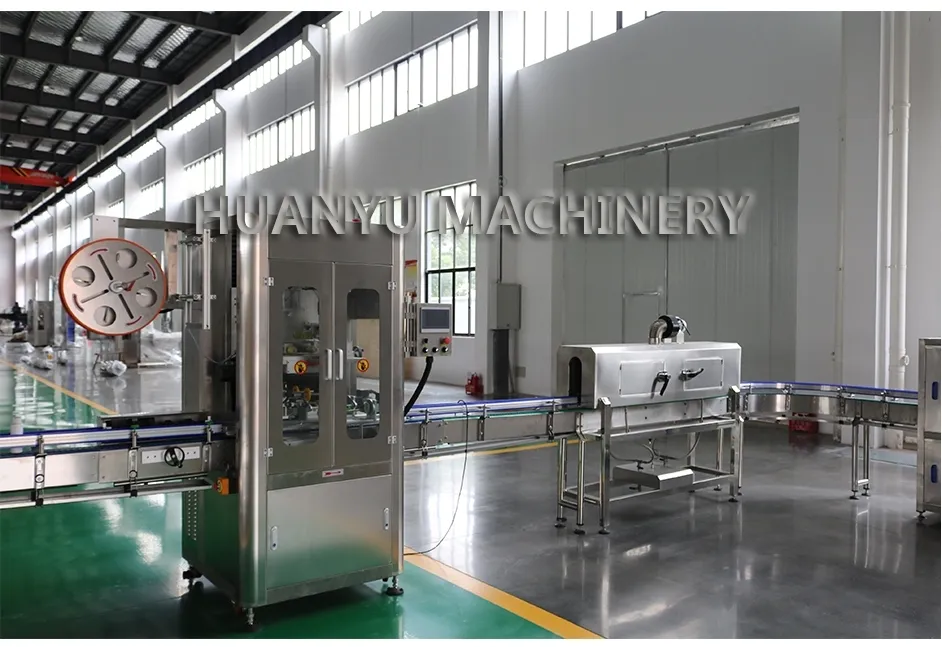

Automatic sleeve labeling machine utilizes hot shrinking for precise label positioning. The shrink packing machine is suitable for pop tops, mineral water, and beer, using German advanced technics for perfect film wrapping.
Our machines are ideal for filling pure water, mineral water, fruit juice, energy drinks, and other non-carbonated beverages in PET or glass bottles.
Yes, the machine can be adjusted for bottle volumes ranging from 200ml to 2L, provided the bottle neck diameter remains the same for the gripping system.
All parts in contact with the product are made of high-quality SUS304 or SUS316L stainless steel to ensure food safety and corrosion resistance.
We use PLC controls from brands like Siemens and perform a 24-hour test run before shipment to ensure pneumatic, electrical, and mechanical stability.
We provide a one-year warranty, lifelong technical support, and can dispatch engineers for on-site installation, debugging, and employee training.
You can send an enquiry with your requirements regarding material, power, filling type, and bottle design. We will provide a professional flow chart and suggestion.
