Customization: Available
Condition: New
Customized: Customized
Send Inquiry

Product Description

Basic Information
Model NO.
RXGF14-12-5
Composition
Filling Machine
Keywords
Water Bottling Machine
Material
SUS304 / 316L
Filling Product
Pure Water / Mineral Water
Bottle Volume
200ml - 2L
Filling Precision
1% (Liquid Level)
Capacity
2000bph - 30000bph
Bottle Material
Pet Bottle / Glass Bottle
Function
Rinsing Filling Capping
Control
PLC (Siemens)
Certification
CE, ISO, SGS
Warranty Time
12 Months
Origin
China
HS Code
8438600
Product Description
Juice Filling Line

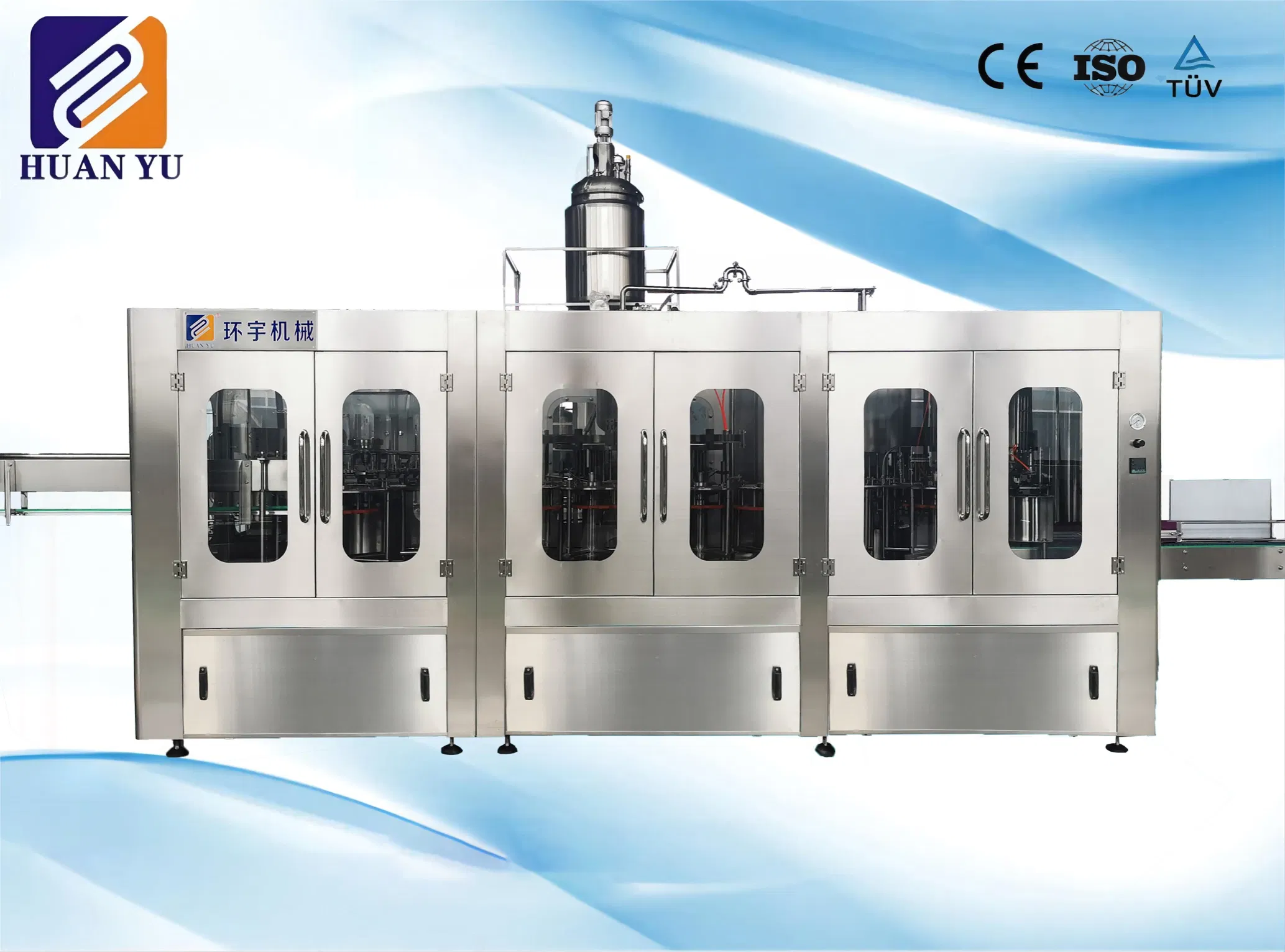

The machine is combined with rinsing, filling and capping, which is specially designed for glass bottled juice or energy drinks. It features stable characteristics, advanced technology, professional appearance, and complete functionality.

Complete Production Flow Chart
1) Water Purification System
Raw water pump → Silica sand filter → Activated carbon filter → Sodium ion exchanger → Precision filters → High pressure pump → Reverse Osmosis system → UV system → Ozone generator.
2) Pre-treatment System
Sugar Melting Machine → Syrup Filter → Juice Mixing and Heating Tank → Double Filter → Vacuum de-aerator → High temperature sterilizer tank.
3) Filling & Packing System
Cap loader → Automatic 3-in-1 juice filling machine → Light Checker → Bottle dryer → Labeling machine → Date/code laser printer → Automatic PE shrink wrapping Machine.

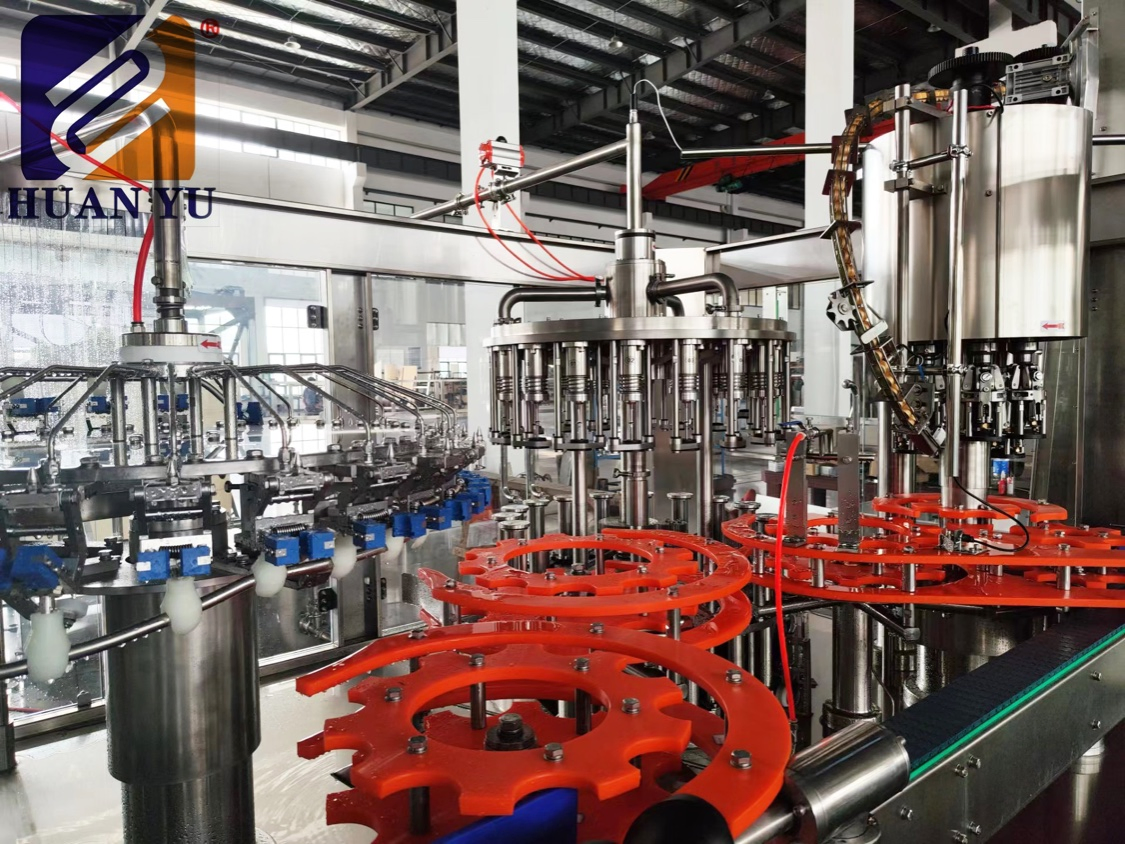

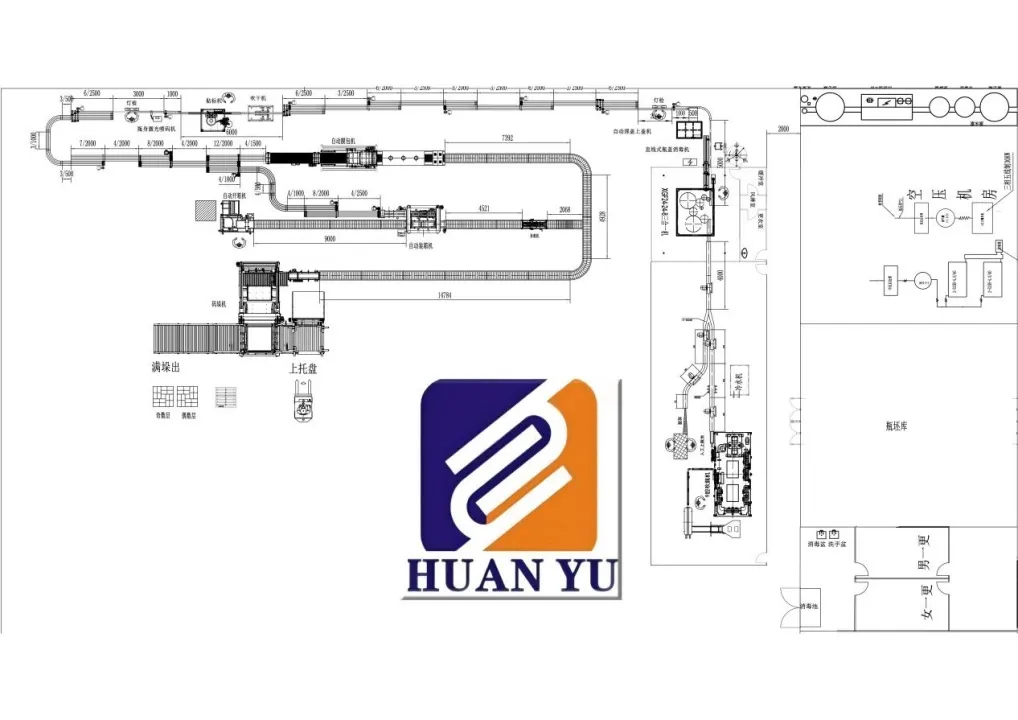

Juice Filling Plant

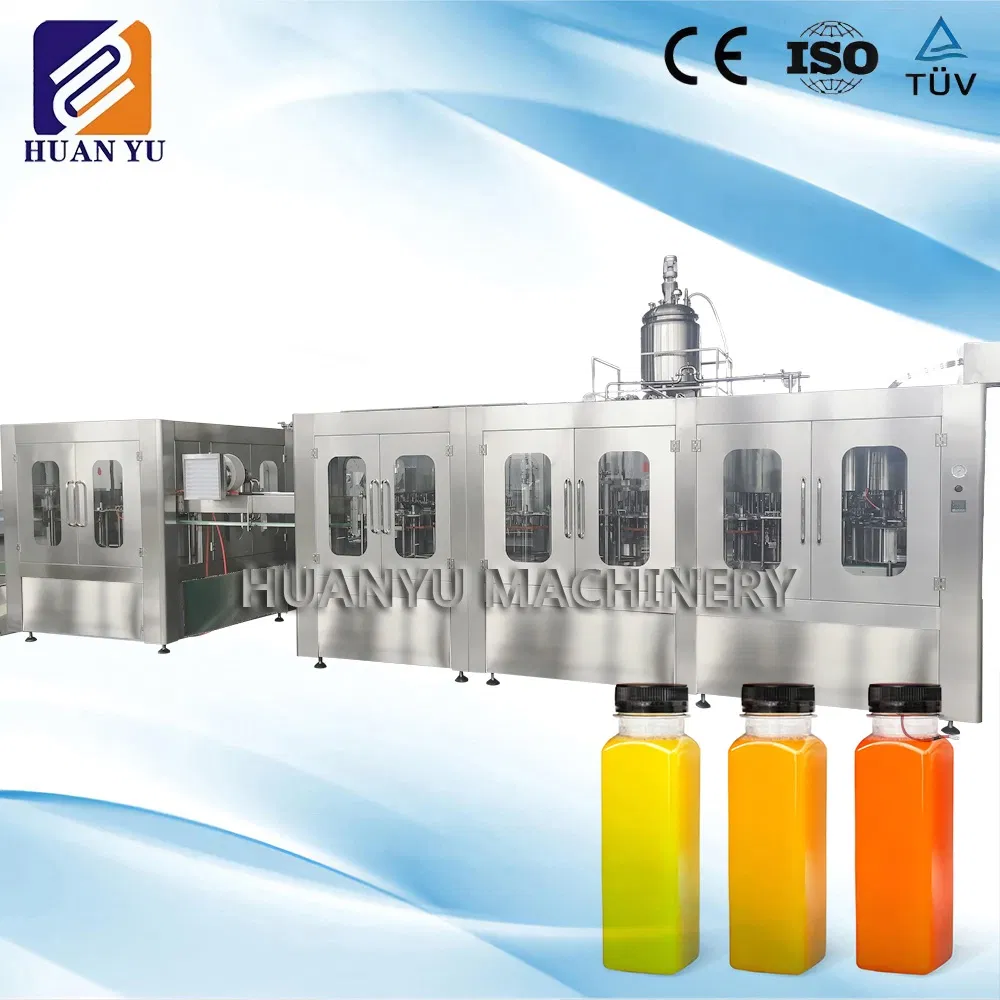

Washing Filling Capping
Technical Characteristics
Model Capacity (500ml) Rinsing Heads Filling Heads Capping Heads Size (LxWxH mm)
RXGF14-12-52400-3400 BPH141252360*1770*1800
RXGF16-16-54000-5000 BPH161652760*2060*1910
RXGF24-24-87000-8000 BPH242482800*2230*2000
RXGF32-32-810000-12000 BPH323284275*2960*1984
RXGF40-40-1014000-15000 BPH4040104697*3322*2700
Main Component Details
Rinser

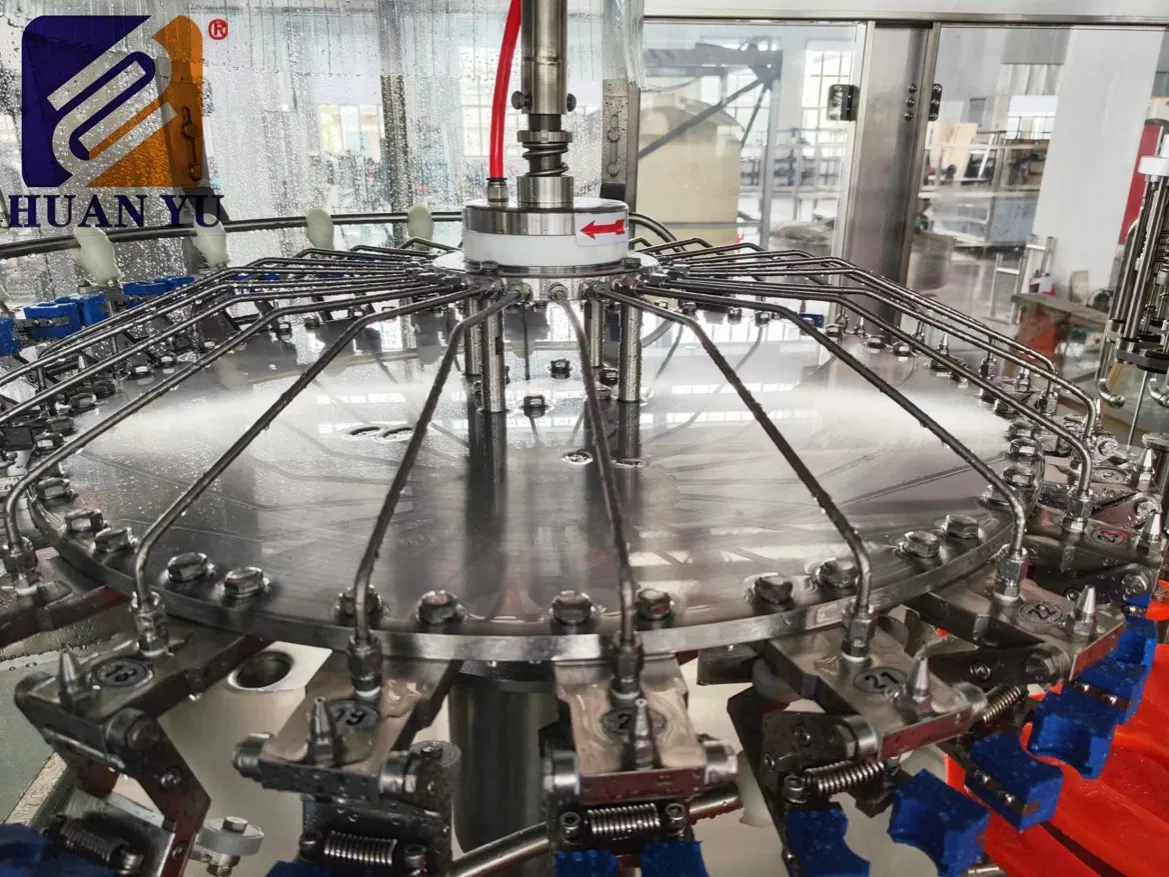

Rinsing Part: Rotary rinsing machine used for beverage and mineral water bottles. Features clamp and turner device for efficient cleaning.

Filler

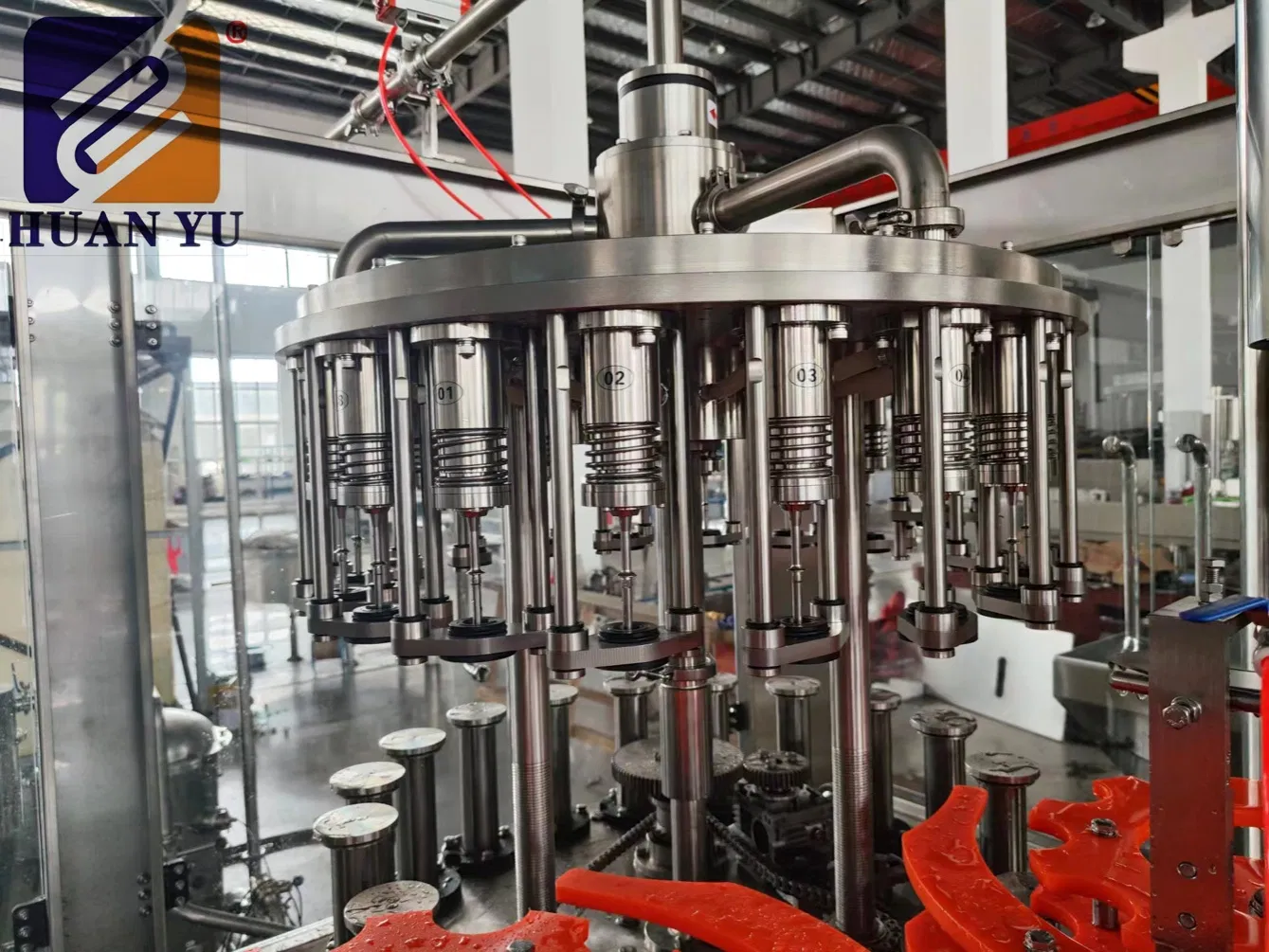

Filling Part: Unique filling valve with no spring contact, ensuring hygiene. PLC controlled with gravity filling and negative pressure reflux.

Capper

Capping Part: Magnetic capping with overload protection. 304 stainless steel construction with electronic capless inspection system.

Ancillary Machinery
Bottle Blowing Machine

Automatic Bottle Blowing: Stable two-step molding for PET bottles up to 20L.

Sleeve Labeling Machine

Labeling Machine: Advanced hot shrinking technology for PET bottle circle labels.

Shrink Packing Machine

Shrink Packing: Germany advanced technics for pop top and mineral water bottle grouping.

Our Professional Services
  • Installation Service: Fast and professional after-sales engineers for factory setup and staff training.
  • Sample & Visit Service: Video demonstrations and factory visits to see machines in operation.
  • Customized Solutions: Design machines based on specific materials, power, and bottle types.
  • Quality Control: Dedicated department ensuring raw material quality and smooth mechanical operation.
  • After-Sales Support: 12 months guarantee with life-long technical support.
Frequently Asked Questions
How can I send an enquiry?
You can contact us via email, phone, or instant messenger. Simply let us know your specific requirements for production capacity and bottle types.
Are you a manufacturer or a trading company?
We are an industrial manufacturer with over 20 years of experience in the beverage machinery industry.
Do you provide technical support for the machines?
Yes, we have a professional team of engineers available for overseas installation, debugging, and training.
What is the warranty period for your equipment?
We provide a 12-month guarantee and offer life-long technical support for all our machinery.
Can the machine be customized?
Absolutely. We can design machines according to your requirements, including material specifications, power, and filling types.
How is the quality of spare parts ensured?
We maintain a sufficient stock of spare parts and use high-quality components from international brands to ensure timely delivery and stability.
